Peugeot 308 SW BL 2011 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2011, Model line: 308 SW BL, Model: Peugeot 308 SW BL 2011Pages: 336, PDF Size: 21.26 MB

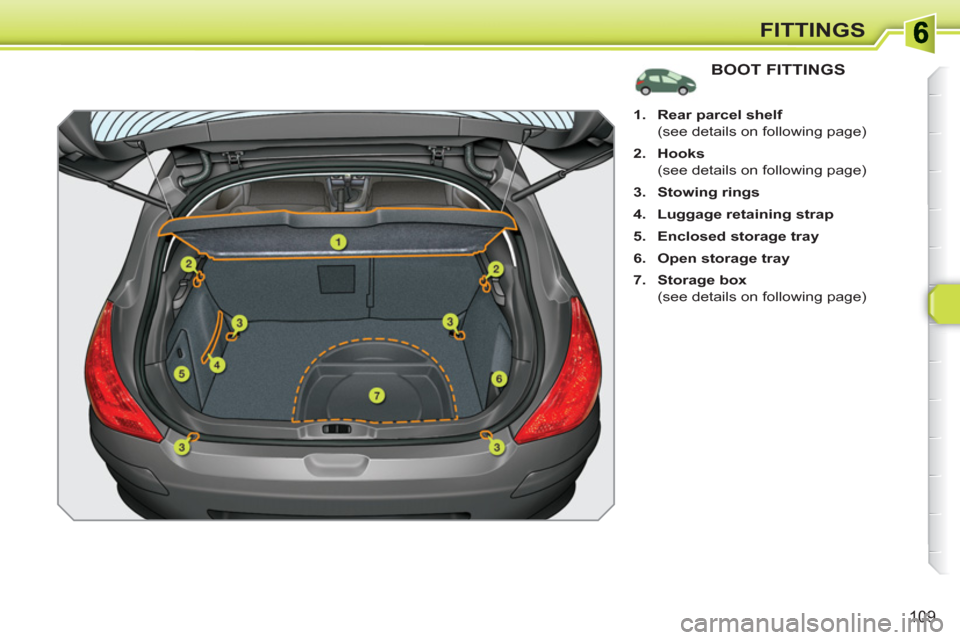

Page 111 of 336
109
FITTINGS
BOOT FITTINGS
1.
Rear parcel shelf
(see details on following page)
2.
Hooks
(see details on following page)
3.
Stowing rings
4.
Luggage retaining strap
5.
Enclosed storage tray
6.
Open storage tray
7.
Storage box
(see details on following page)

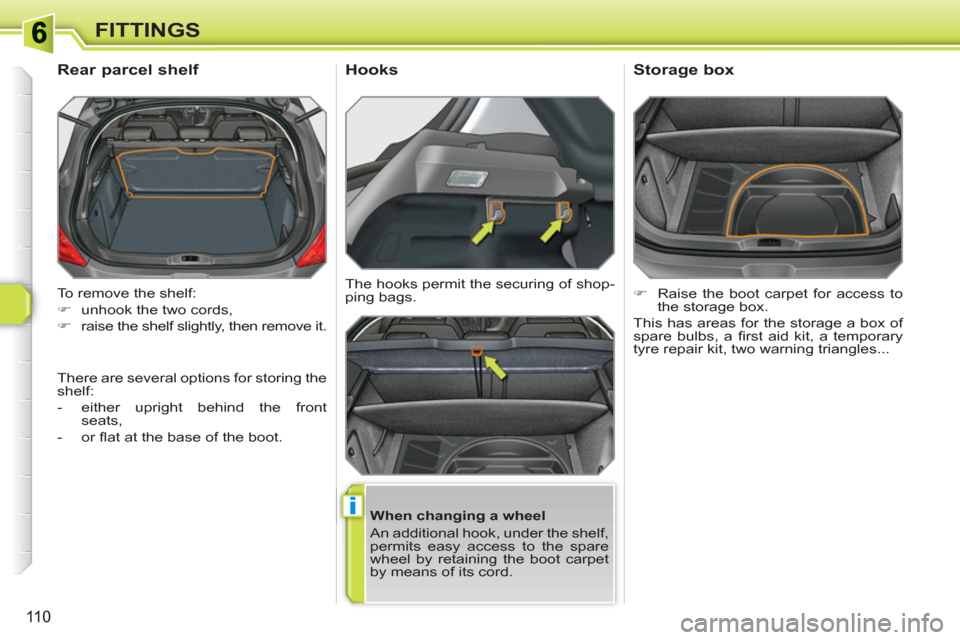

Page 112 of 336
i
110
FITTINGS
To remove the shelf:
)
unhook the two cords,
)
raise the shelf slightly, then remove it.
Rear parcel shelf
When changing a wheel
An additional hook, under the shelf,
permits easy access to the spare
wheel by retaining the boot carpet
by means of its cord.
The hooks permit the securing of shop-
ping bags.
Hooks
There are several options for storing the
shelf:
- either upright behind the front
seats,
- or fl at at the base of the boot.
)
Raise the boot carpet for access to
the storage box.
This has areas for the storage a box of
spare bulbs, a fi rst aid kit, a temporary
tyre repair kit, two warning triangles...
Storage box
Page 113 of 336
111
FITTINGS

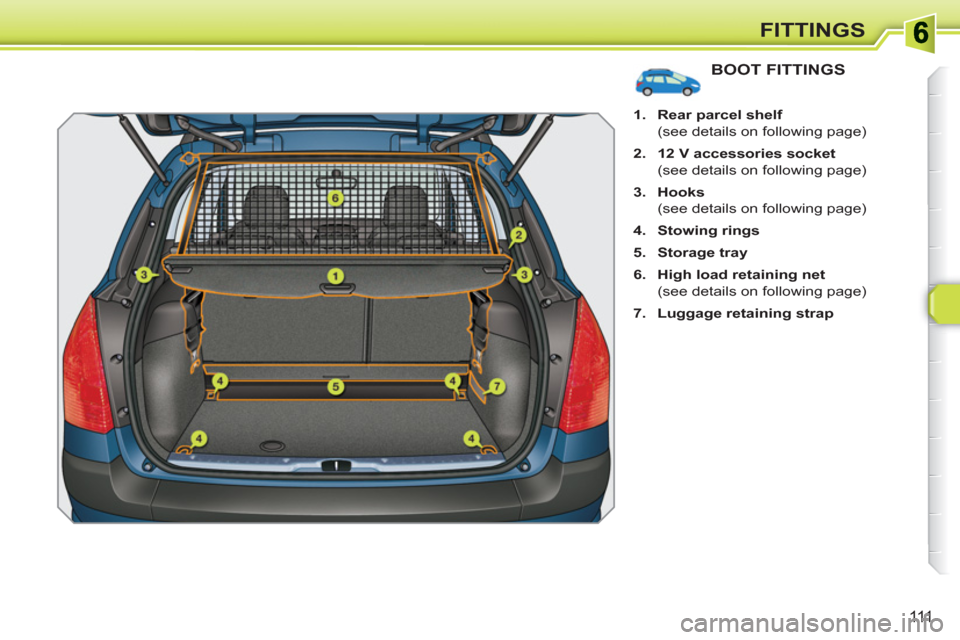

BOOT FITTINGS
1.
Rear parcel shelf
(see details on following page)
2.
12 V accessories socket
(see details on following page)
3.
Hooks
(see details on following page)
4.
Stowing rings
5.
Storage tray
6.
High load retaining net
(see details on following page)
7.
Luggage retaining strap

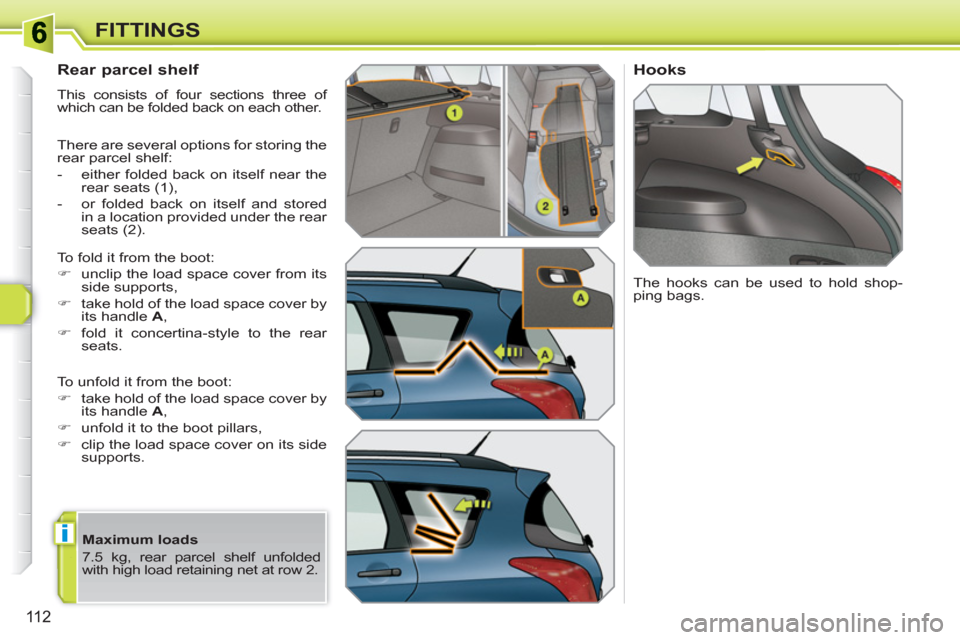

Page 114 of 336
i
11 2
FITTINGS
Rear parcel shelf
This consists of four sections three of
which can be folded back on each other.
There are several options for storing the
rear parcel shelf:
- either folded back on itself near the
rear seats (1),
- or folded back on itself and stored
in a location provided under the rear
seats (2).
To fold it from the boot:
)
unclip the load space cover from its
side supports,
)
take hold of the load space cover by
its handle A
,
)
fold it concertina-style to the rear
seats.
To unfold it from the boot:
)
take hold of the load space cover by
its handle A
,
)
unfold it to the boot pillars,
)
clip the load space cover on its side
supports.
Hooks
Maximum loads
7.5 kg, rear parcel shelf unfolded
with high load retaining net at row 2.
The hooks can be used to hold shop-
ping bags.
Page 115 of 336
i
i
113
FITTINGS

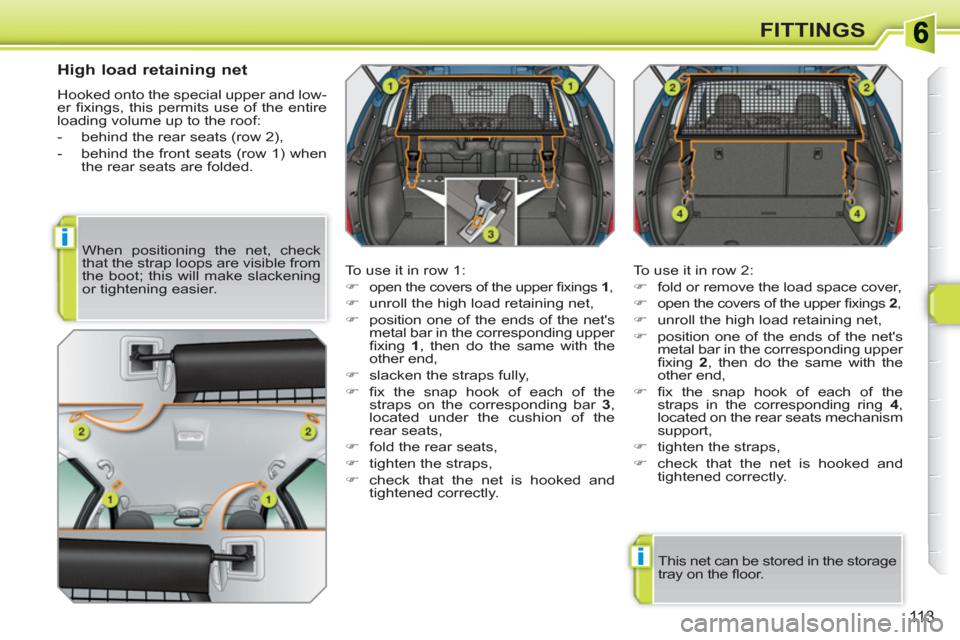

High load retaining net
Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when
the rear seats are folded.
To use it in row 1:
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,
)
slacken the straps fully,
)
fi x the snap hook of each of the
straps on the corresponding bar 3
,
located under the cushion of the
rear seats,
)
fold the rear seats,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly. To use it in row 2:
)
fold or remove the load space cover,
)
open the covers of the upper fi xings 2
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2
, then do the same with the
other end,
)
fi x the snap hook of each of the
straps in the corresponding ring 4
,
located on the rear seats mechanism
support,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly. When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
This net can be stored in the storage
tray on the fl oor.

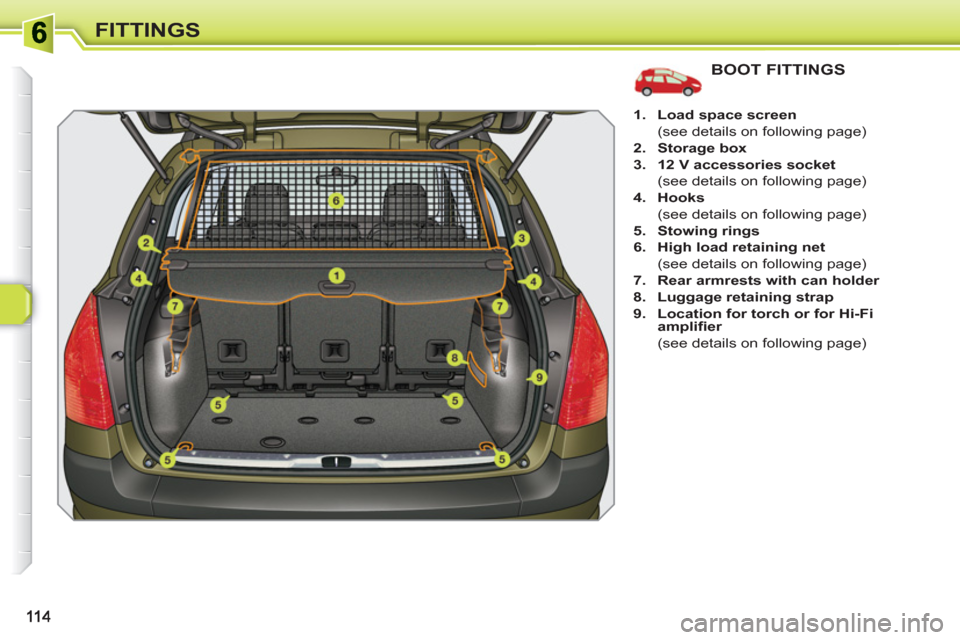

Page 116 of 336
FITTINGS
BOOT FITTINGS
1.
Load space screen
(see details on following page)
2.
Storage box
3.
12 V accessories socket
(see details on following page)
4.
Hooks
(see details on following page)
5.
Stowing rings
6.
High load retaining net
(see details on following page)
7.
Rear armrests with can holder
8.
Luggage retaining strap
9.
Location for torch or for Hi-Fi
amplifi er
(see details on following page)

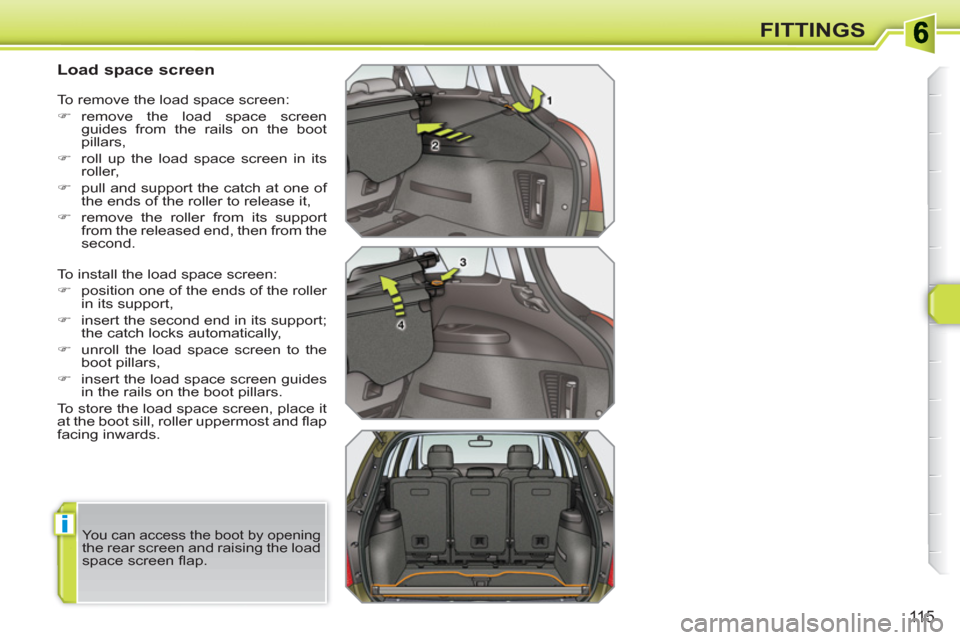

Page 117 of 336
i
115
FITTINGS
Load space screen
To install the load space screen:
)
position one of the ends of the roller
in its support,
)
insert the second end in its support;
the catch locks automatically,
)
unroll the load space screen to the
boot pillars,
)
insert the load space screen guides
in the rails on the boot pillars.
To store the load space screen, place it
at the boot sill, roller uppermost and fl ap
facing inwards. To remove the load space screen:
)
remove the load space screen
guides from the rails on the boot
pillars,
)
roll up the load space screen in its
roller,
)
pull and support the catch at one of
the ends of the roller to release it,
)
remove the roller from its support
from the released end, then from the
second.
You can access the boot by opening
the rear screen and raising the load
space screen fl ap.

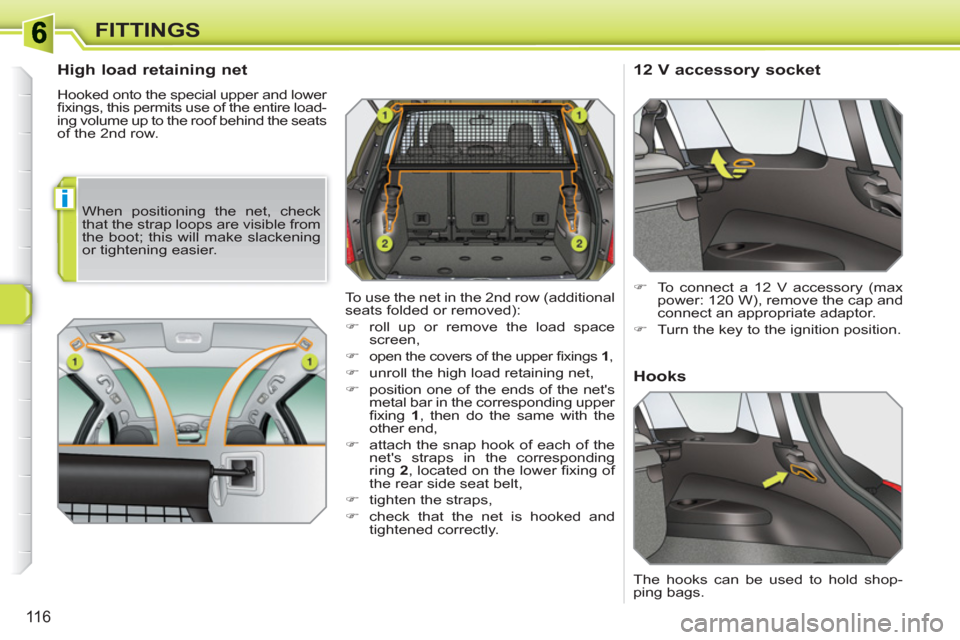

Page 118 of 336
i
116
FITTINGS
High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row.
12 V accessory socket
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):
)
roll up or remove the load space
screen,
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,
)
attach the snap hook of each of the
net's straps in the corresponding
ring 2
, located on the lower fi xing of
the rear side seat belt,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
Hooks
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
The hooks can be used to hold shop-
ping bags.

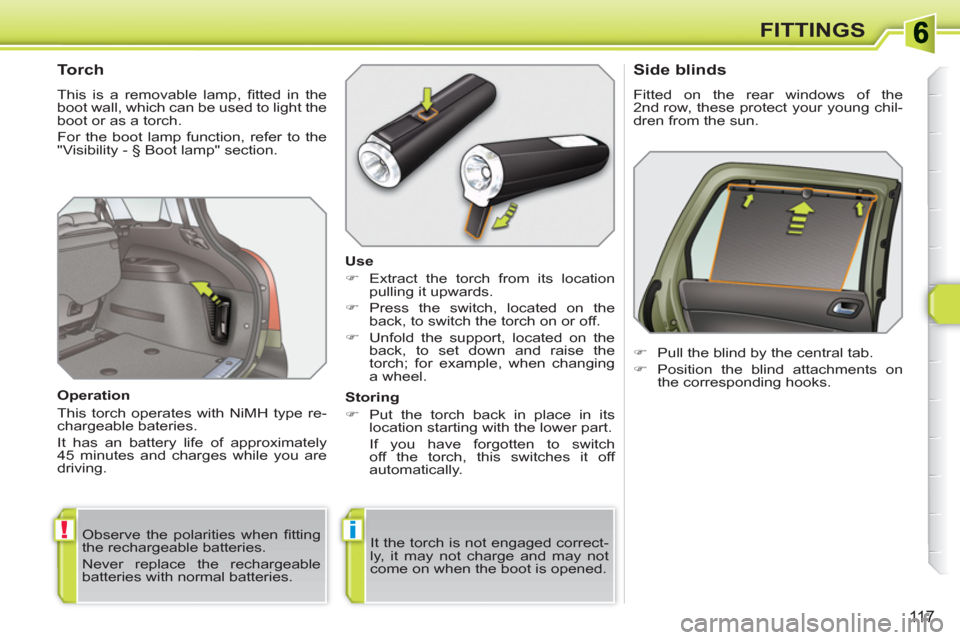

Page 119 of 336
!i
11 7
FITTINGS
Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Operation
This torch operates with NiMH type re-
chargeable bateries.
It has an battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling it upwards.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch
off the torch, this switches it off
automatically.
Side blinds
Fitted on the rear windows of the
2nd row, these protect your young chil-
dren from the sun.
)
Pull the blind by the central tab.
)
Position the blind attachments on
the corresponding hooks.
Observe the polarities when fi tting
the rechargeable batteries.
Never replace the rechargeable
batteries with normal batteries. It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.

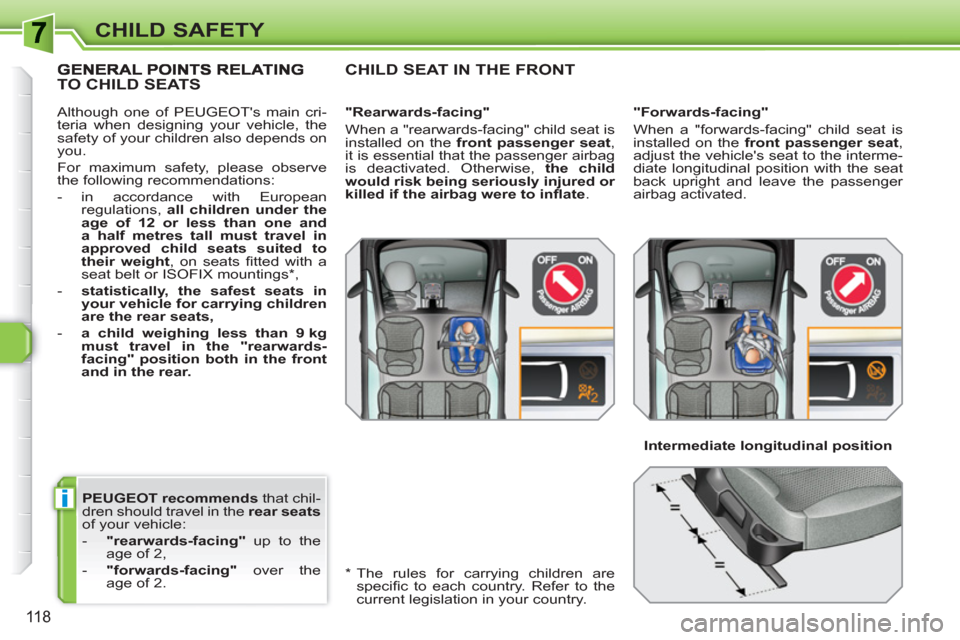

Page 120 of 336
i
118
CHILD SAFETY
PEUGEOT recommends
that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing"
up to the
age of 2,
- "forwards-facing"
over the
age of 2.
TO CHILD SEATSCHILD SEAT IN THE FRONT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European
regulations, all children under the
age of 12 or less than one and
a half metres tall must travel in
approved child seats suited to
their weight
, on seats fi tted with a
seat belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
Intermediate longitudinal position
