Peugeot 308 SW BL 2011 Owner's Manual

119
CHILD SAFETY


Group 0+: from birth to 13 kg



Groups 1, 2 and 3: from 9 to 36 kg






L1


"RÖMER Baby-
Safe Plus"
Installed in the
rearwards-facing
position.



L2


"KIDDY Life"
The use of the
restraining cushion
is compulsory for
carrying young
children (from 9 to
18 kg).


Groups 2 and 3: from 15 to 36 kg






L3


"RECARO Start''



L4


"KLIPPAN Optima"
From the age
of 6 years
(approximately
22 kg), the booster
is used on its own.




L5


"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

Passenger airbag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt
:

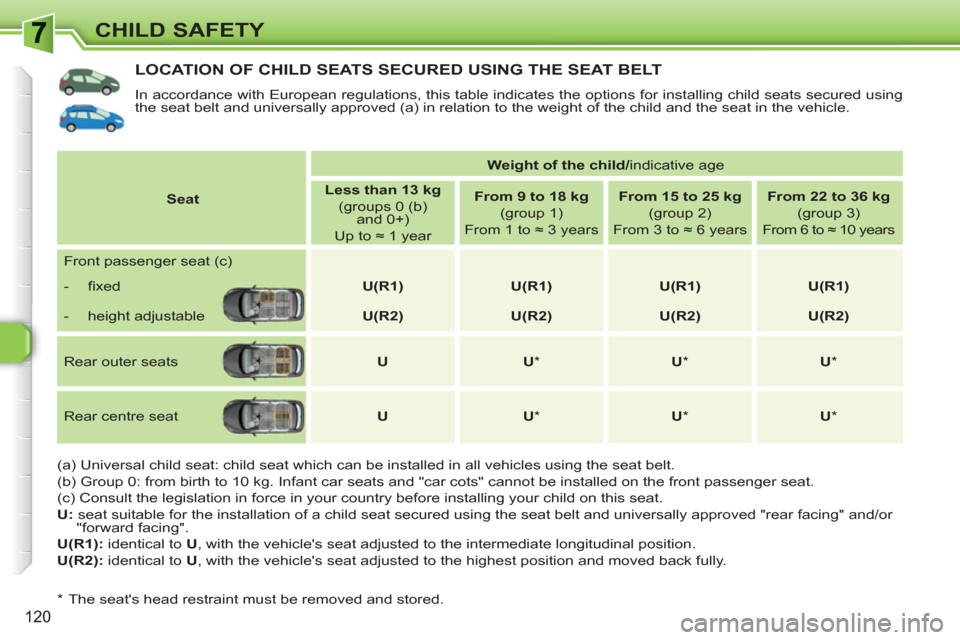

120
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".

U(R1)
: identical to U
, with the vehicle's seat adjusted to the intermediate longitudinal position.

U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position and moved back fully.

*
The seat's head restraint must be removed and stored.

Seat



Weight of the child/
indicative age


Less than 13 kg


(groups 0 (b)
and 0+)
Up to ≈ 1 year

From 9 to 18 kg


(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg


(group 2)
From 3 to ≈ 6 years

From 22 to 36 kg


(group 3)
From 6 to ≈ 10 years

Front passenger seat (c)



- fi xed


U(R1)



U(R1)



U(R1)



U(R1)





- height adjustable


U(R2)



U(R2)



U(R2)



U(R2)



Rear outer seats

U



U

*


U

*


U

*


Rear centre seat

U



U

*


U

*


U

*

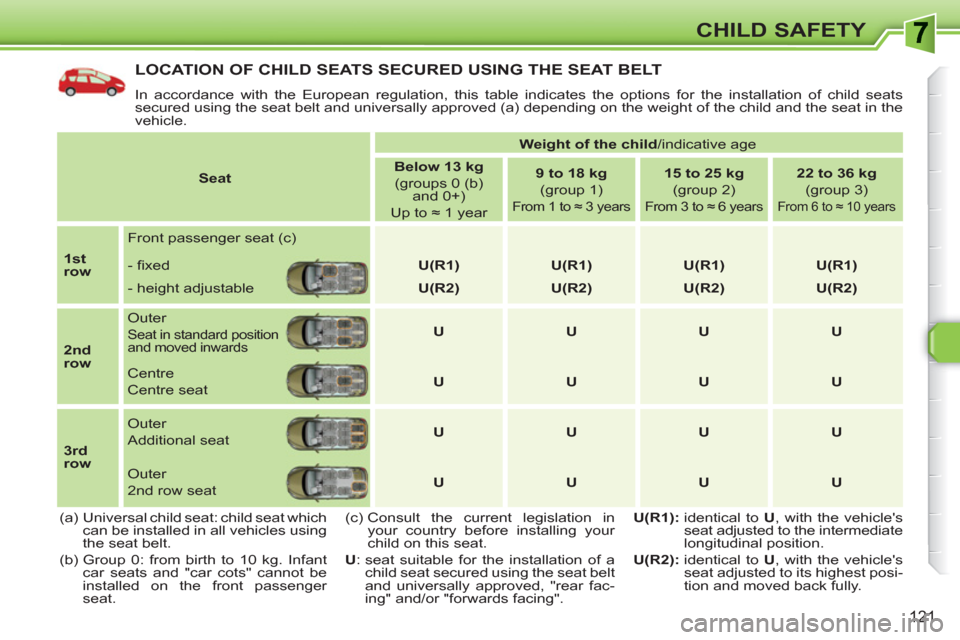

121
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation, this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) depending on the weight of the child and the seat in the
vehicle.
(a) Universal child seat: child seat which
can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg. Infant
car seats and "car cots" cannot be
installed on the front passenger
seat.

Seat



Weight of the child
/indicative age


Below 13 kg


(groups 0 (b)
and 0+)
Up to ≈ 1 year

9 to 18 kg


(group 1)
From 1 to ≈ 3 years


15 to 25 kg


(group 2) From 3 to ≈ 6 years



22 to 36 kg


(group 3)


From 6 to ≈ 10 years



1st
row

Front passenger seat (c)








- fi xed

U(R1)



U(R1)



U(R1)



U(R1)


- height adjustable

U(R2)



U(R2)



U(R2)



U(R2)




2nd
row

Outer
Seat in standard position
and moved inwards

U



U



U



U


Centre
Centre seat

U



U



U



U




3rd
row

Outer
Additional seat

U



U



U



U


Outer
2nd row seat

U



U



U



U


(c) Consult the current legislation in
your country before installing your
child on this seat.

U
: seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear fac-
ing" and/or "forwards facing".
U(R1) : identical to U
, with the vehicle's
seat adjusted to the intermediate
longitudinal position.

U(R2)
: identical to U
, with the vehicle's
seat adjusted to its highest posi-
tion and moved back fully.

!

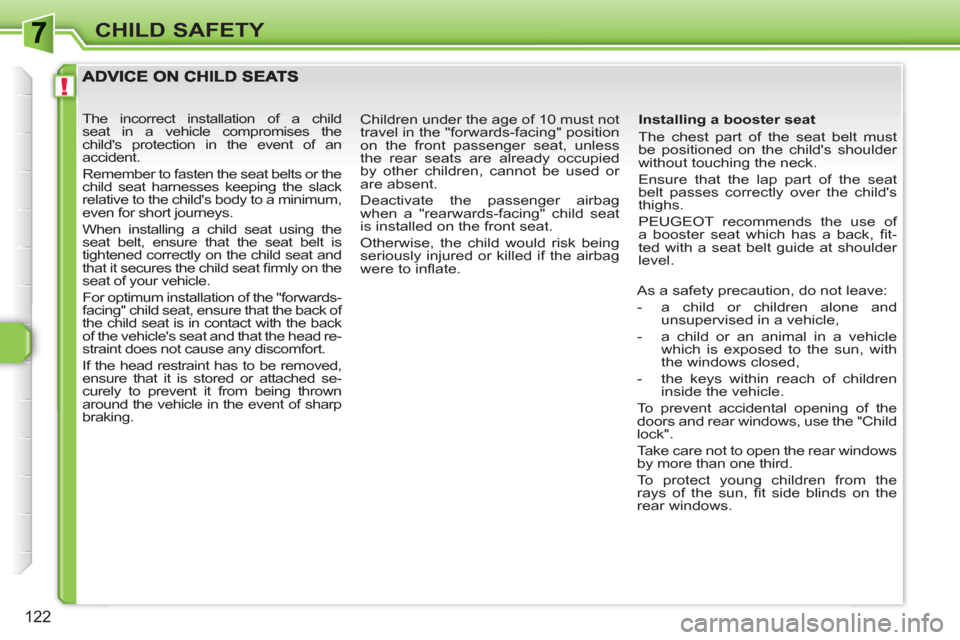

122
CHILD SAFETY

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- a child or children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the "Child
lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat and
that it secures the child seat fi rmly on the
seat of your vehicle.
For optimum installation of the "forwards-
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head re-
straint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

i
123
CHILD SAFETY

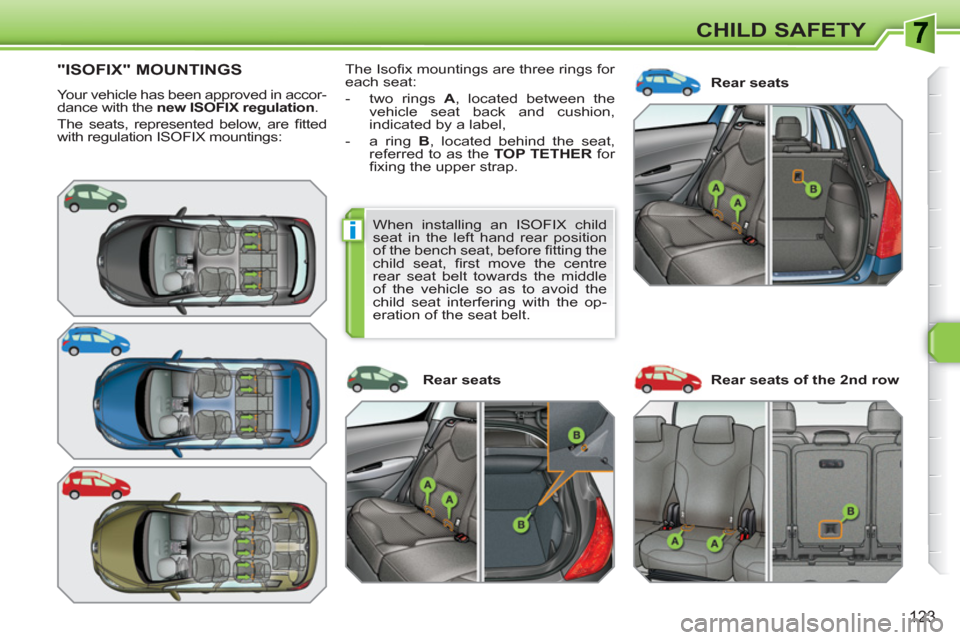

"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: Rear seats The Isofi x mountings are three rings for
each seat:


- two rings A
, located between the
vehicle seat back and cushion,
indicated by a label,

- a ring B
, located behind the seat,
referred to as the TOP TETHER
for
fi xing the upper strap.


Rear seats Rear seats of the 2nd row

When installing an ISOFIX child
seat in the left hand rear position
of the bench seat, before fi tting the
child seat, fi rst move the centre
rear seat belt towards the middle
of the vehicle so as to avoid the
child seat interfering with the op-
eration of the seat belt.

i
!
i

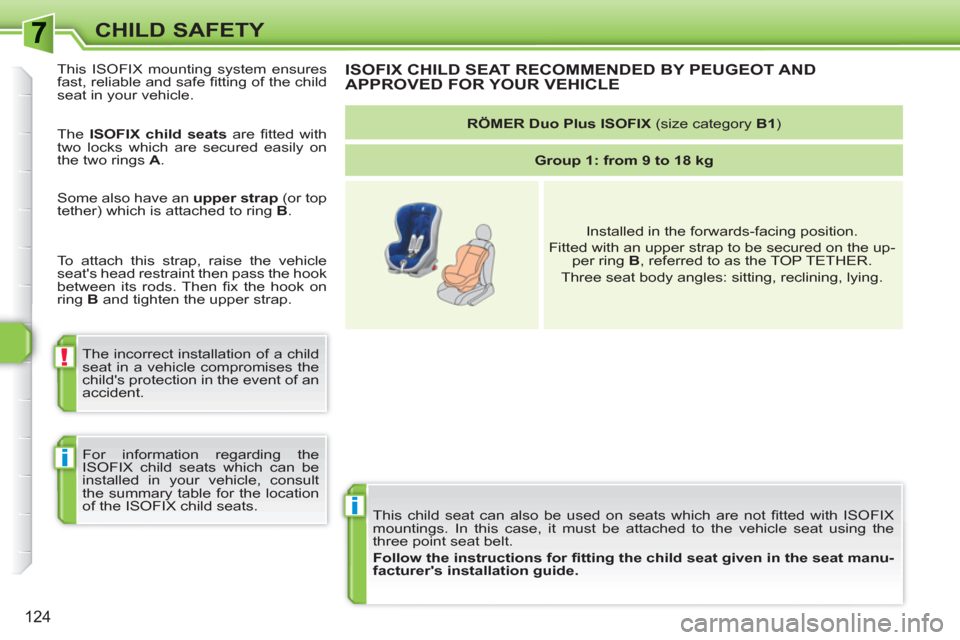

124
CHILD SAFETY
This child seat can also be used on seats which are not fi tted with ISOFIX
mountings. In this case, it must be attached to the vehicle seat using the
three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manu-
facturer's installation guide.

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT ANDAPPROVED FOR YOUR VEHICLE



RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg





Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the up-
per ring B
, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying. This ISOFIX mounting system ensures
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two locks which are secured easily on
the two rings A
.
Some also have an upper strap
(or top
tether) which is attached to ring B
.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the location
of the ISOFIX child seats. To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.

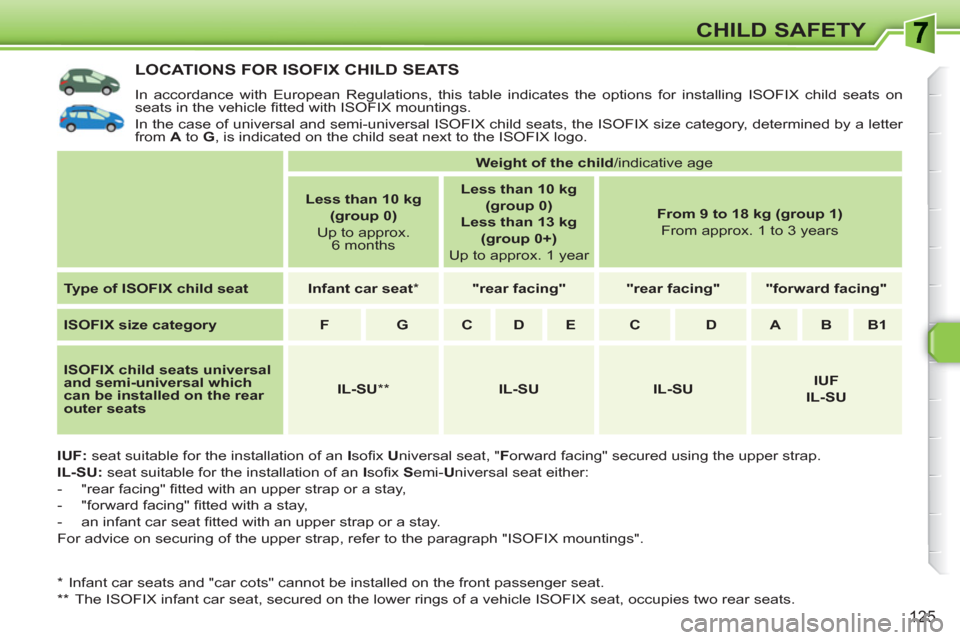

125
CHILD SAFETY
LOCATIONS FOR ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on
seats in the vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter
from A
to G
, is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" secured using the upper strap.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rear facing" fi tted with an upper strap or a stay,

- "forward facing" fi tted with a stay,

- an infant car seat fi tted with an upper strap or a stay.
For advice on securing of the upper strap, refer to the paragraph "ISOFIX mountings".

*
Infant car seats and "car cots" cannot be installed on the front passenger seat.

**
The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.



Weight of the child
/indicative age


Less than 10 kg
(group 0)


Up to approx.
6 months

Less than 10 kg


(group 0)
Less than 13 kg


(group 0+)


Up to approx. 1 year

From 9 to 18 kg (group 1)


From approx. 1 to 3 years


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




ISOFIX child seats universal
and semi-universal which
can be installed on the rear
outer seats



IL-SU

**


IL-SU



IL-SU



IUF


IL-SU

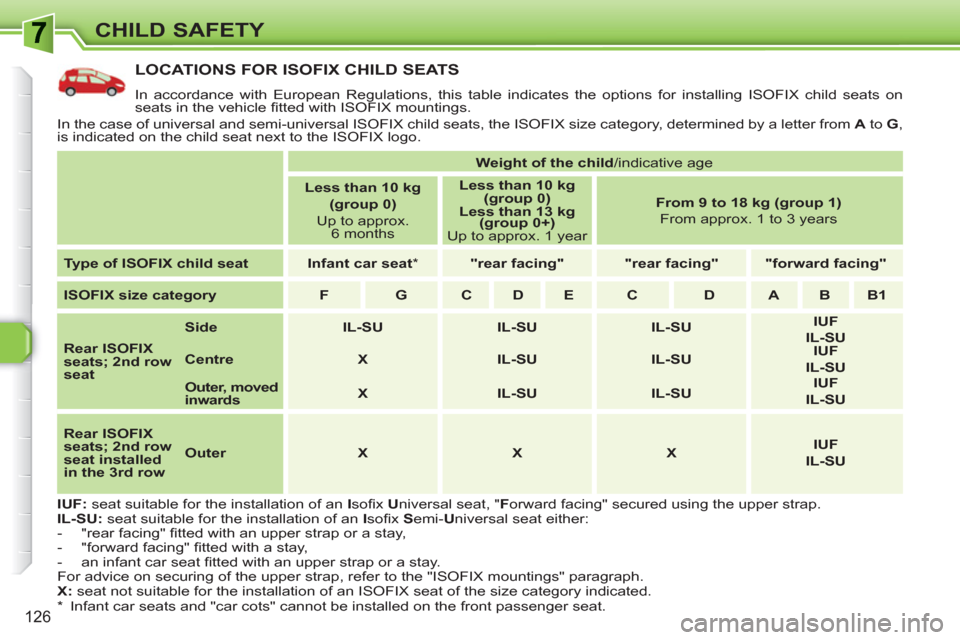

126
CHILD SAFETY
LOCATIONS FOR ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on
seats in the vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" secured using the upper strap.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rear facing" fi tted with an upper strap or a stay,

- "forward facing" fi tted with a stay,

- an infant car seat fi tted with an upper strap or a stay.
For advice on securing of the upper strap, refer to the "ISOFIX mountings" paragraph.

X:
seat not suitable for the installation of an ISOFIX seat of the size category indicated.



Weight of the child
/indicative age


Less than 10 kg
(group 0)


Up to approx.
6 months

Less than 10 kg
(group 0)


Less than 13 kg
(group 0+)


Up to approx. 1 year

From 9 to 18 kg (group 1)


From approx. 1 to 3 years


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




Rear ISOFIX
seats; 2nd row
seat



Side



IL-SU



IL-SU



IL-SU



IUF


IL-SU




Centre



X



IL-SU



IL-SU



IUF
IL-SU




Outer, moved
inwards


X



IL-SU



IL-SU



IUF
IL-SU




Rear ISOFIX
seats; 2nd row
seat installed
in the 3rd row



Outer



X



X



X



IUF
IL-SU



*
Infant car seats and "car cots" cannot be installed on the front passenger seat.

!
!

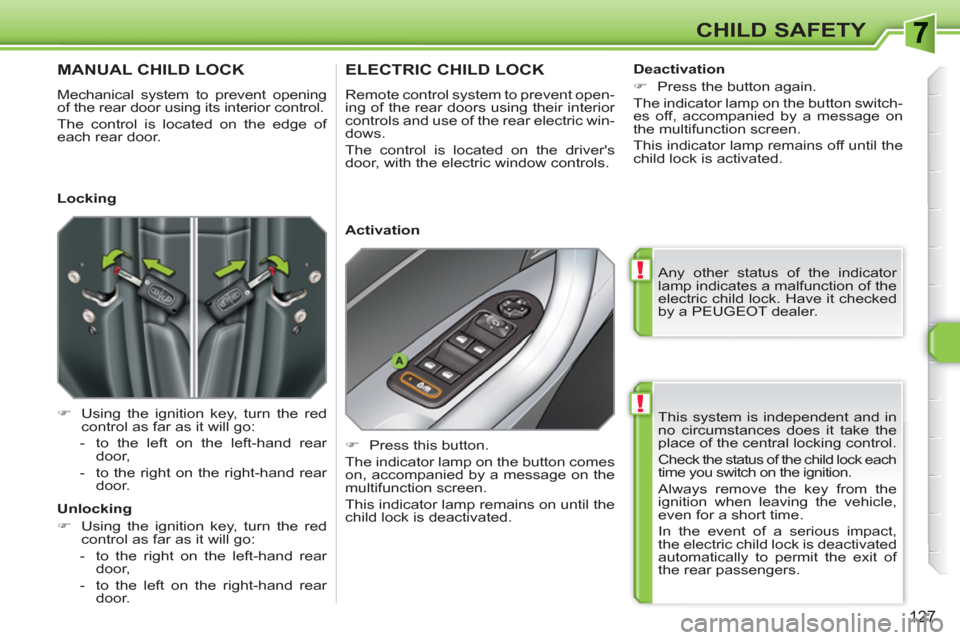

127
CHILD SAFETY
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to permit the exit of
the rear passengers.

MANUAL CHILD LOCK

Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.


)
Using the ignition key, turn the red
control as far as it will go:


- to the left on the left-hand rear
door,

- to the right on the right-hand rear
door.


ELECTRIC CHILD LOCK

Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric win-
dows.
The control is located on the driver's
door, with the electric window controls.


)
Press this button.
The indicator lamp on the button comes
on, accompanied by a message on the
multifunction screen.
This indicator lamp remains on until the
child lock is deactivated.
Locking

Unlocking


)
Using the ignition key, turn the red
control as far as it will go:


- to the right on the left-hand rear
door,

- to the left on the right-hand rear
door.



Activation
Deactivation


)
Press the button again.
The indicator lamp on the button switch-
es off, accompanied by a message on
the multifunction screen.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.

ii

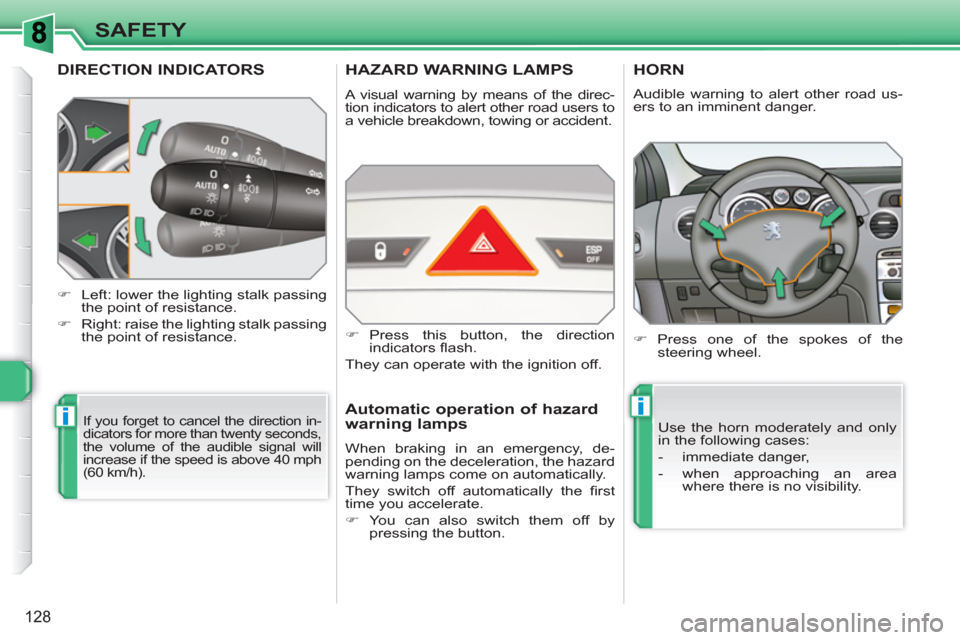

128
SAFETY
DIRECTION INDICATORS
If you forget to cancel the direction in-
dicators for more than twenty seconds,
the volume of the audible signal will
increase if the speed is above 40 mph
(60 km/h).


)
Left: lower the lighting stalk passing
the point of resistance.

)
Right: raise the lighting stalk passing
the point of resistance.
HAZARD WARNING LAMPS

A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.


)
Press this button, the direction
indicators fl ash.
They can operate with the ignition off.













Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.

HORN



)
Press one of the spokes of the
steering wheel.
Use the horn moderately and only
in the following cases:


- immediate danger,

- when approaching an area
where there is no visibility.

Audible warning to alert other road us-
ers to an imminent danger.
