99

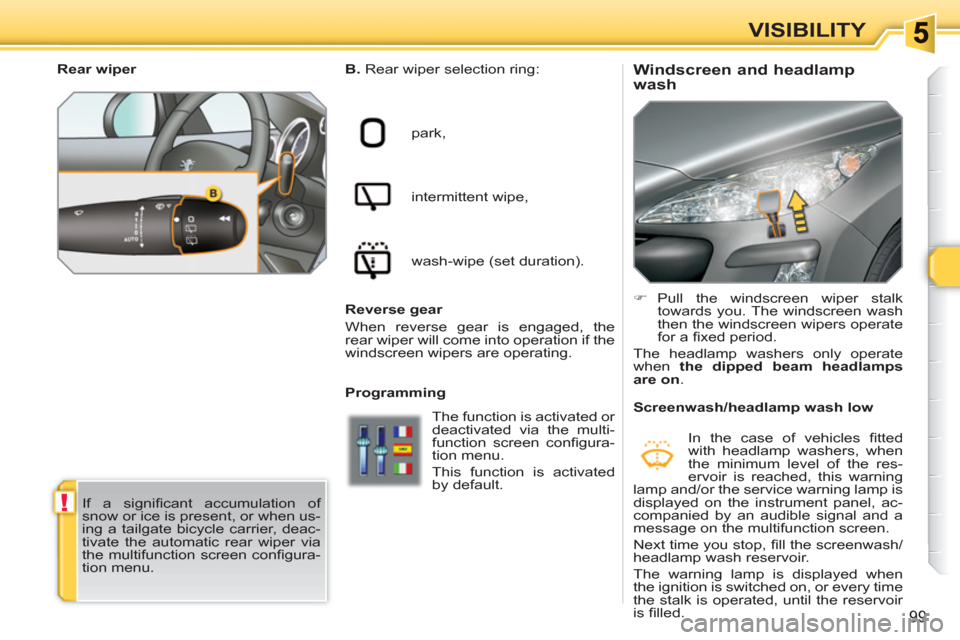

VISIBILITY
Windscreen and headlamp
wash
B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Programming
)
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.
Rear wiper
If a signifi cant accumulation of
snow or ice is present, or when us-
ing a tailgate bicycle carrier, deac-
tivate the automatic rear wiper via
the multifunction screen confi gura-
tion menu.
Screenwash/headlamp wash low
In the case of vehicles fi tted
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
lamp and/or the service warning lamp is
displayed on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when
the ignition is switched on, or every time
the stalk is operated, until the reservoir
is fi lled.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Page 102 of 336
!
i
i
100
VISIBILITY

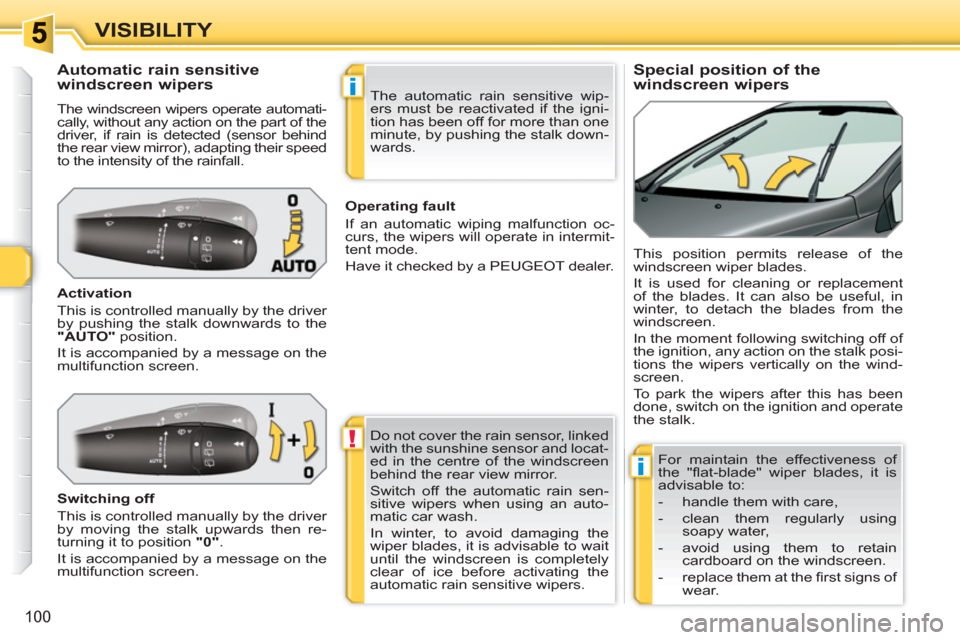

Special position of the
windscreen wipers
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message on the
multifunction screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wip-
ers must be reactivated if the igni-
tion has been off for more than one
minute, by pushing the stalk down-
wards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message on the
multifunction screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
For maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:
- handle them with care,
- clean them regularly using
soapy water,
- avoid using them to retain
cardboard on the windscreen.
- replace them at the fi rst signs of
wear.
Page 103 of 336
i
i
!
101
VISIBILITY

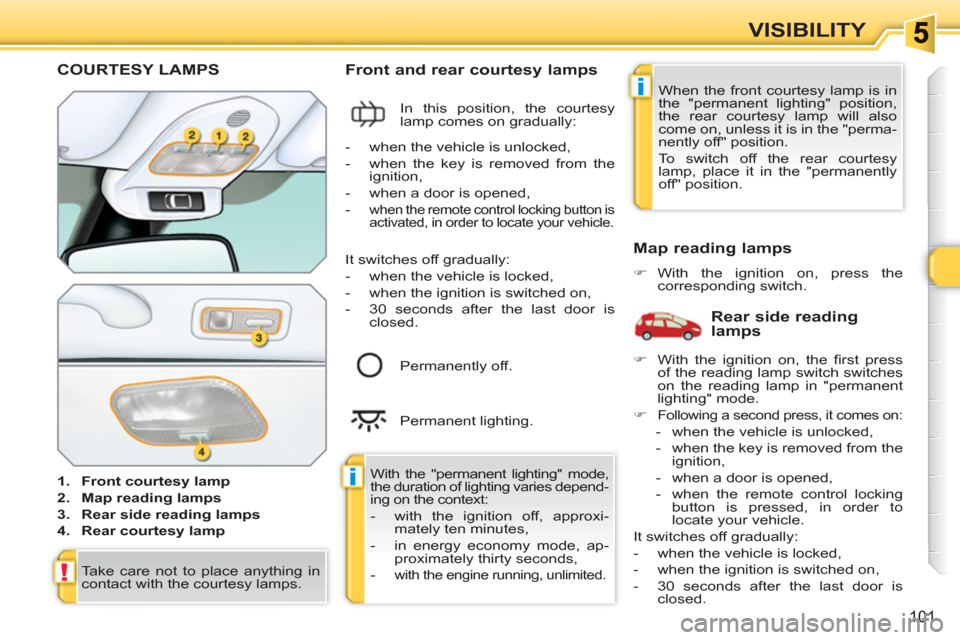

COURTESY LAMPS
1.
Front courtesy lamp
2.
Map reading lamps
3.
Rear side reading lamps
4.
Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
)
With the ignition on, press the
corresponding switch.
With the "permanent lighting" mode,
the duration of lighting varies depend-
ing on the context:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
-
with the engine running, unli mited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
When the front courtesy lamp is in
the "permanent lighting" position,
the rear courtesy lamp will also
come on, unless it is in the "perma-
nently off" position.
To switch off the rear courtesy
lamp, place it in the "permanently
off" position.
Rear side reading
lamps
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Take care not to place anything in
contact with the courtesy lamps.
)
With the ignition on, the fi rst press
of the reading lamp switch switches
on the reading lamp in "permanent
lighting" mode.
)
Following a second press, it comes on:
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking
button is pressed, in order to
locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Page 104 of 336
i
i
102
VISIBILITY

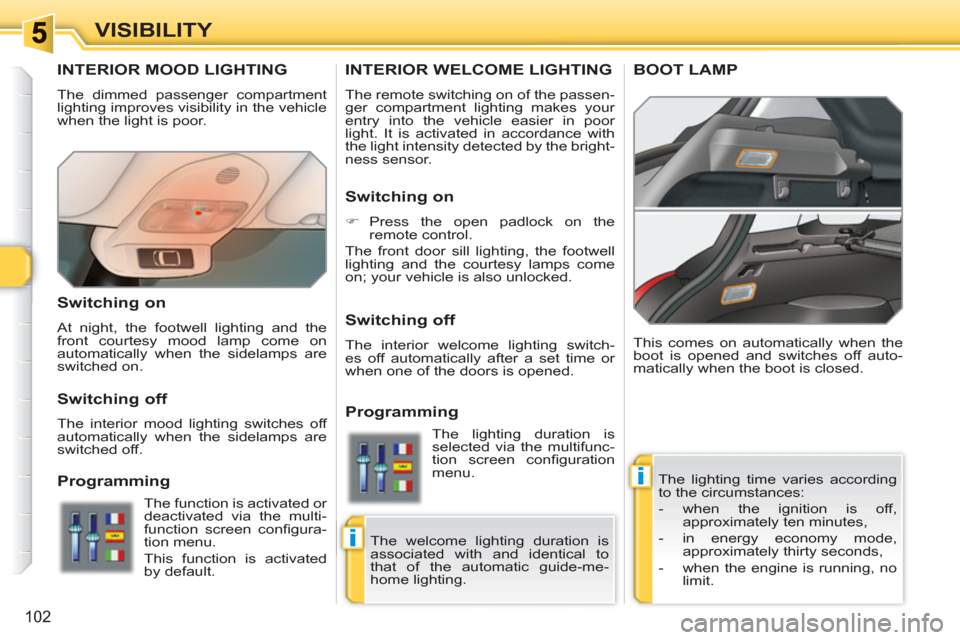

INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
The lighting time varies according
to the circumstances:
- when the ignition is off,
approximately ten minutes,
- in energy economy mode,
approximately thirty seconds,
- when the engine is running, no
limit. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
BOOT LAMP
Switching on
)
Press the open padlock on the
remote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming
Switching on
At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Programming
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting. The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default. The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.
Page 105 of 336
103
FITTINGS

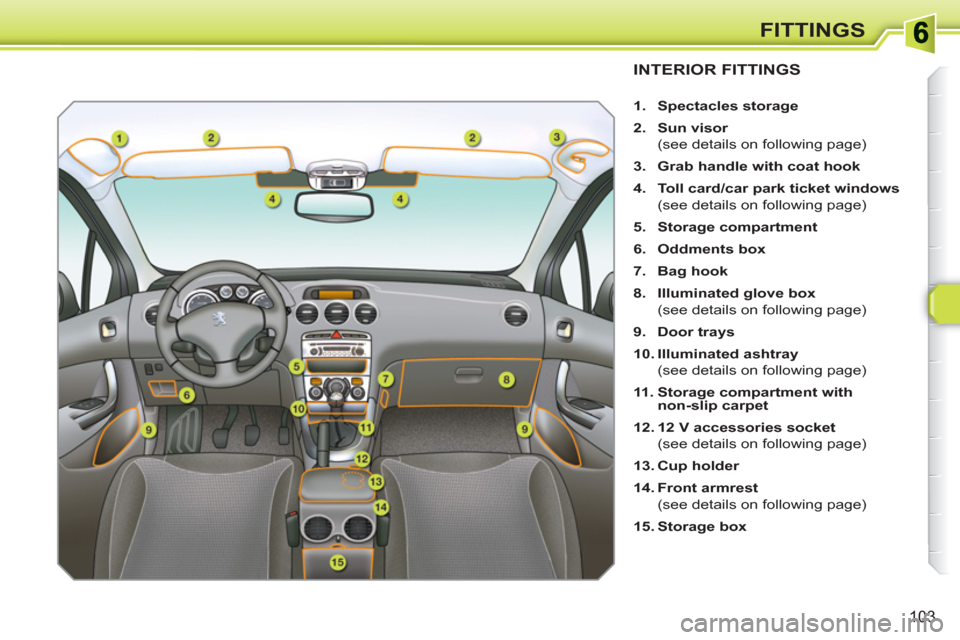

INTERIOR FITTINGS
1.
Spectacles storage
2.
Sun visor
(see details on following page)
3.
Grab handle with coat hook
4.
Toll card/car park ticket windows
(see details on following page)
5.
Storage compartment
6.
Oddments box
7.
Bag hook
8.
Illuminated glove box
(see details on following page)
9.
Door trays
10.
Illuminated ashtray
(see details on following page)
11 .
Storage compartment with
non-slip carpet
12.
12 V accessories socket
(see details on following page)
13.
Cup holder
14.
Front armrest
(see details on following page)
15.
Storage box
Page 106 of 336
i

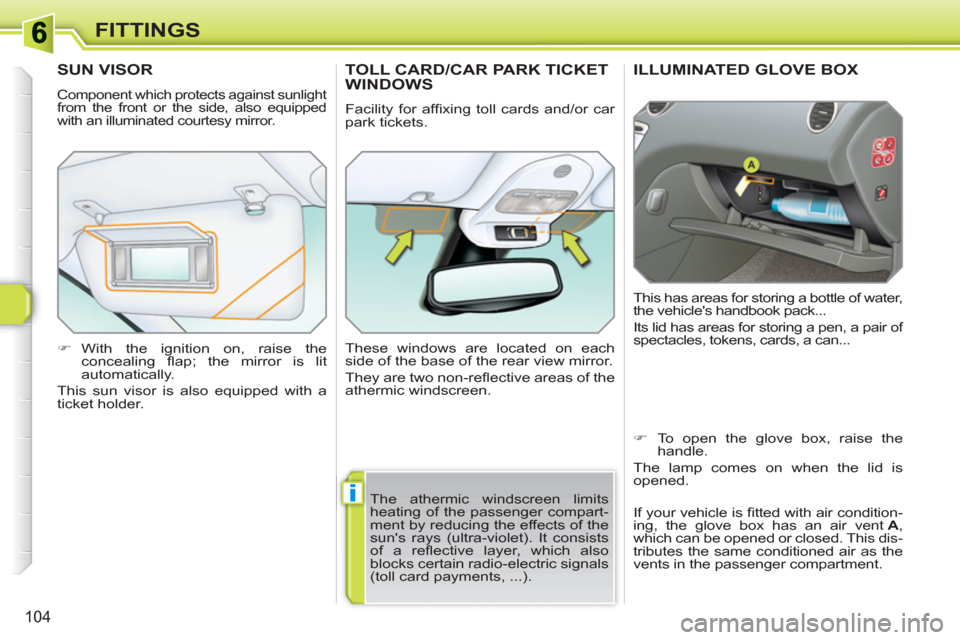

104
FITTINGS
ILLUMINATED GLOVE BOX
This has areas for storing a bottle of water,
the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair of
spectacles, tokens, cards, a can...
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.
)
With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the rear view mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...).
)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
If your vehicle is fi tted with air condition-
ing, the glove box has an air vent A
,
which can be opened or closed. This dis-
tributes the same conditioned air as the
vents in the passenger compartment.
Page 107 of 336

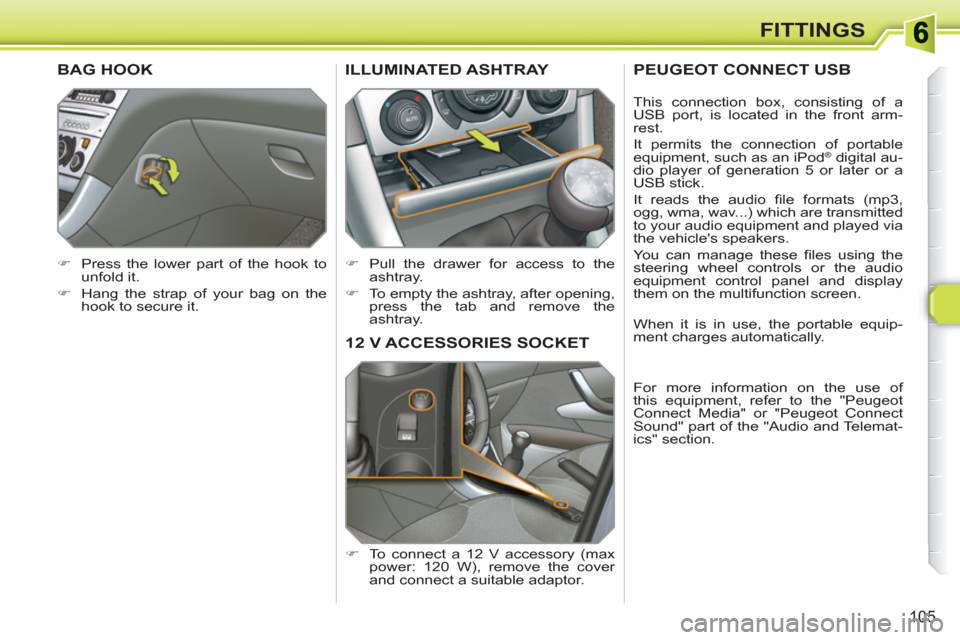

105
FITTINGS
12 V ACCESSORIES SOCKET
)
To connect a 12 V accessory (max
power: 120 W), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY
)
Pull the drawer for access to the
ashtray.
)
To empty the ashtray, after opening,
press the tab and remove the
ashtray.
BAG HOOK
)
Press the lower part of the hook to
unfold it.
)
Hang the strap of your bag on the
hook to secure it.
PEUGEOT CONNECT USB
This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod
® digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of
this equipment, refer to the "Peugeot
Connect Media" or "Peugeot Connect
Sound" part of the "Audio and Telemat-
ics" section.
Page 108 of 336
106
FITTINGS

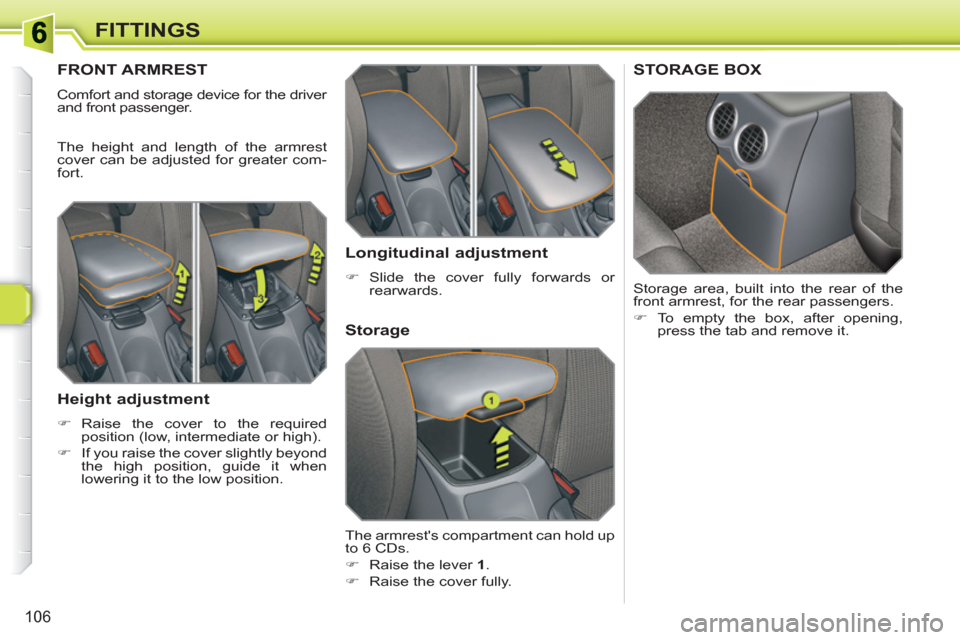

FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
The height and length of the armrest
cover can be adjusted for greater com-
fort.
Height adjustment
)
Raise the cover to the required
position (low, intermediate or high).
)
If you raise the cover slightly beyond
the high position, guide it when
lowering it to the low position.
STORAGE BOX
Storage area, built into the rear of the
front armrest, for the rear passengers.
)
To empty the box, after opening,
press the tab and remove it.
Storage
The armrest's compartment can hold up
to 6 CDs.
)
Raise the lever 1
.
)
Raise the cover fully.
Longitudinal adjustment
)
Slide the cover fully forwards or
rearwards.
Page 109 of 336
!
!
107

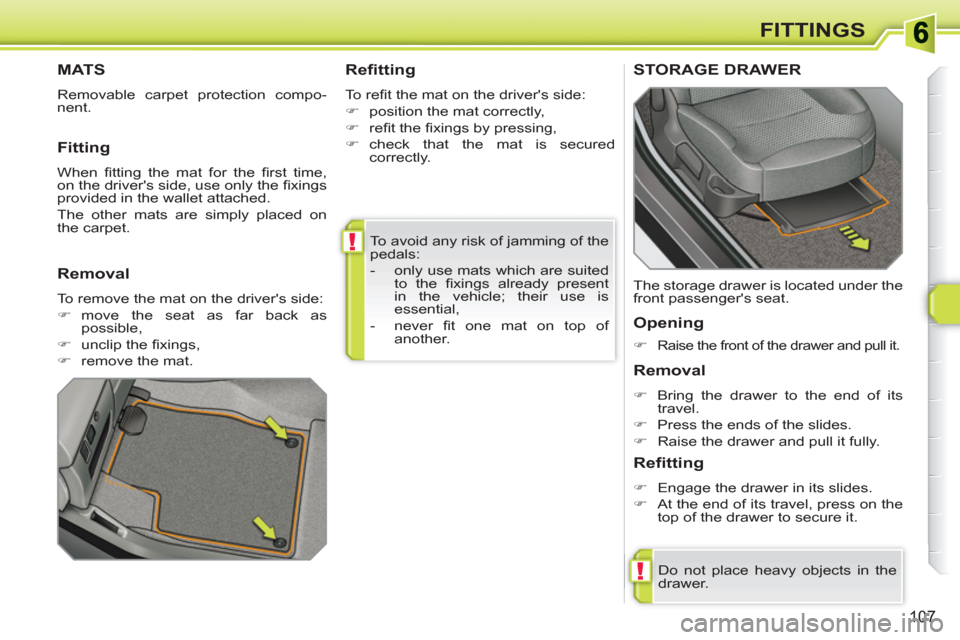

FITTINGS
To avoid any risk of jamming of the
pedals:
- only use mats which are suited
to the fi xings already present
in the vehicle; their use is
essential,
- never fi t one mat on top of
another.
MATS
Removable carpet protection compo-
nent.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured
correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side, use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as
possible,
)
unclip the fi xings,
)
remove the mat.
STORAGE DRAWER
Opening
)
Raise the front of the drawer and pull it.
Do not place heavy objects in the
drawer.
Removal
)
Bring the drawer to the end of its
travel.
)
Press the ends of the slides.
)
Raise the drawer and pull it fully.
Refitting
)
Engage the drawer in its slides.
)
At the end of its travel, press on the
top of the drawer to secure it. The storage drawer is located under the
front passenger's seat.
Page 110 of 336
!
108

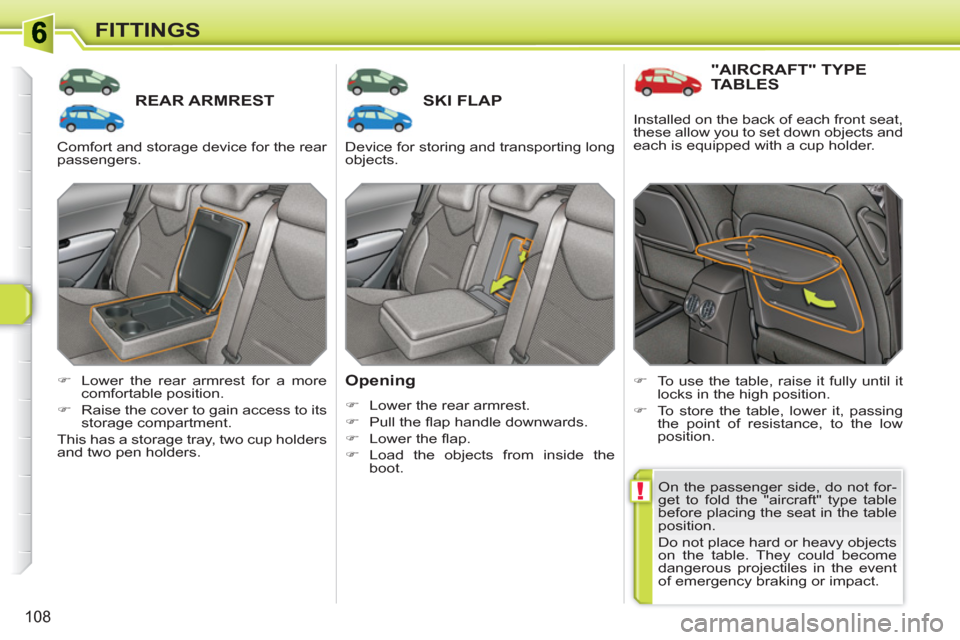

FITTINGS
REAR ARMRESTSKI FLAP
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
)
Lower the rear armrest for a more
comfortable position.
)
Raise the cover to gain access to its
storage compartment.
This has a storage tray, two cup holders
and two pen holders.
"AIRCRAFT" TYPE TABLES
)
To use the table, raise it fully until it
locks in the high position.
)
To store the table, lower it, passing
the point of resistance, to the low
position.
On the passenger side, do not for-
get to fold the "aircraft" type table
before placing the seat in the table
position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of emergency braking or impact. Comfort and storage device for the rear
passengers. Device for storing and transporting long
objects. Installed on the back of each front seat,
these allow you to set down objects and
each is equipped with a cup holder.
