Peugeot 308 SW BL Dag 2008 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 SW BL Dag, Model: Peugeot 308 SW BL Dag 2008Pages: 260, PDF Size: 12.09 MB
Page 161 of 260
11
i

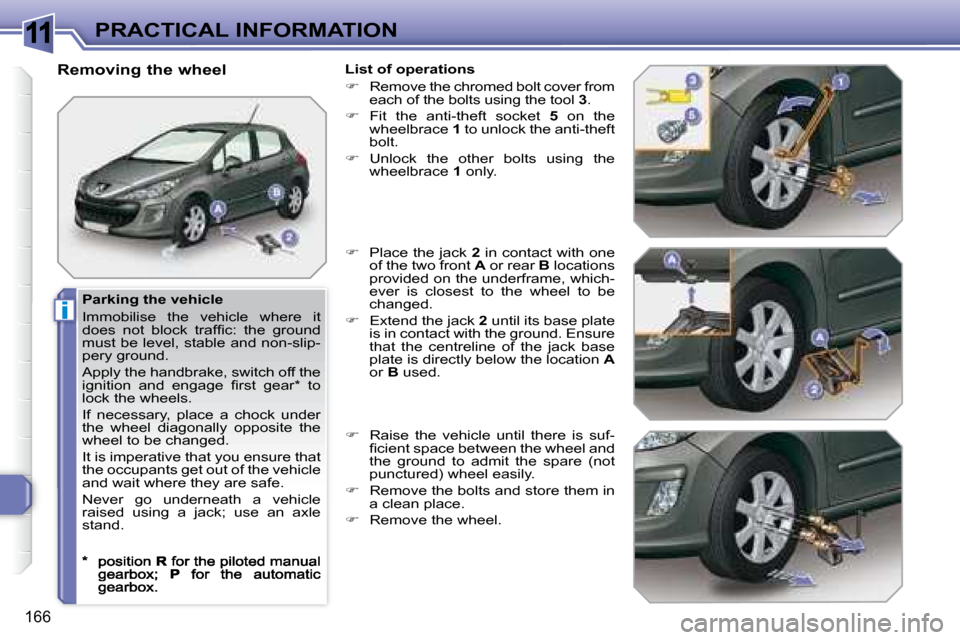

166
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
d o e s n o t b l o c k t r a f fi c : t h e g r o u n d
must be level, stable and non-slip-
pery ground.
Apply the handbrake, switch off the
i g n i t i o n a n d e n g a g e fi r s t g e a r * t o
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle
r a i s e d u s i n g a j a c k ; u s e a n a x l e
stand.
Removing the wheel
List of operations
Remove the chromed bolt cover from
each of the bolts using the tool 3 .
Fit the anti-theft socket 5 on the
wheelbrace 1 to unlock the anti-theft
bolt.
Unlock the other bolts using the
wheelbrace 1 only.
Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
E x t e n d t h e j a c k 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
Raise the vehicle until there is suf-
fi c i e n t s p a c e b e t w e e n t h e w h e e l a n d
the ground to admit the spare (not
punctured) wheel easily.
Remove the bolts and store them in
a clean place.
Remove the wheel.
Page 162 of 260
11
i

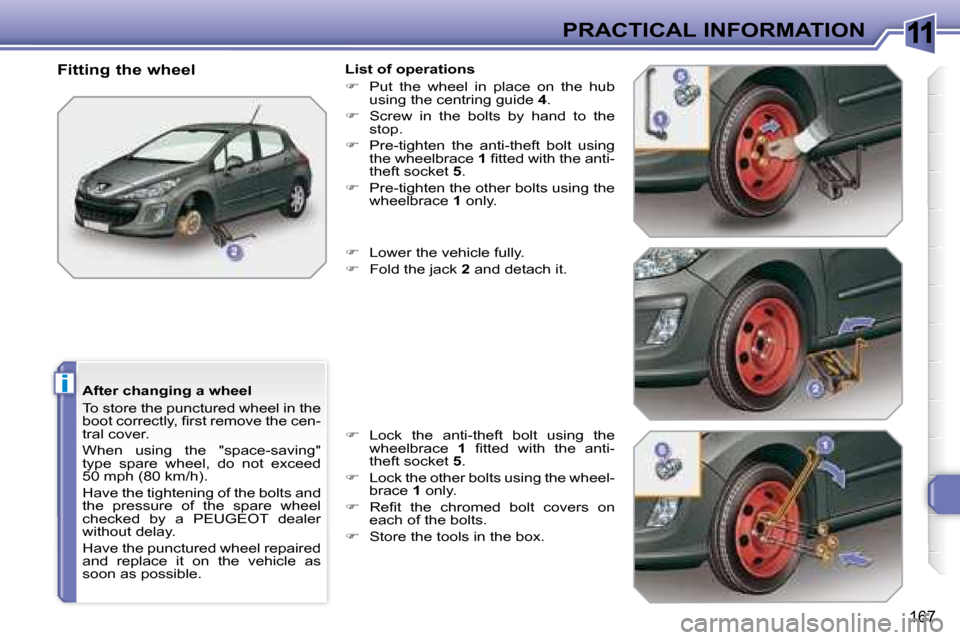

167
PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the
b o o t c o r r e c t l y , fi r s t r e m o v e t h e c e n -
tral cover.
When using the "space-saving"
t y p e s p a r e w h e e l , d o n o t e x c e e d
50 mph (80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheel
List of operations
Put the wheel in place on the hub
using the centring guide 4 .
Screw in the bolts by hand to the
stop.
Pre-tighten the anti-theft bolt using
the wheelbrace 1 fi t t e d w i t h t h e a n t i -
theft socket 5.
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
Lock the anti-theft bolt using the
wheelbrace 1 fi t t e d w i t h t h e a n t i -
theft socket 5.
Lock the other bolts using the wheel-
brace 1 only.
R e fi t t h e c h r o m e d b o l t c o v e r s o n
each of the bolts.
S t o r e t h e t o o l s i n t h e b o x .
Page 163 of 260
11
i
!
!
168
PRACTICAL INFORMATION
* According to country. Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a PEUGEOT dealer.

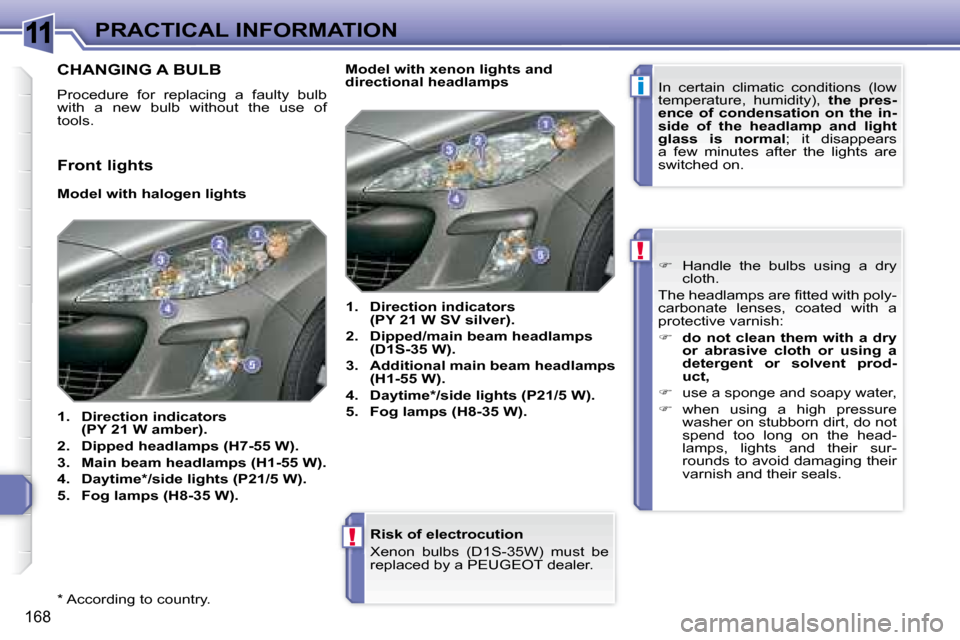

CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of
tools.
Front lights
Model with halogen lights
1. Direction indicators
(PY 21 W amber).
2. Dipped headlamps (H7-55 W).
3. Main beam headlamps (H1-55 W).
4. Daytime * /side lights (P21/5 W).
5. Fog lamps (H8-35 W).
1. Direction indicators
(PY 21 W SV silver).
2. Dipped/main beam headlamps
(D1S-35 W).
3. Additional main beam headlamps
(H1-55 W).
4. Daytime*/side lights (P21/5 W).
5. Fog lamps (H8-35 W).
Model with xenon lights and
directional headlamps
In certain climatic conditions (low
temperature, humidity), the pres-
ence of condensation on the in-
side of the headlamp and light
glass is normal ; it disappears
a few minutes after the lights are
switched on.
Handle the bulbs using a dry
cloth.
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate lenses, coated with a
protective varnish:
do not clean them with a dry
or abrasive cloth or using a
detergent or solvent prod-
uct,
use a sponge and soapy water,
when using a high pressure
washer on stubborn dirt, do not
spend too long on the head-
lamps, lights and their sur-
rounds to avoid damaging their
varnish and their seals.
Page 164 of 260
11
i
!

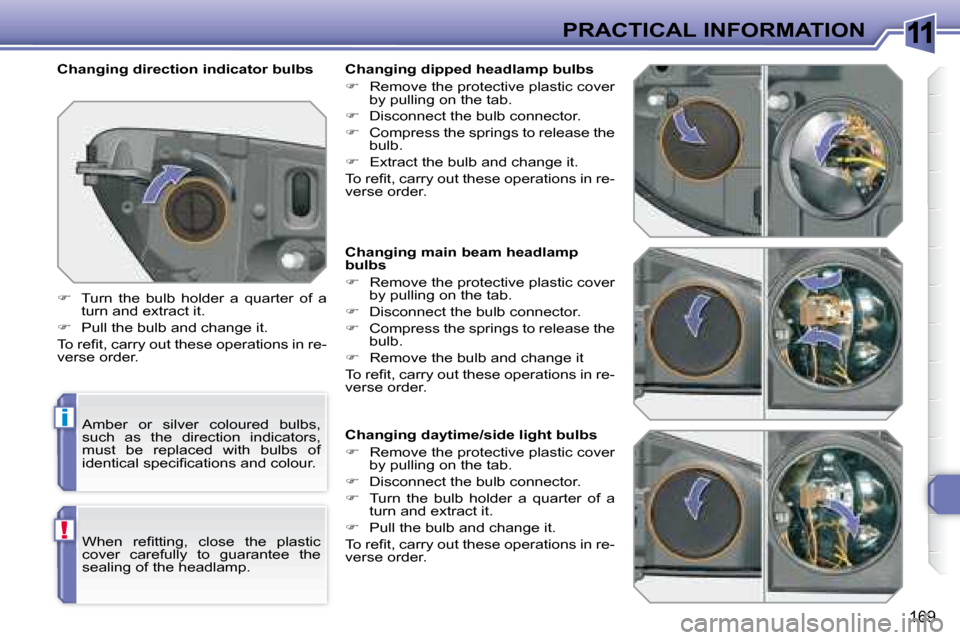

169
PRACTICAL INFORMATION
Changing main beam headlamp
bulbs
Remove the protective plastic cover
by pulling on the tab.
Disconnect the bulb connector.
Compress the springs to release the
bulb.
Remove the bulb and change it
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing daytime/side light bulbs
Remove the protective plastic cover
by pulling on the tab.
Disconnect the bulb connector.
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing direction indicator bulbs
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
i d e n t i c a l s p e c i fi c a t i o n s a n d c o l o u r .
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
W h e n r e fi t t i n g , c l o s e t h e p l a s t i c
cover carefully to guarantee the
sealing of the headlamp. Changing dipped headlamp bulbs
Remove the protective plastic cover
by pulling on the tab.
Disconnect the bulb connector.
Compress the springs to release the
bulb.
E x t r a c t t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Page 165 of 260
11
i

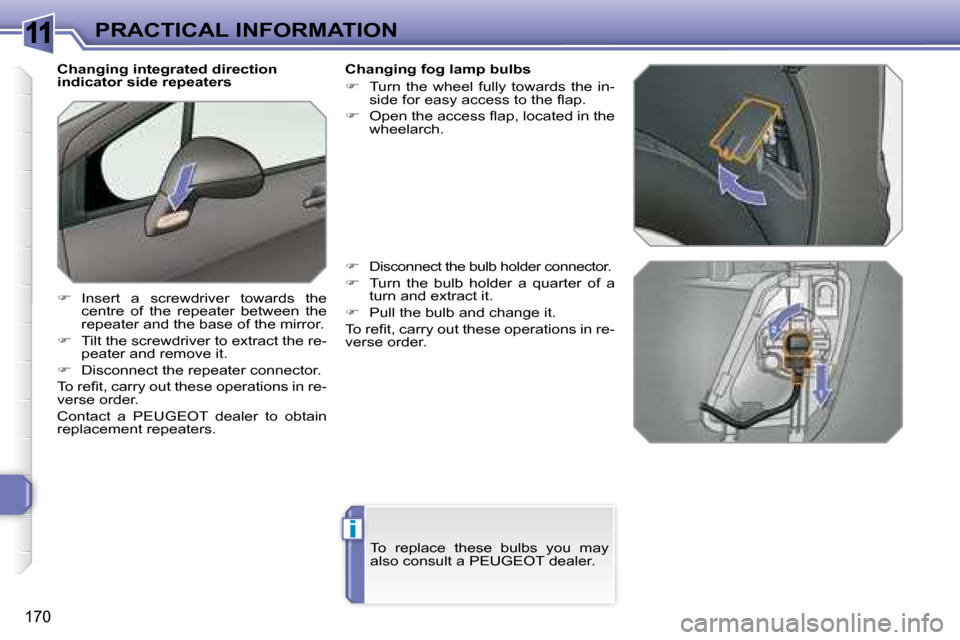

170
PRACTICAL INFORMATION
Changing integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e r e -
peater and remove it.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters. Changing fog lamp bulbs
Turn the wheel fully towards the in-
s i d e f o r e a s y a c c e s s t o t h e fl a p .
O p e n t h e a c c e s s fl a p , l o c a t e d i n t h e
wheelarch.
Disconnect the bulb holder connector.
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
To replace these bulbs you may
also consult a PEUGEOT dealer.
Page 166 of 260
11
i

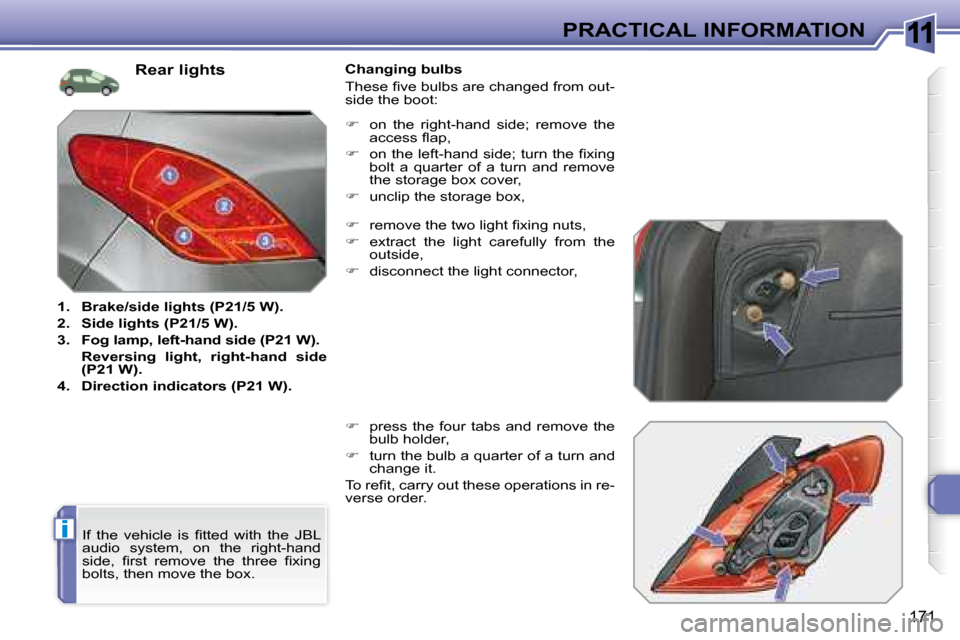

171
PRACTICAL INFORMATION
Rear lights
1. Brake/side lights (P21/5 W).
2. Side lights (P21/5 W).
3. Fog lamp, left-hand side (P21 W).
Reversing light, right-hand side
(P21 W).
4. Direction indicators (P21 W). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
side the boot:
r e m o v e t h e t w o l i g h t fi x i n g n u t s ,
e x t r a c t t h e l i g h t c a r e f u l l y f r o m t h e
outside,
disconnect the light connector,
press the four tabs and remove the
bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , fi r s t r e m o v e t h e t h r e e fi x i n g
b o l t s , t h e n m o v e t h e b o x .
on the right-hand side; remove the
a c c e s s fl a p ,
o n t h e l e f t - h a n d s i d e ; t u r n t h e fi x i n g
bolt a quarter of a turn and remove
t h e s t o r a g e b o x c o v e r ,
u n c l i p t h e s t o r a g e b o x ,
Page 167 of 260
11
172
PRACTICAL INFORMATION

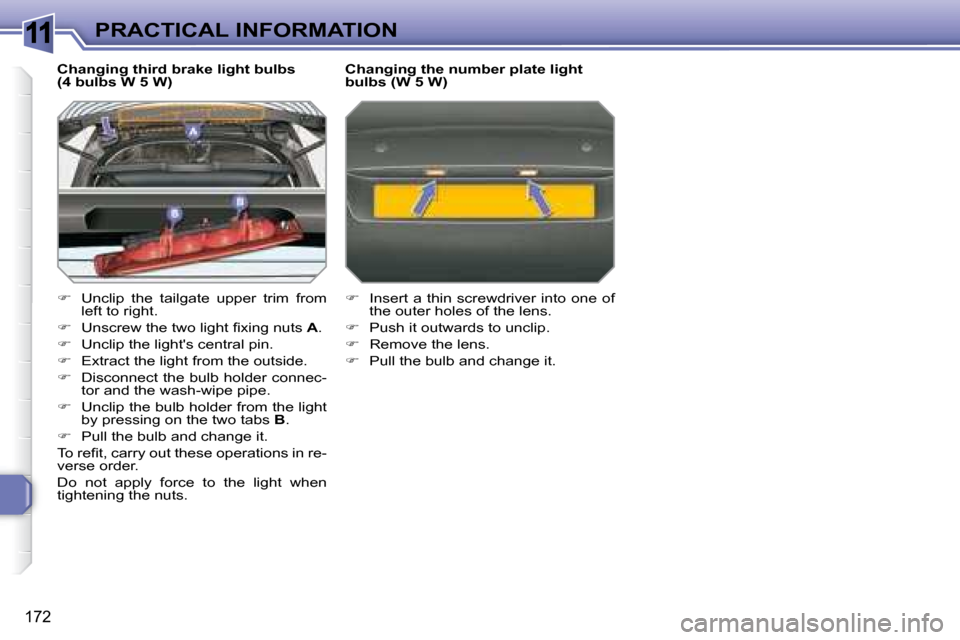

Changing third brake light bulbs
(4 bulbs W 5 W)
Unclip the tailgate upper trim from
left to right.
U n s c r e w t h e t w o l i g h t fi x i n g n u t s A .
Unclip the light's central pin.
E x t r a c t t h e l i g h t f r o m t h e o u t s i d e .
Disconnect the bulb holder connec-
tor and the wash-wipe pipe.
Unclip the bulb holder from the light
by pressing on the two tabs B .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Do not apply force to the light when
tightening the nuts. Changing the number plate light
bulbs (W 5 W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it.
Page 168 of 260
11

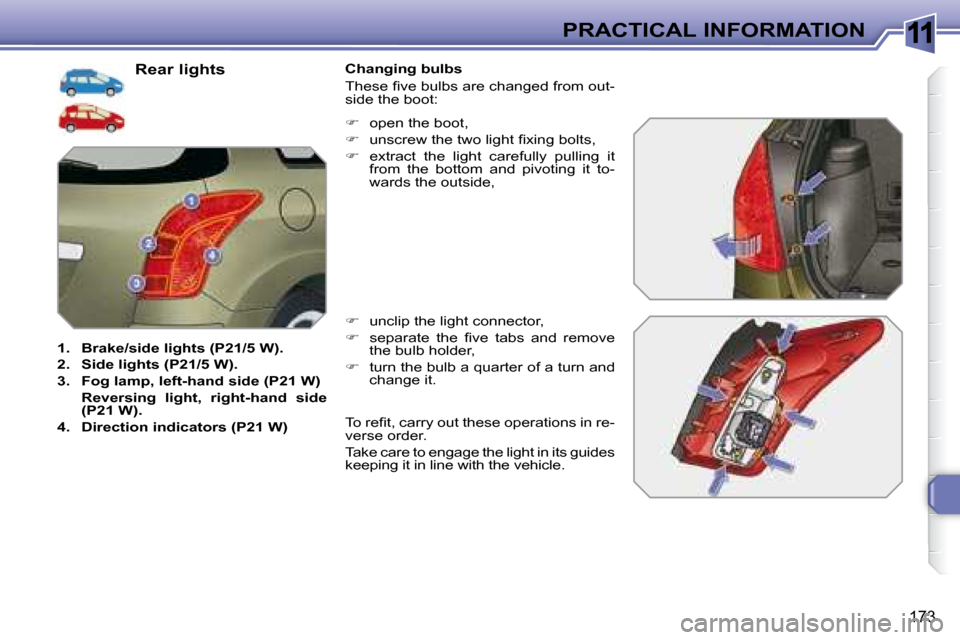

173
PRACTICAL INFORMATION
Rear lights
1. Brake/side lights (P21/5 W).
2. Side lights (P21/5 W).
3. Fog lamp, left-hand side (P21 W)
Reversing light, right-hand side
(P21 W).
4. Direction indicators (P21 W) Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
side the boot:
unclip the light connector,
s e p a r a t e t h e fi v e t a b s a n d r e m o v e
the bulb holder,
turn the bulb a quarter of a turn and
change it.
open the boot,
u n s c r e w t h e t w o l i g h t fi x i n g b o l t s ,
e x t r a c t t h e l i g h t c a r e f u l l y p u l l i n g i t
from the bottom and pivoting it to-
wards the outside,
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the light in its guides
keeping it in line with the vehicle.
Page 169 of 260
11

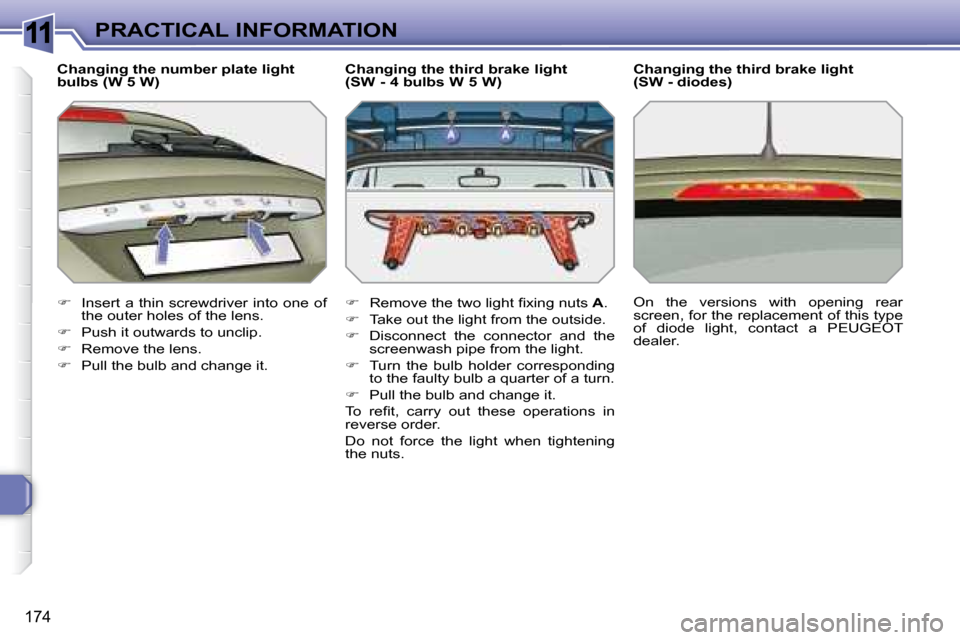

174
PRACTICAL INFORMATION
Changing the number plate light
bulbs (W 5 W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it. Changing the third brake light
(SW - 4 bulbs W 5 W)
R e m o v e t h e t w o l i g h t fi x i n g n u t s A .
Take out the light from the outside.
Disconnect the connector and the
screenwash pipe from the light.
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Do not force the light when tightening
the nuts. Changing the third brake light
(SW - diodes)
On the versions with opening rear
screen, for the replacement of this type
of diode light, contact a PEUGEOT
dealer.
Page 170 of 260
11
!
i

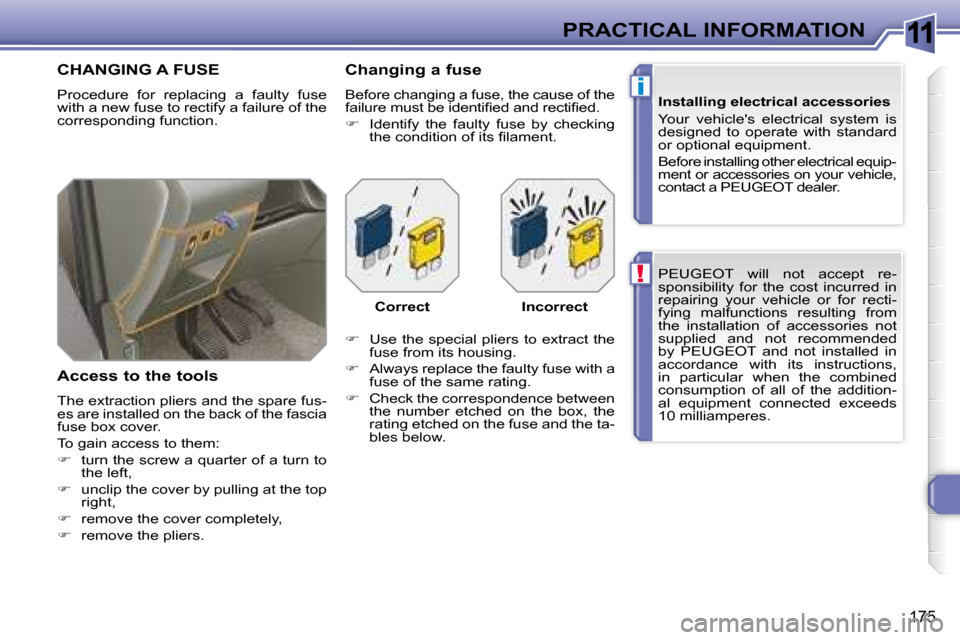

175
PRACTICAL INFORMATION PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e f u s -
es are installed on the back of the fascia
f u s e b o x c o v e r .
To gain access to them:
turn the screw a quarter of a turn to
the left,
unclip the cover by pulling at the top
right,
remove the cover completely,
remove the pliers. Changing a fuse
Before changing a fuse, the cause of the
f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the ta-
bles below.
Correct Incorrect
