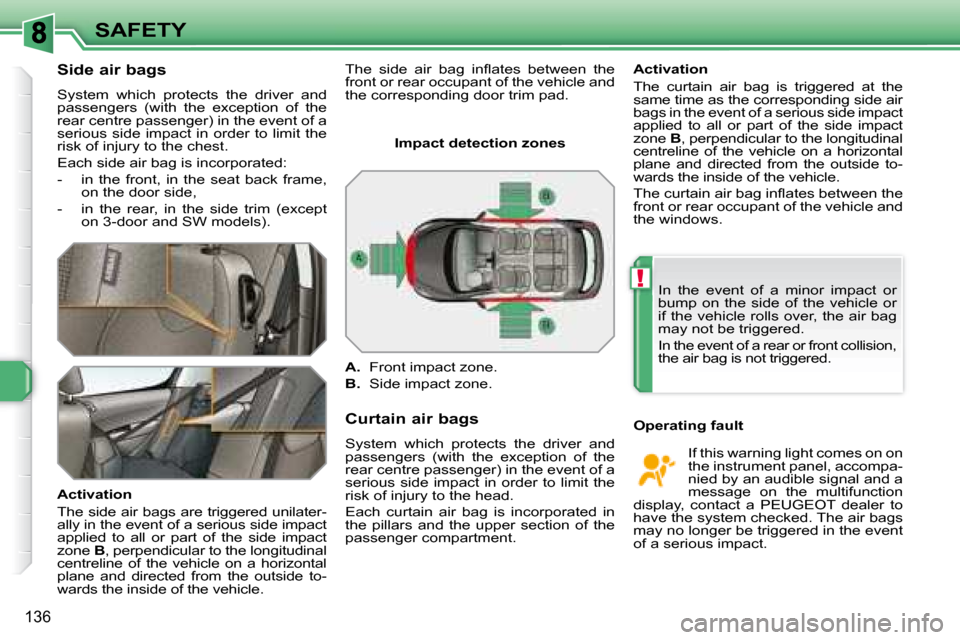

136
SAFETY
Side air bags
System which protects the driver and
p a s s e n g e r s ( w i t h t h e e x c e p t i o n o f t h e
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the chest.
Each side air bag is incorporated:
- in the front, in the seat back frame, on the door side,
- i n t h e r e a r , i n t h e s i d e t r i m ( e x c e p t on 3-door and SW models).
Activation
The side air bags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle. Curtain air bags
System which protects the driver and
p a s s e n g e r s ( w i t h t h e e x c e p t i o n o f t h e
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the head.
Each curtain air bag is incorporated in
the pillars and the upper section of the
passenger compartment.
Operating fault
Activation
The curtain air bag is triggered at the
same time as the corresponding side air
bags in the event of a serious side impact
applied to all or part of the side impact
zone
B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
In the event of a rear or front collision,
the air bag is not triggered.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
If this warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the corresponding door trim pad.
Page 132 of 260
!

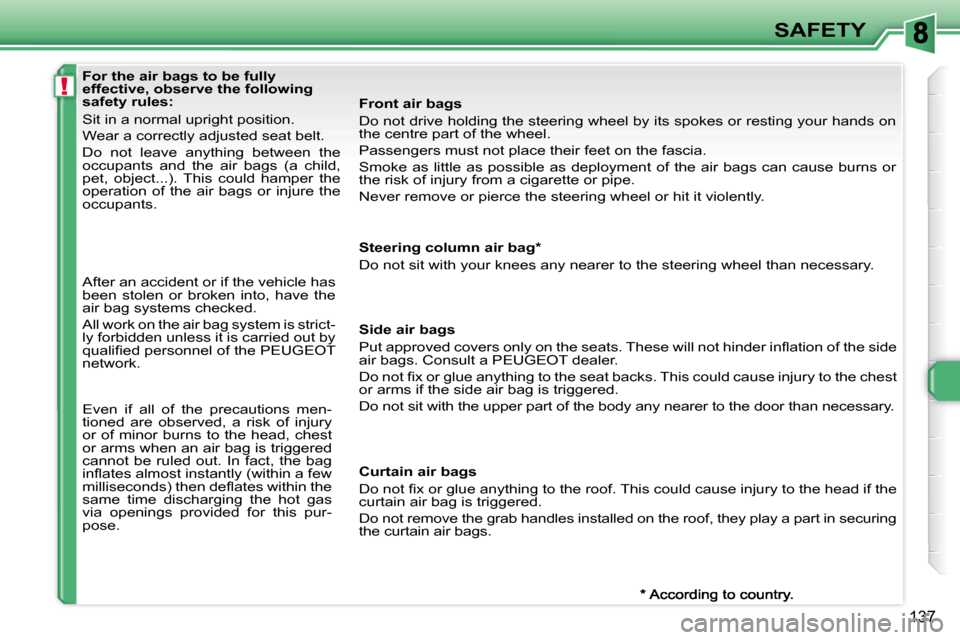

137
SAFETY
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the air bags (a child,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
Front air bags
Do not drive holding the steering wheel by its spokes or resti ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the fascia.
Smoke as little as possible as deployment of the air bags can ca use burns or
the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Steering column air bag *
Do not sit with your knees any nearer to the steering wheel than necessary.
Side air bags
P u t a p p r o v e d c o v e r s o n l y o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e s i d e
air bags. Consult a PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e c h e s t
or arms if the side air bag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f t h e
curtain air bag is triggered.
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain air bags.
After an accident or if the vehicle has
been stolen or broken into, have the
air bag systems checked.
All work on the air bag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an air bag is triggered
cannot be ruled out. In fact, the bag
i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a f e w
m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose.
Page 133 of 260
!
i
!

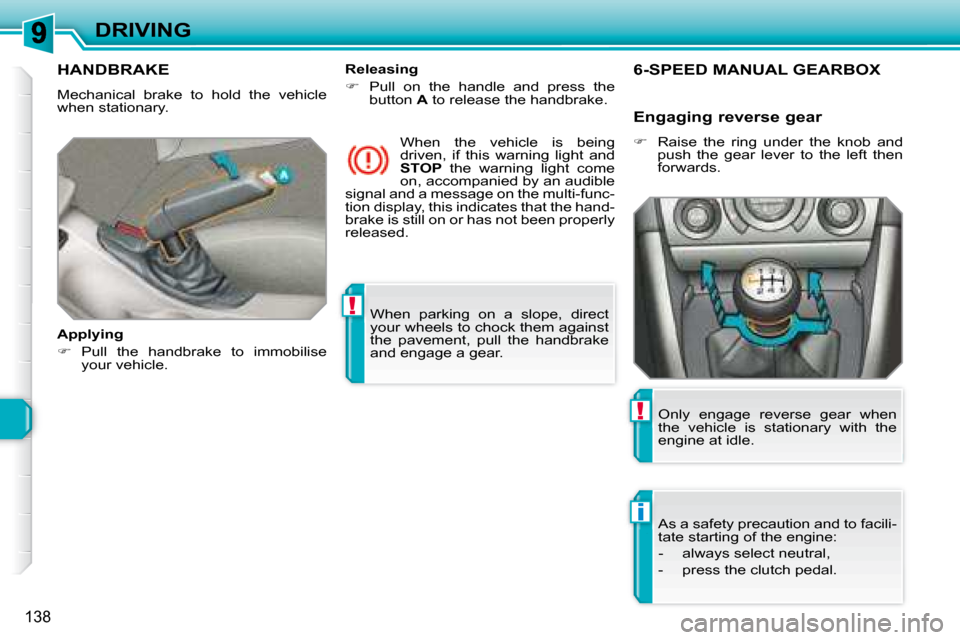

138
DRIVING When parking on a slope, direct
your wheels to chock them against
the pavement, pull the handbrake
and engage a gear.
HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying
Pull the handbrake to immobilise
your vehicle. When the vehicle is being
driven, if this warning light and
STOP the warning light come
on, accompanied by an audible
signal and a message on the multi-func-
tion display, this indicates that the hand-
brake is still on or has not been properly
released.
Releasing
Pull on the handle and press the
button A to release the handbrake.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
Page 134 of 260
i
139
DRIVING

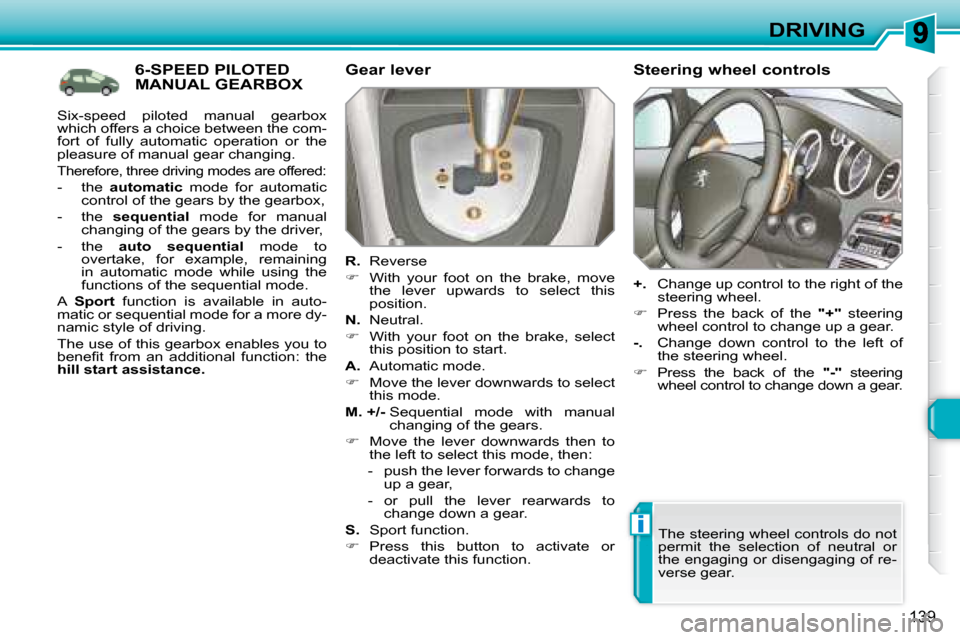

6-SPEED PILOTED MANUAL GEARBOX Gear lever
R. Reverse
With your foot on the brake, move
the lever upwards to select this
position.
N. Neutral.
With your foot on the brake, select
this position to start.
A. Automatic mode.
Move the lever downwards to select
this mode.
M. +/- Sequential mode with manual
changing of the gears.
Move the lever downwards then to
the left to select this mode, then:
- push the lever forwards to change up a gear,
- or pull the lever rearwards to change down a gear.
S. Sport function.
Press this button to activate or
deactivate this function. Steering wheel controls
+. Change up control to the right of the
steering wheel.
Press the back of the "+" steering
wheel control to change up a gear.
-. Change down control to the left of
the steering wheel.
Press the back of the "-" steering
wheel control to change down a gear.
The steering wheel controls do not
permit the selection of neutral or
the engaging or disengaging of re-
verse gear.
S i x - s p e e d p i l o t e d m a n u a l g e a r b o x
which offers a choice between the com-
fort of fully automatic operation or the
pleasure of manual gear changing.
Therefore, three driving modes are offered:
- the
automatic mode for automatic
c o n t r o l o f t h e g e a r s b y t h e g e a r b o x ,
- the sequential mode for manual
changing of the gears by the driver,
- the auto sequential mode to
o v e r t a k e , f o r e x a m p l e , r e m a i n i n g
in automatic mode while using the
functions of the sequential mode.
A Sport function is available in auto-
matic or sequential mode for a more dy-
namic style of driving.
T h e u s e o f t h i s g e a r b o x e n a b l e s y o u t o
b e n e fi t f r o m a n a d d i t i o n a l f u n c t i o n : t h e
hill start assistance.
Page 135 of 260
i
i
!i

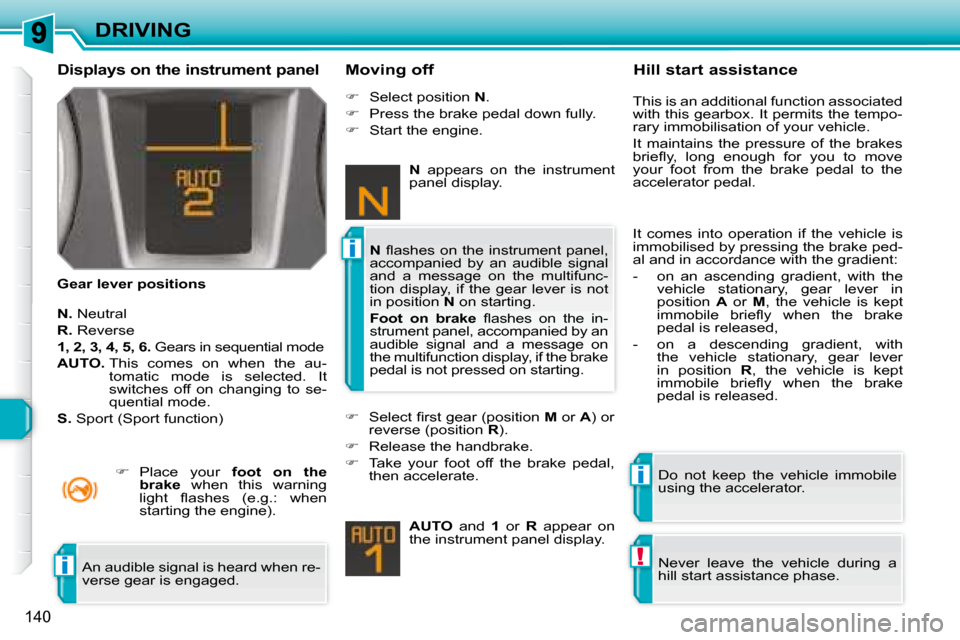

140
DRIVING
Displays on the instrument panel
Gear lever positions Moving off
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6. Gears in sequential mode
AUTO. This comes on when the au-
tomatic mode is selected. It
switches off on changing to se-
quential mode.
S. Sport (Sport function)
Place your foot on the
brake when this warning
l i g h t fl a s h e s ( e . g . : w h e n
starting the engine).
Select position N .
Press the brake pedal down fully.
Start the engine.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) or
reverse (position R ).
Release the handbrake.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear on
the instrument panel display. Do not keep the vehicle immobile
using the accelerator.
N fl a s h e s o n t h e i n s t r u m e n t p a n e l ,
accompanied by an audible signal
and a message on the multifunc-
tion display, if the gear lever is not
in position N on starting.
Foot on brake fl a s h e s o n t h e i n -
strument panel, accompanied by an
audible signal and a message on
the multifunction display, if the brake
pedal is not pressed on starting. Hill start assistance
This is an additional function associated
w i t h t h i s g e a r b o x . I t p e r m i t s t h e t e m p o -
rary immobilisation of your vehicle.
It maintains the pressure of the brakes
b r i e fl y , l o n g e n o u g h f o r y o u t o m o v e
your foot from the brake pedal to the
accelerator pedal.
Never leave the vehicle during a
hill start assistance phase.
It comes into operation if the vehicle is
immobilised by pressing the brake ped-
al and in accordance with the gradient:
- on an ascending gradient, with the
vehicle stationary, gear lever in
position A or M , the vehicle is kept
i m m o b i l e b r i e fl y w h e n t h e b r a k e
pedal is released,
- on a descending gradient, with the vehicle stationary, gear lever
in position R , the vehicle is kept
i m m o b i l e b r i e fl y w h e n t h e b r a k e
pedal is released.
An audible signal is heard when re-
verse gear is engaged.
N appears on the instrument
panel display.
Page 136 of 260
i
!i

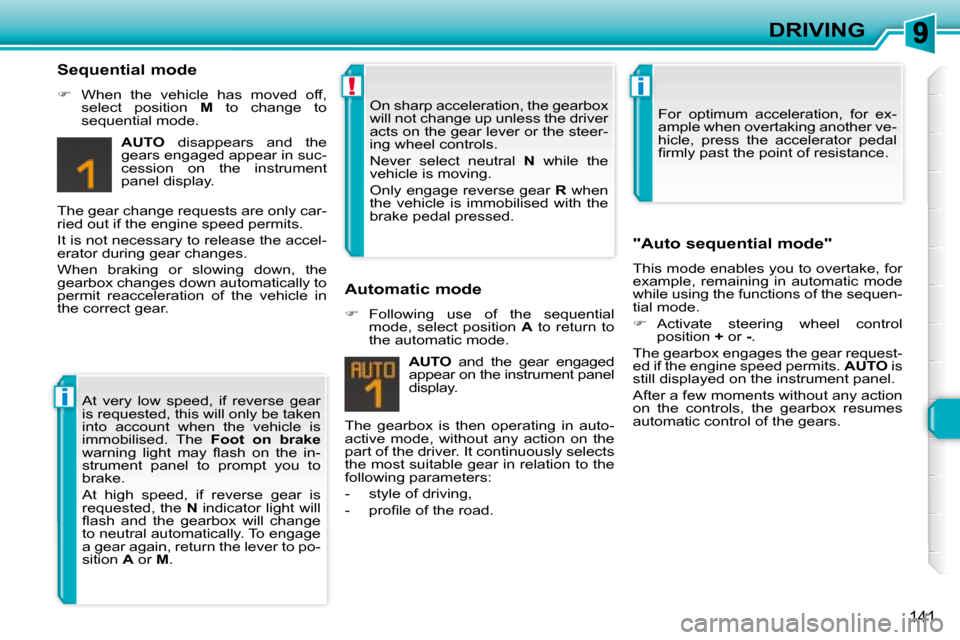

141
DRIVING
Sequential mode
When the vehicle has moved off,
select position M to change to
sequential mode.
AUTO disappears and the
gears engaged appear in suc-
cession on the instrument
panel display.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y t o
permit reacceleration of the vehicle in
the correct gear.
T h e g e a r b o x i s t h e n o p e r a t i n g i n a u t o -
active mode, without any action on the
part of the driver. It continuously selects
the most suitable gear in relation to the
following parameters:
- style of driving,
- p r o fi l e o f t h e r o a d .
AUTO and the gear engaged
appear on the instrument panel
display.
Automatic mode
Following use of the sequential
mode, select position A to return to
the automatic mode. "Auto sequential mode"
This mode enables you to overtake, for
e x a m p l e , r e m a i n i n g i n a u t o m a t i c m o d e
while using the functions of the sequen-
tial mode.
Activate steering wheel control
position + or - .
T h e g e a r b o x e n g a g e s t h e g e a r r e q u e s t -
ed if the engine speed permits. AUTO is
still displayed on the instrument panel.
After a few moments without any action
o n t h e c o n t r o l s , t h e g e a r b o x r e s u m e s
automatic control of the gears.
At very low speed, if reverse gear
is requested, this will only be taken
into account when the vehicle is
immobilised. The
Foot on brake
w a r n i n g l i g h t m a y fl a s h o n t h e i n -
strument panel to prompt you to
brake.
At high speed, if reverse gear is
requested, the N indicator light will
fl a s h a n d t h e g e a r b o x w i l l c h a n g e
to neutral automatically. To engage
a gear again, return the lever to po-
sition A or M . O n s h a r p a c c e l e r a t i o n , t h e g e a r b o x
will not change up unless the driver
acts on the gear lever or the steer-
ing wheel controls.
Never select neutral
N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised with the
brake pedal pressed. F o r o p t i m u m a c c e l e r a t i o n , f o r e x -
ample when overtaking another ve-
hicle, press the accelerator pedal
fi r m l y p a s t t h e p o i n t o f r e s i s t a n c e .
Page 137 of 260
!!
i

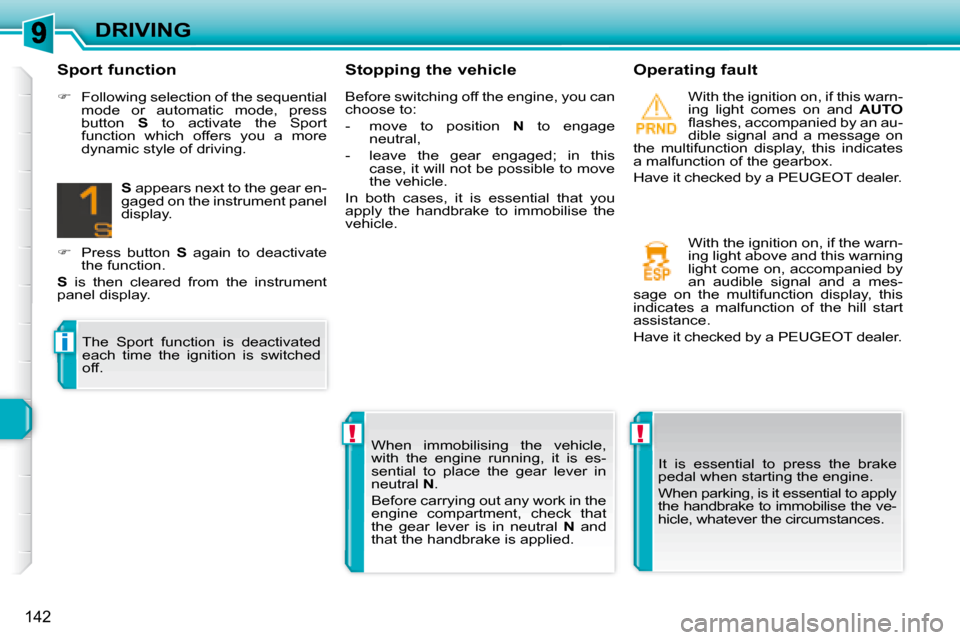

142
DRIVING Stopping the vehicle Operating fault With the ignition on, if this warn-
ing light comes on and AUTO
fl a s h e s , a c c o m p a n i e d b y a n a u -
dible signal and a message on
the multifunction display, this indicates
a m a l f u n c t i o n o f t h e g e a r b o x .
Have it checked by a PEUGEOT dealer.
It is essential to press the brake
pedal when starting the engine.
When parking, is it essential to apply
the handbrake to immobilise the ve-
hicle, whatever the circumstances.
When immobilising the vehicle,
with the engine running, it is es-
sential to place the gear lever in
neutral
N .
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N and
that the handbrake is applied. With the ignition on, if the warn-
ing light above and this warning
light come on, accompanied by
an audible signal and a mes-
sage on the multifunction display, this
indicates a malfunction of the hill start
assistance.
Have it checked by a PEUGEOT dealer.
Sport function
Following selection of the sequential
mode or automatic mode, press
button S to activate the Sport
function which offers you a more
dynamic style of driving.
S a p p e a r s n e x t t o t h e g e a r e n -
gaged on the instrument panel
display.
Press button S again to deactivate
the function.
S is then cleared from the instrument
panel display.
The Sport function is deactivated
each time the ignition is switched
off. Before switching off the engine, you can
choose to:
- move to position
N to engage
neutral,
- leave the gear engaged; in this case, it will not be possible to move
the vehicle.
In both cases, it is essential that you
apply the handbrake to immobilise the
vehicle.
Page 138 of 260

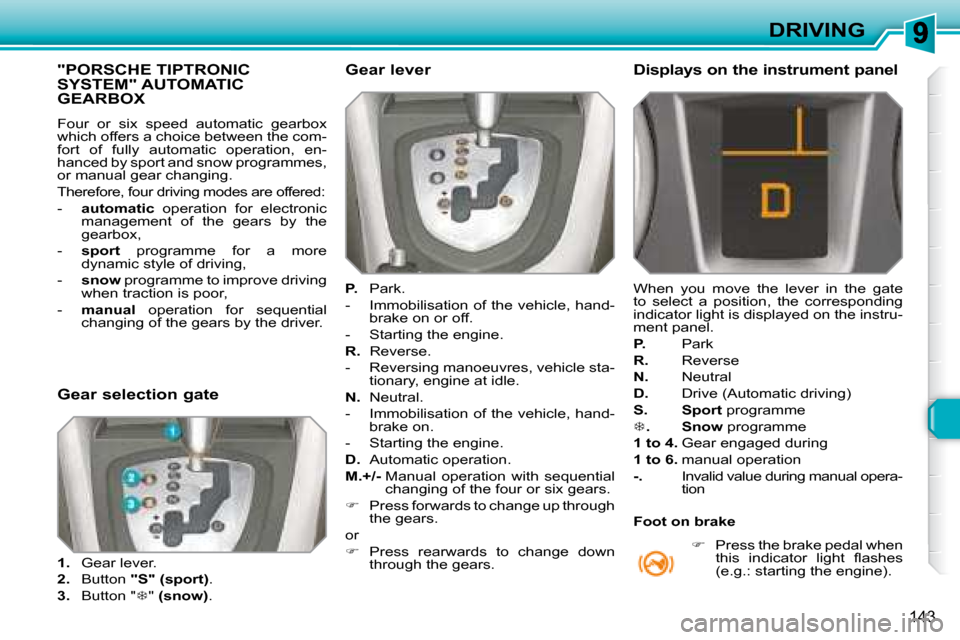

143
DRIVING
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
F o u r o r s i x s p e e d a u t o m a t i c g e a r b o x
which offers a choice between the com-
fort of fully automatic operation, en-
hanced by sport and snow programmes,
or manual gear changing.
Therefore, four driving modes are offered:
- automatic operation for electronic
management of the gears by the
g e a r b o x ,
- sport programme for a more
dynamic style of driving,
- snow programme to improve driving
when traction is poor,
- manual operation for sequential
changing of the gears by the driver. Gear lever
P. Park.
- Immobilisation of the vehicle, hand- brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, hand- brake on.
- Starting the engine.
D. Automatic operation.
M.+/- Manual operation with sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Press forwards to change up through
the gears.
or
Press rearwards to change down
through the gears. Displays on the instrument panel
When you move the lever in the gate
to select a position, the corresponding
indicator light is displayed on the instru-
ment panel.
P. Park
R. Reverse
N. Neutral
D. Drive (Automatic driving)
S. Sport programme
. Snow programme
1 to 4. Gear engaged during
1 to 6. manual operation
-. Invalid value during manual opera-
tion
Press the brake pedal when
t h i s i n d i c a t o r l i g h t fl a s h e s
(e.g.: starting the engine).
Gear selection gate
1. Gear lever.
2. Button "S" (sport) .
3. Button " " (snow) . Foot on brake
Page 139 of 260
!
!
i
144
DRIVING

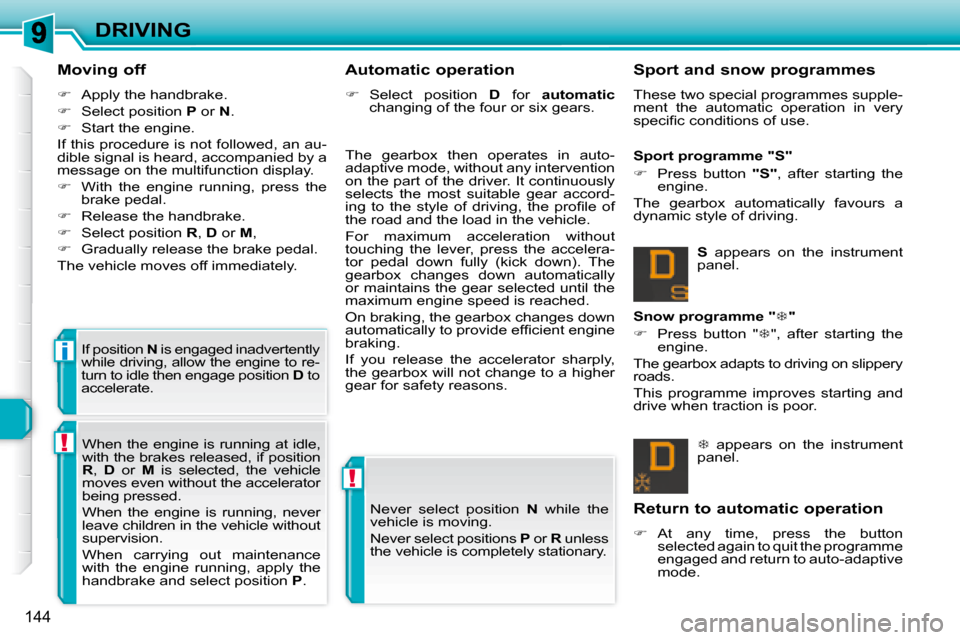

Moving off
Apply the handbrake.
Select position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction display.
With the engine running, press the
brake pedal.
Release the handbrake.
Select position R , D or M ,
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadvertently
while driving, allow the engine to re-
turn to idle then engage position D to
accelerate. T h e g e a r b o x t h e n o p e r a t e s i n a u t o -
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
F o r m a x i m u m a c c e l e r a t i o n w i t h o u t
touching the lever, press the accelera-
tor pedal down fully (kick down). The
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y
or maintains the gear selected until the
m a x i m u m e n g i n e s p e e d i s r e a c h e d .
O n b r a k i n g , t h e g e a r b o x c h a n g e s d o w n
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
t h e g e a r b o x w i l l n o t c h a n g e t o a h i g h e r
gear for safety reasons.
Automatic operation
Select position D for automatic
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
T h e g e a r b o x a d a p t s t o d r i v i n g o n s l i p p e r y
roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
T h e g e a r b o x a u t o m a t i c a l l y f a v o u r s a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless
the vehicle is completely stationary.
When the engine is running at idle,
with the brakes released, if position
R , D or M is selected, the vehicle
moves even without the accelerator
being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance
with the engine running, apply the
handbrake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button
selected again to quit the programme
engaged and return to auto-adaptive
mode.
Page 140 of 260
!i

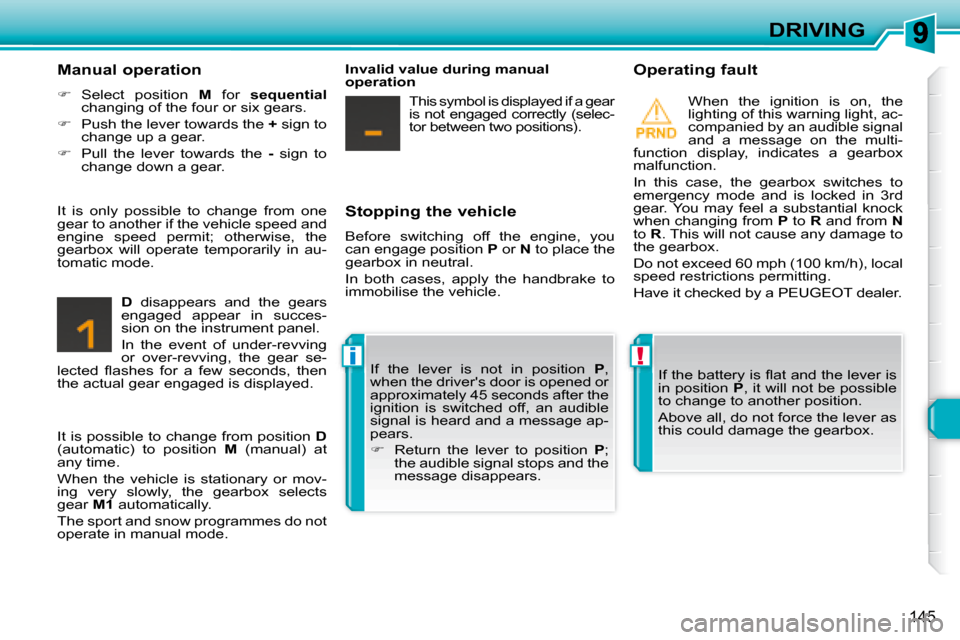

145
DRIVING
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
g e a r b o x i n n e u t r a l .
In both cases, apply the handbrake to
immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning light, ac-
companied by an audible signal
and a message on the multi-
f u n c t i o n d i s p l a y , i n d i c a t e s a g e a r b o x
malfunction.
I n t h i s c a s e , t h e g e a r b o x s w i t c h e s t o
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
t h e g e a r b o x .
D o n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) , l o c a l
speed restrictions permitting.
Have it checked by a PEUGEOT dealer.
I f t h e b a t t e r y i s fl a t a n d t h e l e v e r i s
in position P , it will not be possible
to change to another position.
Above all, do not force the lever as
t h i s c o u l d d a m a g e t h e g e a r b o x .
Manual operation
Select position M for sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
l e c t e d fl a s h e s f o r a f e w s e c o n d s , t h e n
the actual gear engaged is displayed. If the lever is not in position
P ,
when the driver's door is opened or
a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r t h e
ignition is switched off, an audible
signal is heard and a message ap-
pears.
Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
g e a r b o x w i l l o p e r a t e t e m p o r a r i l y i n a u -
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selec-
tor between two positions).
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
i n g v e r y s l o w l y , t h e g e a r b o x s e l e c t s
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode.
