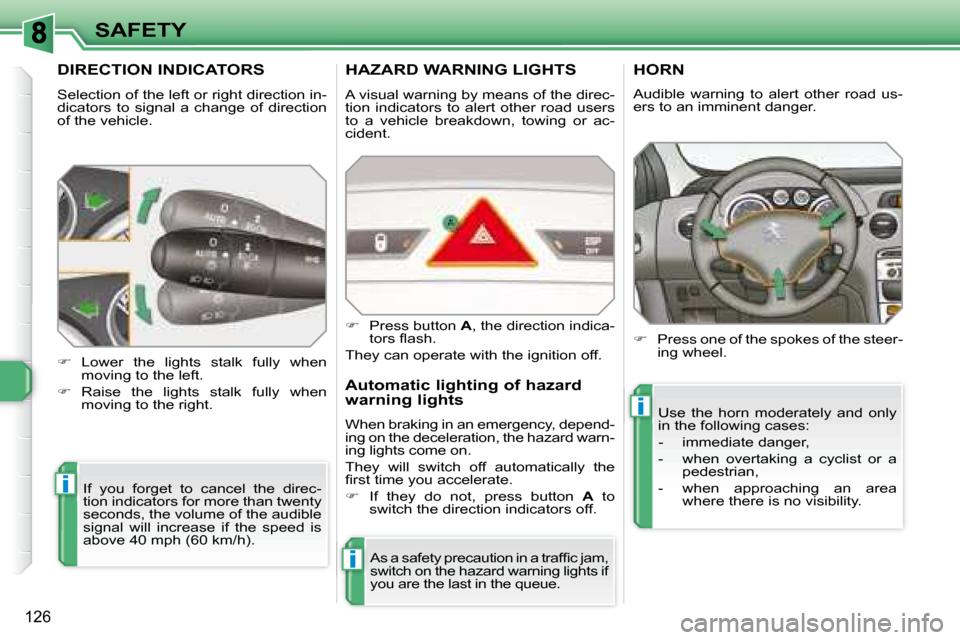

DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Lower the lights stalk fully when
moving to the left.
Raise the lights stalk fully when
moving to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c j a m ,
switch on the hazard warning lights if
you are the last in the queue.
Press button A , the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
When braking in an emergency, depend-
ing on the deceleration, the hazard warn-
ing lights come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off.
HORN
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when overtaking a cyclist or a pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road us-
ers to an imminent danger.
Page 122 of 260
!
i
i
i
127
SAFETY
TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" I d e n t i fi c a t i o n f e a t u r e s " p a r a g r a p h )
to ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radioelectric
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).
This warning light is displayed
on the instrument panel and/or a
message appears on the multi-
function display, accompanied by
an audible signal, to locate the
wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre The
STOP warning light comes
on and/or this warning light is
displayed on the instrument
panel, accompanied by an audi-
ble signal and a message on the
multifunction display locating the
wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning light is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction display, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor.
Page 123 of 260
!
i
!
128
SAFETY

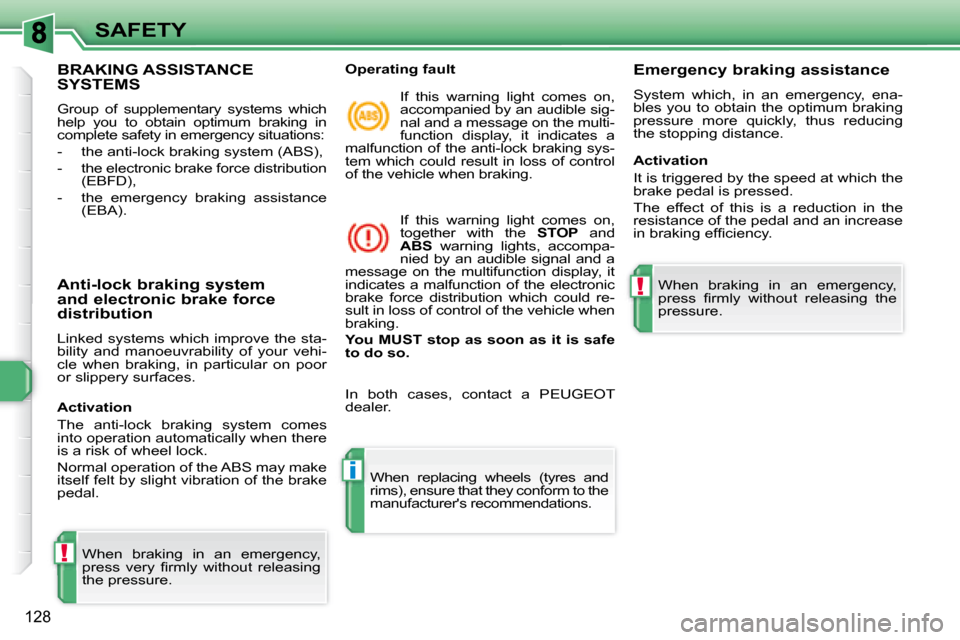

BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:
- the anti-lock braking system (ABS),
- the electronic brake force distribution (EBFD),
- the emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.
Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the multi-
function display, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning light comes on,
together with the STOP and
ABS warning lights, accompa-
nied by an audible signal and a
message on the multifunction display, it
indicates a malfunction of the electronic
brake force distribution which could re-
sult in loss of control of the vehicle when
braking.
You MUST stop as soon as it is safe
to do so. Emergency braking assistance
System which, in an emergency, ena-
bles you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
i n b r a k i n g e f fi c i e n c y .
In both cases, contact a PEUGEOT
dealer. When braking in an emergency,
p r e s s fi r m l y w i t h o u t r e l e a s i n g t h e
pressure.
Page 124 of 260
!
SAFETY
T h e E S P / A S R s y s t e m s o f f e r e x -
ceptional safety in normal driving,
but this should not encourage the
d r i v e r t o t a k e e x t r a r i s k s o r d r i v e a t
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and operation
procedures.
After an impact, have these systems
checked by a PEUGEOT dealer.
Disarming
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
in the centre of the fascia.
If this warning light comes on
the instrument panel and the
indicator light on the button
comes on, this indicates that
the ASR and ESP systems are
disarmed.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display, this indicates a mal-
function of these systems.
Have the systems checked by a PEUGEOT
dealer.

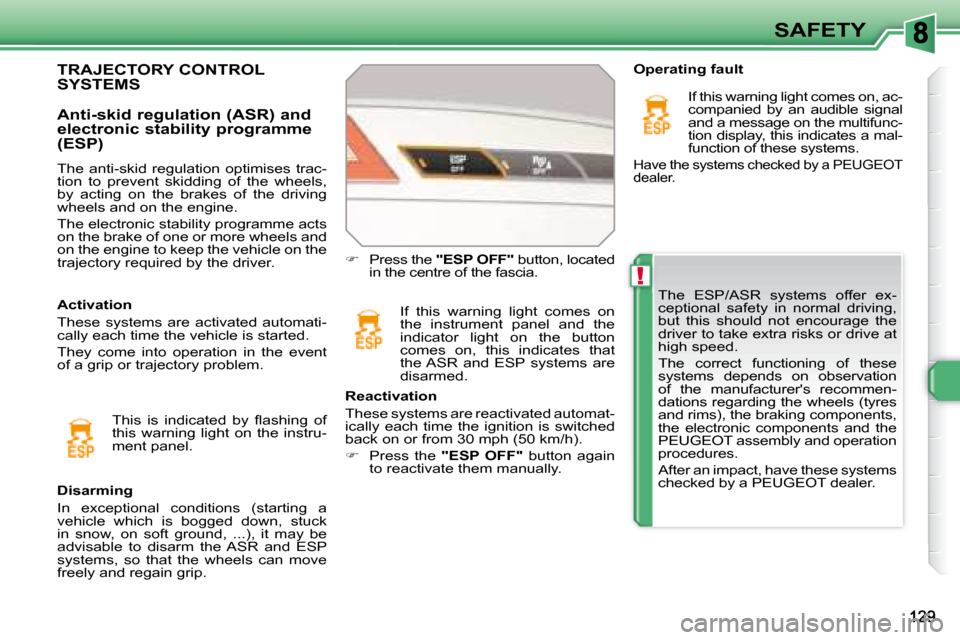

TRAJECTORY CONTROL SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning light on the instru-
ment panel.
Page 125 of 260
130
SAFETY Height adjustment
Seat belt not fastened/unfastened
warning light
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To lower the attachment point,
squeeze the control A and slide it
downwards.
To raise the attachment point, slide
the control A upwards.
When the ignition is switched
on, this warning light comes on,
either on the instrument panel
or on the seat belt and passen-
ger's front air bag warning lights display,
if the driver and/or the front passenger
has not fastened his seat belt.
F r o m a p p r o x i m a t e l y 1 2 m p h ( 2 0 k m / h )
t h i s w a r n i n g l i g h t fl a s h e s f o r t w o m i n -
utes accompanied by an audible signal
of increasing volume. Once these two
minutes have elapsed, this warning light
remains on until the driver and/or the
front passenger fastens his seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up.

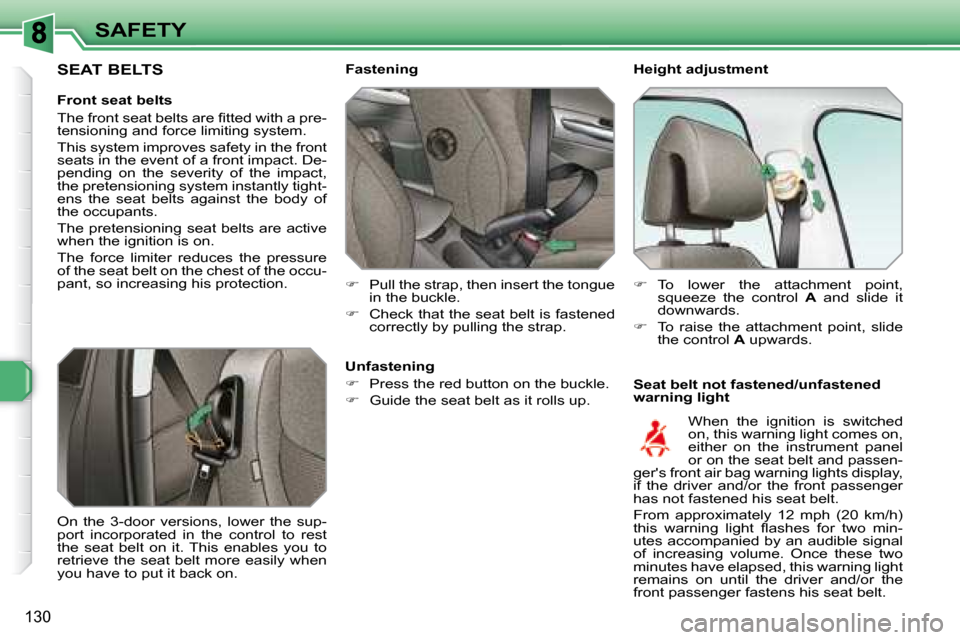

SEAT BELTS
On the 3-door versions, lower the sup-
port incorporated in the control to rest
the seat belt on it. This enables you to
retrieve the seat belt more easily when
you have to put it back on.
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so increasing his protection.

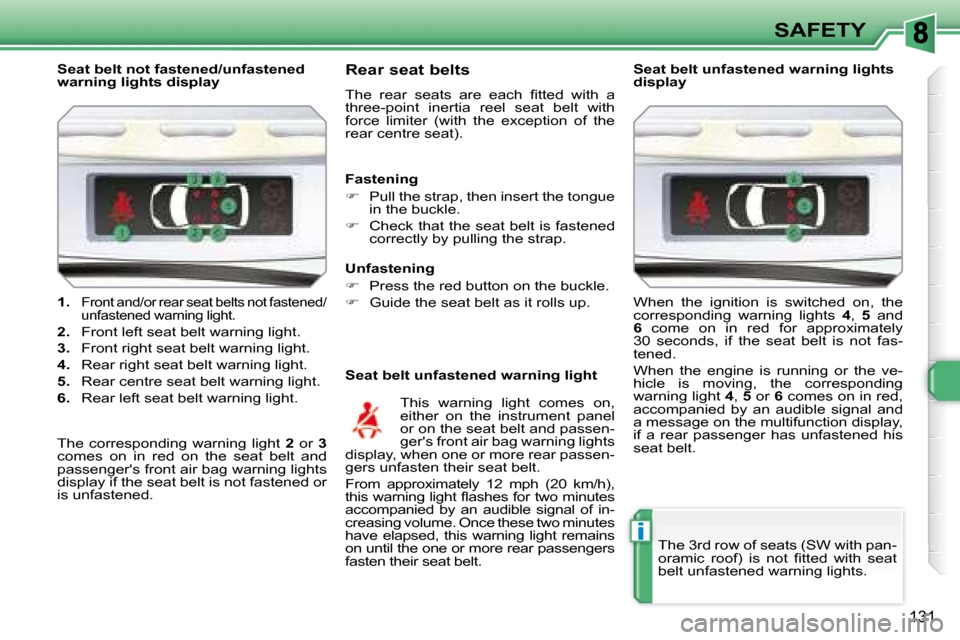

Page 126 of 260
i
131
SAFETY
1.
Front and/or rear seat belts not fastened/
unfastened warning light.
2. Front left seat belt warning light.
3. Front right seat belt warning light.
4. Rear right seat belt warning light.
5. Rear centre seat belt warning light.
6. Rear left seat belt warning light.
Seat belt not fastened/unfastened
warning lights display
Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
f o r c e l i m i t e r ( w i t h t h e e x c e p t i o n o f t h e
rear centre seat).
Seat belt unfastened warning light
This warning light comes on,
either on the instrument panel
or on the seat belt and passen-
ger's front air bag warning lights
display, when one or more rear passen-
gers unfasten their seat belt.
F r o m a p p r o x i m a t e l y 1 2 m p h ( 2 0 k m / h ) ,
t h i s w a r n i n g l i g h t fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal of in-
creasing volume. Once these two minutes
have elapsed, this warning light remains
on until the one or more rear passengers
fasten their seat belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. Seat belt unfastened warning lights
display
When the ignition is switched on, the
corresponding warning lights
4 , 5 and
6 c o m e o n i n r e d f o r a p p r o x i m a t e l y
30 seconds, if the seat belt is not fas-
tened.
When the engine is running or the ve-
hicle is moving, the corresponding
warning light 4 , 5 or 6 comes on in red,
accompanied by an audible signal and
a message on the multifunction display,
if a rear passenger has unfastened his
seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up.
The corresponding warning light 2 or 3
comes on in red on the seat belt and
passenger's front air bag warning lights
display if the seat belt is not fastened or
is unfastened.
The 3 rd row of seats (SW with pan-
o r a m i c r o o f ) i s n o t fi t t e d w i t h s e a t
belt unfastened warning lights.
Page 127 of 260
i
132

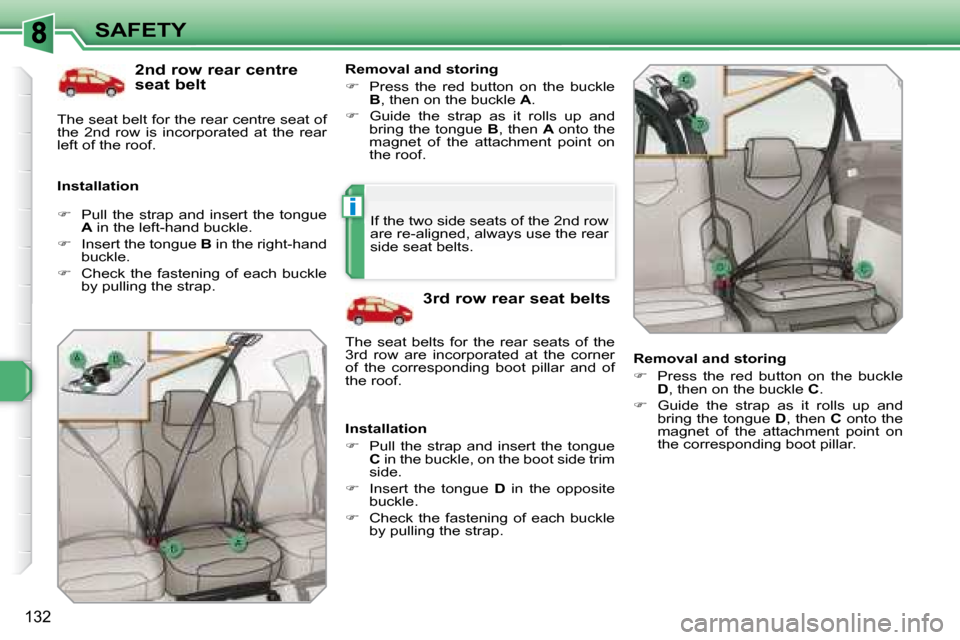

SAFETY 2 nd row rear centre
seat belt
Installation Removal and storing
Press the red button on the buckle
B , then on the buckle A .
Guide the strap as it rolls up and
bring the tongue B , then A onto the
magnet of the attachment point on
the roof.
3 rd row rear seat belts
Installation
Pull the strap and insert the tongue
C in the buckle, on the boot side trim
side.
Insert the tongue D in the opposite
buckle.
Check the fastening of each buckle
by pulling the strap.
Pull the strap and insert the tongue
A in the left-hand buckle.
Insert the tongue B in the right-hand
buckle.
Check the fastening of each buckle
by pulling the strap.
The seat belts for the rear seats of the
3 rd row are incorporated at the corner
of the corresponding boot pillar and of
the roof. If the two side seats of the 2nd row
are re-aligned, always use the rear
side seat belts.
Removal and storing
Press the red button on the buckle
D , then on the buckle C .
Guide the strap as it rolls up and
bring the tongue D , then C onto the
magnet of the attachment point on
the corresponding boot pillar.
The seat belt for the rear centre seat of
the 2 nd row is incorporated at the rear
left of the roof.
Page 128 of 260
i
133
SAFETY

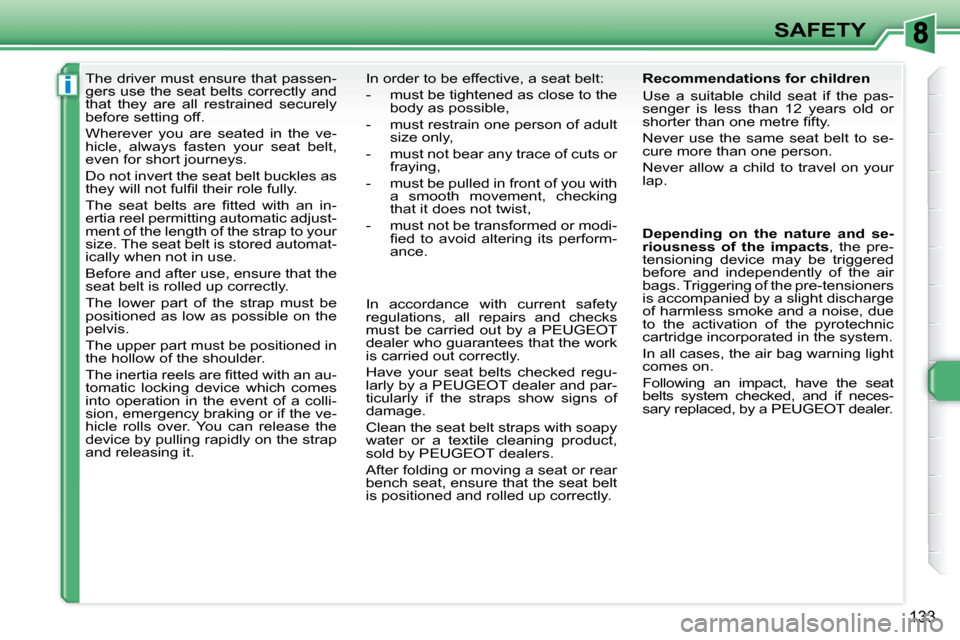

The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r m -
ance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y .
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 129 of 260
i
!
134
SAFETY

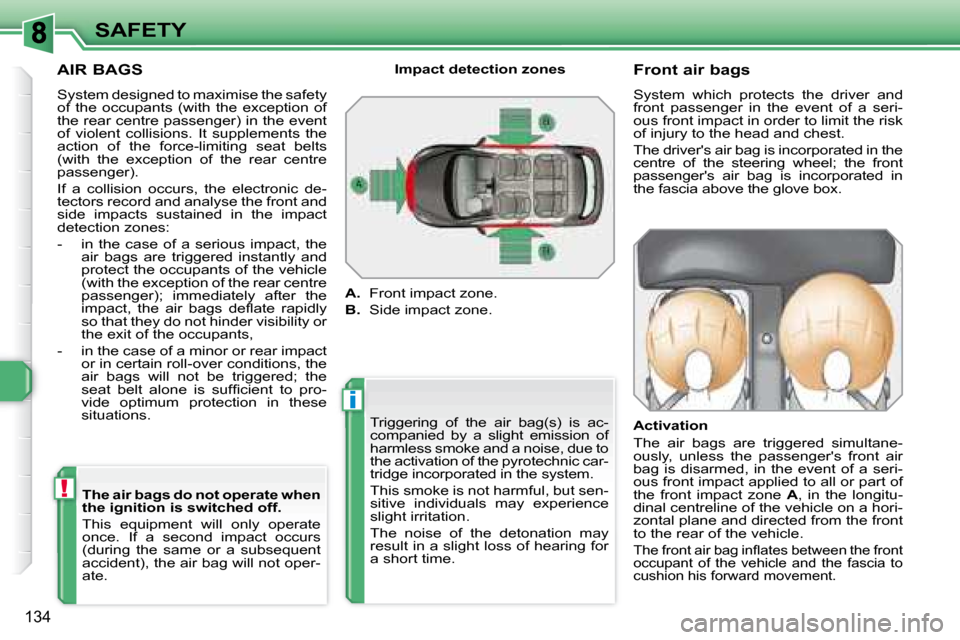

AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e s a f e t y
o f t h e o c c u p a n t s ( w i t h t h e e x c e p t i o n o f
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
( w i t h t h e e x c e p t i o n o f t h e r e a r c e n t r e
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the air bags are triggered instantly and
protect the occupants of the vehicle
( w i t h t h e e x c e p t i o n o f t h e r e a r c e n t r e
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility or
t h e e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear impact or in certain roll-over conditions, the
air bags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations. Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front air bags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and chest.
The driver's air bag is incorporated in the
centre of the steering wheel; the front
passenger's air bag is incorporated in
t h e f a s c i a a b o v e t h e g l o v e b o x .
Activation
The air bags are triggered simultane-
ously, unless the passenger's front air
bag is disarmed, in the event of a seri-
ous front impact applied to all or part of
the front impact zone
A , in the longitu-
dinal centreline of the vehicle on a hori-
zontal plane and directed from the front
to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e f r o n t
occupant of the vehicle and the fascia to
cushion his forward movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The air bags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not oper-
ate.
Page 130 of 260
!
!
135
SAFETY

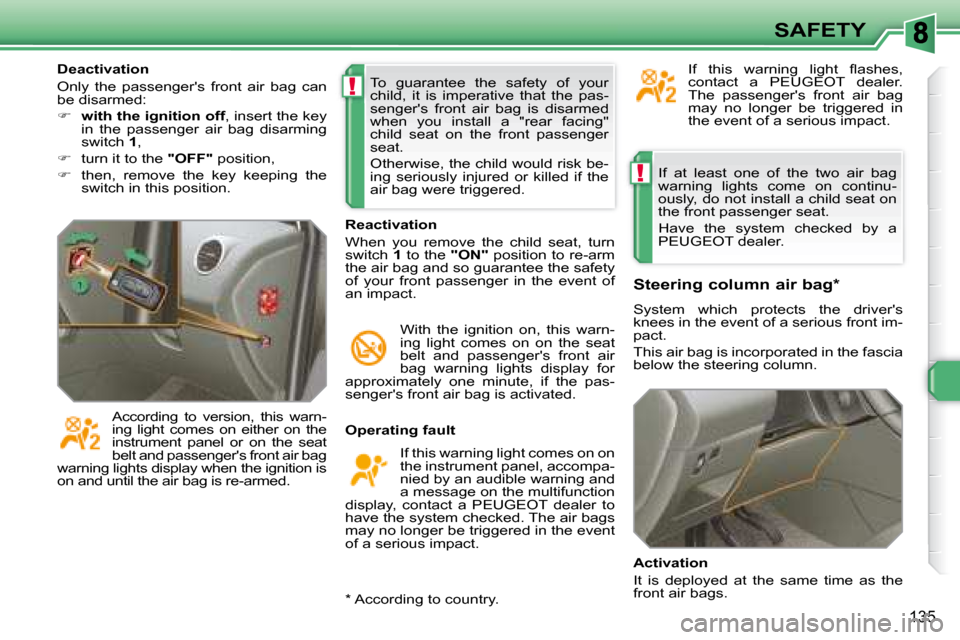

If at least one of the two air bag
warning lights come on continu-
ously, do not install a child seat on
the front passenger seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault If this warning light comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact. Steering column air bag *
System which protects the driver's
knees in the event of a serious front im-
pact.
This air bag is incorporated in the fascia
below the steering column.
Activation
It is deployed at the same time as the
front air bags.
Reactivation
When you remove the child seat, turn
switch
1 to the "ON" position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.
With the ignition on, this warn-
ing light comes on on the seat
belt and passenger's front air
bag warning lights display for
a p p r o x i m a t e l y o n e m i n u t e , i f t h e p a s -
senger's front air bag is activated. To guarantee the safety of your
child, it is imperative that the pas-
senger's front air bag is disarmed
when you install a "rear facing"
child seat on the front passenger
seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
air bag were triggered.
According to version, this warn-
ing light comes on either on the
instrument panel or on the seat
belt and passenger's front air bag
warning lights display when the ignition is
on and until the air bag is re-armed. I f t h i s w a r n i n g l i g h t fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front air bag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger's front air bag can
be disarmed:
with the ignition off , insert the key
in the passenger air bag disarming
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in this position.
* According to country.
