LAYOUT Luggage retaining net
Hooked onto the stowing rings, this enables
you to secure your luggage.

 Raise the boot carpet to gain access
to the storage box.
This has areas for storing a box of spare
bulbs, a fi rst aid kit, a puncture repair
kit, two warning triangles, ...
Storage box In order to connect a 12 V accesso-
ry (max power: 100 Watts), remove
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
12 V accessories socket
There are three possible positions:
- fl at at the bottom of the boot,
- horizontal at the rear shelf,
- vertical at the back of the rear seats.
Movable straps
Hooked onto the stowing rings, they
permit securing of your luggage.

109
LAYOUT
BOOT LAYOUT

1. Load space cover
(see details on following page)

2. 12 V accessories socket
(see details on following page)

3. Hooks
(see details on following page)

4. Stowing rings

5. Luggage retaining net
(see details on following page)

6. Storage tray

7. High load retaining net
(see details on following page)

8. Luggage retaining strap

9. Storage nets

i
110
LAYOUT
Load space cover
This consists of four sections three of
which can be folded back on each other.
There are several options for storing the
load space cover:
- either folded back on itself near the rear seats (1),
- or folded back on itself and stored in a location provided under the rear
seats (2).
To fold it from the boot:

 unclip the load space cover from its
side supports,

 take hold of the load space cover by
its handle A ,

 fold it concertina-style to the rear
seats.
To unfold it from the boot:

 take hold of the load space cover by
its handle A ,

 unfold it to the boot pillars,

 clip the load space cover on its side
supports. Luggage retaining net

Hooked onto the stowing rings, this enables
you to secure your luggage to the bottom
of the boot.
Hooks
The hooks permit the securing of shop-
ping bags.
Maximum loads
7.5 kg, load space cover unfolded
with high load retaining net at row 2.

i
i
111
LAYOUT

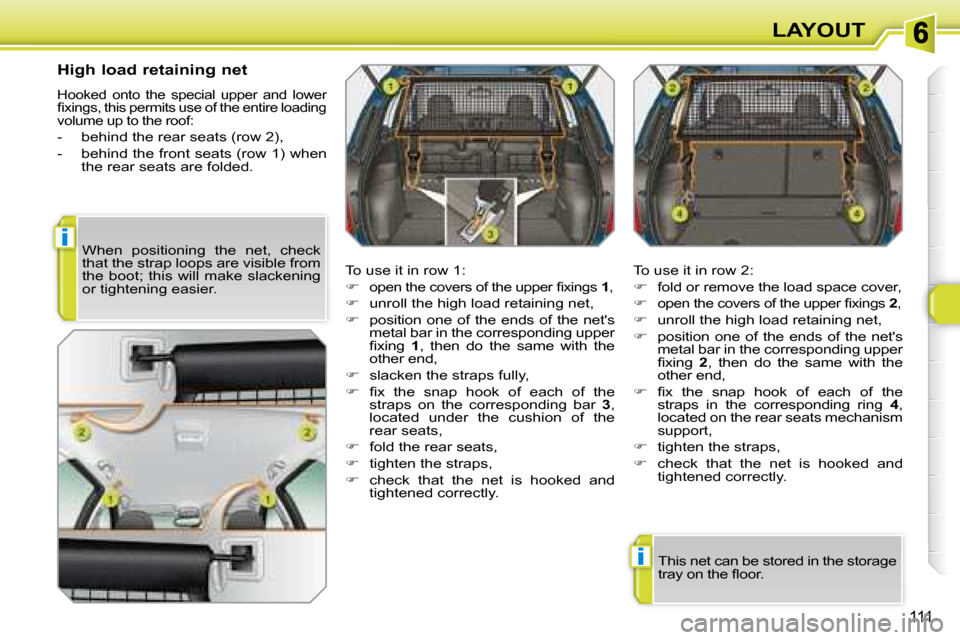

High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire loading
volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when the rear seats are folded.
To use it in row 1:


open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 slacken the straps fully,

 fi x the snap hook of each of the
straps on the corresponding bar 3 ,
located under the cushion of the
rear seats,

 fold the rear seats,

 tighten the straps,

 check that the net is hooked and
tightened correctly. To use it in row 2:

 fold or remove the load space cover,

 open the covers of the upper fi xings 2 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2 , then do the same with the
other end,

 fi x the snap hook of each of the
straps in the corresponding ring 4 ,
located on the rear seats mechanism
support,

 tighten the straps,

 check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
This net can be stored in the storage
tray on the fl oor.

LAYOUT

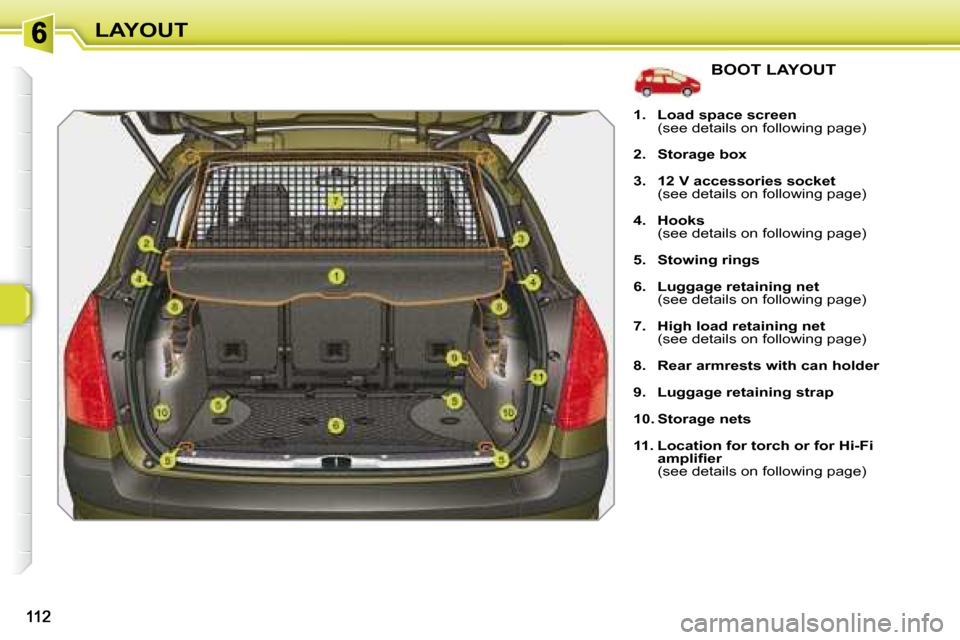

BOOT LAYOUT

1. Load space screen
(see details on following page)

2. Storage box

3. 12 V accessories socket
(see details on following page)

4. Hooks
(see details on following page)

5. Stowing rings

6. Luggage retaining net
(see details on following page)

7. High load retaining net
(see details on following page)

8. Rear armrests with can holder

9. Luggage retaining strap

10. Storage nets

11. Location for torch or for Hi-Fi
amplifi er
(see details on following page)

i
113
LAYOUT

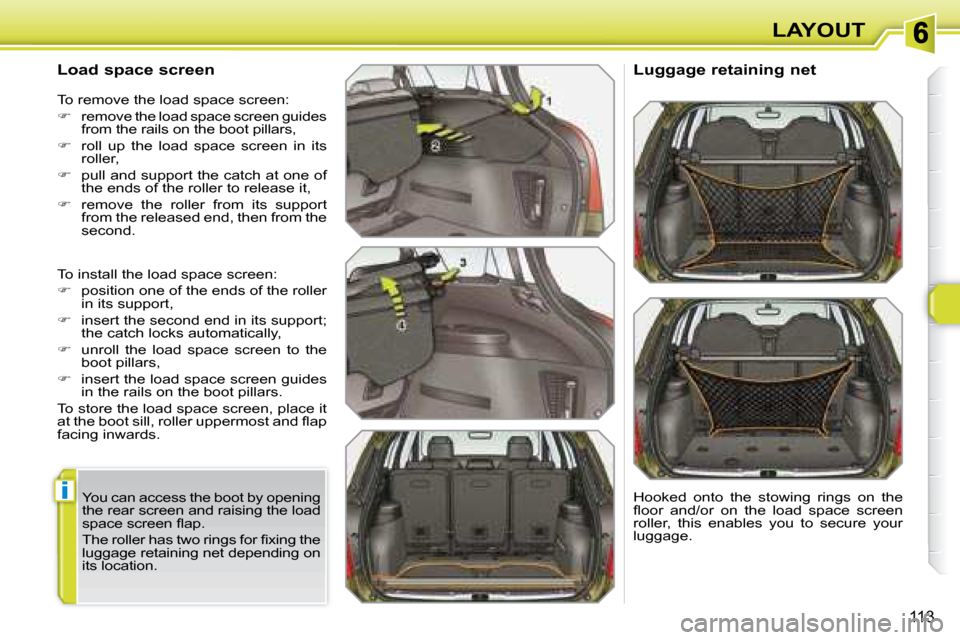

Load space screen
To install the load space screen:

 position one of the ends of the roller
in its support,

 insert the second end in its support;
the catch locks automatically,

 unroll the load space screen to the
boot pillars,

 insert the load space screen guides
in the rails on the boot pillars.
To store the load space screen, place it
at the boot sill, roller uppermost and fl ap
facing inwards.
To remove the load space screen:

 remove the load space screen guides
from the rails on the boot pillars,

 roll up the load space screen in its
roller,

 pull and support the catch at one of
the ends of the roller to release it,

 remove the roller from its support
from the released end, then from the
second. Luggage retaining net
Hooked onto the stowing rings on the
fl oor and/or on the load space screen
roller, this enables you to secure your
luggage.
You can access the boot by opening
the rear screen and raising the load
space screen fl ap.
The roller has two rings for fi xing the
luggage retaining net depending on
its location.

i
114
LAYOUT

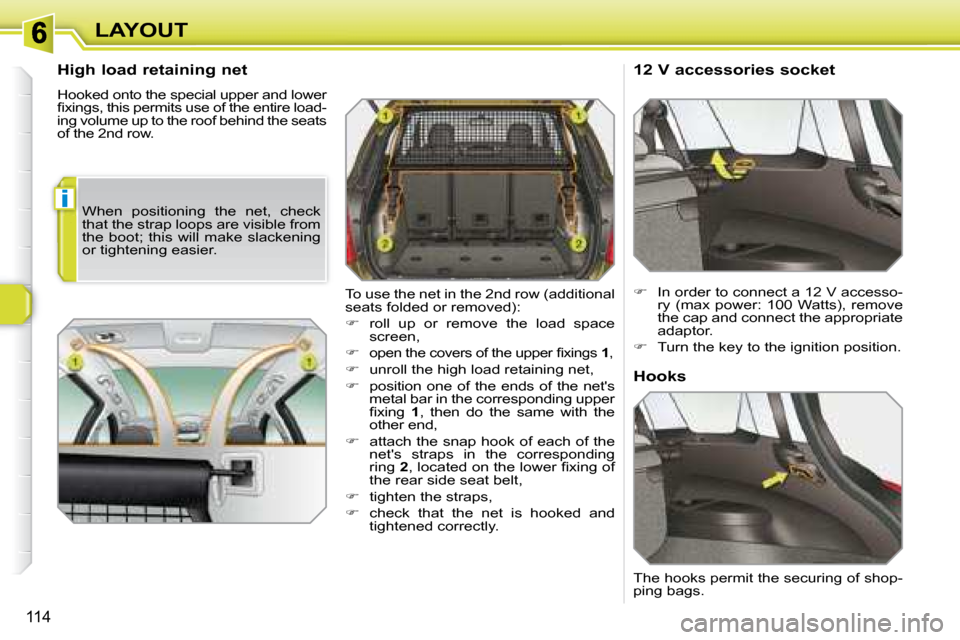

High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row. 12 V accessories socket

 In order to connect a 12 V accesso-
ry (max power: 100 Watts), remove
the cap and connect the appropriate
adaptor.

 Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):

 roll up or remove the load space
screen,


open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 attach the snap hook of each of the
net's straps in the corresponding
ring 2 , located on the lower fi xing of
the rear side seat belt,

 tighten the straps,

 check that the net is hooked and
tightened correctly. Hooks
The hooks permit the securing of shop-
ping bags.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

!i
115
LAYOUT

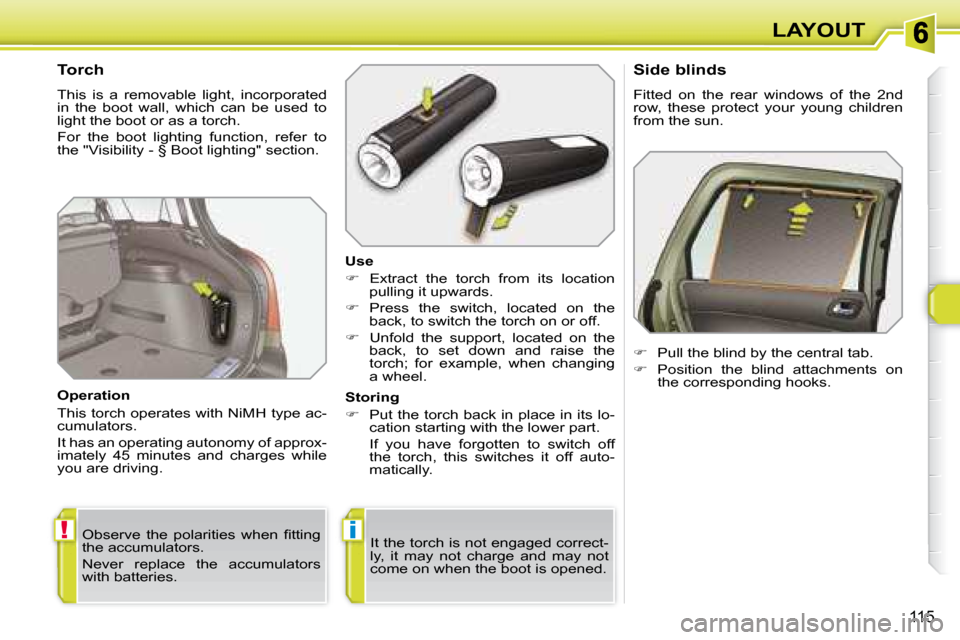

Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
For the boot lighting function, refer to
the "Visibility - § Boot lighting" section.
Operation
This torch operates with NiMH type ac-
cumulators.
It has an operating autonomy of approx-
imately 45 minutes and charges while
you are driving. Use

 Extract the torch from its location
pulling it upwards.

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its lo-
cation starting with the lower part.
If you have forgotten to switch off the torch, this switches it off auto-
matically. Side blinds
Fitted on the rear windows of the 2nd
row, these protect your young children
from the sun.

 Pull the blind by the central tab.

 Position the blind attachments on
the corresponding hooks.
Observe the polarities when fi tting
the accumulators.
Never replace the accumulators
with batteries. It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.

i
116

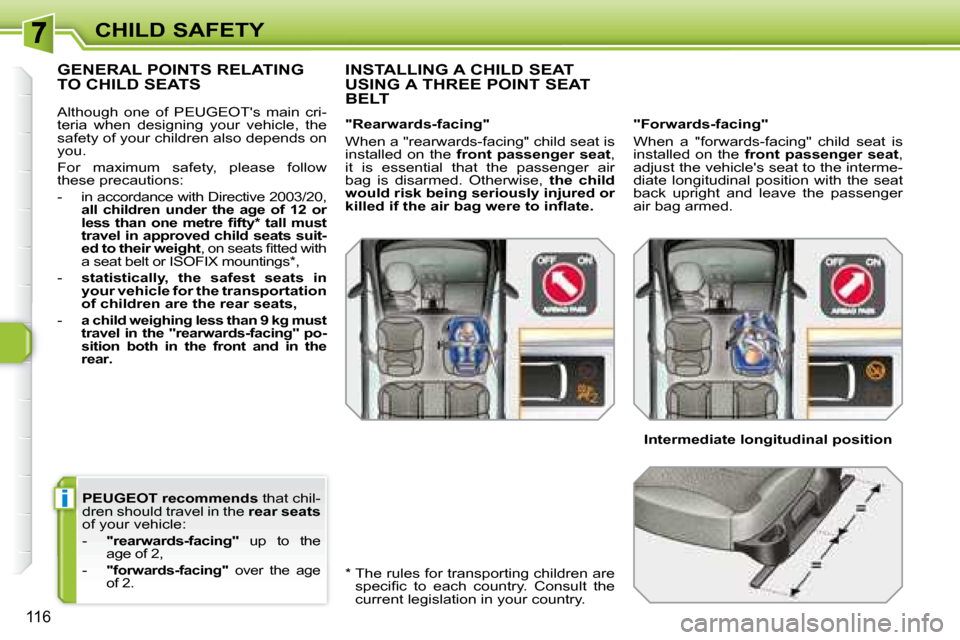

CHILD SAFETY

PEUGEOT
recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
-

"forwards-facing" over the age
of 2.
GENERAL POINTS RELATING TO CHILD SEATS INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger air
bag is disarmed. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to infl ate.
Intermediate longitudinal position

* The rules for transporting children are specifi c to each country. Consult the
current legislation in your country.
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with Directive 2003/20,

all children under the age of 12 or
less than one metre fi fty * tall must
travel in approved child seats suit-
ed to their weight , on seats fi tted with
a seat belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
-

a child weighing less than 9 kg must
travel in the "rearwards-facing" po-
sition both in the front and in the
rear
.

117
CHILD SAFETY

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of
the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years(approximately 22 kg),
the booster is
used on its own.
Passenger air bag OFF

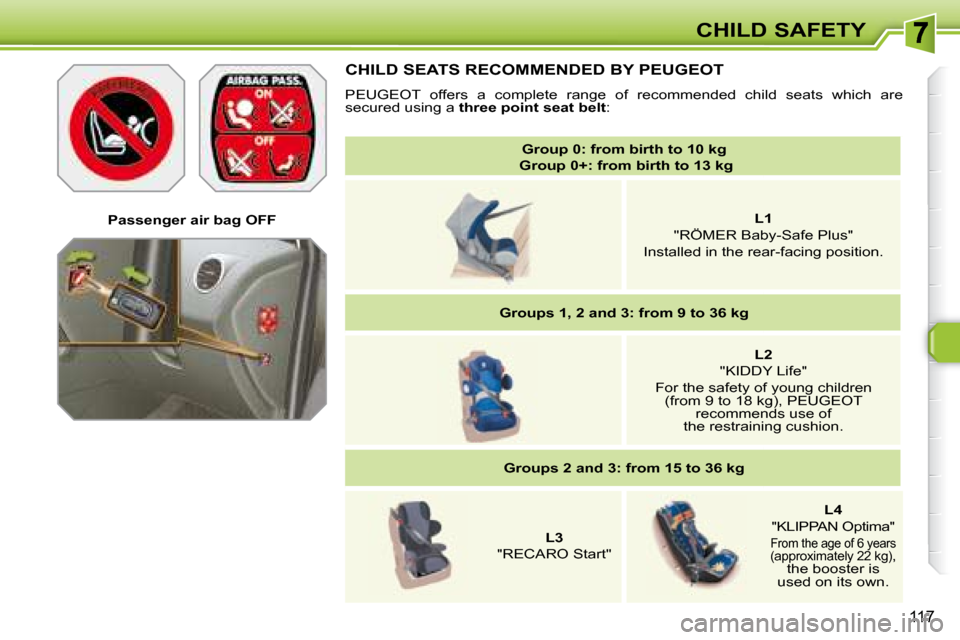

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are
secured using a three point seat belt :
