Page 151 of 221
9
PRACTICAL INFORMATION

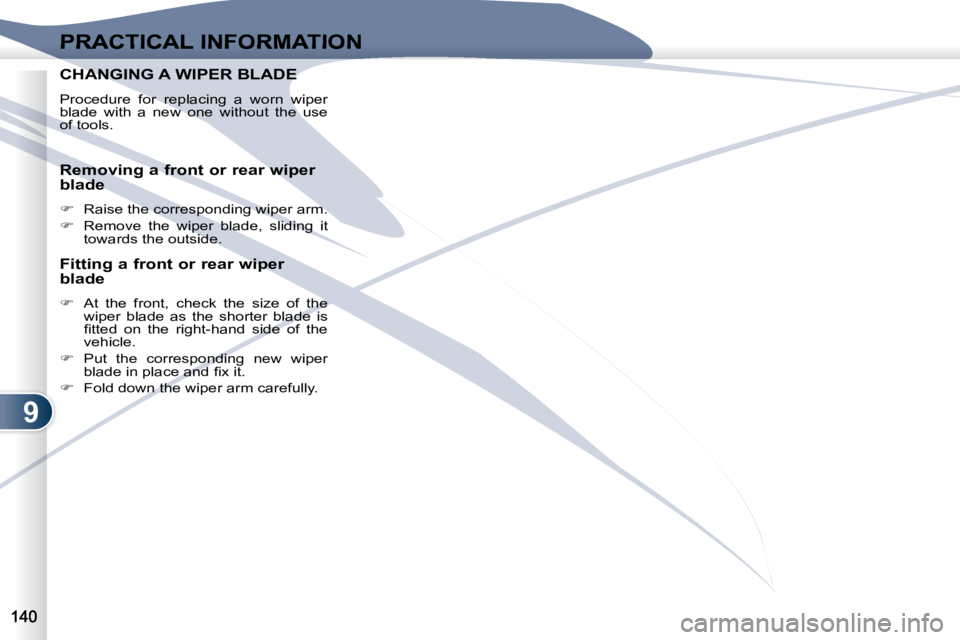

CHANGING A WIPER BLADE CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Remove the wiper blade, sliding it
towards the outside.
Fitting a front or rear wiper
blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
b l a d e i n p l a c e a n d fi x i t .
Fold down the wiper arm carefully.
Page 152 of 221
9
i
PRACTICAL INFORMATION

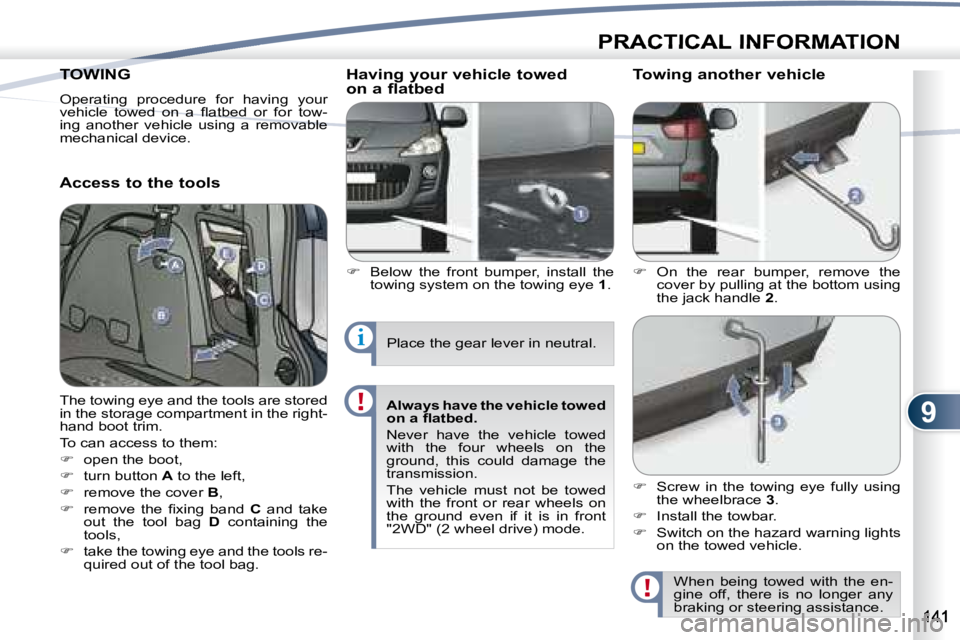

TOWING TOWING
Operating procedure for having your
v e h i c l e t o w e d o n a fl a t b e d o r f o r t o w -
ing another vehicle using a removable
mechanical device.
Access to the tools Having your vehicle towed
on a flatbed
Below the front bumper, install the
towing system on the towing eye 1 .
On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2 .
Towing another vehicle
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To can access to them:
open the boot,
turn button A to the left,
remove the cover B ,
r e m o v e t h e fi x i n g b a n d C and take
out the tool bag D containing the
tools,
take the towing eye and the tools re-
quired out of the tool bag.
When being towed with the en-
gine off, there is no longer any
braking or steering assistance.
Place the gear lever in neutral.
Always have the vehicle towed
o n a fl a t b e d .
Never have the vehicle towed
with the four wheels on the
ground, this could damage the
transmission.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.
Screw in the towing eye fully using
the wheelbrace 3 .
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Page 153 of 221
9
PRACTICAL INFORMATION

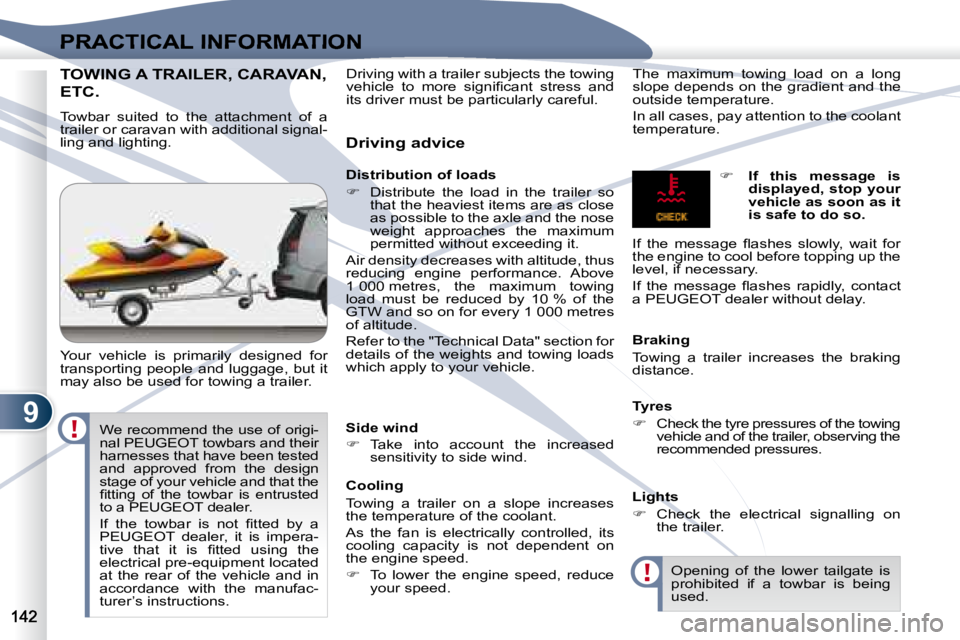

TOWING A TRAILER, CARAVAN, TOWING A TRAILER, CARAVAN,
ETC.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g
load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle. T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lights
Check the electrical signalling on
the trailer.
If this message is
displayed, stop your
vehicle as soon as it
is safe to do so.
I f t h e m e s s a g e fl a s h e s s l o w l y , w a i t f o r
the engine to cool before topping up the
level, if necessary.
I f t h e m e s s a g e fl a s h e s r a p i d l y , c o n t a c t
a PEUGEOT dealer without delay.
Opening of the lower tailgate is
prohibited if a towbar is being
used.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d
its driver must be particularly careful.
We recommend the use of origi-
nal PEUGEOT towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle and that the
fi t t i n g o f t h e t o w b a r i s e n t r u s t e d
to a PEUGEOT dealer.
I f t h e t o w b a r i s n o t fi t t e d b y a
PEUGEOT dealer, it is impera-
t i v e t h a t i t i s fi t t e d u s i n g t h e
electrical pre-equipment located
at the rear of the vehicle and in
accordance with the manufac-
turer’s instructions.
Page 154 of 221
9
i
PRACTICAL INFORMATION

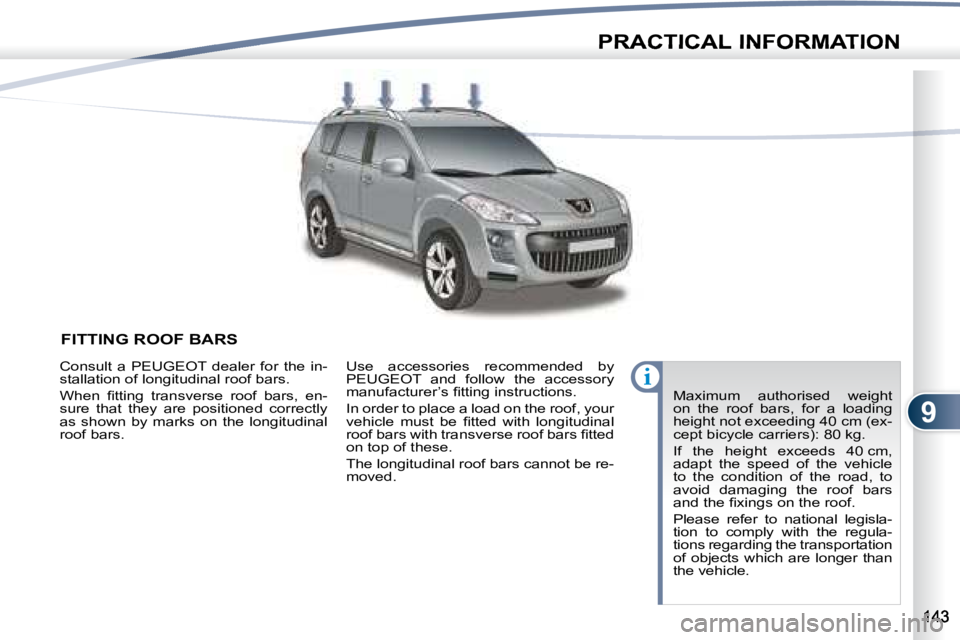

FITTING ROOF BARS
M a x i m u m a u t h o r i s e d w e i g h t
on the roof bars, for a loading
h e i g h t n o t e x c e e d i n g 4 0 c m ( e x -
cept bicycle carriers): 80 kg.
I f t h e h e i g h t e x c e e d s 4 0 c m ,
adapt the speed of the vehicle
to the condition of the road, to
avoid damaging the roof bars
a n d t h e fi x i n g s o n t h e r o o f .
Please refer to national legisla-
tion to comply with the regula-
tions regarding the transportation
of objects which are longer than
the vehicle.
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , e n -
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
m a n u f a c t u r e r ’ s fi t t i n g i n s t r u c t i o n s .
In order to place a load on the roof, your
v e h i c l e m u s t b e fi t t e d w i t h l o n g i t u d i n a l
r o o f b a r s w i t h t r a n s v e r s e r o o f b a r s fi t t e d
on top of these.
The longitudinal roof bars cannot be re-
moved.
Page 155 of 221
9i
i
PRACTICAL INFORMATION
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n -
ing. You are advised to contact
a representative of the Marque
to be shown the range of recom-
mended equipment and acces-
sories.

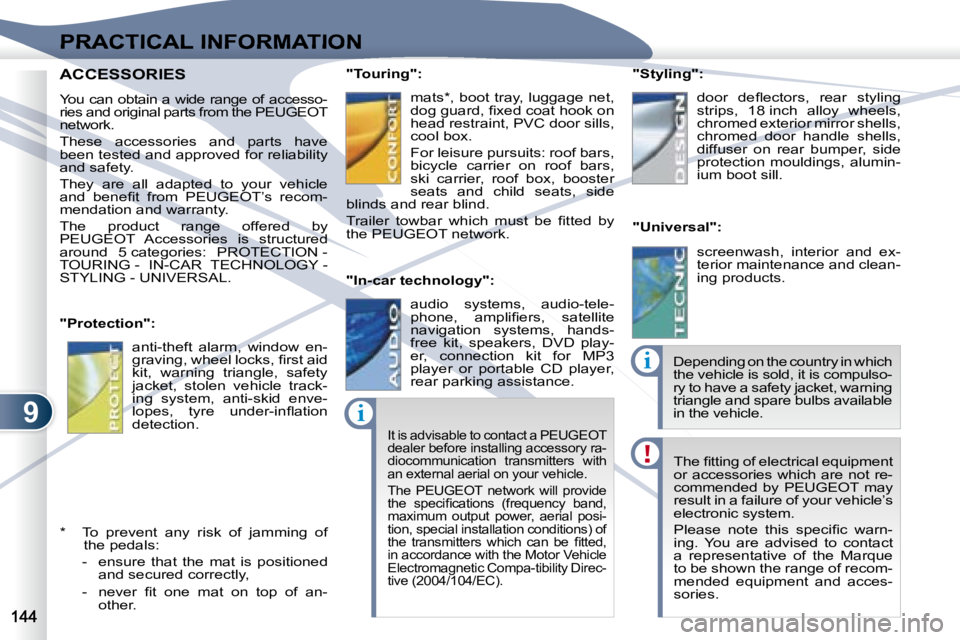

ACCESSORIES ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m P E U G E O T ’ s r e c o m -
mendation and warranty.
The product range offered by
PEUGEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n - other. Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a safety jacket, warning
triangle and spare bulbs available
in the vehicle.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , fi r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle track-
ing system, anti-skid enve-
l o p e s , t y r e u n d e r - i n fl a t i o n
detection. mats * , boot tray, luggage net,
d o g g u a r d , fi x e d c o a t h o o k o n
head restraint, PVC door sills,
c o o l b o x .
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side
blinds and rear blind.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
audio systems, audio-tele-
p h o n e , a m p l i fi e r s , s a t e l l i t e
navigation systems, hands-
free kit, speakers, DVD play-
er, connection kit for MP3
player or portable CD player,
rear parking assistance. d o o r d e fl e c t o r s , r e a r s t y l i n g
strips, 18 inch alloy wheels,
c h r o m e d e x t e r i o r m i r r o r s h e l l s ,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, alumin-
ium boot sill.
s c r e e n w a s h , i n t e r i o r a n d e x -
terior maintenance and clean-
ing products.
It is advisable to contact a PEUGEOT
dealer before installing accessory ra-
diocommunication transmitters with
a n e x t e r n a l a e r i a l o n y o u r v e h i c l e .
The PEUGEOT network will provide
t h e s p e c i fi c a t i o n s ( f r e q u e n c y b a n d ,
m a x i m u m o u t p u t p o w e r , a e r i a l p o s i -
tion, special installation conditions) of
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compa-tibility Direc-
tive (2004/104/EC).
Page 156 of 221
10
TECHNICAL DATA

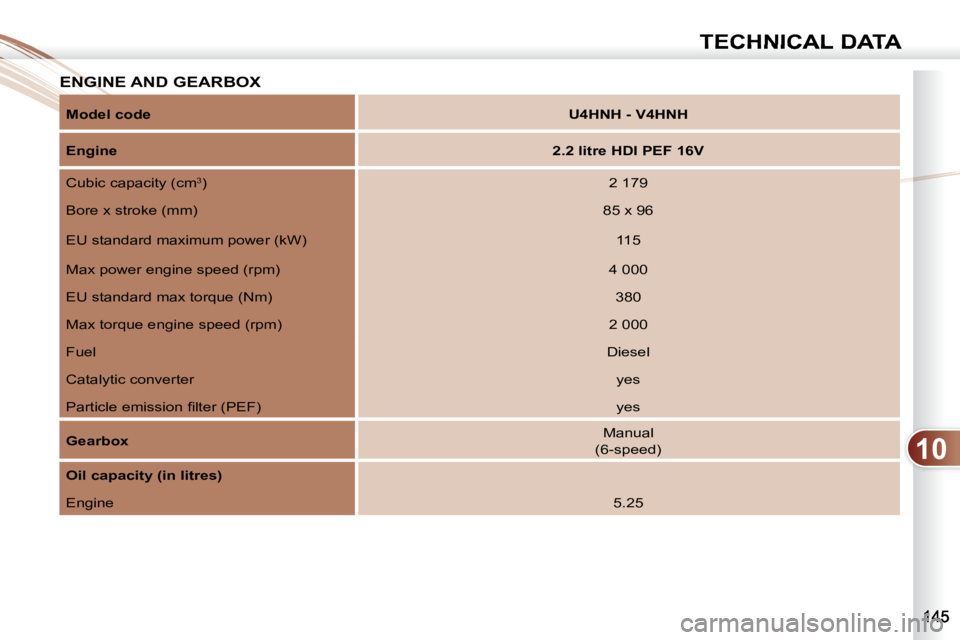

ENGINE AND GEARBOX ENGINE
Model code
U4HNH - V4HNH
Engine
2.2 litre HDI PEF 16V
Cubic capacity (cm 3
) 2 179
Bore x stroke (mm) 85 x 96
EU standard maximum power (kW) 115
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 380
Max torque engine speed (rpm) 2 000
Fuel Diesel
Catalytic converter yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) yes
Gearbox Manual
(6-speed)
Oil capacity (in litres)
Engine 5.25
Page 157 of 221
10
TECHNICAL DATA

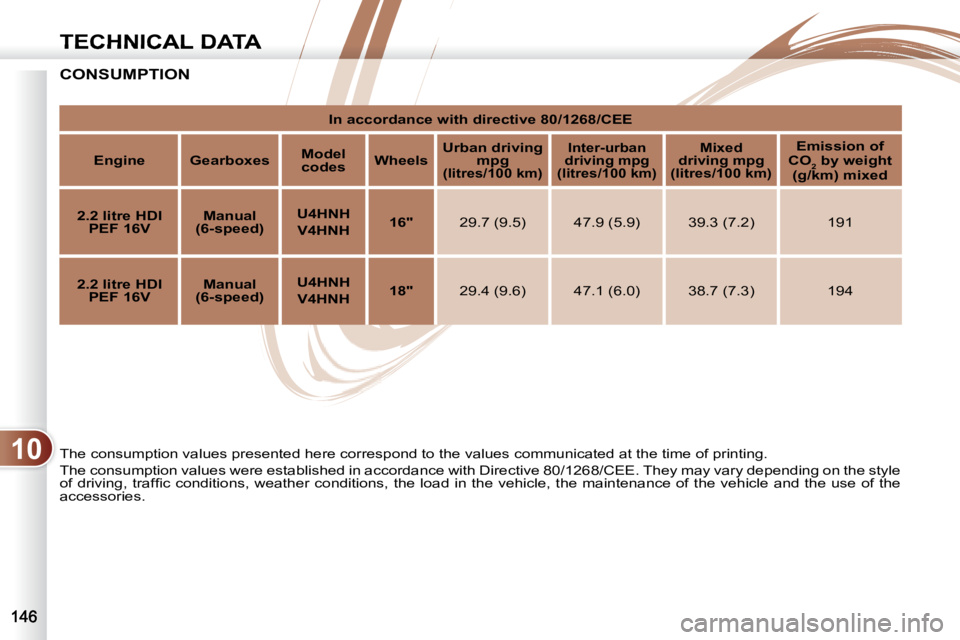

CONSUMPTION
The consumption values presented here correspond to the values communicated at the time of printing.
The consumption values were established in accordance with Dire ctive 80/1268/CEE. They may vary depending on the style
o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e
accessories.
In accordance with directive 80/1268/CEE
Engine Gearboxes
Model
codes
Wheels
Urban driving
mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by weight
(g/km) mixed
2.2 litre HDI
PEF 16V
Manual
(6-speed)
U4HNH
V4HNH
16" 29.7 (9.5) 47.9 (5.9) 39.3 (7.2) 191
2.2 litre HDI
PEF 16V
Manual
(6-speed)
U4HNH
V4HNH
18" 29.4 (9.6) 47.1 (6.0) 38.7 (7.3) 194
Page 158 of 221
10
TECHNICAL DATA

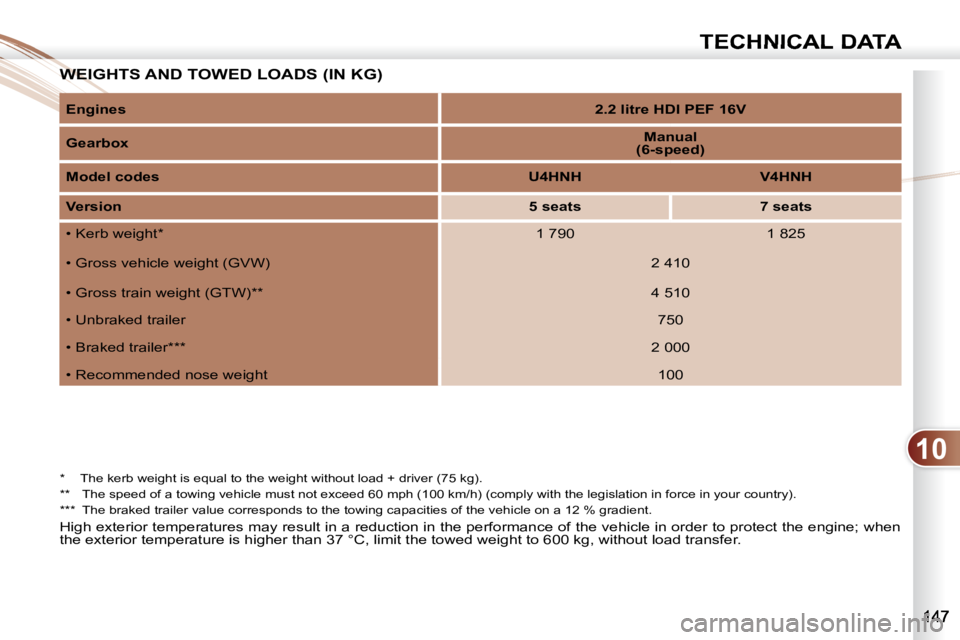

WEIGHTS AND TOWED LOADS (IN KG) WEIGHTS
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing ca pacities of the vehicle on a 12 % gradient.
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the tow ed weight to 600 kg, without load transfer.
Engines
2.2 litre HDI PEF 16V
Gearbox
Manual
(6-speed)
Model codes
U4HNH V4HNH
Version
5 seats 7 seats
Page 159 of 221
10
TECHNICAL DATA

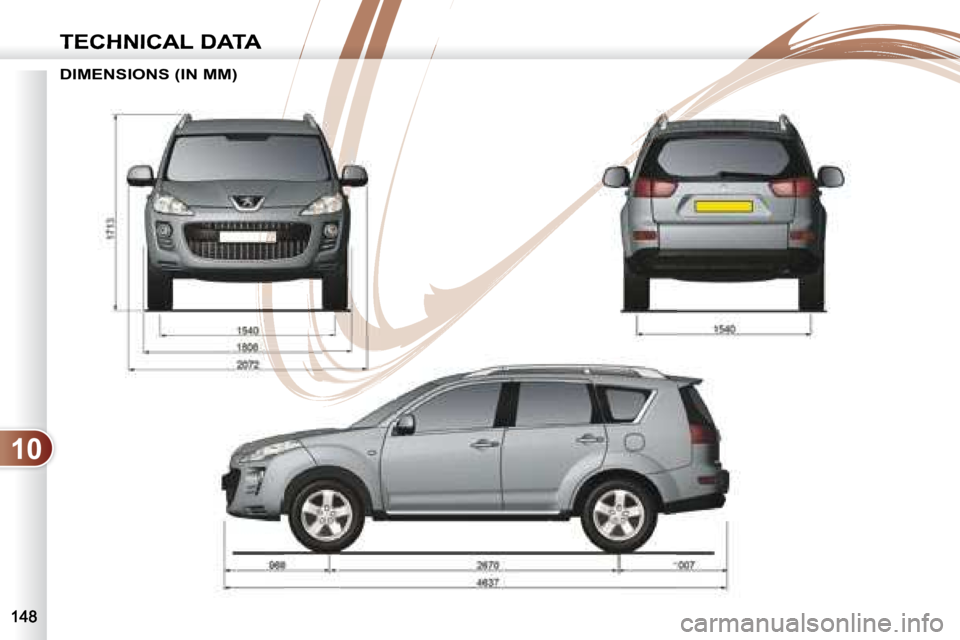

DIMENSIONS (IN MM)
Page 160 of 221
10
i
TECHNICAL DATA

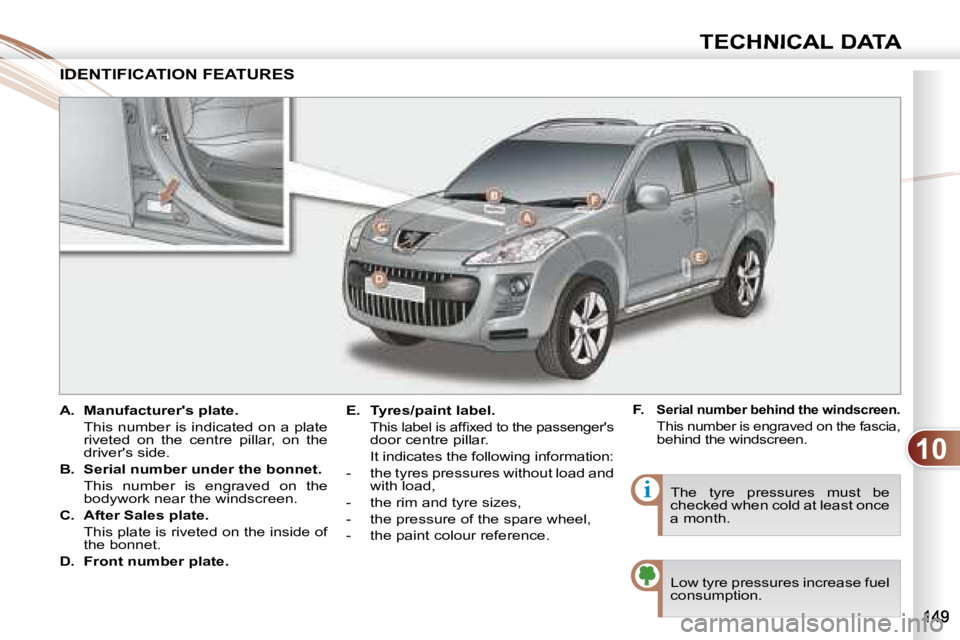

A. Manufacturer's plate.
This number is indicated on a plate riveted on the centre pillar, on the
driver's side.
B. Serial number under the bonnet.
This number is engraved on the bodywork near the windscreen.
C. After Sales plate.
This plate is riveted on the inside of the bonnet.
D. Front number plate.
E. Tyres/paint label.
T h i s l a b e l i s a f fi x e d t o t h e p a s s e n g e r ' s door centre pillar.
It indicates the following information:
- the tyres pressures without load and with load,
- the rim and tyre sizes,
- the pressure of the spare wheel,
- the paint colour reference. The tyre pressures must be
checked when cold at least once
a month.
IDENTIFICATION FEATURES IDENTIFICA
Low tyre pressures increase fuel
consumption.
F.
Serial number behind the windscreen.
This number is engraved on the fascia, behind the windscreen.
