PEUGEOT 4008 2012 User Guide

.

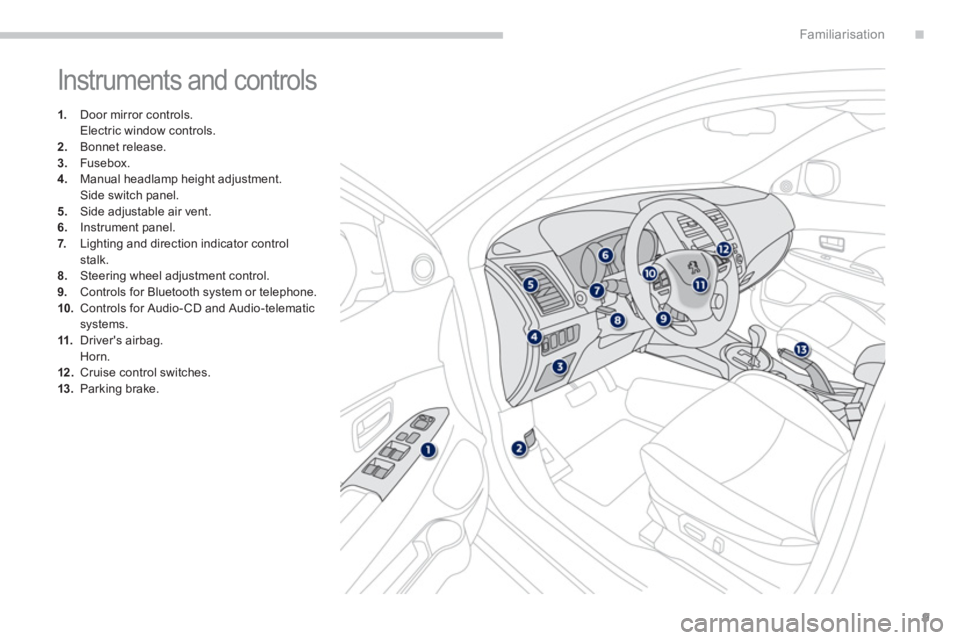

9
Familiarisation
Instruments and controls
1.
Door mirror controls.
Electric window controls. 2.Bonnet release.
3.Fusebox.4. Manual headlamp height adjustment.
Side switch panel.
5. Side adjustable air vent.
6.Instrument panel.
7. Lighting and direction indicator controlstalk.8.Steering wheel adjustment control. 9.
Controls for Bluetooth system or telephone.10.Controls for Audio-CD and Audio-telematicsystems.11.
Driver's airbag.
Horn. 12. Cruise control switches.13.Parking brake.

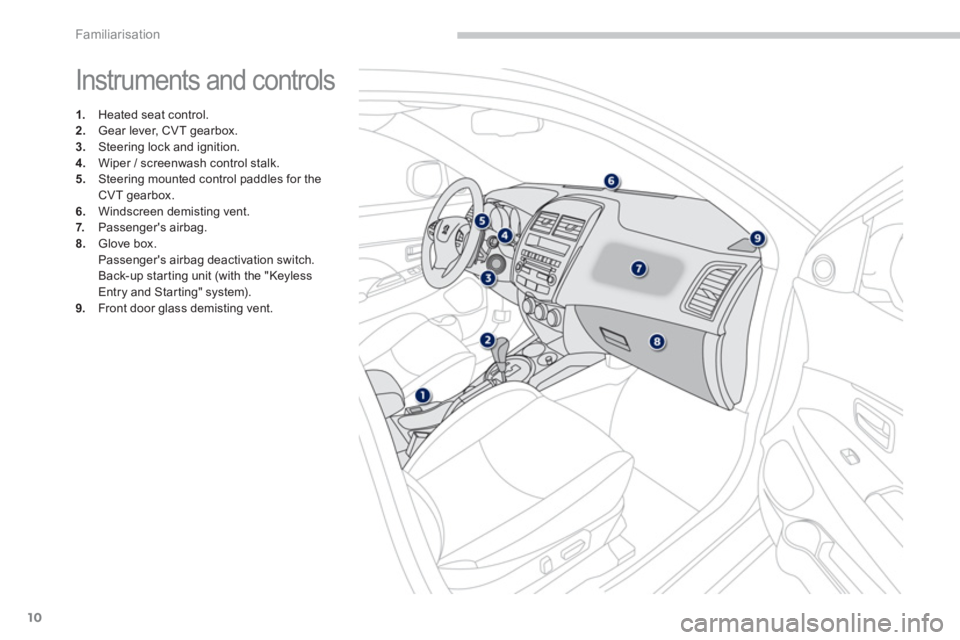

10
Familiarisation
Instruments and controls
1.
Heated seat control. 2.
Gear lever, CVT gearbox.3.
Steering lock and ignition.
4.
Wiper / screenwash control stalk. 5.
Steering mounted control paddles for the CVT gearbox.
6.Windscreen demisting vent.
7. Passenger's airbag. 8.Glove box.
Passenger's airbag deactivation switch.
Back-up star ting unit (with the "Keyless
Entry and Star ting" system).9. Front door glass demisting vent.

.
11
Familiarisation
Centre console
A.
Rear view mirror, manual or automatic. B.
Courtesy lamp / Map reading lamps. C.
Microphone for Audio-CD et Audio-
telematic systems.D. Control for panoramic sunroof blind.
E. Sunshine/rain sensor.
1.Central adjustable air vents. 2.
Screen for the Audio-CD system or colour screen for the Audio-telematic system. 3.
Ignition switch. STA R T/STOP
button (with "Keyless Entryand Starting" system). 4.
Audio-CD system or Audio-telematic system.
5. Central switch panel. 6.
Temperature sensor.7.
Manual or digital heating / air conditioning controls.8.
Gear lever, manual or CVT gearbox.9.
Cigarette lighter / 12 V accessory socket.
10.Portable ashtray.
11.Control for 4 wheel drive system.
12.Cup holder.
13. Front armrest.

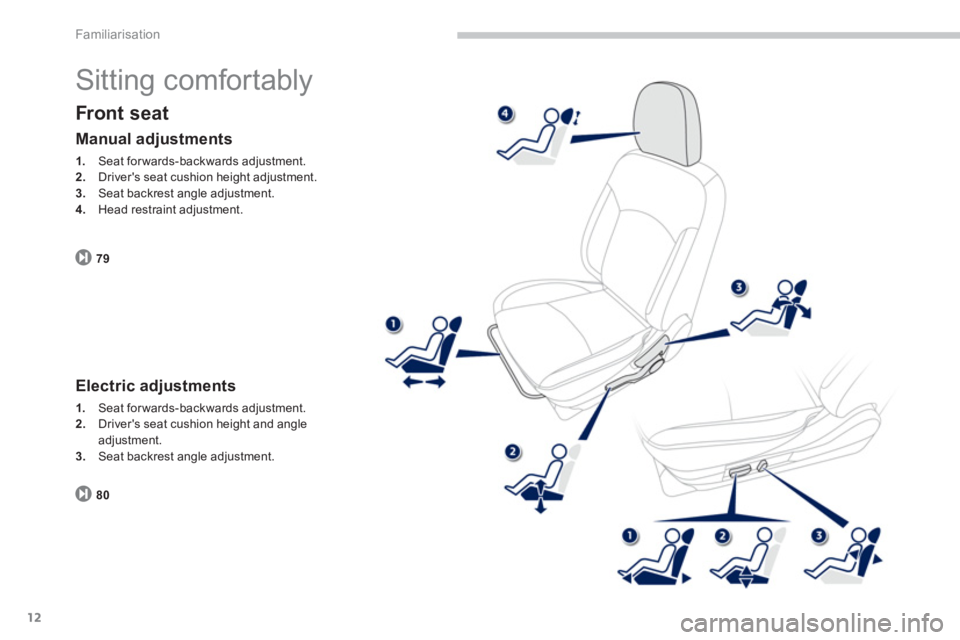

12
Familiarisation
Sitting comfortably
Front seat
79
Manual adjustments
1.
Seat forwards-backwards adjustment.2.
Driver's seat cushion height adjustment. 3.Seat backrest angle adjustment.4.
Head restraint adjustment.
Electric adjustments
1.
Seat forwards-backwards adjustment.2.
Driver's seat cushion height and angleadjustment. 3.
Seat backrest angle adjustment.
80

.
13
Familiarisation
Sitting comfortably


Front armrest
82


Steering wheel adjustment
1.
Release.2.Adjust for height and reach.3.Lock. For
your comfor t, the front armrest is adjustable
longitudinally.
87 It also has two stora
ge spaces; these can be
fitted with accessory sockets.
101 As a safety precaution, these operations must only be carried outwhen stationary.

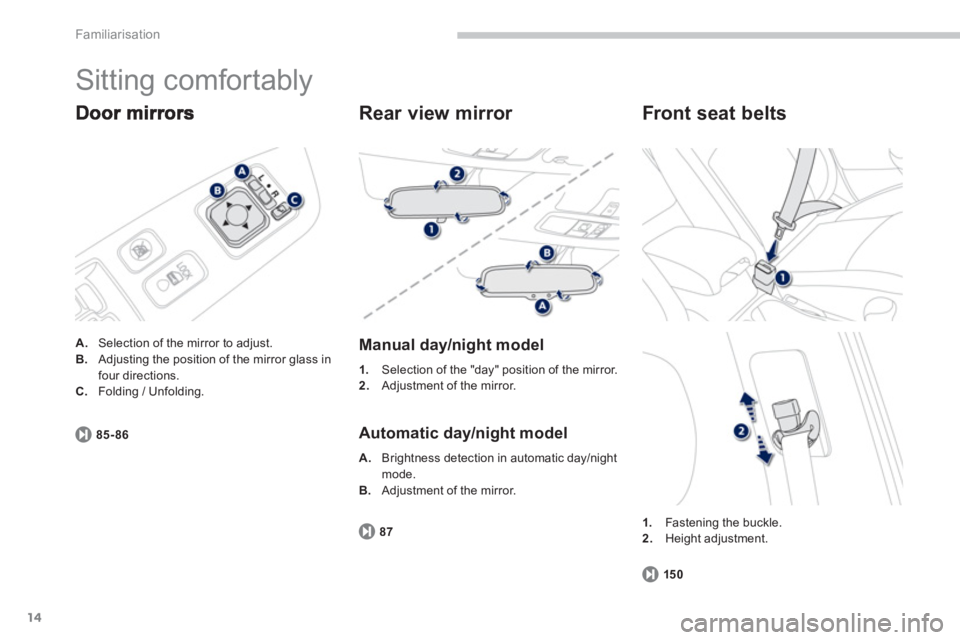

14
Familiarisation
Sitting comfortably
A.
Selection of the mirror to adjust. B.Adjusting the position of the mirror glass in
four directions. C.Folding / Unfolding.
85-86

Rear view mirror


Manual day/night model
1.Selection of the "day" position of the mirror.
2. Adjustment of the mirror.


Automatic day/night model
87 A
. Brightness detection in automatic day/night
mode. B. Adjustment of the mirror.
1.
Fastening the buckle.2.Height adjustment.


Front seat belts
150

.

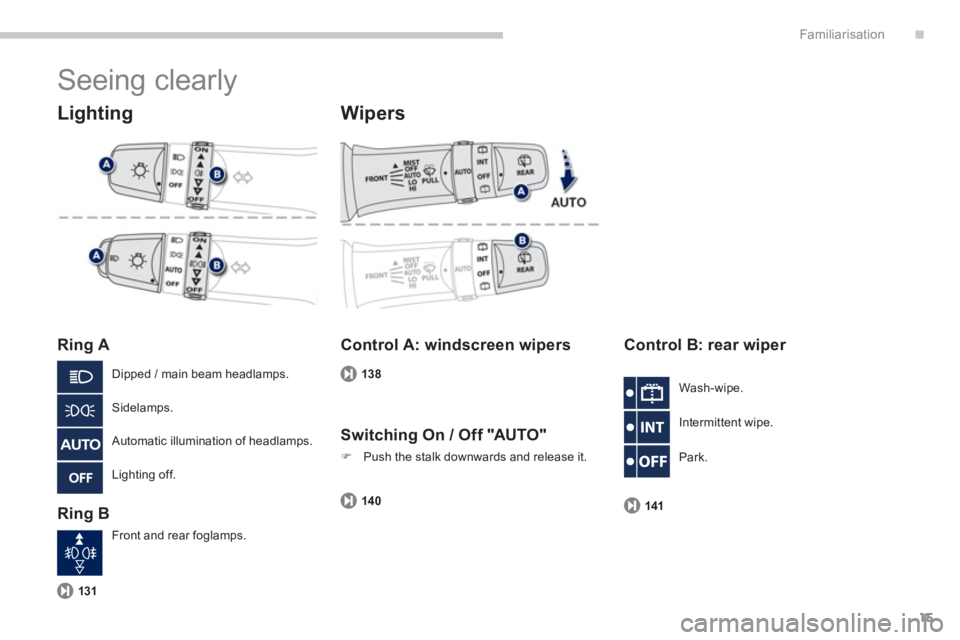

15
Familiarisation
Seeing clearly


Lighting


Ring A

Rin
g B
Wipers
131
Control A: windscreen wipers
138


Control B: rear wiper
141
Dipped / main beam headlamps.
Sidelamps.
Automatic illumination o
f headlamps.
Li
ghting off.
Front and rear fo
glamps.
Wash-wipe.
Intermittent wi
pe.
P
ark.
Switching On / Off "AUTO"
) Push the stalk downwards and release it.
140

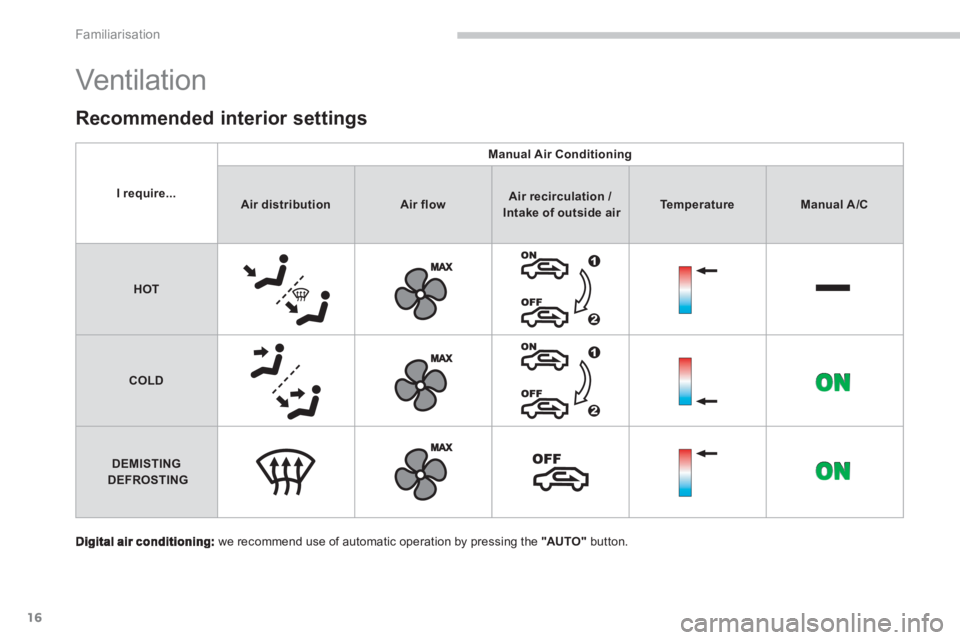

16
Familiarisation
Vent ilat ion

we recommend use of automatic operation by pressing the "AUTO"
button.
Recommended interior settings
I require...
Manual Air Conditioning
Air distributionAir flowAir recirculation // Intake of outside airTemperatureManual A/C
HOT
COLD
DEMISTING
DEFROSTING

.

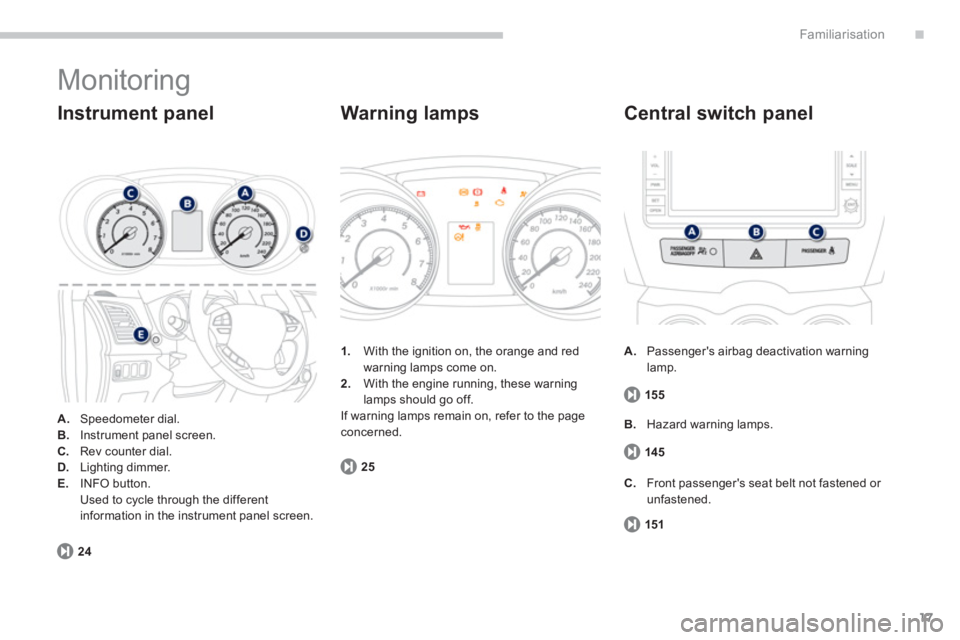

17
Familiarisation
Monitoring
A.Speedometer dial.B.Instrument panel screen.C.Rev counter dial.D.Lighting dimmer.E.
INFO button.
Used to cycle through the different
information in the instrument panel screen.


Instrument panel
A.Passenger's airbag deactivation warning
lamp.


Central switch panel
155 1
.With the ignition on, the orange and red
warning lamps come on.
2. With the engine running, these warning lamps should go off.
If warning lamps remain on, refer to the page concerned.
25
24
Warning lamps
145
151
B. Hazard warning lamps.
C.
Front passenger's seat belt not fastened or unfastened.

18
Familiarisation
Monitoring

Manual headlamp adjustment.
Side switch panel
137
1.Open the glove box.
2. Inser t the key.3.
Select the position:"OFF"(deactivation), with "rear facing"child seat, "ON"
(activation), with front passenger or "forwards facing" child seat. 4.Remove the key keeping the switch in the
new position.


Passenger's front airbag
155
B.Deactivation of the ASC/ TCL system.
127 C
.Deactivation of the parking sensors.
148

Passenger safety
120
D.
Deactivation of the Stop & Start (AutoStop & Go) function.

Starting



- Position 1: LOCK

- Position 2: ACC

- Position 3: ON

- Position 4: START

Each press on the START/STOPbutton,
without action on the pedals, changes the mode of the vehicle.


- First press: ACC mode

- Second press: ONmode

- Third press: OFF mode
106
107


Ignition switch

STA R T/STOP button
