PEUGEOT 4008 2012 Service Manual

1
39
Instruments and controls
Screen 1Screen 2CauseSolution - ActionObservations
Fault with the CVT gearbox. Contact a PEUGEOT dealer or
a qualified workshop.
The temperature of the four wheel
drive transmission system is toohigh. Stop the vehicle and contact
a PEUGEOT dealer or a qualified workshop. The vehicle chan
ges automatically
to two wheel drive (2WD).
Th
e fuel level is low. Refuel as soon as possible.
The low level o
f the particleemissions filter additive reservoir has been reached.
Have the reser voir topped up as
soon as possible by a PEUGEOT
dealer or a qualified workshop.
Only for the 1.6 litre HDi engine.
+Star t of saturation of the par ticle
emissions filter. As soon as the driving conditions
allow, regenerate the filter by driving at
a speed of at least 25 mph (40 km/h)
for around 20 minutes (with the 1.6 litre HDi engine the minimum speed is
36 mph (60 km/h)). If the messa
ge remains on, contact a PEUGEOT or a qualified
workshop.
The par ticle emissions filter is fault
y. Stop as soon as it is safe to do so. Contact a PEUGEOT dealer or
a qualified workshop as soon as
possible.

40
Instruments and controls
Screen 1Screen 2CauseSolution - ActionObservations
Engine oil level not correct (below minimum level or above maximum level). Stop the vehicle as soon as it is safe
to do so.
Check the level with the dipstick and
top-up if the level low.
I
f the level is above the maximum
mark, do not restar t the engine andcontact a PEUGEOT dealer or aqualified workshop. Never drive with an incorrect oil
level.
Presence of water in the Diesel fuel filter. Risk of damage to the injection system on Diesel engines. Contact a PEUGEOT dealer or
a qualified workshop as soon as possible.
The ambient temperature is at or
below 3 °C
(37 °F). There may be black ice on the road.
Take care and drive gently.
The clutch pedal is not depressed
while star tin
g the engine. Depress the clutch pedal to star t theengine. For vehicles fitted with a manual gearbox.
The gear lever is not in position P
or position N
when starting the engine. Place the gear lever at position P tostart the engine. For vehicles fitted with a CVT gearbox.
The brake
pedal is not pressed
while star ting the engine. Press the brake pedal to star t theengine.

1
41
Instruments and controls
Screen 1Screen 2SystemObservations

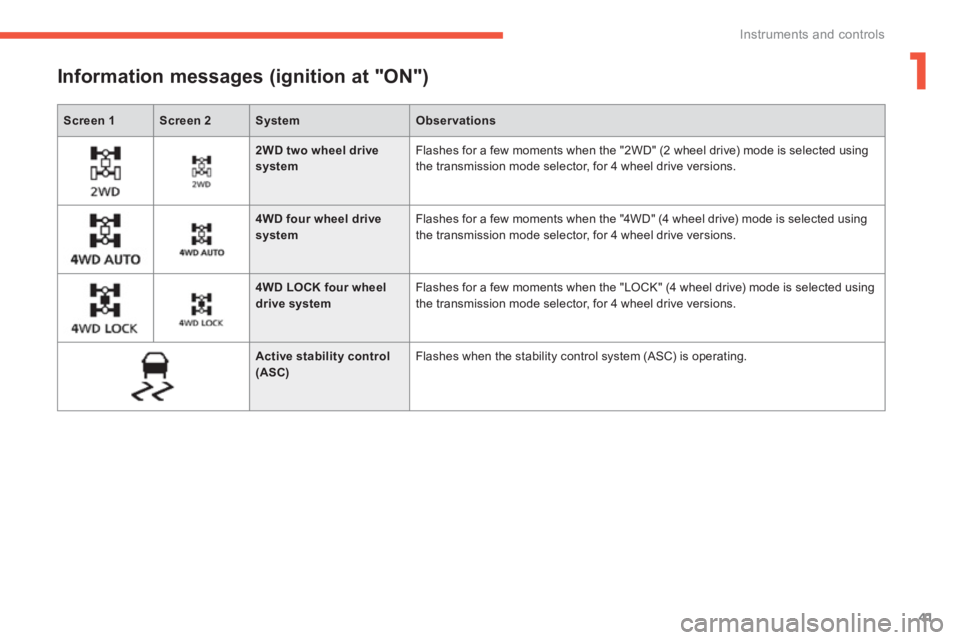

Information messages (ignition at "ON")

2WD two wheel drive system
Flashes for a few moments when the "2WD" (2 wheel drive) mode is selected usingthe transmission mode selector, for 4 wheel drive versions.
4WD four wheel drive system
Flashes for a few moments when the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector, for 4 wheel drive versions.
4WD LOCK four wheel drive system Flashes for a few moments when the "LOCK" (4 wheel drive) mode is selected usingthe transmission mode selector, for 4 wheel drive versions.
Active stability control (ASC)
Flashes when the stability control system (ASC) is operating.

42
Instruments and controls
Screen 2SystemCauseObservationsSolution - Action

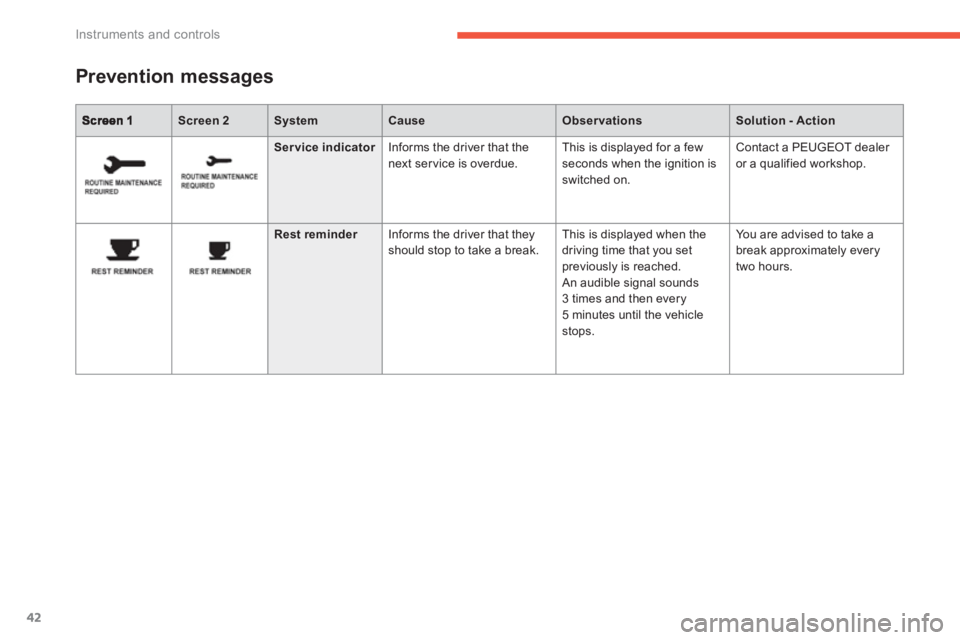

Prevention messages
Ser vice indicatorInforms the driver that the
next service is overdue. This is displa
yed for a few
seconds when the ignition is switched on.
Contact a PEUGEOT dealer
or a quali
fied workshop.
Rest reminderInforms the driver that they
should stop to take a break. This is displayed when the
driving time that you set
previousl
y is reached. An audible signal sounds 3 times and then every 5 minutes until the vehiclestops.
Yo u are advised to take a
break approximately every
tw
o hours.

1
43
Instruments and controls

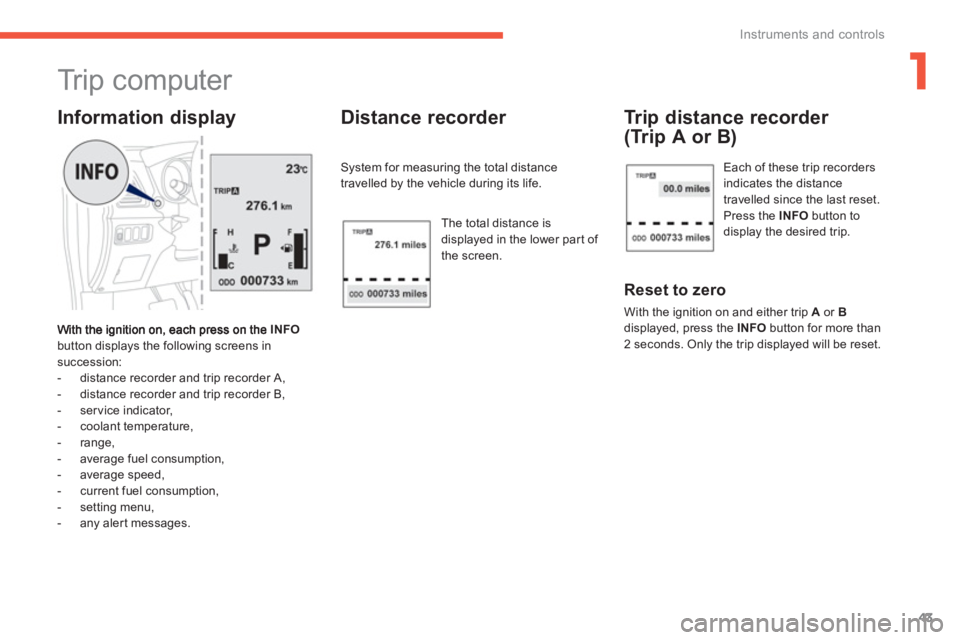

Tr i p c o m p u t e r
INFO
button displays the following screens in succession:


- distance recorder and trip recorder A,

- distance recorder and trip recorder B,

- service indicator,

- coolant temperature,

- range,

- average fuel consumption,

- average speed,

- current fuel consumption,

- settin
g menu,

- any aler t messages.



Information display Distance recorder
System for measuring the total distance
travelled by the vehicle during its life.
Th
e total distance is
displayed in the lower part of
the screen.
Trip distance recorder
(Trip A or B)


Reset to zero

With the ignition on and either trip Aor Bdisplayed, press the INFObutton for more than
2 seconds. Only the trip displayed will be reset.
Each of these trip recordersindicates the distance
travelled since the last reset.
Press the INFObutton todisplay the desired trip.

44
Instruments and controls

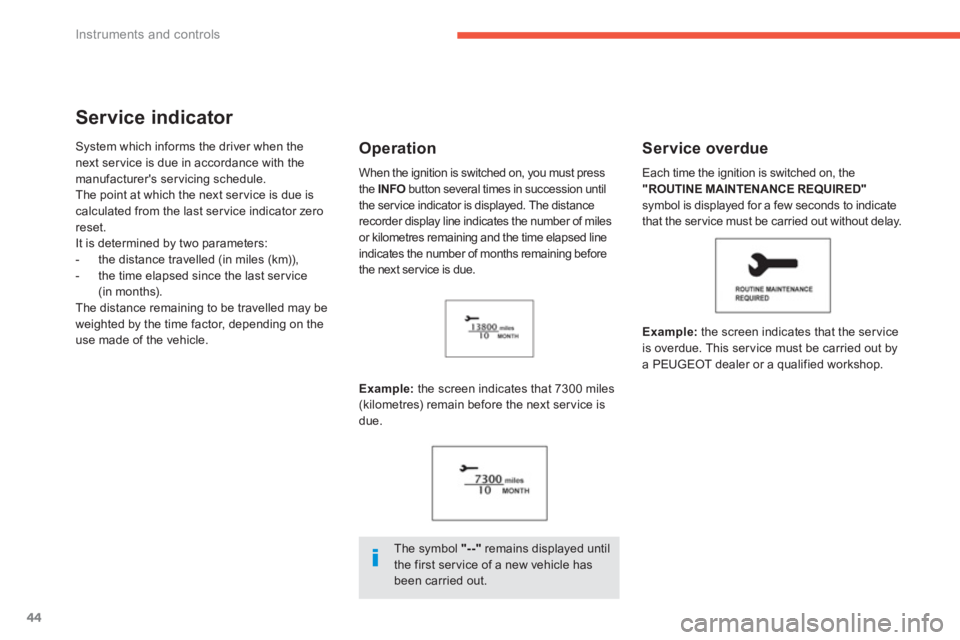

Service indicator
System which informs the driver when the next service is due in accordance with the manufacturer's servicing schedule.
The point at which the next ser vice is due is
calculated from the last service indicator zero
reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last service (in months).
The distance remaining to be travelled may be
wei
ghted by the time factor, depending on theuse made of the vehicle.
Exam
ple: the screen indicates that 7300 miles(kilometres) remain before the next ser vice is due.


Service overdue
Example:the screen indicates that the serviceis overdue. This ser vice must be carried out bya PEUGEOT dealer or a qualified workshop.


Operation
The symbol "--"remains displayed until the first service of a new vehicle has been carried out. Each time the i
gnition is switched on, the"ROUTINE MAINTENANCE REQUIRED"symbol is displayed for a few seconds to indicate
that the ser vice must be carried out without delay. When the i
gnition is switched on, you must press
the INFObutton several times in succession until
the ser vice indicator is displayed. The distance recorder display line indicates the number of miles
or kilometres remaining and the time elapsed line
indicates the number of months remaining before
the next service is due.

1
45
Instruments and controls

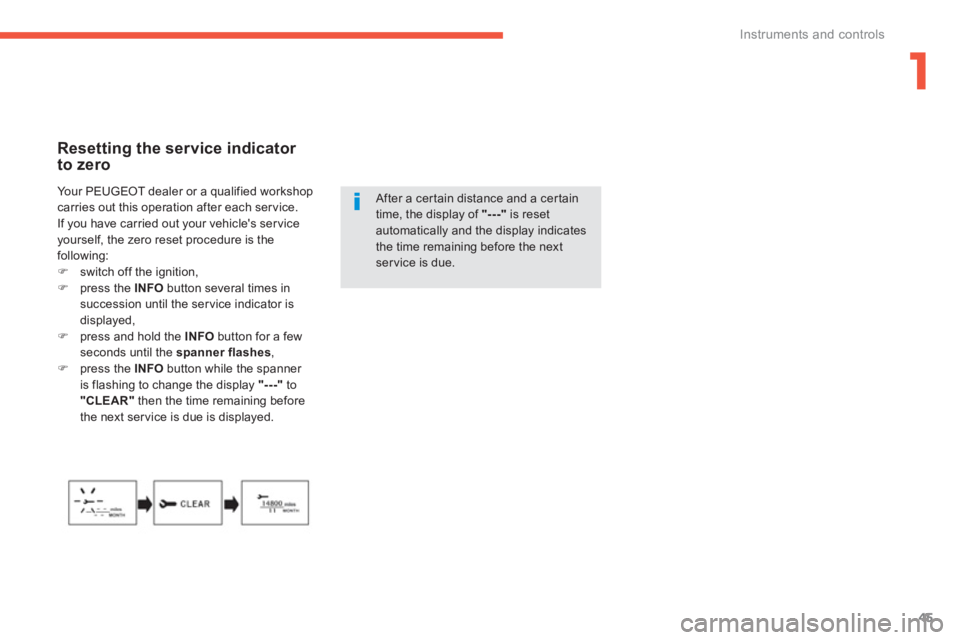

Resetting the service indicator to zero


After a certain distance and a certain time, the display of "---"
is reset automatically and the display indicatesthe time remaining before the nextservice is due.
Yo u r P E U
GEOT dealer or a qualified workshopcarries out this operation after each ser vice.
If you have carried out your vehicle's ser vice yourself, the zero reset procedure is the
following:)switch off the ignition,)press the INFO
button several times in succession until the service indicator is displayed,)press and hold the INFO
button for a few seconds until the spanner flashes,)press the INFO
button while the spanner
is flashing to change the display "---" to"CLEAR"then the time remaining before
the next ser vice is due is displayed.

46
Instruments and controls
When the engine is
running, this indicates the
temperature of the coolant.
Range
When the engine isrunning , this indicates
the distance which can still be travelled with thefuel remaining in the tankbased on the average
fuel consumption over the
last few miles/kilometres
travelled.

This value may vary following a change
in the style of driving or the relief,resulting in a large variation in the current fuel consumption.
If you only add a few litres, the value
displayed will be incorrect. Therefore,you must fill the tank whenever possible.

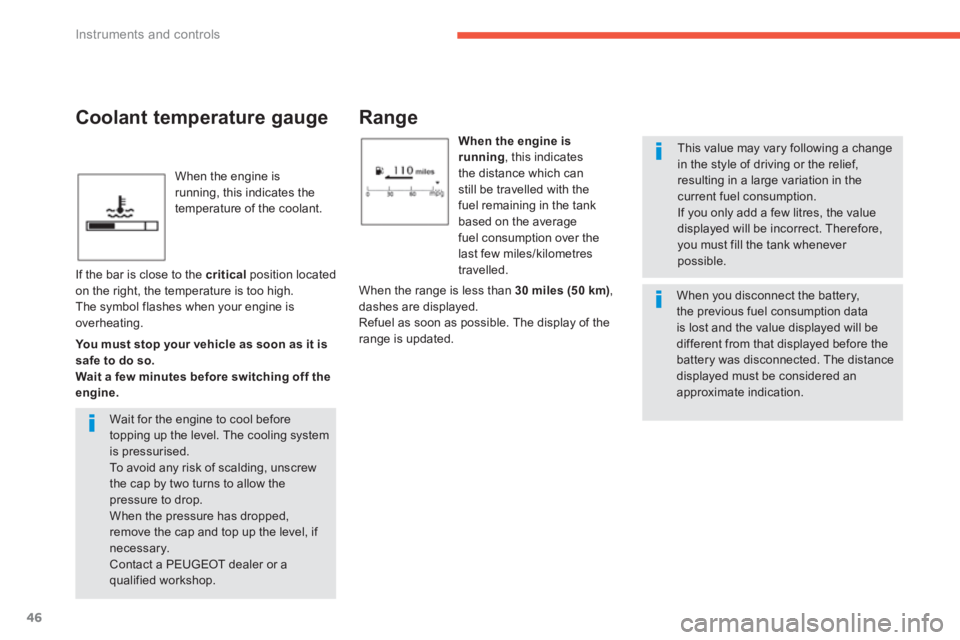

Coolant temperature gauge
If the bar is close to the criticalposition located
on the right, the temperature is too high.
The symbol flashes when your engine is
overheating.
You must stop your vehicle as soon as it is
safe to do so.Wait a few minutes before switching off theengine.
When the range is less than 30 miles (50 km),
dashes are displayed.
Refuel as soon as possible. The display of the range is updated.


Wait for the engine to cool beforetopping up the level. The cooling system is pressurised.
To avoid any risk of scalding, unscrew the cap by two turns to allow thepressure to drop. When the pressure has dropped,remove the cap and top up the level, if necessary. Contact a PEUGEOT dealer or aqualified workshop.


When you disconnect the battery, the previous fuel consumption data is lost and the value displayed will be different from that displayed before thebattery was disconnected. The distancedisplayed must be considered anapproximate indication.

1
47
Instruments and controls

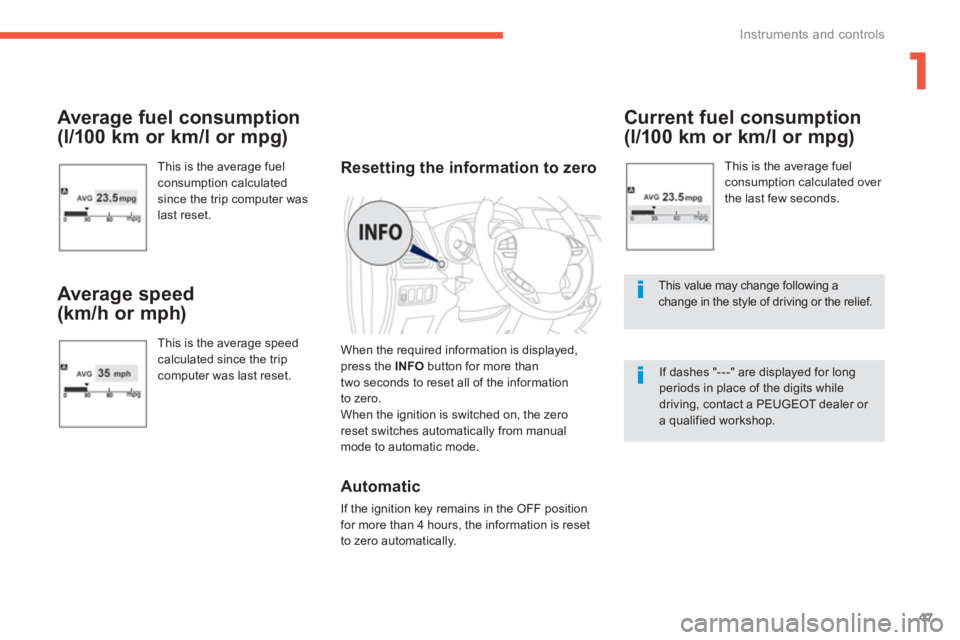

Average fuel consumption
(l/100 km or km/l or mpg)

This is the average fuel consumption calculatedsince the trip computer was
last reset.

Average speed
(km/h or mph)

This is the average speedcalculated since the tripcomputer was last reset.


Current fuel consumption
(l/100 km or km/l or mpg)

This is the average fuel consumption calculated over
the last few seconds.

This value may change following achange in the style of driving or the relief.


If dashes "---" are displayed for long periods in place of the digits while driving, contact a PEUGEOT dealer or a qualified workshop.

Resetting the information to zero
When the required information is displayed, press the INFO
button for more than
two seconds to reset all of the information
to zero.
When the ignition is switched on, the zero
reset switches automatically from manual mode to automatic mode.
Automatic
If the ignition key remains in the OFF position
for more than 4 hours, the information is reset
to zero automaticall
y.

48
Instruments and controls
The various menus may change between the type 1
instrument panel and the type 2 instrument panel.

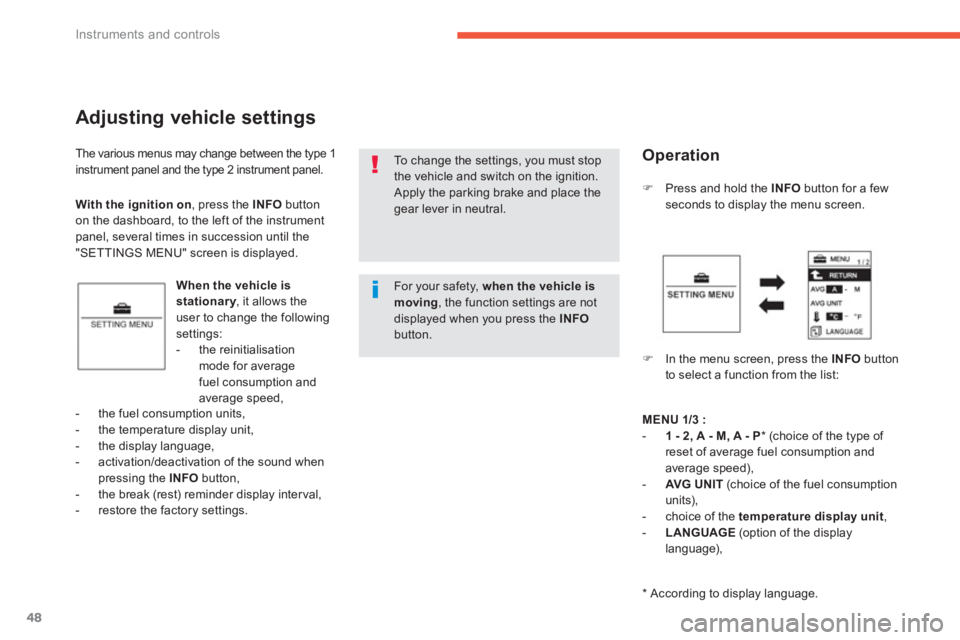

Adjusting vehicle settings
When the vehicle is stationary, it allows theyuser to change the following settings:


- the reinitialisation mode for average fuel consumption andaverage speed,
)Press and hold the INFObutton for a fewseconds to display the menu screen.
)In the menu screen, press the INFO
button
to select a function from the list:
- the
fuel consumption units,
- the temperature displa
y unit,
- the display language,
- activation/deactivation of the sound whenpressing the INFO
button,- the break (rest) reminder display interval,
- restore the factory settings.
To change the settings, you must stopthe vehicle and switch on the ignition.
Apply the parking brake and place the gear lever in neutral. With the ignition on
, press the INFObutton
on the dashboard, to the left of the instrumentpanel, several times in succession until the
"SETTINGS MENU" screen is displayed.


Operation
MENU1/3:-1 - 2, A - M, A - P*
(choice of the type of reset of average fuel consumption andaverage speed),

- AVG UNIT(choice of the fuel consumption
units),

- choice of the temperature display unit,-LANGUAGE(option of the display
language),

*
According to display language.
For your safety, when the vehicle is moving
, the function settings are not displayed when you press the INFObutton.
