PEUGEOT 4008 2014.5 Owners Manual

249

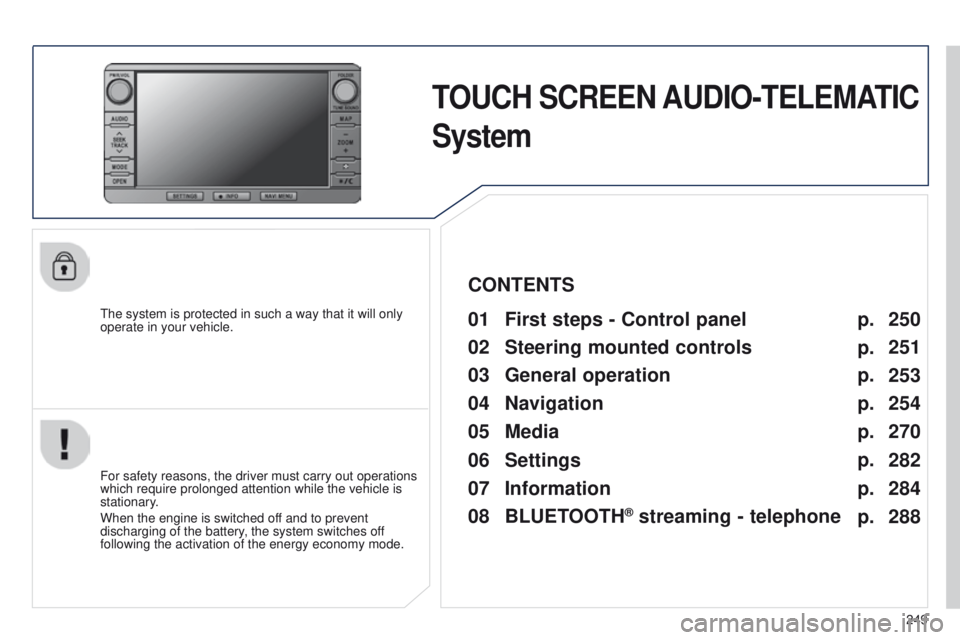

TOUCH SCREEN AUDIO-TELEMATIC
System
the system is protected in such a way that it will only
operate in your vehicle.01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
03

General
operation
04
Navigation
05
Media
06
Settings
07
Information p.
p.
p.
p.
p.
p.
p. 250
251
253
254
270
282
284
02

Steering mounted
controls p.
288
08
BLUETOOTH
® streaming - telephone

01

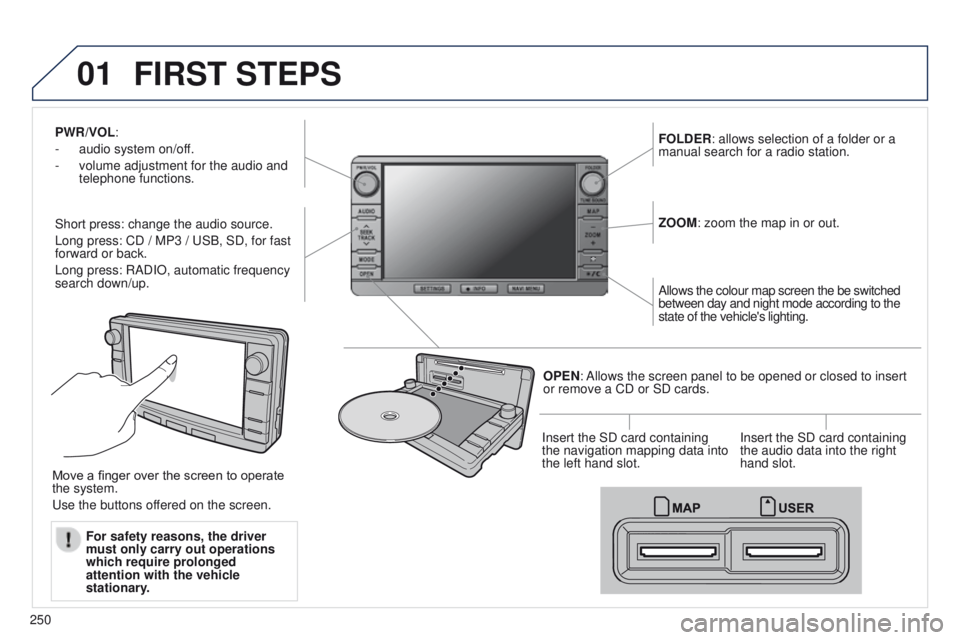

250PWR/VOL
:
-
audio system on/of
f.
-
volume adjustment for the audio and
telephone functions.
Short press: change the audio source.
Long press: CD / MP3 /
u SB, SD, for fast
forward or back.
Long press: RADIO, automatic frequency
search down/up. FOLDER: allows selection of a folder or a
manual search for a radio station.
OPEN: Allows the screen panel to be opened or closed to insert
or remove a CD or SD cards. ZOOM: zoom the map in or out.
Allows the colour map screen the be switched
between day and night mode according to the
state of the vehicle's lighting.
Move a finger over the screen to operate
the system.
u
se the buttons offered on the screen.
For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary. Insert the SD card containing
the navigation mapping data into
the left hand slot.
Insert the SD card containing
the audio data into the right
hand slot.
FIRST STEPS

02
251
Increase / reduce audio volume.
Search for a higher / lower radio frequency.
Previous/next CD track.
CD fast forward/back.
Long press: audio system on / off.
Short press: selection of the source in the
following order (in a loop):
CD, SD,
u
SB/iPod, Bluetooth, A
u
X, FM,
M W, LW.
STEERING MOUNTED CONTROLS

252

03
253
Description of the controls - Menus
SETTINGS: used to manage the
different adjustments. DESTINATION: used to set
navigation options and select the
destination.
NAVI MENU: used for adjustments
to the navigation system.
MODE: used to select the audio
source.
INFO: used to check information.
AUDIO: display the screen for the
last audio source used.
MAP: used to display the current
position of your vehicle on the map.
GENERAL
OPERATION

04
254

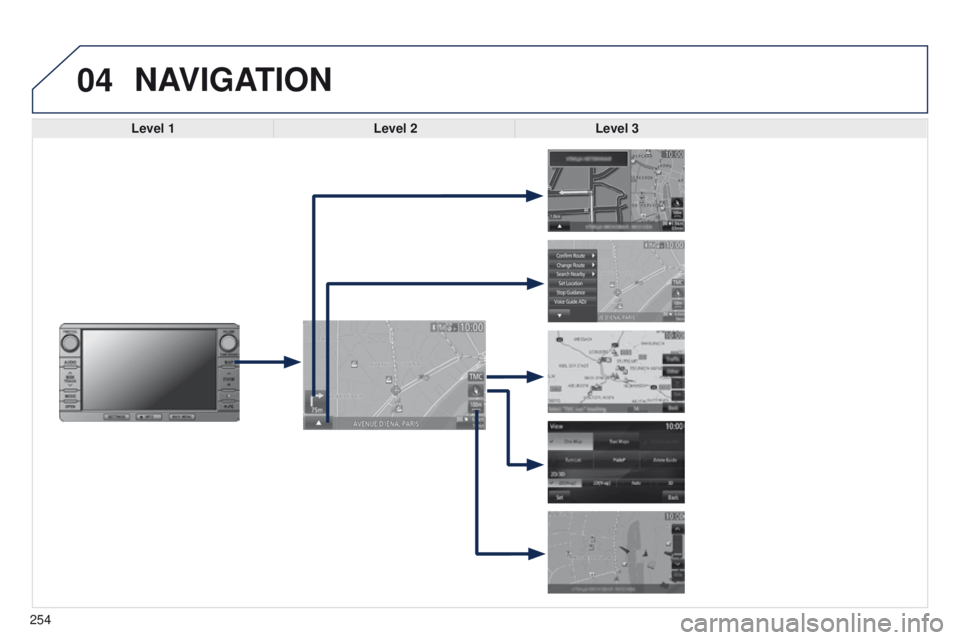

NAVIGATION
Level 1Level 2Level 3

255

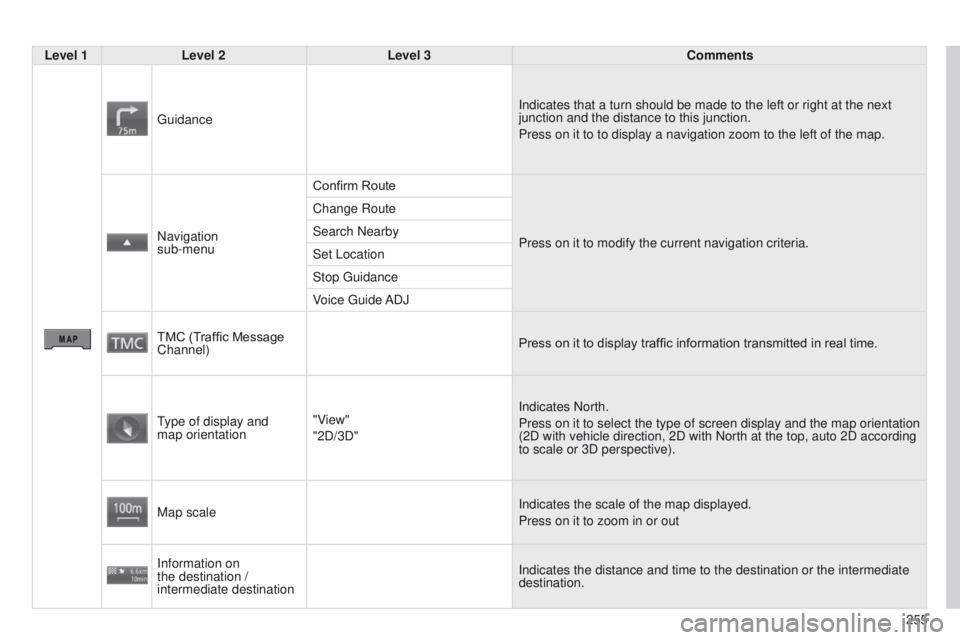

Level 1
Level 2 Level 3 Comments
g

uidance
Indicates that a turn should be made to the left or right at the next
junction and the distance to this junction.
Press on it to to display a navigation zoom to the left of the map.
Navigation
sub-menu Confirm Route
Press on it to modify the current navigation criteria.
Change Route
Search Nearby
Set Location
Stop
g
uidance
Voice
g

uide ADJ
TMC (Traffic Message
Channel) Press on it to display traffic information transmitted in real time.
type of display and
map orientation "V

iew"
"2D/3D" Indicates North.
Press on it to select the type of screen display and the map orientation\

(2D with vehicle direction, 2D with North at the top, auto 2D according\

to scale or 3D perspective).
Map scale Indicates the scale of the map displayed.
Press on it to zoom in or out
Information on
the destination /
intermediate destination Indicates the distance and time to the destination or the intermediate
destination.

04
256
NAVIGATION

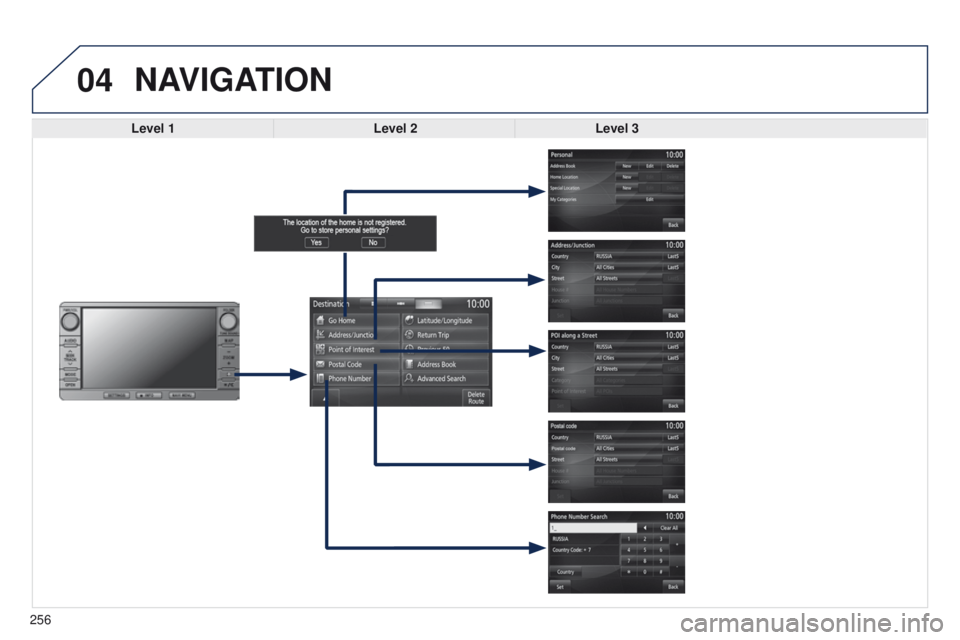

Level 1Level 2Level 3

257

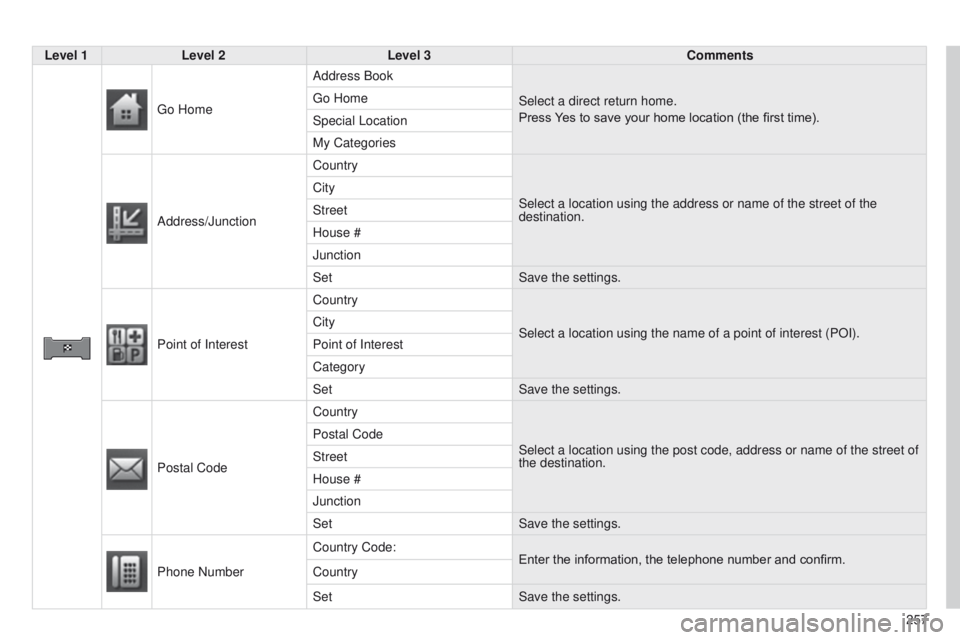

Level 1
Level 2 Level 3 Comments
g

o Home
Address Book
Select a direct return home.
Press Yes to save your home location (the first time).
g

o Home
Special Location
My Categories
Address/Junction Country
Select a location using the address or name of the street of the
destination.
City
Street
House #
Junction
Set
Save the settings.
Point of Interest Country
Select a location using the name of a point of interest (POI).
City
Point of Interest
Category
Set
Save the settings.
Postal Code Country
Select a location using the post code, address or name of the street of \
the destination.
Postal Code
Street
House #
Junction
Set
Save the settings.
Phone Number Country Code:
Enter the information, the telephone number and confirm.
Country
Set Save the settings.

04
258
NAVIGATION
Level 1Level 2Level 3
