PEUGEOT 4008 2014.5 Owners Manual

289

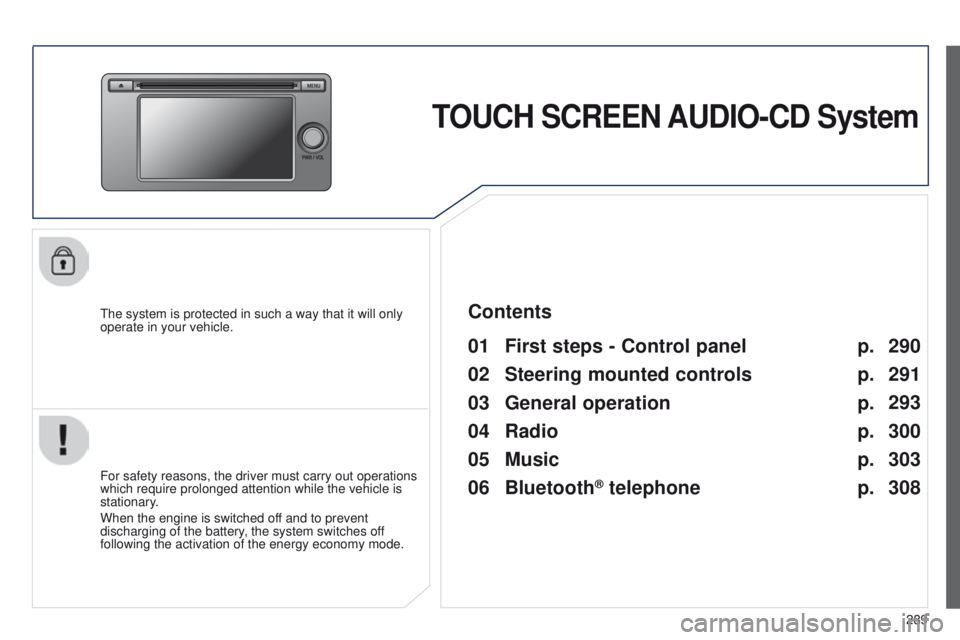

TOUCH SCREEN AUDIO-CD System
the system is protected in such a way that it will only
operate in your vehicle.
01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
Contents
03

General
operation
02

Steering mounted
controls
04
Radio
05
Music
06
Bluetooth
® telephone p.
p. p.
p.
p.
p. 290
291
293
300
303
308

01
290

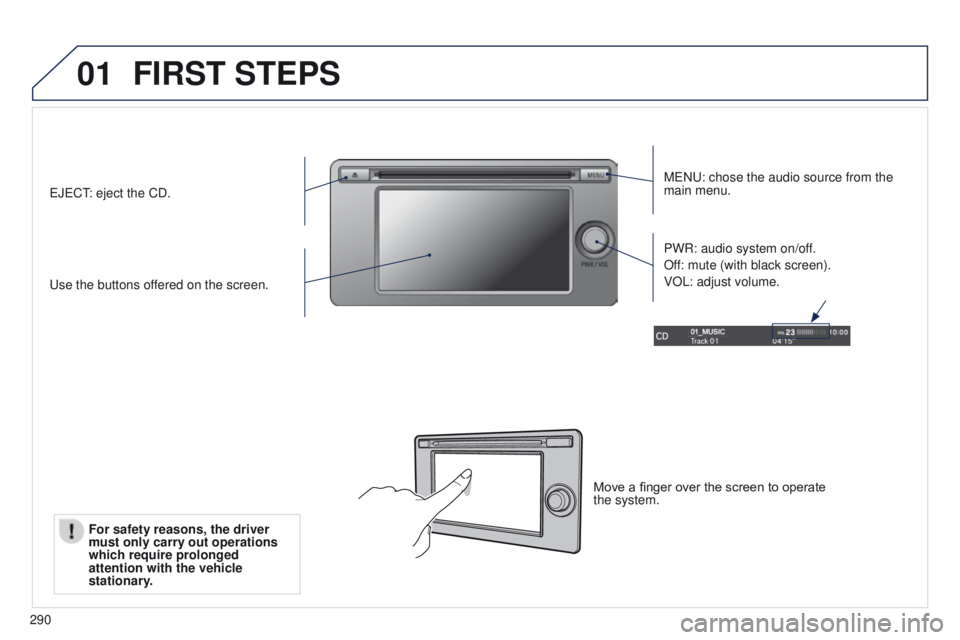

FIRST STEPS
MeNu: chose the audio source from the
main menu.
u

se the buttons offered on the screen. PWR: audio system on/off.
Off: mute (with black screen).
VOL: adjust volume.e
J
e
C
t: eject the CD.
Move a finger over the screen to operate
the system.
For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary
.

02
291

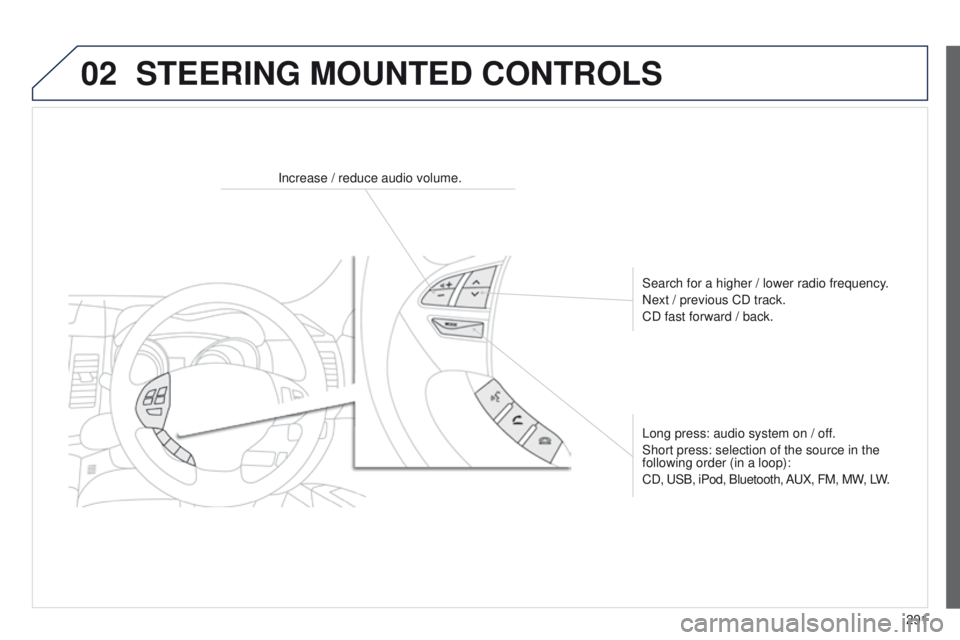

STEERING MOUNTED CONTROLS
Increase / reduce audio volume.Search for a higher / lower radio frequency.
Next / previous CD track.
CD fast forward / back.
Long press: audio system on / off.
Short press: selection of the source in the
following order (in a loop):
CD,
u SB, iPod, Bluetooth, A u X, FM, MW, LW.

292

03
293

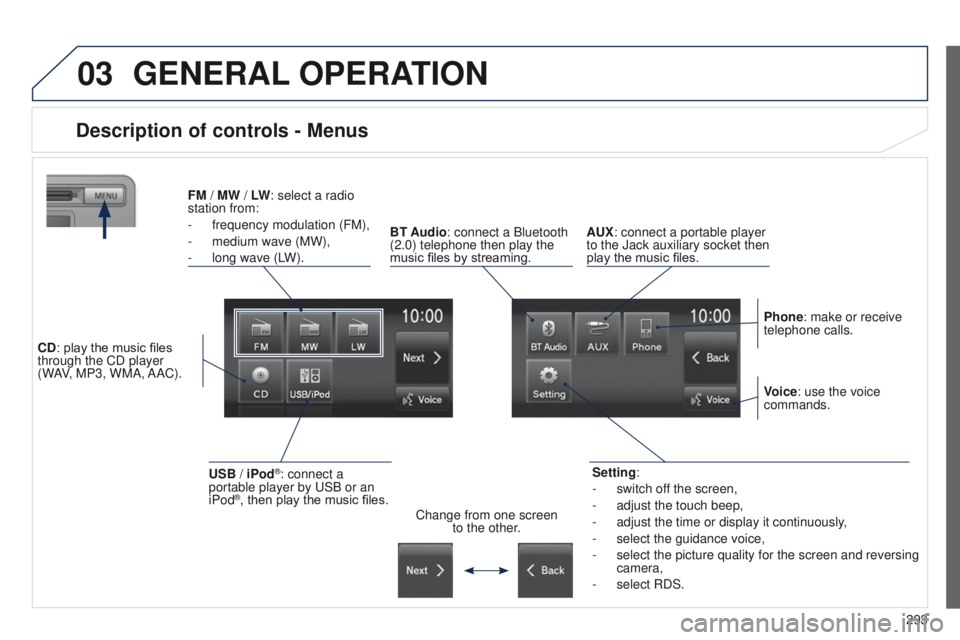

GENERAL OPERATION
Description of controls - Menus
Setting:
-

switch of
f the screen,
-

adjust the touch beep,
-


adjust the time or display it continuously
,
-

select the guidance voice,
-


select the picture quality for the screen and reversing
camera,
-


select RDS.
FM

/
MW / LW: select a radio
station from:
-

frequency modulation (FM),
-


medium wave (MW),
-


long wave (L

W).
BT Audio: connect a Bluetooth
(2.0) telephone then play the
music files by streaming. AUX: connect a portable player
to the Jack auxiliary socket then
play the music files.
Phone: make or receive
telephone calls.
Change from one screen to the other. Voice: use the voice
commands.
USB / iPod®: connect a
portable player by u SB or an
iPod
®, then play the music files.
CD: play the music files
through the CD player
(WAV, MP3, WMA, AAC).

03
294

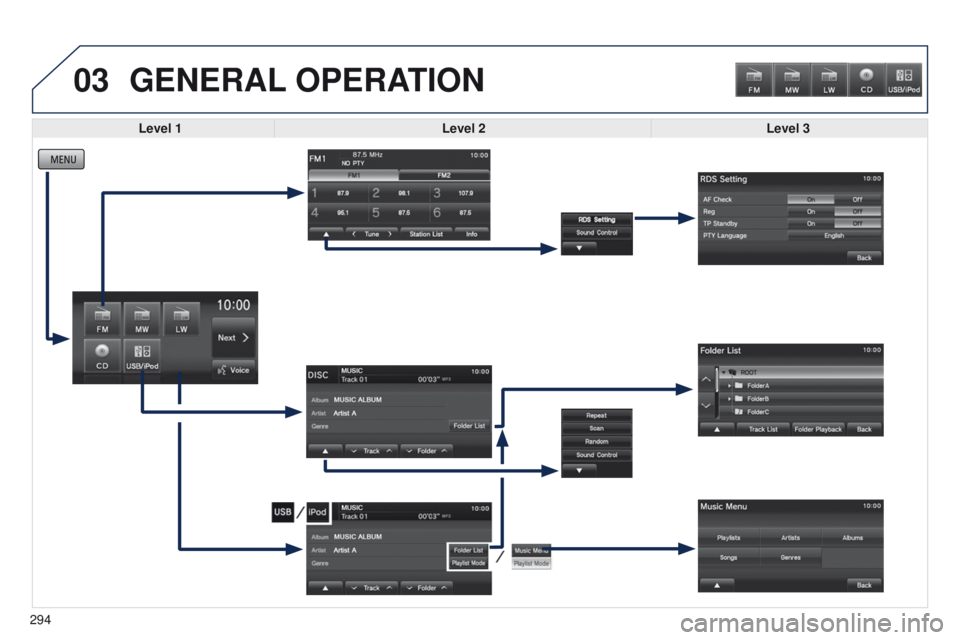

GENERAL OPERATION
Level 1 Level 2 Level 3

295

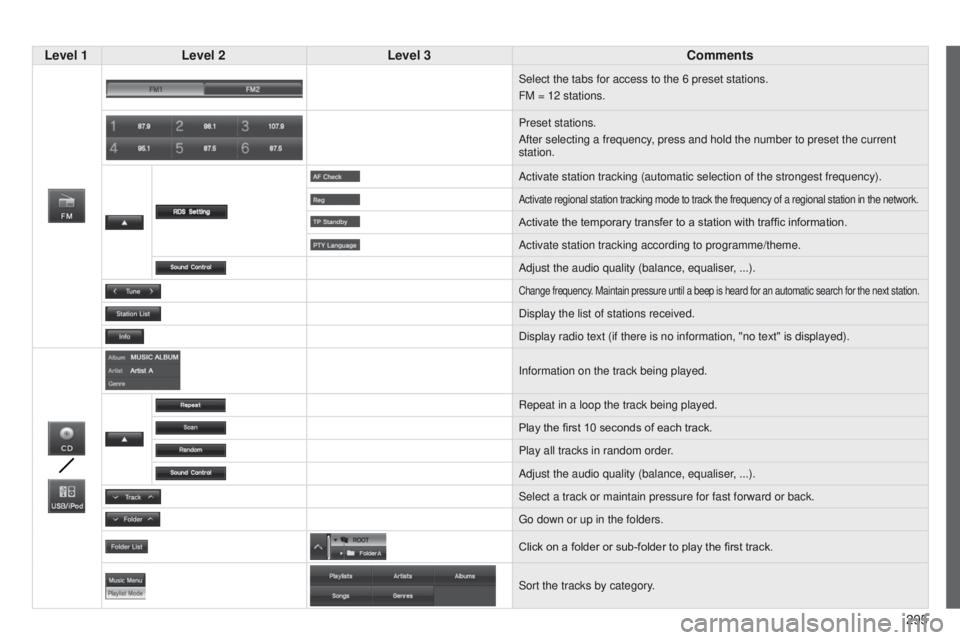

Level 1
Level 2 Level 3 Comments
Select the tabs for access to the 6 preset stations.
FM = 12 stations.
Preset stations.
After selecting a frequency, press and hold the number to preset the current
station.
Activate station tracking (automatic selection of the strongest frequen\
cy).
Activate regional station tracking mode to track the frequency of a regi\
onal station in the network.
Activate the temporary transfer to a station with traffic information.
Activate station tracking according to programme/theme.
Adjust the audio quality (balance, equaliser, ...).
Change frequency. Maintain pressure until a beep is heard for an automatic search for th\
e next station.
Display the list of stations received.
Display radio text (if there is no information, "no text" is displayed)\
.
Information on the track being played.
Repeat in a loop the track being played.
Play the first 10
seconds of each track.
Play all tracks in random order.
Adjust the audio quality (balance, equaliser, ...).
Select a track or maintain pressure for fast forward or back.
g

o down or up in the folders.
Click on a folder or sub-folder to play the first track.
Sort the tracks by category.

03
296

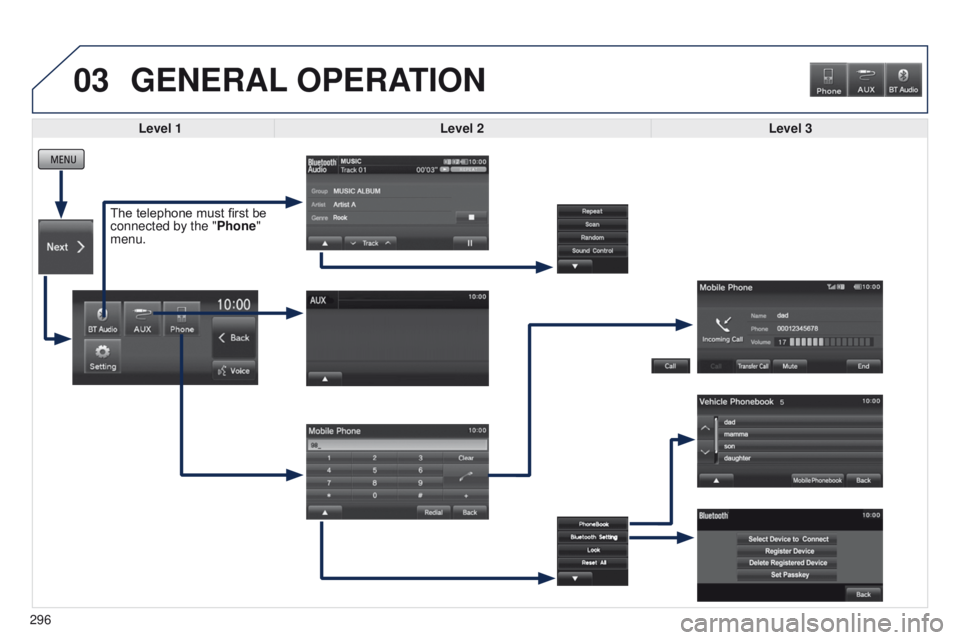

GENERAL OPERATION
Level 1 Level 2 Level 3
The telephone must first be
connected by the "Phone"
menu.

297

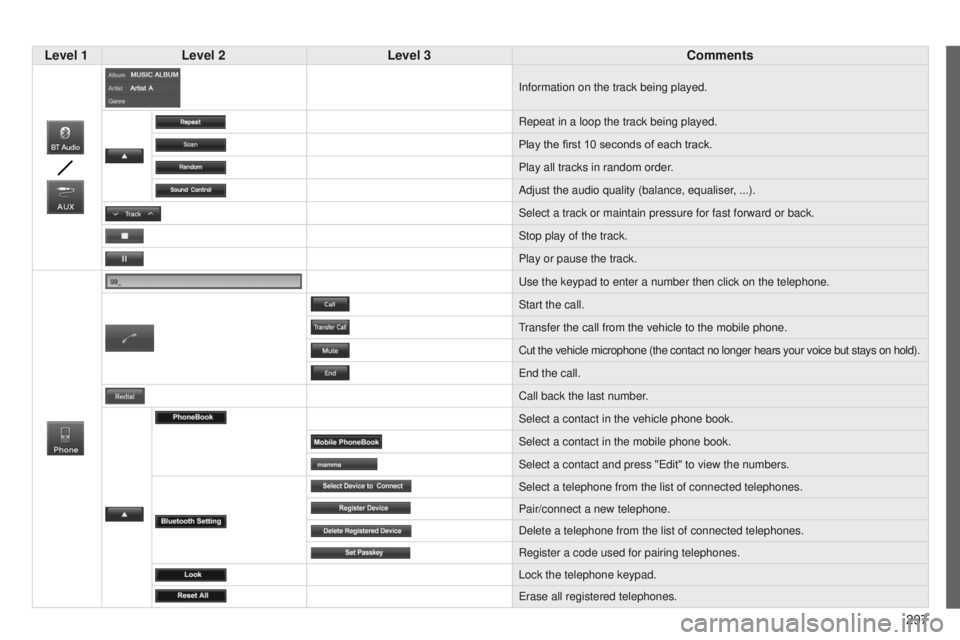

Level 1
Level 2 Level 3 Comments
Information on the track being played.
Repeat in a loop the track being played.
Play the first 10
seconds of each track.
Play all tracks in random order.
Adjust the audio quality (balance, equaliser, ...).
Select a track or maintain pressure for fast forward or back.
Stop play of the track.
Play or pause the track.
u

se the keypad to enter a number then click on the telephone.
Start the call.
transfer the call from the vehicle to the mobile phone.
Cut the vehicle microphone (the contact no longer hears your voice but \
stays on hold).
e

nd the call.
Call back the last number.
Select a contact in the vehicle phone book.
Select a contact in the mobile phone book.
Select a contact and press "
e dit" to view the numbers.
Select a telephone from the list of connected telephones.
Pair/connect a new telephone.
Delete a telephone from the list of connected telephones.
Register a code used for pairing telephones.
Lock the telephone keypad.
e

rase all registered telephones.

03
07

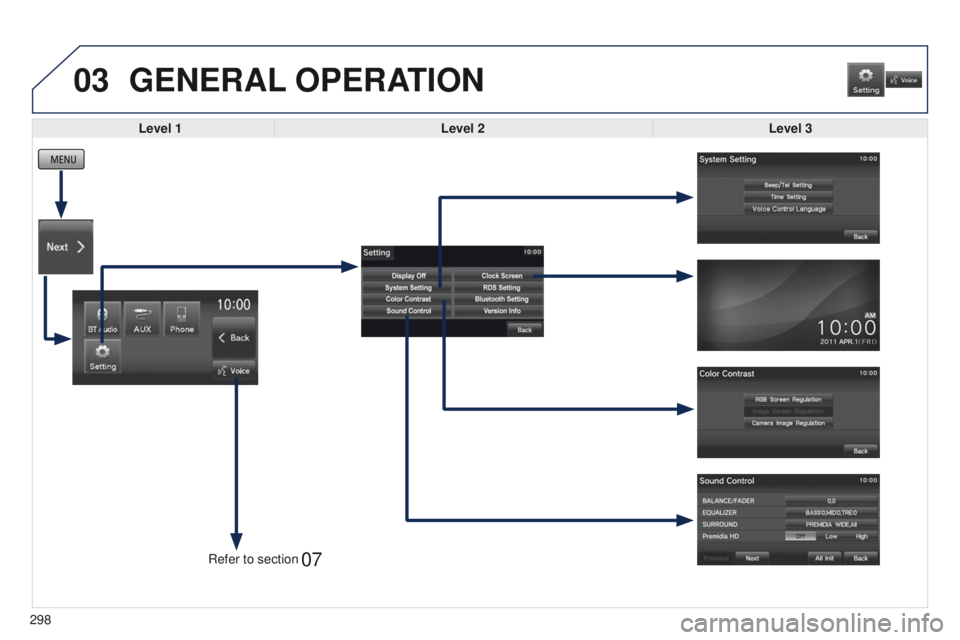

298Level 3
GENERAL
OPERATION
Level 1 Level 2
Refer to section
