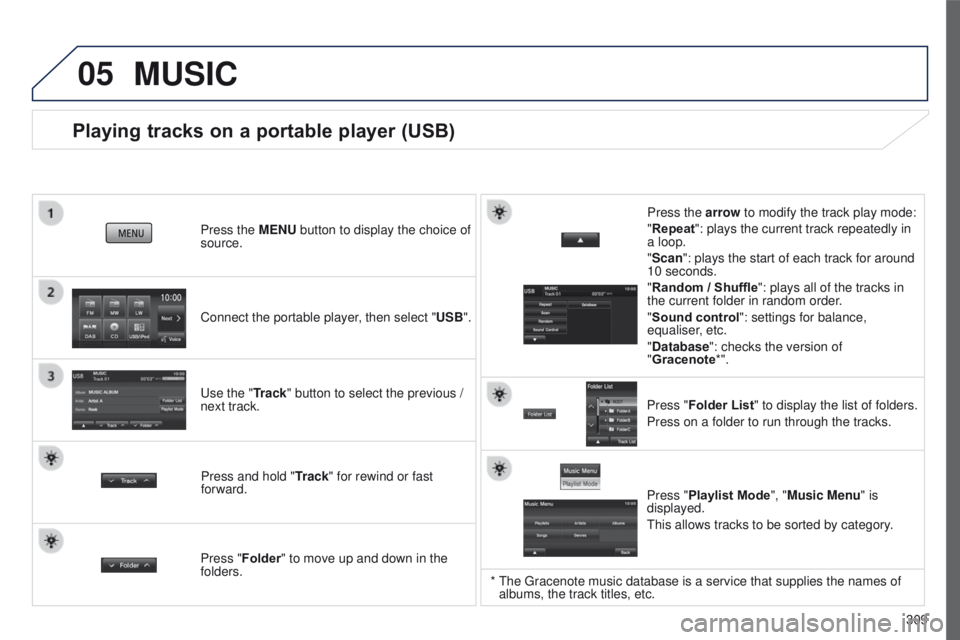

Page 311 of 368

05
309
4008_en_Chap10c_Mitsu5_ed01-2016
Playing tracks on a portable player (USB)
Connect the portable player, then select "USB". Press the MENU button to display the choice of
source.
u
se the "Track" button to select the previous /
next track.
MUSIC
Press and hold " Track" for rewind or fast
forward. Press the arrow to modify the track play mode:
"Repeat": plays the current track repeatedly in
a loop.
"Scan": plays the start of each track for around
10 seconds.
"Random / Shuffle
": plays all of the tracks in
the current folder in random order.
"Sound control ": settings for balance,
equaliser, etc.
"Database ": checks the version of
"Gracenote*".
Press "Folder List " to display the list of folders.
Press on a folder to run through the tracks.
Press "Folder" to move up and down in the
folders. Press "Playlist Mode", "Music Menu" is
displayed.
t
his allows tracks to be sorted by category.
* the g racenote music database is a service that supplies the names of
albums, the track titles, etc.

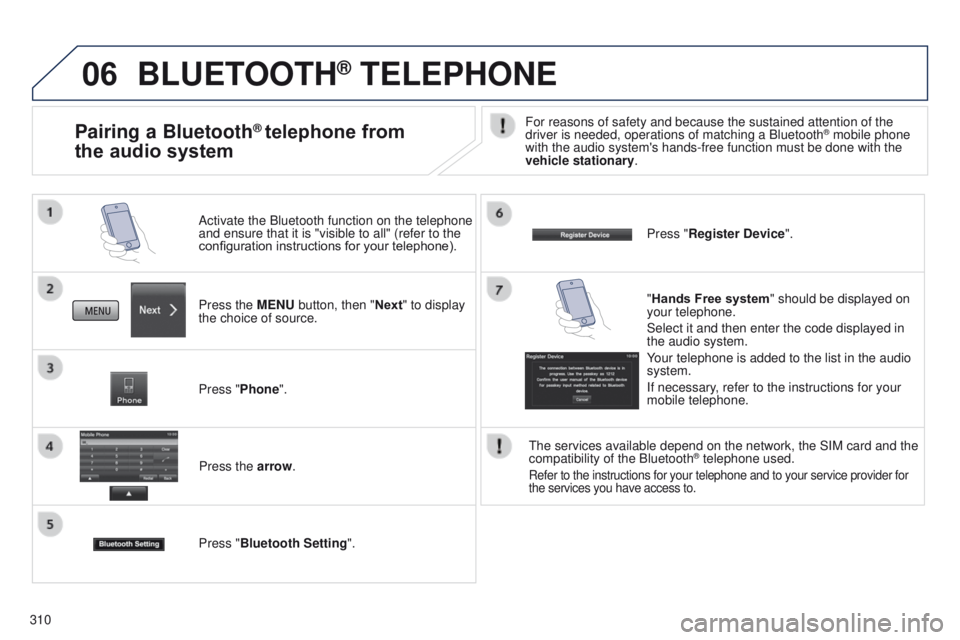

Page 312 of 368

06
310
BLUETOOTH® TELEPHONE
Press the MENU button, then "Next" to display
the choice of source. Activate the Bluetooth function on the telephone
and ensure that it is "visible to all" (refer to the
configuration instructions for your telephone).
Press "Phone".Press the arrow.
Press "Bluetooth Setting ". Press "Register Device
".
Pairing a Bluetooth® telephone from
the audio systemFor reasons of safety and because the sustained attention of the
driver is needed, operations of matching a Bluetooth® mobile phone
with the audio system's hands-free function must be done with the
vehicle stationary.
"Hands Free system " should be displayed on
your telephone.
Select it and then enter the code displayed in
the audio system.
Your telephone is added to the list in the audio
system.
If necessary, refer to the instructions for your
mobile telephone.
t
he services available depend on the network, the SIM card and the
compatibility of the Bluetooth
® telephone used.
Refer to the instructions for your telephone and to your service provide\
r for
the services you have access to.

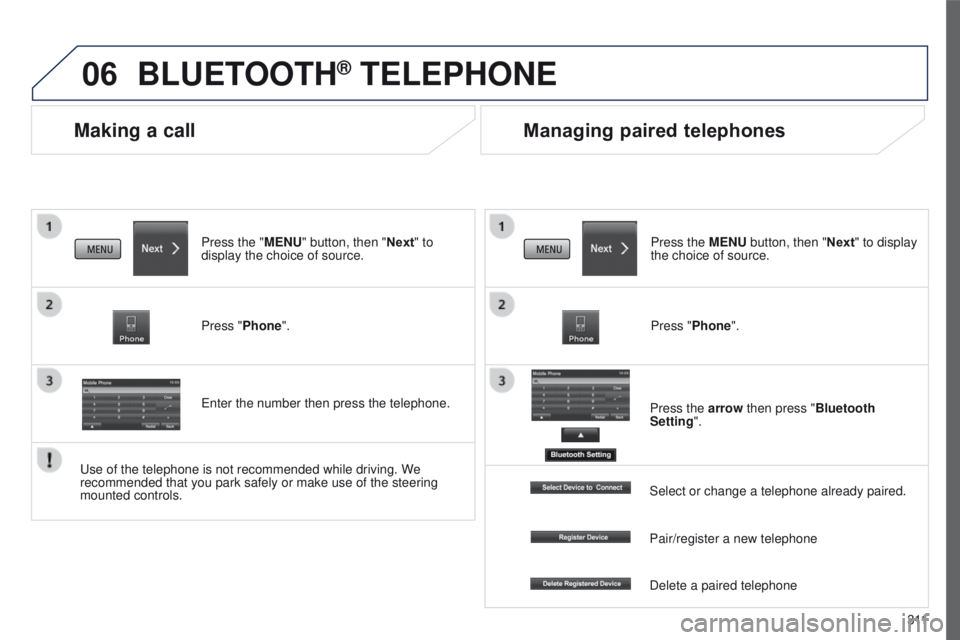

Page 313 of 368
06
3 11
4008_en_Chap10c_Mitsu5_ed01-2016
Making a call
BLUETOOTH® TELEPHONE
Press the "MENU" button, then "Next" to
display the choice of source.
Press "Phone".
e
nter the number then press the telephone.
Managing paired telephones
Press the MENU button, then "Next" to display
the choice of source.
Press "Phone".
Press the arrow then press "Bluetooth
Setting".
u
se of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls. Select or change a telephone already paired.
Pair/register a new telephone
Delete a paired telephone
Page 314 of 368
Page 315 of 368
313
4008_en_Chap10d_Mitsu4_ed01-2016

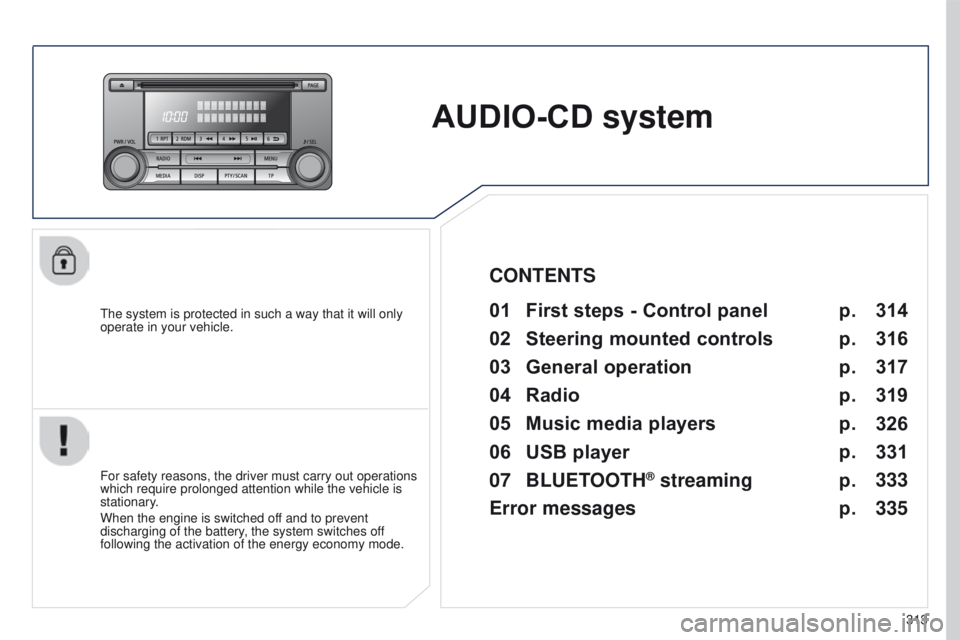

AUDIO-CD system
the system is protected in such a way that it will only
operate in your vehicle.01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02
Steering
mounted controls
03
General
operation
04
Radio
05
Music
media players
06
USB
player
07
BLUETOOTH
® streaming
Error messages p.
p.
p.
p.
p.
p.
p.
p. 314
316
317
319
326
331
333
335

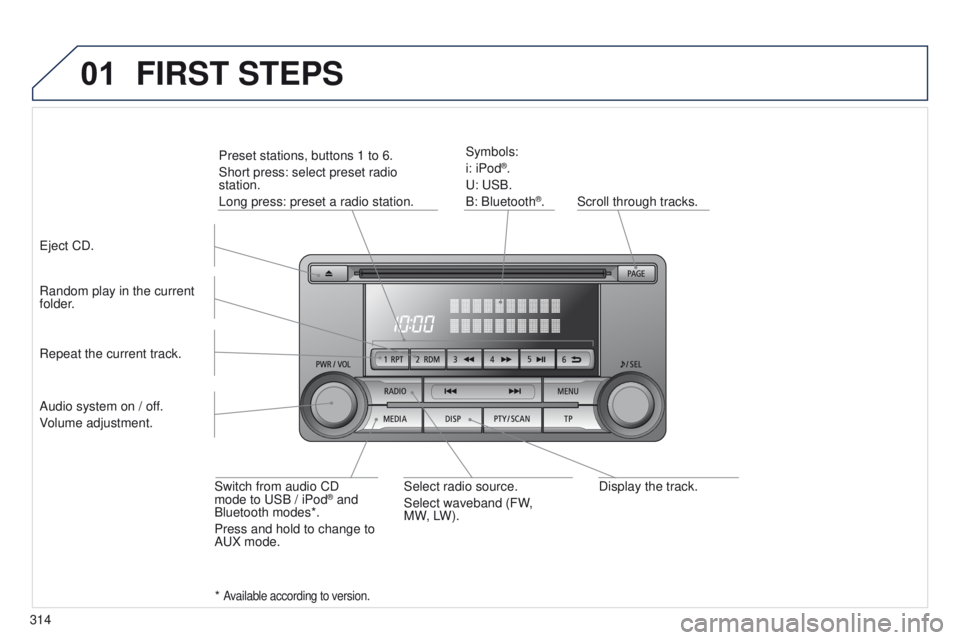

Page 316 of 368
01
314
4008_en_Chap10d_Mitsu4_ed01-2016
Display the track.
Scroll through tracks.
Symbols:
i: iPod
®.
u
:
u
SB.
B: Bluetooth
®.
Random play in the current
folder.
Switch from audio CD
mode to
u
SB / iPod
® and
Bluetooth modes*.
Press and hold to change to
A
u
X mode.
Repeat the current track.
FIRST STEPS
Audio system on / off.
Volume adjustment.
Select radio source.
Select waveband (FW,
MW,
LW).
*
Available according to version.
eject CD. Preset stations, buttons 1 to 6.
Short press: select preset radio
station.
Long press: preset a radio station.

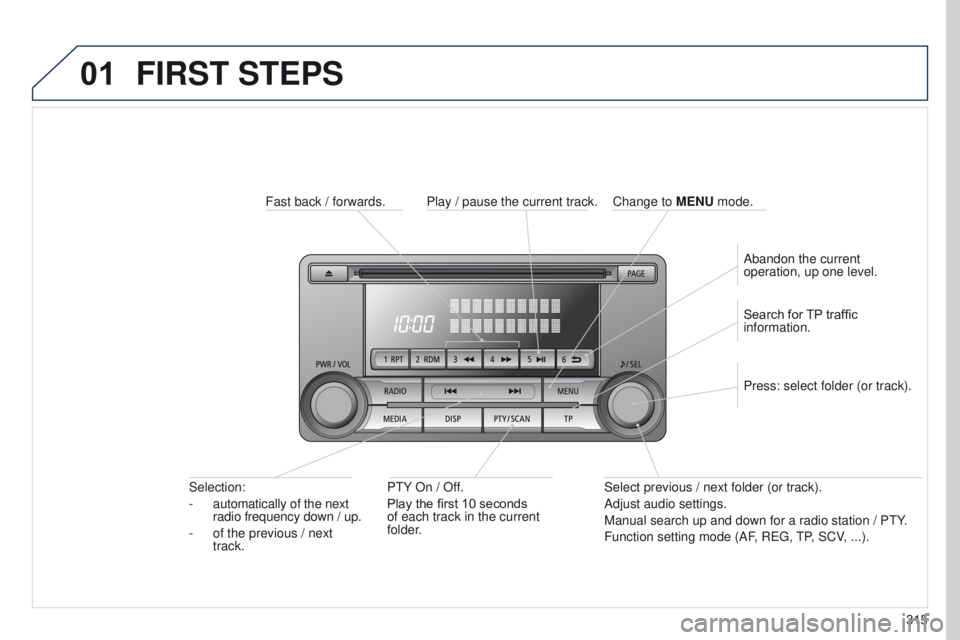

Page 317 of 368
01
315
4008_en_Chap10d_Mitsu4_ed01-2016
FIRST STEPS
Fast back / forwards.P t Y On / Off.
Play the first 10 seconds
of each track in the current
folder.
Selection:
-
automatically of the next
radio frequency down / up.
-
of the previous / next
track. Select previous / next folder (or track).
Adjust audio settings.
Manual search up and down for a radio station / P
t Y.
Function setting mode (AF, R
eg ,
t
P, SCV, ...).
Press: select folder (or track). Search for TP traffic
information.
Play / pause the current track.
Abandon the current
operation, up one level.
Change to
MENU mode.

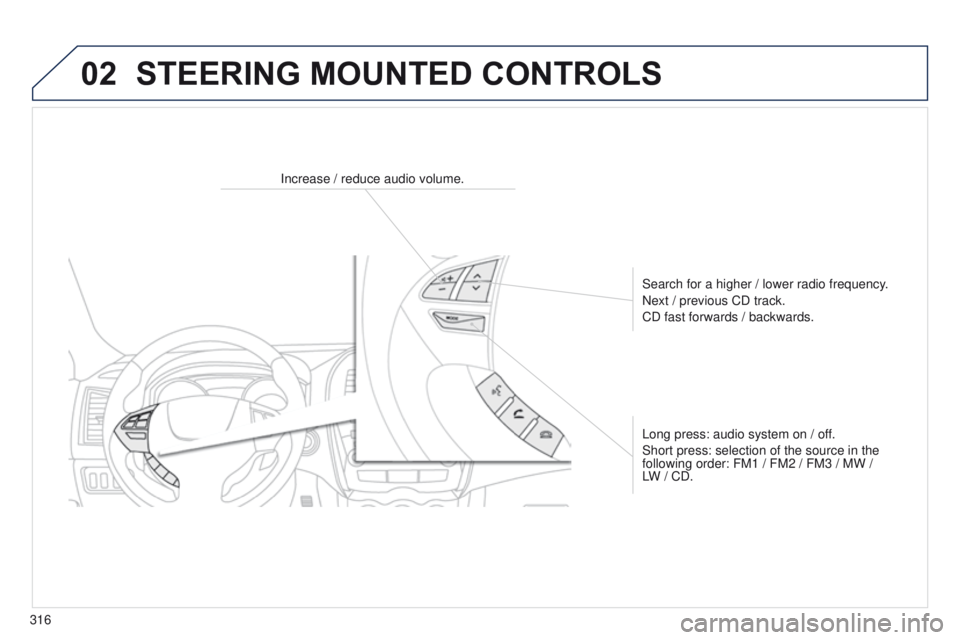

Page 318 of 368
02
316
4008_en_Chap10d_Mitsu4_ed01-2016
STEERING MOUNTED CONTROLS
Increase / reduce audio volume.Search for a higher / lower radio frequency.
Next / previous CD track.
CD fast forwards / backwards.
Long press: audio system on / off.
Short press: selection of the source in the
following order: FM1 / FM2 / FM3 / MW /
LW / CD.

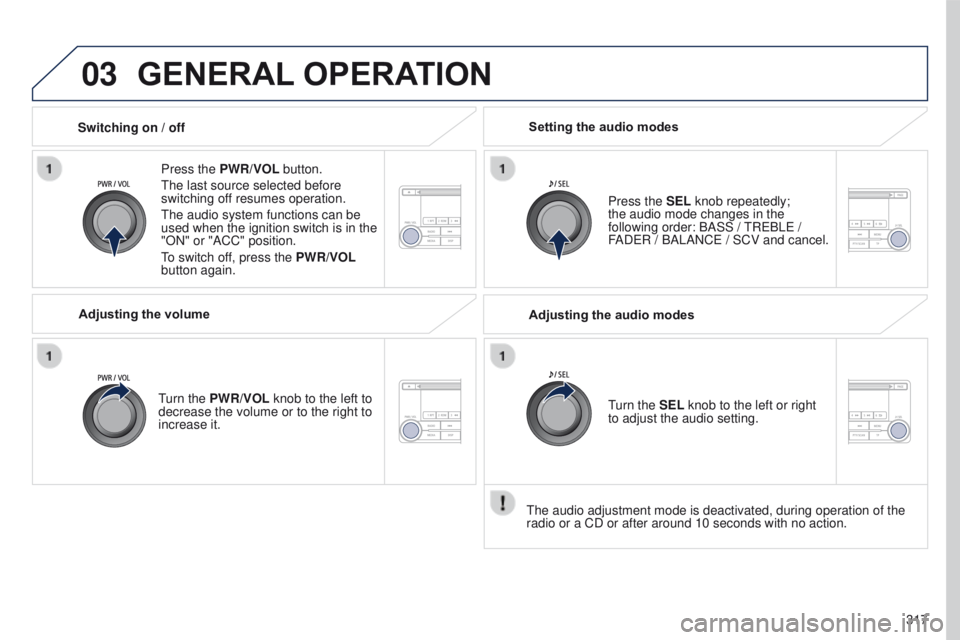

Page 319 of 368
03
317
4008_en_Chap10d_Mitsu4_ed01-2016
GENERAL OPERATION
Press the PWR/VOL button.
t
he last source selected before
switching off resumes operation.
t
he audio system functions can be
used when the ignition switch is in the
"ON" or "ACC" position.
to switch of
f, press the PWR/VOL
button again.
Adjusting the volume
turn the
PWR/VOL knob to the left to
decrease the volume or to the right to
increase it. Press the SEL knob repeatedly;
the
audio mode changes in the
following order: BASS /
t
R e BL e /
FAD
e R / BALANC e / SCV and cancel.
Setting the audio modes
Switching on / off
t
he audio adjustment mode is deactivated, during operation of the
radio or a CD or after around 10 seconds with no action. Adjusting the audio modes
turn the
SEL knob to the left or right
to adjust the audio setting.
Page 320 of 368
03
318
4008_en_Chap10d_Mitsu4_ed01-2016

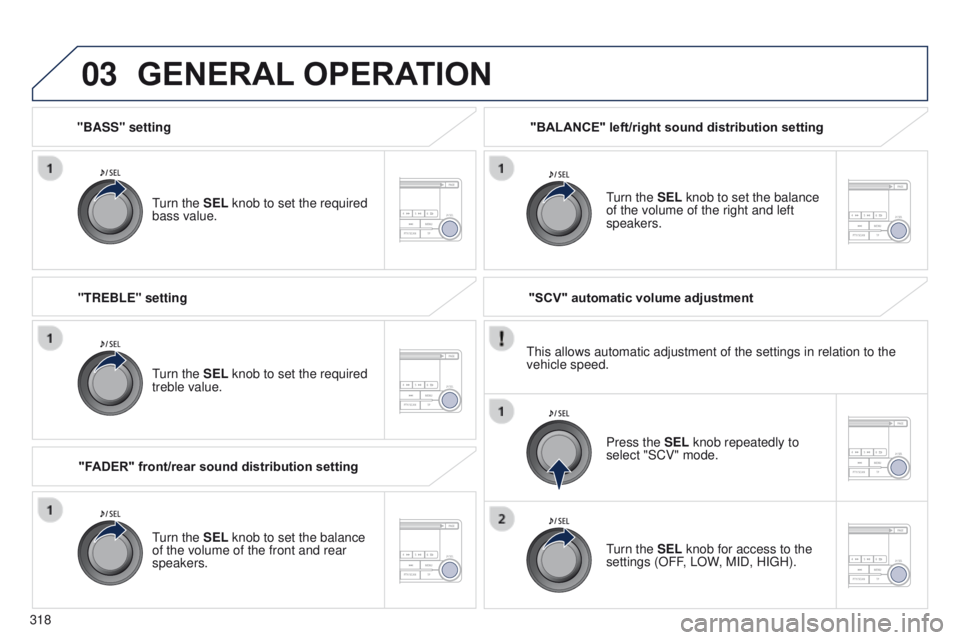

"BASS" setting
turn the
SEL knob to set the required
bass value.
GENERAL OPERATION
turn the SEL knob to set the required
treble value.
"FADER" front/rear sound distribution setting "BALANCE" left/right sound distribution setting
turn the
SEL knob to set the balance
of the volume of the right and left
speakers.
turn the
SEL knob to set the balance
of the volume of the front and rear
speakers. "SCV" automatic volume adjustment
"TREBLE" setting
t
his allows automatic adjustment of the settings in relation to the
vehicle speed.
turn the SEL knob for access to the
settings (OFF, LOW, MID, HI g H).
Press the SEL knob repeatedly to
select "SCV" mode.
