PEUGEOT 4008 2017 Owners Manual

269
4008_EN_CHAP10B_MITSU6_ED01-2016

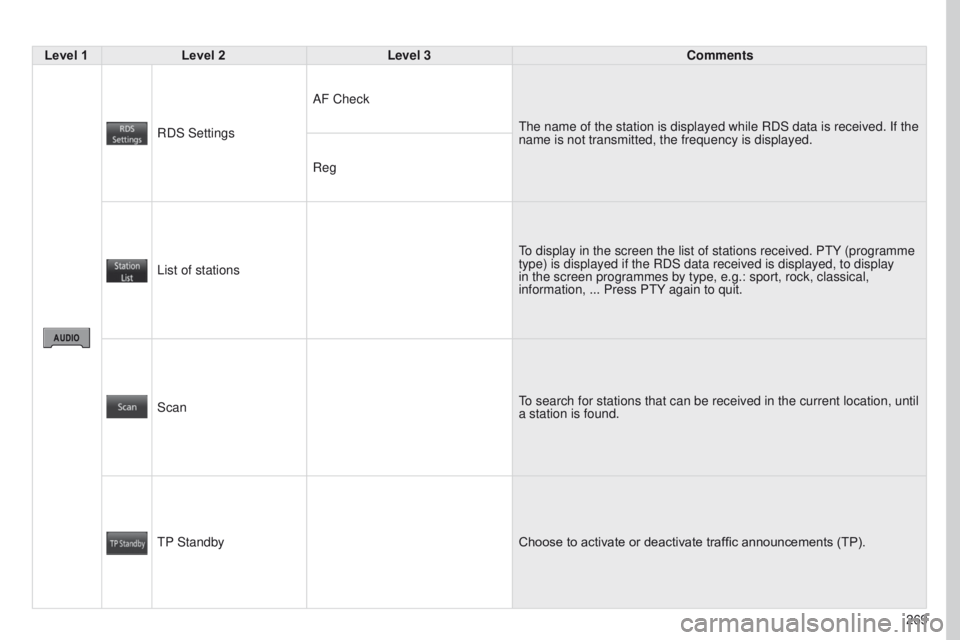

Level 1Level 2 Level 3 Comments
RDS Settings AF Check
t

he name of the station is displayed while RDS data is received. If the
name is not transmitted, the frequency is displayed.
Reg
List of stations
to display in the screen the list of stations received. P

t Y (programme
type) is displayed if the RDS data received is displayed, to display
in the screen programmes by type, e.g.: sport, rock, classical,
information,
... Press P t Y again to quit.
Scan
to search for stations that can be received in the current location, unti\
l
a station is found.
t

P Standby Choose to activate or deactivate traffic announcements (TP).

05
270
4008_EN_CHAP10B_MITSU6_ED01-2016

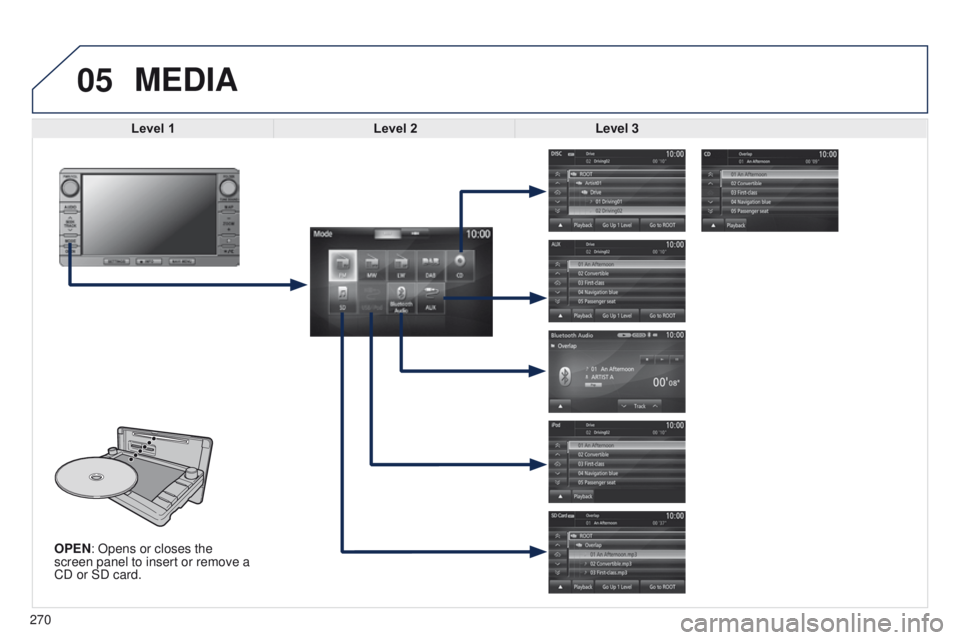

OPEN: Opens or closes the
screen panel to insert or remove a
CD or SD card.
MEDIA
Level 1Level 2Level 3

271
4008_EN_CHAP10B_MITSU6_ED01-2016

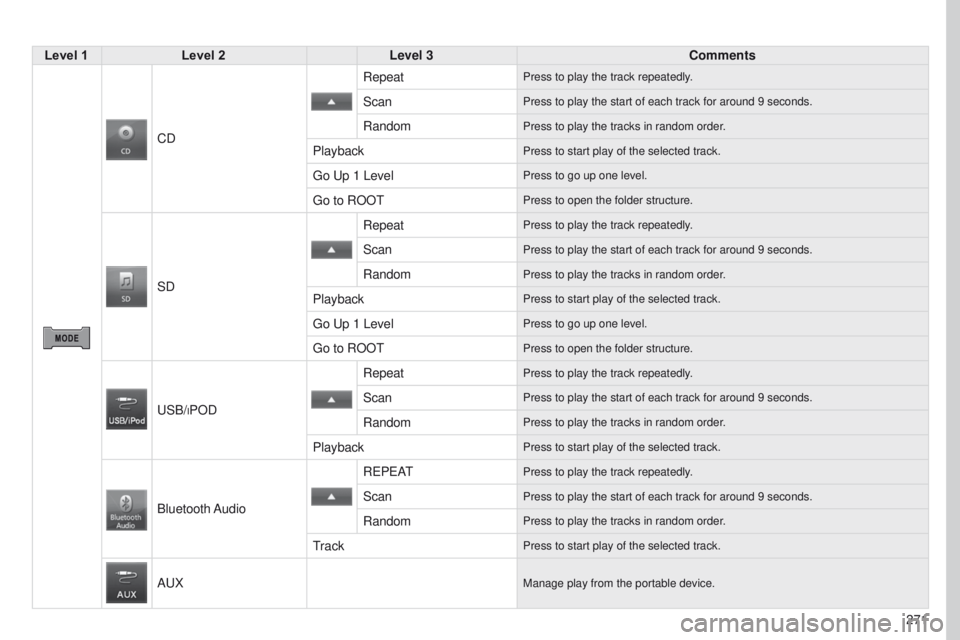

Level 1Level 2 Level 3 Comments
CD Repeat
Press to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
PlaybackPress to start play of the selected track.
go up 1 LevelPress to go up one level.
go to ROOtPress to open the folder structure.
SDRepeat
Press to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
PlaybackPress to start play of the selected track.
go up 1 LevelPress to go up one level.
go to ROOtPress to open the folder structure.
uSB/iPOD
RepeatPress to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
PlaybackPress to start play of the selected track.
Bluetooth Audio
Re P e A
tPress to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
trackPress to start play of the selected track.
AuXManage play from the portable device.

05
272
4008_EN_CHAP10B_MITSU6_ED01-2016

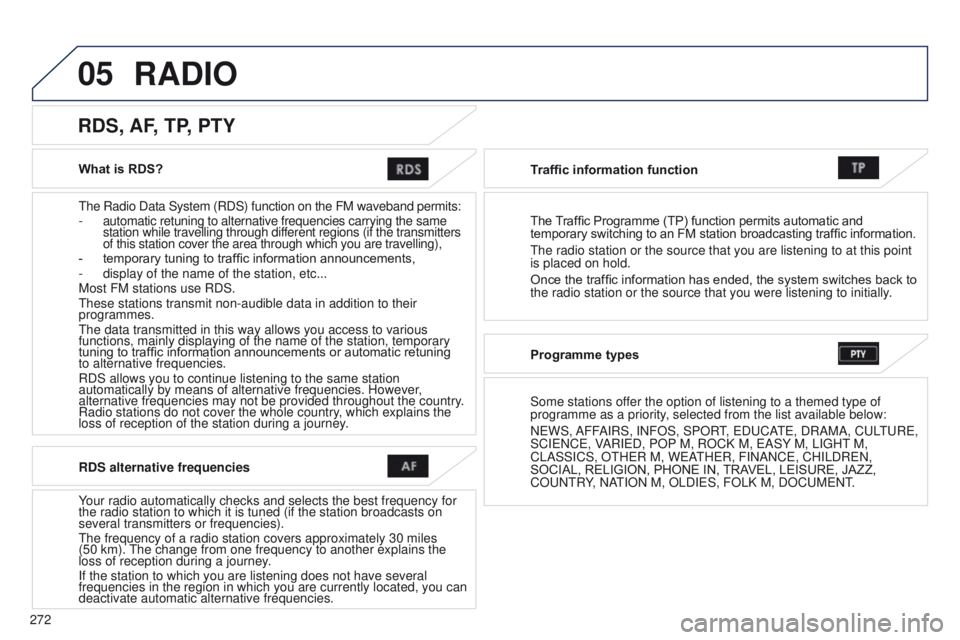

What is RDS?
t
he Radio Data System (RDS) function on the FM waveband permits:
-
automatic retuning to alternative frequencies carrying the same


station while travelling through different regions (if the transmitters
of this station cover the area through which you are travelling),
-

temporary tuning to traffic information announcements,
-


display of the name of the station, etc...
Most FM stations use RDS.
t

hese stations transmit non-audible data in addition to their
programmes.
t

he data transmitted in this way allows you access to various
functions, mainly displaying of the name of the station, temporary
tuning to traffic information announcements or automatic retuning
to alternative frequencies.
RDS allows you to continue listening to the same station
automatically by means of alternative frequencies. However,
alternative frequencies may not be provided throughout the country.
Radio stations do not cover the whole country, which explains the
loss of reception of the station during a journey.
RDS, AF, TP, PTY
RDS alternative frequencies
Your radio automatically checks and selects the best frequency for
the radio station to which it is tuned (if the station broadcasts on
several transmitters or frequencies).
t

he frequency of a radio station covers approximately 30 miles
(50
km).
t
he change from one frequency to another explains the
loss of reception during a journey.
If the station to which you are listening does not have several
frequencies in the region in which you are currently located, you can
deactivate automatic alternative frequencies. Traffic information function
The Traf
fi c Programme (TP) function permits automatic and
temporary switching to an FM station broadcasting traffic information.
t
he radio station or the source that you are listening to at this point
is placed on hold.
Once the traffic information has ended, the system switches back to
the radio station or the source that you were listening to initially.
Programme types
Some stations offer the option of listening to a themed type of
programme as a priority, selected from the list available below:
N e WS, AFFAIRS, INFOS, SPOR
t,
e D u CA
te
, DRAMA, C u L
tu
R e ,
SCI e NC e , VARI e D, POP M, ROCK M, e ASY M, LI g H t
M,
CLASSICS, O
t H e R M, W e At H e R, FINANC e , CHILDR e N,
SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ,
CO
u N t RY, NAt ION M, OLDI e S, FOLK M, DOC u M e N t.
RADIO

05
273
4008_EN_CHAP10B_MITSU6_ED01-2016

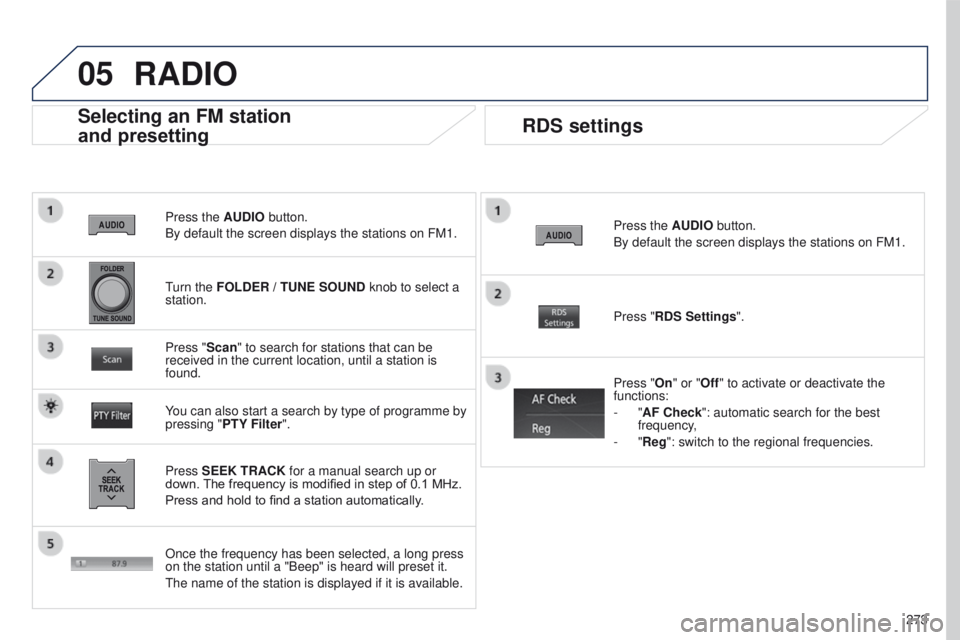

Press the AUDIO button.
By default the screen displays the stations on FM1.
Selecting an FM station
and presetting
Press SEEK TRACK for a manual search up or
down. The frequency is modified in step of 0.1 MHz.
Press and hold to find a station automatically. Press "Scan" to search for stations that can be
received in the current location, until a station is
found.
You can also start a search by type of programme by
pressing " PTY Filter". Press "RDS Settings".
Press "On" or "Off" to activate or deactivate the
functions:
-
"AF Check": automatic search for the best
frequency,
- "Reg": switch to the regional frequencies.
Once the frequency has been selected, a long press
on the station until a "Beep" is heard will preset it.
t

he name of the station is displayed if it is available.
RDS settings
Press the AUDIO button.
By default the screen displays the stations on FM1.
turn the

FOLDER / TUNE SOUND knob to select a
station.
RADIO

274
4008_EN_CHAP10B_MITSU6_ED01-2016

05
275
4008_EN_CHAP10B_MITSU6_ED01-2016

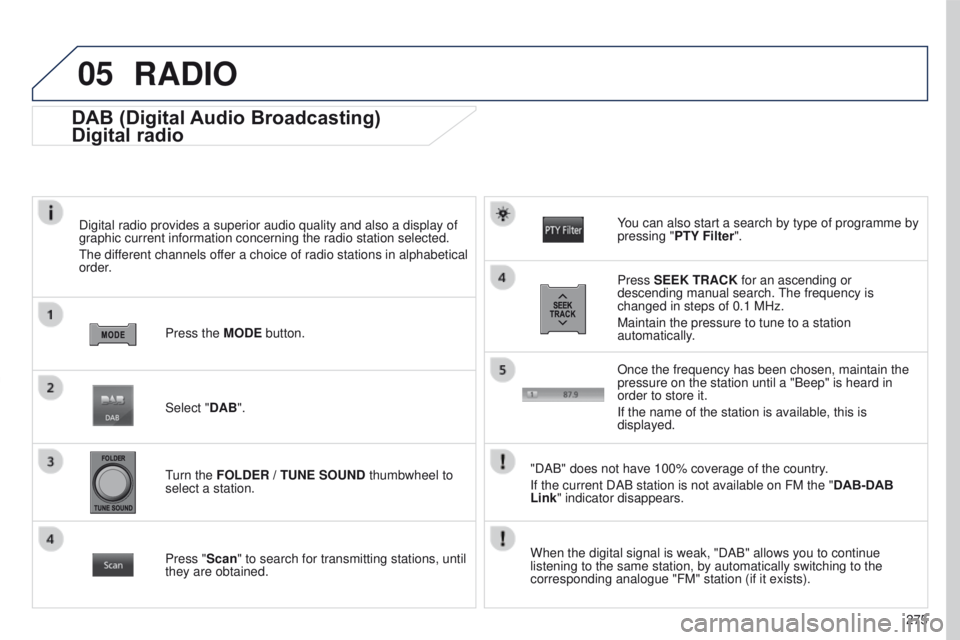

DAB (Digital Audio Broadcasting)
Digital radio
Digital radio provides a superior audio quality and also a display of
graphic current information concerning the radio station selected.
t
he different channels offer a choice of radio stations in alphabetical
order.
"DAB" does not have 100% coverage of the country.
If the current DAB station is not available on FM the "DAB-DAB
Link" indicator disappears.
Press the MODE button.
Press SEEK TRACK for an ascending or
descending
manual search.
t
he frequency is
changed in steps of 0.1 MHz.
Maintain the pressure to tune to a station
automatically.
Press "Scan" to search for transmitting stations, until
they are obtained. You can also start a search by type of programme by
pressing "
PTY Filter".
Once the frequency has been chosen, maintain the
pressure on the station until a "Beep" is heard in
order to store it.
If the name of the station is available, this is
displayed.
turn the

FOLDER / TUNE SOUND thumbwheel to
select a station. Select "DAB".
When the digital signal is weak, "DAB" allows you to continue
listening to the same station, by automatically switching to the
corresponding analogue "FM" station (if it exists).
RADIO

05
276
4008_EN_CHAP10B_MITSU6_ED01-2016

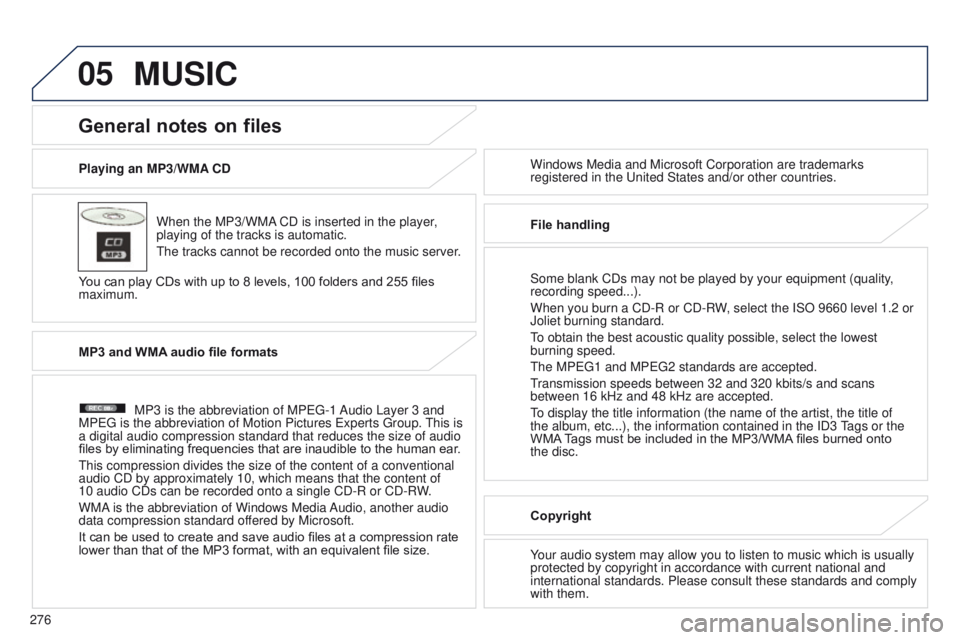

Playing an MP3/WMA CDWhen the MP3/WMA CD is inserted in the player,
playing of the tracks is automatic.
t

he tracks cannot be recorded onto the music server.
You can play CDs with up to 8 levels, 100 folders and 255 files
maximum. Windows Media and Microsoft Corporation are trademarks
registered in the
u nited States and/or other countries.
General notes on files
MP3 and WMA audio file formats
MP3 is the abbreviation of MP eg -1 Audio Layer 3 and
MP
eg is the abbreviation of Motion Pictures e xperts g roup.
t
his is
a digital audio compression standard that reduces the size of audio
files by eliminating frequencies that are inaudible to the human ear .
t

his compression divides the size of the content of a conventional
audio CD by approximately 10, which means that the content of
10 audio CDs can be recorded onto a single CD-R or CD-RW.
WMA is the abbreviation of Windows Media Audio, another audio
data compression standard offered by Microsoft.
It can be used to create and save audio files at a compression rate
lower than that of the MP3 format, with an equivalent file size.
File handling
Some blank CDs may not be played by your equipment (quality,
recording speed...).
When you burn a CD-R or CD-RW, select the ISO 9660 level 1.2 or
Joliet burning standard.to obtain the best acoustic quality possible, select the lowest
burning speed.
t
he MP eg 1 and MP eg 2 standards are accepted.
transmission speeds between 32 and 320 kbits/s and scans
between 16 kHz and 48 kHz are accepted.
to display the title information (the name of the artist, the title of
the album, etc...), the information contained in the ID3 tags or the
WMA T

ags must be included in the MP3/WMA files burned onto
the
disc.
Copyright
Your audio system may allow you to listen to music which is usually
protected by copyright in accordance with current national and
international standards. Please consult these standards and comply
with them.
MUSIC

05
277
4008_EN_CHAP10B_MITSU6_ED01-2016

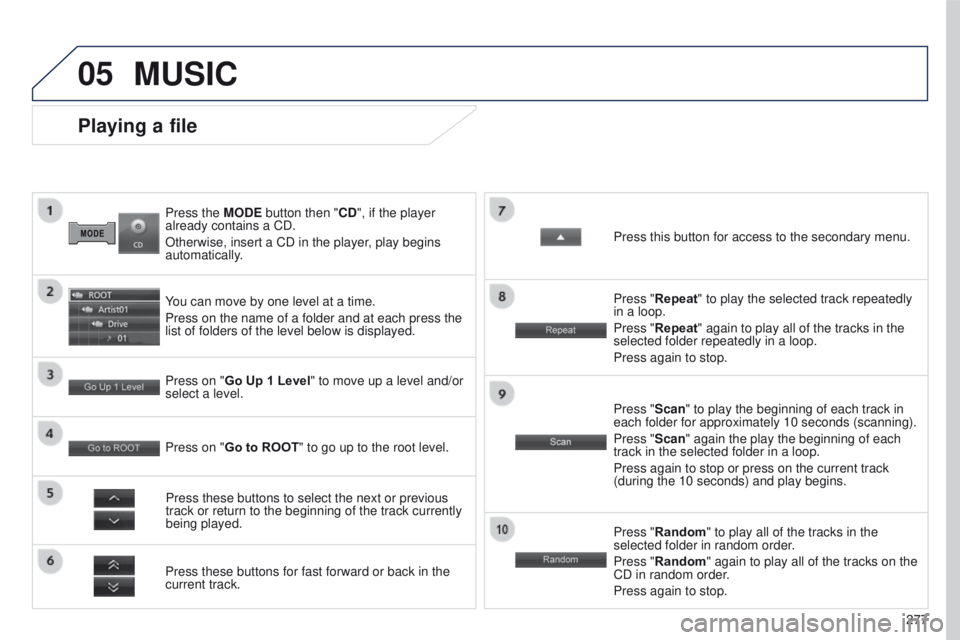

Press the MODE button then "CD", if the player
already contains a CD.
Otherwise, insert a CD in the player, play begins
automatically.
Playing a file
You can move by one level at a time.
Press on the name of a folder and at each press the
list of folders of the level below is displayed.
Press these buttons for fast forward or back in the
current track. Press on "Go Up 1 Level" to move up a level and/or
select a level.Press these buttons to select the next or previous
track or return to the beginning of the track currently
being played. Press "Random" to play all of the tracks in the
selected folder in random order.
Press "Random" again to play all of the tracks on the
CD in random order.
Press again to stop.
Press on "Go to ROOT
" to go up to the root level. Press "Scan" to play the beginning of each track in
each folder for approximately 10 seconds (scanning).
Press "Scan" again the play the beginning of each
track in the selected folder in a loop.
Press again to stop or press on the current track
(during the 10 seconds) and play begins. Press "Repeat" to play the selected track repeatedly
in a loop.
Press "Repeat" again to play all of the tracks in the
selected folder repeatedly in a loop.
Press again to stop. Press this button for access to the secondary menu.
MUSIC

05
278
4008_EN_CHAP10B_MITSU6_ED01-2016

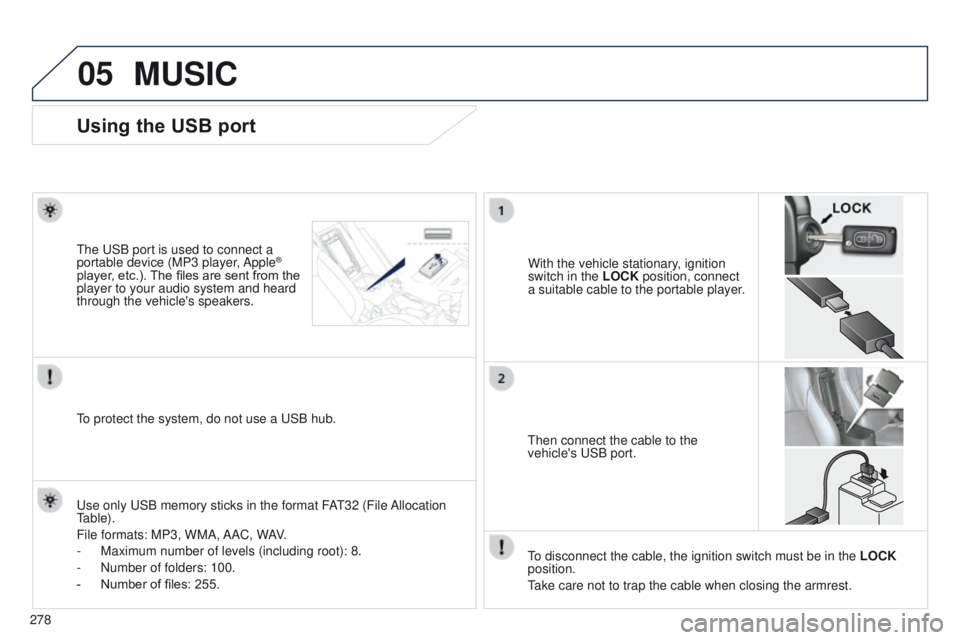

Using the USB port
With the vehicle stationary, ignition
switch in the LOCK position, connect
a suitable cable to the portable player.t
he
u
SB port is used to connect a
portable device (MP3 player, Apple®
player, etc.). The files are sent from the
player to your audio system and heard
through the vehicle's speakers.
t

hen connect the cable to the
vehicle's
u SB port.
u

se only
u
SB memory sticks in the format FA
t
32 (File Allocation
table).
File formats: MP3, WMA,

AAC, WAV.
-

Maximum number of levels (including root): 8.
-


Number of folders: 100.
-


Number of files: 255.
to protect the system, do not use a

u SB hub.
to disconnect the cable, the ignition switch must be in the LOCK


position.
take care not to trap the cable when closing the armrest.
