PEUGEOT 4008 2017 Owners Manual

299
4008_en_Chap10c_Mitsu5_ed01-2016
Level 1Level 2 Level 3 Comments
Display a black screen. Press the screen to return to the last display.
Adjust the touch tone.
Adjust the date and time.
Select the language for voice commands.
Adjust the brightness, contrast and black level for the menu screen, ...\
Adjust the brightness, contrast and black level for the image from the r\
ear
camera.
Adjust the sound level of each speaker.
Select the type of sound (rock, pop, hiphop, jazz, normal).
Select the type of surround (DTS, premidia wide) and the audio field.
Adjust the depth of sound by optimising the compression of bass and treb\
le
audio data.
SCV
speed compensated volumeAdjust the volume according to the speed of the vehicle.
Dolby VolumeAdjust the volume automatically according to audio source for clear and \
natural
sound.
Display the time continuously.
Activate station tracking (automatic selection of the strongest frequen\
cy).
Activate regional station tracking mode to track the frequency of a regi\
onal
station in the network.
Activate the temporary transfer to stations with traffic information.
Activate station tracking according to programme/theme.
Select a telephone from the list of connected telephones.
Connect/pair a new telephone.
Delete a telephone from the list of connected telephones.
Register a code used for pairing telephones.
Display the version of the system.

04
300
Selecting an FM / MW / LW station
the exterior environment (hills, buildings, tunnel, car park, below grou\
nd...) may prevent reception, even in RDS station tracking mode. this phenomenon is normal in the propagation of radio waves and is in no \
way indicative of a fault with the audio system. Select "FM" or "MW" or "LW
".
Press MENU to display the choice of source.
Select a radio station in the list (1 to 6) or
press "Tune" to change the frequency.
Maintain pressure on " Tune" until a beep is
heard, for an automatic search for the next
station.
RADIO
Press the arrow to adjust the RDS or the audio
settings (balance, equaliser, ...). Press "Station list " to display the list of radio
stations received locally.
A long press on one of the numbered buttons
presets the current station.
Preset up to 12 stations between FM1 and
FM2.

04
301
4008_en_Chap10c_Mitsu5_ed01-2016
RDS
t
he Radio Data System (RDS) function on the FM waveband permits:
-
automatic retuning to alternative frequencies carrying the same


station while travelling through different regions (if the transmitters
of this station cover the area through which you are travelling),
-

temporary tuning to traffic information announcements,
-


display of the name of the station, etc...
Most FM stations use RDS.
these stations transmit non-audible data in addition to their programmes.\
the data transmitted in this way allows you access to various
functions, mainly displaying of the name of the station, temporary
tuning to traffic information announcements or automatic retuning to
alternative frequencies.
RDS allows you to continue listening to the same station
automatically by means of alternative frequencies. However
,
alternative frequencies may not be provided throughout the country.
Radio stations do not cover the whole country, which explains the
loss of reception of the station during a journey. Regional mode
Some stations are organised in a network.
In different regions, they broadcast different or shared programmes
depending on the time of day.
You can follow:
-

a regional station only
,
-
the entire network, with the possibility that you will be listening
to a dif

ferent programme.
RDS, AF, REG, TP, PTY
RADIO
RDS alternative frequencies
Your radio automatically checks and selects the best frequency for
the radio station to which it is tuned (if the station broadcasts on
several transmitters or frequencies).
t

he frequency of a radio station covers approximately 30 miles
(50
km).
t
he change from one frequency to another explains the
loss of reception during a journey.
If the station to which you are listening does not have several
frequencies in the region in which you are currently located, you can
deactivate automatic alternative frequencies. Traffic information function
The Traf
fi c Programme (TP) function permits automatic and
temporary switching to an FM station broadcasting traffic
information.
t
he radio station or the source that you are listening to at this point
is paused.
Once the traffic information has ended, the system switches back to
the radio station or the source that you were listening to initially.
Programme types
Some stations offer the option of listening to a themed type of
programme as a priority, selected from the list available below:
N
e WS, AFFAIRS, INFOS, SPOR
t,
e D u CA
te
, DRAMA, C u L
tu
R e ,
SCI
e NC e , VARI e D, POP M, ROCK M, e ASY M, LI g H t
M,
CLASSICS, O

t H e R M, W e A
t
H e R, FINANC e , CHILDR e N,
SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ,
CO
u N t RY, NA
t
ION M, OLDI e S, FOLK M, DOC u M e N t
.

04
302
RDS settings: AF, Reg, TP, PTY
Select the arrow.Select "Setting" then "RDS Setting". Press the MENU button, then "Next".
RADIO
or
then
Activate or not the settings.
Press the MENU button then select the
radio source (
FM / MW / LW).

04
303
4008_en_Chap10c_Mitsu5_ed01-2016
RADIO
Selecting a DAB (Digital Audio Broadcasting) station - digital radio
the exterior environment (hills, buildings, tunnels, car parks, being un\
derground, etc.) may prevent reception, even in RDS station tracking mo\
de. this phenomenon is normal in the propagation of radio waves and is in no \
way indicative of a fault with the audio system. Select "DAB". Press MENU to display the source selection.
Select a station from the list (1 to 6) or use
"Tune" to change the frequency.
Maintain the pressure on "
Tune" until a
beep is heard to search for the next station
automatically. Press the arrow to adjust the DAB or the sound
quality (balance, equaliser, etc.). Press "Station list
" to display the list of radio
stations received in your area.
Pressing and holding one of the numbers stores
the current station.
Digital radio provides a superior audio quality and also a display of gr\
aphic current information concerning the radio station selected.
t
he different channels offer a choice of radio stations in alphabetical order.
Store up to 18 stations between DAB1, DAB2
and DAB3.

04
304
Setting the DAB
Select the arrow. Press the MENU button then select the
"DAB" radio source.Select "Setting" then "DAB Setting". Press the MENU button then "Next".
or
then
Activate the settings as required.
RADIO

05
305
4008_en_Chap10c_Mitsu5_ed01-2016

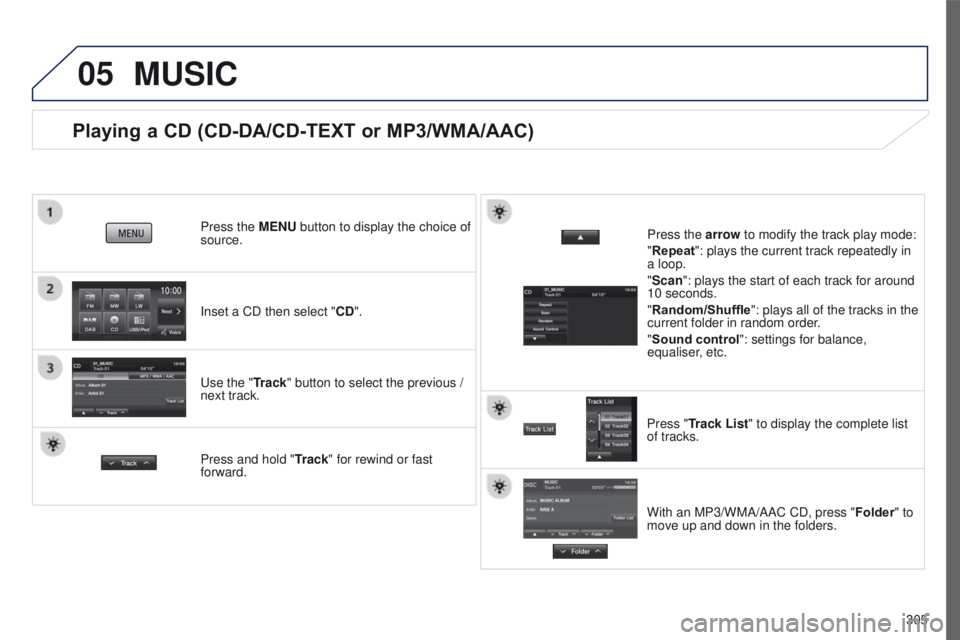

Playing a CD (CD-DA/CD-TEXT or MP3/WMA/AAC)
Inset a CD then select "CD". Press the MENU button to display the choice of
source.
u
se the "Track" button to select the previous /
next track.
MUSIC
Press and hold " Track" for rewind or fast
forward. Press the arrow to modify the track play mode:
"Repeat": plays the current track repeatedly in
a loop.
"Scan": plays the start of each track for around
10 seconds.
"Random/Shuffle
": plays all of the tracks in the
current folder in random order.
"Sound control ": settings for balance,
equaliser, etc.
Press "Track List" to display the complete list
of tracks.
With an MP3/WMA/AAC CD, press "Folder" to
move up and down in the folders.

05
306
MUSIC

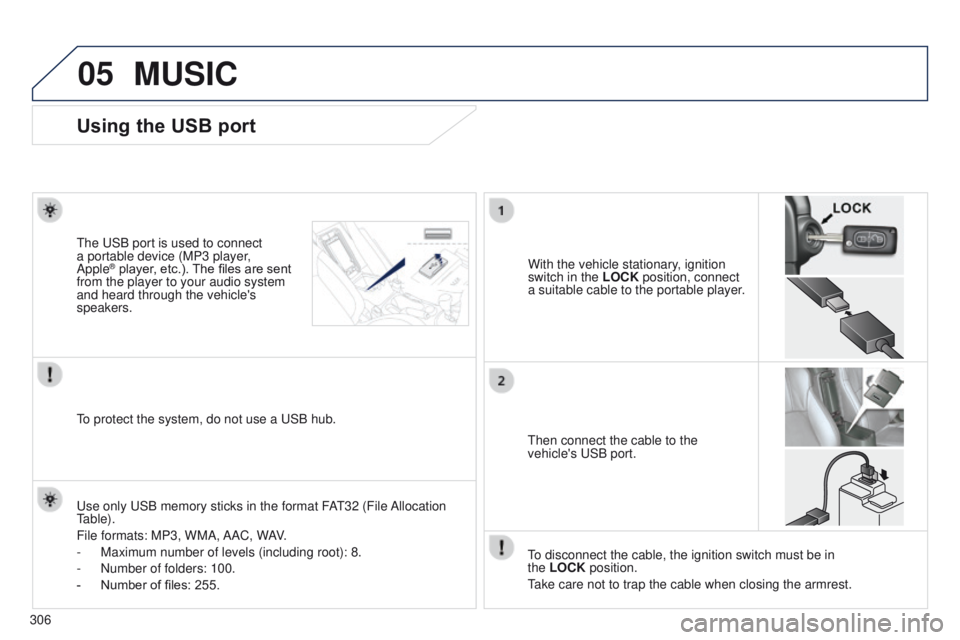

Using the USB port
With the vehicle stationary, ignition
switch in the LOCK position, connect
a suitable cable to the portable player.
t

he
u
SB port is used to connect
a portable device (MP3 player,
Apple® player, etc.). The files are sent
from the player to your audio system
and heard through the vehicle's
speakers.
t

hen connect the cable to the
vehicle's
u SB port.
u

se only u SB memory sticks in the format FA
t
32 (File Allocation
table).
File formats: MP3, WMA,

AAC, WAV.
-

Maximum number of levels (including root): 8.
-


Number of folders: 100.
-


Number of files: 255.
to protect the system, do not use a
u SB hub.
to disconnect the cable, the ignition switch must be in
the

LOCK position.
take care not to trap the cable when closing the armrest.

05
307
4008_en_Chap10c_Mitsu5_ed01-2016
MUSIC

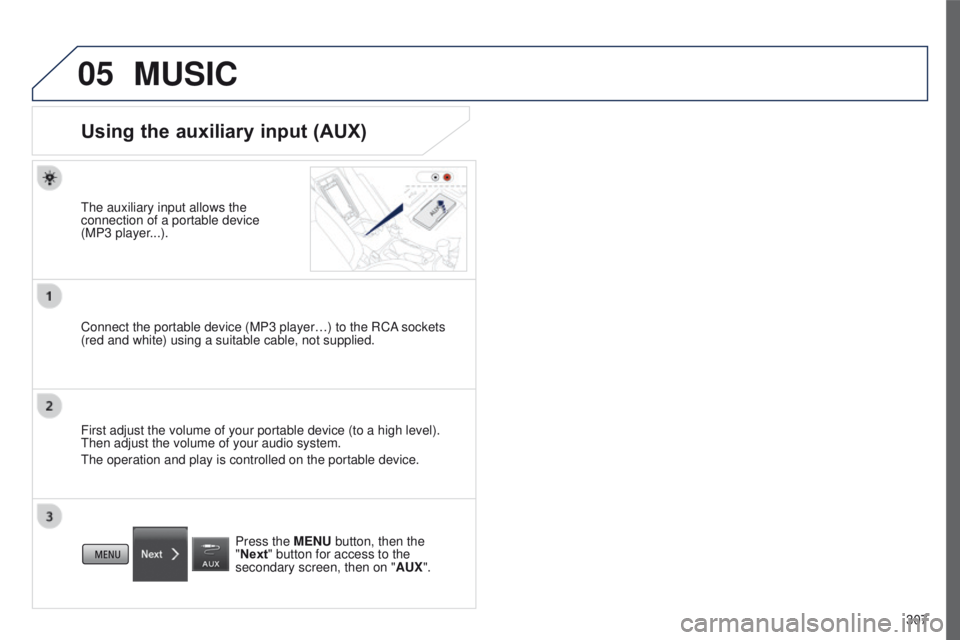

Using the auxiliary input (AUX)
the auxiliary input allows the
connection of a portable device
(MP3 player
...).
Connect the portable device (MP3 player…) to the RCA sockets
(red and white) using a suitable cable, not supplied.
First adjust the volume of your portable device (to a high level).
t

hen adjust the volume of your audio system.
t

he operation and play is controlled on the portable device. Press the MENU button, then the
"Next" button for access to the
secondary screen, then on " AUX".

05
308

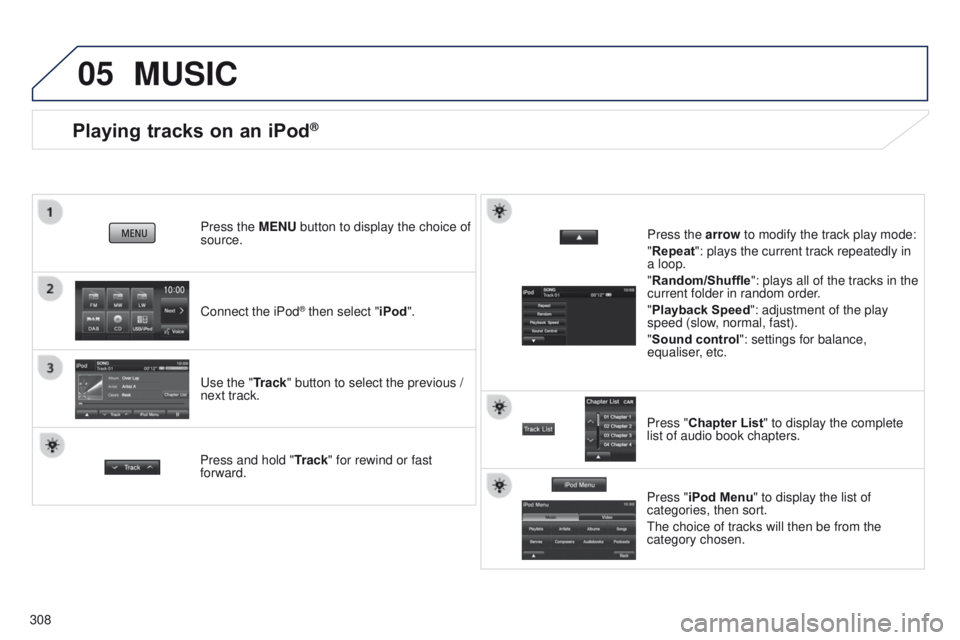

Playing tracks on an iPod®
Connect the iPod® then select "iPod".
Press the MENU button to display the choice of
source.
u

se the "Track" button to select the previous /
next track.
MUSIC
Press and hold " Track" for rewind or fast
forward. Press the arrow to modify the track play mode:
"Repeat": plays the current track repeatedly in
a loop.
"Random/Shuffle
": plays all of the tracks in the
current folder in random order.
"Playback Speed": adjustment of the play
speed (slow, normal, fast).
"Sound control ": settings for balance,
equaliser, etc.
Press "Chapter List" to display the complete
list of audio book chapters.
Press "iPod Menu " to display the list of
categories, then sort.
t

he choice of tracks will then be from the
category chosen.
