05
279
4008_EN_CHAP10B_MITSU6_ED01-2016

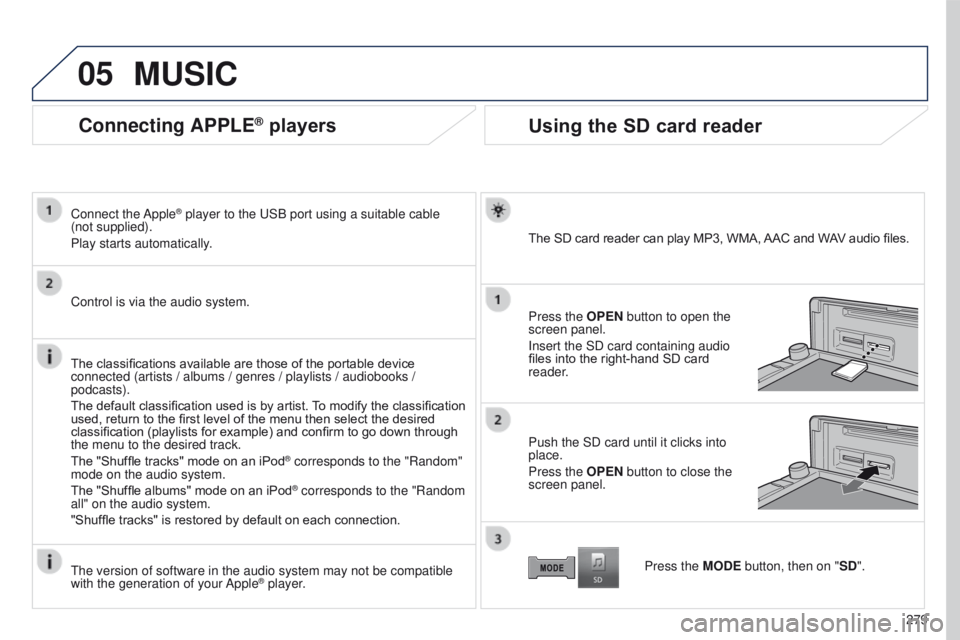

Connecting APPLE® players
Connect the Apple® player to the uSB port using a suitable cable
(not

supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the portable device
connected (artists / albums / genres / playlists / audiobooks /
podcasts).
The default classification used is by artist. To modify the classification
used, return to the first level of the menu then select the desired
classification (playlists for example) and confirm to go down through
the menu to the desired track.
The "Shuffle tracks" mode on an iPod
® corresponds to the "Random"
mode on the audio system.
The "Shuffle albums" mode on an iPod
® corresponds to the "Random
all" on the audio system.
"Shuffle tracks" is restored by default on each connection.
t

he version of software in the audio system may not be compatible
with the generation of your Apple
® player.
MUSIC
Using the SD card reader
The SD card reader can play MP3, WMA, AAC and WAV audio files.
Press the OPEN button to open the
screen panel.
Insert the SD card containing audio
files into the right-hand SD card
reader.
Push the SD card until it clicks into
place.
Press the OPEN button to close the
screen panel.
Press the MODE button, then on "SD".

05
280
4008_EN_CHAP10B_MITSU6_ED01-2016

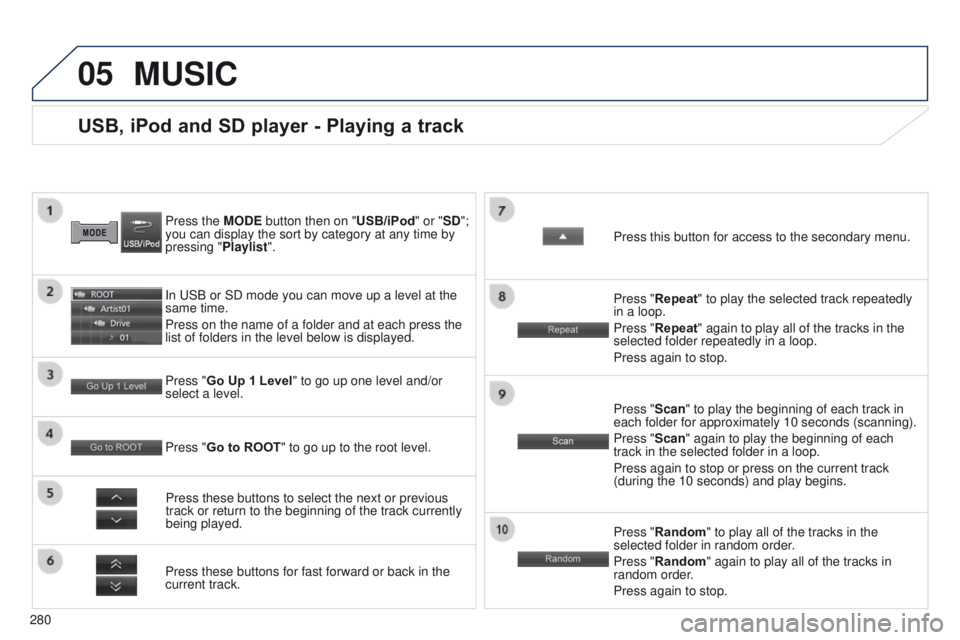

USB, iPod and SD player - Playing a track
Press the MODE button then on "USB/iPod" or "SD";
you can display the sort by category at any time by
pressing "Playlist".
In
u SB or SD mode you can move up a level at the
same time.
Press on the name of a folder and at each press the
list of folders in the level below is displayed.
Press these buttons for fast forward or back in the
current track. Press "Go Up 1 Level " to go up one level and/or
select a level.
Press these buttons to select the next or previous
track or return to the beginning of the track currently
being played. Press "Random" to play all of the tracks in the
selected folder in random order.
Press "Random" again to play all of the tracks in
random order.
Press again to stop.
Press "Go to ROOT
" to go up to the root level. Press "Scan" to play the beginning of each track in
each folder for approximately 10 seconds (scanning).
Press "Scan" again to play the beginning of each
track in the selected folder in a loop.
Press again to stop or press on the current track
(during the 10 seconds) and play begins. Press "Repeat" to play the selected track repeatedly
in a loop.
Press "Repeat" again to play all of the tracks in the
selected folder repeatedly in a loop.
Press again to stop. Press this button for access to the secondary menu.
MUSIC

05
281
4008_EN_CHAP10B_MITSU6_ED01-2016
MUSIC

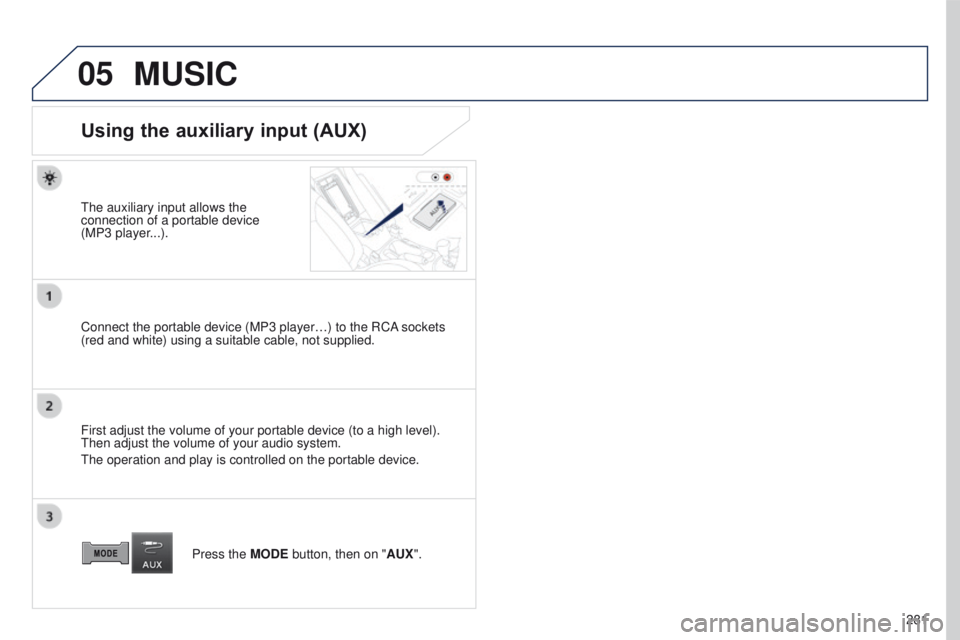

Using the auxiliary input (AUX)
the auxiliary input allows the
connection of a portable device
(MP3
player...).
Connect the portable device (MP3 player…) to the RCA sockets
(red and white) using a suitable cable, not supplied.
First adjust the volume of your portable device (to a high level).
t

hen adjust the volume of your audio system.
t

he operation and play is controlled on the portable device. Press the MODE button, then on "AUX".

06
282
4008_EN_CHAP10B_MITSU6_ED01-2016

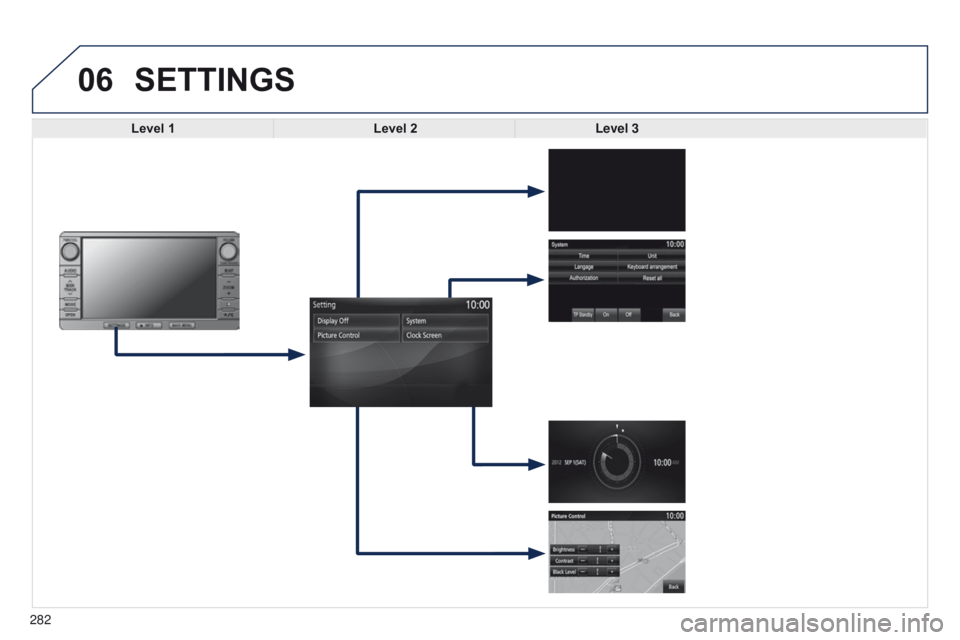

SETTINGS
Level 1Level 2Level 3

283
4008_EN_CHAP10B_MITSU6_ED01-2016

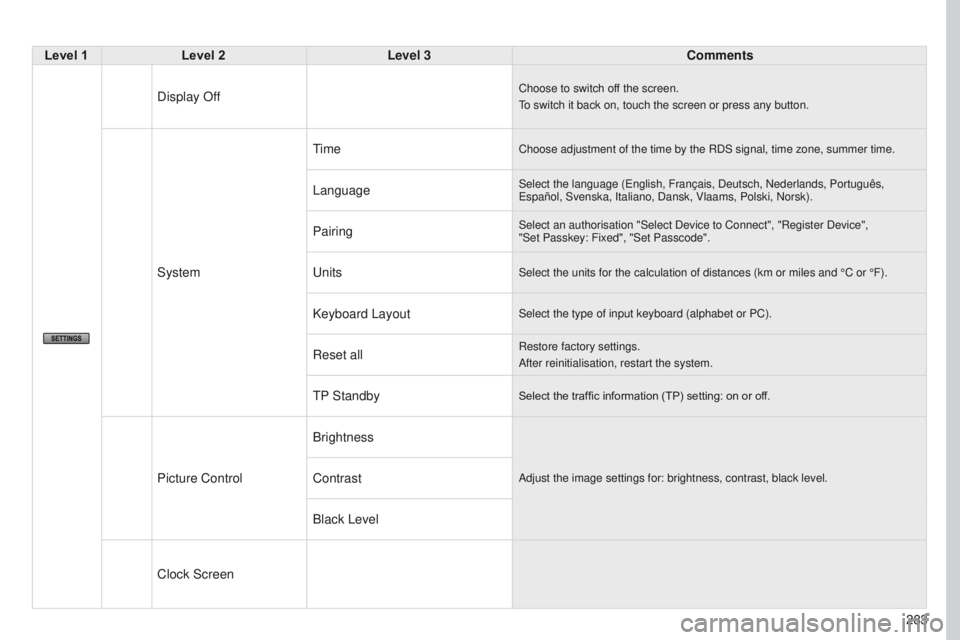

Level 1Level 2 Level 3 Comments
Display Off
Choose to switch off the screen.
to switch it back on, touch the screen or press any button.
System
timeChoose adjustment of the time by the RDS signal, time zone, summer time.\
LanguageSelect the language (english, Français, Deutsch, Nederlands, Português, e spañol, Svenska, Italiano, Dansk, Vlaams, Polski, Norsk).
PairingSelect an authorisation "Select Device to Connect", "Register Device",
"Set Passkey: Fixed", "Set Passcode".
unitsSelect the units for the calculation of distances (km or miles and °\
C or °F).
Keyboard LayoutSelect the type of input keyboard (alphabet or PC).
Reset allRestore factory settings.
After reinitialisation, restart the system.
tP StandbySelect the traffic information (TP) setting: on or off.
Picture Control BrightnessAdjust the image settings for: brightness, contrast, black level.Contrast
Black Level
Clock Screen

07
284
4008_EN_CHAP10B_MITSU6_ED01-2016

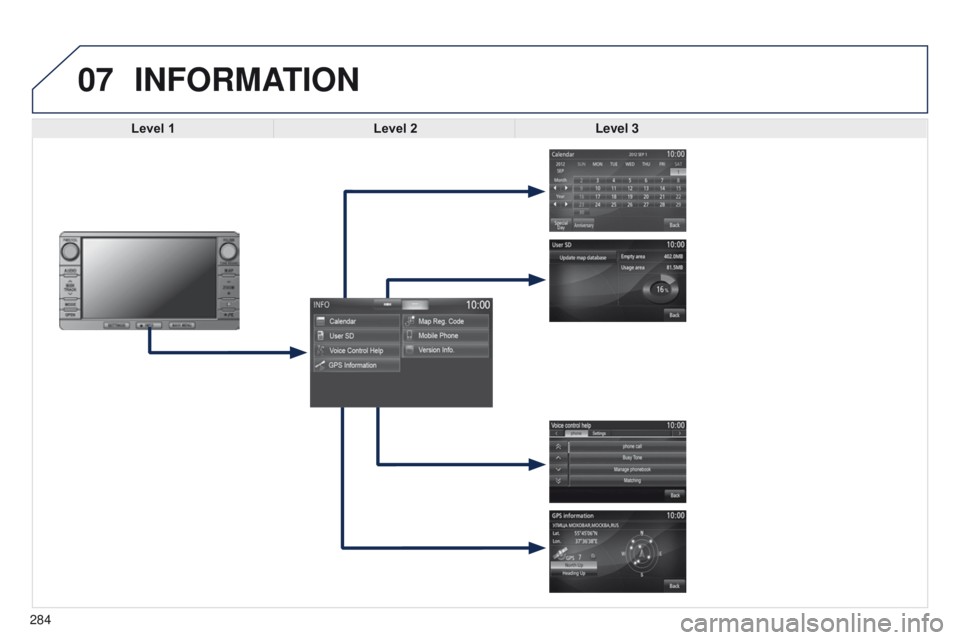

INFORMATION
Level 1Level 2Level 3

285
4008_EN_CHAP10B_MITSU6_ED01-2016

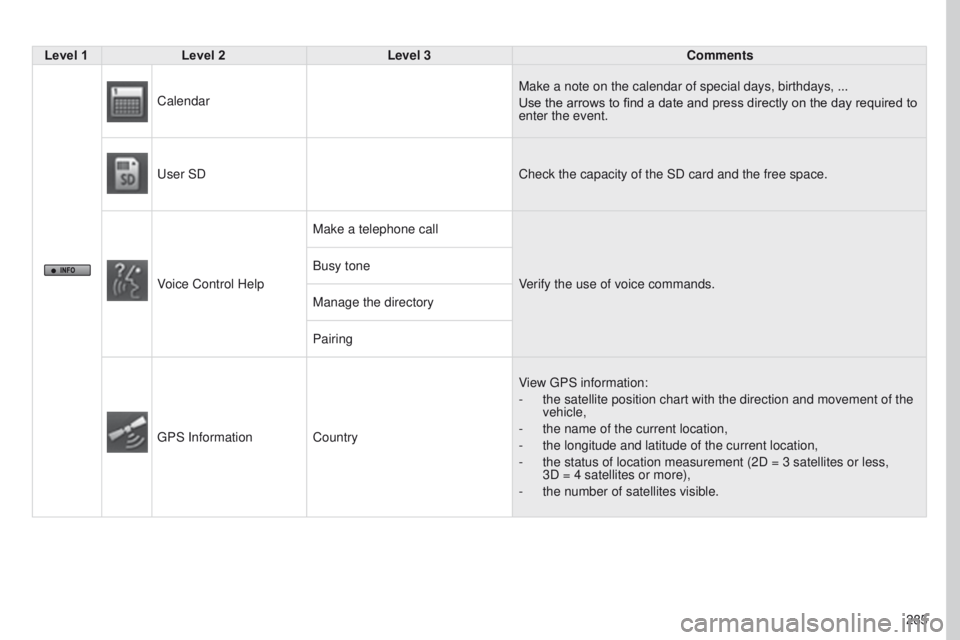

Level 1Level 2 Level 3 Comments
Calendar Make a note on the calendar of special days, birthdays, ...
Use the arrows to find a date and press directly on the day required to
enter the event.
u

ser SD Check the capacity of the SD card and the free space.
Voice Control Help Make a telephone call
Verify the use of voice commands.
Busy tone
Manage the directory
Pairing
g

PS Information Country View
g PS information:
-

the satellite position chart with the direction and movement of the
vehicle,
-


the name of the current location,
-


the longitude and latitude of the current location,
-


the status of location measurement (2D = 3 satellites or less,
3D = 4 satellites or more),
-


the number of satellites visible.

07
286
4008_EN_CHAP10B_MITSU6_ED01-2016

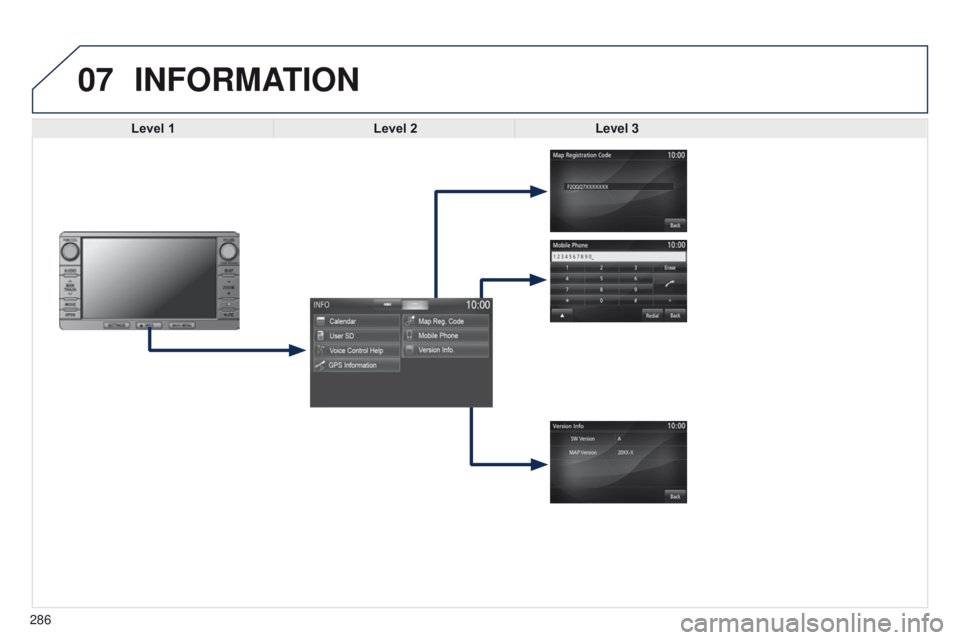

INFORMATION
Level 1Level 2Level 3

287
4008_EN_CHAP10B_MITSU6_ED01-2016
Level 1Level 2 Level 3 Comments
Map Reg. Code Display the registration code for the navigation system.
Mobile Phone Make and receive telephone calls.
Version Info. View the software version and mapping data version.

08
288
4008_EN_CHAP10B_MITSU6_ED01-2016

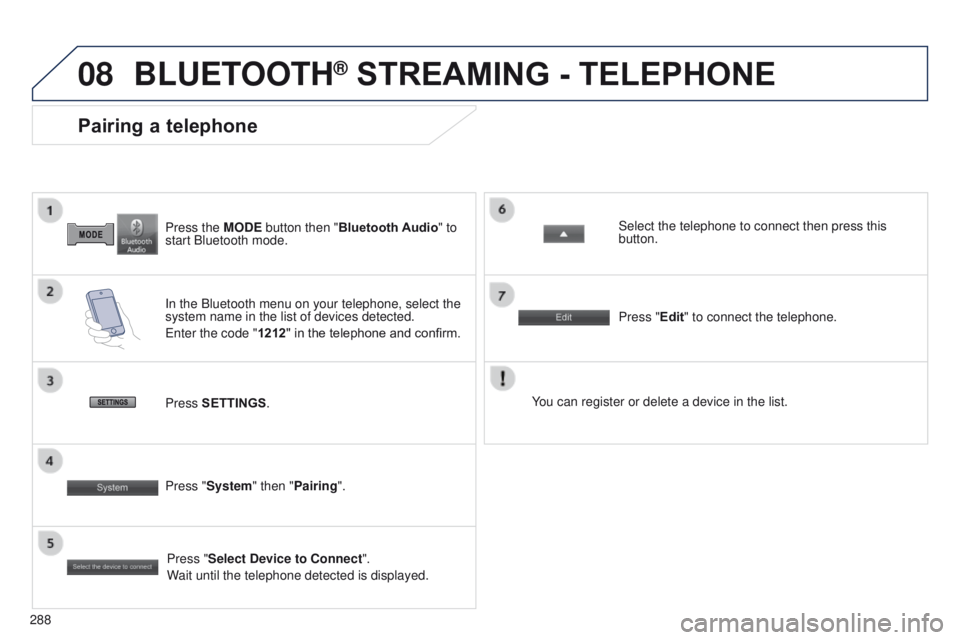

Press the MODE button then "Bluetooth Audio" to
start Bluetooth mode.
Pairing a telephone
In the Bluetooth menu on your telephone, select the
system name in the list of devices detected.
e
nter the code "1212 " in the telephone and confirm. Select the telephone to connect then press this
button.
Press "Select Device to Connect".
Wait until the telephone detected is displayed.
Press SETTINGS
. Press "Edit" to connect the telephone.
Press "System " then "Pairing". You can register or delete a device in the list.
BLUETOOTH® STREAMING - TELEPHONE
