ESP Peugeot 406 Break 2002 User Guide

Manual station searchPress the "MAN" button.
Briefly press button Kor Lto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the " MAN" button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required.Press one of the buttons "1" to " 6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore) Press button B for more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FMast waveband.
-If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press buttons " 1" to " 6" to recall the corresponding station.
The list of the 6 stations stored in memory on the waveband is displayed each time one of the buttons " 1" to " 6" is pressed.
YOUR 406 IN DETAIL 79

Regional following modeWhen they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme. Press the "RDS" button for more than two seconds to switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).With FM selected, press the " TA" button for two seconds to switch this function on or off.
To search for a PTYprogramme:
-select the PTYfunction,
-briefly press button Kor Lto scroll down the list of the various types of pro-
grammes offered.
-when the programme of your choice is displayed, keep button Kor Lpressed for two seconds to carry out an automatic
search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the
memory. To do this, press the preselection buttons " 1" to " 6" for more
than two seconds.
To recall the type of programme stored in the memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station, which is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
YOUR 406 IN DETAIL 81

YOUR 406 IN DETAIL83
CD CHANGER Selecting CD changer mode Press button D.
Selecting a disc Press buttons "1" to " 6" to select the corresponding disc.
Selecting a track Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Accelerated play Press and hold button Kor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle
When the CD changer is selected, keep button " D" pressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button " D" again for two seconds returns you to normal play.

Manual station searchPress the "MAN"button.
Briefly press button Kor Lto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons " 1" to " 6" for
more than two seconds.The sound stops then becomes audible again, confirming that the
station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Press buttonBfor more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FM3 waveband.
- If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press buttons " 1" to " 6" to recall the corresponding station.
YOUR 406 IN DETAIL 93

PTY functionThis allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Kor Lto scroll down the list of the various types of pro-
grammes offered.
– when the programme of your choice is displayed, keep button Kor Lpressed for two seconds to carry out an automatic
search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the
memory. To do this, press the preselection buttons "1"to "6" for
more than two seconds.
To recall the type of programme stored in the memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station, which is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
YOUR 406 IN DETAIL 95

CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press buttons "1"to "6" to select the corresponding disc.
Selecting a track Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Accelerated playPress the "MAN"button.
Press and hold button K or Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.Buttons K or Lresume the "track selection" function when the "MAN"button is pressed again.
Shuffle (RDM) When the CD changer is selected, keep button D pressed for two seconds. The tracks will be played in
random sequence. Pressing button D again for two seconds returns you to normal play.
YOUR 406 IN DETAIL 97

4 - Setting the air distribution
Successive presses on the top or bottom part of thisbutton allow the air to bedirected to:
-the windscreen (de-icing or demist- ing),
-the windscreen and footwells,
-the central and side vents,
-the central and side vents and footwells,
-the footwells.
Press the top or bottom part of the button to select the previous or nextsetting from the above list. Manual operation
You may, if you wish, make a differ-
ent choice from that offered by thesystem, by changing one of the set-tings. Press the "
AUTO" button to return to
automatic operation.
5 - Air conditioning
Pressing this button stops the air condi-
tioning. Pressing again returns theair conditioning to automatic opera-
tion. The symbol " A/C" is displayed.
6 - Air flow
The air flow may beincreased or reducedby pressing the "+'' or
" – '' button respectively. 7 - Air intake
This button ispressed for recircula-
tion of the interior air.
Recirculation, shown on the display,prevents the entry of unpleasantodours or fumes into the passengercompartment from outside.
Avoid prolonged operation of the
recirculation of interior air. A secondpress returns the system to automat-
ic intake of air. Used in humid conditions, recircula- tion risks misting up the windows.
8 - Demisting therear screen
With the engine run-ning, pressing the
switch demists the rear screen andthe mirrors.
It switches off automatically after approximately fifteen minutes. Press again to resume demisting. It is possible to stop the demisting
operation before it goes off automat-
ically, by pressing the switch again. Note: The condensation created by
air conditioning causes a normal flow of water under the vehicle when sta-
tionary.
YOUR 406 IN DETAIL 63

REAR SEATS Rear seats (saloon)Before moving the seats, to avoid damage to the seatbelts, carefullyplace them to the side of the seatback (for side seat belts) and gentlylower the seat to avoid blocking thecentre belt. The seat back folds down in two sec- tions.To fold down the seat back The unlocking controls are located in the boot. Pull the control corresponding to the part of the seat back that you wish tofold down. When returning the seat back to its original position, for your safetymake sure that it is correctly locked. Ski flap Lower the arm rest to access the ski flap. Open the flap from the boot.
YOUR 406 IN DETAIL
117

YOUR 406 IN DETAIL
120

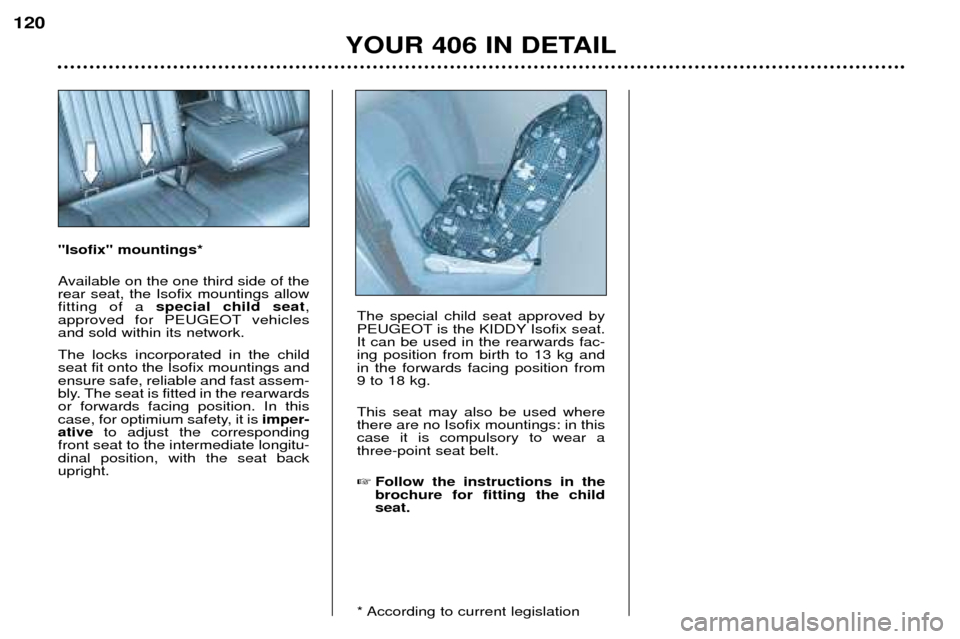

''Isofix'' mountings*
Available on the one third side of the rear seat, the Isofix mountings allowfitting of a
special child seat ,
approved for PEUGEOT vehiclesand sold within its network. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly. The seat is fitted in the rearwardsor forwards facing position. In this
case, for optimium safety, it is imper-
ative to adjust the corresponding
front seat to the intermediate longitu-dinal position, with the seat backupright.
The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.It can be used in the rearwards fac-ing position from birth to 13 kg andin the forwards facing position from 9 to 18 kg. This seat may also be used where there are no Isofix mountings: in thiscase it is compulsory to wear athree-point seat belt.
 Follow the instructions in thebrochure for fitting the childseat.
* According to current legislation

YOUR 406 IN DETAIL
120
''Isofix'' mountings*
Available on the one third side of the rear seat, the Isofix mountings allowfitting of a
special child seat ,
approved for PEUGEOT vehiclesand sold within its network. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly. The seat is fitted in the rearwardsor forwards facing position. In this
case, for optimium safety, it is imper-
ative to adjust the corresponding
front seat to the intermediate longitu-dinal position, with the seat backupright.
The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.It can be used in the rearwards fac-ing position from birth to 13 kg andin the forwards facing position from 9 to 18 kg. This seat may also be used where there are no Isofix mountings: in thiscase it is compulsory to wear athree-point seat belt.
 Follow the instructions in thebrochure for fitting the childseat.
* According to current legislation
