PEUGEOT 5008 2010.5 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 5008, Model: PEUGEOT 5008 2010.5Pages: 345, PDF Size: 22.77 MB
Page 171 of 345
140

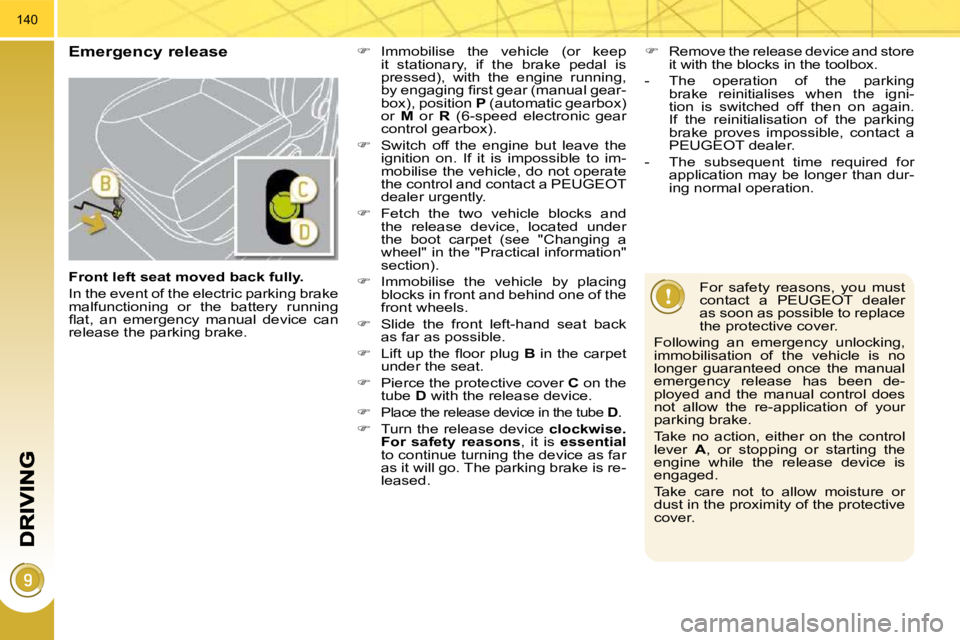

Front left seat moved back fully.
In the event of the electric parking brake
malfunctioning or the battery running
fl a t , a n e m e r g e n c y m a n u a l d e v i c e c a n
release the parking brake.
Emergency release
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
b y e n g a g i n g fi r s t g e a r ( m a n u a l g e a r -
box), position P (automatic gearbox)
or M or R (6-speed electronic gear
control gearbox).
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not operate
the control and contact a PEUGEOT
dealer urgently.
Fetch the two vehicle blocks and
the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).
Immobilise the vehicle by placing
blocks in front and behind one of the
front wheels.
Slide the front left-hand seat back
as far as possible.
L i f t u p t h e fl o o r p l u g B in the carpet
under the seat.
Pierce the protective cover C on the
tube D with the release device.
Place the release device in the tube D .
Turn the release device clockwise.
For safety reasons , it is essential
to continue turning the device as far
as it will go. The parking brake is re-
leased.
Remove the release device and store
it with the blocks in the toolbox.
- The operation of the parking brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact a
PEUGEOT dealer.
- The subsequent time required for application may be longer than dur-
ing normal operation.
For safety reasons, you must
contact a PEUGEOT dealer
as soon as possible to replace
the protective cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency release has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on the control
lever A , or stopping or starting the
engine while the release device is
engaged.
Take care not to allow moisture or
dust in the proximity of the protective
cover.
Page 172 of 345
141

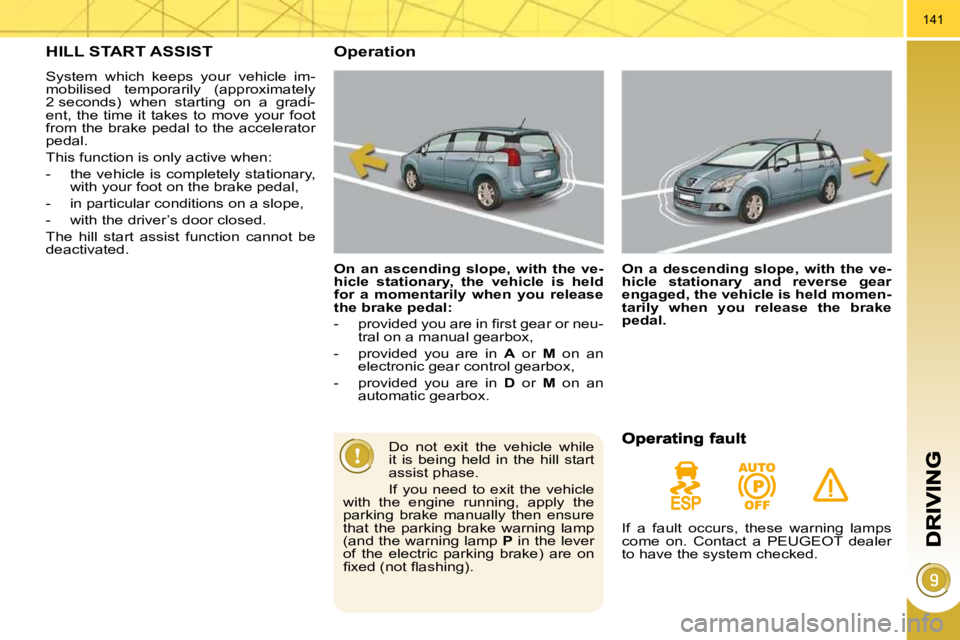

HILL START ASSIST
System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist function cannot be
deactivated.
Operation
On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a momentarily when you release
the brake pedal:
- p r o v i d e d y o u a r e i n fi r s t g e a r o r n e u - tral on a manual gearbox,
- provided you are in A or M on an
electronic gear control gearbox,
- provided you are in D or M on an
automatic gearbox.
On a descending slope, with the ve-
hicle stationary and reverse gear
engaged, the vehicle is held momen-
tarily when you release the brake
pedal.
Do not exit the vehicle while
it is being held in the hill start
assist phase.
If you need to exit the vehicle
with the engine running, apply the
parking brake manually then ensure
that the parking brake warning lamp
(and the warning lamp P in the lever
of the electric parking brake) are on
fi x e d ( n o t fl a s h i n g ) .
If a fault occurs, these warning lamps
come on. Contact a PEUGEOT dealer
to have the system checked.
Page 173 of 345
142

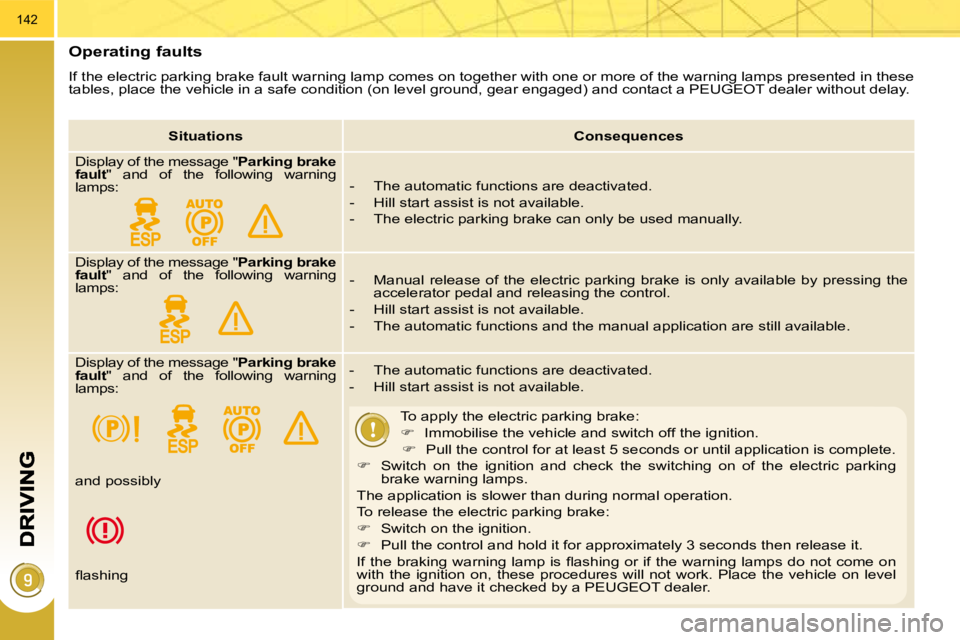

Operating faults
If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these
tables, place the vehicle in a safe condition (on level grou nd, gear engaged) and contact a PEUGEOT dealer without dela y.
Situations
Consequences
Display of the message " Parking brake
fault " and of the following warning
lamps: - The automatic functions are deactivated.
- Hill start assist is not available.
- The electric parking brake can only be used manually.
Display of the message " Parking brake
fault " and of the following warning
lamps: - Manual release of the electric parking brake is only availa
ble by pressing the
accelerator pedal and releasing the control.
- Hill start assist is not available.
- The automatic functions and the manual application are still available.
Display of the message " Parking brake
fault " and of the following warning
lamps: - The automatic functions are deactivated.
- Hill start assist is not available.
To apply the electric parking brake:
Immobilise the vehicle and switch off the ignition.
Pull the control for at least 5 seconds or until applicatio n is complete.
Switch on the ignition and check the switching on of the electric parking
brake warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:
Switch on the ignition.
Pull the control and hold it for approximately 3 seconds the n release it.
I f t h e b r a k i n g w a r n i n g l a m p i s fl a s h i n g o r i f t h e w a r n i n g l a m p s d o n o t c o m e o n
with the ignition on, these procedures will not work. Place the vehicle on level
ground and have it checked by a PEUGEOT dealer.
and possibly
fl a s h i n g
Page 174 of 345
143

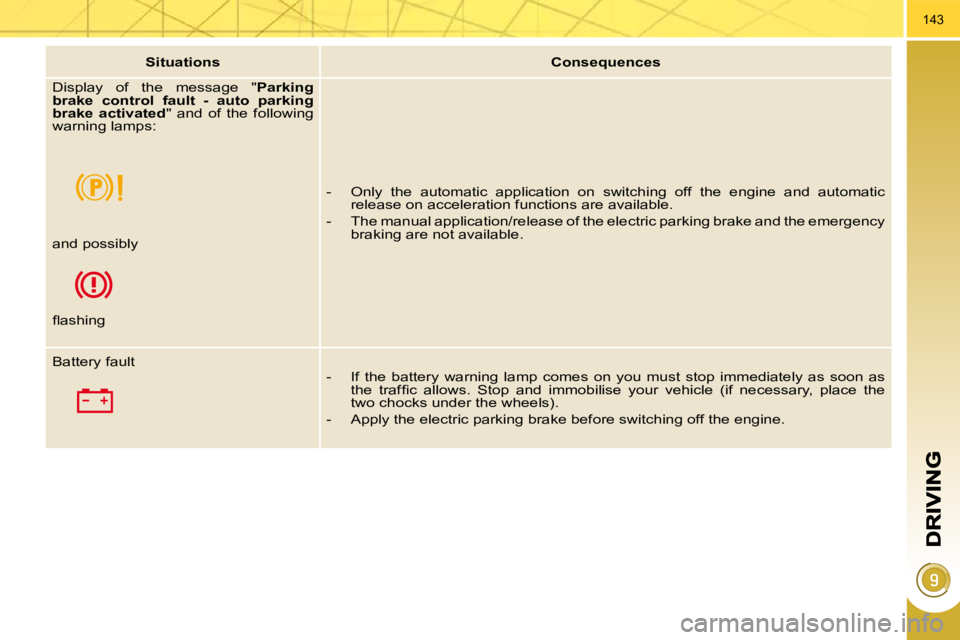

Situations
Consequences
Display of the message " Parking
brake control fault - auto parking
brake activated " and of the following
warning lamps:
- Only the automatic application on switching off the engine and automatic
release on acceleration functions are available.
- The manual application/release of the electric parking b rake and the emergency
braking are not available.
and possibly
fl a s h i n g
Battery fault
- If the battery warning lamp comes on you must stop immediat ely as soon as
t h e t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r v e h i c l e ( i f n e c e s s a r y , p l a c e t h e
two chocks under the wheels).
- Apply the electric parking brake before switching off the e ngine.
Page 175 of 345
139

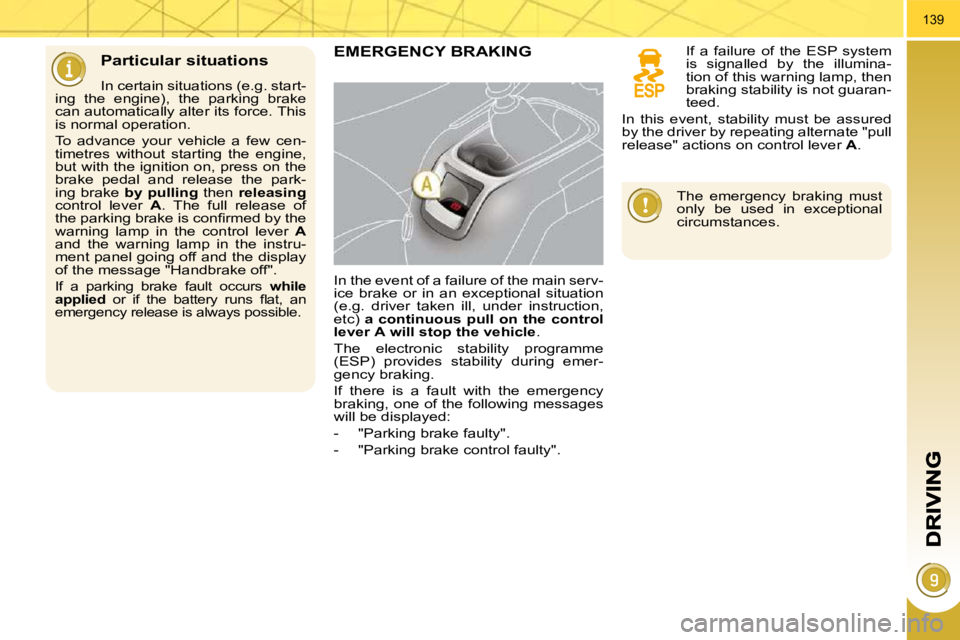

Particular situations
In certain situations (e.g. start-
ing the engine), the parking brake
can automatically alter its force. This
is normal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the park-
ing brake by pulling then releasing
control lever A . The full release of
t h e p a r k i n g b r a k e i s c o n fi r m e d b y t h e
warning lamp in the control lever A
and the warning lamp in the instru-
ment panel going off and the display
of the message "Handbrake off".
If a parking brake fault occurs while
applied o r i f t h e b a t t e r y r u n s fl a t , a n
emergency release is always possible.
EMERGENCY BRAKING
In the event of a failure of the main serv-
ice brake or in an exceptional situation
(e.g. driver taken ill, under instruction,
etc) a continuous pull on the control
lever
A
will stop the vehicle .
The electronic stability programme
(ESP) provides stability during emer-
gency braking.
If there is a fault with the emergency
braking, one of the following messages
will be displayed:
- "Parking brake faulty".
- "Parking brake control faulty". If a failure of the ESP system
is signalled by the illumina-
tion of this warning lamp, then
braking stability is not guaran-
teed.
In this event, stability must be assured
by the driver by repeating alternate "pull
release" actions on control lever A .
The emergency braking must
only be used in exceptional
circumstances.
Page 176 of 345
140
Front left seat moved back fully.
In the event of the electric parking brake
malfunctioning or the battery running
fl a t , a n e m e r g e n c y m a n u a l d e v i c e c a n
release the parking brake.
Emergency release
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
b y e n g a g i n g fi r s t g e a r ( m a n u a l g e a r -
box), position P (automatic gearbox)
or M or R (6-speed electronic gear
control gearbox).
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not operate
the control and contact a PEUGEOT
dealer urgently.
Fetch the two vehicle blocks and
the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).
Immobilise the vehicle by placing
blocks in front and behind one of the
front wheels.
Slide the front left-hand seat back
as far as possible.
L i f t u p t h e fl o o r p l u g B in the carpet
under the seat.
Pierce the protective cover C on the
tube D with the release device.
Place the release device in the tube D .
Turn the release device clockwise.
For safety reasons , it is essential
to continue turning the device as far
as it will go. The parking brake is re-
leased.
Remove the release device and store
it with the blocks in the toolbox.
- The operation of the parking brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact a
PEUGEOT dealer.
- The subsequent time required for application may be longer than dur-
ing normal operation.
For safety reasons, you must
contact a PEUGEOT dealer
as soon as possible to replace
the protective cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency release has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on the control
lever A , or stopping or starting the
engine while the release device is
engaged.
Take care not to allow moisture or
dust in the proximity of the protective
cover.
Page 177 of 345
141
HILL START ASSIST
System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake pedal,
- in particular conditions on a slope,
- with the driver’s door closed.
The hill start assist function cannot be
deactivated.
Operation
On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a momentarily when you release
the brake pedal:
- p r o v i d e d y o u a r e i n fi r s t g e a r o r n e u - tral on a manual gearbox,
- provided you are in A or M on an
electronic gear control gearbox,
- provided you are in D or M on an
automatic gearbox.
On a descending slope, with the ve-
hicle stationary and reverse gear
engaged, the vehicle is held momen-
tarily when you release the brake
pedal.
Do not exit the vehicle while
it is being held in the hill start
assist phase.
If you need to exit the vehicle
with the engine running, apply the
parking brake manually then ensure
that the parking brake warning lamp
(and the warning lamp P in the lever
of the electric parking brake) are on
fi x e d ( n o t fl a s h i n g ) .
If a fault occurs, these warning lamps
come on. Contact a PEUGEOT dealer
to have the system checked.
Page 178 of 345
144
System which projects various informa-
t i o n o n t o a t r a n s p a r e n t s t r i p i n t h e fi e l d
of vision of the driver so that they do not
have to take their eyes off the road.
This system operates when the engine
is running and the settings are stored
when the ignition is switched off.

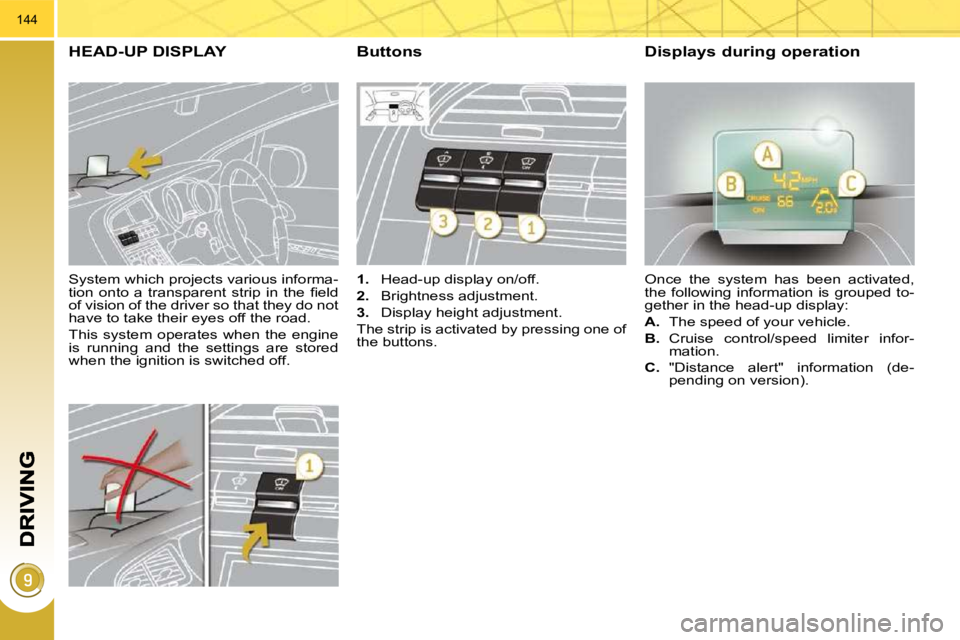

HEAD-UP DISPLAY
1. Head-up display on/off.
2. Brightness adjustment.
3. Display height adjustment.
The strip is activated by pressing one of
the buttons. Once the system has been activated,
the following information is grouped to-
gether in the head-up display:
A. The speed of your vehicle.
B. Cruise control/speed limiter infor-
mation.
Buttons Displays during operation
C. "Distance alert" information (de-
pending on version).
Page 179 of 345
145
In certain extreme weather
conditions (rain and/or snow,
bright sunshine, ...) the head-
up display may not be legible or may
suffer temporary interference.
Certain glasses (sunglasses, specta-
cles or polarised lenses) may hamper
reading of the information.
To clean the transparent strip, which
is made of organic glass, use a clean,
soft cloth (such as a spectacles cloth
o r m i c r o fi b r e c l o t h ) . D o n o t u s e a
dry or abrasive cloth or detergent
or solvent products as these could
scratch the strip or damage the anti-
r e fl e c t i o n c o a t i n g . We recommend that adjust-
ments are only made using
these buttons when the vehi-
cle is stationary.
When stationary or while driving, no
objects should be placed around the
transparent strip (or on its cover) to
avoid blocking the strip output and
preventing its correct operation.

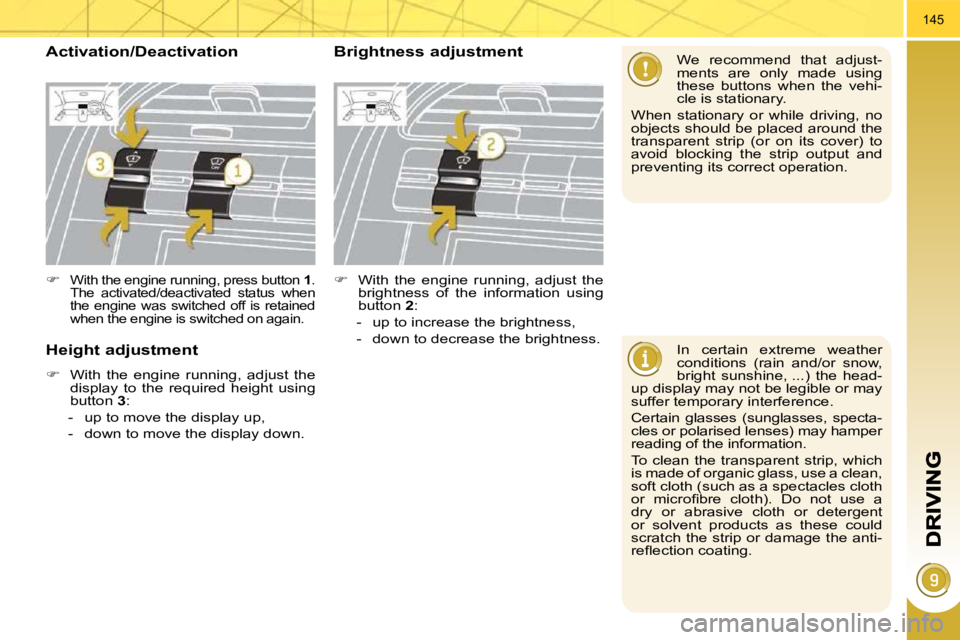

With the engine running, press button 1 .
The activated/deactivated status when
the engine was switched off is retained
when the engine is switched on again.
Height adjustment
With the engine running, adjust the
display to the required height using
button 3 :
- up to move the display up,
- down to move the display down.
Activation/Deactivation Brightness adjustment
With the engine running, adjust the
brightness of the information using
button 2 :
- up to increase the brightness,
- down to decrease the brightness.
Page 180 of 345
146

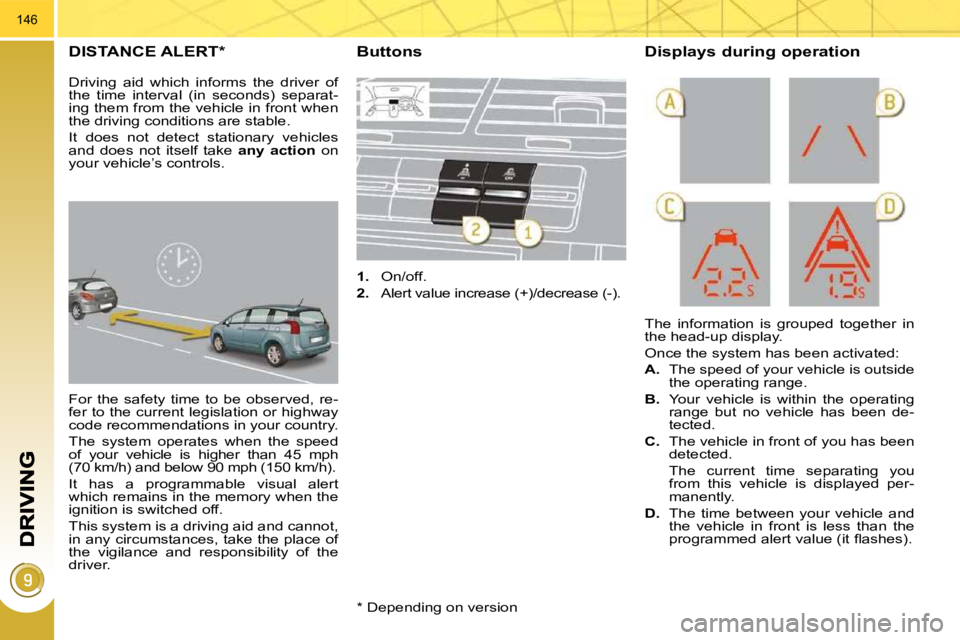

DISTANCE ALERT*
For the safety time to be observed, re-
fer to the current legislation or highway
code recommendations in your country.
The system operates when the speed
of your vehicle is higher than 45 mph
(70 km/h) and below 90 mph (150 km/h).
It has a programmable visual alert
which remains in the memory when the
ignition is switched off.
This system is a driving aid and cannot,
in any circumstances, take the place of
the vigilance and responsibility of the
driver.
1. On/off.
2. Alert value increase (+)/decrease (-).
The information is grouped together in
the head-up display.
Once the system has been activated:
A. The speed of your vehicle is outside
the operating range.
B. Your vehicle is within the operating
range but no vehicle has been de-
tected.
C. The vehicle in front of you has been
detected.
The current time separating you from this vehicle is displayed per-
manently.
D. The time between your vehicle and
the vehicle in front is less than the
p r o g r a m m e d a l e r t v a l u e ( i t fl a s h e s ) .
Buttons Displays during operation
Driving aid which informs the driver of
the time interval (in seconds) separat-
ing them from the vehicle in front when
the driving conditions are stable.
It does not detect stationary vehicles
and does not itself take any action on
your vehicle’s controls.
* Depending on version
