PEUGEOT 5008 2014 User Guide

.Familiarisation9

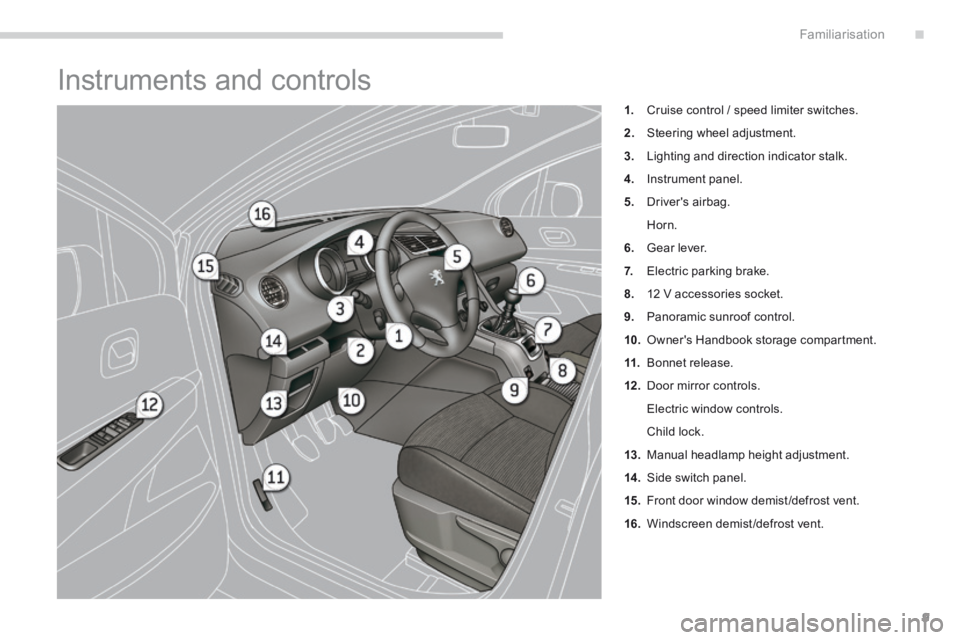

Instruments and controls
1. Cruise control / speed limiter switches.
2. Steering wheel adjustment.
3. Lighting and direction indicator stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Electric parking brake.
8. 12 V accessories socket.
9. Panoramic sunroof control.
10. Owner's Handbook storage compartment.
11. Bonnet release.
12 . Door mirror controls.
Electric window controls.
Child lock.
13. Manual headlamp height adjustment.
14 . Side switch panel.
15. Front door window demist/defrost vent.
16. Windscreen demist/defrost vent.

Familiarisation
10

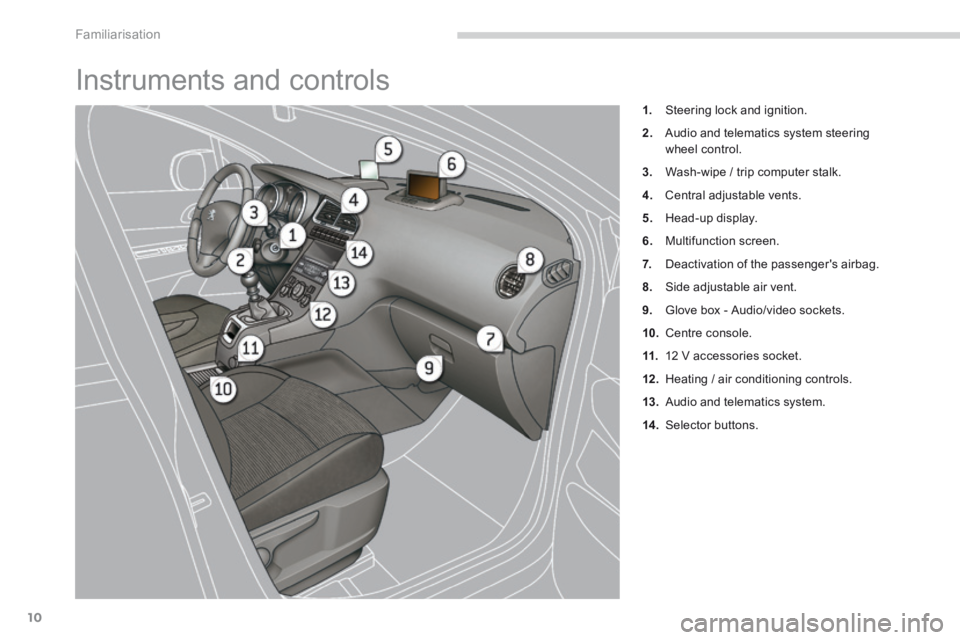

Instruments and controls
1. Steering lock and ignition.
2. Audio and telematics system steering wheel control.
3. Wash-wipe / trip computer stalk.
4. Central adjustable vents.
5. Head-up display.
6. Multifunction screen.
7. Deactivation of the passenger's airbag.
8. Side adjustable air vent.
9. Glove box - Audio/video sockets.
10. Centre console.
11. 12 V accessories socket.
12 . Heating / air conditioning controls.
13. Audio and telematics system.
14 . Selector buttons.

.
66
67

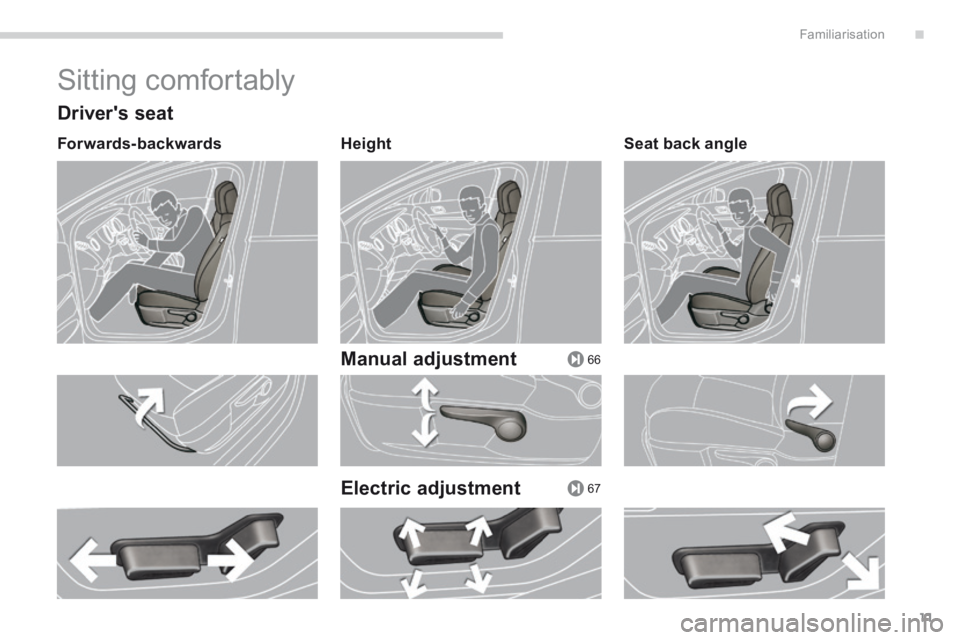

Familiarisation11
Sitting comfortably
Driver's seat
Forwards-backwards Height
Manual adjustment
Electric adjustment
Seat back angle

68, 69
80
119, 122

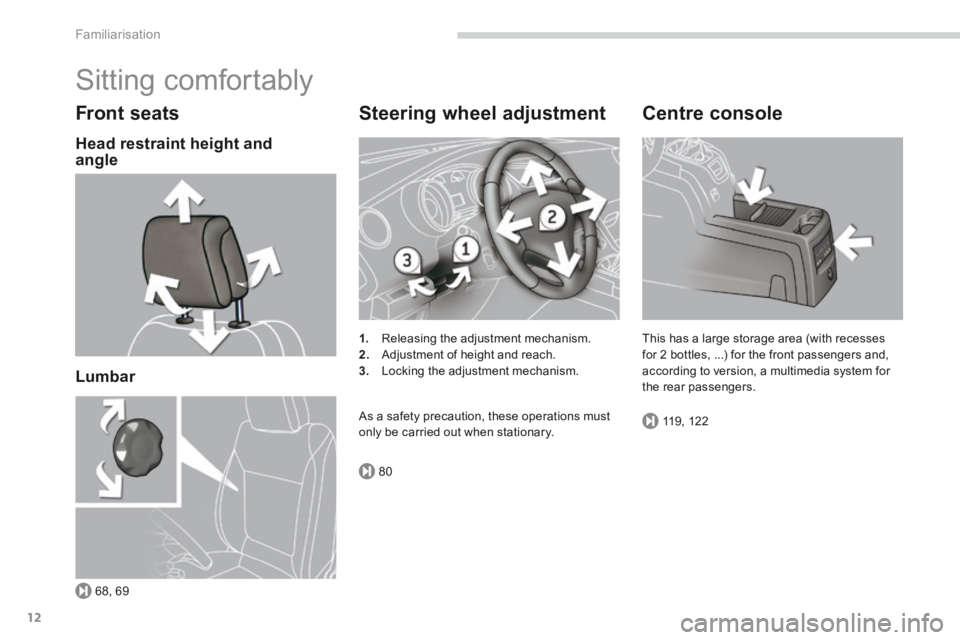

Familiarisation
12
Sitting comfortably
Front seats
Head restraint height and angle
Lumbar
Steering wheel adjustment
1. Releasing the adjustment mechanism. 2. Adjustment of height and reach. 3. Locking the adjustment mechanism.
As a safety precaution, these operations must only be carried out when stationary.
Centre console
This has a large storage area (with recesses for 2 bottles, ...) for the front passengers and, according to version, a multimedia system for the rear passengers.

.
78
79
79158

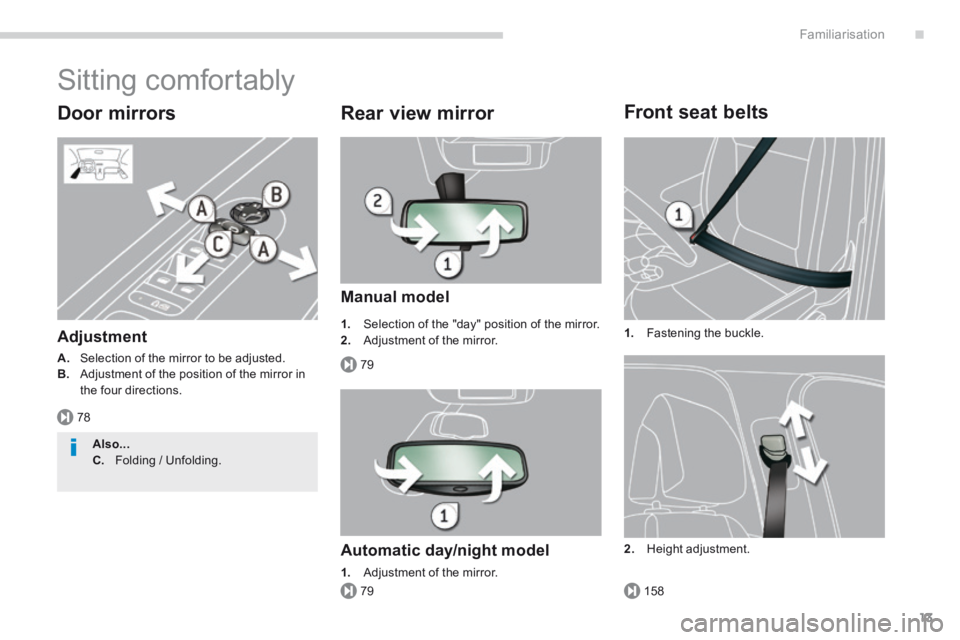

Familiarisation13
Sitting comfortably
Door mirrors
Adjustment
A. Selection of the mirror to be adjusted. B. Adjustment of the position of the mirror in the four directions.
Rear view mirror
Manual model
1. Selection of the "day" position of the mirror. 2. Adjustment of the mirror.
Automatic day/night model
1. Adjustment of the mirror.
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
Also...C. Folding / Unfolding.

101
102152
109
11 0

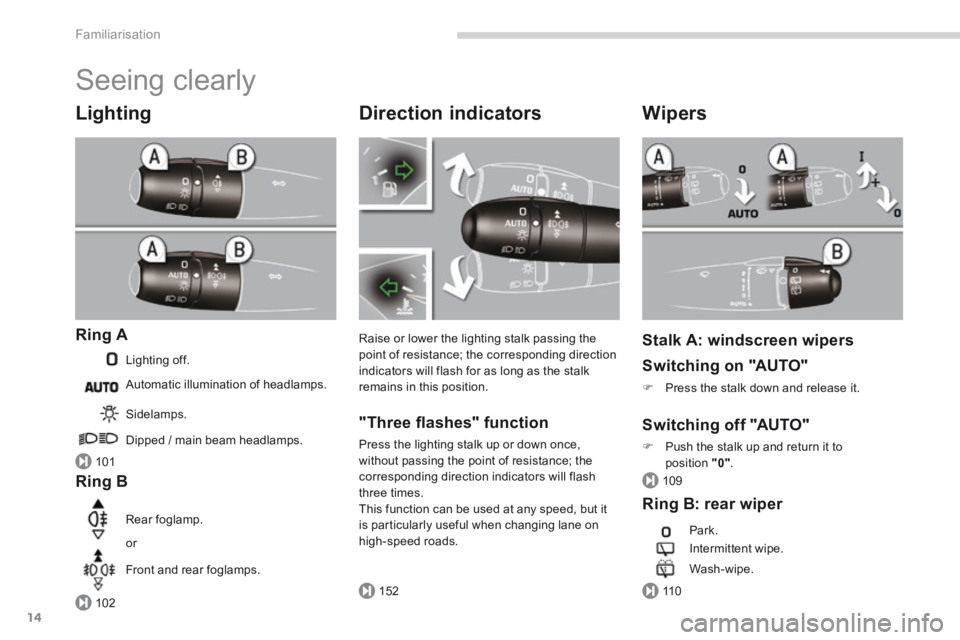

Familiarisation
14
Seeing clearly
Lighting
Ring A
Lighting off.
Ring B
Sidelamps.
Dipped / main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Automatic illumination of headlamps.
Direction indicators
Raise or lower the lighting stalk passing the point of resistance; the corresponding direction indicators will flash for as long as the stalk remains in this position.
"Three fl ashes" function
Press the lighting stalk up or down once, without passing the point of resistance; the corresponding direction indicators will flash three times. This function can be used at any speed, but it is particularly useful when changing lane on
high-speed roads.
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"
 Press the stalk down and release it.
Switching off "AUTO"
 Push the stalk up and return it to position "0" .
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.

.Familiarisation15
Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

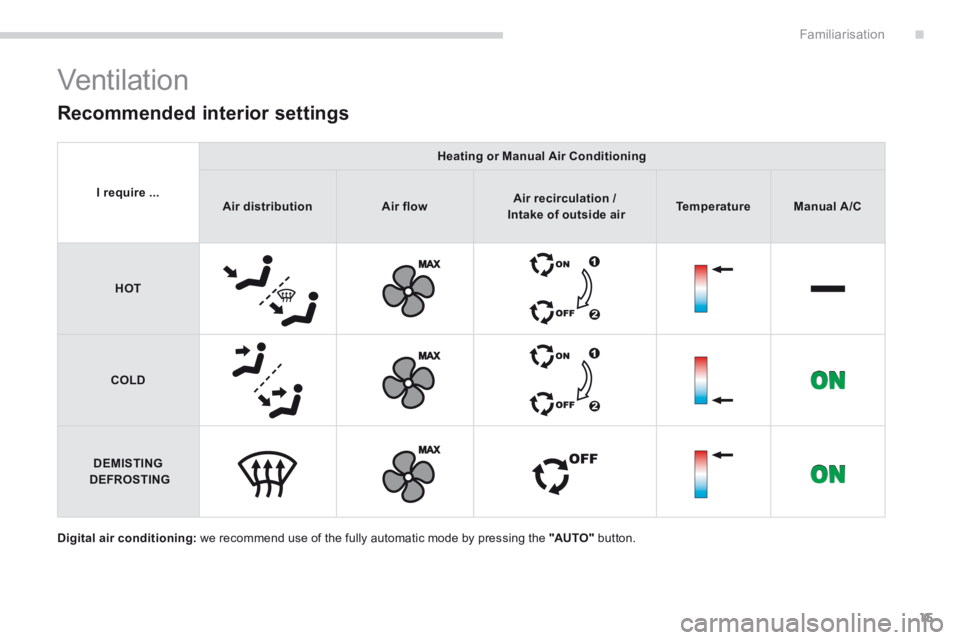

Ventilation
Recommended interior settings
I require ...
Heating or Manual Air Conditioning
Air distributionAir flowAir recirculation / Air recirculation / Air recirculation / Intake of outside airTemperatureManual A/C
HOT
COLD
DEMISTING DEFROSTING

27
30
198
156
87
201
195
173
152
175
92
Familiarisation
16

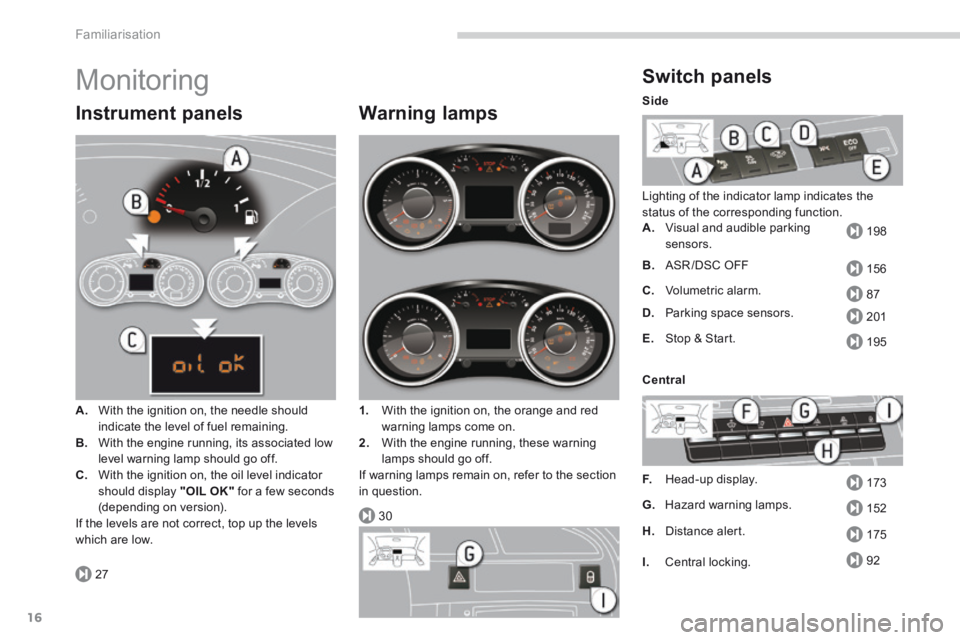

Monitoring
Instrument panels
A. With the ignition on, the needle should indicate the level of fuel remaining.
B. With the engine running, its associated low level warning lamp should go off. C. With the ignition on, the oil level indicator should display "OIL OK" for a few seconds (depending on version). If the levels are not correct, top up the levels which are low.
Warning lamps
1. With the ignition on, the orange and red warning lamps come on.
2. With the engine running, these warning lamps should go off. If warning lamps remain on, refer to the section in question.
Switch panels
Lighting of the indicator lamp indicates the status of the corresponding function. A. Visual and audible parking sensors.
B. ASR /DSC OFF
C. Volumetric alarm.
D. Parking space sensors.
E. Stop & Start.
F. Head-up display.
G. Hazard warning lamps.
Side
Central
H. Distance alert.
I. Central locking.

.
163
159
151

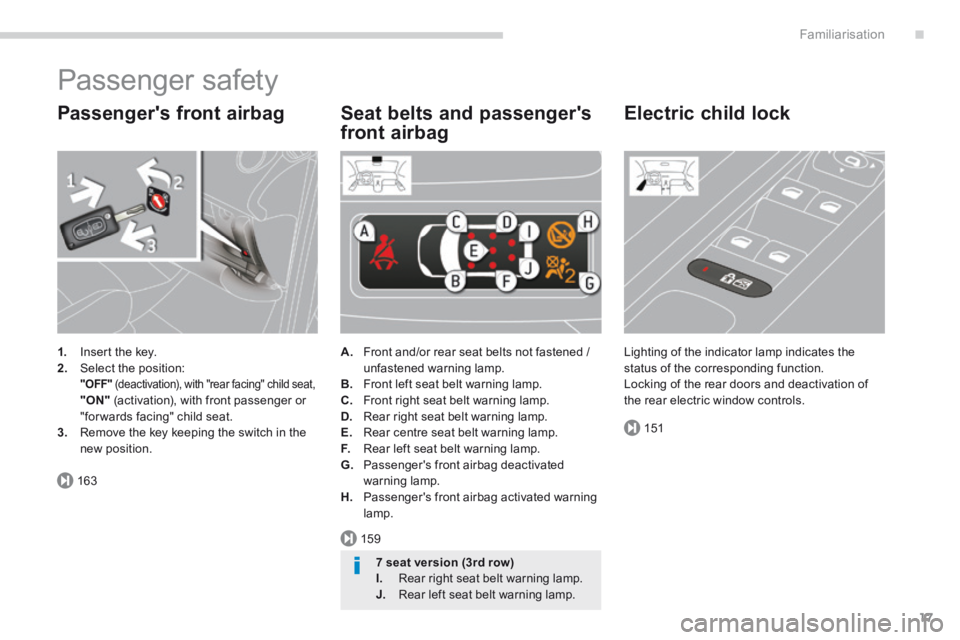

Familiarisation17
Passenger safety
Passenger's front airbag
1. Insert the key. 2. Select the position: "OFF" (deactivation), with "rear facing" child seat, "ON" (activation), with front passenger or "for wards facing" child seat.
3. Remove the key keeping the switch in the new position.
Seat belts and passenger's
front airbag
A. Front and/or rear seat belts not fastened / unfastened warning lamp. B. Front left seat belt warning lamp. C. Front right seat belt warning lamp. D. Rear right seat belt warning lamp.
E. Rear centre seat belt warning lamp. F. Rear left seat belt warning lamp. G. Passenger's front airbag deactivated warning lamp. H. Passenger's front airbag activated warning lamp.
Electric child lock
Lighting of the indicator lamp indicates the status of the corresponding function. Locking of the rear doors and deactivation of the rear electric window controls.
7 seat version (3rd row)I. Rear right seat belt warning lamp. J. Rear left seat belt warning lamp.

73
74
74

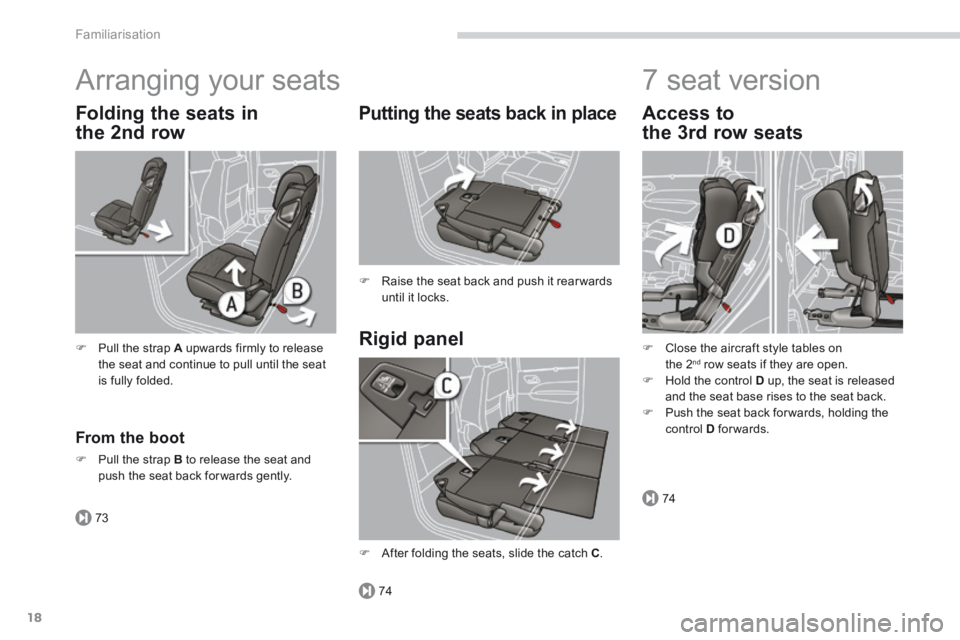

Familiarisation
18
Arranging your seats
Rigid panel
Putting the seats back in place
 Raise the seat back and push it rear wards until it locks.
From the boot
 Pull the strap B to release the seat and push the seat back for wards gently.
Folding the seats in
the 2nd row
 Pull the strap A upwards firmly to release the seat and continue to pull until the seat is fully folded.
Access to
the 3rd row seats
 Close the aircraft style tables on the 2 nd row seats if they are open.  Hold the control D up, the seat is released and the seat base rises to the seat back.  Push the seat back for wards, holding the control D forwards.
7 seat version
 After folding the seats, slide the catch C .
