Peugeot 508 Hybrid 2014 Owner's Manual

299
05
508_en_Chap11c_SMegplus-i_ed02-2014

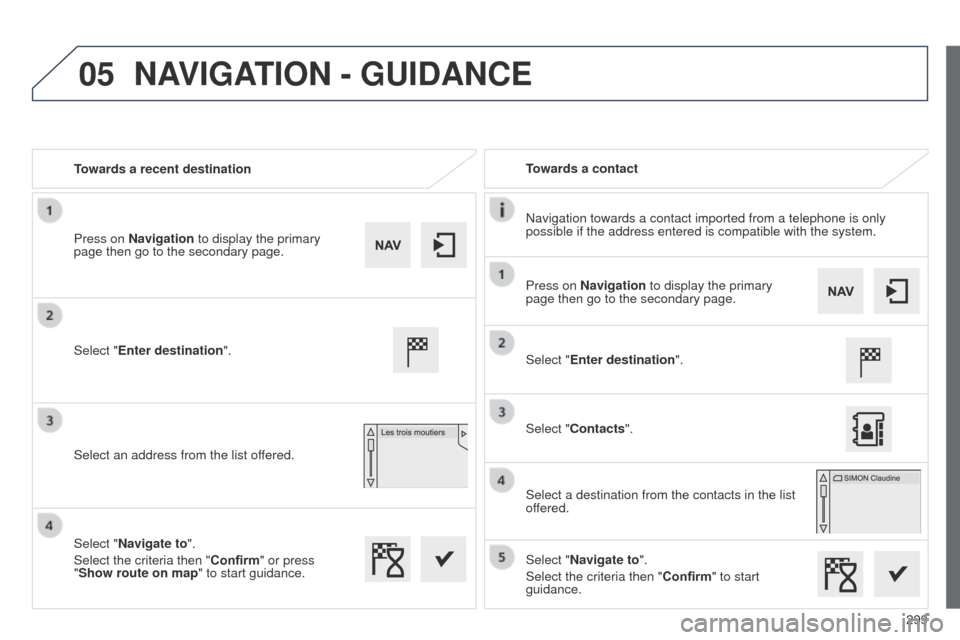

Towards a recent destinationTowards a contact
Navigation towards a contact imported from a telephone is only
possible if the address entered is compatible with the system.
Select "Enter destination".
Select an address from the list offered. Select "Enter destination".
Select "Contacts".
Select a destination from the contacts in the list
offered.
Select "Navigate to".
Select the criteria then "Confirm" to start
guidance.
Select "Navigate to".
Select the criteria then "Confirm" or press
"Show route on map
" to start guidance.
Press on Navigation to display the primary
page then go to the secondary page.
Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE

300
05
508_en_Chap11c_SMegplus-i_ed02-2014
Towards GPS coordinatesTowards a point on the map
Select "Enter destination".
Select "Address".
e

nter the "Longitude: " then the "Latitude:".
Select "Navigate to".
Select the criteria then "Confirm" or press
"Show route on map " to start guidance. Select "Enter destination".
Select "From map".
Zoom in on the map then select the point.
Press on Navigation to display the primary
page then go to the secondary page.
Press on Navigation to display the primary
page then go to the secondary page.
A long press displays the surrounding tourist attractions.
NAVIGATION - GUIDANCE

301
05
508_en_Chap11c_SMegplus-i_ed02-2014

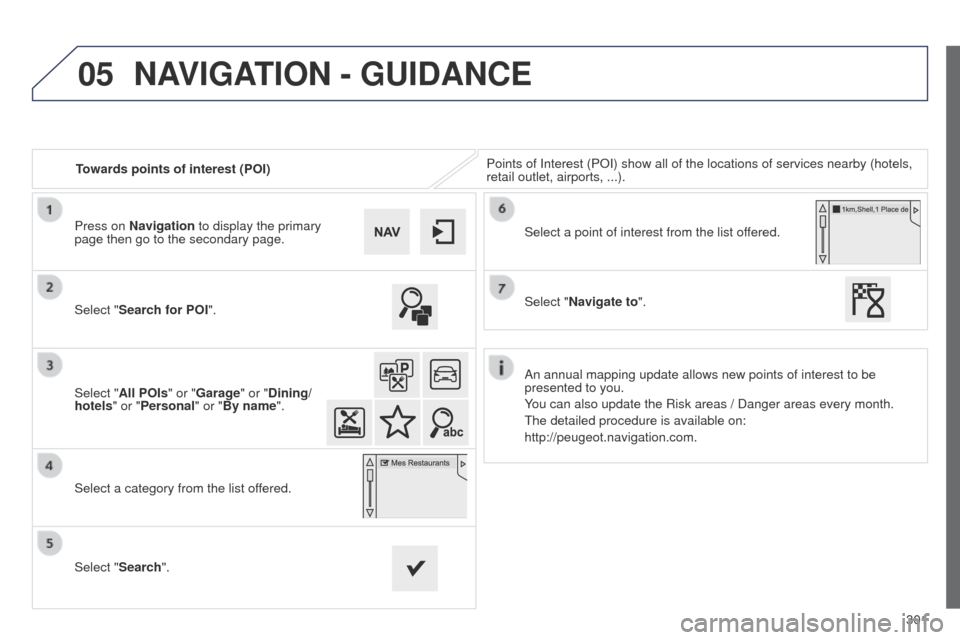

Towards points of interest (POI)Points of Interest (POI) show all of the locations of services nearby \
(hotels,
retail outlet, airports, ...).
Select "Search for POI".
Select "All POIs" or "Garage" or "Dining/
hotels" or "Personal" or "By name".
Select a category from the list offered.
Select "Search". Select a point of interest from the list offered.
Select "Navigate to".
Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE
An annual mapping update allows new points of interest to be
presented to you.
You can also update the Risk areas / Danger areas every month.
t

he detailed procedure is available on:
http://peugeot.navigation.com.

302
05
508_en_Chap11c_SMegplus-i_ed02-2014

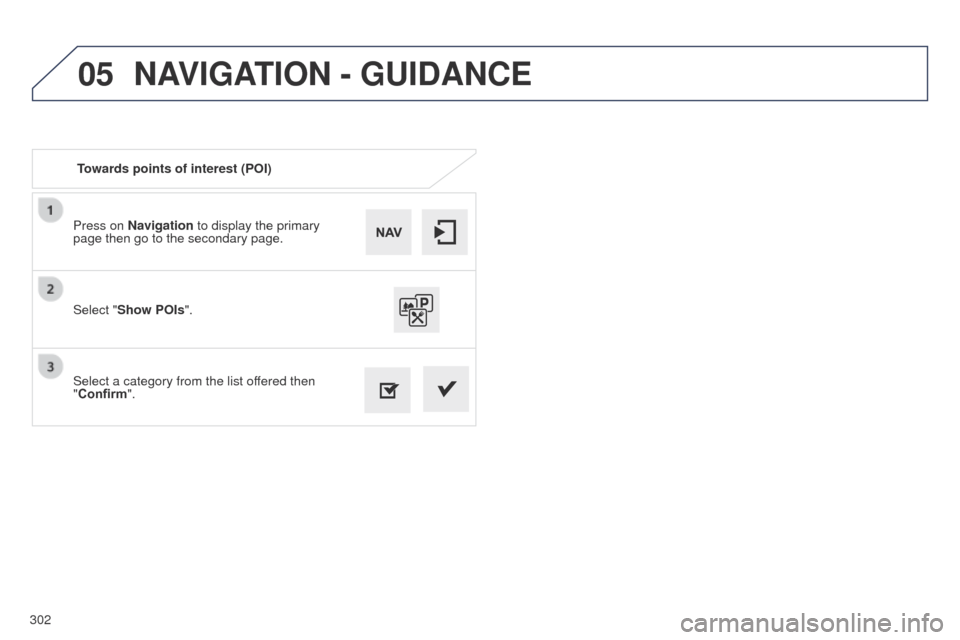

Press on Navigation to display the primary
page then go to the secondary page.
Select a category from the list offered then
"Confirm". Select "Show POIs".
Towards points of interest (POI)
NAVIGATION - GUIDANCE

303
303
05
508_en_Chap11c_SMegplus-i_ed02-2014
these functions are only available if Risk Areas have been
downloaded and installed on the system.
Select "
Settings".
Select "Alert config.".

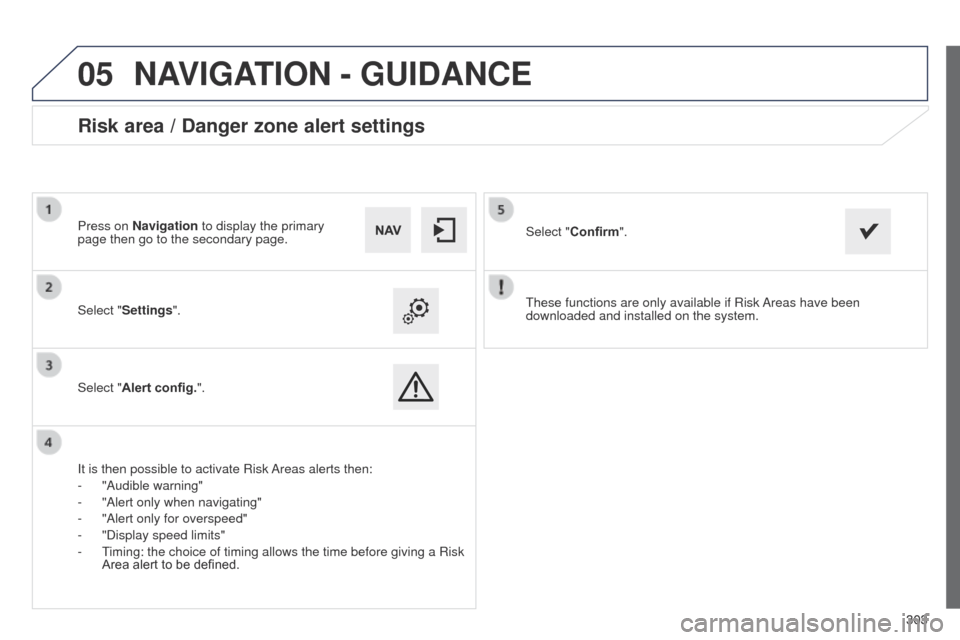

Risk area / Danger zone alert settings
It is then possible to activate Risk Areas alerts then:
-
"Audible warning"
-


"Alert only when navigating"
-


"Alert only for overspeed"
-


"Display speed limits"
-

t
iming: the choice of timing allows the time before giving a Risk
Area alert to be defined. Select "

Confirm".
Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE

304
05
508_en_Chap11c_SMegplus-i_ed02-2014

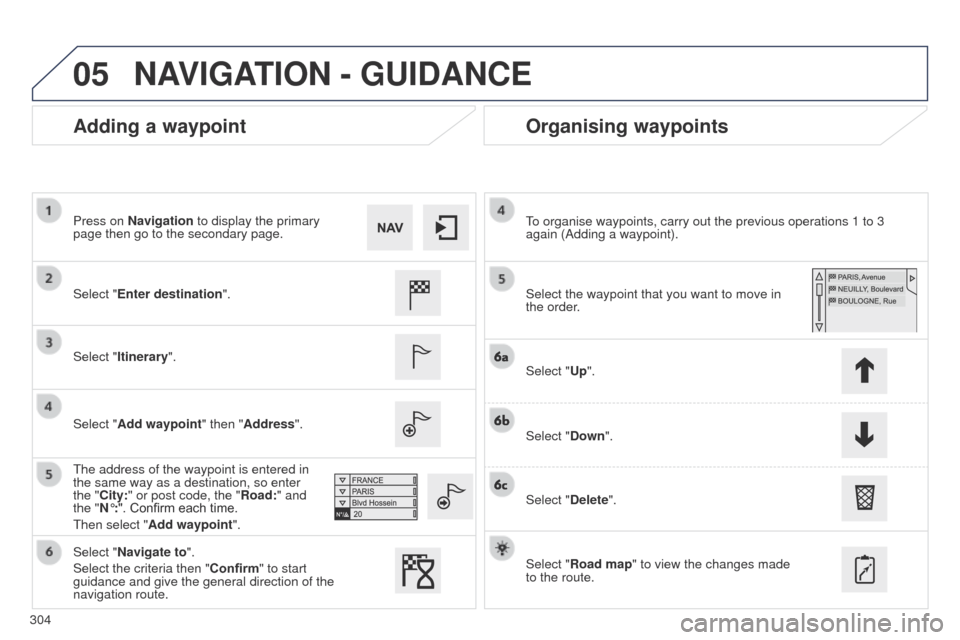

Adding a waypointOrganising waypoints
Select "Enter destination".
Select "Itinerary".
Select "Add waypoint" then "Address".
t

he address of the waypoint is entered in
the same way as a destination, so enter
the "City:" or post code, the "Road:" and
the "N°:". Confirm each time.
t

hen select "Add waypoint ". Select the waypoint that you want to move in
the order.
to organise waypoints, carry out the previous operations 1 to 3
again (Adding a waypoint).
Select "

Up".
Select "Down".
Select "Delete".
Select "Road map" to view the changes made
to the route.
Select "Navigate to".
Select the criteria then "Confirm" to start
guidance and give the general direction of the
navigation route. Press on Navigation to display the primary
page then go to the secondary page.
NAVIGATION - GUIDANCE

305
05
508_en_Chap11c_SMegplus-i_ed02-2014

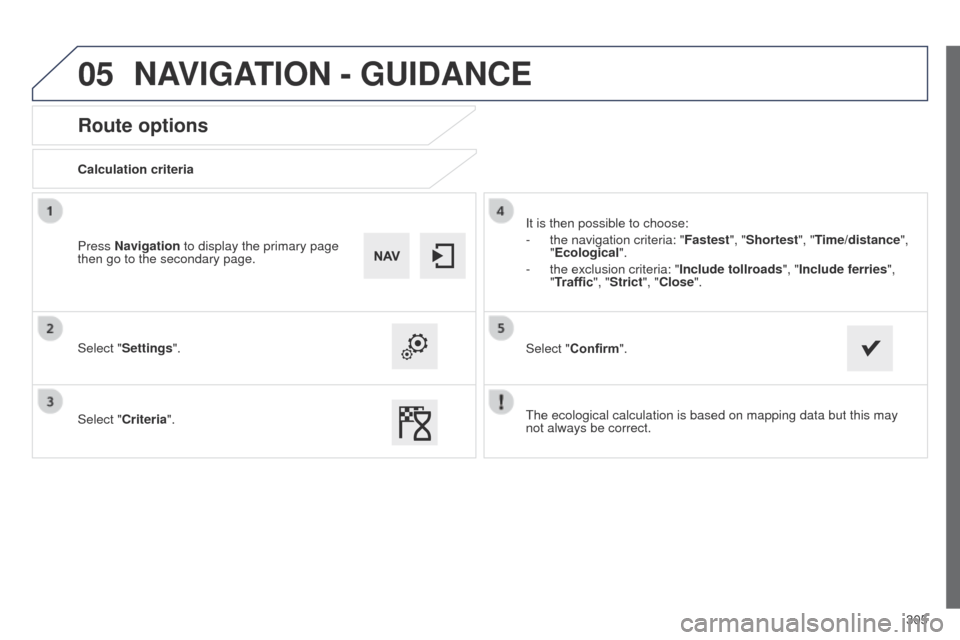

Route options
Calculation criteria
Select "Settings".
Select "Criteria".It is then possible to choose:
-

the navigation criteria: "Fastest

", "Shortest", "Time/distance",
"Ecological ".
-

the exclusion criteria: "Include tollroads", "

Include ferries",
"Traffic", "Strict", "Close".
Select "Confirm".
Press Navigation to display the primary page
then go to the secondary page.
NAVIGATION - GUIDANCE
the ecological calculation is based on mapping data but this may
not always be correct.

306
05
508_en_Chap11c_SMegplus-i_ed02-2014

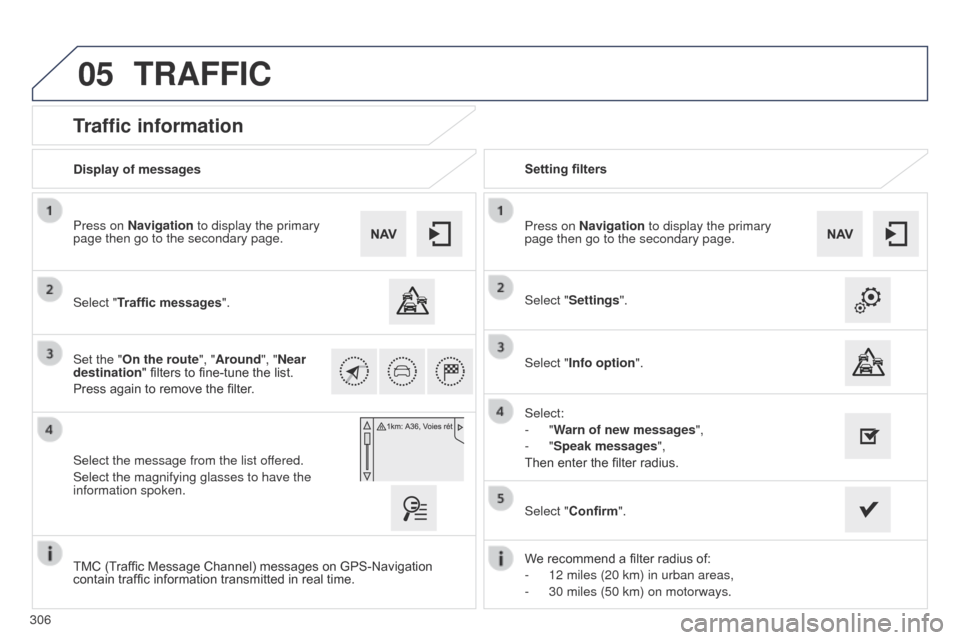

Traffic information
Select "Traffic messages".
Press on Navigation to display the primary
page then go to the secondary page.
Select the message from the list offered.
Select the magnifying glasses to have the
information spoken. Set the "On the route
", "Around", "Near
destination " filters to fine-tune the list.
Press again to remove the filter. Select "Settings".
Select:
-
"Warn of new messages",
-
"Speak messages",
Then enter the filter radius. Press on Navigation to display the primary
page then go to the secondary page.
Display of messages
Setting filters
We recommend a filter radius of:
-

12 miles (20 km) in urban areas,
-


30 miles (50 km) on motorways.
TMC (T

raffic Message Channel) messages on GPS-Navigation
contain traffic information transmitted in real time. Select "Confirm".
TRAFFIC
Select "Info option
".

307
05
508_en_Chap11c_SMegplus-i_ed02-2014

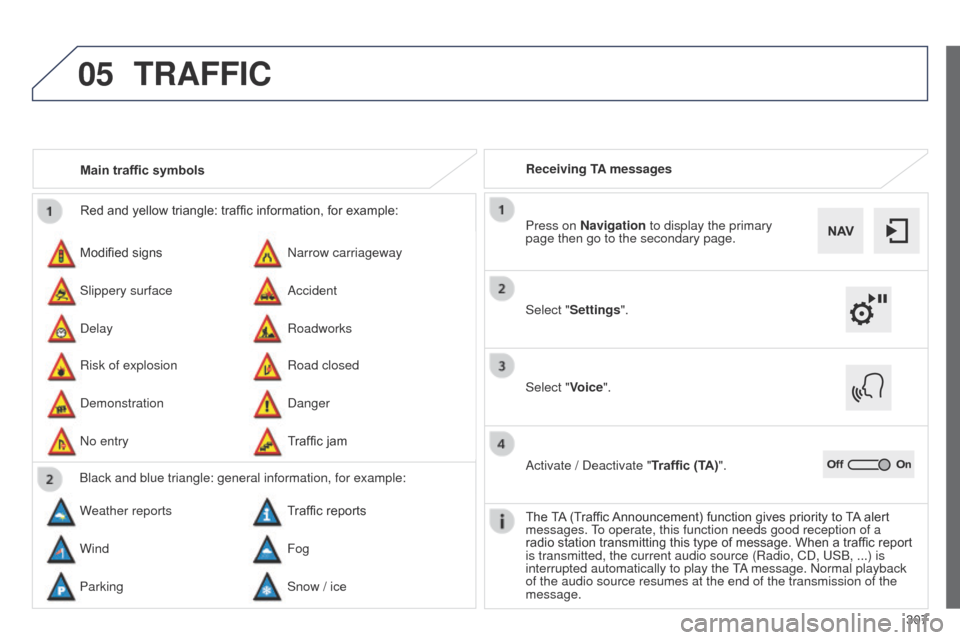

Red and yellow triangle: traffic information, for example:
Modified signs
Risk of explosion Narrow carriageway
Road closed
Slippery surface
Demonstration Accident
Danger
Delay
No entry Roadworks
Traffic jam
Main traffic symbols
Black and blue triangle: general information, for example:
Weather reports Traffic reports
Wind Fog
Parking Snow / ice Receiving TA messages
TRAFFIC
Select "Settings". Press on Navigation to display the primary
page then go to the secondary page.
Select "Voice".
Activate / Deactivate "Traffic (TA)".
The TA (Traffic Announcement) function gives priority to TA alert
messages.
to operate, this function needs good reception of a
radio station transmitting this type of message. When a traffic report
is transmitted, the current audio source (Radio, CD,

u SB, ...) is
interrupted automatically to play the
tA

message. Normal playback
of the audio source resumes at the end of the transmission of the
message.

308
05
508_en_Chap11c_SMegplus-i_ed02-2014

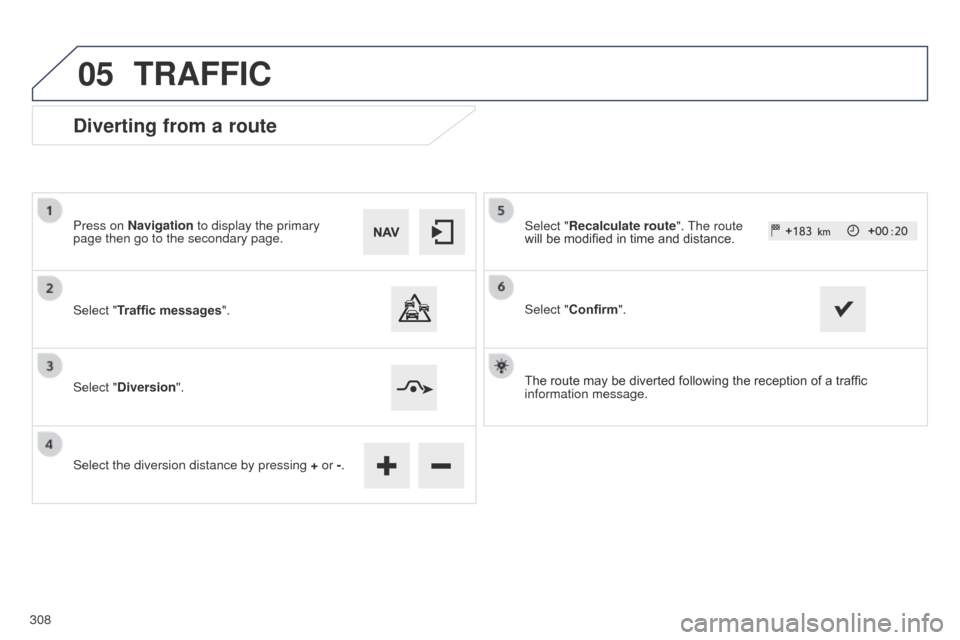

Diverting from a route
Press on Navigation to display the primary
page then go to the secondary page.
Select "Traffic messages".
Select "Diversion".
Select the diversion distance by pressing + or -.Select "Recalculate route".
t he route
will be modified in time and distance.
Select "Confirm".
The route may be diverted following the reception of a traffic
information message.
TRAFFIC
