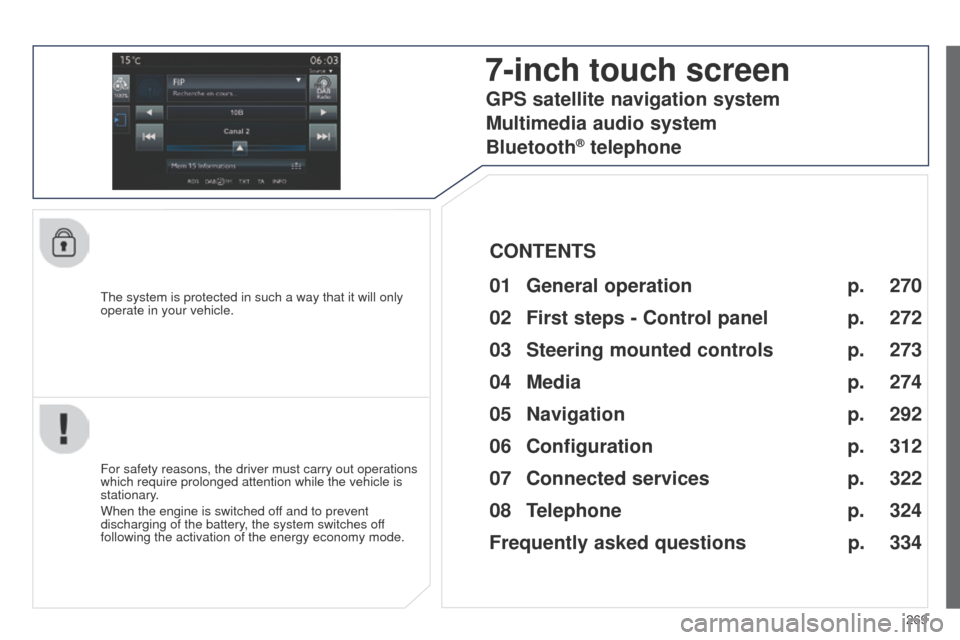

Peugeot 508 Hybrid 2014 Owner's Manual

269
508_en_Chap11c_SMegplus-i_ed02-2014
the system is protected in such a way that it will only
operate in your vehicle.
7-inch touch screen
01 General operation
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

First steps - Control
panel
04
Media
05
Navigation
06
Configuration
07

Connected service
s
08
Telephone p.
p.
p.
p.
p.
p.
p.
Frequently asked questions p.
GPS satellite navigation system
Multimedia audio system
Bluetooth
® telephone
270
272
292 274
312
322
324
334
03

Steering mounted
controls p. 273

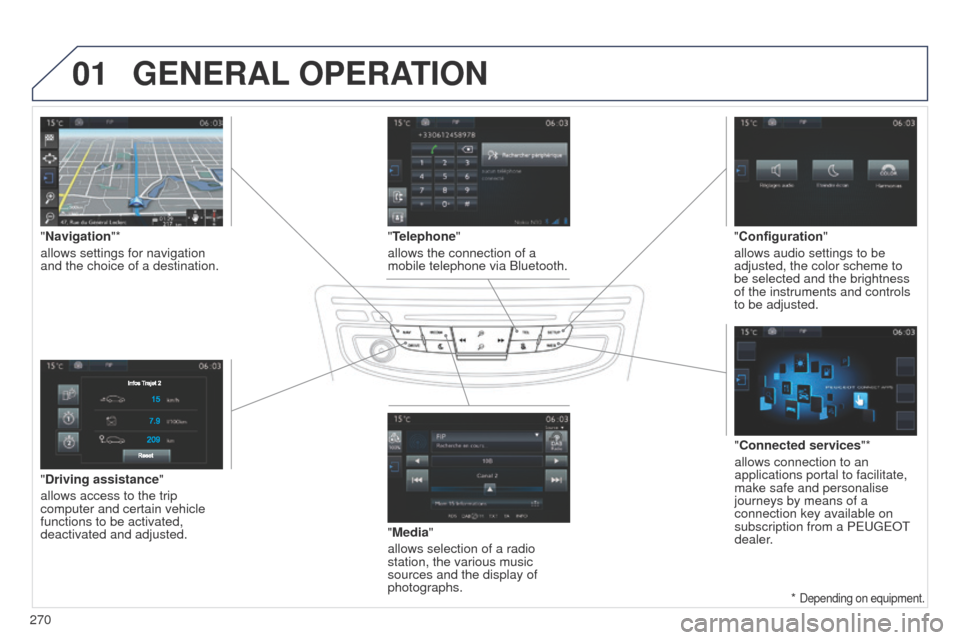

270
01
508_en_Chap11c_SMegplus-i_ed02-2014
"Driving assistance"
allows access to the trip
computer and certain vehicle
functions to be activated,
deactivated and adjusted."Media"
allows selection of a radio
station, the various music
sources and the display of
photographs.
"Navigation"*
allows settings for navigation
and the choice of a destination.
"Configuration
"
allows audio settings to be
adjusted, the color scheme to
be selected and the brightness
of the instruments and controls
to be adjusted.
"Connected services "*
allows connection to an
applications portal to facilitate,
make safe and personalise
journeys by means of a
connection key available on
subscription from a P
euge O t

dealer

.
"Telephone"
allows the connection of a
mobile telephone via Bluetooth.
GENERAL
OPERATION
* Depending on equipment.

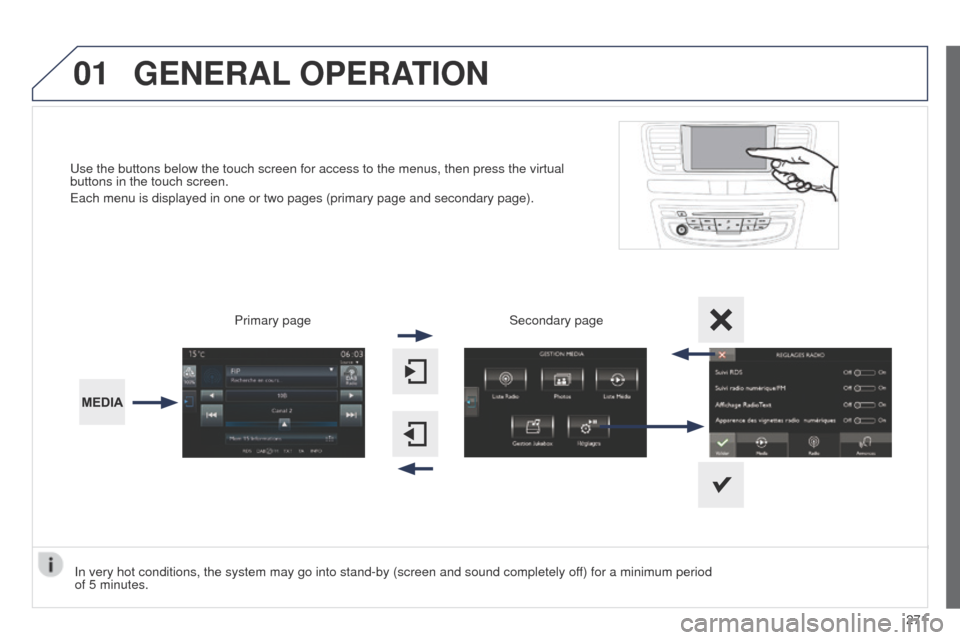

271
01
508_en_Chap11c_SMegplus-i_ed02-2014
use the buttons below the touch screen for access to the menus, then pres\
s the virtual
buttons in the touch screen.
e

ach menu is displayed in one or two pages (primary page and secondary p\
age).
GENERAL OPERATION
In very hot conditions, the system may go into stand-by (screen and sou\
nd completely off) for a minimum period
of 5 minutes. Secondary page
Primary page

272
02
508_en_Chap11c_SMegplus-i_ed02-2014
With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.
Volume adjustment (each
source is independent, including
Traffic announcements (TA) and
navigation instructions).Selecting the audio source (depending on version):
-

"FM" / "AM" / "DAB"* stations.
-


"
u SB" memory stick.
-

CD player (located in front panel).
-


Jukebox*, after first copying audio files to the internal memory of the system.
-

t
elephone connected by Bluetooth* and audio streaming Bluetooth* (stream\
ing).
-


Media player connected to the auxiliary socket (jack, cable not supplie\
d).
The screen is of the "resistive" type, it is necessary to press firmly , particularly for "flick" gestures (scrolling through a list, moving the map...). A


simple wipe will not be enough. pressing with more than one finger is not recognised.
t

he screen can be used when wearing gloves.
t
his technology allows use at all temperatures.
FIRST STEPS
* Depending on equipment.
to clean the screen, use a soft non-abrasive cloth (spectacles cloth) w\
ithout any additional product.
Do not use pointed objects on the screen.
Do not touch the screen with wet hands. Following prolonged

operation in sunny conditions,
the volume may be limited
to protect the system.
t
he
return to normal takes place
when the temperature in the
passenger compartment
drops.
Short-cuts: using the touch buttons
in the upper band of the touch
screen, it is possible to go directly
to the selection of audio source, the
list of stations (or titles, depending
on the source).

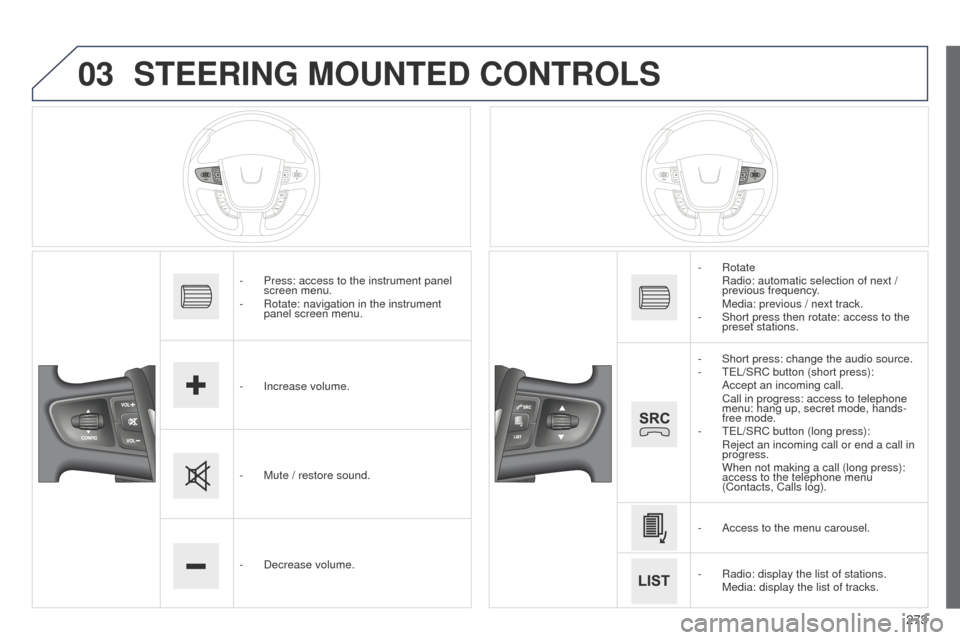

273
03
508_en_Chap11c_SMegplus-i_ed02-2014
STEERING MOUNTED CONTROLS
- Press: access to the instrument panel
screen menu.
-

Rotate: navigation in the instrument
panel screen menu.
-


Increase volume.
-


Mute / restore sound.
-


Decrease volume. -

Rotate Radio: automatic selection of next /
previous frequency
.
Media: previous / next track.
-


Short press then rotate: access to the
preset stations.
-


Short press: change the audio source.
-

te L/SRC button (short press):
Accept an incoming call. Call in progress: access to telephone
menu: hang up, secret mode, hands-
free mode.
-

te L/SRC button (long press):
Reject an incoming call or end a call in
progress.
When not making a call (long press):
access to the telephone menu
(Contacts, Calls log).
-


Access to the menu carousel.
-


Radio: display the list of stations. Media: display the list of tracks.

274
04
508_en_Chap11c_SMegplus-i_ed02-2014
MEDIA
Level 1Level 2 Level 3
List of FM stations
"Media"
Primary page
Preset

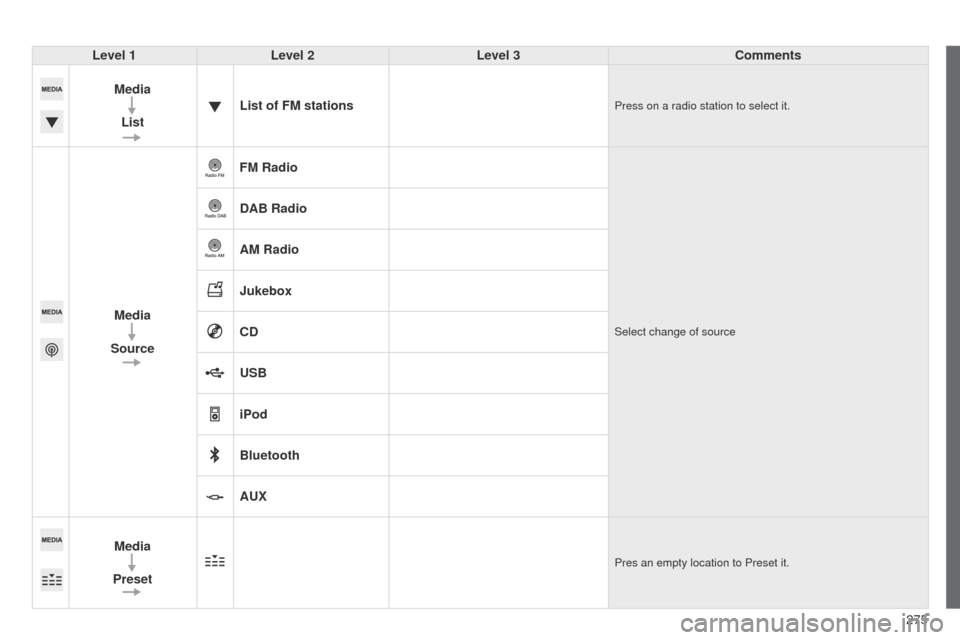

275
508_en_Chap11c_SMegplus-i_ed02-2014
Level 1Level 2 Level 3 Comments
Media List List of FM stations
Press on a radio station to select it.
Media
Source FM RadioSelect change of source
DAB Radio
AM Radio
Jukebox
CD
USB
iPod
Bluetooth
AUX
Media
Preset
Pres an empty location to Preset it.

276276
04
508_en_Chap11c_SMegplus-i_ed02-2014
MEDIA
Level 1Level 2 Level 3
Media Photos
Manage Jukebox
"Media"
Secondary pageList of FM stations
Copy to Jukebox

277
508_en_Chap11c_SMegplus-i_ed02-2014

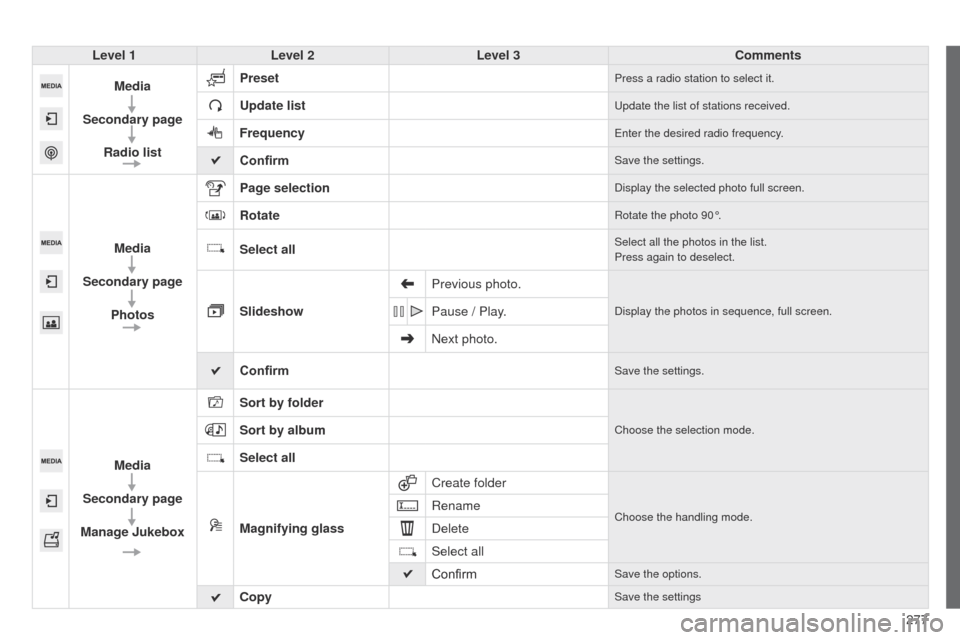

Level 1Level 2 Level 3 Comments
Media
Secondary page Radio list Preset
Press a radio station to select it.
Update listupdate the list of stations received.
Frequencyenter the desired radio frequency.
ConfirmSave the settings.
Media
Secondary page Photos Page selection
Display the selected photo full screen.
RotateRotate the photo 90°.
Select allSelect all the photos in the list.
Press again to deselect.
Slideshow
Previous photo.Display the photos in sequence, full screen.Pause / Play.
Next photo.
Confirm
Save the settings.
Media
Secondary page
Manage Jukebox Sort by folder
Choose the selection mode.Sort by album
Select all
Magnifying glass
Create folder
Choose the handling mode.Rename
Delete
Select all
Confirm
Save the options.
CopySave the settings

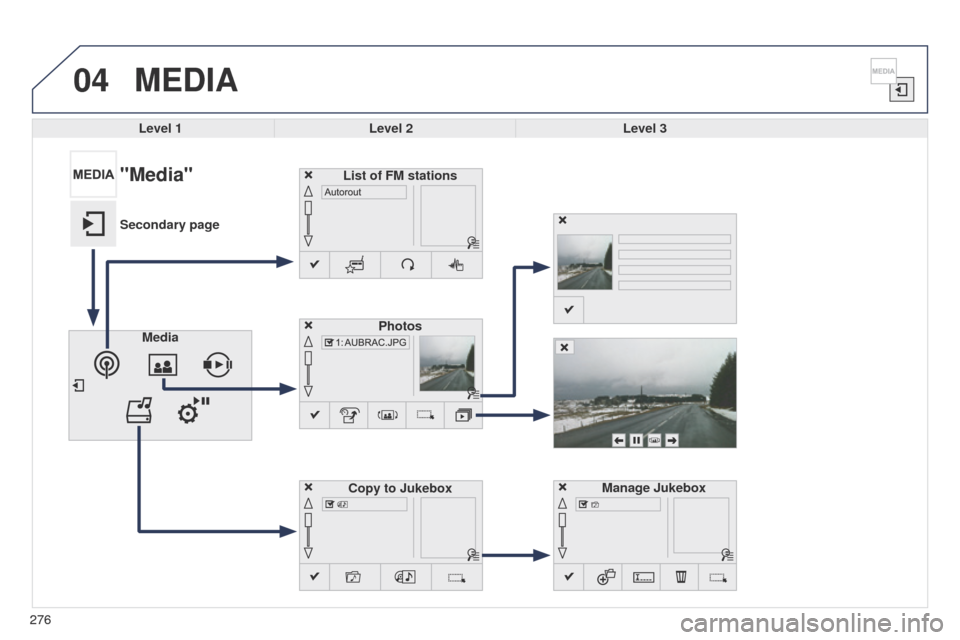

278
04
508_en_Chap11c_SMegplus-i_ed02-2014
MEDIA
Level 1Level 2 Level 3
"Media"
Secondary page
Media Settings Settings
Settings
