Peugeot 508 RXH 2012 - RHD (UK, Australia) Repair Manual

1
59
Instruments and controls
Service indicator
More than 1 800 miles (3 000 km)remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen. S
ystem which informs the driver when the next ser vice is due, in accordance with themanufacturer's servicing schedule.
The point at which the ser vice is due is calculated from the last indicator zero reset. It
is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on,
the spanner symbolising the ser vice operationscomes on. The distance recorder display line indicates the distance remaining before the next service is due.
Example:
1 700 miles (2 800 km) remain before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds a
fter the ignition is switched on,the spanner goes off; the distance recorder fresumes its normal operation. The screen thenindicates the total and trip distances.


Less than 600 miles (1 000 km) remain before the next service is due
Example:560 miles (900 km) remain before
the next service is due.
For 5 seconds after the i
gnition is switched on,
the screen indicates:
5 seconds after the i
gnition is switched on,
the distance recorder resumes its normal operation. The spanner remains on
toindicate that a service must be carried out soon.


Illumination of the key is accompaniedby a message in the instrument panel screen.

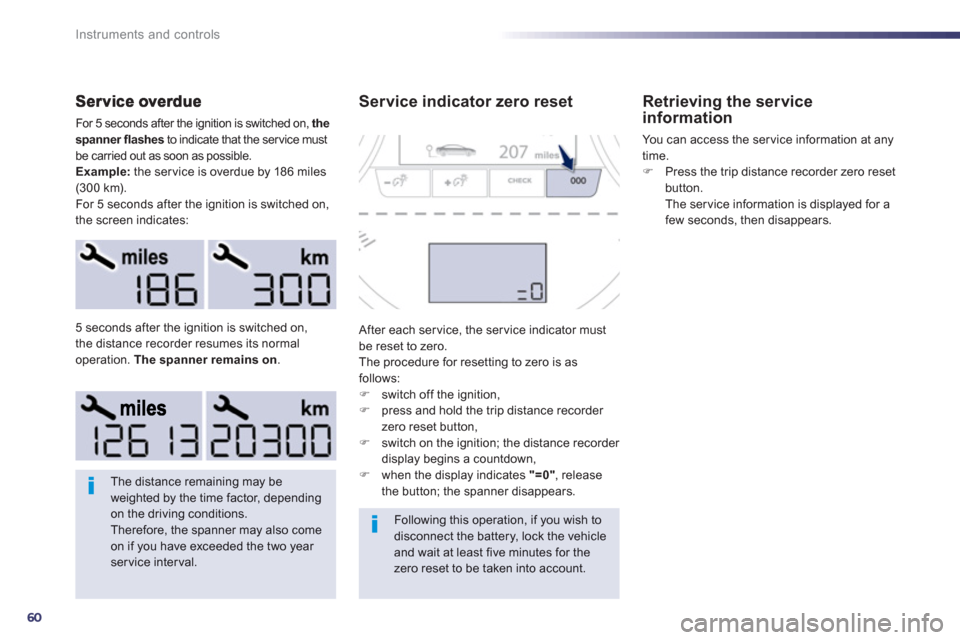

60
Instruments and controls
For 5 seconds after the ignition is switched on, the
spanner flashes
to indicate that the service must
be carried out as soon as possible.
Example:the ser vice is overdue by 18 6 miles(300 km).
For 5 seconds after the ignition is switched on,
the screen indicates:
The distance remaining may be weighted by the time factor, dependingon the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the two year service interval.
Following this operation, if you wish to disconnect the battery, lock the vehicle and wait at least five minutes for the zero reset to be taken into account. 5 seconds a
fter the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
Service indicator zero reset

After each ser vice, the ser vice indicator mustbe reset to zero.
The procedure for resetting to zero is as
follows: ) switch off the ignition,)
press and hold the trip distance recorder
zero reset button,
) switch on the ignition; the distance recorder
display begins a countdown,
) when the display indicates "=0", release
the button; the spanner disappears.

Retrieving the serviceinformation

You can access the ser vice information at any
time.
)Press the trip distance recorder zero reset button.
The ser vice information is displayed for a
few seconds, then disappears.

1

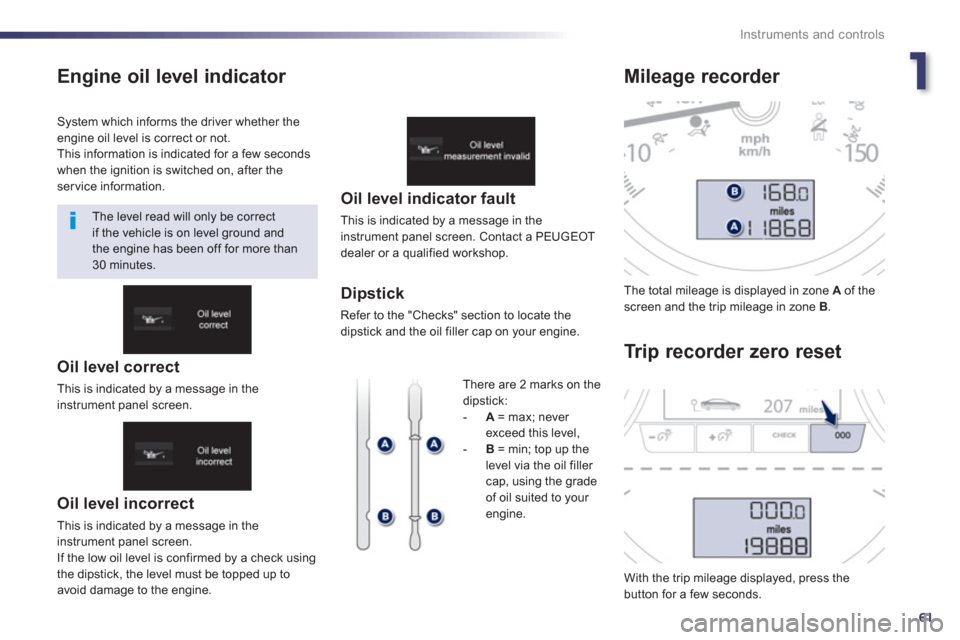

61
Instruments and controls
Engine oil level indicator

Oil level incorrect

This is indicated by a message in the
instrument panel screen.
I
f the low oil level is confirmed by a check usingthe dipstick, the level must be topped up to
avoid damage to the engine.
Oil level indicator fault
This is indicated by a message in the instrument panel screen. Contact a PEUGEOT
dealer or a qualified workshop.
Dipstick
Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine. The total milea
ge is displayed in zone Aof thescreen and the trip mileage in zone B.

With the trip mileage displayed, press the button for a few seconds.


Mileage recorder

Tr i
p recorder zero reset
System which informs the driver whether theengine oil level is correct or not.
This information is indicated for a few secondswhen the ignition is switched on, after theservice information.
The level read will only be correct
if the vehicle is on level ground and the engine has been off for more than 30 minutes.
Th
ere are 2 marks on thedipstick:-A = max; never
exceed this level, -B = min; top up the level via the oil filler cap, using the grade
of oil suited to your
engine.




Oil level correct

This is indicated by a message in theinstrument panel screen.

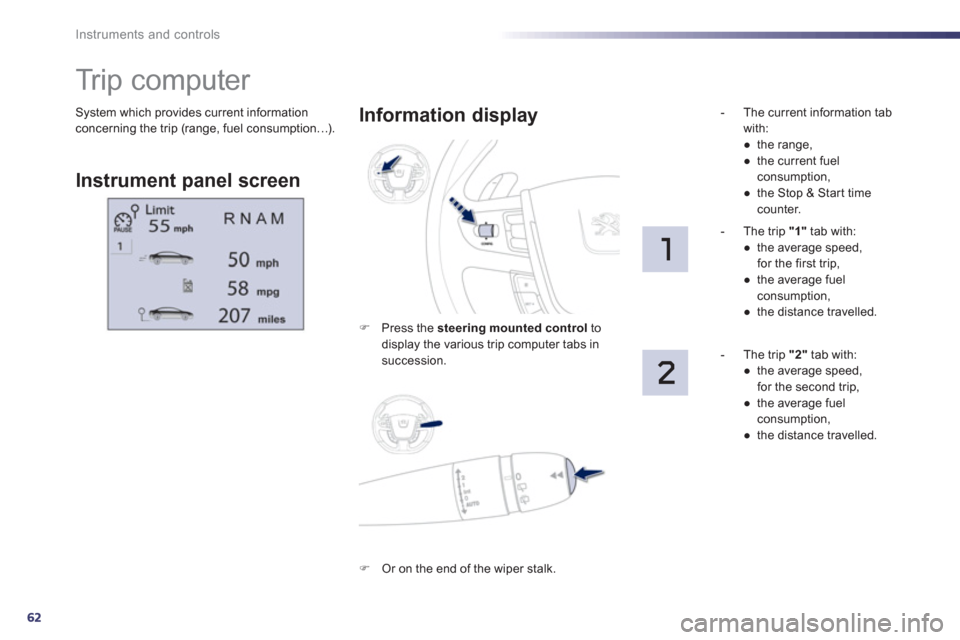

62
Instruments and controls
System which provides current information concerning the trip (range, fuel consumption…).








Tr i p c o m p u t e r
Instrument panel screen
Information displa
y
)
Press the steering mounted control
todisplay the various trip computer tabs in succession. - Th
e current information tabwith:
●
the range,
●
the current fuel consumption,
●
the Stop & Start time
counter.


-
The trip "1"
tab with:
●
the average speed, for the first trip,
●
the average fuelconsumption,
●
the distance travelled.


- The trip "
2"
tab with:
●
the average speed, for the second trip,
●
the average fuelconsumption,
●
the distance travelled.



)
Or on the end of the wiper stalk.

1

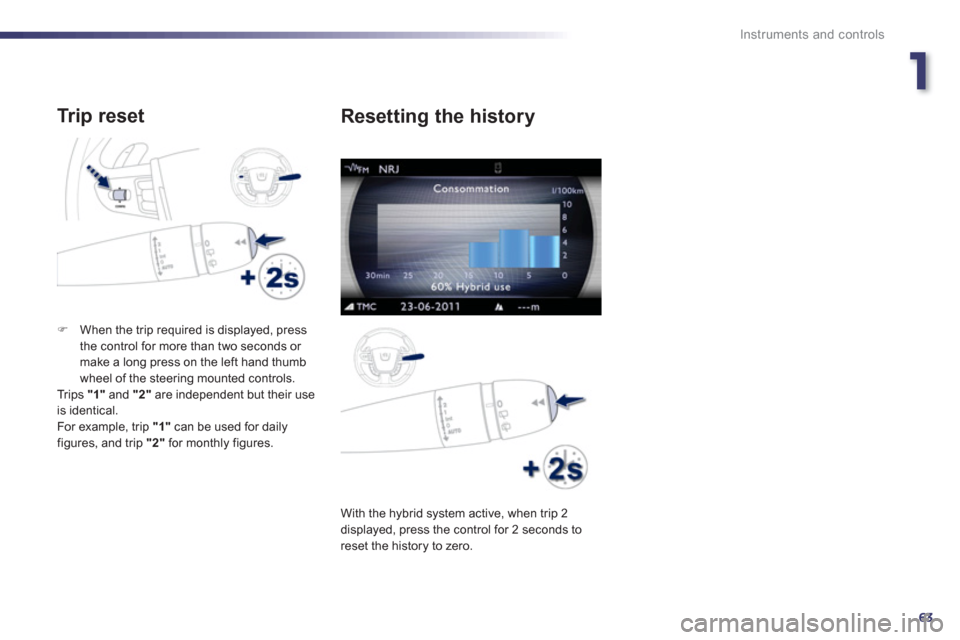

63
Instruments and controls

Tr ip reset
)When the trip required is displayed, press
the control for more than two seconds or make a long press on the left hand thumb
wheel of the steering mounted controls.
Trips "1"
and "2"are independent but their useis identical.
For example, trip "1"
can be used for daily figures, and trip "2"
for monthly figures.

With the h
ybrid system active, when trip 2
displayed, press the control for 2 seconds to reset the history to zero.
Resetting the history

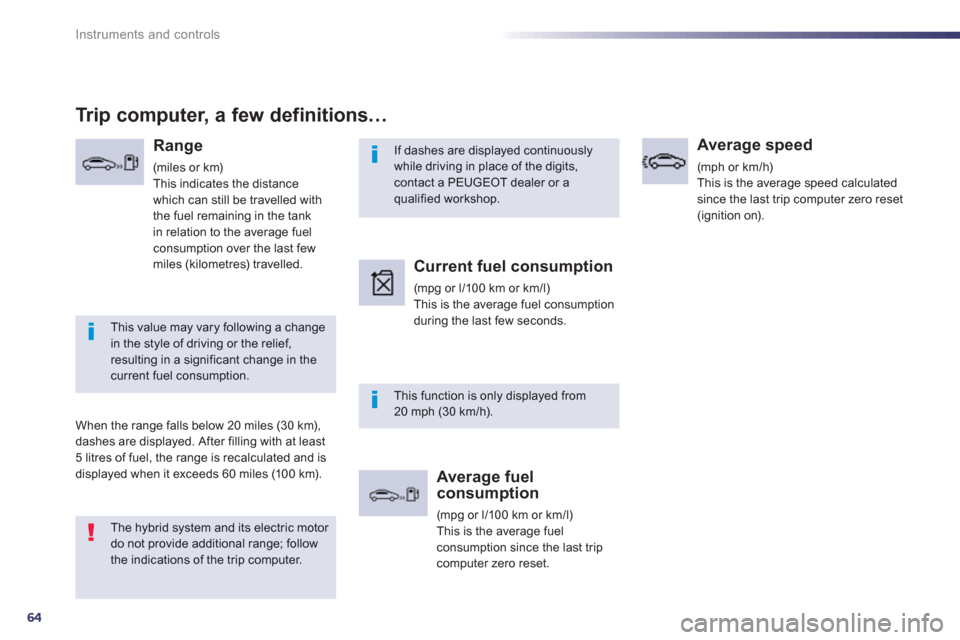

64
Instruments and controls
If dashes are displayed continuously while driving in place of the digits,contact a PEUGEOT dealer or aqualified workshop.
This function is only displayed from 20 mph (30 km/h).

This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.
Trip computer, a few definitions…

Range
(miles or km)
This indicates the distancewhich can still be travelled with
the fuel remaining in the tank
in relation to the average fuelconsumption over the last few
miles (kilometres) travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l)This is the average fuel
consumption since the last tripcomputer zero reset.

Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).

The hybrid system and its electric motor
do not provide additional range; followthe indications of the trip computer.

1

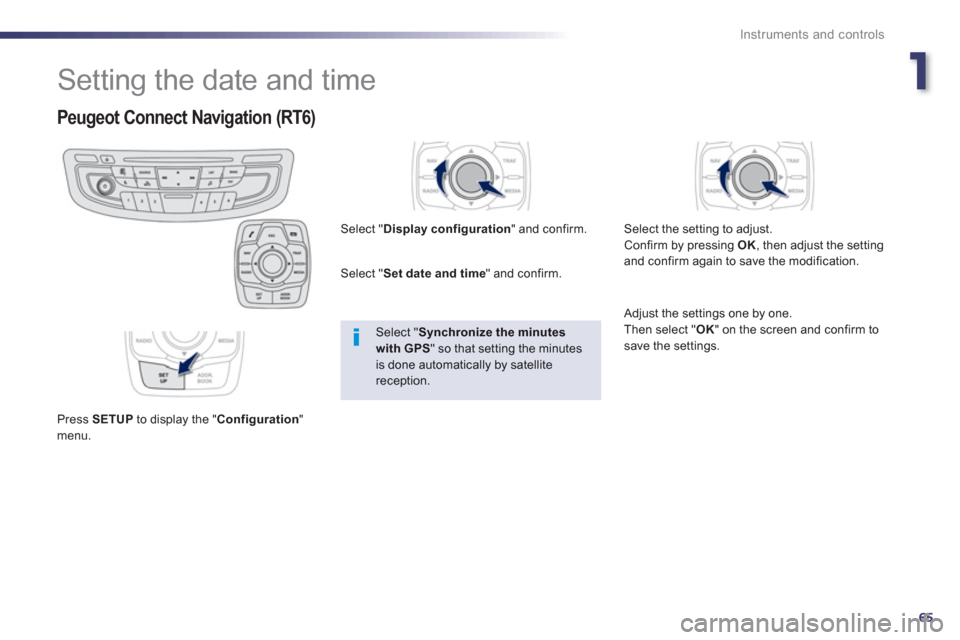

65
Instruments and controls
Setting the date and time
Peugeot Connect Navigation (RT6)


Press SETUPto display the "Configuration
"menu. Select "
Display configuration
" and confirm.
Select " Set date and time" and confirm.
Select "Synchronize the minutes with GPS
" so that setting the minutes is done automatically by satellite reception.
Select the settin
g to adjust.
Confirm by pressing OK, then adjust the settingand confirm again to save the modification.

Adjust the settings one by one.
Then select "OK
" on the screen and confirm tosave the settings.

66
Access
also used to locate and start the vehicle, as well as providing protection against theft.




















Remote control key
Unfolding the key
)First press this button to unfold the key.




Folding the key
)
First press this button to fold the key.
If you do not press the button when folding
the key, there is a risk of damage to the
mechanism.

2
67
Access
Unlocking the vehicle
Complete unlockin
g
Using the key
) Turn the key to the front of the vehicle tounlock the vehicle.
)
Press the open padlock to unlock
the vehicle.
Using the remote control
Holding this button down opens the windows automatically.

Using the electronic key
)
With the electronic key on your person and
in the defined zone, pass your hand behind
the door handle to unlock the vehicle, thenpull on the handle to open the door.
Your passengers can also open their doors
with the exception of the boot, as soon as
the electronic key is in the defined zone around the vehicle.



Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrors unfold at the same time.
















"Keyless Entry and Starting" system


System that allows the opening, closingand star ting of the vehicle while keeping theelectronic key on your person. It can also be used as a remote control.

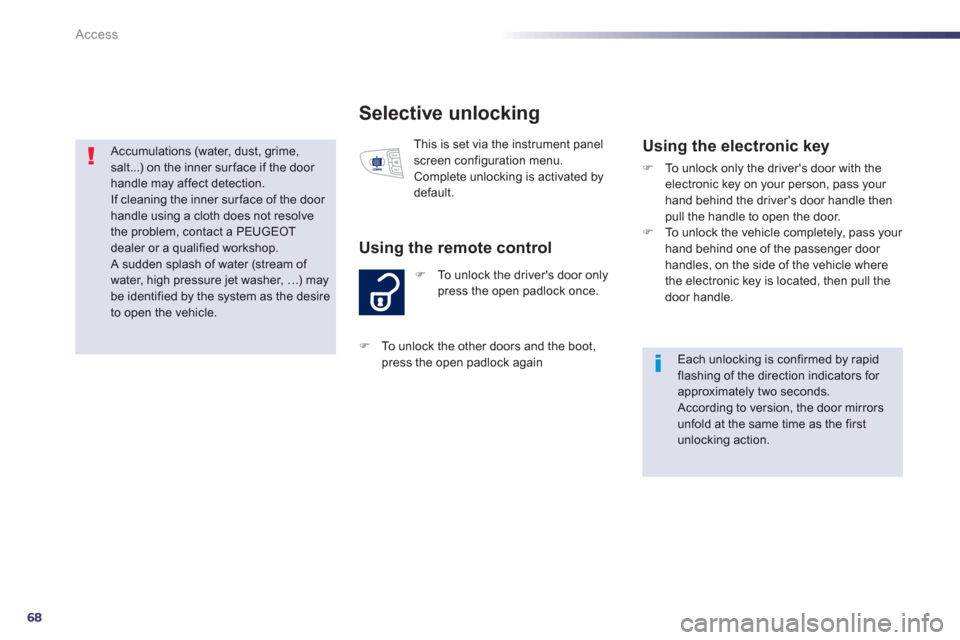

68
Access









Selective unlocking
)To unlock the driver's door onlypress the open padlock once.

Using the remote control

This is set via the instrument panel
screen configuration menu.
Complete unlocking is activated by default.
Using the electronic key
)To unlock only the driver's door with theelectronic key on your person, pass your hand behind the driver's door handle thenpull the handle to open the door.
)To unlock the vehicle completely, pass your hand behind one of the passenger door handles, on the side of the vehicle where
the electronic key is located, then pull the door handle.



Each unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrors unfold at the same time as the first unlocking action.
)
To unlock the other doors and the boot,
press the open padlock again

Accumulations (water, dust, grime,
salt...) on the inner surface if the door handle may affect detection.
If cleaning the inner sur face of the door handle using a cloth does not resolve the problem, contact a PEUGEOTdealer or a qualified workshop. A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desireto open the vehicle.
