Peugeot 508 RXH 2012 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 508 RXH, Model: Peugeot 508 RXH 2012Pages: 302, PDF Size: 9.33 MB
Page 1 of 302
Page 2 of 302

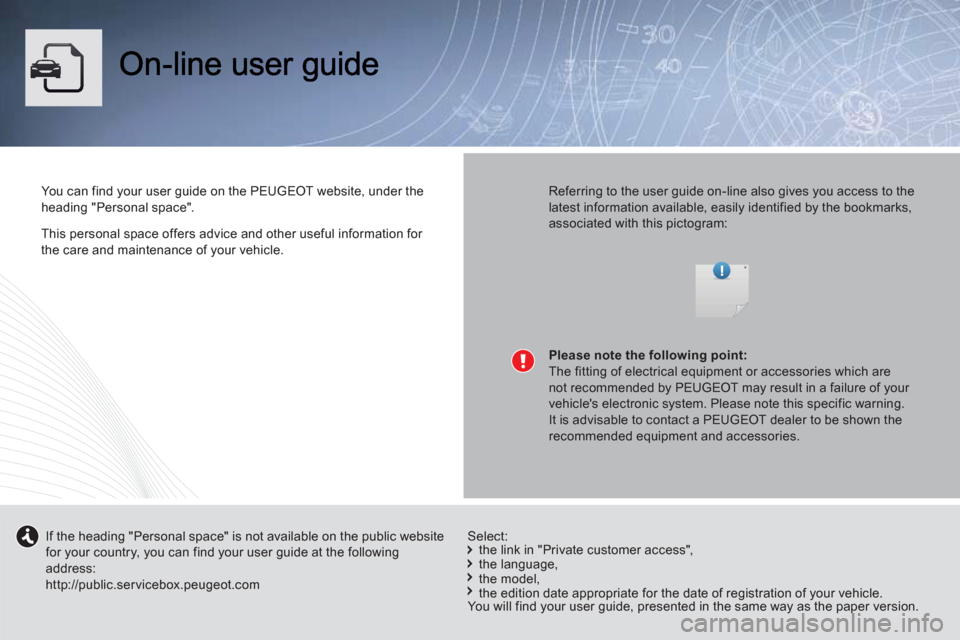

This personal space offers advice and other useful information for
the care and maintenance of your vehicle.
You can find your user guide on thePEUGEOTwebsite, under the
heading "Personal space".
Referring to the user guide on-line also gives you access to thelatest information available, easily identified by the bookmarks,
associated with this pictogram:
If the heading "Personal space" is not available on the public websitefor your country, you can find your user guide at the following address:http://public.servicebox.peugeot.com
the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this specific warning.It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.
Select:
You will find your user guide, presented in the same way as the paper version.
Page 3 of 302
i !

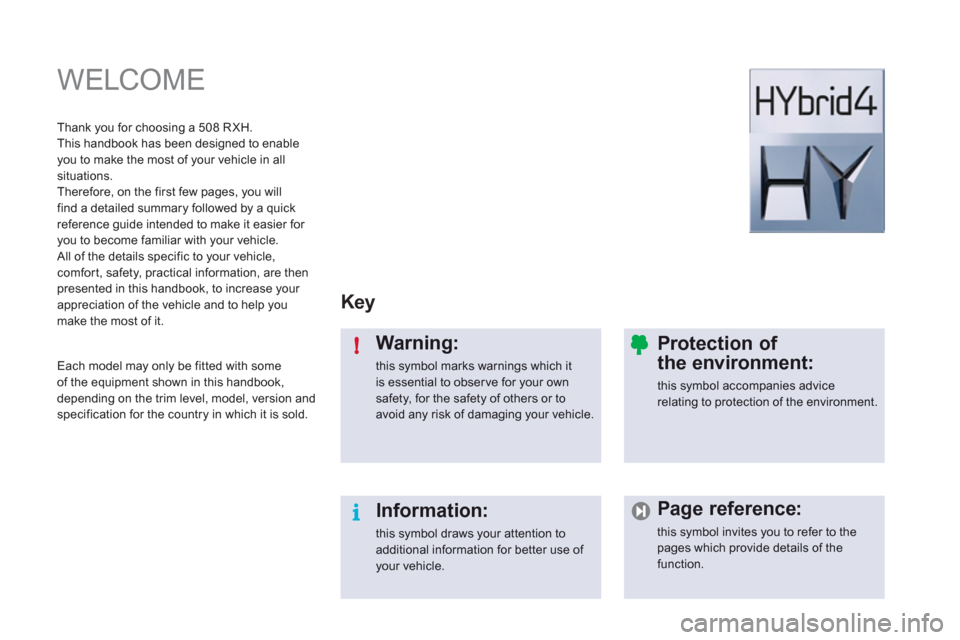

WELCOME
Key
Warning:
this symbol marks warnings which it is essential to observe for your own safety, for the safety of others or toavoid any risk of damaging your vehicle.
Information:
this symbol draws your attention to additional information for better use of your vehicle.
Protection of
the environment:
this symbol accompanies advicerelating to protection of the environment.
Page reference:
this symbol invites you to refer to the
pages which provide details of the function.
Thank
you for choosing a 508 R XH.
This handbook has been designed to enable
you to make the most of your vehicle in all situations.
Therefore, on the first few pages, you willfind a detailed summary followed by a quick
re
ference guide intended to make it easier for you to become familiar with your vehicle.
All of the details specific to your vehicle, comfort, safety, practical information, are thenpresented in this handbook, to increase your
appreciation of the vehicle and to help youmake the most of it.
Each model may only be
fitted with some
of the equipment shown in this handbook,
depending on the trim level, model, version andspecification for the country in which it is sold.
Page 4 of 302
.
.
Contents
Instrument panel 45
Indicator and warning lamps 46
Gauges and indicators 57
Tr ip computer 62
Instruments and controlsFamiliarisation
Remote control key 65
Alarm 74
El
ectric windows 76
Boot 78
Motorised tailgate 79
Panoramic sunroof 82
Fuel tank 83
Diesel misfuel prevention 84
Access
Front seats 86
Rear seats 90
Mirrors 92
Steering wheel adjustment 94
Interior fi ttings 95
Boot fi ttings 98
Heating and Ventilation 104
Manual air conditioning 106
Dual-zone digital air conditioning 108
Quad-zone digital air conditioning 111
Rear screen demist - defrost 116
Programmable Heating/Ventilation 117
Comfort
Electric parking brake 118
6-speed electronic gearbox system 125
Hill start assist 129
Head-up display 130
Speed limiter 133
Cruise control 135
Parking sensors 137
Parking space sensors 139
Driving
Lighting controls 141
LED lamps 144
Automatic illumination of headlamps 146
Headlamp adjustment 149
Directional lighting 150
Wiper controls 151
Automatic rain sensitive wipers 153
Cour tesy lamps 155
Interior mood lighting 156
Visibility Hybrid system
Presentation 22
Starting/switching off your vehicle 25
Ready lamp 29
HYbrid4 mode selector 29
Energy consumption/generation indicator 32
Display of hybrid power fl ow 33
Eco off 36
Eco-driving 37
Consumption 39
High voltage battery 40
Vehicle recovery 44
Page 5 of 302
.
.
Contents
Child seats 157
ISOFIX child seats 163
Child lock 166
Child safety
Direction indicators 167
Emergency or assistance call 168
Horn 168
ESP system 169
Seat belts 172
Airbags 175
Safety
Te m p o r a ry puncture repair kit 179
Changing a wheel 185
Changing a bulb 190
Changing a fuse 197
12 V battery 201
Energy economy mode 204
Changing a wiper blade 205
Recovering the vehicle 206
Vehicle recovery 208
To w i ng a trailer 209
Fitting roof bars 211
Accessories 212
Practical information
Opening the bonnet 215
Running out of fuel (Diesel) 216
Diesel engine 217
Checking levels 218
Checks 221
Checks
Electric motor 224
Diesel engine 225
Diesel weights 226
Dimensions 227
Identifi cation markings 228
Technical data
Emergency or assistance 229
JBL equipment 231
Peugeot Connect Navigation (RT6) 233
Audio equipment and telematics
Alphabetical index
Visual search
Page 6 of 302
4
Familiarisation
Presentation of the HYbrid4 system
Thank you for choosing this HYbrid4 vehicle,
which has characteristics that are different from conventional vehicles.
Study this handbook to learn about the specific hybrid functions and for more information, refer
to the "Hybrid System" section.
22
The HYbrid4 technology allows two sources of energy to be associated in an effective manner:
the Diesel HDi engine, which drives the front
wheels and the electric motor, which drives the
rear wheels.
These two motors can operate alternately or simultaneously, according to the hybrid modeselected and the driving conditions.
The electric motor alone provides power for
the vehicle in "ZEV" (Zero Emissions Vehicle) mode, and in "Auto" mode for running at slowspeed and low load. It also assists the Dieselengine when moving off, accelerating and changing gear.
The battery that powers the electric motor is
recharged during phases of deceleration andstores the energy for subsequent use.1
.Diesel HDi engine (front wheel drive). 2. Electric motor (rear wheel drive).3.
200 V battery.4.Electronic power supervisor.
5.Stop & Start system. 6
.6 -speed electronic gear control gearbox. 7. Electrical flow. 8.HYbrid4 mode selector.
Page 7 of 302
.
5
Familiarisation
For economical driving, caring for the environment
The fuel consumptionof a vehicle varies greatly:
- according to the driver's style of driving
(moderate, aggressive, fast, ...),
- according to the type of journeys
made (urban, main road, motorway, flowing, heavy traffic, …) and the speed.
Main recommendations for driving economically
Hybrid mode selector
To optimise fuel consumption, use the Automodeof the selector whenever possible (the mode is activated
automatically when starting) including for urban journeys.
This mode optimises the use of the energy sources (internal combustion engine and/or electric) contrary to other modes, which are for use in par ticular cases.
Gear lever
Use the automatic
mode A
as much as possible as this optimises gear changes to suit the requirements.
Drive smoothly
Stay in the "eco" zone
displayed in the energy consumption/generation indicator: accelerate gently, drive atsteady speeds using the speed limiter or cruise control as soon as possible. Use the "charge" zone
: anticipate the need to slow down by taking your foot off the accelerator rather than
braking. The movement of the energy consumption/generation indicator needle (into the "charge" zone), shows
the level of energy recovery.
Consumption history
See the impact of your style of driving and the type of journey by reviewing the history of your energyconsumption. Refer to the "Multifunction screens" section.
Causes of high consumption and checks
As with any vehicle, limit overloading, wind resistance (windows open above 30 mph (50 km/h), roof rack, loaded
or not, …), the use of power consumers (air conditioning, heated seats, heated rear screen, …).
Obser ve the recommendations on checks (regular check of tyre pressures, correct tyre pressures, …) and routine servicing.
Page 8 of 302
6
Familiarisation
Motorised tailgate
This system provides motorised opening andclosing of the tailgate, by pressing a button.
79
Electronic key: KeylessEntry and Starting
This system allows you to unlock, lockand star t your vehicle while keepingthe key on your person and in the defined zone around the vehicle.
25, 65
Te m p o r a ry puncture repair kit
This kit is a complete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
17
9
Exterior
Front and rear parking sensors
This system provides a warning when
manoeuvring for wards and backwards by
detecting obstacles located in front of or behind
the vehicle.
137
Page 9 of 302
.
7
Familiarisation

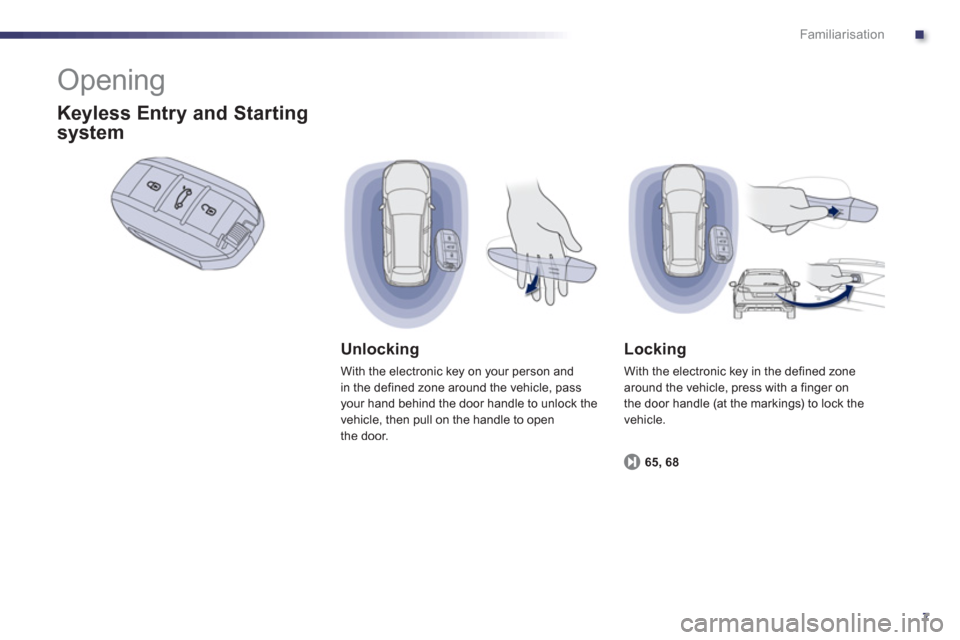

Opening
Unlocking
With the electronic key on your person andin the defined zone around the vehicle, pass your hand behind the door handle to unlock the
vehicle, then pull on the handle to open
th
e door.
Locking
With the electronic key in the defined zone
around the vehicle, press with a finger on
the door handle (at the markings) to lock the
vehicle.
Keyless Entry and Starting
system
65, 68
Page 10 of 302
8
i
Familiarisation

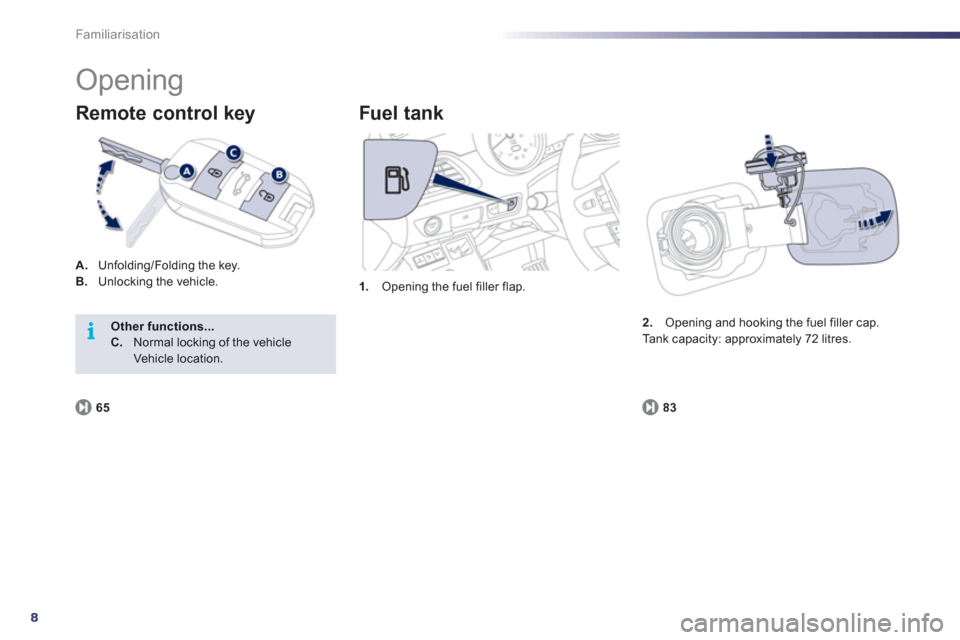

Opening
A.
Unfolding/Folding the key. B.Unlocking the vehicle.
Remote control key
1.Opening the fuel filler flap.
Fuel t ank
83
2.Opening and hooking the fuel filler cap.
Tank capacity: approximately 72 litres. Other functions...C.Normal locking of the vehicle Vehicle location.
65
