Peugeot 508 RXH 2012 Owner's Manual - RHD (UK, Australia)
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 508 RXH, Model: Peugeot 508 RXH 2012Pages: 304, PDF Size: 8.96 MB
Page 1 of 304

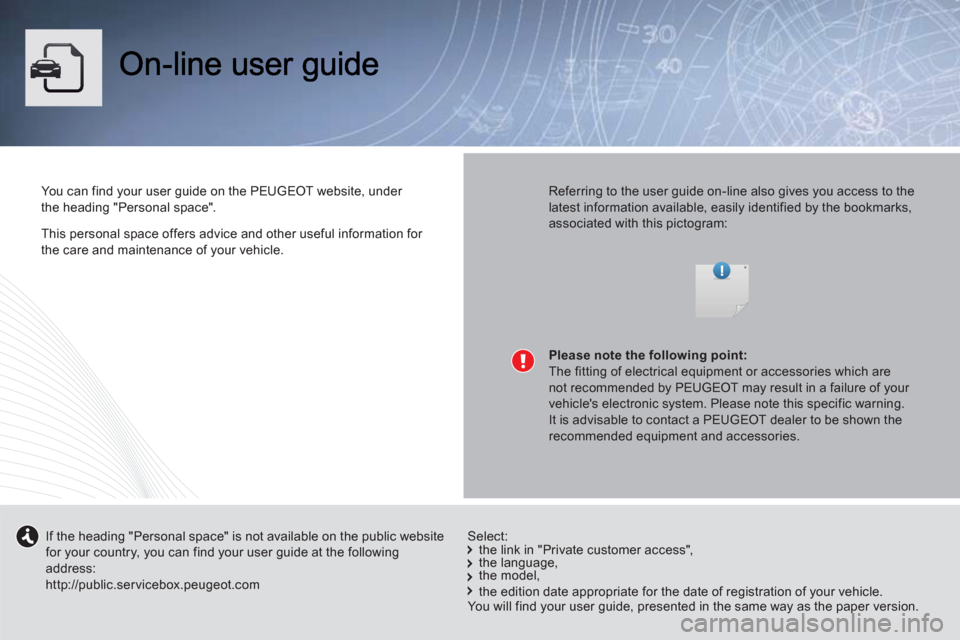

Page 2 of 304
This personal space offers advice and other useful information for
the care and maintenance of your vehicle.
You can find your user guide on the PEUGEOT website, under
the heading "Personal space".
Referring to the user guide on-line also gives you access to thelatest information available, easily identified by the bookmarks,
associated with this pictogram:
If the heading "Personal space" is not available on the public websitefor your country, you can find your user guide at the following address:http://public.servicebox.peugeot.com
the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this specific warning.It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.
Select:
You will find your user guide, presented in the same way as the paper version.

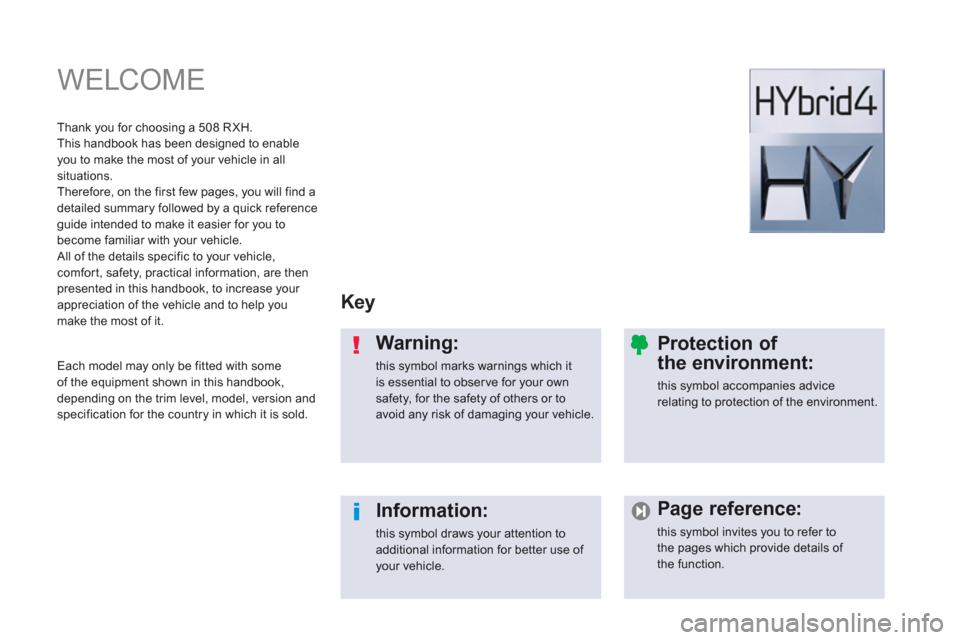

Page 3 of 304
WELCOME
Key
Warning:
this symbol marks warnings which it is essential to observe for your own safety, for the safety of others or toavoid any risk of damaging your vehicle.
Information:
this symbol draws your attention to additional information for better use of your vehicle.
Protection of
the environment:
this symbol accompanies advicerelating to protection of the environment.
Page reference:
this symbol invites you to refer to
the pages which provide details of the function.
Thank
you for choosing a 508 R XH.
This handbook has been designed to enable
you to make the most of your vehicle in all situations.
Therefore, on the first few pages, you will find a
detailed summary followed by a quick reference
guide intended to make it easier for you to
become familiar with your vehicle.
All of the details specific to your vehicle, comfort, safety, practical information, are thenpresented in this handbook, to increase your
appreciation of the vehicle and to help youmake the most of it.
Each model may only be
fitted with some
of the equipment shown in this handbook,
depending on the trim level, model, version andspecification for the country in which it is sold.

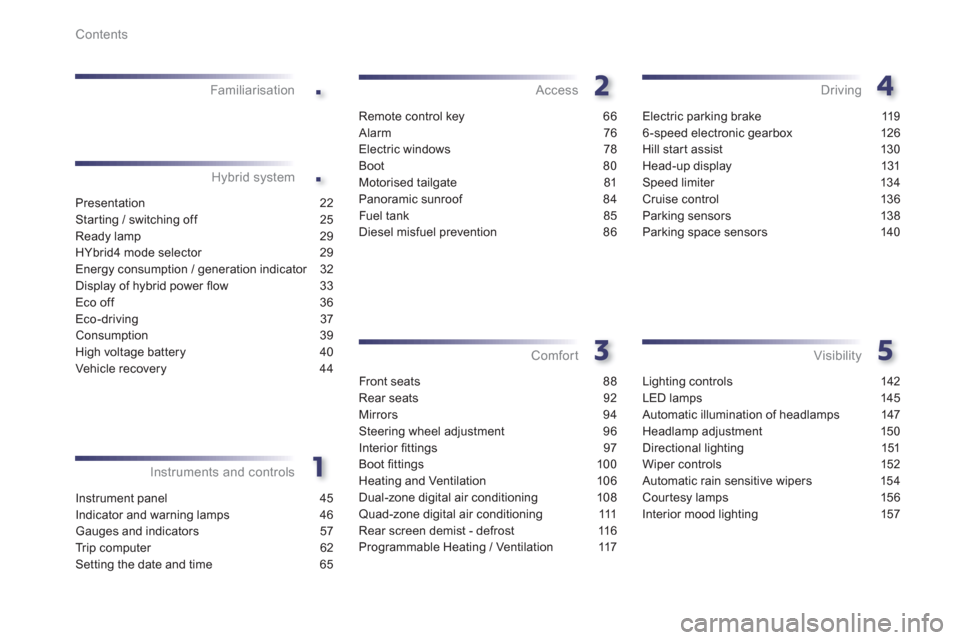

Page 4 of 304
.
.
Contents
Instrument panel 45
Indicator and warning lamps 46
Gauges and indicators 57
Tr ip computer 62
Setting the date and time 65
Instruments and controlsFamiliarisation
Remote control key 66
Alarm 76
Electric windows 78
Boot 80
Motorised tailgate 81
Panoramic sunroof 84
Fuel tank 85
Diesel misfuel prevention 86
Access
Front seats 88
Rear seats 92
Mirrors 94
Steering wheel adjustment 96
Interior fi ttings 97
Boot fi ttings 100
Heating and Ventilation 106
Dual-zone digital air conditioning 108
Quad-zone digital air conditioning 111
Rear screen demist - defrost 116
Programmable Heating / Ventilation 117
Comfort
Electric parking brake 119
6-speed electronic gearbox 126
Hill star t assist 130
Head-up display 131
Speed limiter 134
Cruise control 136
Parking sensors 138
Parking space sensors 140
Driving
Lighting controls 142
LED lamps 145
Automatic illumination of headlamps 147
Headlamp adjustment 150
Directional lighting 151
Wiper controls 152
Automatic rain sensitive wipers 154
Cour tesy lamps 156
Interior mood lighting 157
Visibility Hybrid system
Presentation 22
Starting / switching off 25
Ready lamp 29
HYbrid4 mode selector 29
Energy consumption / generation indicator 32
Display of hybrid power fl ow 33
Eco off 36
Eco-driving 37
Consumption 39
High voltage battery 40
Vehicle recovery 44
Page 5 of 304
.
.

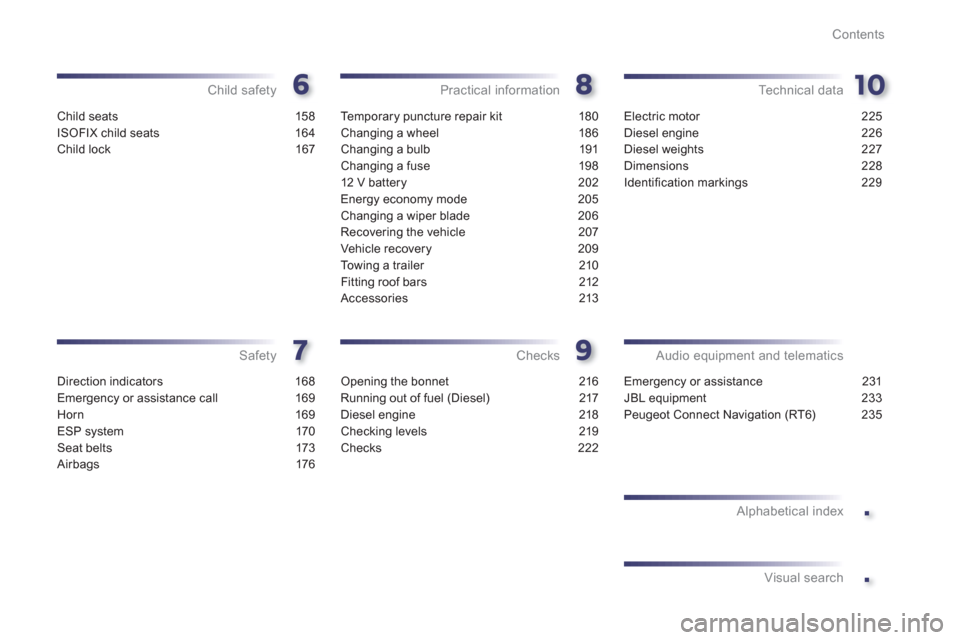

Contents
Child seats 158
ISOFIX child seats 164
Child lock 167
Child safety
Direction indicators 168
Emergency or assistance call 169
Horn 169
ESP system 170
Seat belts 173
Airbags 176
Safety
Te m p o r a ry puncture repair kit 180
Changing a wheel 186
Changing a bulb 191
Changing a fuse 198
12 V battery 202
Energy economy mode 205
Changing a wiper blade 206
Recovering the vehicle 207
Vehicle recovery 209
To w i ng a trailer 210
Fitting roof bars 212
Accessories 213
Practical information
Opening the bonnet 216
Running out of fuel (Diesel) 217
Diesel engine 218
Checking levels 219
Checks 222
Checks
Electric motor 225
Diesel engine 226
Diesel weights 227
Dimensions 228
Identifi cation markings 229
Technical data
Emergency or assistance 231
JBL equipment 233
Peugeot Connect Navigation (RT6) 235
Audio equipment and telematics
Alphabetical index
Visual search
Page 6 of 304
4
Familiarisation

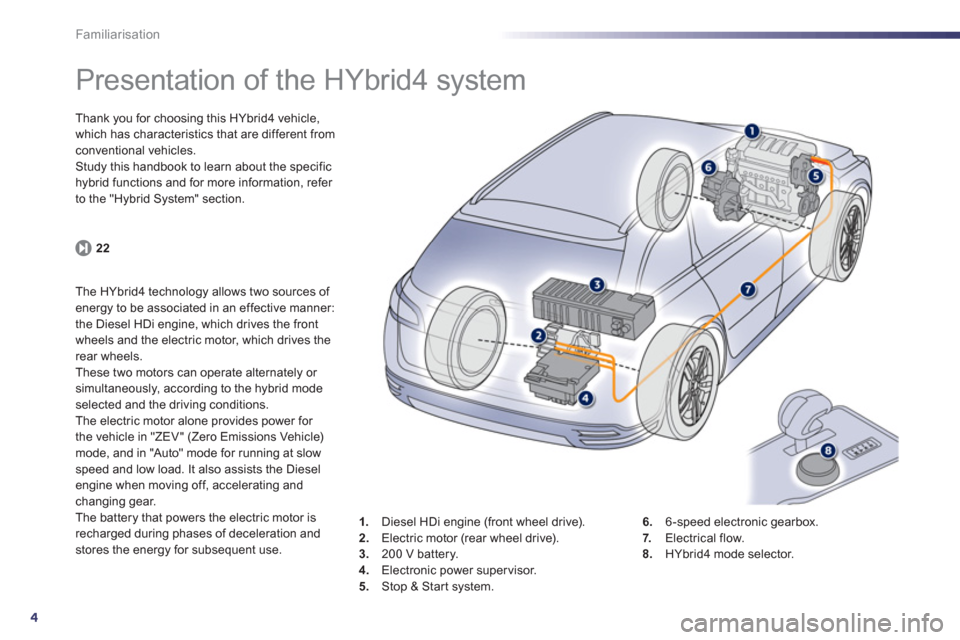

Presentation of the HYbrid4 system
Thank you for choosing this HYbrid4 vehicle,
which has characteristics that are different from conventional vehicles.
Study this handbook to learn about the specific hybrid functions and for more information, refer
to the "Hybrid System" section.
22
The HYbrid4 technology allows two sources of energy to be associated in an effective manner:
the Diesel HDi engine, which drives the front
wheels and the electric motor, which drives the
rear wheels.
These two motors can operate alternately or simultaneously, according to the hybrid modeselected and the driving conditions.
The electric motor alone provides power for
the vehicle in "ZEV" (Zero Emissions Vehicle) mode, and in "Auto" mode for running at slowspeed and low load. It also assists the Dieselengine when moving off, accelerating and changing gear.
The battery that powers the electric motor is
recharged during phases of deceleration andstores the energy for subsequent use.1
.Diesel HDi engine (front wheel drive). 2. Electric motor (rear wheel drive).3.
200 V battery.4.Electronic power supervisor.
5.Stop & Start system. 6
.6 -speed electronic gearbox.7. Electrical flow. 8.HYbrid4 mode selector.

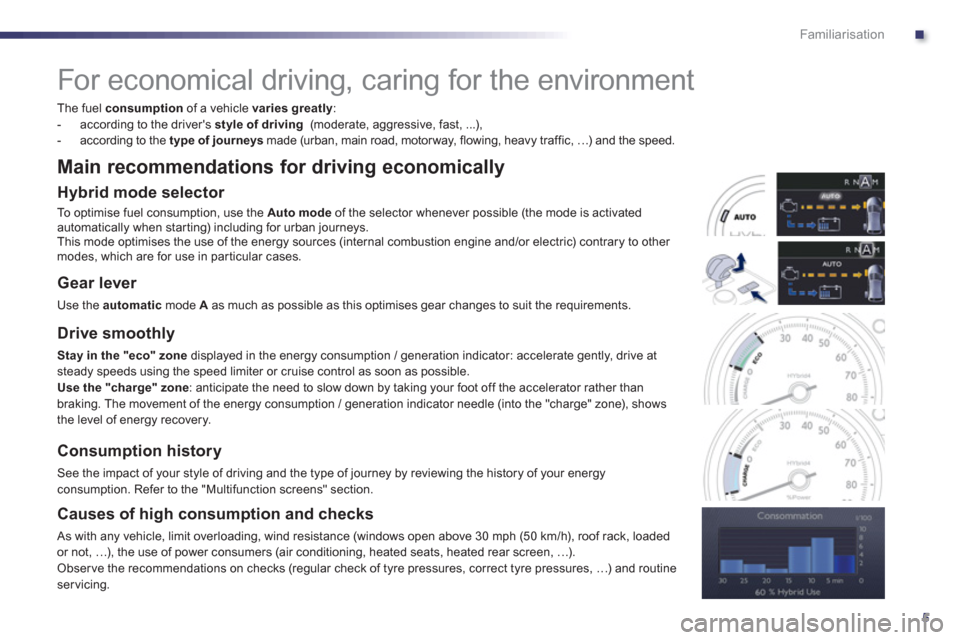

Page 7 of 304
.
5
Familiarisation
For economical driving, caring for the environment
The fuel consumptionof a vehicle varies greatly:
- according to the driver's style of driving
(moderate, aggressive, fast, ...),
- according to the type of journeys
made (urban, main road, motorway, flowing, heavy traffic, …) and the speed.
Main recommendations for driving economically
Hybrid mode selector
To optimise fuel consumption, use the Automodeof the selector whenever possible (the mode is activated
automatically when starting) including for urban journeys.
This mode optimises the use of the energy sources (internal combustion engine and/or electric) contrary to other modes, which are for use in par ticular cases.
Gear lever
Use the automatic
mode A
as much as possible as this optimises gear changes to suit the requirements.
Drive smoothly
Stay in the "eco" zone
displayed in the energy consumption / generation indicator: accelerate gently, drive atsteady speeds using the speed limiter or cruise control as soon as possible. Use the "charge" zone: anticipate the need to slow down by taking your foot off the accelerator rather than
braking. The movement of the energy consumption / generation indicator needle (into the "charge" zone), shows
the level of energy recovery.
Consumption history
See the impact of your style of driving and the type of journey by reviewing the history of your energyconsumption. Refer to the "Multifunction screens" section.
Causes of high consumption and checks
As with any vehicle, limit overloading, wind resistance (windows open above 30 mph (50 km/h), roof rack, loaded
or not, …), the use of power consumers (air conditioning, heated seats, heated rear screen, …).
Obser ve the recommendations on checks (regular check of tyre pressures, correct tyre pressures, …) and routine servicing.

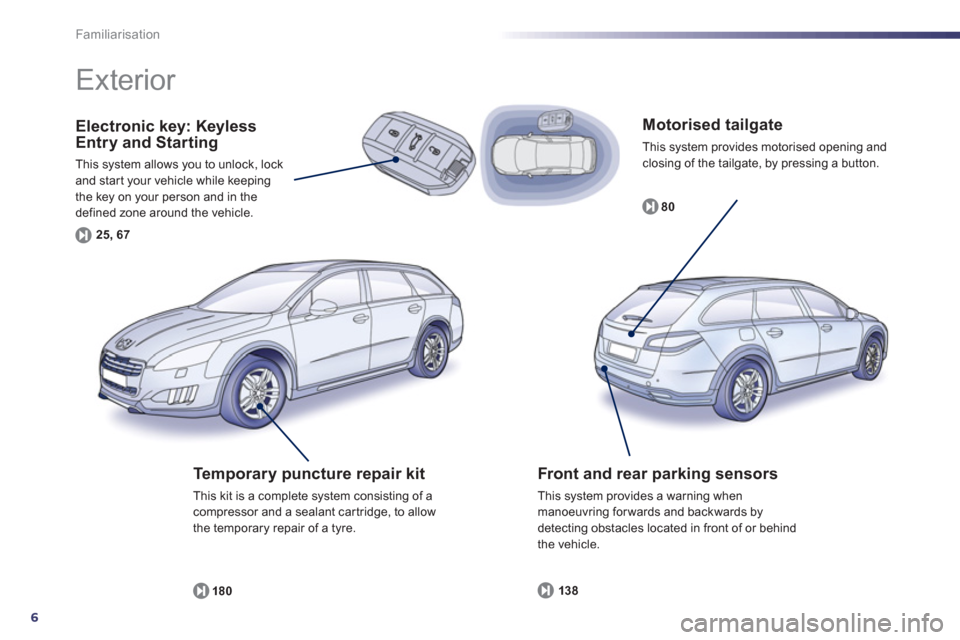

Page 8 of 304
6
Familiarisation
Motorised tailgate
This system provides motorised opening andclosing of the tailgate, by pressing a button.
8
0
Electronic key: KeylessEntry and Starting
This system allows you to unlock, lockand star t your vehicle while keepingthe key on your person and in the defined zone around the vehicle.
25, 67
Te m p o r a ry puncture repair kit
This kit is a complete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
18
0
Exterior
Front and rear parking sensors
This system provides a warning when
manoeuvring for wards and backwards by
detecting obstacles located in front of or behind
the vehicle.
138

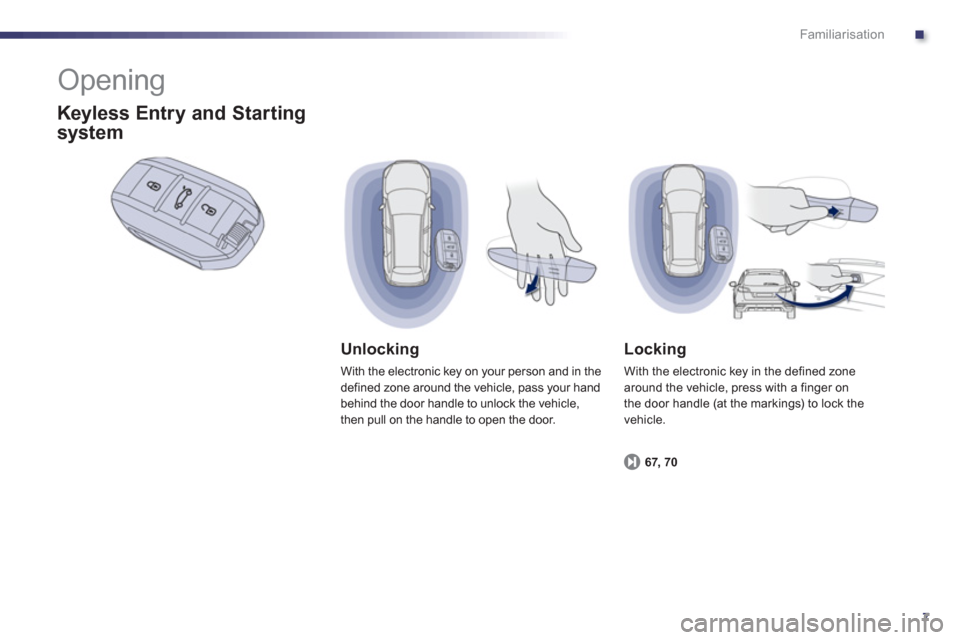

Page 9 of 304
.
7
Familiarisation
Opening
Unlocking
With the electronic key on your person and in the
defined zone around the vehicle, pass your hand
behind the door handle to unlock the vehicle,
then pull on the handle to open the door.
Locking
With the electronic key in the defined zone
around the vehicle, press with a finger on
the door handle (at the markings) to lock the
vehicle.
Keyless Entry and Starting
s
ystem
67, 70

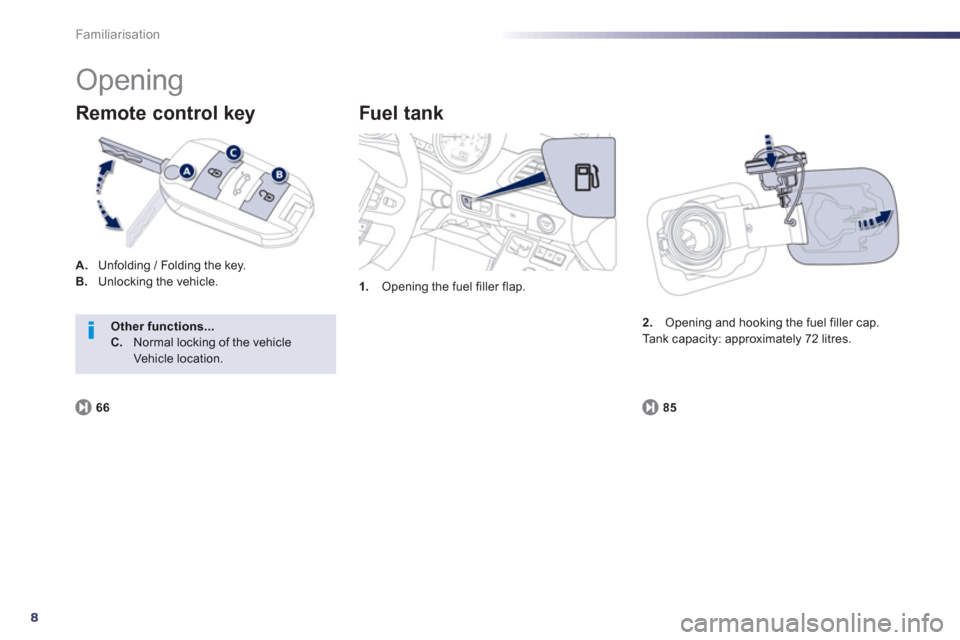

Page 10 of 304
8
Familiarisation
Opening
A.
Unfolding / Folding the key.B.Unlocking the vehicle.
Remote control key
1.Opening the fuel filler flap.
Fuel t ank
85
2.Opening and hooking the fuel filler cap.
Tank capacity: approximately 72 litres. Other functions...C.Normal locking of the vehicle Vehicle location.
6
6
