Peugeot 508 RXH 2012 Service Manual .
39
i
Hybrid system

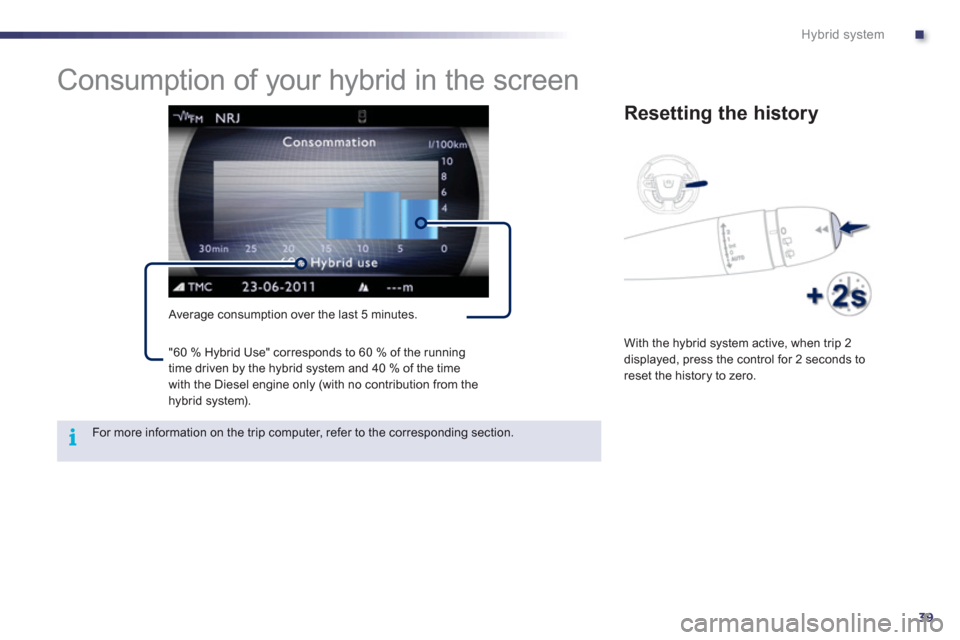

Consumption of your hybrid in the screen

 Average consumption over the last 5 minutes.
Resetting the history

With the hybrid system active, when trip 2dis

Page 42 of 302

Peugeot 508 RXH 2012 Service Manual 40
i
Hybrid system

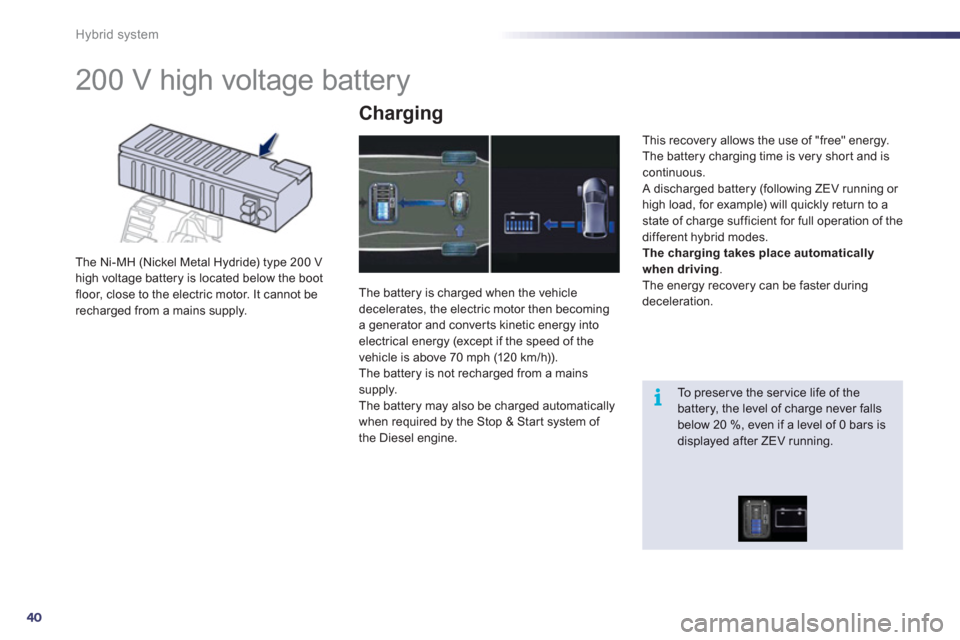

200 V high voltage battery
The Ni-MH (Nickel Metal Hydride) type 200 Vhigh voltage battery is located below the boot floor, close to the electric motor. It cannot

Page 43 of 302

Peugeot 508 RXH 2012 Service Manual .
41
!
!
Hybrid system

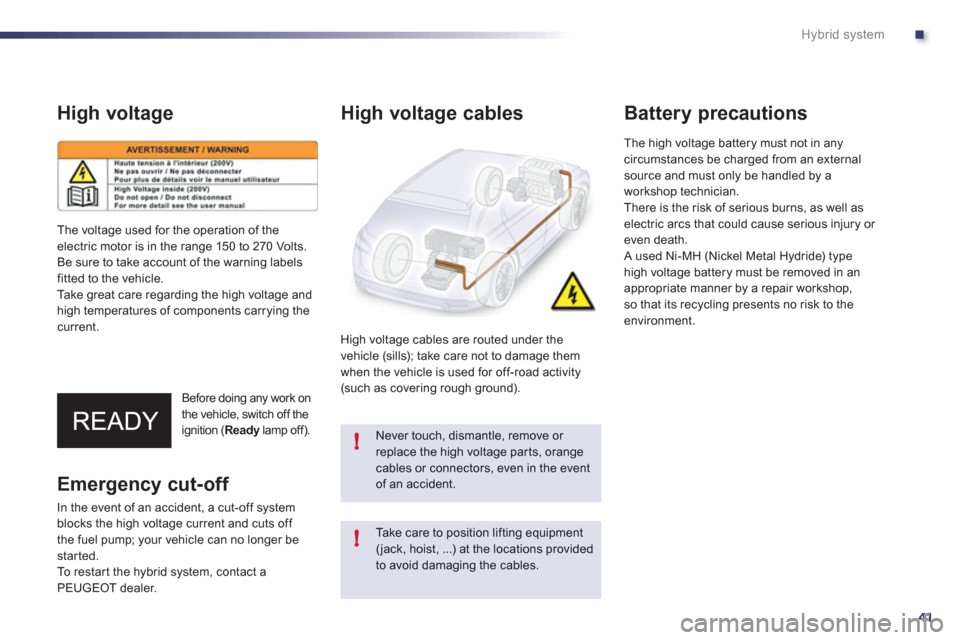

High voltage
Before doing any work on
the vehicle, switch off the
ignition ( Readylamp off).  y
High voltage cables
High voltage cables are routed under the
vehicle (sills); t

Page 44 of 302

Peugeot 508 RXH 2012 Service Manual 42
!
Hybrid system

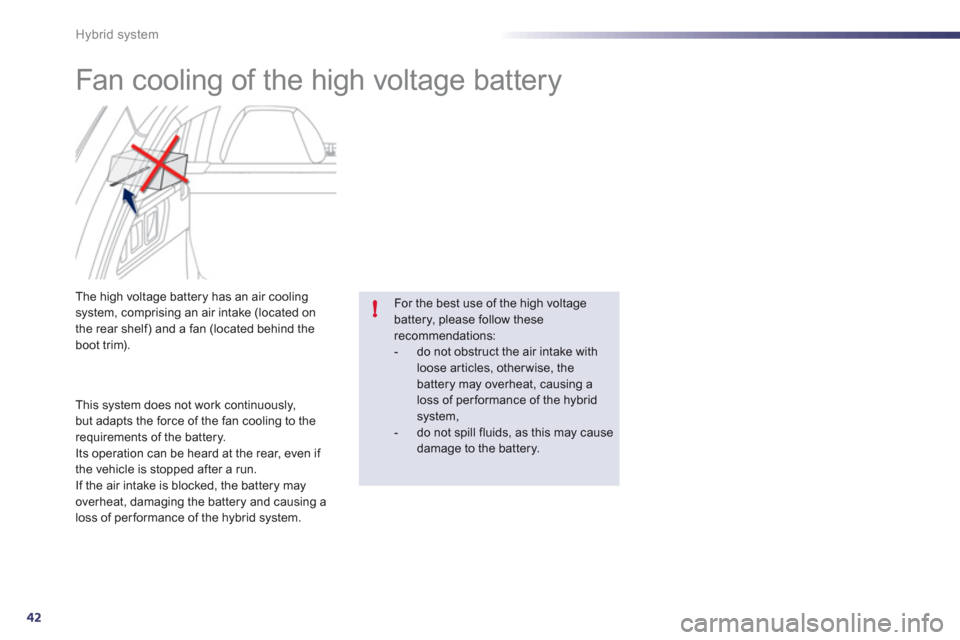

Fan cooling of the high voltage battery
The high voltage battery has an air coolingsystem, comprising an air intake (located on
the rear shelf) and a fan (located b

Page 45 of 302

Peugeot 508 RXH 2012 Service Manual .
43
!
Hybrid system

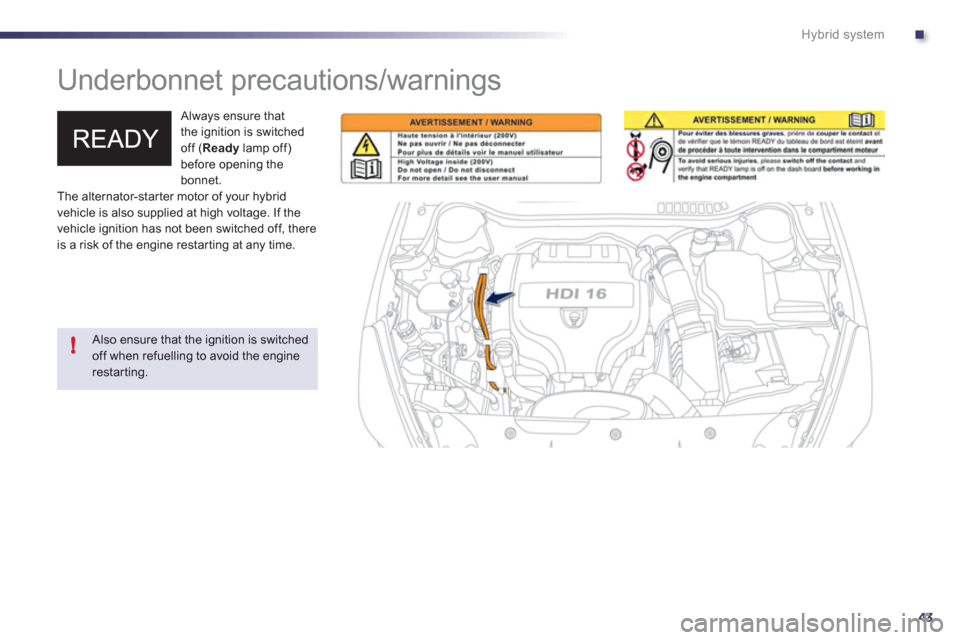

Underbonnet precautions/warnings

 Always ensure that
the ignition is switched
off (Ready   lamp off)
before opening thebonnet.
  The alternator-star ter motor of

Page 46 of 302

Peugeot 508 RXH 2012 Service Manual 44
i
Hybrid system

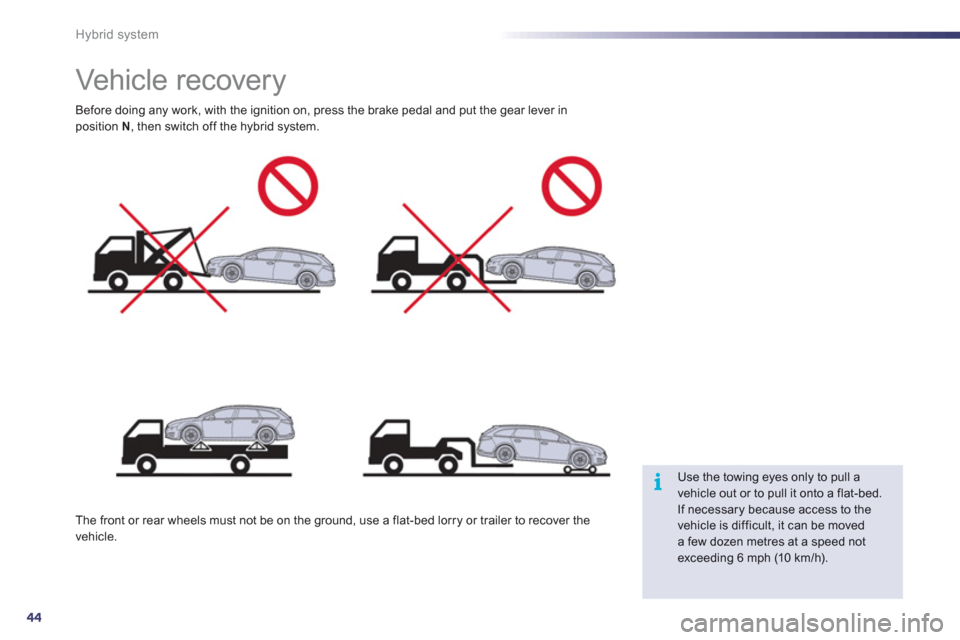

Vehicle recovery
Before doing any work, with the ignition on, press the brake pedal and put the gear lever inposition  N
, then switch off the hybrid system.
Th

Page 47 of 302

Peugeot 508 RXH 2012 Service Manual 1
45
Instruments and controls

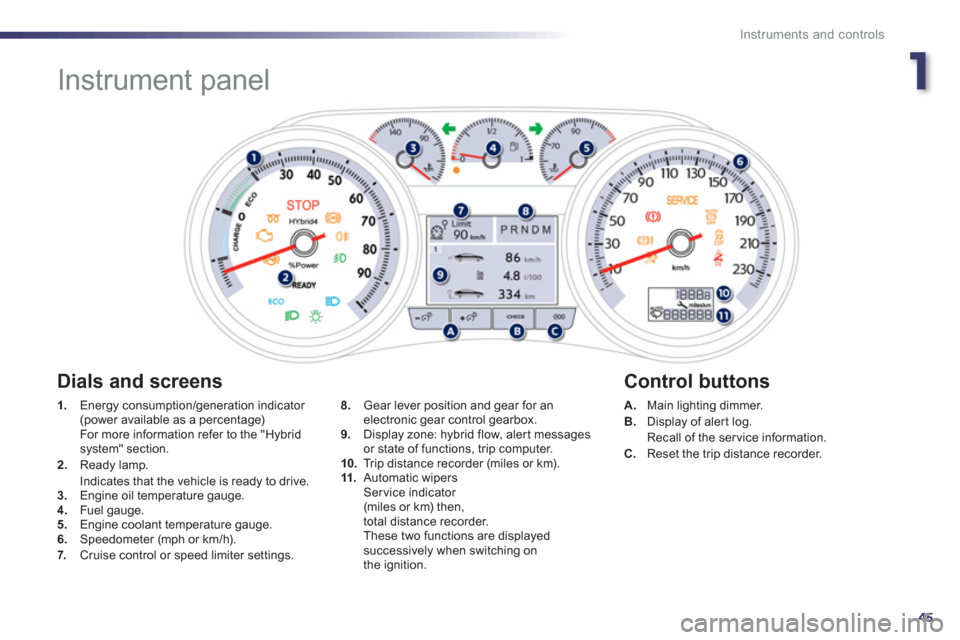

Instrument panel
1.
 Energy consumption/generation indicator (power available as a percentage)  For more information refer to the "Hybrid system" sect

Page 48 of 302

Peugeot 508 RXH 2012 Service Manual 46
!
Instruments and controls
Indicator and warning lamps
  Visual indicators informing the driver that a system is in operation, switched off or has a fault.

 When the ignition is switched on
 C

Page 49 of 302

Peugeot 508 RXH 2012 Service Manual 1
47
i
Instruments and controls

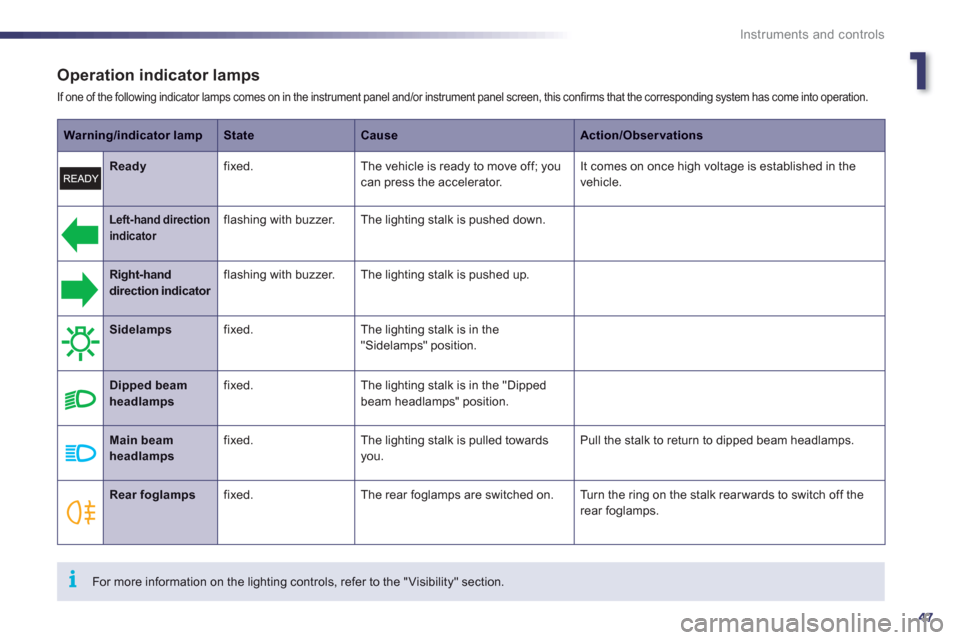

Operation indicator lamps

If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the correspo

Page 50 of 302

Peugeot 508 RXH 2012 Service Manual 48
Instruments and controls
StateCauseAction/Observations


 Diesel engine pre-heatingfixed. The  START/STOPswitch has been
pressed (ignition on).   Wait until the warning lamp goes off before sta
