Page 99 of 302
3
97
i
Comfort

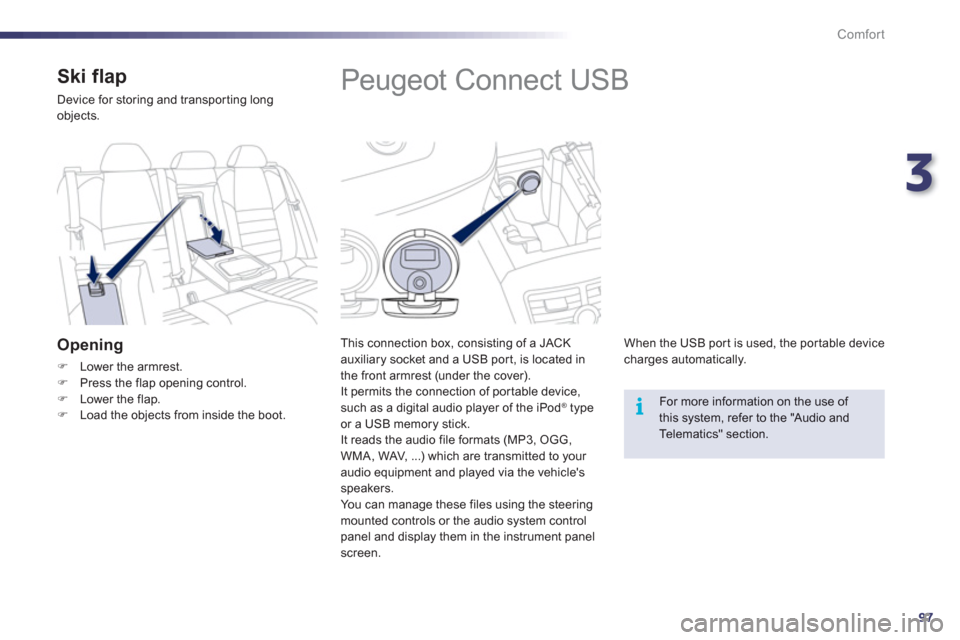

Peugeot Connect USB
This connection box, consisting of a JACKauxiliary socket and a USB port, is located in
the front armrest (under the cover).
It permits the connection of por table device,
such as a di
gital audio player of the iPod® type®
or a USB memory stick.
It reads the audio file formats (MP3, OGG,WMA, WAV, ...) which are transmitted to your audio equipment and played via the vehicle's
speakers.
You can mana
ge these files using the steeringmounted controls or the audio system control
panel and display them in the instrument panel screen.
When the USB por t is used, the por table device
charges automatically.
For more information on the use of this system, refer to the "Audio andTelematics" section.
Ski flap
Device for storing and transporting long
objects.
Opening
)Lower the armrest. )Press the flap opening control. )Lower the flap. )Load the objects from inside the boot.
Page 247 of 302
245
04
1
3
2
NAVIGATION - GUIDANCE
UPDATING THE RISK AREAS POIs
(speed camera information)
The detailed procedure is available from PEUGEOT dealers.
The fi les must be copied to the root on the chosen medium.
Successful downloadin
g is confi rmed by a message.
The medium used must not contain an
y other data. Insert the medium
(CD ROM or USB memory stick)containing the POI database into the system's CD
player or USB port.
The system detects the medium inserted automatically. Confi rm the start of the update byvalidating "YES". Download the "Risk areas P
OIs" update fi le onto aCD ROM or USB memory stick from the Internet.
Thi
s service * is available at
https://www.wipinforadars.fr or
https://www.peugeot-connect-downloads.co.uk.
* Av
ailable in certain countries.
Page 257 of 302
255
05
2 1
1
2
3
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:
RECEIVING TA MESSAGES
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report is
transmitted, the current audio source (Radio, CD, USB, ...) is interrupted
automatically to play the TA message. Normal playback of the audio source resumes at the end of the transmission of the message.
Press RADIO
to display the menu.
Select " Guidance options " then confi rm.
Select " Activate/Deactivate TA
" then confi rm.
The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.
Activate or deactivate the function at an
y time by pressing
the button.
During a message, press the button to interrupt it.
Page 273 of 302
271
09
CD, MP3 CD/USB PLAYER
The audio equipment will only play audio fi les with ".m4a, .wma, .m4b, .aac, .fl ac, .ogg and .mp3" fi le extensions and with a bit rate of yyqp ypy
between 32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u...) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are 11, 22, 44 and 48 KHz.
It is advisable to restrict
fi le names to 20 characters, without using of special characters (e.g.: " " ? ; ˘) to avoid any playing and displayingproblems.
In order to be able to pla
y a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it ma
y not be played correctly.
It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard isrecommended.
INFORMATION AND ADVICE
The s
ystem supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
Control of the peripheral device is with the audiosystem controls.
Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a U
SB memory stick must be formatted FAT 16 or 32.
Page 274 of 302
272
09
1
2
MUSIC MEDIA PLAYERS
CD, MP3 CD, USB PLAYER
Insert the CD in the player, insert the USB memorystick in the USB player or connect the USBperipheral to the USB port using a suitable cable (not supplied)
The system builds playlists (in temporary memory),
an operation which can take from a few seconds to several minutes at the fi rst connection.
R
educe the number of non-music fi les and the number of folders to reduce the waiting time.
The playlists are updated every time the ignition isswitched off or connection of a USB memory stick. However, the system memorises these lists and
if they are not modifi ed, the loading time will be shorter.
Pla
y starts automatically after a period which
depends on the capacity of the USB memory stick.
SELECTION OF SOURCE
The SOURCE or SRCbutton on the steering mounted controlsallows a direct change to the next media source.
"CD/CD MP
3"
"USB, iPod"
"AUX
" "STREAMING
" "RADIO
"
Pr
ess MEDIAto display the "MEDIA
"
menu.
Select "Change media" and confi rm.
Page 276 of 302
274
1
2
1
2
09
AUDIO STREAMING
Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.
Connect the telephone: see "USING THE TELEPHONE".
Select " Audio" or " All" profi le.
I
f play does not start automatically, it may be necessary to start the audio playback from the telephone.
Control is from the peripheral device or b
y using the audio system buttons.
Once connected in streaming mode, the telephone is considered to bea media source.
It is recommended that you activate "
Repeat" on the Bluetooth
peripheral.
MUSIC MEDIA PLAYERS
CONNECTING APPLE ®
PLAYERS
Connect the Apple ®player to the USB port using a suitable cable (not supplied).
Pla
y starts automatically.
Control is via the audio system.
The classifi cations available are those of the portable device
connected (artists/albums/genres/playlists/audiobooks/podcasts).
The de
fault classifi cation used is by artist. To modify the classifi cationused, return to the fi rst level of the menu then select the desired classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.
The version o
f software in the audio system may not be compatible
with the generation of your AppleÆ player.Æ
The list of devices compatible with software versions is available fromPEUGEOT dealers.
Page 282 of 302
280
12 SCREEN MENU MAP
2
3
3
1
4
2
2
1
4
4
2
2
1
1
1
2
1
1
2
2
2
2
2
2
2
3
3
2
2
2
1
Random on all media
Repetition
Audio settin
gs (same as RADIO)
Activate/Deactivate AUX input
"MEDIA" MENU
Following media source
E
ject USB support
Read mode
Norma
l
Random
All passengers
Le-Ri balance
Fr-Re balance
Auto. Volume
Update radio list
Bass
Treble
Loudness
Distribution
Driv
er
Ni
ght mode
Auto Day/Night
Ad
just luminosity
Set date and time
"SETUP" MENU
Display confi guration
Choose colou
r
Harmony
Cartography
Da
y mode
Voice synthesis
Guidance instructions volume
Select male voice/Select female voice
Page 288 of 302
286
QUESTIONANSWERSOLUTION
With the engine off, the system switches off after a few minutes of use.When the en
gine is switched off, the system's operating time depends on
the battery charge.
The switch-off is normal: the s
ystem switches to economy mode and
switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
Pla
yback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).Some fi les supplied with the memor
y stick may greatly slow down access
to reading the memory stick (multiplication by 10 of the catalogue time). Delete the fi les supplied with the memory stickand limit the number of sub-folders in the fi le structure on the memory stick.
When I connect m
yiPhone as telephone and
to the USB port at the
same time, I am unable
to play the music fi les. When the iPhone connects automaticall
y as a telephone, it forces the
streaming function. The streaming function takes the place of the USB
function which is then not useable. Disconnect and reconnect to the USB
port(the USB function takes priority over streaming).
FREQUENTLY ASKED QUESTIONS
Page 291 of 302
.
289
Alphabetical index
Labels, identification.....................................228Lamps, warning and indicator.............r46,50, 51LED daytime running lamps..........................144
Level, brake fluid ...........................................218Level, headlamp wash.......................... 152, 219Level, power steering fluid............................218Levels and checks..................................217-220Lighting, guide-me home......................145, 146Lighting, interior....................................r155,156Lighting bulbs (replacement)........190,194, 196Lighting control stalk.............................141,145Lighting on reminder.....................................r143Loading....................................................37, 211Load reduction mode....................................203Load space cover..........................................r100Locating your vehicle......................................70Long objects, transpor ting..............................97Luggage retaining strap..................................98
L
Main beam .....................................141, 190-193Maintenance....................................................37Map reading lamps.......................................155Markings, identification.................................228Massage function...........................................89Mat..................................................................96Mini fuel level ..................................................83Mirror, rear view..............................................94Mirrors, door..............................................r92, 93Motorised boot..........................................79, 80Motorway function (direction indicators).......167Mountings for ISOFIX seats .........................163Music media players .....................................270
Navigation.............................................239, 240Number plate lamps......................................196
Oil filter..........................................................r221Oil level....................................................61, 218Opening the boot................................65, 67, 78Opening the doors..........................................65Opening the panoramic sunroof blind............82Operation indicator lamps............46,48, 50,53
Radio.....................................................267, 268Ready..............................................................29Ready lamp...............................................29, 83Rear foglamp .................................................194Rear screen (demisting)..........................92, 116Recharging the battery .................................201Reduction of electrical load ..........................203Regeneration of the particleemissions filter............................................r222Reinitialising the remote control...............71, 72Remote control.............................65, 66,68, 73Removable screen (snow shield) ..................209Removing a wheel ........................................186Removing the mat...........................................96Repair kit, puncture.......................................179Replacing bulbs ............................190, 194, 196Replacing fuses............................................197Replacing the air filter...................................r221Replacing the oil filter...................................r221Replacing the passenger compartment filter......................................r221Replacing wiper blades .........................154, 205Reset history.............................................39, 63Resetting the service indicator.......................r60Reversing lamp.............................................194Roof bars.......................................................211Roof blind........................................................82Routine checks.....................................221-223Running out of fuel (Diesel)..........................216
M
N
O
R
Paint colour code ..........................................228Panoramic glass sunroof................................f82Parking brake ................................121, 222, 223Parking brake, electric .................................. 118Parking lamps...............................................145Parking sensors, front...................................138Parking sensors, rear....................................r137Parking space sensor ..................................139Particle emission filter.........................r220,222Passenger compartment filter......................r221Peugeot Connect ASSISTANCE..................230Peugeot Connect Navigation (RT6) ..............233Peugeot Connect SOS .................................230Port, USB........................................................97Power..............................................................r32Priming the fuel system................................216Programmable heating (Webasto)................117Protecting children .........157,161,163-165, 175Puncture ........................................................179
P
Safety for children .................................161, 166
Screen, colour and mapping .................237,278
Screen, instrument panel ..........................46, 62
S
