Peugeot 607 Dag 2002 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2002, Model line: 607 Dag, Model: Peugeot 607 Dag 2002Pages: 167, PDF Size: 2.61 MB
Page 101 of 167
YOUR 607 IN DETAIL101
THE
REMOTE CONTROL KEY
From the driver's door, the key
allows you to lock or unlock the
doors, the boot and the fuel filler flap,
as well as to fold back and unfold the
exterior mirrors.
The remote control in the key per
forms the same functions at a dis
tance.
If one of the front doors or the boot is
open, the central locking does not
function.
Selective unlocking with the
remote control key
This function must be initialised by a
PEUGEOT dealer.
Press button Bto unlock the driver's
door as well as to fold out the exteri
or mirrors.
Press button Bagain to unlock the
other doors, the boot and the fuel
filler flap. Folding/opening out the key
To tuck away the key blade, fold it
down into the remote control mod
ule.
To open out the key, press button
D.
Deadlocking
This renders the internal and exter
nal door controls inoperative, and
enables automatic closing of the win
dows and the sunroof.
With the key Lock the vehicle and keep the key
in the locking position for approxi
mately one second.
With the remote control incorpo
rated in the key Press button Aonce to lock the
vehicle (the direction indicators
come on for approximately two
seconds).
Within a maximum of five sec
onds, press button Aa second
time to deadlock the vehicle (the
direction indicators come on for
approximately two seconds).
Opening the boot with the
remote control key
Press and hold down button C.
Note: this also unlocks the doors or
the driver's door only, if selective
unlocking is initialised.
Unlocking with the remote
control key
Press button B.
This is confirmed by rapid flashing of
the direction indicators.
Locking with the remote
control key
Press button A.
This is confirmed by fixed lighting of
the direction indicators for approxi
mately two seconds.
If one of the doors or the boot is
open, the central locking does not
function.
Note: the function that controls fold
ing back of the exterior mirrors can
be disarmed by a PEUGEOT dealer.
Page 102 of 167
Electronic engine immobiliser
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre
vents starting of the vehicle by any
one who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
is recognised and starting is possi
ble.
If the system does not function
correctly, the central locking button
indicator light, situated on the centre
console, flashes rapidly when the
ignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon
as possible. Flat battery
(CR 2025/3 volt battery)
This is indicated by illumination of a
warning light on the instrument panel
display, accompanied by an audible
signal and a message on the multi
function display.
Contact a PEUGEOT dealer to
replace the battery.
YOUR 607 IN DETAIL
102
Key in ignition
A buzzer sounds on opening the dri
ver's door, if the key has been left in
the ignition. Locating your car
To locate your car in a car park:
press button A; the courtesy lights
come on and the direction indica
tors flash for a few seconds.
Programming the
remote control
in the key Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
key is now working again.

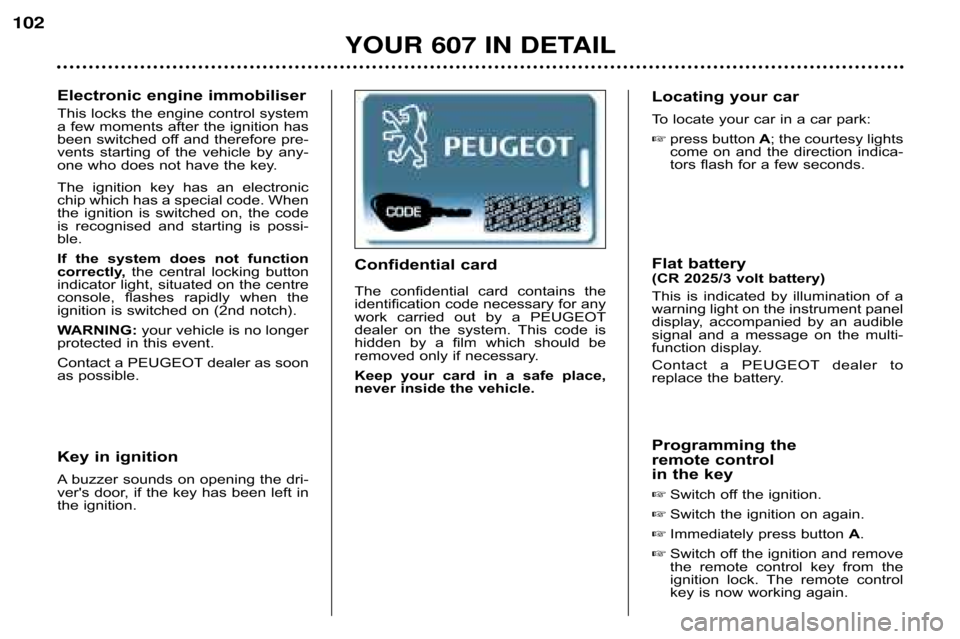

Confidential card
The confidential card contains the
identification code necessary for any
work carried out by a PEUGEOT
dealer on the system. This code is
hidden by a film which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
Page 103 of 167
YOUR 607 IN DETAIL103

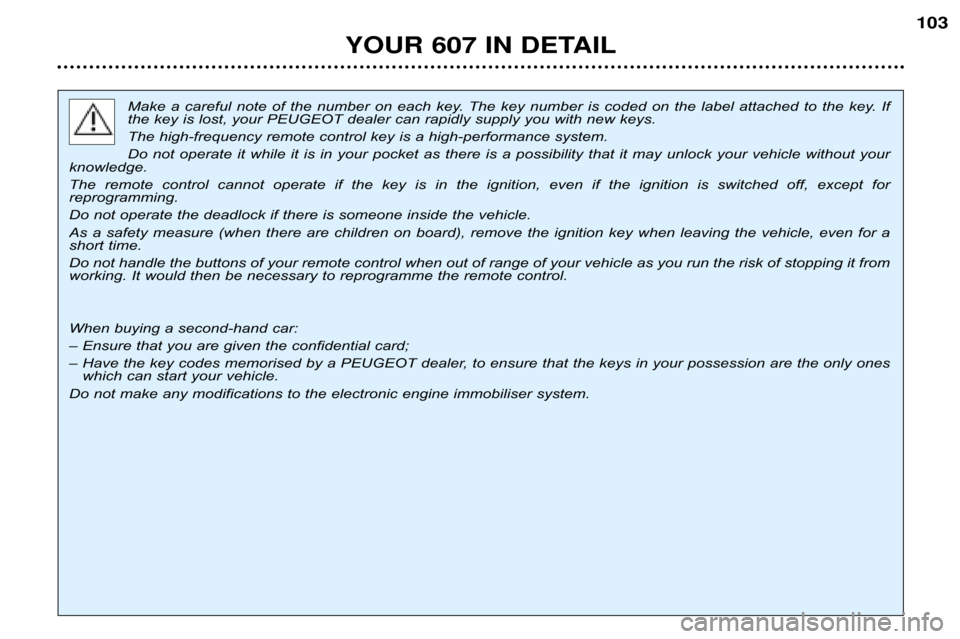

Make a careful note of the number on each key. The key number i
s coded on the label attached to the key. If
the key is lost, your PEUGEOT dealer can rapidly supply you with ne w keys.
The high frequency remote control key is a high performance system.
Do not operate it while it is in your pocket as there is a p ossibility that it may unlock your vehicle without your
knowledge.
The remote control cannot operate if the key is in the ignit ion, even if the ignition is switched off, except for
reprogramming.
Do not operate the deadlock if there is someone inside the vehicle.
As a safety measure (when there are children on board), remove the i gnition key when leaving the vehicle, even for a
short time.
Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from
working. It would then be necessary to reprogramme the remote cont rol.
When buying a second hand car:
– Ensure that you are given the confidential card;
– Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start your vehicle.
Do not make any modifications to the electronic engine immobil iser system.
Page 104 of 167
Electronic engine immobiliser
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre
vents starting of the vehicle by any
one who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
is recognised and starting is possi
ble.
If the system does not function
correctly, the central locking button
indicator light, situated on the centre
console, flashes rapidly when the
ignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon
as possible. Flat battery
(CR 2025/3 volt battery)
This is indicated by illumination of a
warning light on the instrument panel
display, accompanied by an audible
signal and a message on the multi
function display.
Contact a PEUGEOT dealer to
replace the battery.
YOUR 607 IN DETAIL
102
Key in ignition
A buzzer sounds on opening the dri
ver's door, if the key has been left in
the ignition. Locating your car
To locate your car in a car park:
press button A; the courtesy lights
come on and the direction indica
tors flash for a few seconds.
Programming the
remote control
in the key Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
key is now working again.
Confidential card
The confidential card contains the
identification code necessary for any
work carried out by a PEUGEOT
dealer on the system. This code is
hidden by a film which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
Page 105 of 167
YOUR 607 IN DETAIL103
Make a careful note of the number on each key. The key number i
s coded on the label attached to the key. If
the key is lost, your PEUGEOT dealer can rapidly supply you with ne w keys.
The high frequency remote control key is a high performance system.
Do not operate it while it is in your pocket as there is a p ossibility that it may unlock your vehicle without your
knowledge.
The remote control cannot operate if the key is in the ignit ion, even if the ignition is switched off, except for
reprogramming.
Do not operate the deadlock if there is someone inside the vehicle.
As a safety measure (when there are children on board), remove the i gnition key when leaving the vehicle, even for a
short time.
Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from
working. It would then be necessary to reprogramme the remote cont rol.
When buying a second hand car:
– Ensure that you are given the confidential card;
– Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start your vehicle.
Do not make any modifications to the electronic engine immobil iser system.
Page 106 of 167
THE ALARM
This provides two types of protec
tion, exterior and interior:
– exterior protection: when this is set, the alarm sounds if a door, the
boot or the bonnet is opened.
– interior protection: when this is set, the alarm sounds if the sensors
detect a variation in the air move
ment inside the vehicle (breaking
of a window or a movement inside
the vehicle).
Setting the alarm
Switch off the ignition and get out
of the vehicle.
Set the alarm within five minutes
of getting out of the vehicle, by
locking or deadlocking using the
remote control (button Bindicator
light flashes once per second). Note:
if you wish to lock your vehicle
without setting the alarm, use the
door lock.
When the alarm is triggered, the
siren sounds and the direction indi
cators flash for thirty seconds.
It then stops, but the alarm remains
set.
Warning: if the alarm has been trig
gered ten times in succession, on
the eleventh time it becomes inac
tive.
Note: if button B flashes rapidly, the
alarm has been triggered while you
were away from your vehicle.
Automatic activation
The alarm is activated automatically
two minutes after the door or boot
were last closed.
In order to avoid accidental trigger
ing of the alarm when a door or the
boot is opened, it is essential to
press the remote control opening
button first.
Disarming
Unlock the vehicle with the remote
control key (button Bindicator light
goes out).
Note: if the alarm has been triggered
while you were away from your car,
the rapid flashing of the indicator
light will stop when you switch on the
ignition. To set the alarm with exterior
protection only
If, while you are away from the vehi
cle, you wish to leave a window par
tially open or a pet inside the vehicle,
you should choose exterior protec
tion only.
Switch off the ignition
In the next ten seconds, press
button
Auntil indicator light B is
on continuously.
Get out of the vehicle.
Set the alarm by locking or dead
locking using the remote control
switch ( button Bindicator light
flashes once a second).
Note: when the alarm is set but the
remote control does not operate:
Unlock the doors with the key and
open the door. The alarm is trig
gered.
Switch on the ignition in the next
ten seconds. The alarm is disar
med.
Incorrect operation
When the ignition is switched on, if
button Blights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
YOUR 607 IN DETAIL
104
Page 107 of 167
Child safety
This prevents either of the rear doors
being opened from inside. Turn the red plastic switch a quar
ter of a turn using the ignition key.
YOUR 607 IN DETAIL 105

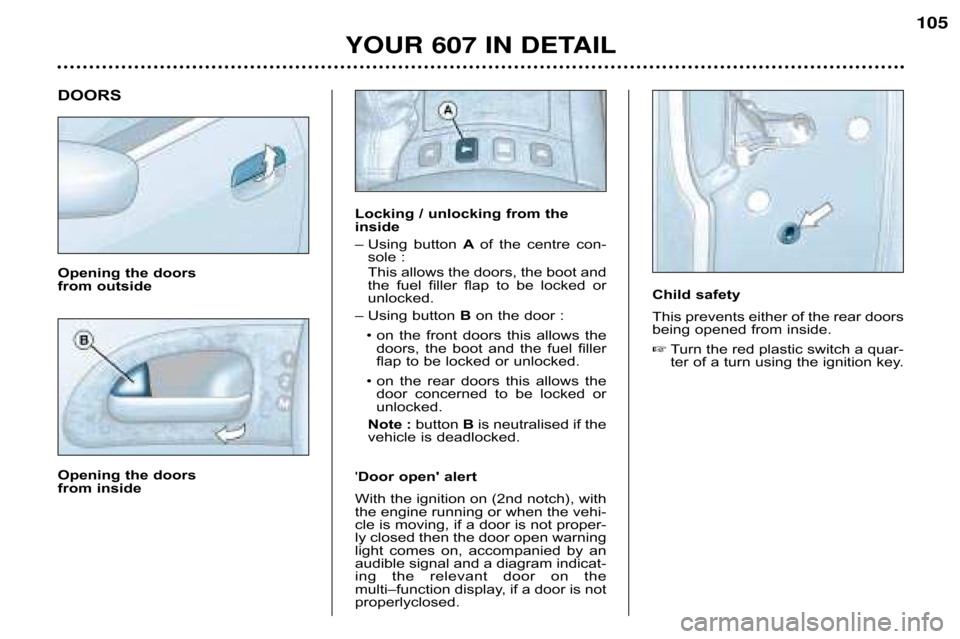

DOORS
Opening the doors
from outside
Opening the doors
from insideLocking / unlocking from the
inside
– Using button
Aof the centre con
sole :
This allows the doors, the boot and
the fuel filler flap to be locked or
unlocked.
– Using button B on the door :
• on the front doors this allows the doors, the boot and the fuel filler
flap to be locked or unlocked.
• on the rear doors this allows the door concerned to be locked or
unlocked.
Note : button Bis neutralised if the
vehicle is deadlocked.
' Door open' alert
With the ignition on (2nd notch), with
the engine running or when the vehi
cle is moving, if a door is not proper
ly closed then the door open warning
light comes on, accompanied by an
audible signal and a diagram indicat
ing the relevant door on the
multi–function display, if a door is not
properlyclosed.
Page 108 of 167
Vehicle unlocked
Press and hold button Cof the
remote control key or press push
button A.
Note: push button Acan be deacti
vated. Rotate control B,located
inside the boot lid, a quarter of a turn
(anti clockwise) using the key.
YOUR 607 IN DETAIL
106
THE BOOT
Opening the boot
With the vehicle locked / deadlocked
Press and hold button Cof the
remote control key.
This action will also unlock the doors
and the fuel filler flap. SUNROOF
Control the sunroof:
– manually
: lightly press the switch;
the roof stops as soon as the
switch is released.
– automatically : press the switch
down; the roof opens partially or
opens or closes completely
depending on where the switch is
pressed.
– to partially open the roof: press
part Aof the switch. To close it,
press part Bof the switch.
– to open the roof completely: press part Bof the switch.
– to close it completely: press part
A of the switch .
– safety auto reverse When the sunroof is closing and
meets an obstacle, it stops then
opens again.
Note: the sunroof shutter is manual.
Closing the boot
Press the centre of the boot lid
with both hands, until it locks.
'Boot open' warning
With the ignition on (2nd notch), with
the engine running or when the vehi
cle is moving, the door open warning
light comes on, accompanied by an
audible signal and a diagram on the
multi function display, if the boot is
not properly closed.
Page 109 of 167
The engine and the ignition must
be switched off when filling with
fuel : Open the fuel filler flap by press
ing its front right hand edge,
Unscrew the cap and hook it over
the tab located on the inside of the
flap.
When filling up your tank, do not con
tinue after the 3rd cut off of the
pump; this could cause your vehicle
to malfunction.
The capacity of the tank is approx
imately 80 litres. After filling the tank, screw the cap
on fully and close the flap.
Fuel filler cap open When this light comes on,
accompanied by an audible
signal and the message
'Fuel cap open' on the dis
play, screw the cap on again
and close the fuel filler flap.
YOUR 607 IN DETAIL 107
BONNET
Opening
Pull the lever, located in the dri
ver's footwell, downwards.
Lift the catch and raise the bon
net.
Bonnet assister struts open the bon
net and keep it open.
Closing
Lower the bonnet and release it at
the end of its travel.
Check that it is locked.
'Bonnet open' warning
With the ignition on (2nd notch), with
the engine running or when the vehi
cle is moving, the door open warning
light comes on, accompanied by an
audible signal and a diagram on the
multi–function display, if the bonnet
is not properly closed. FILLING WITH FUEL
Low fuel level
When the minimum fuel
level is reached, this warn
ing light comes on, accom
panied by an audible signal
and the message 'Fuel
level low' on the multi function dis
play.
You can can still drive approxi
mately 30 miles (50 km) without
filling up with fuel.
Filling with fuel
Locking and unlocking of the fuel
filler flap, the doors and the boot is
simultaneous (except when selective
unlocking is initialised; in this case
press the unlocking button of the
remote control again).
Page 110 of 167
108
YOUR 607 IN DETAIL

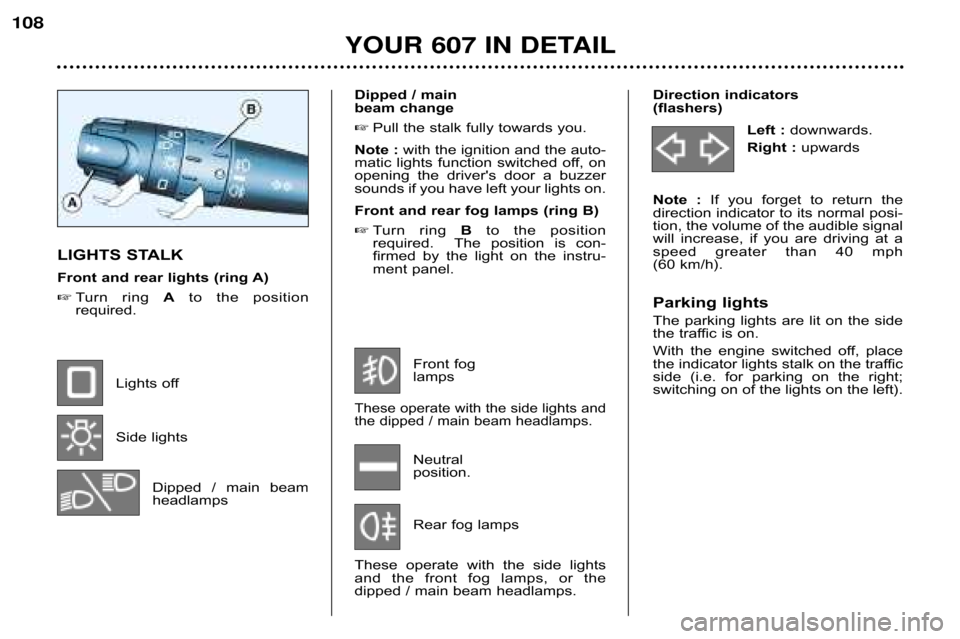

LIGHTS STALK
Front and rear lights (ring A) Turn ring Ato the position
required.
Lights off
Side lightsDipped / main beam
headlamps Dipped / main
beam change
Pull the stalk fully towards you.
Note : with the ignition and the auto
matic lights function switched off, on
opening the driver's door a buzzer
sounds if you have left your lights on.
Front and rear fog lamps (ring B)
Turn ring Bto the position
required. The position is con
firmed by the light on the instru
ment panel.
Front fog
lamps
These operate with the side lights and
the dipped / main beam headlamps.
Neutral
position.
Rear fog lamps
These operate with the side lights
and the front fog lamps, or the
dipped / main beam headlamps. Direction indicators
(flashers)
Left : downwards.
Right : upwards
Note : If you forget to return the
direction indicator to its normal posi
tion, the volume of the audible signal
will increase, if you are driving at a
speed greater than 40 mph
(60 km/h).
Parking lights
The parking lights are lit on the side
the traffic is on.
With the engine switched off, place
the indicator lights stalk on the traffic
side (i.e. for parking on the right;
switching on of the lights on the left).
