YOUR 607 IN DETAIL93
THE SEATS

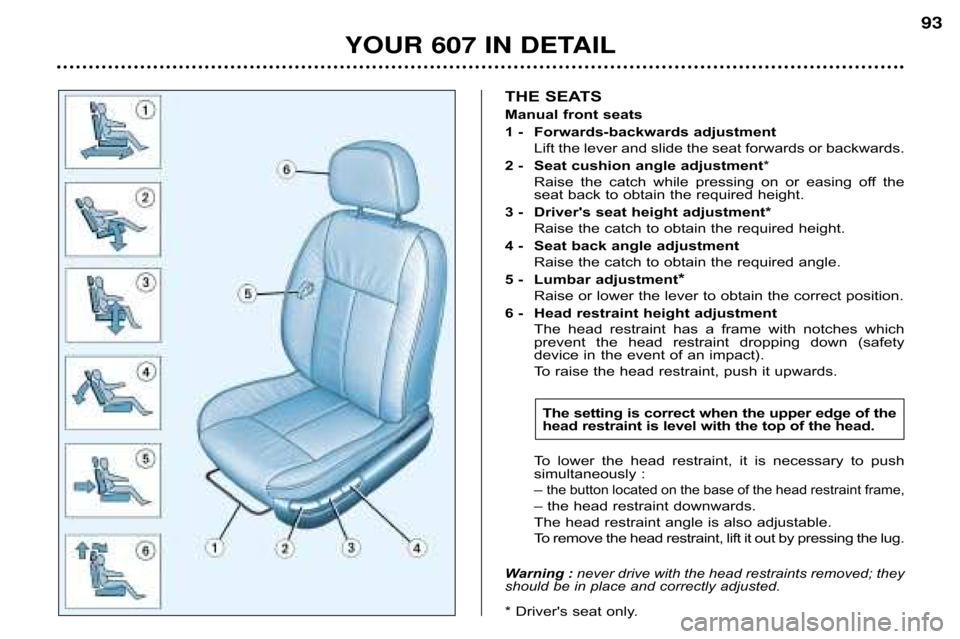

Manual front seats
1 Forwardsbackwards adjustment
Lift the lever and slide the seat forwards or backwards.
2 Seat cushion angle adjustment *
Raise the catch while pressing on or easing off the
seat back to obtain the required height.
3 Driver's seat height adjustment* Raise the catch to obtain the required height.
4 Seat back angle adjustment Raise the catch to obtain the required angle.
5 Lumbar adjustment *
Raise or lower the lever to obtain the correct position.
6 Head restraint height adjustment The head restraint has a frame with notches which
prevent the head restraint dropping down (safety
device in the event of an impact).
To raise the head restraint, push it upwards.
The setting is correct when the upper edge of the
head restraint is level with the top of the head.
To lower the head restraint, it is necessary to push
simultaneously :
–
the button located on the base of the head restraint frame ,
– the head restraint downwards.
The head restraint angle is also adjustable.
To remove the head restraint, lift it out by pressing the lug.
Warning : never drive with the head restraints removed; they
should be in place and correctly adjusted.
* Driver's seat only.

YOUR 607 IN DETAIL
94

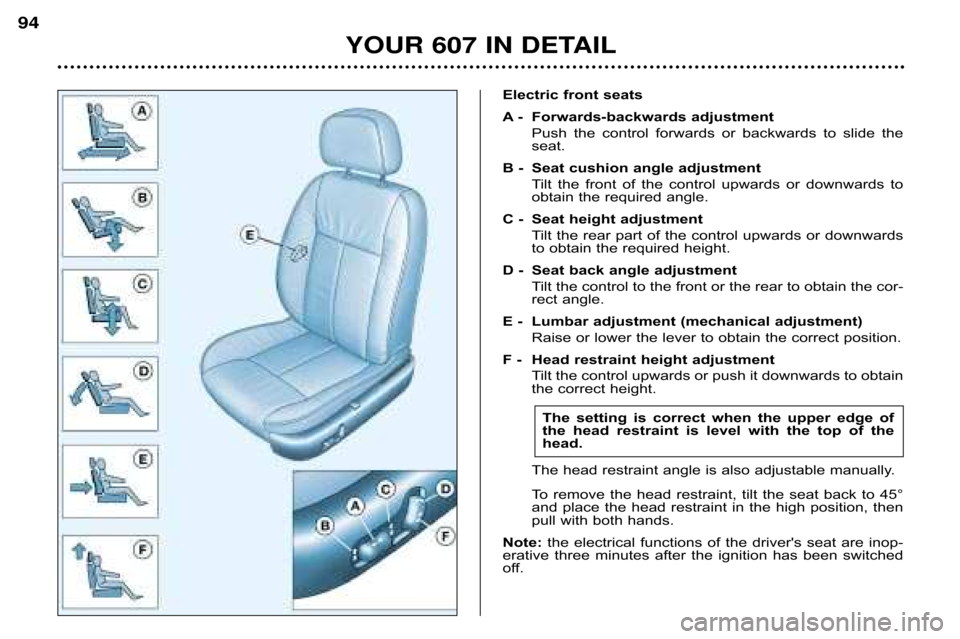

Electric front seats
A Forwardsbackwards adjustment
Push the control forwards or backwards to slide the
seat.
B Seat cushion angle adjustment Tilt the front of the control upwards or downwards to
obtain the required angle.
C Seat height adjustment Tilt the rear part of the control upwards or downwards
to obtain the required height.
D Seat back angle adjustment Tilt the control to the front or the rear to obtain the co r
rect angle.
E Lumbar adjustment (mechanical adjustment) Raise or lower the lever to obtain the correct position.
F Head restraint height adjustment Tilt the control upwards or push it downwards to obtain
the correct height.
The setting is correct when the upper edge of
the head restraint is level with the top of the
head.
The head restraint angle is also adjustable manually.
To remove the head restraint, tilt the seat back to 45°
and place the head restraint in the high position, then
pull with both hands.
Note: the electrical functions of the driver's seat are inop
erative three minutes after the ignition has been switched
off.

YOUR 607 IN DETAIL95

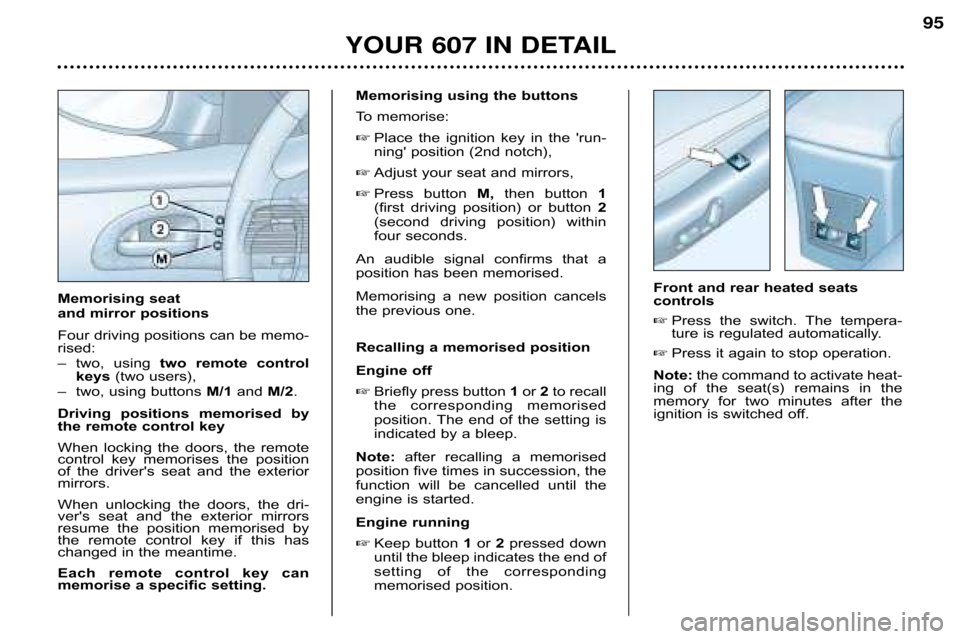

Memorising using the buttons
To memorise:
 Place the ignition key in the 'run
ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) within
four seconds.
An audible signal confirms that a
position has been memorised.
Memorising a new position cancels
the previous one.
Recalling a memorised position
Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting is
indicated by a bleep.
Note: after recalling a memorised
position five times in succession, the
function will be cancelled until the
engine is started.
Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of
setting of the corresponding
memorised position.
Memorising seat
and mirror positions
Four driving positions can be memo
rised:
– two, using two remote control
keys (two users),
– two, using buttons M/1 and M/2.
Driving positions memorised by
the remote control key
When locking the doors, the remote
control key memorises the position
of the driver's seat and the exterior
mirrors.
When unlocking the doors, the dri
ver's seat and the exterior mirrors
resume the position memorised by
the remote control key if this has
changed in the meantime.
Each remote control key can
memorise a specific setting. Front and rear heated seats
controls
 Press the switch. The tempera
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat
ing of the seat(s) remains in the
memory for two minutes after the
ignition is switched off.

YOUR 607 IN DETAIL
94
Electric front seats
A Forwardsbackwards adjustment
Push the control forwards or backwards to slide the
seat.
B Seat cushion angle adjustment Tilt the front of the control upwards or downwards to
obtain the required angle.
C Seat height adjustment Tilt the rear part of the control upwards or downwards
to obtain the required height.
D Seat back angle adjustment Tilt the control to the front or the rear to obtain the co r
rect angle.
E Lumbar adjustment (mechanical adjustment) Raise or lower the lever to obtain the correct position.
F Head restraint height adjustment Tilt the control upwards or push it downwards to obtain
the correct height.
The setting is correct when the upper edge of
the head restraint is level with the top of the
head.
The head restraint angle is also adjustable manually.
To remove the head restraint, tilt the seat back to 45°
and place the head restraint in the high position, then
pull with both hands.
Note: the electrical functions of the driver's seat are inop
erative three minutes after the ignition has been switched
off.

YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run
ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) within
four seconds.
An audible signal confirms that a
position has been memorised.
Memorising a new position cancels
the previous one.
Recalling a memorised position
Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting is
indicated by a bleep.
Note: after recalling a memorised
position five times in succession, the
function will be cancelled until the
engine is started.
Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of
setting of the corresponding
memorised position.
Memorising seat
and mirror positions
Four driving positions can be memo
rised:
– two, using two remote control
keys (two users),
– two, using buttons M/1 and M/2.
Driving positions memorised by
the remote control key
When locking the doors, the remote
control key memorises the position
of the driver's seat and the exterior
mirrors.
When unlocking the doors, the dri
ver's seat and the exterior mirrors
resume the position memorised by
the remote control key if this has
changed in the meantime.
Each remote control key can
memorise a specific setting. Front and rear heated seats
controls
 Press the switch. The tempera
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat
ing of the seat(s) remains in the
memory for two minutes after the
ignition is switched off.

YOUR 607 IN DETAIL
96

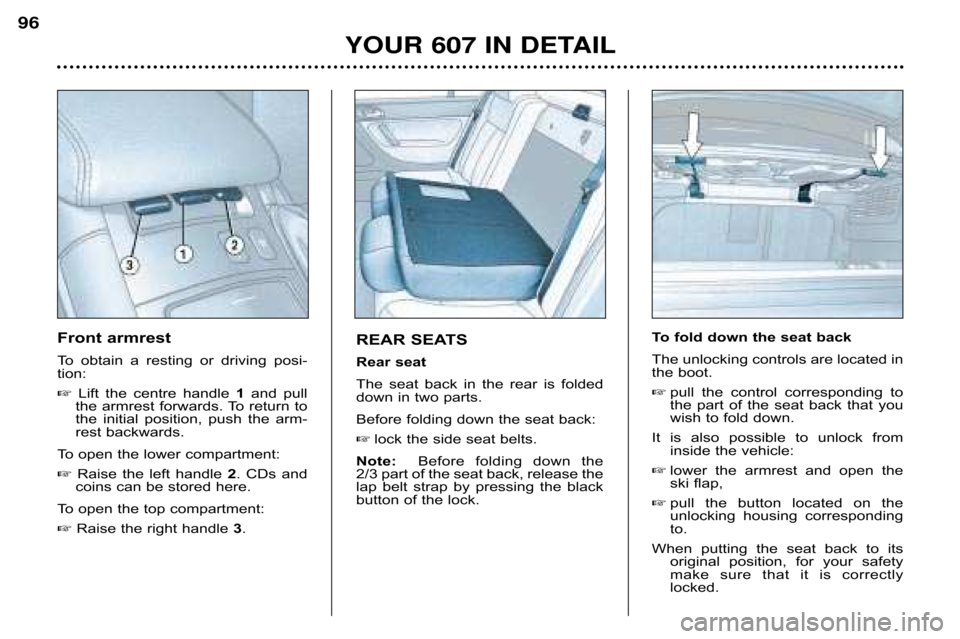

REAR SEATS
Rear seat
The seat back in the rear is folded
down in two parts.
Before folding down the seat back:
 lock the side seat belts.
Note: Before folding down the
2/3 part of the seat back, release the
lap belt strap by pressing the black
button of the lock.
Front armrest
To obtain a resting or driving posi
tion:
 Lift the centre handle 1and pull
the armrest forwards. To return to
the initial position, push the arm
rest backwards.
To open the lower compartment:  Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment:  Raise the right handle 3.To fold down the seat back
The unlocking controls are located in
the boot.
 pull the control corresponding to
the part of the seat back that you
wish to fold down.
It is also possible to unlock from inside the vehicle:
 lower the armrest and open the
ski flap,
 pull the button located on the
unlocking housing corresponding
to.
When putting the seat back to its original position, for your safety
make sure that it is correctly
locked.

YOUR 607 IN DETAIL97

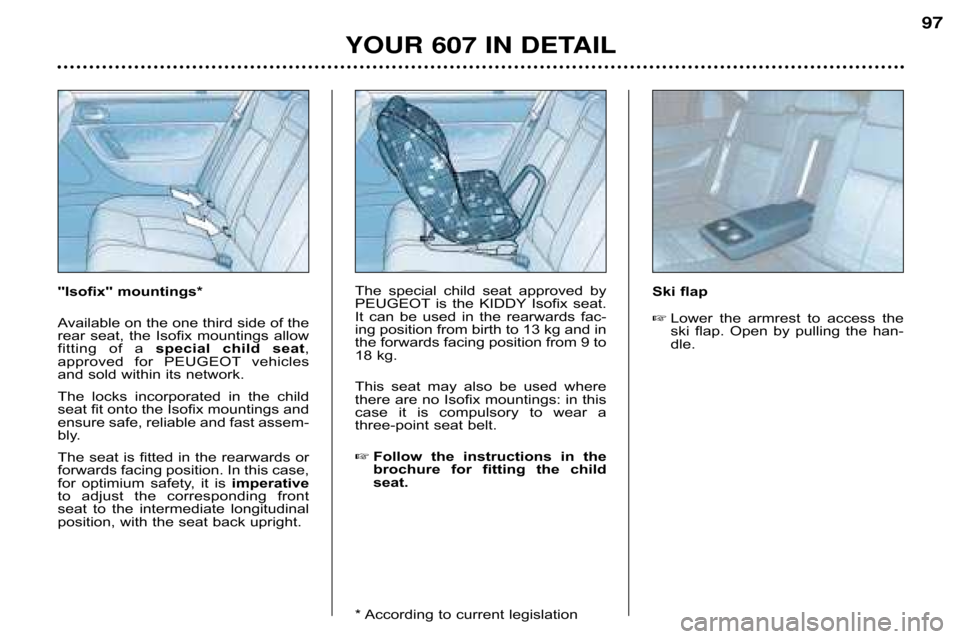

''Isofix'' mountings*
Available on the one third side of the
rear seat, the Isofix mountings allow
fitting of a
special child seat ,
approved for PEUGEOT vehicles
and sold within its network.
The locks incorporated in the child
seat fit onto the Isofix mountings and
ensure safe, reliable and fast assem
bly.
The seat is fitted in the rearwards or
forwards facing position. In this case,
for optimium safety, it is imperative
to adjust the corresponding front
seat to the intermediate longitudinal
position, with the seat back upright. Ski flap
 Lower the armrest to access the
ski flap. Open by pulling the han
dle. The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.
It can be used in the rearwards fac
ing position from birth to 13 kg and in
the forwards facing position from 9 to
18 kg.
This seat may also be used where
there are no Isofix mountings: in this
case it is compulsory to wear a
threepoint seat belt.
 Follow the instructions in the
brochure for fitting the child
seat.
* According to current legislation

YOUR 607 IN DETAIL
98
CHILD SEATS
Although one of PEUGEOT's main concerns when designing your vehicl
e, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
– All children under the age of 10 must travel in a special app roved child seat*, adapted to their weight, in a seat fitted with
a seat belt.
– Front passenger seat*: children under the age of 10 must not travel in the forwards facing position**.
The rearwards facing position is permitted. In this position i t is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems:
Up to 18 months (up to 13 kg)
" Römer Babysure": installed with its back to the engine in the front or in the rear using a threepoint seat belt.
In the front, the passenger seat must be in the 'midway' posi tion on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Römer Prince": installed in the rear using a threepoint seat b elt.
For the safety of your child, the seat and the restraining cush ion must never be separated.
From 3 to 6 years (15 to 25 kg) "Römer Vario'': installed in the rear with a three point sea t belt.
* According to current legislation in the country of destinatio n.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing
or folded down). In this case, adjust the front passenger seat to the rear–most position and leave the air bag active.
1
2
3

YOUR 607 IN DETAIL99
Never leave a child or an
animal in a vehicle which
is exposed to the sun and
has the windows closed.
Never leave the keys within reach
of children inside the car.
Disarm the passenger air bag
when installing a rearwards or for
wards* facing child seat in the
front.
Observe strictly the recommenda
tions for assembling or attaching
the child seat as shown in the
child seat instructions.From 3 to 10 years (15 to 36 kg)
''Recaro start'': installed in the rear with a three–point seat belt.
The height and width of the seat back must be adjusted acco rding to the
age and the build of your child.
"Klippan Optima": installed in the rear with a three–point seat belt. From
the age of 6 years (approximately 22 kg), the booster is used on its own.
Remember, even for short journeys, to fasten the threepoint sea t belts or the
child seat straps, keeping the slack in relation to the child' s body to a mini
mum.
To prevent the doors from opening accidentally, use the child lock.
Also, do not open the rear windows more than a third.
* According to current legislation in the country of destinatio n.
4
5

YOUR 607 IN DETAIL
100

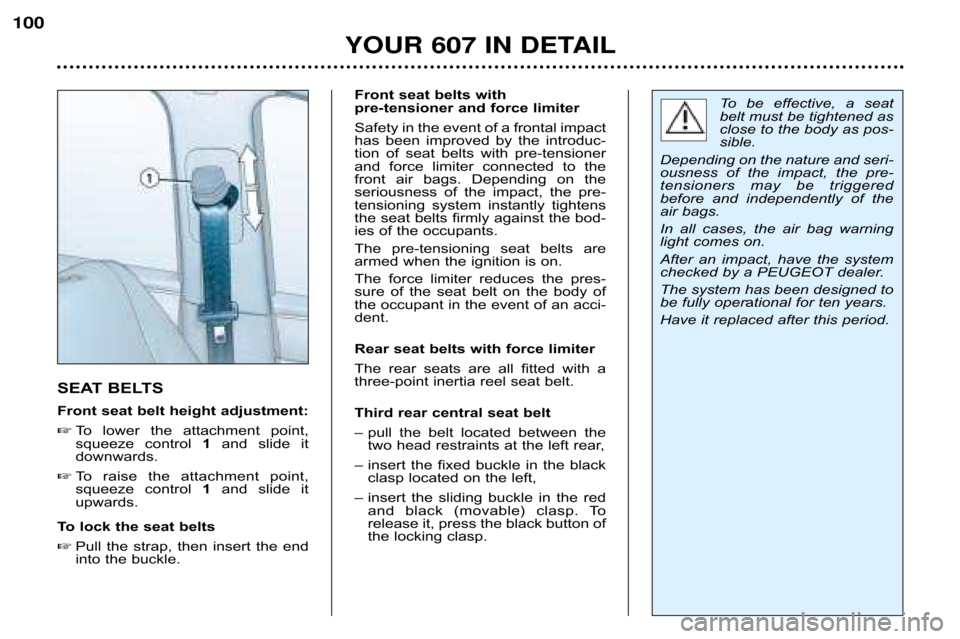

SEAT BELTS
Front seat belt height adjustment:
 To lower the attachment point,
squeeze control 1and slide it
downwards.
 To raise the attachment point,
squeeze control 1and slide it
upwards.
To lock the seat belts  Pull the strap, then insert the end
into the buckle. Front seat belts with
pretensioner and force limiter
Safety in the event of a frontal impact
has been improved by the introduc
tion of seat belts with pretensioner
and force limiter connected to the
front air bags. Depending on the
seriousness of the impact, the pre
tensioning system instantly tightens
the seat belts firmly against the bod
ies of the occupants.
The pretensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pres
sure of the seat belt on the body of
the occupant in the event of an acci
dent.
Rear seat belts with force limiter
The rear seats are all fitted with a
threepoint inertia reel seat belt.
Third rear central seat belt
– pull the belt located between the
two head restraints at the left rear,
– insert the fixed buckle in the black clasp located on the left,
– insert the sliding buckle in the red and black (movable) clasp. To
release it, press the black button of
the locking clasp.
To be effective, a seat
belt must be tightened as
close to the body as pos
sible.
Depending on the nature and seri
ousness of the impact, the pre
tensioners may be triggered
before and independently of the
air bags.
In all cases, the air bag warning
light comes on.
After an impact, have the system
checked by a PEUGEOT dealer.
The system has been designed to
be fully oper ational for ten years.
Have it replaced after this period.
