YOUR 607 IN DETAIL
83
Selecting a service
To select a service: • select the location. The last destination appears; you can
change it,
replace it with the current location, by confirmation of the corresponding button),
• select 'OK'to look at the list of services for the type and
location selected,
• select a type of service from the list (hotel, service sta tion, restaurant etc.)
• select 'OK' to activate guidance towards the service
selected. GPS details
Input the details of your destination location (longitude
and
latitude shown in degrees, minutes and seconds) to acti
vate guidance to this location.
Most recent destinations
With the dial, select the destination required from the li st,
then confirm.
Personal /Professional directory
Select one of the two directories to choose a destination
address from the list.

Map
The 'Map' context menu offers various possibilities for fol
lowing the route defined by the navigation:
– centering the vehicle,
– journey mode,
– zoom,
– selecting,
– navigation / guidance,
– map configuration,
– stopping / resuming guidance.
The guidance function offers two journey modes:
– manual mode (see 'Movement mode')
– automatic mode (see 'Centering the vehicle' ).Centering the vehicle
This function permits activation of the automatic map
movement mode. The map moves over the screen, follow
ing the direction of the vehicle. Depending on the pro
gramming, the top of the screen represents either the
North or the direction followed by the vehicle.
The vehicle is shown as a symbol in the centre of the
screen.
Movement mode
Press the dial so that the map moves in the direction
shown by the pointer. The pointer is in the centre of the
screen and the map slides underneath it.
Rotating the dial lets you select one of 16 different di
rec
tions (North, N/NE, NE, E/NE, East, E/SE, SE, S/SE,
South etc.).
When moving, it is possible to change the direction select
ed.
Zoom
This function allows the scale of the map displayed to be
enlarged or reduced.
Selecting
This function opens the screen which allows selection of
the destination on the map.
It enables guidance towards this destination to be activate d.
Navigation / guidance
This function allows you to return to the 'Navigation/
Guidance' application off the map.
YOUR 607 IN DETAIL
84

Map configuration
This function offers various possibilities to optimise and
enhance the display of the route:
– map orientation,
– type of services displayed,
– selection of scale.
Map orientation
This function allows orientation of the map to be selected:
North or according to the direction of the vehicle.
Note: the "vehicle orientation" option is only active if the
display scale is less than or equal to 1km.
Types of services displayed
This function allows the required service to be displayed.
From the list presented, select the service(s) required (for
insertion), the service(s) not required (for deletion), or
choose 'Any'(parking, hotel, restaurant, service station,
cinema...).
Changing the route
This function allows you, for example, to avoid a tailback
on the route which has been worked out.
Using the 'Navigation/Guidance' context menu, or by
holding down the last voice message recall control, you
can introduce a change to the route that had been worked
out, at any time during guidance.
This change occurs on the stretch between your present
position and a point located at a distance which has to b e
input, using the initial route.
Enter a distance between 1 and 10 km, using the alphanu
meric keypad, then confirm.
The system takes this change into account and suggests
new guidance, having invalidated the section selected. Details of the route
At all times during guidance, the submenu
'Details of the
route' gives you access to the following functions:
– destination selected,
– see the places to be travelled through (display of roads, streets and towns to be passed),
– see the route on the map (change to map display).
A pointer located on the side indicates your position in rela
tion to the route.
Geographical information
The submenu 'Geographical information' presents the
GPS information regarding the position of the vehicle.
YOUR 607 IN DETAIL
85

Guidance options
The submenu 'Guidance options' offers various possibil
ities for improving guidance:
– calculation criteria,
– voice synthesis adjustment,
– managing the directories,
– clearing the directories.
Calculation criteria
Select the criteria which interest you from the proposed list,
then confirm.
When the criteria of your choice have been selected,

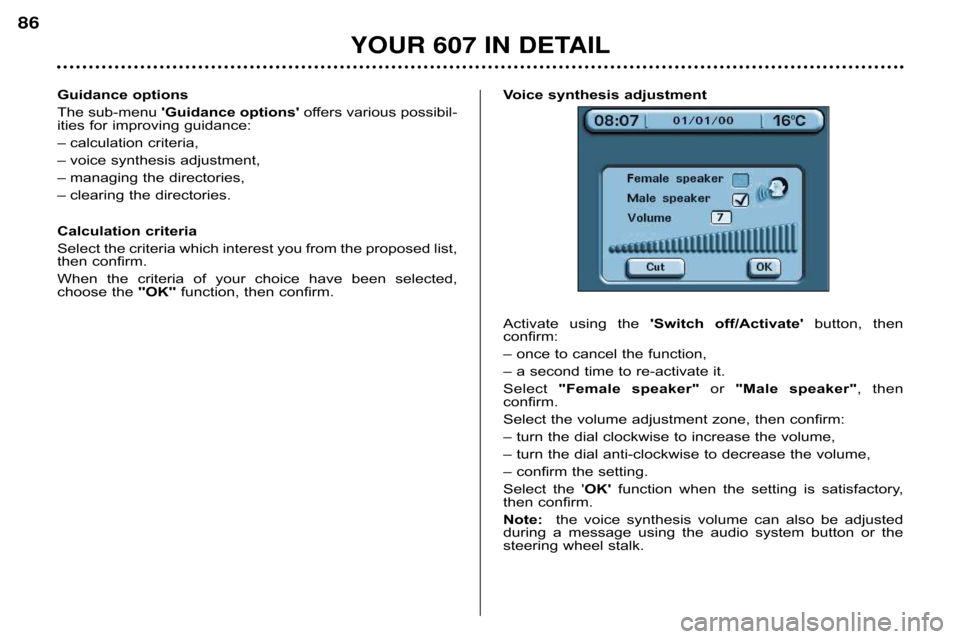

choose the ''OK''function, then confirm. Voice synthesis adjustment
Activate using the
'Switch off/Activate' button, then
confirm:
– once to cancel the function,
– a second time to reactivate it.
Select "Female speaker" or "Male speaker" , then
confirm.
Select the volume adjustment zone, then confirm:
– turn the dial clockwise to increase the volume,
– turn the dial anticlockwise to decrease the volume,
– confirm the setting.
Select the ' OK' function when the setting is satisfactory,
then confirm.
Note: the voice synthesis volume can also be adjusted
during a message using the audio system button or the
steering wheel stalk.
YOUR 607 IN DETAIL
86

Managing the directories
This allows a stored address to be renamed or deleted, by
selecting the directory then the details to be modified.
Select the 'Delete'function, then confirm, to delete the
selected address in the chosen directory.
Select the 'Rename'function, then confirm, to change the
wording of the address.
Select the 'OK' function to record the modifications made.
Clearing the directories
Select the directory to be cleared, or all data for all the
directories, then confirm. Stopping/resuming guidance
– Stopping guidance
During guidance, select this function, then confirm.
The guidance will then be interrupted.
– Resuming guidance
In the absence of guidance, select this function, then
confirm, to activate guidance to the last destination
programmed.
YOUR 607 IN DETAIL
87

YOUR 607 IN DETAIL
88

YOUR 607 IN DETAIL89

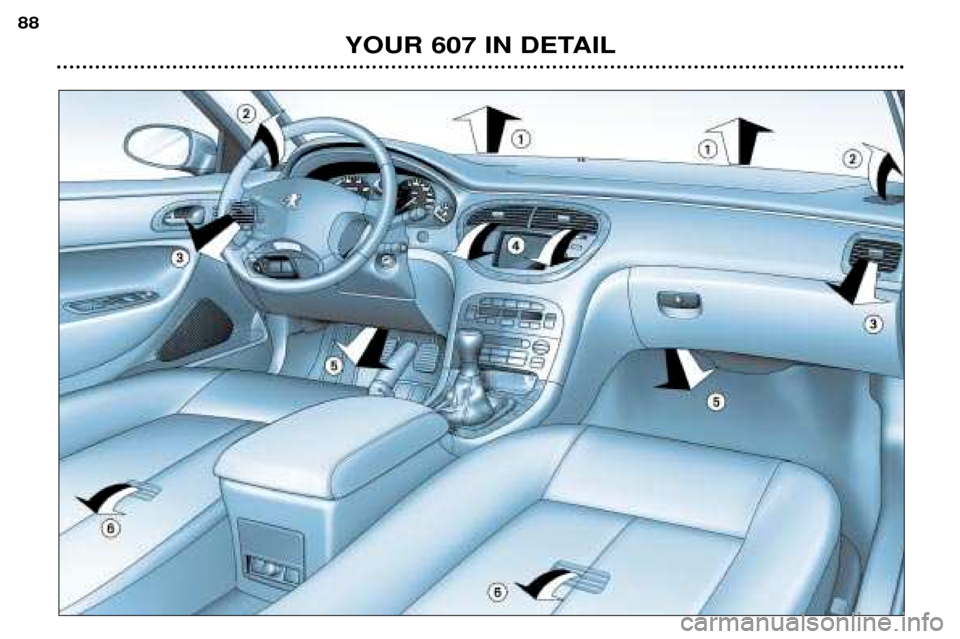

VENTILATION
1
Windscreen deicing or demisting vents
2 Front window deicing or demisting vents
3 Side vents
4 Centre vents
5 Air outlet to the front passengers' feet
6 Air outlet to the rear passengers' feet
Recommendations for use
For an even air distribution, make sure that you do not obstruct the air inlet grille at the base of the windscreen, the vents,
the air passages under the front seats and the air extractor in the boot.

YOUR 607 IN DETAIL
90
1 Driver's side
adjustment
2 Passenger's side adjustment
The required value is
displayed (from 15 to
30: comfort value = 22).
 Press the corresponding top and
bottom arrows to adjust.
3 Driver comfortprogramme
4 Passenger comfort
programme
 Press the 'AUTO'button(s).
The system adjusts automatically to
the required value .
It also controls the air distribution,
flow and intake so that there is suffi
cient air circulation in the passenger
compartment.
The air flow (fan) symbol and the
'AUTO' symbols are displayed.
Note: when programme 5or function
11 (following pages) are being used,
the 'AUTO' passenger button does
not operate; it causes temporary
flashing of button 5or 11 indicator
light.
AUTOMATIC AIR CONDITIONING
Located on the centre console, the control panel is between
the multifunction
display and the audio system.
The driver and front passenger can each adjust the temperature a nd the air dis
tribution, to suit their requirements.
Do not cover the sunshine / brightness sensor located i n the centre of the
fascia. It helps to regulate the air conditioning, automati c switching on of
the lights and the automatic adjustment of the instrument pane l bright
ness.

YOUR 607 IN DETAIL91
Manual adjustment Y
ou may, if you wish, make a differ
ent selection from the one offered by
the system, by manually modifying a
setting.
 Pressing the 'AUTO'driver or
passenger button enables you to
return to the corresponding auto
matic operation.

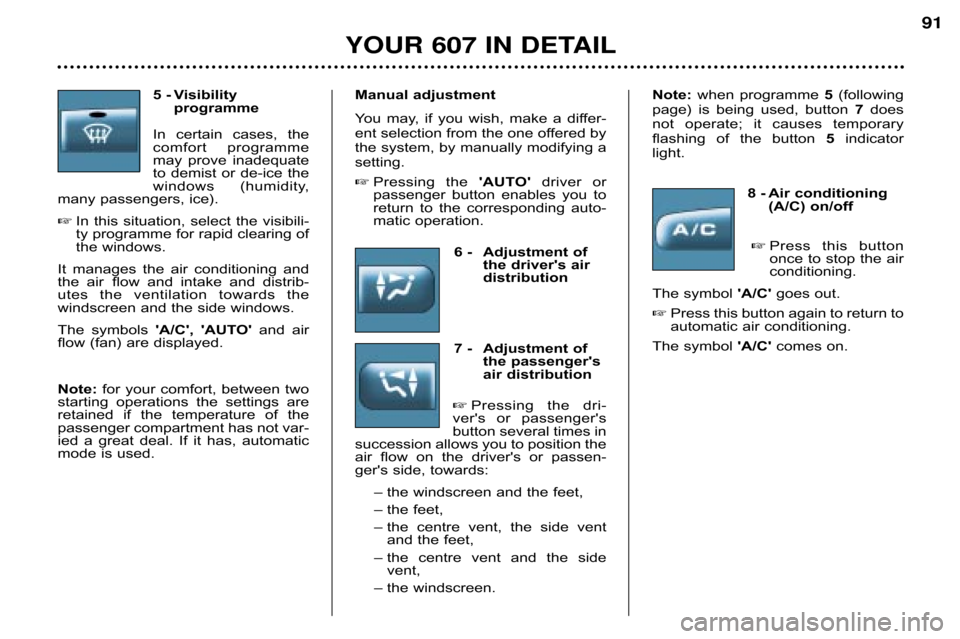

6 Adjustment ofthe driver's air
distribution
7 Adjustment of the passenger's
air distribution
 Pressing the dri
ver's or passenger's
button several times in
succession allows you to position the
air flow on the driver's or passen
ger's side, towards:
– the windscreen and the feet,
– the feet,
– the centre vent, the side ventand the feet,
– the centre vent and the side vent,
– the windscreen. Note:
when programme 5(following
page) is being used, button 7does
not operate; it causes temporary
flashing of the button 5indicator
light.
8 Air conditioning (A/C) on/off
 Press this button
once to stop the air
conditioning.
The symbol 'A/C'goes out.
 Press this button again to return to
automatic air conditioning.
The symbol 'A/C' comes on.
5 Visibility
programme
In certain cases, the
comfort programme
may prove inadequate
to demist or deice the
windows (humidity,
many passengers, ice).
 In this situation, select the visibili
ty programme for rapid clearing of
the windows.
It manages the air conditioning and
the air flow and intake and distrib
utes the ventilation towards the
windscreen and the side windows.
The symbols 'A/C', 'AUTO' and air
flow (fan) are displayed.
Note: for your comfort, between two
starting operations the settings are
retained if the temperature of the
passenger compartment has not var
ied a great deal. If it has, automatic
mode is used.

Flashing of the points in
the temperature setting
values indicates that
there is a malfunction of
the air conditioning. Contact your
Peugeot dealer.
11 Air intake/Recir
culation
 Press this button to
recirculate the inte
rior air.
Recirculation insulates
the passenger com
partment from outside smells and
smoke.
Avoid prolonged operation of inte
rior air recirculation (risk of con
densation and deterioration of air
quality).
 Press this button again to return
air intake to automatic control.
YOUR 607 IN DETAIL
92
12 Demisting the
rear screen
 Press this button,
with the engine
running, to demist
the rear screen and
the mirrors.
Demisting stops automatically after
fifteen minutes.  Press again to resume demisting.
If the engine is switched off before
the end of the fifteen minutes,
demisting will resume when the
engine is switched on again.
Note: it is possible to stop demisting
before it goes off automatically, by
pressing the button again.
Note: the condensation created by
the air conditioning system causes a
flow of water under the vehicle when

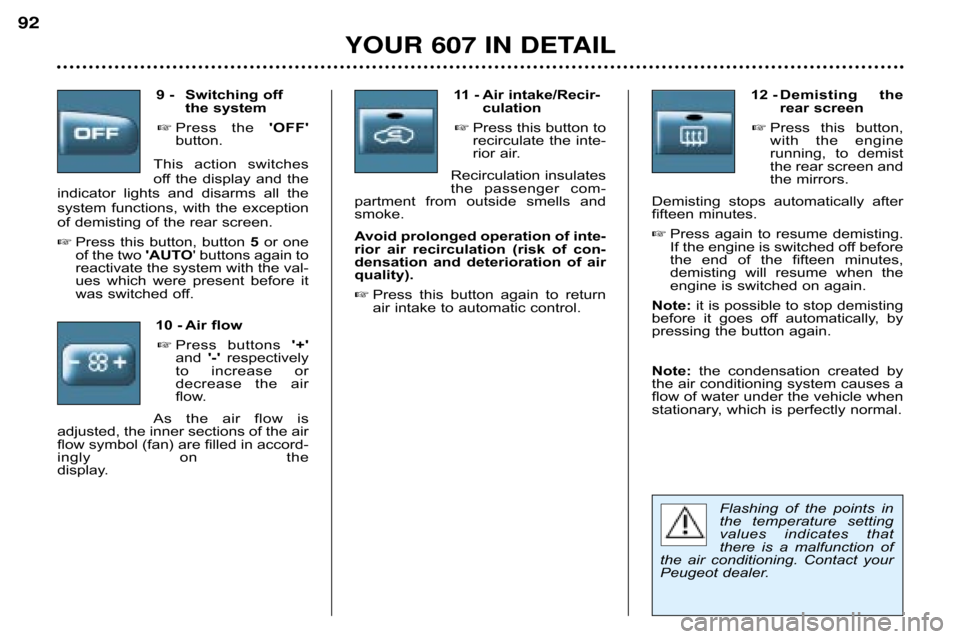

stationary, which is perfectly normal.9 Switching off the system
 Press the 'OFF'
button.
This action switches
off the display and the
indicator lights and disarms all the
system functions, with the exception
of demisting of the rear screen.
 Press this button, button 5or one
of the two 'AUTO' buttons again to
reactivate the system with the val
ues which were present before it
was switched off.
10 Air flow Press buttons '+'
and ''respectively
to increase or
decrease the air
flow.
As the air flow is
adjusted, the inner sections of the air
flow symbol (fan) are filled in accord
ingly on the
display.
