PEUGEOT SERVICING 25
Level
Operations Description of operation 1st service
A C Intermediate
DRAIN/REFILL Engine oil Bleed fuel filter (diesel) Oil filter Fuel filter
*(petrol)REPLACE Fuel filter element (diesel) Air filter element Spark plugs (petrol) Engine oil (check + topup) Manual gearbox oil (check + topup) Battery (check + topup) if cap is removableLEVEL Screen wash (check + topup) Coolant (check + topup) Brake fluid (check + topup) Power steering fluid (check + top up according to specification ) Operation of lights and indicators Condition of glass, headlamp and light lenses and mirrors Horn Windscreen washer jets Condition of wiper blades Condition and tension of the ancillary drive belts Handbrake Condition of hydraulic circuits (hoses and covers)CHECK Condition of rubber boots and gaiters Brake pads o Play in hubs, link rods, ball joints, flexible mountings Shock absorbers Rear drum brake lining wear Condition and pressure of tyres (including spare wheel) Emission control check as per current legislation (petrol) Smoke opacity (diesel) Pollen filter (according to specification)o
Visual check of the whole vehicle


: All driving conditions o: Arduous conditions * According to destination
SERVICE
ROAD TEST
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Courtesy vehicle

DIESEL
PETROL
26
(1) Minimum grade: Petrol engines: ACEA A3 and API SH/SJ; diesel engi nes: ACEA B3 and API CF/CD ACEA = Association de Constructeurs Européens Automobiles (Association of European Automobile Manufacturers) API = American Petroleum Institute
If oil is used which does not conform to ACEA A3B3 standard, this requires the 'Arduous conditions' servicing schedule to be followed, which involves shorter intervals between services.
Use only 5W 40 oil for diesel engines with particulate emissi on filter.
* Fuel Economy oil cannot be used for the 2.2 l 16V petrol e ngine and for diesel engines with particulate emission filter.

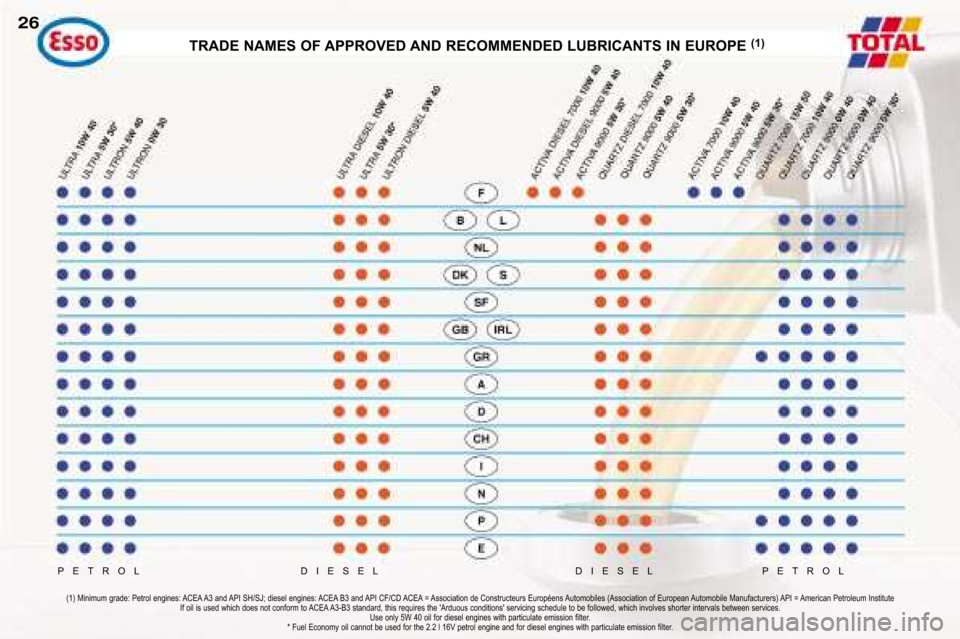

TRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)
DIESEL PETROL

27
Recommendation for
approved lubricants
The oils which appear in the table
opposite are suitable for most pur
poses.

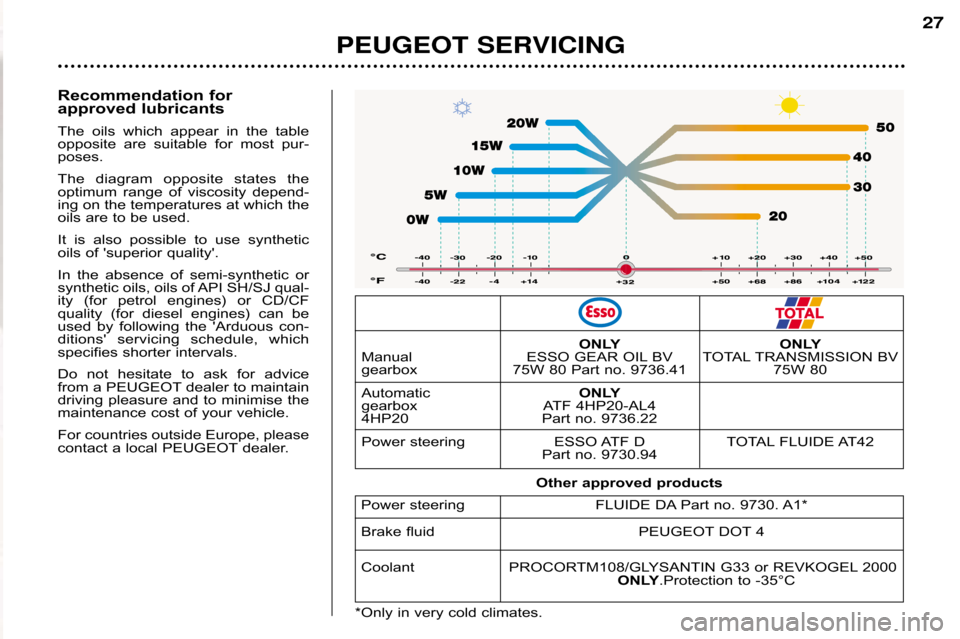

The diagram opposite states the
optimum range of viscosity depend
ing on the temperatures at which the
oils are to be used.
It is also possible to use synthetic
oils of 'superior quality'.
In the absence of semisynthetic or
synthetic oils, oils of API SH/SJ qual
ity (for petrol engines) or CD/CF
quality (for diesel engines) can be
used by following the 'Arduous con
ditions' servicing schedule, which
specifies shorter intervals.
Do not hesitate to ask for advice
from a PEUGEOT dealer to maintain
driving pleasure and to minimise the
maintenance cost of your vehicle.
For countries outside Europe, please
contact a local PEUGEOT dealer.
TOTAL
ONLY ONLY
Manual ESSO GEAR OIL BV TOTAL TRANSMISSION BV
gearbox 75W 80 Part no. 9736.41 75W 80
Automatic ONLY
gearbox ATF 4HP20AL4
4HP20 Part no. 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 Part no. 9730.94
Power steering FLUIDE DA Part no. 9730. A1*
Brake fluid PEUGEOT DOT 4
Coolant PROCORTM108/GLYSANTIN G33 or REVKOGEL 2000 ONLY.Protection to 35°C
*Only in very cold climates. Other approved products
PEUGEOT SERVICING

INSTRUMENTS AND CONTROLS
28

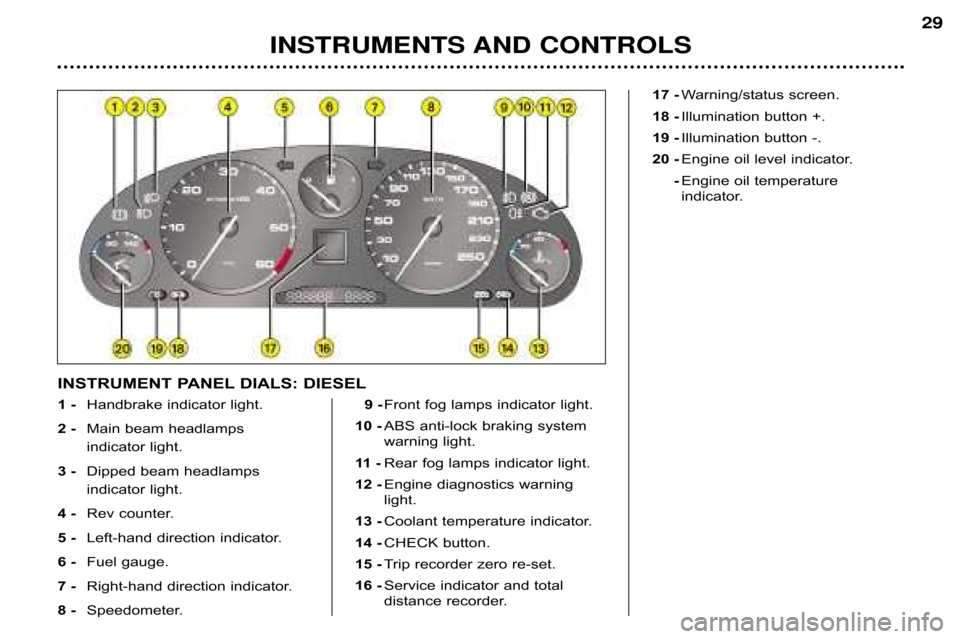

1 Handbrake indicator light.
2 Main beam headlamps indicator
light.
3 Dipped beam headlamps
indicator light.
4 Rev counter.
5 Lefthand direction indicator.
6 Fuel gauge.
7 Righthand direction indicator.
8 Speedometer. 9
Front fog lamps indicator light.
10 ABS antilock braking system
warning light.
11 Rear fog lamps indicator light.
12 Engine diagnostics warning
light.
13 Coolant temperature indicator.
14 CHECK button.
15 Trip recorder zero reset.
16 Service indicator and total
distance recorder. 17
Warning/status screen.
18 Illumination button +.
19 Illumination button .
20 Engine oil level indicator.
Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: PETROL

INSTRUMENTS AND CONTROLS29
1
Handbrake indicator light.
2 Main beam headlamps
indicator light.
3 Dipped beam headlamps
indicator light.
4 Rev counter.
5 Lefthand direction indicator.
6 Fuel gauge.
7 Righthand direction indicator.
8 Speedometer. 9 Front fog lamps indicator light.
10
ABS antilock braking system
warning light.
11 Rear fog lamps indicator light.
12 Engine diagnostics warning
light.
13 Coolant temperature indicator.
14 CHECK button.
15 Trip recorder zero reset.
16 Service indicator and total
distance recorder. 17
Warning/status screen.
18 Illumination button +.
19 Illumination button .
20 Engine oil level indicator.
20Engine oil temperature
indicator.
INSTRUMENT PANEL DIALS: DIESEL

INSTRUMENTS AND CONTROLS
30
INDICATOR LIGHTS
With the key in the accessories position (1st notch): the batte
ry charge warning light illuminates on the instrument panel display.
With the ignition on (2nd notch): the following three warning lights illuminate on the sides of the instrument panel:
Brake fluid level and brake force distribution fault warning light.
This light should go out after 3 seconds.
If the warning light remains on, or if it comes on when the engine is running and the vehicle is moving, it indicates
an excessive drop in the brake fluid level or a malfunction of the brake force distribution.
Stop immediately. Contact a PEUGEOT dealer.
Antilock braking system (ABS) warning light
This should go out after 3 seconds.
If the warning light remains on or comes on above 8 mph (12 km/h ), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servoassisted braking.
Contact a PEUGEOT dealer.
Engine diagnostics warning light
This should go out 3 seconds after the engine starts.
If it flashes with the engine running, this indicates a ma lfunction in the injection or the ignition system. There is a
risk of damage to the catalytic converter (petrol engine only).
If it is on continuously, this indicates a fault in the e mission control system.
Contact a PEUGEOT dealer as soon as possible.
At the same time, on the instrument panel display: If no malfunction has been detected: the OK light comes on after two seconds (following a black screen), in t he
absence of indicator lights showing the status of vehicle fun ctions. If these indicator lights are present, the OKbut
ton will come on after these. You may start your vehicle.
If a 'minor' malfunction has been detected: the warning light for the faulty function comes on. Certain indicator
lights showing the status of vehicle functions may also come on, followed by the OKindicator light. You can start
your vehicle; however, contact a PEUGEOT dealer as soon as possible.
If a 'major' malfunction has been detected: the corresponding warning light comes on. Certain indicator li ghts showing
the status of vehicle functions may also come on. The OKindicator light does not come on. Do not start your vehicle.
Contact a PEUGEOT dealer.
Afterwards, if the passenger air bag is disarmed, the co rresponding indicator light will come on.

INSTRUMENTS AND CONTROLS31
Coolant temperature warning light
This symbol is accompanied by an audible signal and the message
'Engine temperature too high'
on the multifunction display.
It is linked to the STOPwarning light. Stop immediately.
Warning: wait for the engine to cool.
If necessary, top up the level.
With the engine running and the vehicle moving
The instrument panel display temporarily shows:
– lights indicating warnings, when these occur,
– vehicle function status indicator lights, when a change occu rs.
Certain warning lights may be accompanied by an audib le signal and a
message on the multifunction display.
List of warning symbols MANUAL CHECK
(vehicle autotest)
 Press the "CHECK"button on
the instrument panel.
With the ignition key in the acces
sories position, with the ignition
switched on, with the engine running
or when the vehicle is moving, this
function informs you at all times of
the following: – any current warnings,
– the status of functions which it is possible to switch on or off (wind
screen wipers, automatic switch
ing on of lights, cruise control, dis
arming of passenger air bag, etc.).
The corresponding warning lights
are displayed in succession on the
instrument panel screen.
If a warning or a change of status
occurs during the CHECKmode, the
corresponding indicator lights will be
displayed at the end of this mode.
CHECK mode entry indi
cator light (vehicle
autotest)
This comes on when you
press the 'CHECK' button.
CHECK mode exit indica
tor light (vehicle autotest)
This comes on at the end of
the CHECK mode.
Engine oil pressure warning light
This symbol is accompanied by an audible signal and the message
'Insufficient engine oil pressure' or 'Engine oil pressure too low' on
the multifunction display.
It is linked to the STOPwarning light.
Stop immediately if this comes on when the engine is running.
If there is a lack of oil in the lubrication circuit, top up the level.
Contact a PEUGEOT dealer as soon as possible.
Puncture warning light
This symbol comes on accompanied by an audible signal and the me s
sage 'Punctured tyre(s) detected' on the multifunction display.
It is linked to the STOPwarning light. Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS
32
STOP warning light
This comes on after the
engine oil pressure, coolant temperature orpuncture warning lights, to which it is linked.
Stop immediately. Contact a PEUGEOT dealer.
Brake fluid level and brake force distribution fault warn ing light
This is linked to the light on the instrument panel.
Display of this warning light accompaned by an audible signa l and the message 'Brake fluid low'indicates an
excessive drop in the brake fluid level.
Display of this warning light, accompanied by an audible sig nal and the message 'Braking system faulty' on the multifunc
tion display indicates a malfunction of the brake force distrib ution system.
Stop immediately in both cases. Contact a PEUGEOT dealer.
Dynamic stability control (ESP/ASR) warning light
Display of this warning light, accompanied by an audible sig nal and the message 'ESP/ASR system faulty' on the
multifunction display indicates a system malfunction.
Contact a PEUGEOT dealer.
Handbrake warning light
Display of this warning light, accompanied by an audible sig nal (vehicle moving) and the message 'Handbrake on'
on the multifunction display, indicates that the handbrake is applied or has not been released correctly.
Battery charge warning light
This comes on each time the ignition key is in the accessories posi tion (1st notch).
Display of this warning light when the engine is running is accompanied by an audible signal and the message 'Bat
tery charge fault' on the multifunction display.
This can indicate:
– faulty operation of the charging circuit,
– loose battery or starter terminals,
– a cut or slack alternator belt,
– an alternator fault.
Contact a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS33
Tyre underinflation warning light
Display of this warning light is acompanied by an audible si
gnal and the message 'Tyre(s) pressure low' on the
multifunction display.
Have the tyre pressure checked as soon as possible.
Low coolant level warning light
Display of this warning light is accompanied by an audible si gnal and the message 'Cooling circuit level low' on
the multifunction display .
Stop immediately.
Warning: wait for the engine to cool before topping up.
The cooling system is pressurised.
In the event of breakdown and to prevent the risk of scalding , unscrew the cap by two turns to allow the pressure to drop.
When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light
Display of this warning light is accompanied by an audible si gnal and the message 'Seat belt not fastened' on the
multifunction display.
With the engine running, the warning light comes on when the driver's seat belt is unfastened.
Electronic immobiliser warning light
Display of this warning light is accompanied by an audible si gnal and the message 'Electronic theft protection
faulty' on the multifunction display.
It indicates a malfunction of the electronic immobiliser system.
Contact a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS
34
Water in diesel filter warning light (according to country
)
Display of this warning light is accompanied by an audible si gnal and the message 'Water in diesel filter' on the
multifunction display.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.
Front brake pad wear warning light
Display of this warning light is accompanied by an audible si gnal and the message 'Brake pads worn'on the multi
function display.
For your safety, have the pads replaced by a PEUGEOT dealer as soon as the warning light comes on.
Low fuel level warning light
Display of this warning light is accompanied by an audible si gnal and the message 'Fuel level low'on the multi
function display.
When the warning light comes on, you have enough fuel to drive approximately 30 miles (50 km). The tank capac
ity is approximately 80 litres.
Fuel cap warning light
Display of this warning light is accompanied by an audible si gnal and the message 'Fuel cap open'on the multi
function display.
It comes on if the fuel tank cap is not correctly screwed on or is missing.
Door/bonnet/boot open warning light
Display of this warning light with the engine running is accompanied by an audible signal and an illustration on th e
multifunction display, showing which opening has not been correctly closed.
Air bag warning light
Display of this warning light is accompanied by an audible si gnal and the message 'Air bag faulty'on the multi
function display.
Contact your PEUGEOT dealer.
