Peugeot 607 Dag 2002 Workshop Manual

YOUR 607 IN DETAIL55
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in 'LO' sensitivity (selection of the most powerful transmitters) during scann ing of the
waveband, then in 'DX' sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in 'DX'sensitivity, briefly press button M or Ltwice.
Manual station search Press the 'MAN'button.
Briefly press button Mor Lto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
The searching stops at the first station found as soon as the button is released.
Pressing the 'MAN' button again returns you to automatic station search.
Manual storing of stations in the memory
Select the station required.
Press one of the buttons '1'to '6' for more than two seconds.
The sound stops, then becomes audible again, confirming that the station has been stored in the memory.
RM2
RT2

YOUR 607 IN DETAIL
56
Automatic storing of FM stations in the memory (autostore) Press button Bfor more than two seconds, to automatically store the 6 station s with the strongest signal in
FM. These stations are stored in the FMast waveband.
If it is not possible to find 6 stations, the remaining memo ries are empty.
Recalling stations stored in the memory
For each waveband, briefly press buttons '1'to '6' to recall the corresponding station.
The list of the 6 stations stored on the waveband is displa yed each time one of the buttons '1' to '6' is pressed.
RDS SYSTEM
Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the sa me station, whatever frequency it is using for the region you a re
going through.
RM2 audio: Press the 'RDS' button to switch the function on or off.
RT2 audio: Press the '
jj✱ RDS'button to switch the function on or off.
The display will show:
– 'RDS' if the function is selected.
– '(RDS)' or'RDS
' if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best
reception and which is transmitting the same programme.

YOUR 607 IN DETAIL57
Traffic information programme RM2 audio:press the 'TA'button to switch the function on or off.
RT2 audio: press the '#
kTA 'button to switch the function on or off.
The display will show: – 'TA' if the function is selected.
– '(TA)' or'T
A' if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer).
Note: the volume of the traffic information announcements is indepe ndent of the volume of normal radio listening. You can
adjust it by using the volume button. The setting will be stored and will be used when the next messages are broadcast.
Regional following mode
When they are part of a network, certain stations broadcast regi onal programmes in the various areas they serve. With
regional following mode you can keep listening to the same programme.
RM2 audio: press the 'RDS'button for more than two seconds to switch the function on or off.
RT2 audio: press the '
jj✱ RDS'button for more than two seconds to switch the function on o r off.

PTY function
This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.)
RM2 audio: with FM selected, press the 'TA'button to switch the function on or off.
RT2 audio: with FM selected, press the '
#
kkTA ' button to switch the function on or off.
To search for a PTY programme: – select the PTYfunction ,
– briefly press button Mor Lto scroll down the list of the various programmes offered.
– when the programme of your choice is displayed, keep button Mor Lpressed for more than two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
Audio RM2: in PTY mode the different types of programmes can be stored in the
memory. To do this, press one of the preselection buttons '1'to '6' for more than
two seconds. Briefly press the corresponding button to recall the type of pro
gramme stored in the memory.
Audio RT2: in PTY mode the different types of programmes can be stored in the memory . To do this,
press one of the preselection buttons '1'to '6' for more than two seconds. Briefly press the corre
sponding button to recall the type of programme stored in the memory.
EON system
This connects stations which are part of the same network. It en ables the broadcast of traffic information or a PTY pro
gramme by a station, which is part of the same network as the sta tion to which you are listening.
To do this, select the TA traffic information programme or the PTYfunction.
YOUR 607 IN DETAIL
58

YOUR 607 IN DETAIL59
CASSETTE: Audio RM2
Selecting cassette mode When a cassette is inserted, the cassette player will start auto matically.
If a cassette is already inserted, press button C.
Ejecting the cassette Press button Eto eject the cassette from the drive.
Direction of play
The player will play sides 1 and 2 of the cassette alternate ly, automatically reversing the direction of play at the end of the side.To manually reverse the direction of play of the cassette, press b utton C.
Selecting a cassette track (blank search) Press button Mto select the next track.
Press button Lto return to the start of the current track or to select the previ ous track.
Fast forward and rewind
Fully press button Mor Lto fast forward or rewind the tape. At the end of the fast forward/rewind, the current side is played.
Noise reduction (Dolby B NR system) Press button Cfor more than 2 seconds to switch the function on or off.
Dolby noise reduction is manufactured under licence by Dolby Lab oratories Licensing Corporation.
'Dolby' and the double D symbol are brand marks of Dolby Labora tories Licensing Corporation.
Recommendations concerning the use of cassettes
– Use good quality cassettes.
– Avoid the use of cassettes which play for more than 90 minute s.
– Never expose cassettes to heat or sunlight.
– Retension the tape if necessary before inserting the cassette into the player.
– Regularly clean the playing heads with a damptype cleanin g cassette.

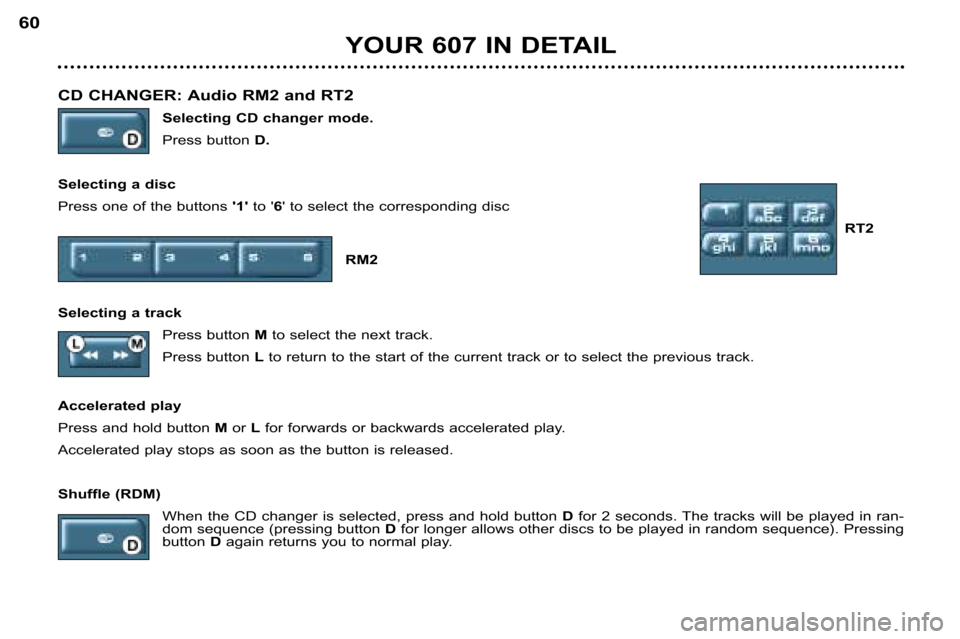

CD CHANGER: Audio RM2 and RT2 Selecting CD changer mode.
Press buttonD.
Selecting a disc
Press one of the buttons '1' to '6' to select the corresponding disc
RT2
RM2
Selecting a track Press button Mto select the next track.
Press button Lto return to the start of the current track or to select the previ ous track.
Accelerated play
Press and hold button Mor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle (RDM) When the CD changer is selected, press and hold button D for 2 seconds. The tracks will be played in ran
dom sequence (pressing button Dfor longer allows other discs to be played in random sequence). Pressing
button D again returns you to normal play.
YOUR 607 IN DETAIL
60

YOUR 607 IN DETAIL61
This is located inside the boot, in the storage compartment o n the left hand side.
It holds up to 6 discs.
To insert a disc into the changer:
– open the storage compartment panel,
– open sliding panel A,
– press button Bto eject the cartridge C,
– open one of the six compartments of the cartridge by pulling tab D,
– insert the disc with the printed face upwards and close th e compartment,
– insert the cartridge into the changer,
– close the sliding panel A.
CD CHANGER: Audio RM2 and RT2
The use of blank compact discs may cause malfunctions.

YOUR 607 IN DETAIL
70
AUDIO SYSTEM (RM2 and RT2)
Presentation
Your 607 is fitted with a JBL Audio HiFi system, designed specif ically for the vehicle's passenger compartment.
At the heart of the system, a 240 Watt multifunction amplifier (1), located in the boot, independently controls 12
high–definition acoustic speakers.
These speakers make it possible to obtain optimum repro duction and distribution of the sound in the vehicle, in
the front and in the rear.
The speakers are located:
– in the fascia: two Micro Tweeters (4) fitted in two Mediums (5) for clear reproduction of the sound.
– in the front doors: two Woofers (6)for reproduction of the bass (low frequencies).
– in the rear doors: two Tweeters (2)and two Woofers (3) permitting a balance of frequencies (of the bass and the treb le)
in the rear.
– on the rear shelf: two Subwoofers (7), designed specifically for reproduction of the extreme bass (very lo w frequencies)
for real listening pleasure: you will notice the impact and depth without noticing that th e sound comes from the
rear of the vehicle .
Adjustment in CD mode
The basic functions remain those of the audio equip
ment.
No further adjustment is required. However, to bene
fit fully from your JBL audio system you are advised
to adjust AUDIO functions (BASS, TREB, FAD,
BAL) to "0" (zero) and the Loudness (LOUD)to the
"ON" position.

50
Stalk movementFunction
1 Upwards Increase volume
2 Downwards Decrease volume
3 Forwards Automatic search of higher frequencies (radio)
Press for more than 2 seconds, repeat until button is released: ma nual search of
higher frequencies (radio) Selection of next track (CD)
Press for more than 2 seconds until button is released: fast forwa rd (CD), Selection of following page (Tel.)
– Press for more than 2 seconds: selection of last page (Tel.)
4 Backwards Automatic search of lower frequencies (radio)
Press for more than 2 seconds, repeat until button is released: ma nual search of
lower frequencies (radio) Selection of previous track (CD)
Press for more than 2 seconds until button is released: rewind (CD), selection of previous number (Tel.)
– Press for more than 2 seconds: selection of first page (Tel.)
5 Press the end Change of source (Radio/CD)
Press for more than 2 seconds: switch between radio/tel. mode.
Selection of directory (Tel./off) Lift/replace handset (Tel./o n).
6 Rotation Selection of next station stored in memory (radio) Sele ction of next CD (CD)
(clockwise) Selection of following menu item (Tel.)
7 Rotation Selection of previous station stored in memory (radio) Se lection of previous CD (CD)
(anticlockwise) Selection of previous menu item (Tel.)
YOUR 607 IN DETAIL
AUDIO/TELEPHONE RT2

Button Function
A Radio on/off. Adjustment of volume.
B TUNER Selection of the radio. Selection of FM1, FM2, FMast and AM wa vebands.
D CD Selection of CD changer: shuffle.
F #
kkTA Higher frequency TA Press for more than two seconds: PTY.
G
0 +AUDIO Adjustment of bass, treble, loudness, sound distribution and a utomatic
volume correction.
H
jj* RDS Lower frequency RDS Press for more than 2 seconds: Regional foll owing mode.
K MAN Manual/automaic operation of buttons Land M.
Selection of options. In telephone mode this button allo ws 4 menus to be accessed.
L Automatic search of lower frequency Selection of previous CD track.
jjjjPress for more than 2 seconds: backwards accelerated play (CD).
Selection of previous page (Tel.)
Press for more than 2 seconds: selection of first page (Tel.)
M Automatic search of higher frequency Selection of next CD track.
kkkkPress for more than 2 seconds: forwards accelerated play (CD).
Selection of following page (Tel.) Press for more than 2 second s: selection of last page (Tel.)
O HELP 'PEUGEOT' direct line (if option and service are available).
P Replace handset. Return to previous menu.
Q C Cancel. Refuse to take call.
R OK Lift handset. Validate function.
S TEL Selection of telephone Switching off of microphone.
1 to 6 1 2 3 4 5 6Selection of a station stored in the memory. Press for more than 2 seconds: storing a station in the memory.
Selection of a CD changer disc.
0 to 9 * #0 1 2 3 4 5Telephone keypad.6 7 8 9 * #
51
YOUR 607 IN DETAIL
