PRACTICAL INFORMATION151
Fuse no. Rating
Functions
12 5 A Front and rear right side lights.
13 5 A Front and rear left side lights.
24 5 A Number plate and trailer lights - Side lights warning light - Lights stalk.
25 7,5 A Audio equipment.
26 7,5 A Brake lights.
27 7,5 A Electric mirrors - Cruise control - Telephone - Chronotachograph -
Remote control - Alarm.
31 10 A Reversing lights - Front fog lamps relay - Air conditioning relay - Heated mirrors relay -Heated rear screen relay - 12 volt socket.
32 15 A Audio equipment.
33 7,5 A Rear fog lamp.
35 7,5 A ABI - Electric window controls.
36 - Not used.
37 10 A Instrument panel.
39 10 A Interior lighting - EOBD diagnostic socket.
42 7,5 A ABS.
43 20 A Wash-wipe pump.
44 15 A Lighter.
46 - Not used.
49 20 A Headlamp wash pump.
50 7,5 A Air bags.
51 10 A PCS (Minibus).
52 20 A Front power socket.
53 10 A Direction indicators- Hazard lights - Instrument panel.
55 30 A Passenger compartment electric ventilator - Webasto unit - Heating/air conditioning ventila-
tion - Webasto heating ventilation - Webasto supply.
62 - Not used.
Left-hand fuse box

16-09-2002
PRACTICAL INFORMATION
152
Fuse no. Rating
Functions
34 10 A Chronotachograph - Telephone - Alarm - Remote control - Air conditioning control.
38 20 A Not used.
40 15 A Right heated rear screen.
41 10 A Heated exterior mirrors.
45 15 A Driver's heated seat.
47 20 A Front left door electric window (ABI).
48 20 A Front right door electric window (ABI).
54 15 A Left heated rear screen.
56 30 A Additional air conditioning.
57 15 A Additional heating ventilation.
58 5 A Webasto timer.
59 15 A Air conditioning supply.
60 10 A Alarm.
61 15 A Webasto assembly.
63 20 A Not used.
64 20 A Rear power socket - Intake ventilation (Minibus version).
65 10 A Socket for special equipment.

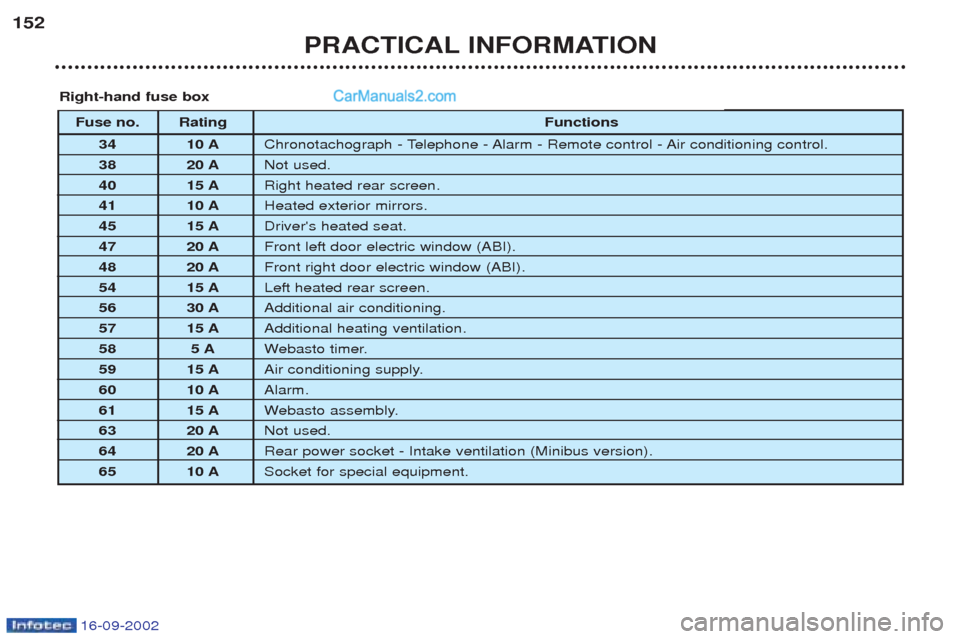

Right-hand fuse box
