Peugeot Boxer 2002.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2002.5, Model line: Boxer, Model: Peugeot Boxer 2002.5Pages: 182, PDF Size: 2.81 MB
Page 1 of 182
2YOUR BOXER AT A GLANCE
16-09-2002
Page 2 of 182
16-09-2002
3YOUR BOXER AT A GLANCE
1 -Storage compartment.
2 - Left side vent.
3 - Upper glove box. Passenger air bag.
4 - Storage tray.
5 - Controls:
- Rear door windows
de-icing.
- Fog lamps.- Hazard lights.- Rear fog lamps- ASR.
6 - Audio equipment location or
storage compartment.
7 - Folding writing table.
8 - Central adjustable heating/
ventilation vents and airflow regulation.
9 - Gear lever.
10 - Lights and direction
indicators stalk. 11 -
Instrument dials.
12 - Windscreen wash-wipe
stalk.
13 - Right side vent.
14 - Storage compartment.
15 - Programmable heating.
16 - Right fuse box.
17 - Bonnet release control.
18 - Headlamp height
adjustment.
19 - Driver's air bag. Horn.
20 - Steering wheel adjustment
control.
21 - 12 V accessories socket.
22 - Heating/air conditioning
controls. 23 -
Ashtray.
24 - Storage compartment.
25 - Lighter.
26 - Passenger air bag
disarming control*.
27 - Lower glove box.
28 - Storage compartment.
29 - Left fuse box.
* According to destination.
Page 3 of 182
4YOUR BOXER AT A GLANCE
16-09-2002
THE KEYS The keys allow you to switch on the ignition and operate thepassenger air bag disarmingswitch as well as to independentlyoperate the locks on the frontdoors, the fuel filler cap and theglove box. Central locking
From the driver's door, the keys allow you to lock and unlock thefront, passenger and rear doors. If one of the doors is open, it is impossible to operate the centrallocking. The remote control performs the same functions at a distance.The remote control key Locking ➜
Press button Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indi-cators for approximately twoseconds.
Unlocking Press button Bto unlock the
vehicle. This is confirmed by rapid flashing of the direction indicators. STARTING
STOP position:
the ignition is off. 1st notch, MAR (Accessories) position:
the ignition is off but
the accessories can be used. A VV (Starting) position:
Operates the starter.P ARK position:
position enabling you to leave the side lights on when parked,
with the ignition off and the keyremoved.
11 3
Page 4 of 182
16-09-2002
Vehicles fitted with front fog
lamps and a rear fog lamp
Front fog lamps. Rear fog lamps. WINDSCREEN WIPERS 4
Single wipe.
0 Off.
1 Intermittent wipe.
2 Normal wipe (moderate rainfall).
3 Rapid wipe (heavy rainfall).
Windscreen wash-wipe: pull thestalk towards you.
5YOUR BOXER AT A GLANCE
STEERING WHEEL
STALKS LIGHTING Front and rear lights
Lights off.
Side lights. Dipped headlamps. Main beam headlamps.
121122
Page 5 of 182
16-09-2002
6YOUR BOXER AT A GLANCE

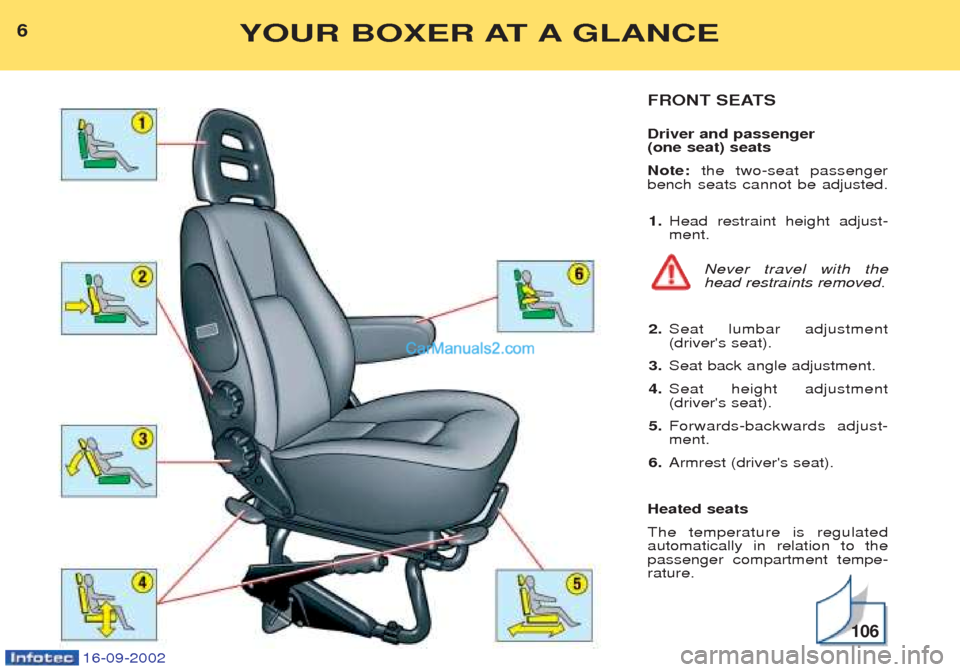

FRONT SEATS Driver and passenger (one seat) seats Note: the two-seat passenger
bench seats cannot be adjusted.
1. Head restraint height adjust- ment.
Never travel with thehead restraints removed.
2. Seat lumbar adjustment (driver's seat).
3. Seat back angle adjustment.
4. Seat height adjustment (driver's seat).
5. Forwards-backwards adjust-ment.
6. Armrest (driver's seat).
Heated seats The temperature is regulated automatically in relation to thepassenger compartment tempe-rature.
106
Page 6 of 182
16-09-2002
Operating checkWith the ignition switched on (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF" position).
The warning light remains onthroughout the disarming process. Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs.
* According to destination.
7YOUR BOXER AT A GLANCE
AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works inconjunction with the force limitingseat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the pas- senger air bag ➜ disarm the air bag if you ins-
tall a rear-facing child seat,
➜ activate the air bag for an
adult passenger. Disarming the passenger air bag* ➜
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it
to the " OFF" position.
As soon as you remove the childseat, turn the air bag switch to the" ON " position, to activate the air
bag again.
137138
Page 7 of 182
16-09-2002

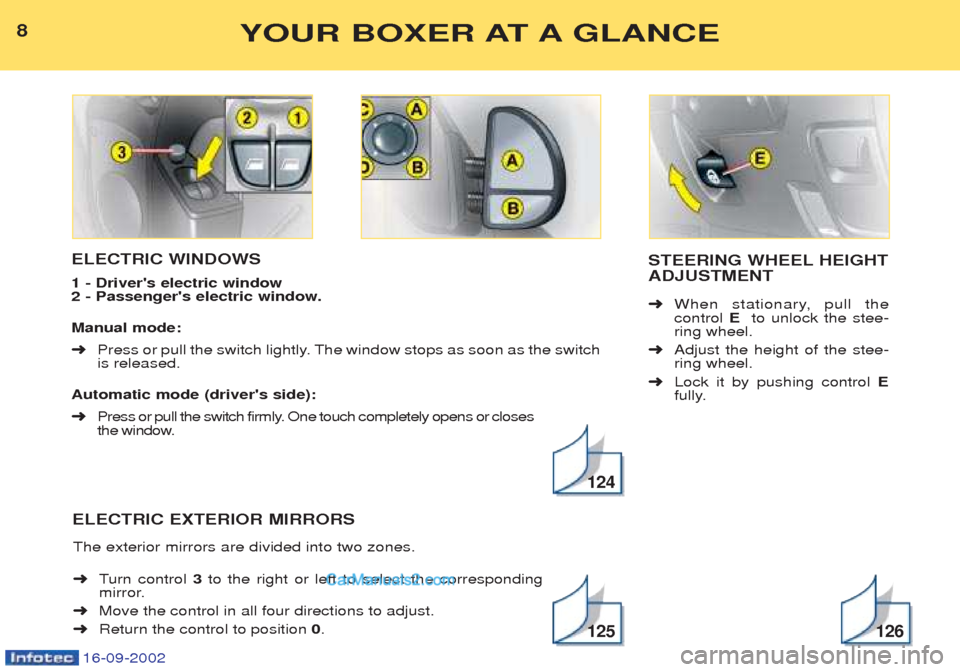

ELECTRIC WINDOWS 1 - Driver's electric window
2 - Passenger's electric window. Manual mode: ➜Press or pull the switch lightly. The window stops as soon as the switch
is released.
Automatic mode (driver's side):➜ Press or pull the switch firmly. One touch completely opens or closes
the window.
The exterior mirrors are divided into two zones. ➜ Turn control 3to the right or left to select the corresponding
mirror.
➜ Move the control in all four directions to adjust.
➜ Return the control to position 0.
8
STEERING WHEEL HEIGHT ADJUSTMENT ➜ When stationary, pull the control Eto unlock the stee-
ring wheel.
➜ Adjust the height of the stee-ring wheel.
➜ Lock it by pushing control E
fully.
124
125126
8YOUR BOXER AT A GLANCE
ELECTRIC EXTERIOR MIRRORS
Page 8 of 182
16-09-2002

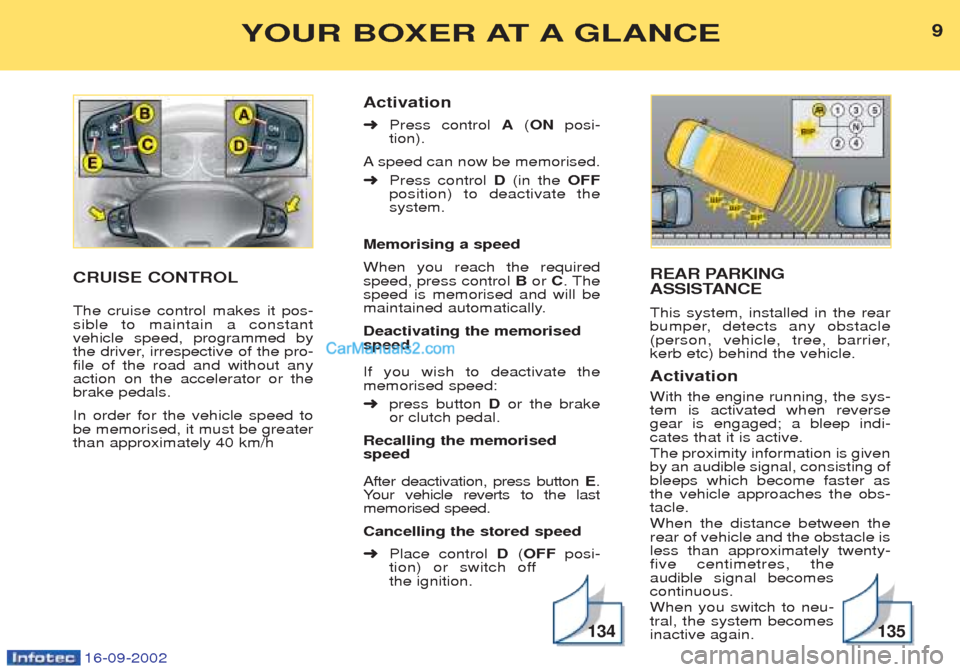

REAR PARKING
ASSISTANCE This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,kerb etc) behind the vehicle. Activation With the engine running, the sys- tem is activated when reversegear is engaged; a bleep indi-cates that it is active. The proximity information is given by an audible signal, consisting ofbleeps which become faster asthe vehicle approaches the obs-tacle. When the distance between the rear of vehicle and the obstacle isless than approximately twenty-five centimetres, theaudible signal becomescontinuous. When you switch to neu- tral, the system becomesinactive again.
Activation ➜
Press control A(ON posi-
tion).
A speed can now be memorised.
➜ Press control D(in the OFF
position) to deactivate the system.
Memorising a speed When you reach the required speed, press control Bor C. The
speed is memorised and will be
maintained automatically. Deactivating the memorised speed If you wish to deactivate the memorised speed: ➜ press button Dor the brake
or clutch pedal.
Recalling the memorised speed After deactivation, press button E.
Y our vehicle reverts to the last
memorised speed. Cancelling the stored speed ➜ Place control D(OFF posi-
tion) or switch off the ignition.
9YOUR BOXER AT A GLANCE
CRUISE CONTROL The cruise control makes it pos- sible to maintain a constantvehicle speed, programmed by
the driver, irrespective of the pro-file of the road and without anyaction on the accelerator or thebrake pedals. In order for the vehicle speed to be memorised, it must be greaterthan approximately 40 km/h
135134
Page 9 of 182

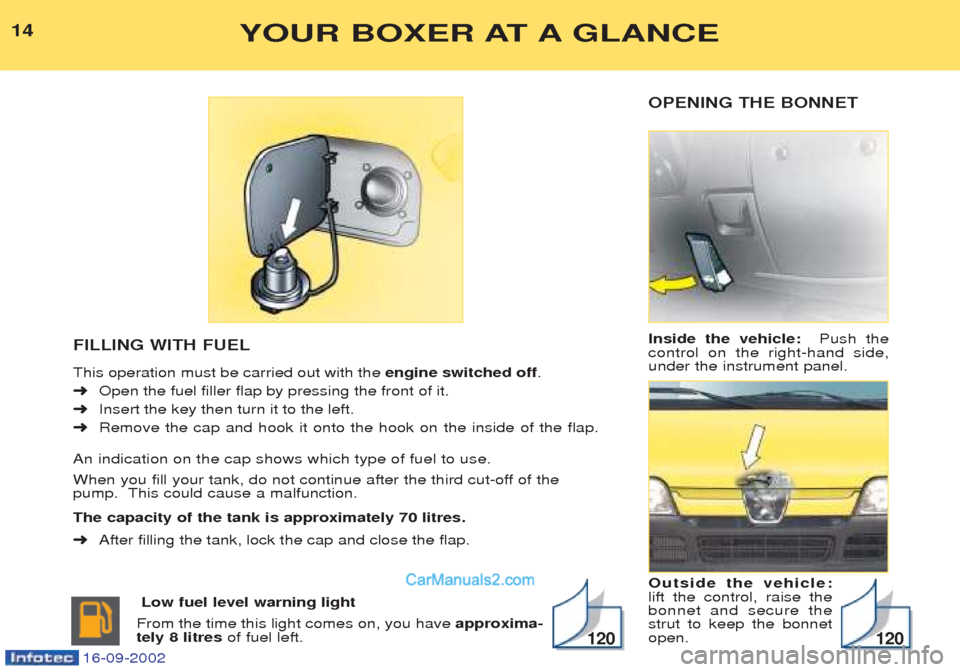

OPENING THE BONNET Inside the vehicle: Push the
control on the right-hand side, under the instrument panel. Outside the vehicle: lift the control, raise thebonnet and secure thestrut to keep the bonnetopen.
FILLING WITH FUEL This operation must be carried out with the
engine switched off.
➜ Open the fuel filler flap by pressing the front of it.
➜ Insert the key then turn it to the left.
➜ Remove the cap and hook it onto the hook on the inside of the flap.
An indication on the cap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the
pump. This could cause a malfunction. The capacity of the tank is approximately 70 litres. ➜ After filling the tank, lock the cap and close the flap.
Low fuel level warning light
From the time this light comes on, you have approxima-
tely 8 litres of fuel left.
YOUR BOXER AT A GLANCE14
120120
16-09-2002
Page 10 of 182
16-09-2002
Moving Off With the engine running, to move
off from position P:
➜ it is essential to press thebrake pedal to exit positionP,
➜ select the function R, D or M,
then gradually release thepressure on the brake pedal;
the vehicle will move off
immediately.
Y ou can also move off from posi-
tion N:
➜ release the handbrake, with
your foot on the brake,
➜ select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
When the engine is idlingwith the brakes notapplied, if function R, D
or Mis selected, the
vehicle moves without the acce-lerator being pressed. For this reason, do not leave
children unsupervised inside the vehicle, with theengine running.
10YOUR BOXER AT A GLANCE
AUTOMATIC GEARBOX "PORSCHE TIPTRONIC SYSTEM"
The four-speed automaticgearbox offers a choice between the comfort of
automatic integral regulation enhanced by a snow programme , or the
pleasure of manual gear changing .
Gear selection gate ➜ Move the lever in the gate to select one of the functions. Once the function is selected, the indicator light for that function is dis- played on the instrument panel screen.
W: snow programme.
P ark: to immobilise the vehicle or to start the
engine , with the handbrake on or off.
R everse to reverse(select this function with the
vehicle stationary and the engine at idle). N eutral to start the engine or to park, with the
handbrake on.Note : if position Nis engaged by mistake while the
car is moving, allow the engine to return to idling speed before engaging function Dto accelerate.
D rive for automatic gear changing.
M anual: for manualgear changing.
To change the four gearsmanually:
➜ Push the lever to the +symbol to change up a gear and pull the handle
towards the –symbol to change down a gear.
Note: theW (snow) programme does not operate when in manual mode.
130
