PRACTICAL INFORMATION
142
1 -
Power steering reservoir.
2 - Battery.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Air filter.
6 - Windscreen and headlamp wash
reservoir. 7 -
Fuse box.
8 - Dipstick.
9 - Engine oil filler cap.

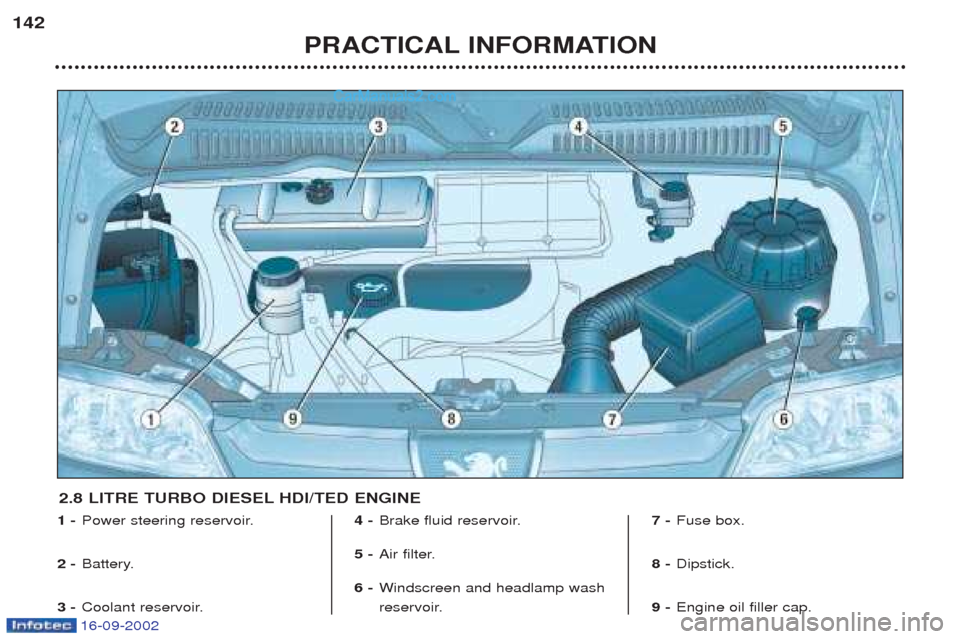

2.8 LITRE TURBO DIESEL HDI/TED ENGINE

16-09-2002
PRACTICAL INFORMATION143

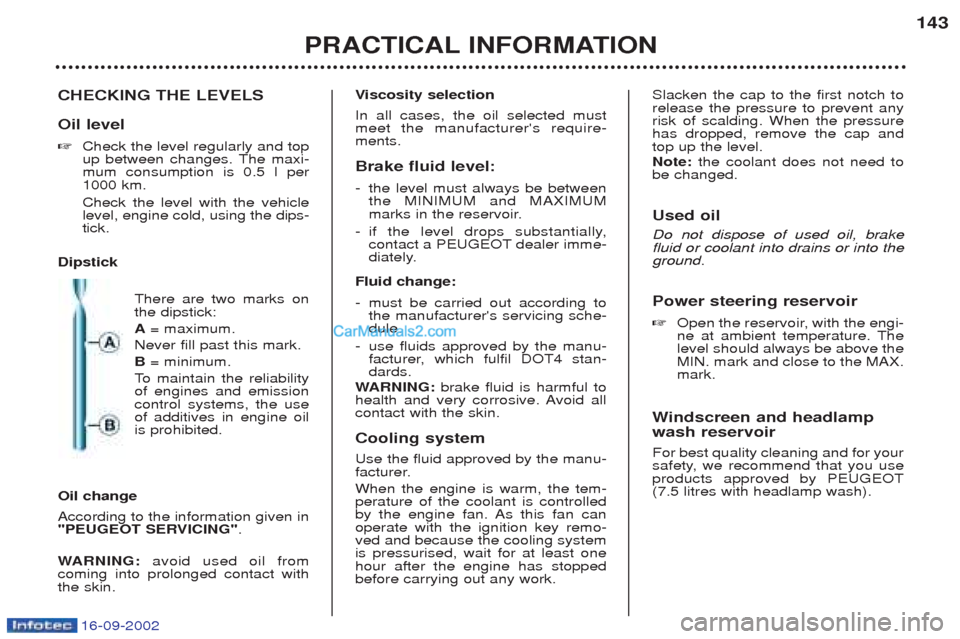

CHECKING THE LEVELS Oil level ☞ Check the level regularly and top
up between changes. The maxi-mum consumption is 0.5 l per1000 km. Check the level with the vehicle level, engine cold, using the dips-tick.
Dipstick
There are two marks onthe dipstick: A= maximum.
Never fill past this mark.B = minimum.
To maintain the reliability
of engines and emission control systems, the useof additives in engine oilis prohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
W ARNING: avoid used oil from
coming into prolonged contact withthe skin.
V iscosity selection
In all cases, the oil selected must meet the manufacturer's require-ments. Brake fluid level: - the level must always be between the MINIMUM and MAXIMUM
marks in the reservoir.
- if the level drops substantially,
contact a PEUGEOT dealer imme-
diately.
Fluid change: - must be carried out according to the manufacturer's servicing sche-dule.
- use fluids approved by the manu-
facturer, which fulfil DOT4 stan-dards.
W ARNING: brake fluid is harmful to
health and very corrosive. Avoid allcontact with the skin. Cooling system Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlled
by the engine fan. As this fan canoperate with the ignition key remo-ved and because the cooling systemis pressurised, wait for at least onehour after the engine has stoppedbefore carrying out any work. Slacken the cap to the first notch torelease the pressure to prevent anyrisk of scalding. When the pressurehas dropped, remove the cap andtop up the level. Note:
the coolant does not need to
be changed. Used oil Do not dispose of used oil, brake fluid or coolant into drains or into theground. Power steering reservoir ☞ Open the reservoir, with the engi-
ne at ambient temperature. Thelevel should always be above theMIN. mark and close to the MAX.mark.
W indscreen and headlamp
wash reservoir For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(7.5 litres with headlamp wash).

16-09-2002
PRACTICAL INFORMATION147

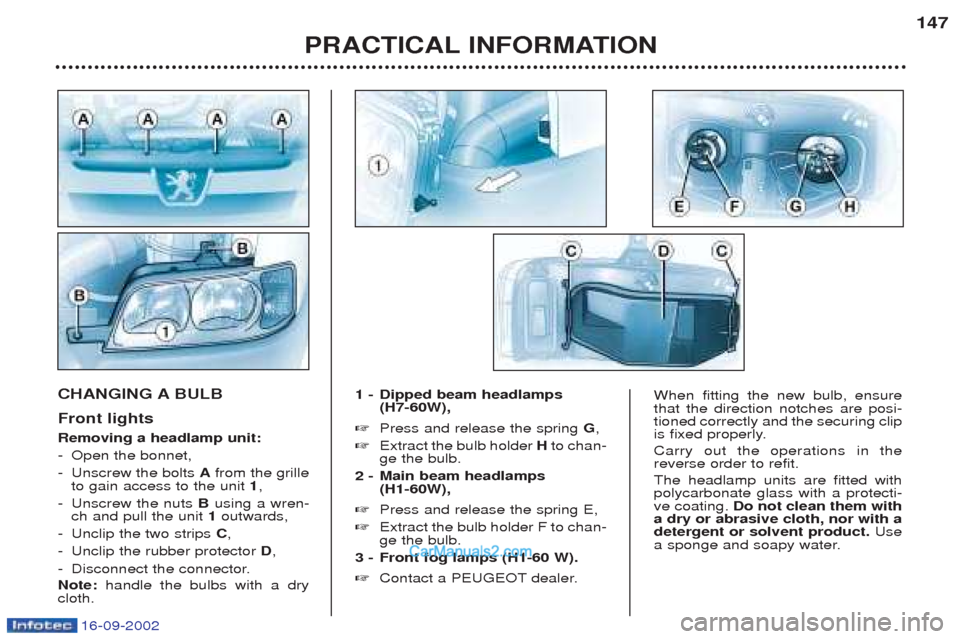

CHANGING A BULB Front lights Removing a headlamp unit: -
Open the bonnet,
- Unscrew the bolts Afrom the grille
to gain access to the unit 1,
- Unscrew the nuts Busing a wren-
ch and pull the unit 1outwards,
- Unclip the two strips C,
- Unclip the rubber protector D,
- Disconnect the connector. Note: handle the bulbs with a dry
cloth. 1 - Dipped beam headlamps
(H7-60W),
☞ Press and release the spring G,
☞ Extract the bulb holder Hto chan-
ge the bulb.
2 - Main beam headlamps (H1-60W),
☞ Press and release the spring E,
☞ Extract the bulb holder F to chan- ge the bulb.
3 - Front fog lamps (H1-60 W). ☞ Contact a PEUGEOT dealer.When fitting the new bulb, ensure that the direction notches are posi-tioned correctly and the securing clip
is fixed properly. Carry out the operations in the reverse order to refit. The headlamp units are fitted with polycarbonate glass with a protecti-ve coating. Do not clean them with
a dry or abrasive cloth, nor with adetergent or solvent product. Use
a sponge and soapy water.

16-09-2002
Direction indicator side repeaters (W 5W). ☞Push the repeater rearwards and
release the assembly,
☞ Pull the bulb holder to gain accessto the bulb,
☞ Change the bulb.
PRACTICAL INFORMATION
148

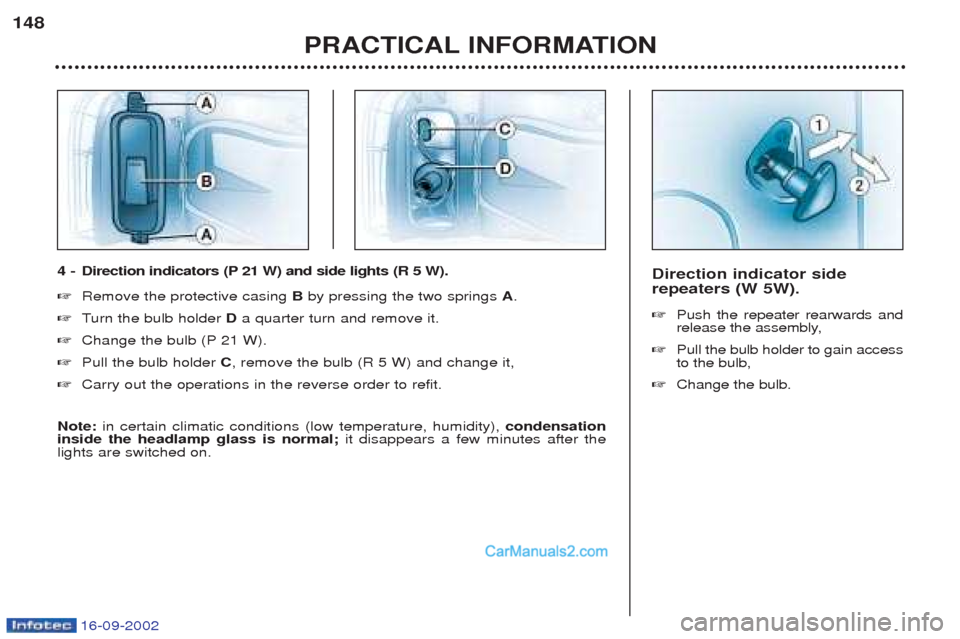

4 -
Direction indicators (P 21 W) and side lights (R 5 W).
☞ Remove the protective casing Bby pressing the two springs A.
☞ Turn the bulb holder Da quarter turn and remove it.
☞ Change the bulb (P 21 W).
☞ Pull the bulb holder C, remove the bulb (R 5 W) and change it,
☞ Carry out the operations in the reverse order to refit.
Note: in certain climatic conditions (low temperature, humidity), condensation
inside the headlamp glass is normal; it disappears a few minutes after the
lights are switched on.

16-09-2002

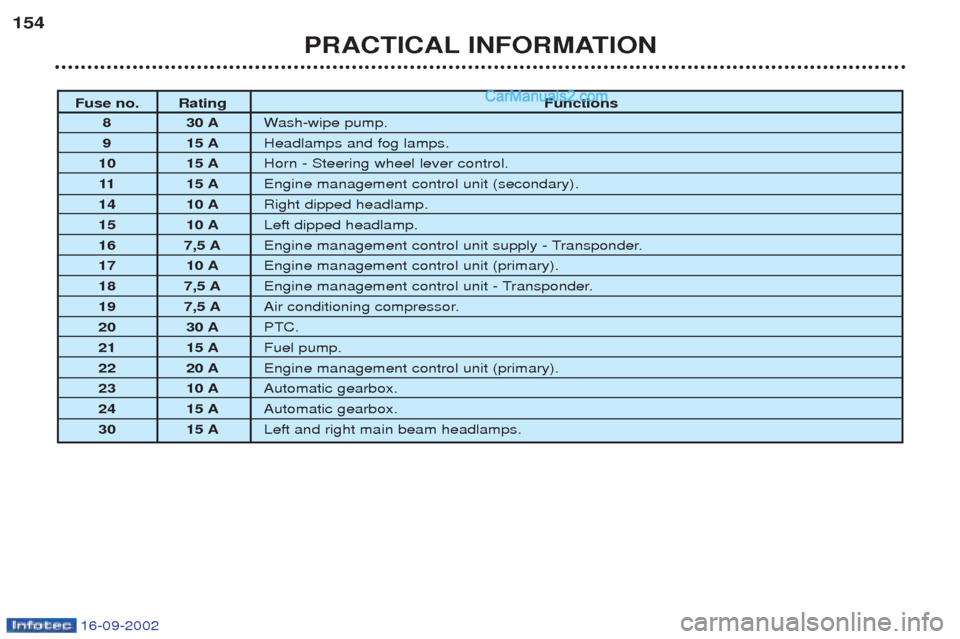

Fuse no. Rating Functions
8 30 AWash-wipe pump.
9 15 AHeadlamps and fog lamps.
10 15 A Horn - Steering wheel lever control.
11 15 AEngine management control unit (secondary).
14 10 A Right dipped headlamp.
15 10 A Left dipped headlamp.
16 7,5 A Engine management control unit supply - Transponder.
17 10 A Engine management control unit (primary).
18 7,5 A Engine management control unit - Transponder.
19 7,5 A Air conditioning compressor.
20 30 A PTC.
21 15 A Fuel pump.
22 20 A Engine management control unit (primary).
23 10 A Automatic gearbox.
24 15 A Automatic gearbox.
30 15 A Left and right main beam headlamps.
PRACTICAL INFORMATION
154

16-09-2002
PRACTICAL INFORMATION151

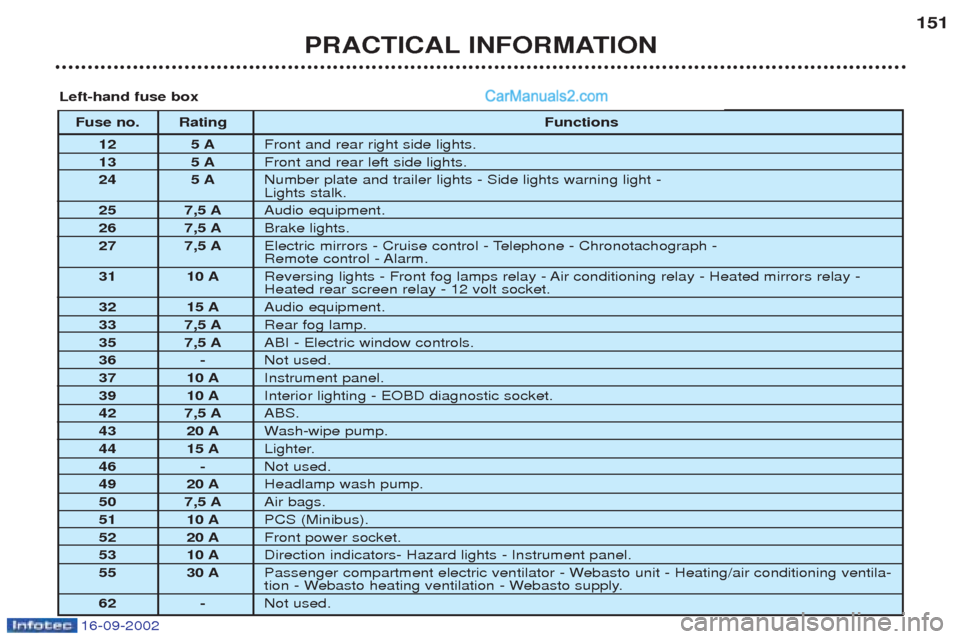

Fuse no. Rating
Functions
12 5 A Front and rear right side lights.
13 5 A Front and rear left side lights.
24 5 A Number plate and trailer lights - Side lights warning light - Lights stalk.
25 7,5 A Audio equipment.
26 7,5 A Brake lights.
27 7,5 A Electric mirrors - Cruise control - Telephone - Chronotachograph -
Remote control - Alarm.
31 10 A Reversing lights - Front fog lamps relay - Air conditioning relay - Heated mirrors relay -Heated rear screen relay - 12 volt socket.
32 15 A Audio equipment.
33 7,5 A Rear fog lamp.
35 7,5 A ABI - Electric window controls.
36 - Not used.
37 10 A Instrument panel.
39 10 A Interior lighting - EOBD diagnostic socket.
42 7,5 A ABS.
43 20 A Wash-wipe pump.
44 15 A Lighter.
46 - Not used.
49 20 A Headlamp wash pump.
50 7,5 A Air bags.
51 10 A PCS (Minibus).
52 20 A Front power socket.
53 10 A Direction indicators- Hazard lights - Instrument panel.
55 30 A Passenger compartment electric ventilator - Webasto unit - Heating/air conditioning ventila-
tion - Webasto heating ventilation - Webasto supply.
62 - Not used.
Left-hand fuse box
