The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 15,000 km for petrol engines and dual-fuel petrol or LPG/UNG engines; every 10,000 km for direct injection diesel engines. APeugeot dealer will carry out a quick check and top up the levels if necessary (oil, coolant, windscreen wash up
to 2 litres).If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 3 000 to 5 000 km, depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
PEUGEOT SERVICING 19

16-09-2002

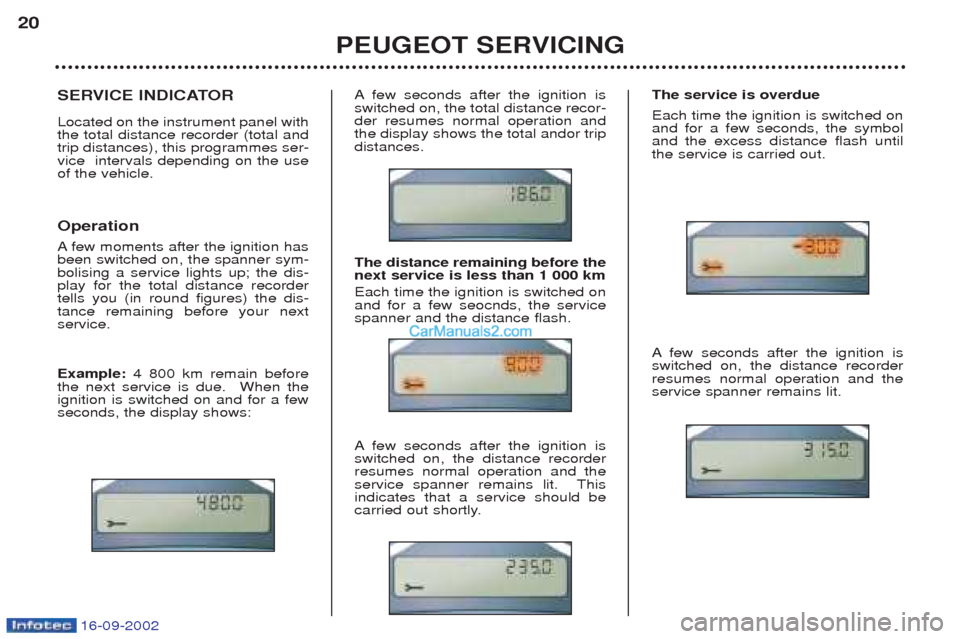

SERVICE INDICATOR Located on the instrument panel with the total distance recorder (total andtrip distances), this programmes ser-vice intervals depending on the useof the vehicle. Operation Afew moments after the ignition has
been switched on, the spanner sym- bolising a service lights up; the dis-play for the total distance recordertells you (in round figures) the dis-tance remaining before your nextservice. Example: 4 800 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows: A
few seconds after the ignition is
switched on, the total distance recor-der resumes normal operation andthe display shows the total andor tripdistances. The distance remaining before the next service is less than 1 000 km Each time the ignition is switched on and for a few seocnds, the servicespanner and the distance flash. A few seconds after the ignition is
switched on, the distance recorder resumes normal operation and the
service spanner remains lit. Thisindicates that a service should be
carried out shortly. The service is overdue Each time the ignition is switched on and for a few seconds, the symboland the excess distance flash untilthe service is carried out. A
few seconds after the ignition is
switched on, the distance recorder resumes normal operation and theservice spanner remains lit.
PEUGEOT SERVICING
20

16-09-2002
PEUGEOT SERVICING27
A, B AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
: All driving conditions: Arduous conditions * According to country.
1st Level
Operations Description of operation serviceAB C Intermediate
DRAIN/REFILL- Engine oil - Bleed fuel filter (diesel) - Oil filter - Fuel filter* (petrol)REPLACE- Fuel filter element (diesel)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up) - Manual gearbox oil (check + top-up) - Battery (check + top-up) if cap is removable LEVEL- Screen wash (check + top-up)- Coolant (check + top-up) - Brake fluid (check + top-up) - Power steering fluid (check + top up according to specification) - Operation of lights and indicators - Condition of glass, headlamp and light lenses and mirrors - Horn - Windscreen washer jets - Condition of wiper blades - Condition and tension of the ancillary drive belts - Handbrake and clutch - Condition of hydraulic circuits (hoses and covers) CHECK- Condition of rubber boots and gaiters - Brake pads - Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel) - Emission control check as per current legislation (petrol) - Smoke opacity (diesel) - Pollen filter (according to specification) - Visual check of the whole vehicle
SERVICE*- Courtesy vehicle
ROAD TEST

16-09-2002
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left direction indicator.
6 - Side lights and dippedheadlamps warning light.
7 - Main beam headlamps warning light.
8 - Right direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine autodiagnostics warninglight.
26 - Front brake pads wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
LE CONTRÔLE DE MARCHE
30
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

16-09-2002
Minimum Check the level with the dipstick and
top it up. The figure shown is onlycorrect if the vehicle has been onlevel ground, with the engine stop-ped, for 10 minutes. Minimum oil level gauge fault Flashing of the segments indicates a fault in the oil level gauge or a lack ofoil. There is a risk the engine will be dama- ged.
Contact a PEUGEOT dealer. Maximum oil level gauge fault Flashing of the squares indicates a fault in the oil level gauge or a surplus of oil. There is a risk the engine will be dama- ged.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS35
Instrument panel display After switching on the ignition, three functions are shown in succession: -
service indicator (see correspon- ding section),
- engine oil level indicator,
- total distance recorder (total andtrip distances).
Engine oil level indicator When the ignition is switched on, the engine oil level is indicated for a fewseconds, after the servicing informa-tion. Maximum Check the level using the dipstick to confirm whether the display is correct;a surplus of oil can cause damage tothe engine.
Contact a PEUGEOT dealer without
delay. T
rip recorder zero reset
With the ignition on, press the but-ton. Excessive oil level Check the level using the dipstick to confirm whether the display is correct, asurplus of oil can cause damage to theengine.
Contact a PEUGEOT dealer without
delay.
