PEUGEOT BOXER 2015 Owners Manual

129
used products
Avoid prolonged contact of used oil or fluids
with the skin.
Most of these fluids are harmful to health or
indeed very corrosive.
Do not discard used oil or fluids into sewers
or onto the ground.
take used oil to a PeugeOt dealer or
a qualified workshop (France) or to an


authorised waste disposal site.

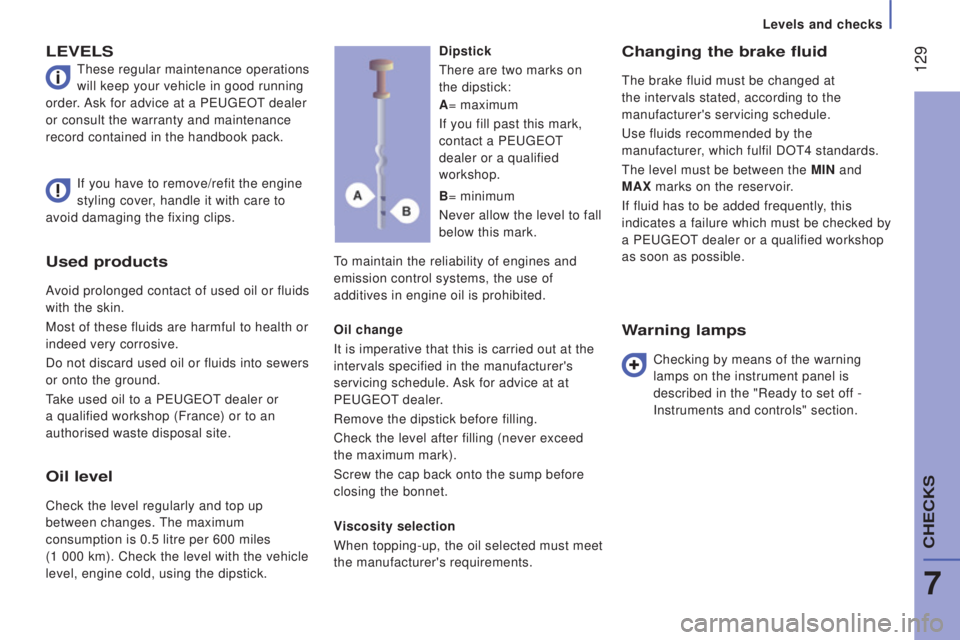

LEVELS
these regular maintenance operations
will keep your vehicle in good running
order
. Ask for advice at a P
eugeOt dealer
or consult the warranty and maintenance


record contained in the handbook pack.
to maintain the reliability of engines and
emission control systems, the use of


additives in engine oil is prohibited.
changing the brake fluid
the brake fluid must be changed at
the intervals stated, according to the
manufacturer's servicing schedule.
use fluids recommended by the


manufacturer, which fulfil DO
t4 standards.
the level must be between the

MI
n and

MA
x marks on the reservoir

.
If fluid has to be added frequently, this
indicates a failure which must be checked by
a P
eugeOt dealer or a qualified workshop
as soon as possible.
If you have to remove/refit the engine


styling cover, handle it with care to
avoid damaging the fixing clips.
dipstick
there are two marks on

the dipstick:
oil change
It is imperative that this is carried out at the


intervals specified in the manufacturer's
servicing schedule. Ask for advice at at
P
eugeOt dealer.
Remove the dipstick before filling.
Check the level after filling (never exceed


the maximum mark).
Screw the cap back onto the sump before
closing the bonnet.
Viscosity selection
When topping-up, the oil selected must meet
the manufacturer's requirements.
Warning lamps
Checking by means of the warning
lamps on the instrument panel is
described in the "Ready to set off -
Instruments and controls" section.
A
= maximum
If you fill past this mark,
contact a P
eugeOt
dealer or a qualified
workshop.
B = minimum
Never allow the level to fall


below this mark.
oil level
Check the level regularly and top up
between changes.
the maximum

consumption is 0.5 litre per 600 miles
(1 000
km). Check the level with the vehicle


level, engine cold, using the dipstick.
7
CHeCKS
Levels and checks

130

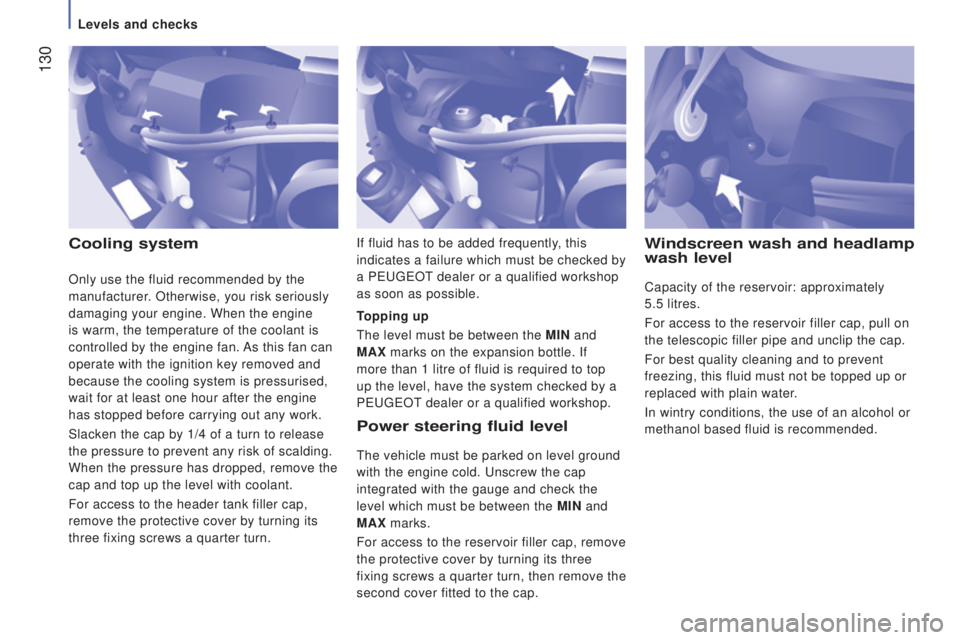

cooling systemPower steering fluid level
the vehicle must be parked on level ground
with the engine cold.
unscrew the cap

integrated with the gauge and check the
level which must be between the MI
n and


MA
x marks.
For access to the reservoir filler cap, remove


the protective cover by turning its three
fixing screws a quarter turn, then remove the
second cover fitted to the cap.
topping up
the level must be between the
MI
n and

MA
x marks on the expansion bottle. If

more than 1 litre of fluid is required to top
up the level, have the system checked by a
P
eugeOt dealer or a qualified workshop.
Windscreen wash and headlamp
wash level
Capacity of the reservoir: approximately
5.5
litres.
For access to the reservoir filler cap, pull on


the telescopic filler pipe and unclip the cap.
For best quality cleaning and to prevent
freezing, this fluid must not be topped up or
replaced with plain water.
In wintry conditions, the use of an alcohol or
methanol based fluid is recommended.
If fluid has to be added frequently, this
indicates a failure which must be checked by
a PeugeOt dealer or a qualified workshop
as soon as possible.
Only use the fluid recommended by the

manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine fan. As this fan can
operate with the ignition key removed and
because the cooling system is pressurised,
wait for at least one hour after the engine
has stopped before carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
For access to the header tank filler cap,
remove the protective cover by turning its
three fixing screws a quarter turn.
Levels and checks

131

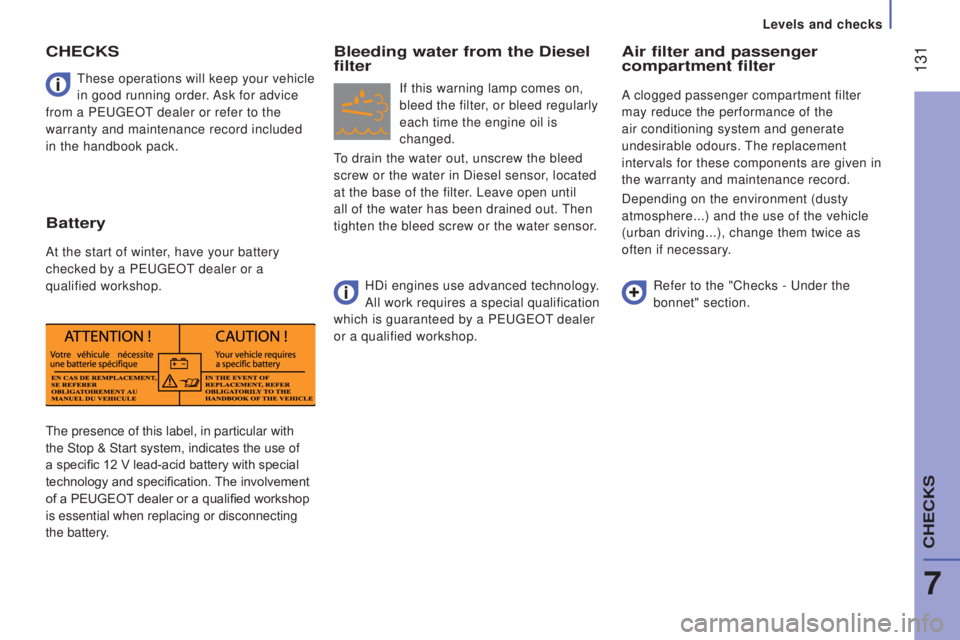

the presence of this label, in particular with
the Stop & Start system, indicates the use of
a specific 12
V lead-acid battery with special
technology and specification.

The involvement
of a PEUGEOT dealer or a qualified workshop
is essential when replacing or disconnecting
the battery.
these operations will keep your vehicle

in good running order. Ask for advice
from a P
eugeOt dealer or refer to the
warranty and maintenance record included

in the handbook pack.
cHEcKS
Battery
At the start of winter, have your battery
checked by a P
eugeOt dealer or a
qualified workshop.
Bleeding water from the diesel
filter
If this warning lamp comes on,
bleed the filter, or bleed regularly
each time the engine oil is
changed.
to drain the water out, unscrew the bleed
screw or the water in Diesel sensor

, located
at the base of the filter. Leave open until
all of the water has been drained out.
then


tighten the bleed screw or the water sensor.
Air filter and passenger
compartment filter
A clogged passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours.
the replacement


intervals for these components are given in
the warranty and maintenance record.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary.
Refer to the "Checks -
under the


bonnet" section.
HDi engines use advanced technology.
All work requires a special qualification
which is guaranteed by a P
eugeOt dealer
or a qualified workshop.
7
CHeCKS
Levels and checks

132

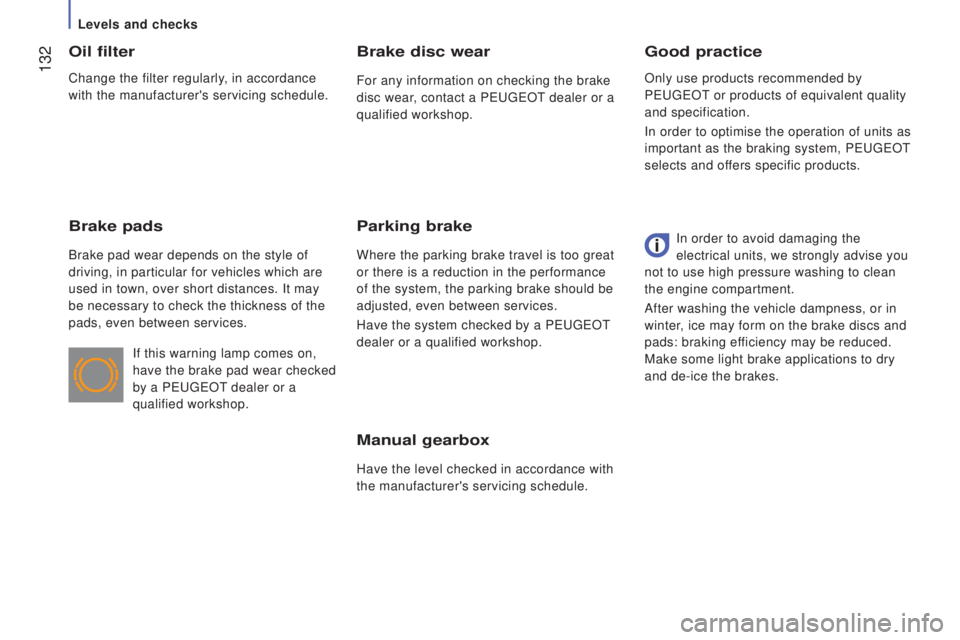

Manual gearbox
Have the level checked in accordance with
the manufacturer's servicing schedule.
Good practiceoil filter
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Brake disc wear
For any information on checking the brake
disc wear, contact a P
eugeOt dealer or a
qualified workshop.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a P
eugeOt
dealer or a qualified workshop.
If this warning lamp comes on,
have the brake pad wear checked


by a P
eugeOt dealer or a
qualified workshop. In order to avoid damaging the


electrical units, we strongly advise you
not to use high pressure washing to clean
the engine compartment.
After washing the vehicle dampness, or in
winter, ice may form on the brake discs and
pads: braking efficiency may be reduced.
Make some light brake applications to dry
and de-ice the brakes. Only use products recommended by
P
eugeOt or products of equivalent quality
and specification.
In order to optimise the operation of units as

important as the braking system, P
eugeOt
selects and offers specific products.
Change the filter regularly

, in accordance
with the manufacturer's servicing schedule.
Levels and checks

133
operating fault
If this alert persists, do not ignore the
warning; it indicates that a fault has occurred

in the exhaust / particle filter system.
Have the whole system checked by a
P
eugeOt dealer or a qualified workshop.
If there is risk of blockage of the
filter

, this warning lamp comes on
in the instrument panel.
Saturation / regeneration
Because of the higher exhaust

gas temperature resulting from the
normal operation of the particle filter, it is
recommended that you do not park the
vehicle over inflammable materials (grass,
dry leaves, pine needles,
...) so as to avoid


any risk of fire.

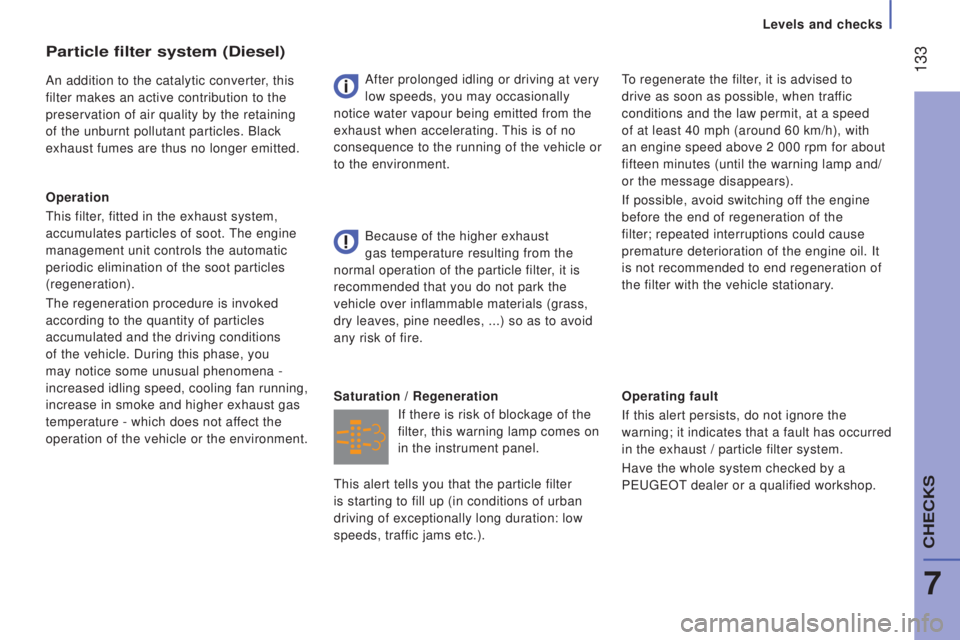

Particle filter system (diesel)
An addition to the catalytic converter, this
filter makes an active contribution to the
preservation of air quality by the retaining
of the unburnt pollutant particles. Black
exhaust fumes are thus no longer emitted.
operation
this filter

, fitted in the exhaust system,
accumulates particles of soot.
the engine


management unit controls the automatic
periodic elimination of the soot particles
(regeneration).
the regeneration procedure is invoked


according to the quantity of particles
accumulated and the driving conditions
of the vehicle. During this phase, you
may notice some unusual phenomena
-


increased idling speed, cooling fan running,
increase in smoke and higher exhaust gas
temperature
- which does not af

fect the
operation of the vehicle or the environment. After prolonged idling or driving at very
low speeds, you may occasionally
notice water vapour being emitted from the
exhaust when accelerating.
this is of no


consequence to the running of the vehicle or
to the environment.to regenerate the filter, it is advised to
drive as soon as possible, when traffic
conditions and the law permit, at a speed
of at least 40
mph (around 60 km/h), with


an engine speed above 2 000 rpm for about
fifteen
minutes (until the warning lamp and/
or the message disappears).
If possible, avoid switching of

f the engine
before the end of regeneration of the
filter; repeated interruptions could cause
premature deterioration of the engine oil. It
is not recommended to end regeneration of
the filter with the vehicle stationary.
this alert tells you that the particle filter


is starting to fill up (in conditions of urban
driving of exceptionally long duration: low
speeds, traffic jams etc.).
7
CHeCKS
Levels and checks

134

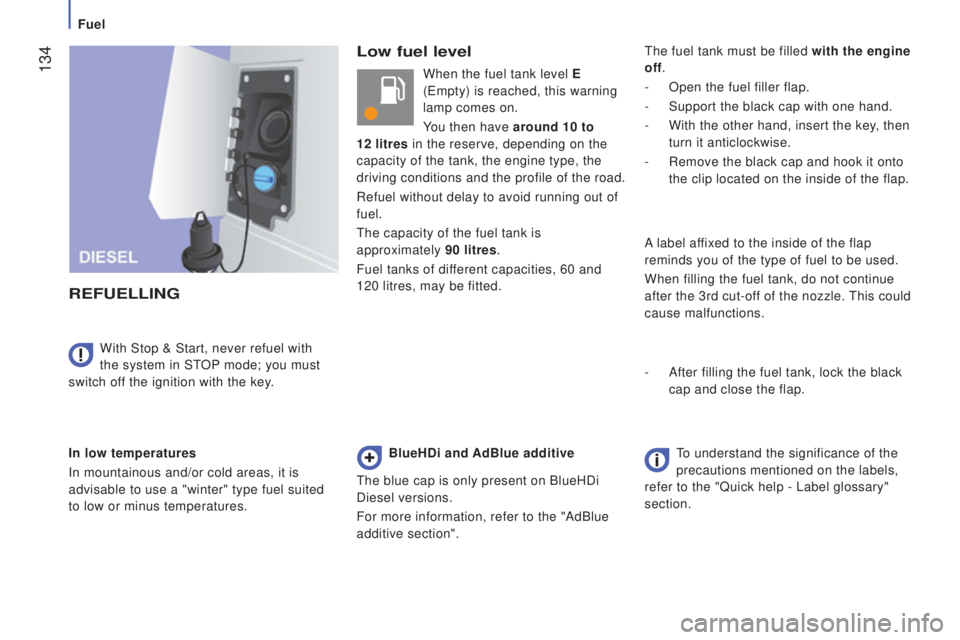

Low fuel level
rEFuELLInG
In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures.With Stop & Start, never refuel with
the system in S
tOP mode; you must


switch off the ignition with the key. When the fuel tank level E
(
empty) is reached, this warning

lamp comes on.
You then have around 10 to
12 litres in the reserve, depending on the
capacity of the tank, the engine type, the
driving conditions and the profile of the road.
Refuel without delay to avoid running out of
fuel.
the capacity of the fuel tank is

approximately 90 litres.
Fuel tanks of different capacities, 60
and

120 litres, may be fitted.
the fuel tank must be filled
with the engine
off.
-
Open the fuel filler flap.
-
Support the black cap with one hand.
-
With the other hand, insert the key, then

turn it anticlockwise.
-
Remove the black cap and hook it onto
the clip located on the inside of the flap.
A
label affixed to the inside of the flap
reminds you of the type of fuel to be used.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle.
this could

cause malfunctions.
-
After filling the fuel tank, lock the black
cap and close the flap.
BlueH
di and AdBlue additive
the blue cap is only present on BlueHDi


Diesel versions.
For more information, refer to the "AdBlue
additive section".to understand the significance of the
precautions mentioned on the labels,
refer to the "Quick help - Label glossary"
section.
Fuel

135

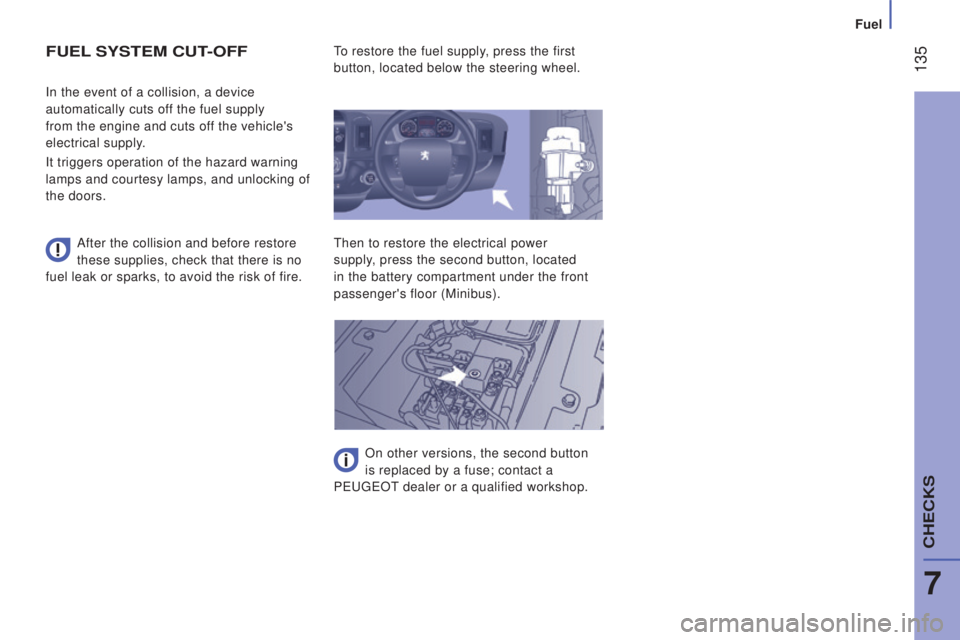

FuEL SYStEM cut-oFF
After the collision and before restore
these supplies, check that there is no
fuel leak or sparks, to avoid the risk of fire. In the event of a collision, a device
automatically cuts off the fuel supply
from the engine and cuts off the vehicle's
electrical supply.
It triggers operation of the hazard warning
lamps and courtesy lamps, and unlocking of
the doors.
to restore the fuel supply, press the first

button, located below the steering wheel.then to restore the electrical power
supply, press the second button, located
in the battery compartment under the front
passenger's floor (Minibus).
On other versions, the second button
is replaced by a fuse; contact a
P
eugeOt dealer or a qualified workshop.
7
CHeCKS
Fuel

136

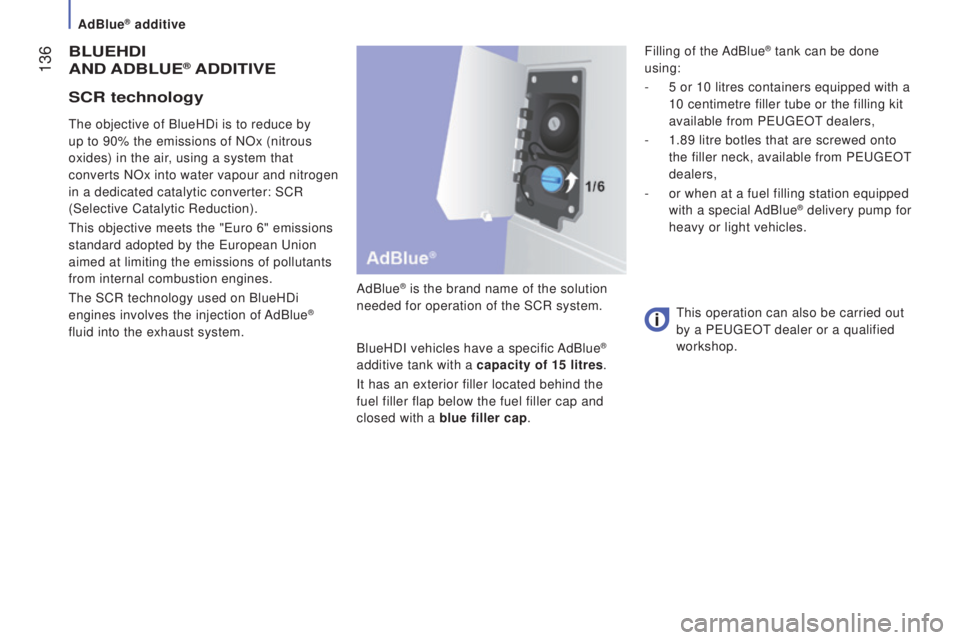

BLuEHdI
A
nd AdBLuE® AddItIVE
AdBlue® is the brand name of the solution
needed for operation of the SCR system.
BlueHDI vehicles have a specific AdBlue
®
additive tank with a capacity of 15 litres.
It has an exterior filler located behind the
fuel filler flap below the fuel filler cap and
closed with a blue filler cap.
the objective of BlueHDi is to reduce by


up to 90% the emissions of NOx (nitrous
oxides) in the air, using a system that
converts NOx into water vapour and nitrogen
in a dedicated catalytic converter: SCR
(Selective Catalytic Reduction).
this objective meets the "euro 6" emissions


standard adopted by the
european union


aimed at limiting the emissions of pollutants
from internal combustion engines.
the SCR technology used on BlueHDi


engines involves the injection of AdBlue
®
fluid into the exhaust system.this operation can also be carried out
by a PeugeOt dealer or a qualified
workshop.
Scr technology
Filling of the AdBlue® tank can be done
using:
-
5 or 10 litres containers equipped with a
10 centimetre filler tube or the filling kit


available from P
eugeOt dealers,
-
1.89 litre botles that are screwed onto
the filler neck, available from P
eugeOt
dealers,
-
or when at a fuel filling station equipped
with a special

AdBlue
® delivery pump for
heavy or light vehicles.
AdBlue® additive

137

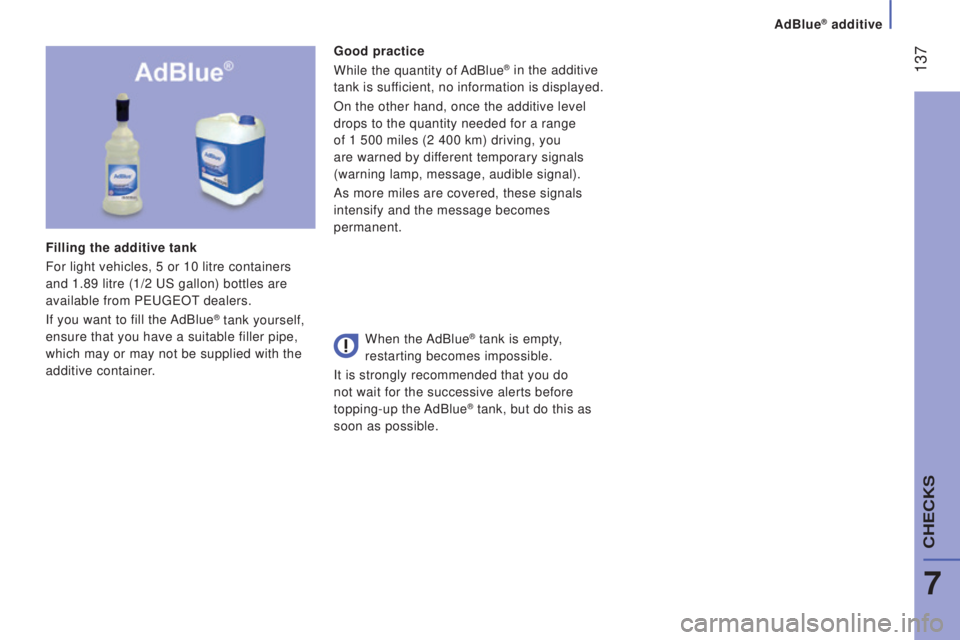

Good practice
While the quantity of AdBlue® in the additive
tank is
sufficient, no information is displayed.
On the other hand, once the additive level
drops to the quantity needed for a range
of 1 500 miles (2 400 km) driving, you
are warned by different temporary signals
(warning lamp, message, audible signal).
As more miles are covered, these signals
intensify and the message becomes
permanent.
Filling the additive tank
For light vehicles, 5 or 10 litre containers
and 1.89 litre (1/2
uS gallon) bottles are


available from P
eugeOt dealers.
If you want to fill the AdBlue® tank yourself,
ensure that you have a suitable filler pipe,
which may or may not be supplied with the
additive container. When the AdBlue® tank is empty,
restarting becomes impossible.
It is strongly recommended that you do
not wait for the successive alerts before
topping-up the AdBlue
® tank, but do this as
soon as possible.
AdBlue® additive
7
CHeCKS

138

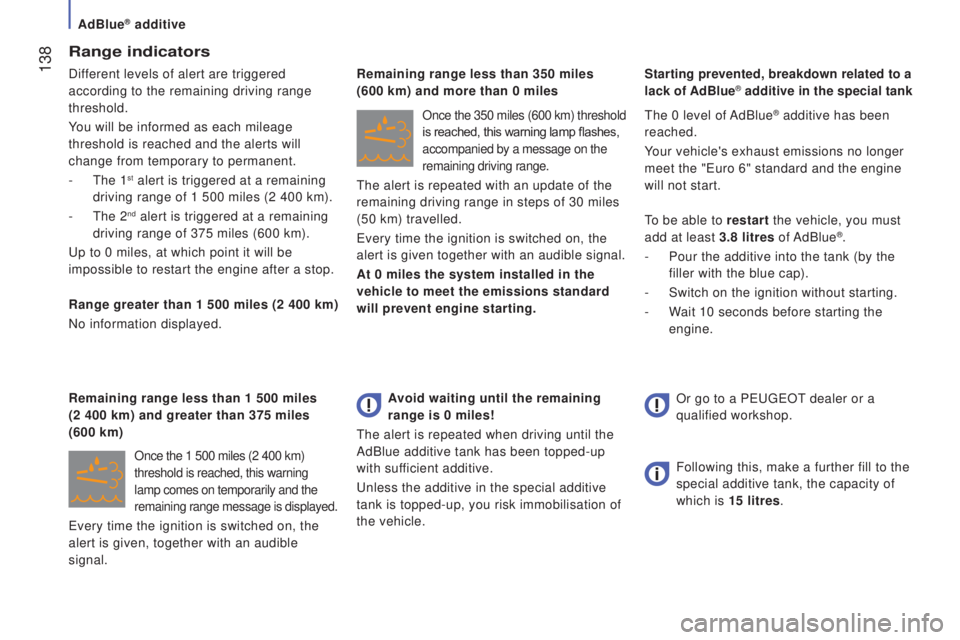

range indicators
Different levels of alert are triggered
according to the remaining driving range
threshold.
You will be informed as each mileage
threshold is reached and the alerts will
change from temporary to permanent.
-

t
he 1st alert is triggered at a remaining
driving range of 1 500 miles (2 400 km).
-


t
he 2nd alert is triggered at a remaining
driving range of 375 miles (600 km).
up to 0 miles, at which point it will be


impossible to restart the engine after a stop.
range greater than 1 500 miles (2 400 km)
No information displayed.
Once the 1 500 miles (2 400 km)
threshold is reached, this warning
lamp comes on temporarily and the
remaining range message is displayed.
every time the ignition is switched on, the
alert is given, together with an audible
signal.
remaining range less than 1 500 miles


(2 400 km) and greater than 375 miles
(600 km)
Once the 350 miles (600 km) threshold
is reached, this warning lamp flashes,
accompanied by a message on the
remaining driving range.
the alert is repeated with an update of the
remaining driving range in steps of 30 miles
(50 km) travelled.
every time the ignition is switched on, the


alert is given together with an audible signal.
At 0 miles the system installed in the
vehicle to meet the emissions standard
will prevent engine starting.
the 0 level of
AdBlue
® additive has been
reached.
Your vehicle's exhaust emissions no longer
meet the "
euro 6" standard and the engine


will not start.
to be able to restart

the vehicle, you must
add at least 3.8 litres of AdBlue
®.
-
Pour the additive into the tank (by the
filler with the blue cap).
-
Switch on the ignition without starting.
-
Wait 10 seconds before starting the


engine.
remaining range less than 350 miles



(600 km) and more than 0 miles Starting prevented, breakdown related to a
lack of AdBlue
®
additive in the special tank
Avoid waiting until the remaining
range is 0 miles!
the alert is repeated when driving until the


AdBlue additive tank has been topped-up
with sufficient additive.
unless the additive in the special additive


tank is topped-up, you risk immobilisation of
the vehicle. Following this, make a further fill to the
special additive tank, the capacity of
which is 15 litres. Or go to a P
eugeOt dealer or a
qualified workshop.
AdBlue® additive
