Peugeot Expert 2003 Owner's Manual

22-04-2003

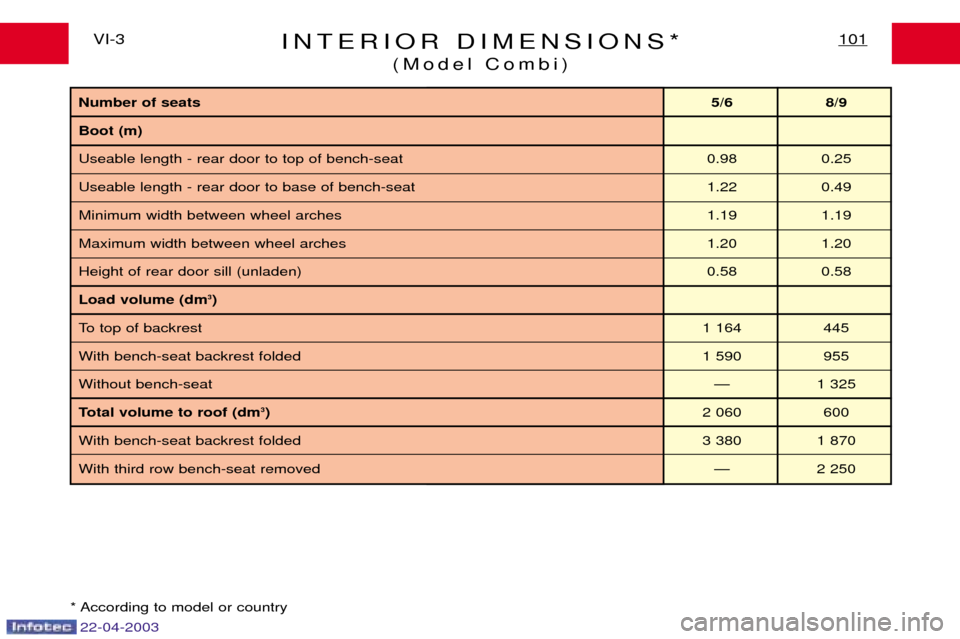

INTERIOR DIMENSIONS*(Model Combi)101VI-3
* According to model or country
Number of seats 5/6 8/9
Boot (m) Useable length - rear door to top of bench-seat 0.98 0.25
Useable length - rear door to base of bench-seat 1.22 0.49
Minimum width between wheel arches 1.19 1.19
Maximum width between wheel arches 1.20 1.20
Height of rear door sill (unladen) 0.58 0.58
Load volume (dm 3
)
To top of backrest 1 164 445
With bench-seat backrest folded 1 590 955
Without bench-seat Ñ 1 325
Total volume to roof (dm 3
) 2 060 600
With bench-seat backrest folded 3 380 1 870
With third row bench-seat removed Ñ 2 250

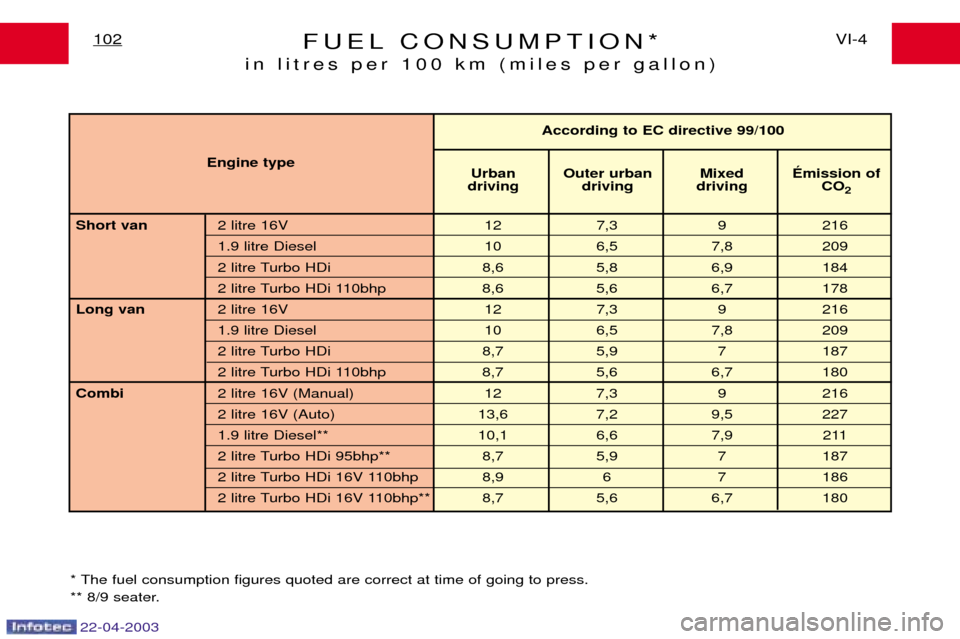

FUEL CONSUMPTION*
in litres per 100 km (miles per gallon)VI-4
102
Short van 2 litre 16V 12 7,3 9 216
1.9 litre Diesel 10 6,5 7,8 209
2 litre Turbo HDi 8,6 5,8 6,9 184
2 litre Turbo HDi 110bhp 8,6 5,6 6,7 178
Long van 2 litre 16V 12 7,3 9 216
1.9 litre Diesel 10 6,5 7,8 209
2 litre Turbo HDi 8,7 5,9 7 187
2 litre Turbo HDi 110bhp 8,7 5,6 6,7 180
Combi 2 litre 16V (Manual) 12 7,3 9 216
2 litre 16V (Auto) 13,6 7,2 9,5 227
1.9 litre Diesel** 10,1 6,6 7,9 211
2 litre Turbo HDi 95bhp** 8,7 5,9 7 187
2 litre Turbo HDi 16V 110bhp 8,9 6 7 186
2 litre Turbo HDi 16V 110bhp** 8,7 5,6 6,7 180
Engine type According to EC directive 99/100
Urban Outer urban Mixed ƒmission of
driving driving driving CO 2
* The fuel consumption figures quoted are correct at time of going to press.
** 8/9 seater.
22-04-2003

22-04-2003
VEHICLE IDENTIFICATION*103VI-5Chassis number plate
On the left hand front door pillar.1 :Type approval number.
2 : Vehicle Identification Number (VIN).
3 : Gross vehicle weight.
4 : Gross train weight.
5 : Maximum weight on front axle.
6 : Maximum weight on rear axle.
7 : Colour code.
All original replacement parts are available from the manufacturer.
It is in the user's interest, for his safety and for the sake of the warranty, to reject all other parts.
Fitting parts or units not supplied by the manufacturer may even result in violation of the law, if it results in non-com-
pliance with the regulations, especially as regards safety, pollution control, interference suppression and the noise levelof the vehicle.
Fitting such parts or units could deprive the user of any recourse against the manufacturer.
* According to model or country
1 2 3 456 7

ACCESSORIESVI-6
104
When choosing accessories for your vehicle, you should consult
your dealer. He is in the best position to advise you, as a result of hisproduct knowledge and the close contact maintained with the manu-
facturer.
Accessories, replacement parts
Your vehicle incorporates the most modern technology so as to providethe highest levels of active and pas-
sive security. It is important that these qualities are retained and that the characte-ristics of the vehicle are not altered.
22-04-2003
Advice Use only accessories and replace- ment parts approved by the manu-facturer for your vehicle. These accessories and replace- ment parts are designed specifical-ly for your vehicle and have beentested and approved for reliability
and safety. The manufacturer can-not provide this assurance for anyother products.
A large range of genuine approved and guaranteed accessories is availablefrom our dealer network:
- Security
: Glass etching, alarms, wheel bolt locks.
- Protection : Seat covers, carpets.
- Communication : Radio-telephone, radio/cassette, CD changer, CB.
- Customising : Body styling, spoilers, interior wood finishers,
wooden steering wheel, leather, etc.
- Comfort : Air conditioning, additional heating, sun roof,
storage, etc.
- Leisure : Tow bar, roof bars, ski carrier etc.
- Children : Child restraints, sun blinds, etc.
- Maintenance : Screenwash fluid, engine coolant, cleaning products
for interior and exterior.

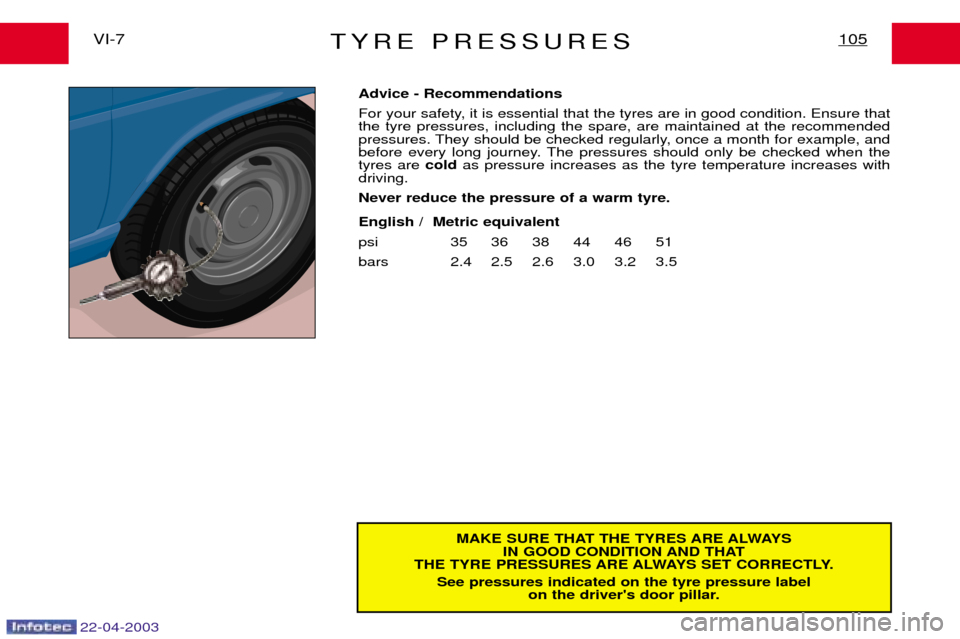

TYRE PRESSURES105VI-7
MAKE SURE THAT THE TYRES ARE ALWAYSIN GOOD CONDITION AND THAT
THE TYRE PRESSURES ARE ALWAYS SET CORRECTLY.
See pressures indicated on the tyre pressure label on the driver's door pillar.
Advice - Recommendations
For your safety, it is essential that the tyres are in good condition. Ensure that the tyre pressures, including the spare, are maintained at the recommended
pressures. They should be checked regularly, once a month for example, and
before every long journey. The pressures should only be checked when thetyres are
coldas pressure increases as the tyre temperature increases with
driving. Never reduce the pressure of a warm tyre. English / Metric equivalent
psi 35 36 38 44 46 51
bars 2.4 2.5 2.6 3.0 3.2 3.5
22-04-2003

22-04-2003

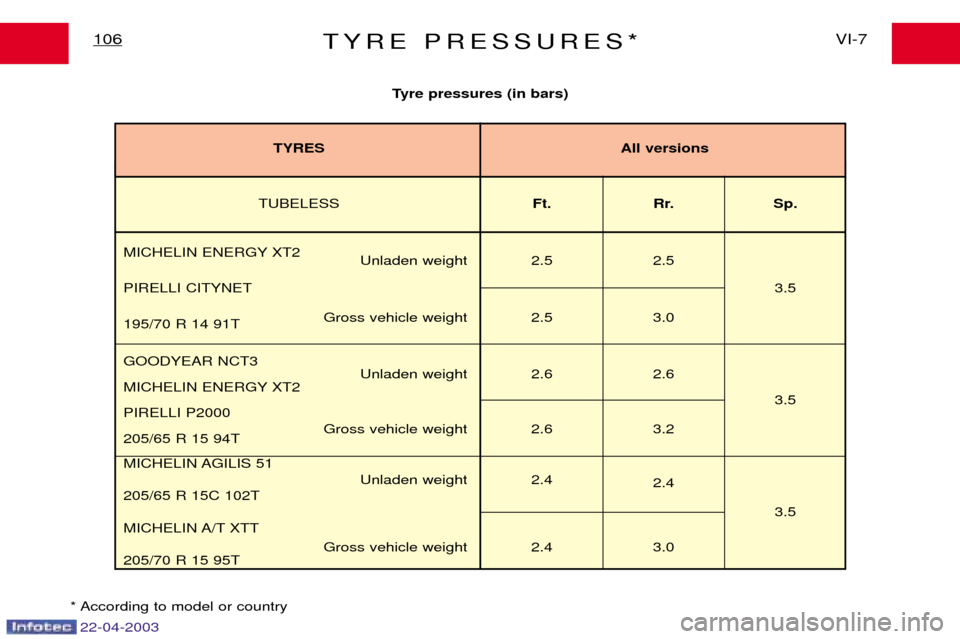

TYRE PRESSURES*VI-7
106
Tyre pressures (in bars)
* According to model or country
TUBELESS Ft. Rr. Sp.
MICHELIN ENERGY XT2 Unladen weight 2.5 2.5
PIRELLI CITYNET 3.5
Gross vehicle weight 2.5 3.0
195/70 R 14 91T
MICHELIN AGILIS 51
Unladen weight 2.4 2.4
205/65 R 15C 102T
3.5
MICHELIN A/T XTT
Gross vehicle weight 2.4 3.0
205/70 R 15 95T
GOODYEAR NCT3
Unladen weight 2.6 2.6
MICHELIN ENERGY XT2 3.5
PIRELLI P2000
Gross vehicle weight 2.6 3.2
205/65 R 15 94T TYRES
All versions

F
NL
SF
GR
A
D
CH
I
N
P
E
B
DK
GB
L
S
IRL
ACTIV A
D
IESE L 7000
10W 40
A C
TIV A
D
IE SEL 9000
5W 40
A C
TIVA 9000
5W 30*
U
LT R A
D
IESE L
10W 40
U LT R A
5W 30*
U LT R O
N D
IES EL
5W 40
QUAR TZ D IESE
L 7000
10W 40
Q UA R
TZ 9000
5W 40
Q UAR TZ 9000
5W 30*
AC TIVA 7000
10W 40
AC TIV A 9000
5W 40
AC TIV A
9000
5W 30*
Q U
AR TZ 7000
15W 50
U
LT R A
10W 40
U LT R A
5W 30*
U LT R ON

5W 40
U LT R O
N

0W 30
QUAR TZ 7000
10W 40
Q U
AR TZ 9000
0W 40
Q U
AR TZ 9000
5W 40
Q UAR TZ 9000
5W 30*
22-04-2003

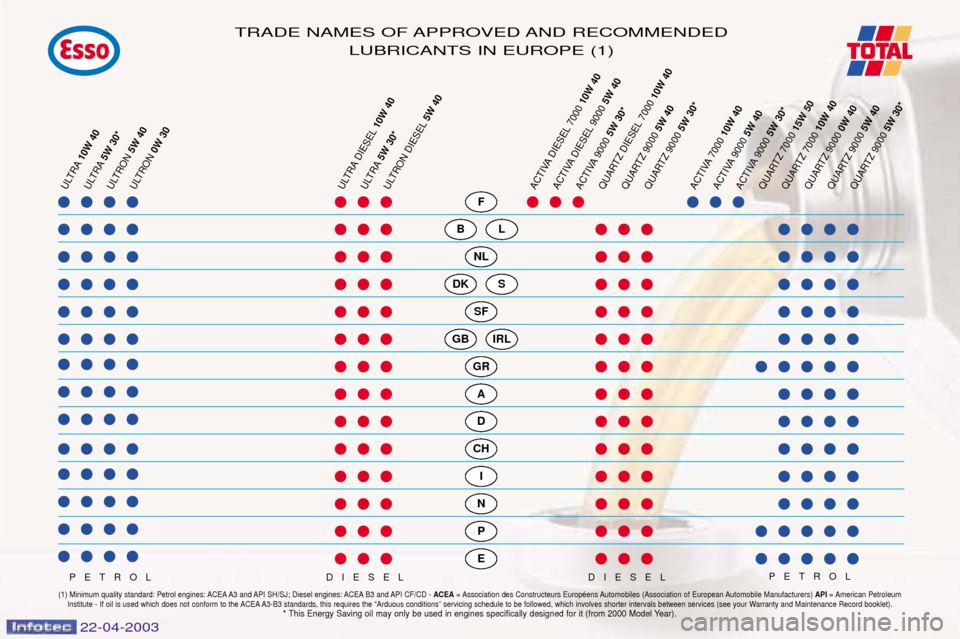

TRADE NAMES OF APPROVED AND RECOMMENDED
LUBRICANTS IN EUROPE (1)
PETROL
(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ; Diesel engines: ACEA B3 and API CF/CD - ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) API= American Petroleum
Institute - If oil is used which does not conform to the ACEA A3-B3 standards, this requires the ÒArduous conditionsÓ servicing schedule to be followed, which involves shorter intervals between services (see your Warranty and Maintenance Record booklet).
* This Energy Saving oil may only be used in engines specifically designed for it (from 2000 Model Year).
PETROL DIESEL
DIESEL

22-04-2003
RECOMMENDATIONS FORAPPROVED LUBRICANTSVI-8
108
The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at whichthe oils are to be used. It is also possible to use synthetic oils of 'superior quality'. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJquality (for petrol engines), orCD/CF quality (for diesel engines)may be used by following the'Arduous Conditions' maintenanceschedule which specifies shorterintervals. Do not hesitate to ask for advice
from a PEUGEOT dealer to main-tain driving pleasure and to minimi-se the maintenance cost of yourvehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
ESSENTIAL ESSENTIAL
Manual gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W-80 PR 9736.41 75W-80
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other approved products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ESSENTIAL Protection to minus 35 ¡C
