Expert_en_Chap01_instruments-de-bord_ed01-2016

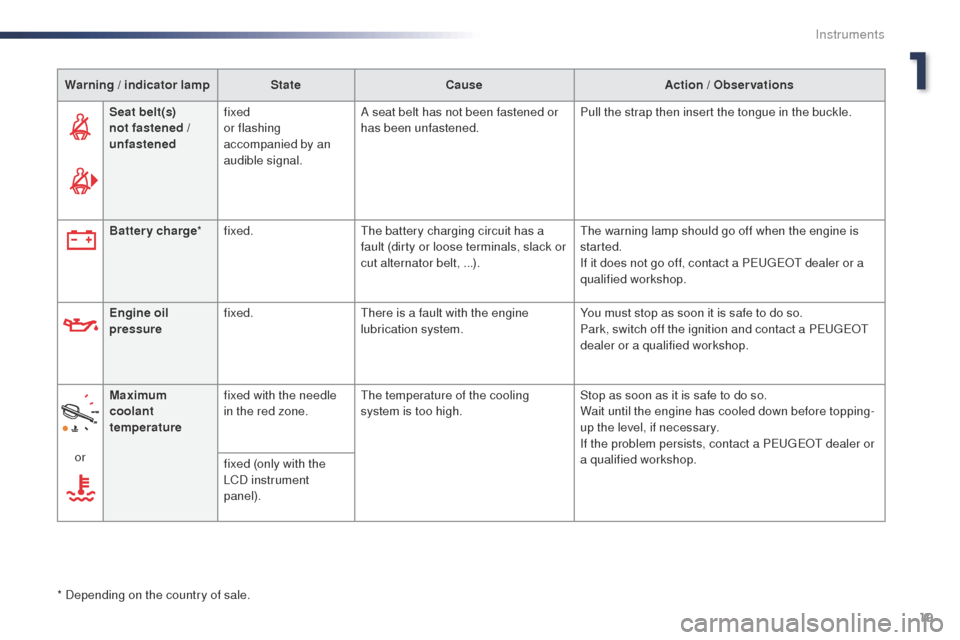

Warning / indicator lampStateCause Action / Observations
Seat belt(s)
not fastened /
unfastened fixed
or flashing
accompanied by an
audible signal. A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
* Depending on the country of sale. Battery charge
*fixed.
th
e battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
th
e warning lamp should go off when the engine is
started.
If it does not go off, contact a PE
u
g
Eo
t dealer or a
qualified workshop.
Engine oil
pressure fixed.
th
ere is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PE
u
g
Eo
t
dealer or a qualified workshop.
or Maximum
coolant
temperature
fixed with the needle
in the red zone.
th
e temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a PE
u
g
Eo
t dealer or
a qualified workshop.
fixed (only with the
LCD instrument
panel).
1
Instruments
Page 22 of 599
20
Warning / indicator lampStateCause Action / Observations
Door(s) open fixed, associated with
a message identifying
the door, if the speed
is below 6 mph
(10 km/h). A front, side or rear door (left-hand
side-hinged door or tailgate) is still
open.
Close the door in question.
If your vehicle has side-hinged rear doors and the
right-hand door is still open, it being open will not be
signalled by this warning lamp.
fixed, associated with
a message identifying
the door, together with
an audible signal if the
speed is above 6 mph
(10 km/h).
or Low fuel level
fixed, with the needle
in the red zone. When it first comes on there remains
less than 8 litres of fuel
in the tank.You must refuel as soon as possible to avoid running
out of fuel.
th
is warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 69 litres .
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
fixed (only with the
LCD instrument
panel).
Presence of
water in the
Diesel fuel fixed (only with the
LCD instrument
panel).
th
e Diesel fuel filter contains water.
th
ere is a risk of damage to the injection system.
Contact a PE
u
g
Eo
t dealer or a qualified workshop
without delay.
Instruments
Page 23 of 599
21
Expert_en_Chap01_instruments-de-bord_ed01-2016

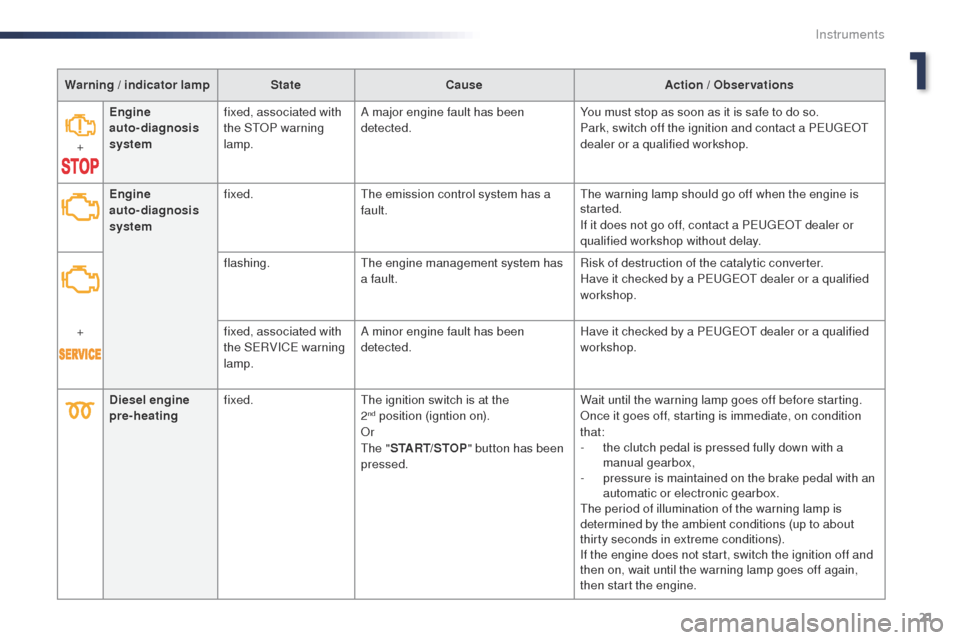

Warning / indicator lampStateCause Action / Observations
+ Engine
auto-diagnosis
system
fixed, associated with
the S
t
o
P w
arning
lamp. A major engine fault has been
detected.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a PE
u
g
Eo
t
dealer or a qualified workshop.
Diesel engine
pre-heating fixed.
th
e ignition switch is at the
2
nd position (igntion on).o
r
th
e " START/STOP " button has been
pressed. Wait until the warning lamp goes off before starting.on
ce it goes off, starting is immediate, on condition
that:
-
t
he clutch pedal is pressed fully down with a
manual gearbox,
-
p
ressure is maintained on the brake pedal with an
automatic or electronic gearbox.
th
e period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Engine
auto-diagnosis
system
fixed.
th
e emission control system has a
fault.
th
e warning lamp should go off when the engine is
started.
If it does not go off, contact a PE
u
g
Eo
t dealer or
qualified workshop without delay.
flashing.
the
engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a PE
u
g
Eo
t dealer or a qualified
workshop.
+ fixed, associated with
the SERVICE warning
lamp.A minor engine fault has been
detected.
Have it checked by a PE
u
g
Eo
t dealer or a qualified
workshop.
1
Instruments
Page 24 of 599
22
Warning / indicator lampStateCause Action / Observations
Under-inflation fixed, accompanied by
an audible signal and
a message.
th
e pressure in one or more tyres is
too low. Check the tyre pressures as soon as possible.
th
is check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection ,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.
th
e system has a fault: the tyre
pressures are no longer monitored. Check the tyre pressures as soon as possible.
Have the system checked by a PE
u
g
Eo
t dealer or a
qualified workshop.
Foot on the
brake pedal fixed.
th
e brake pedal must be pressed. With an automatic or electronic gearbox, press the brake pedal, engine running, before releasing the
parking brake, to release the selector lever and come
out of position P or N.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Foot on the
clutch fixed.
In the S
t
o
P m
ode of Stop & Start,
the change to S
tA
R
t
mode is denied
because the clutch pedal is not fully
down. If your vehicle has a manual gearbox, you must
declutch fully to allow the change to engine S
tA
R
t
mode.
Instruments
Page 25 of 599
23
Expert_en_Chap01_instruments-de-bord_ed01-2016
Anti-lock
Braking System
(ABS)fixed.th
e anti-lock braking system has a
fault.th e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PE
u
g
Eo
t dealer or a qualified workshop without
d e l ay.
Warning / indicator lamp
StateCause Action / Observations
Collision Risk
Aler t / Active
Safety Brake flashing.
the
system is operating.
th
e system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
fixed, accompanied
by a message and an
audible signal
th
e system has a fault.Have the system checked by a PE
u
g
Eo
t dealer or a
qualified workshop.
fixed, accompanied by
a message.
th
e system has been deactivated
(via the menu). For more information on the Collision Risk
Aler t / Active Safety Brake system, refer to the
corresponding section.
Par ticle filter
(Diesel) fixed, accompanied
by an audible signal
message on the risk
of blockage of the
particle filter.
th
is indicates that the particle filter is
starting to become saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied
by an audible signal
and and a message
that the particle filter
additive level is too
low.
th
is indicates the low level of the
additive reservoir. Have the reservoir topped-up as soon as possible by
a PE
u
g
Eo
t dealer or a qualified workshop.
1
Instruments
Page 26 of 599
24
Warning / indicator lampStateCause Action / Observations
Passenger's
front airbag fixed in the seat belt
and front passenger's
airbag warning lamps
display.
th
e control switch, located at the
passenger's end of the dashboard, is
set to the "OFF" position.
the
passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the airbags (airbag warning lamp on).
tu
rn the control switch to the "ON" position to activate
the passenger's front airbag; in this case, you must
not install a child seat in the rear ward facing position
on this seat.
Airbags
on temporarily.
th
is warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
th
is warning lamp should go off when the engine is
started.
If it does not go off, contact a PE
u
g
Eo
t dealer or a
qualified workshop.
fixed.
on
e of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a PE
u
g
Eo
t dealer or a
qualified workshop.
Passenger 's
airbag system fixed.
th
e control switch, located at the
passenger's end of the dashboard, is
at the " ON" position.
the
passenger's front airbag is
activated.
In this case, do not install a rear ward
facing child seat on the front
passenger seat.
tu
rn the control switch to the "OFF" position to
deactivate the passenger's front airbag.
You can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp
on).
Instruments
Page 27 of 599
25
Expert_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Power steering fixed.
th
e power steering has a fault. Drive carefully at reduced speed.Have it checked by a PE
u
g
Eo
t dealer or a qualified
workshop.
Dynamic
stability control
(DSC/ASR)
flashing.
th
e DSC/ASR regulation is
operating.
th
e system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed.
th
e DSC/ASR system has a fault. Have the system checked by a PE
u
g
Eo
t dealer or a
qualified workshop.
Dynamic
stability control
(DSC/ASR)
fixed.
th
e button is pressed and the
indicator lamp comes on.
the
DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation. Press the button to activate the DSC/ASR. Its
indicator lamp goes off.
th
e DSC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information on the Electronic stability
programme (ESC) and in particular, DSC/ASR, refer
to the corresponding section.
1
Instruments
Page 28 of 599
26

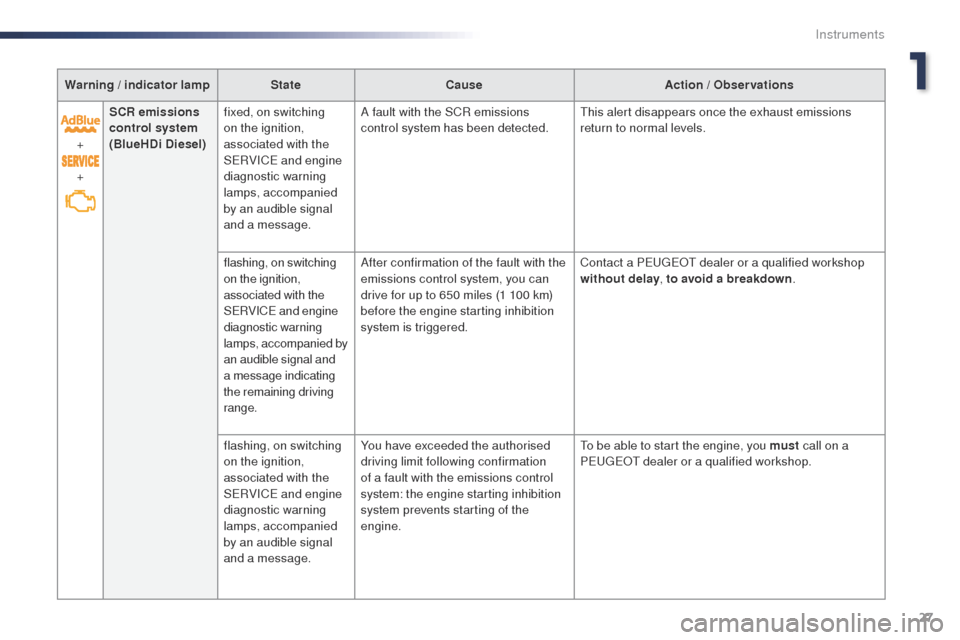

For topping-up the AdBlue® fluid or for more information on AdBlue®, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
AdBlue
®
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.the
remaining driving range is
between 350 miles (600 km)
and
1500 miles (2400 km).Have the AdBlue® tank topped-up as soon as
possible: go to a PEu gEo t dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range.
the
remaining driving range is
between 0 and 350 miles (600 km). You must top-up the AdBlue
® tank to avoid a
breakdown : go to a PEu
gEo t dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented.
th
e AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine.to b e able to start the engine, you must top-up the
AdBlue® tank: go to a PEu gEo t dealer or a qualified
workshop, or carry out this operation yourself.
It is essential to add at least 3.8 litres of AdBlue
® to
the fluid tank.
Instruments
Page 29 of 599
27
Expert_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
th
is alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a PE
u
g
Eo
t dealer or a qualified workshop
without delay , to avoid a breakdown .
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
to b
e able to start the engine, you must call on a
PE
u
g
Eo
t dealer or a qualified workshop.
1
Instruments
Page 30 of 599
28
Warning / indicator lampStateCause Action / Observations
Rear foglamps fixed.
th
e rear foglamps are on.
tu
rn the ring on the stalk rear ward to switch off the
rear foglamps.
Service
on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated message,
for example:
-
l
ow engine oil level,
-
l
ow screenwash/headlamp wash fluid level,
-
d
ischarged remote control battery,
-
l
ow tyre pressures,
-
s
aturation of the particle filter (FAP) on Diesel
vehicles.
-
...
For more information on Checks and in particular the
particle filter, refer to the corresponding section.
For any other faults, contact a PE
u
g
Eo
t dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a PE
u
g
Eo
t dealer or a qualified workshop.
+ fixed, associated with
flashing and then fixed
display of the service
spanner.
the
servicing interval has been
exceeded.
on
ly on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Instruments
