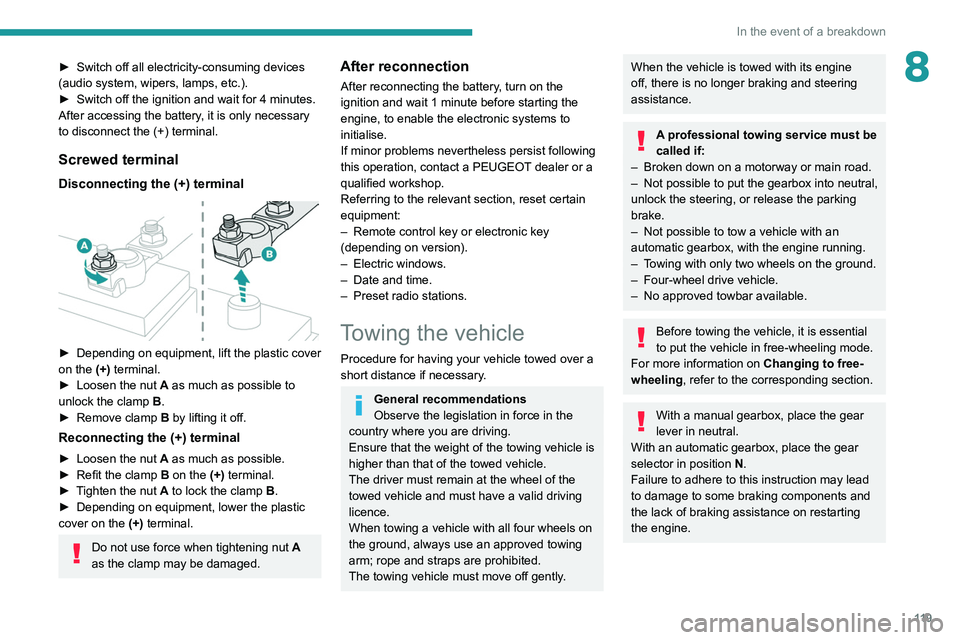

Page 121 of 176

Peugeot Landtrek 2021  Owners Manual 11 9
In the event of a breakdown
8► Switch off all electricity-consuming devices
(audio system, wipers, lamps, etc.).
►

Switch off the ignition and wait for 4
   minutes.
After accessing the ba

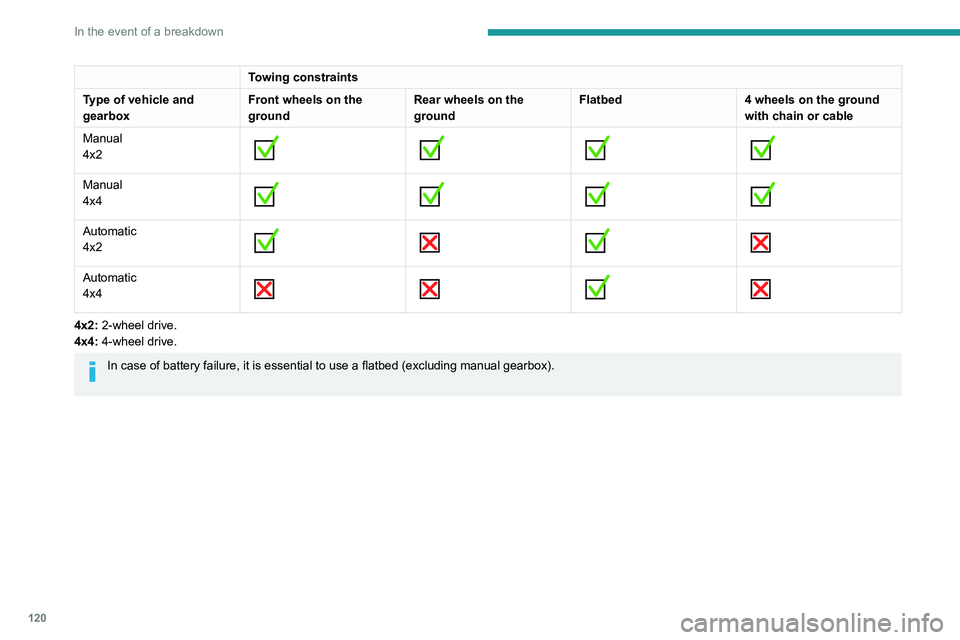

Page 122 of 176

Peugeot Landtrek 2021  Owners Manual 120
In the event of a breakdown
Towing constraints
Type of vehicle and
gearbox Front wheels on the
groundRear wheels on the
groundFlatbed
4 wheels on the ground
with chain or cable
Manual
4x2

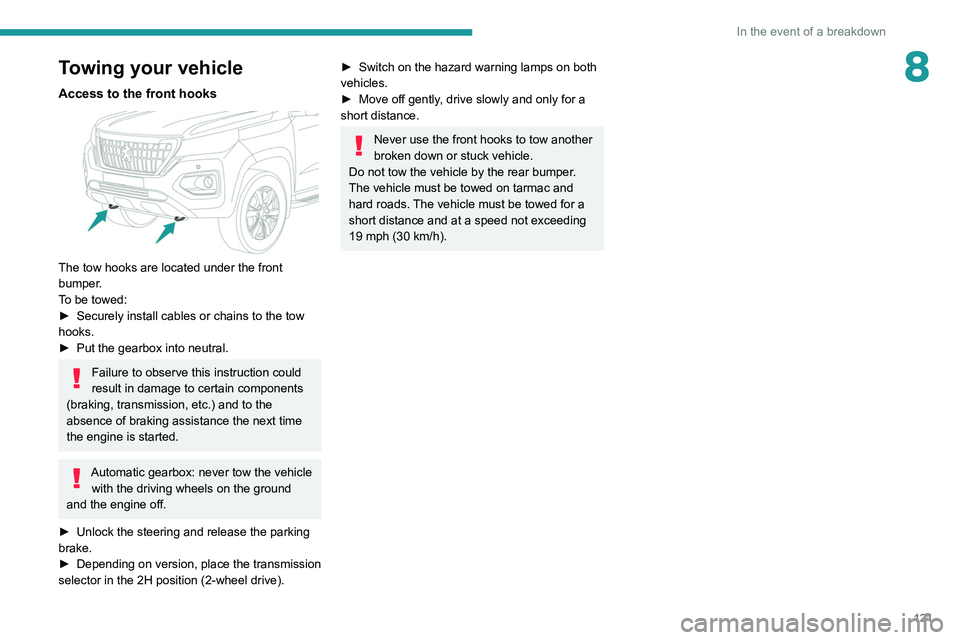

Page 123 of 176

Peugeot Landtrek 2021  Owners Manual 121
In the event of a breakdown
8Towing your vehicle
Access to the front hooks

The tow hooks are located under the front
bumper.
To be towed:
►
Securely install cables or chains to the tow
hoo

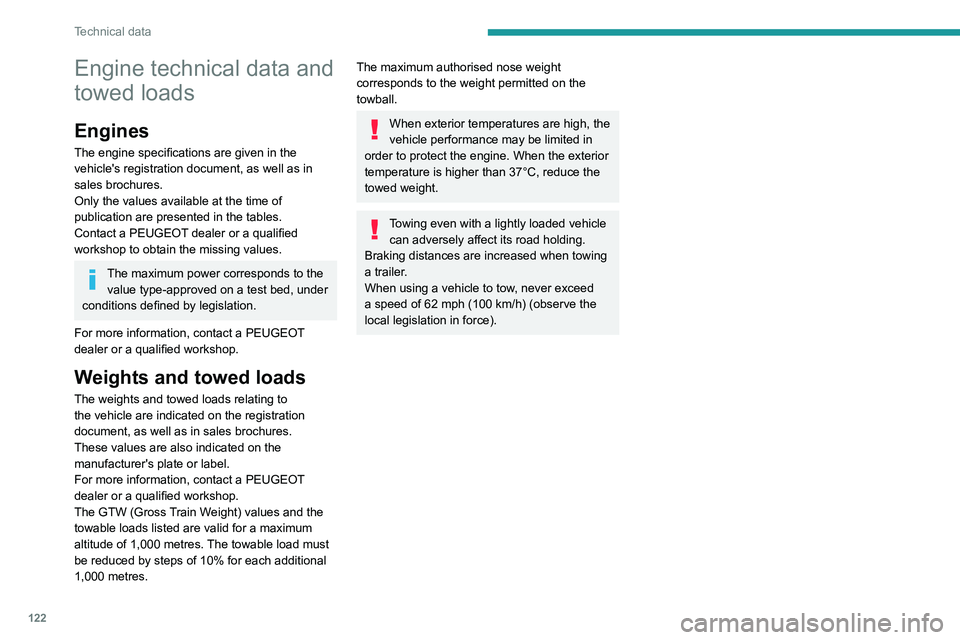

Page 124 of 176

Peugeot Landtrek 2021  Owners Manual 122
Technical data
Engine technical data and
towed loads
Engines
The engine specifications are given in the
vehicle's registration document, as well as in
sales brochures.
Only the values avail

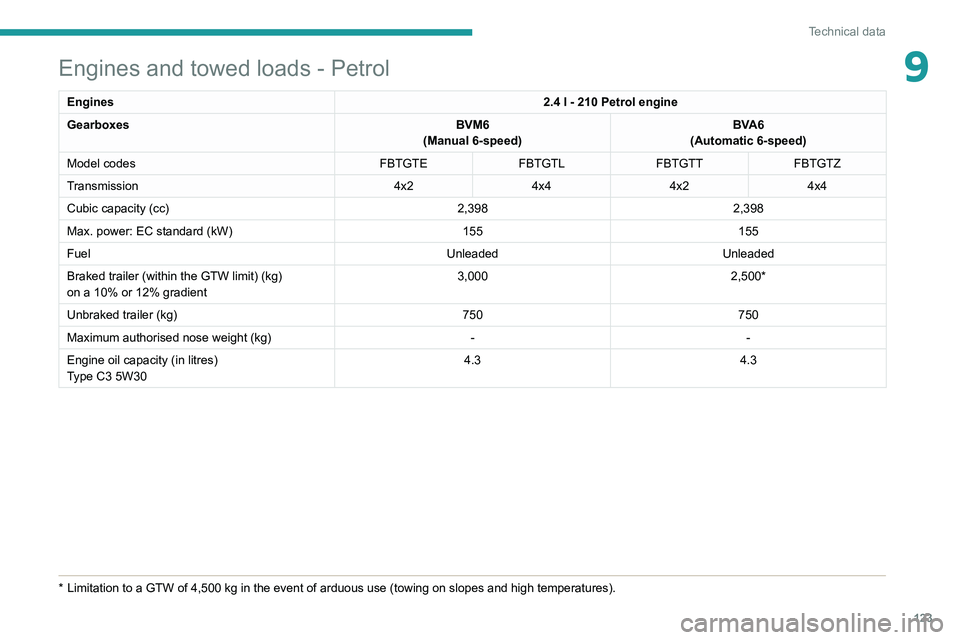

Page 125 of 176

Peugeot Landtrek 2021  Owners Manual 123
Technical data
9Engines and towed loads - Petrol
Engines2.4 l - 210 Petrol engine
Gearboxes BVM6
(Manual 6-speed) BVA6
(Automatic 6-speed)
Model codes FBTGTEFBTGTLFBTGTT FBTGTZ
Transmission 4x24x4

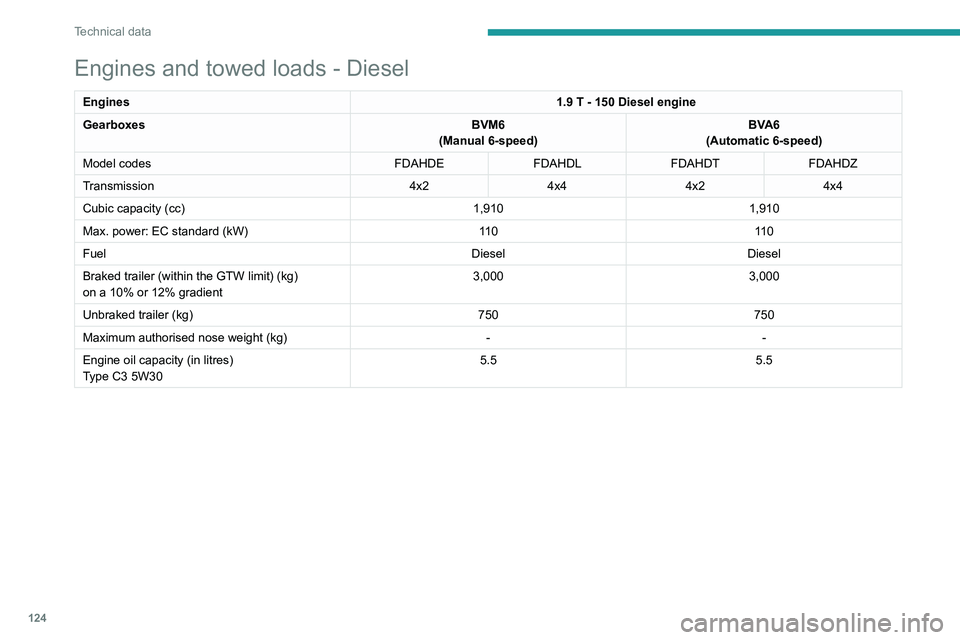

Page 126 of 176

Peugeot Landtrek 2021  Owners Manual 124
Technical data
Engines and towed loads - Diesel
Engines1.9 T - 150 Diesel engine
Gearboxes BVM6
(Manual 6-speed) BVA6
(Automatic 6-speed)
Model codes FDAHDEFDAHDLFDAHDT FDAHDZ
Transmission 4x24x44

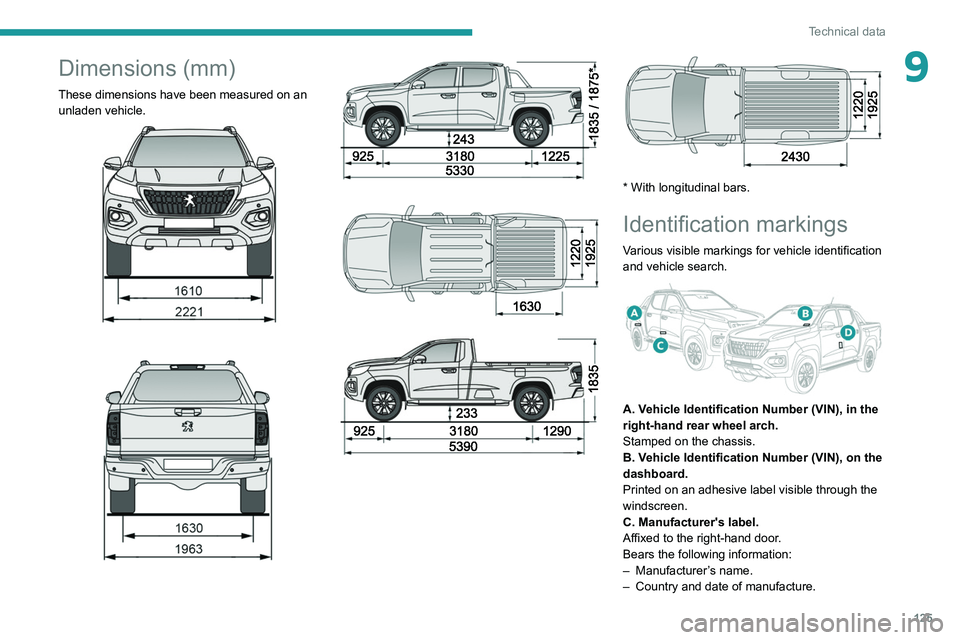

Page 127 of 176

Peugeot Landtrek 2021  Owners Manual 125
Technical data
9Dimensions (mm)
These dimensions have been measured on an unladen vehicle.












* With longitudinal bars.
Identification markings
Various visible markings for ve

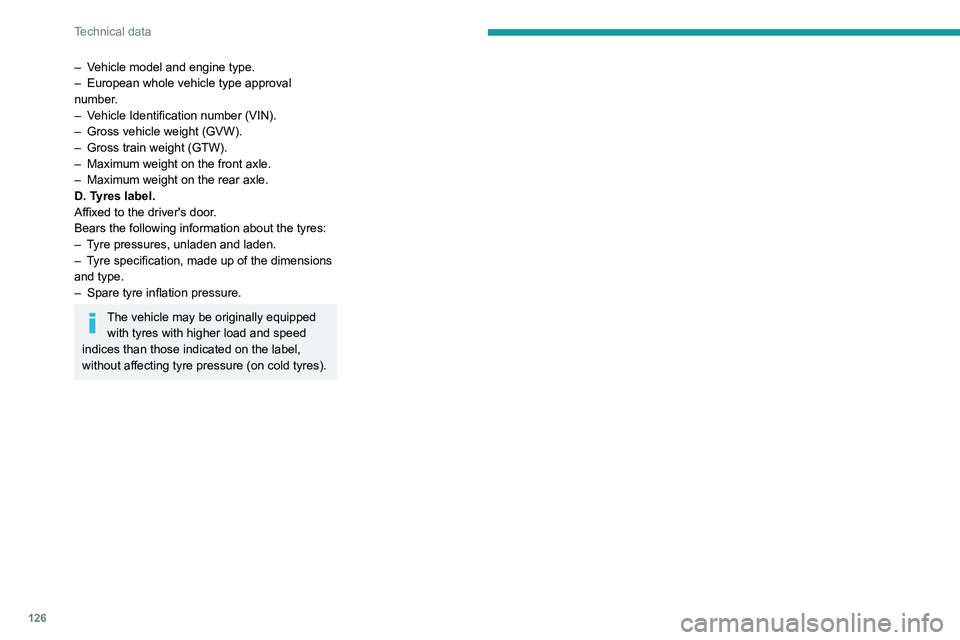

Page 128 of 176

Peugeot Landtrek 2021  Owners Manual 126
Technical data
– Vehicle model and engine type.
– European whole vehicle type approval
number
.
–

V
 ehicle Identification number (VIN).
–

Gross vehicle weight (GVW).
–


Gross tra

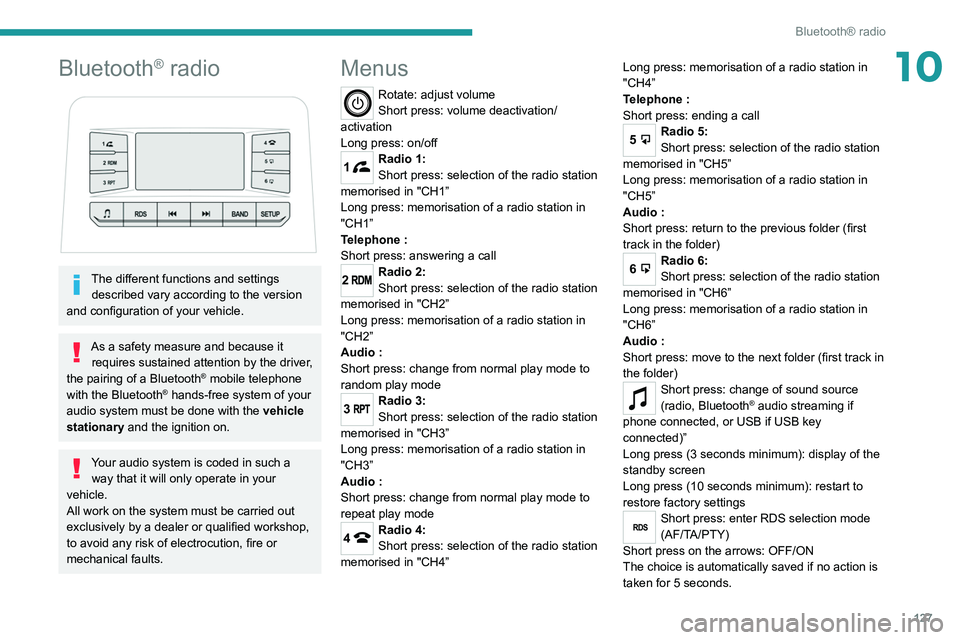

Page 129 of 176

Peugeot Landtrek 2021  Owners Manual 127
Bluetooth® radio
10Bluetooth® radio

The different functions and settings described vary according to the version
and configuration of your vehicle.
As a safety measure and because it  requir

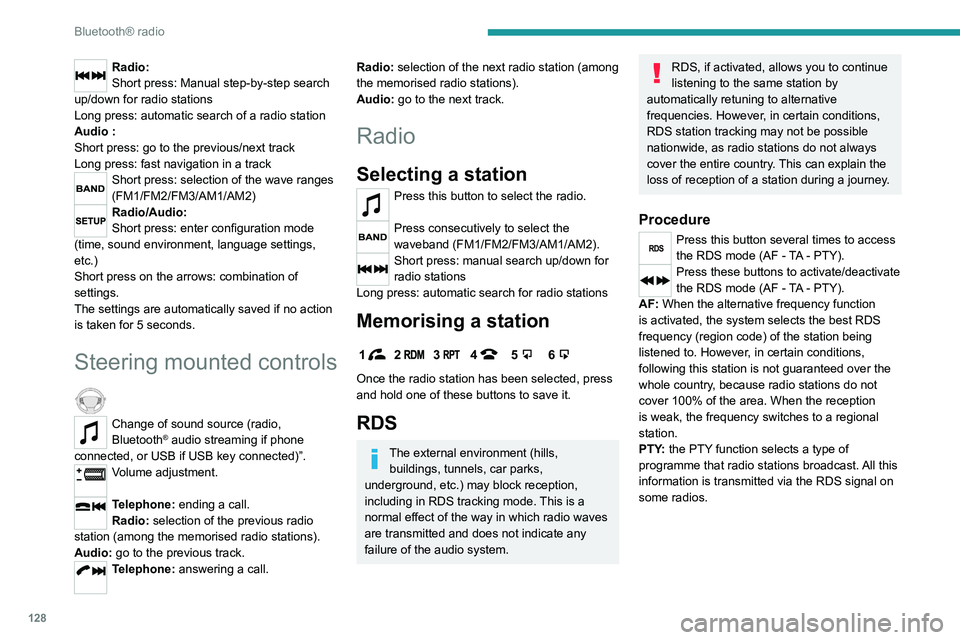

Page 130 of 176

Peugeot Landtrek 2021  Owners Manual 128
Bluetooth® radio
Media
USB socket
Insert a USB memory stick in the USB
socket.
The system changes automatically to "USB"
source and the "USB" symbol appears at the top
left of
