Peugeot Partner 2008.5 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2008.5, Model line: Partner, Model: Peugeot Partner 2008.5Pages: 153, PDF Size: 3.77 MB
Page 21 of 153
READY TO SET OFF
25 25
22
Instruments and controls
INSTRUMENTS AND CONTROLS
INSTRUMENT PANEL
Dials
1. Distance recorder in kilometres/
miles.
2. Display.
3. Fuel level, coolant temperature.
4. Rev counter.
5. Trip distance recorder/service
indicator zero reset.
6. Instrument panel lighting rheostat. Displays
- Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level
indicator, total kilometres/miles.
- Presence of water in the diesel fi l t e r .
- Diesel pre-heating. Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle’s equipment.
Page 22 of 153
26
Instruments and controls Centre console with display
Instrument panel without display
- turn to the right to increase the hours (hold the button to the right
for rapid scrolling),
- turn to the left: 24 H or 12 H is displayed,
-
turn to the right to select 24 H or 12 H,
- turn to the left to complete the time adjustment.
After approximately 30 seconds
without any action, the display returns
to the normal display.
To adjust the time and date
indicated on the display, refer to
the "Adjusting the date and time"
section of chapter 4.
Centre console without display
To adjust the time of the
clock, use the left-hand button
on the instrument panel then
carry out the operations in the
following order:
- t u r n t o t h e l e f t : t h e m i n u t e s fl a s h ,
- turn to the right to increase the
minutes (hold the button to the right
for rapid scrolling),
- t u r n t o t h e l e f t : t h e h o u r s fl a s h , The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
Page 23 of 153
READY TO SET OFF
27 27
22
Instruments and controls
WARNING LIGHTS
Each time the vehicle is started: a series of warning lights comes on applying a self-test check. They switch off almost
i m m e d i a t e l y . W h e n t h e e n g i n e i s r u n n i n g : t h e w a r n i n g l i g h t b e c o m e s a w a r n i n g i f i t r e m a i n s o n c o n t i n u o u s l y o r fl a s h e s . T h i s
initial warning may be accompanied by an audible signal and a message which appears on the display.
Do not ignore these warnings.
Warning light is indicates Solution - action
STOP lit, associated
with another
warning
light and
accompanied
by a message
on the display. major faults linked with
t h e " B r a k e fl u i d l e v e l " ,
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution" and
"Power steering" warning
lights.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.
Handbrake/
B r a k e fl u i d
level/EBFD lit.
that the handbrake is applied or
has not been released fully. Releasing the handbrake switches off the warning
light.
lit. a l o w b r a k e fl u i d l e v e l . T o p u p u s i n g a fl u i d r e c o m m e n d e d b y P E U G E O T .
remaining on
even though the
level is correct
and associated
with the ABS
warning light.
a failure of the electronic
brake force distribution.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.
Engine oil
pressure and
temperature lit while driving.
i n s u f fi c i e n t p r e s s u r e o r a
high temperature. Park and switch off the ignition then allow to
cool. Visually check the level. Chapter 7, "Levels"
section.
remaining on,
even though
the level is
correct. a major fault. Have the fault checked by a PEUGEOT dealer.

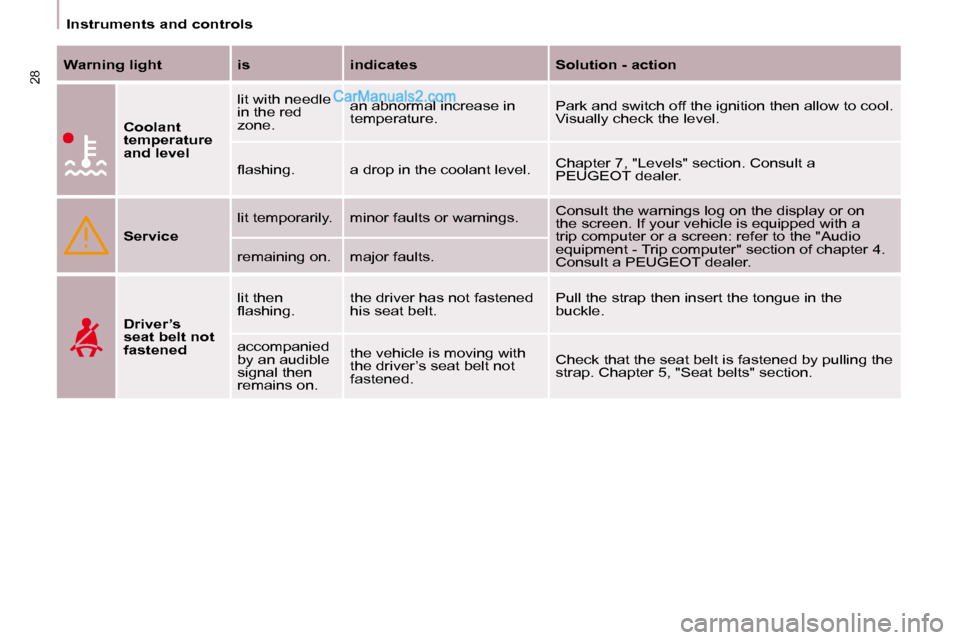

Page 24 of 153
28
Instruments and controls
Warning light is indicates Solution - action
Coolant
temperature
and level lit with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
fl a s h i n g . a drop in the coolant level. Chapter 7, "Levels" section. Consult a
PEUGEOT dealer.
Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on
the screen. If your vehicle is equipped with a
trip computer or a screen: refer to the "Audio
equipment - Trip computer" section of chapter 4.
Consult a PEUGEOT dealer.
remaining on. major faults.
Driver’s
seat belt not
fastened lit then
fl a s h i n g .
the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver’s seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap. Chapter 5, "Seat belts" section.

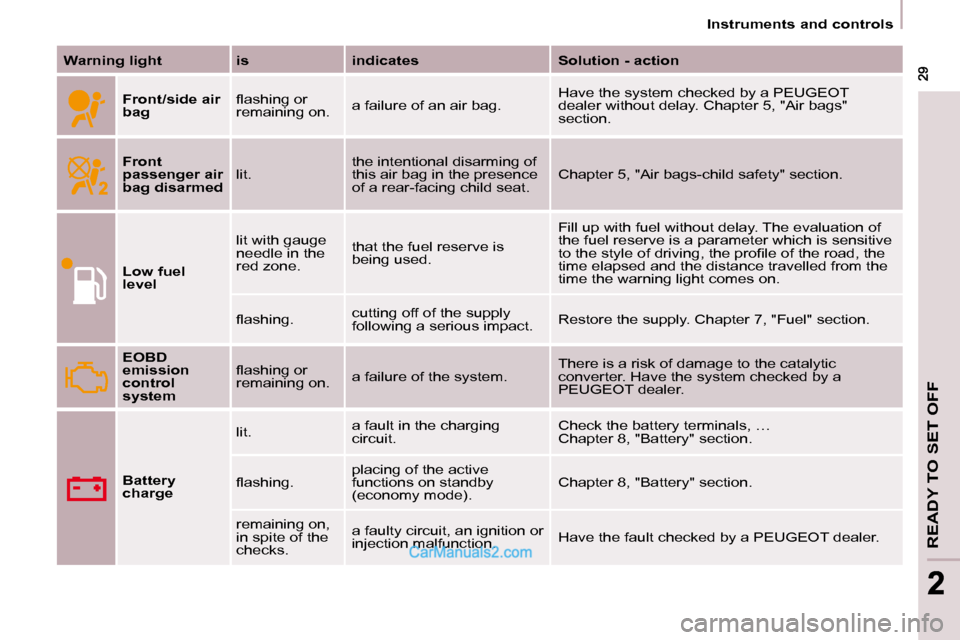

Page 25 of 153
READY TO SET OFF
29 29
22
Instruments and controls
Warning light is indicates Solution - action
Front/side air
bag fl a s h i n g o r
remaining on.
a failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Chapter 5, "Air bags"
section.
Front
passenger air
bag disarmed lit. the intentional disarming of
this air bag in the presence
of a rear-facing child seat. Chapter 5, "Air bags-child safety" section.
Low fuel
level lit with gauge
needle in the
red zone.
that the fuel reserve is
being used. Fill up with fuel without delay. The evaluation of
the fuel reserve is a parameter which is sensitive
t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f t h e r o a d , t h e
time elapsed and the distance travelled from the
time the warning light comes on.
fl a s h i n g . cutting off of the supply
following a serious impact. Restore the supply. Chapter 7, "Fuel" section.
EOBD
emission
control
system fl a s h i n g o r
remaining on.
a failure of the system. There is a risk of damage to the catalytic
converter. Have the system checked by a
PEUGEOT dealer.
Battery
charge lit.
a fault in the charging
circuit. Check the battery terminals, …
Chapter 8, "Battery" section.
fl a s h i n g . placing of the active
functions on standby
(economy mode). Chapter 8, "Battery" section.
remaining on,
in spite of the
checks. a faulty circuit, an ignition or
injection malfunction.
Have the fault checked by a PEUGEOT dealer.
Page 26 of 153
ABS
30
Instruments and controls
Warning light is indicates Solution - action
Power
steering lit. a malfunction of the system. The vehicle retains conventional steering without
assistance. Have the system checked by a
PEUGEOT dealer.
Door open
detection lit and
accompanied
by a message
on the display. that a door is not closed
correctly.
Check that all of the doors are closed.
ABS remaining on. a failure of the anti-lock
braking system. The vehicle retains conventional braking.
Consult a PEUGEOT dealer.
ESP fl a s h i n g .
triggering of the ASR or
ESP regulation. The system optimises drive and permits
improvement of the directional stability of the
vehicle. Chapter 5, "Driving safety" section.
remaining on. a malfunction of the system.
E . g . : u n d e r - i n fl a t i o n o f t h e
tyres. E.g.: check the pressure of the tyres. Have the
system checked by a PEUGEOT dealer. (Wheel
speed sensor, hydraulic block, ...).
remaining on
with the diode
on the button
(on the fascia)
lit. deactivation of the system
at the request of the driver.
Operation of the system is deactivated.
Reactivation is automatic above 30 mph (50 km/h)
or after pressing the button (on the fascia).
Page 27 of 153
READY TO SET OFF
31 31
22
Instruments and controls
Warning light is indicates Solution - action
Particle
e m i s s i o n fi l t e r lit. a malfunction of the particle
e m i s s i o n fi l t e r ( d i e s e l
additive level, risk of
clogging,...). H a v e t h e fi l t e r c h e c k e d b y a P E U G E O T d e a l e r .
Chapter 7, "Levels" section.
Dipped
headlamps/
Daytime
lights
lit. a manual selection or
automatic lighting.
Turn the ring on the lights stalk to the second
position.
lighting of the dipped headlamps
from the time the ignition is
switched on: daytime lights
(depending on the country in
which the vehicle is sold).
Chapter 3, "Steering wheel controls" section.
Main beam
headlamps pulling of the stalk towards
you.
Pull the stalk to return to dipped headlamps.
Direction
indicators fl a s h i n g w i t h
buzzer. a change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
visibility, take care to switch them off on penalty of
being booked. "This light is a dazzling red."
Page 28 of 153
32
Instruments and controls
Warning light on the
display
is indicates Solution - action
Cruise
control lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Speed limiter lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Diesel pre-
heating lit. climatic conditions requiring
pre-heating. Wait until the warning light is switched off before
operating the starter.
Presence of
water in the
d i e s e l fi l t e r
lit and
accompanied by
a message on
the display.
w a t e r i n t h e d i e s e l fi l t e r . H a v e t h e fi l t e r b l e d b y a P E U G E O T d e a l e r
without delay. Chapter 7, "Checks" section.
According to country.
Service
spanner lit. that a service will be due
shortly. Refer to the list of checks in the servicing booklet.
Have the service carried out by a PEUGEOT
dealer.
Time fl a s h i n g . adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 2, at the beginning of the "Instruments
and controls" section.
Page 29 of 153
READY TO SET OFF
33 33
22
Instruments and controls
FUEL GAUGE COOLANT TEMPERATURE
The needle is positioned between
the blue zone and the red zone:
normal operation.
In arduous conditions of use or hot
climatic conditions, the needle may
move close to the red graduations.
What you should do if the needle
enters the red zone:
Reduce your speed or let the engine
run at idle.
What you should do if the warning
light comes on:
- stop immediately, switch off the ignition. The fan may continue to
operate for a certain time up to
approximately 10 minutes.
- wait for the engine to cool down in order to check the coolant level and
top it up if necessary.
As the cooling system is pressurised,
follow this advice in order to avoid any
risk of scalding:
- wait at least one hour after switching off the engine before
carrying out any work,
- unscrew the cap by 1/4 turn to allow the pressure to drop,
- when the pressure has dropped, check the level on the expansion
bottle,
-
if necessary, remove the cap to top up.
If the needle remains in the red
zone, have the system checked by a
PEUGEOT dealer.
Refer to the "Levels" section of
chapter 7.
Refer to the "Fuel" section of
chapter 7.
The fuel level is tested each time the
key is turned to the "running" position.
The gauge is positioned on:
-
1: the fuel tank is full,
approximately 60 litres.
- 0: the reserve is now being
used, the warning light comes on
continuously. The reserve when
t h e w a r n i n g fi r s t c o m e s o n i s
approximately 8 litres.
Page 30 of 153
34
Instruments and controls Puncture
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged (punctured or
v e r y d e fl a t e d ) t y r e , a n d h a v e t h e t y r e
pressure checked as soon as possible. Sensor(s) not detected
U n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
from one (or several) tyre(s). Contact a
PEUGEOT dealer to replace the faulty
sensor(s).
This message is also displayed when
one of the tyres is away from the
vehicle (being repaired) or when a
w h e e l w i t h o u t a s e n s o r i s fi t t e d .
All repairs and changing of tyres on a
w h e e l fi t t e d w i t h t h i s s y s t e m m u s t b e
carried out by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of vigilance or the
responsibility of the driver.
This system does not remove the need
to have the tyre pressure checked
regularly (including the spare wheel), to
ensure that the dynamic performance
of the vehicle remains at its best and
to avoid premature wear of the tyres,
in particular in the case of arduous
driving (heavy load, high speed).
The system may temporarily be
disturbed by radio broadcasts on a
frequency close to it.
DETECTION
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles, detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.
Therefore, the driver is warned of any
malfunction of this emission control
s y s t e m b y t h e l i g h t i n g o f t h i s s p e c i fi c
warning light on the instrument panel.
There is a risk of damage to the
catalytic converter. Have it checked by
a PEUGEOT dealer.
EMISSION CONTROL Flat tyre
Check the tyre pressure as soon as
possible.
Refer to the "Changing a wheel"
section of chapter 8.
If the damaged tyre is temporarily
stored inside the vehicle, it will again
emit this message to remind you of the
necessity of having it repaired. This will
prevent another warning of the same
type being displayed.
Sensors check the tyre pressure during
driving (speed higher than 12 mph
[20 km/h]) and trigger a warning in the
event of a malfunction or puncture. EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:
Any anomaly detected
( fl a t o r p u n c t u r e d t y r e ,
malfunction of a sensor)
is indicated by visual
and audible information
and is accompanied by a
message on the display.
