Page 111 of 177
114
Changing a bulb
For further information concerning the
b u l b s , r e f e r t o t h e " T y p e s o f b u l b " .
1. Brake lights/side lights
Type B, P 2 1 / 5 W - 2 1 / 5 W
2. Direction indicators
Type B, P Y 2 1 W - 2 1 W ( a m b e r )
3. Reversing lights
Type B, P 2 1 W - 2 1 W
4. Fog lamps
Type B, P 2 1 W - 2 1 W - I d e n t i f y t h e f a u l t y b u l b t h e n o p e n
the rear doors to 180°.
Refer to the "Accesses" section of c h a p t e r 2 .
- R e m o v e t h e t w o fi x i n g b o l t s u s i n g the screwdriver stored in the tool kit
under the right-hand seat.
- P u l l t h e l i g h t u n i t f r o m t h e o u t s i d e .
- Holding the light, disconnect the electrical connector. - M o v e a s i d e t h e 4 t a b s t h e n e x t r a c t
the bulb holder.
- Remove the faulty bulb by p r e s s i n g i t l i g h t l y w h i l e t u r n i n g i t
anticlockwise.
- Change the bulb.
When removing the light unit:
- w i t h t a i l g a t e , p u l l t h e l i g h t u n i t
towards the centre of the vehicle,
- w i t h h i n g e d d o o r s , p u l l t h e l i g h t u n i t towards you.
W h e n r e fi t t i n g , t a k e c a r e t o
r e p o s i t i o n t h e t a b s a n d t h e s u p p l y
w i r e c o r r e c t l y t o a v o i d t r a p p i n g t h e
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
m o r e t h a n a p p r o x i m a t e l y 2 m i n u t e s .
High pressure washing
W h e n u s i n g t h i s t y p e o f w a s h i n g
o n s t u b b o r n d i r t , d o n o t p e r s i s t
o n t h e h e a d l a m p s , t h e l i g h t s a n d
their surround to avoid damaging their
coating and their seal.
Page 112 of 177
115
TROUBLESHOOTING
7
Changing a bulb
NUMBER PLATE LIGHTS
- U n s c r e w t h e t w o n u t s .
- P u s h t h e p i n s .
- If necessary, disconnect the connector to remove the light.
- Change the bulb.
With tailgate
- M o v e a s i d e t h e p l a s t i c l e n s u s i n g a
screwdriver.
- Change the bulb.
- R e p l a c e t h e p l a s t i c l e n s a n d p r e s s on it.
THIRD BRAKE LIGHT
Type A, W 16 W - 16 W
With hinged doors
- U n c l i p t h e i n t e r i o r t r i m .
- Disconnect the connector by moving aside its tab.
- T u r n t h e b u l b h o l d e r a q u a r t e r t u r n anticlockwise.
- Change the bulb.
- P u t t h e b u l b h o l d e r b a c k i n p l a c e and reconnect the connector.
- P u t t h e t r i m b a c k i n p l a c e .
Type A, W 5 W - 5 W
Page 113 of 177
116
Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e p l a c e d :
- i n t h e l o w e r p a r t o f t h e f a s c i a o n t h e left-hand side (behind the cover),
- under the bonnet (near the battery).
I f fi t t e d o n y o u r v e h i c l e , a n a d d i t i o n a l
f u s e b o x i s u s e d f o r t o w i n g , t h e
towbar and the connections for
t h e c o a c h b u i l d e r a n d p l a t f o r m c a b
m o d i fi c a t i o n s . I t i s l o c a t e d o n t h e r i g h t
b e h i n d t h e l o a d r e t a i n i n g p a r t i t i o n .
T h e i n d i c a t i o n s c o m m u n i c a t e d a r e o n l y
those fuses which can be changed
b y t h e u s e r u s i n g t h e p l i e r s a n d t h e
s p a r e f u s e s , l o c a t e d b e h i n d t h e f a s c i a
s t o r a g e c o m p a r t m e n t o n t h e r i g h t -
hand side. For any other work, visit a
P E U G E O T d e a l e r .
Removing and fitting a fuse
Always replace a faulty fuse with a
fuse of the same rating.
P E U G E O T w i l l n o t a c c e p t
r e s p o n s i b i l i t y f o r t h e c o s t i n c u r r e d i n
r e p a i r i n g y o u r v e h i c l e o r f o r r e c t i f y i n g
the malfunctions resulting from
the installation of accessories not
s u p p l i e d a n d n o t r e c o m m e n d e d b y t h e
P E U G E O T n e t w o r k a n d n o t i n s t a l l e d
in accordance with its instructions,
i n p a r t i c u l a r w h e n t h e c o m b i n e d
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
e q u i p m e n t c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s .
F o r p r o f e s s i o n a l s : f o r c o m p l e t e
information concerning the fuses
and relays, consult the "Methods"
diagram via the Network.
B e f o r e r e p l a c i n g a f u s e , t h e c a u s e
of the incident must be found and
r e c t i fi e d .
- U s e t h e p l i e r s .
Page 114 of 177
117
TROUBLESHOOTING
7
Changing a fuse
FASCIA FUSES
T i l t t h e c o v e r t o g a i n a c c e s s t o t h e f u s e s . Fuses
F
A m p e r e s
A Allocation
1 15 R e a r w i p e r
2 - S p a r e
3 5 Air bag
4 10 Air conditioning, diagnostic socket, mirror control,
h e a d l a m p b e a m
5 3 0 E l e c t r i c w i n d o w s
6 3 0 Locks
7 5 R e a r c o u r t e s y l i g h t , f r o n t m a p r e a d i n g l i g h t , r o o f
console
8 20 A u d i o e q u i p m e n t , C D c h a n g e r , d i s p l a y , t y r e
u n d e r - i n fl a t i o n d e t e c t i o n , a l a r m a n d s i r e n
9 3 0 Front and rear 12 V socket
10 15 Central column 11 15 Low current ignition switch
12 15 Rain and brightness sensor, air bag
1 3 5 I n s t r u m e n t p a n e l
14 15 P a r k i n g a s s i s t a n c e , a u t o m a t i c a i r c o n d i t i o n i n g
controls, hands-free kit
15 3 0 Locks
16 - S p a r e
17 40 R e a r s c r e e n / m i r r o r s d e - i c i n g
Page 115 of 177
118
Changing a fuse

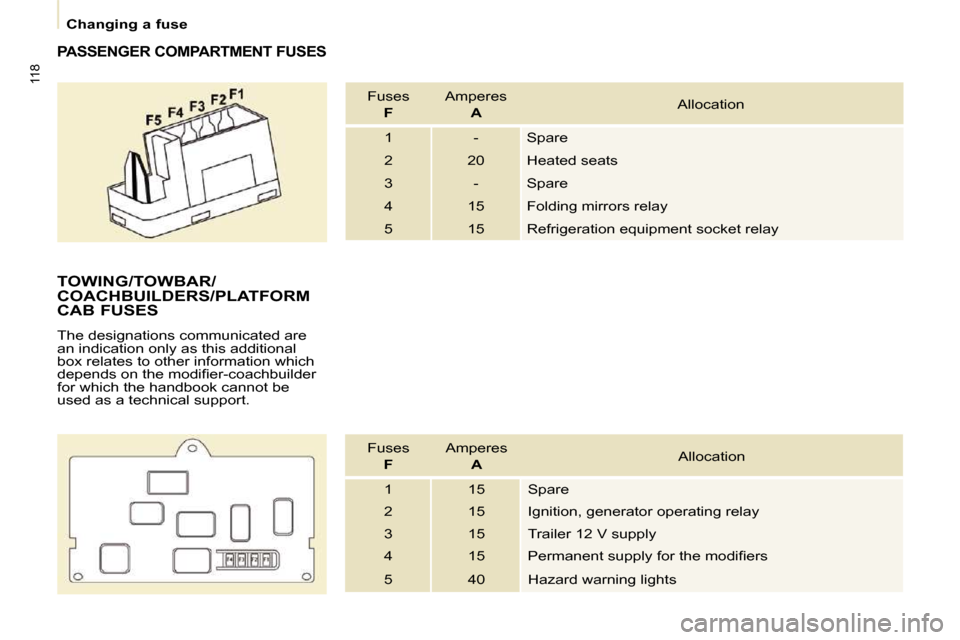

PASSENGER COMPARTMENT FUSES
Fuses
F
A m p e r e s
A
Allocation
1 - S p a r e
2 20 Heated seats
3 - S p a r e
4 15 Folding mirrors relay
5 15 R e f r i g e r a t i o n e q u i p m e n t s o c k e t r e l a y
TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
T h e d e s i g n a t i o n s c o m m u n i c a t e d a r e
an indication only as this additional
b o x r e l a t e s t o o t h e r i n f o r m a t i o n w h i c h
d e p e n d s o n t h e m o d i fi e r - c o a c h b u i l d e r
for which the handbook cannot be
u s e d a s a t e c h n i c a l s u p p o r t .
Fuses
F A m p e r e s
A Allocation
1 15 S p a r e
2 15 I g n i t i o n , g e n e r a t o r o p e r a t i n g r e l a y
3 15 T r a i l e r 1 2 V s u p p l y
4 15 P e r m a n e n t s u p p l y f o r t h e m o d i fi e r s
5 40 H a z a r d w a r n i n g l i g h t s
Page 116 of 177
119
TROUBLESHOOTING
7
Changing a fuse
FUSES UNDER THE BONNET
A f t e r o p e n i n g t h e b o n n e t , u n c l i p a n d t i l t
t h e b o x t o g a i n a c c e s s t o t h e f u s e s . Fuses
F
A m p e r e s
A Allocation
1 20 E n g i n e m a n a g e m e n t
2 15 Horn
3 10 F r o n t a n d r e a r w a s h - w i p e p u m p
4 20 H e a d l a m p w a s h p u m p
5 15 E n g i n e c o m p o n e n t s
6 10 S t e e r i n g w h e e l a n g l e s e n s o r , E S P
7 10 Brake switch, clutch switch
8 25 Starter
9 10 H e a d l a m p b e a m m o t o r , p a r c m a n a g e m e n t u n i t
10 3 0 E n g i n e c o m p o n e n t s
11 40 S p a r e
12 3 0 W i p e r s
1 3 40 Built-in systems interface
14 3 0 P u m p
15 10 R i g h t - h a n d m a i n b e a m h e a d l a m p
16 10 L e f t - h a n d m a i n b e a m h e a d l a m p
17 15 R i g h t - h a n d d i p p e d h e a d l a m p
18 15 L e f t - h a n d d i p p e d h e a d l a m p
Page 117 of 177
120
Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching o f f t h e i g n i t i o n , p r e s s t h e w i p e r s
s t a l k d o w n w a r d s t o p o s i t i o n t h e
w i p e r b l a d e s a l o n g t h e w i n d s c r e e n
u p r i g h t s ( s p e c i a l p o s i t i o n ) . Changing a front wiper blade
- L i f t t h e w i p e r a r m .
- U n c l i p t h e b l a d e a n d r e m o v e i t .
- Fit the new blade.
- P u s h b a c k t h e w i p e r a r m .
T o r e t u r n t h e w i n d s c r e e n w i p e r s t o t h e i r
n o r m a l p o s i t i o n , s w i t c h o n t h e i g n i t i o n
a n d o p e r a t e t h e w i p e r s s t a l k . Changing the rear wiper blade
- L i f t t h e w i p e r a r m , t h e n u n c l i p t h e
blade and remove it.
- F i t t h e n e w b l a d e a n d p u s h b a c k t h e w i p e r a r m .
CHANGING A WINDSCREEN WIPER BLADE
Page 118 of 177
121
TROUBLESHOOTING
7
Having your vehicle towed
Without lifting
(4 wheels on the road)
Y o u s h o u l d a l w a y s u s e a t o w b a r .
BEING TOWED From the front
- U n c l i p t h e c o v e r b y p r e s s i n g t h e b o t t o m p a r t .
- Screw in the removable towing eye until it locks.
From the rear
- U n c l i p t h e c o v e r u s i n g a c o i n o r t h e fl a t p a r t o f t h e t o w i n g e y e ,
- Screw in the removable towing eye until it locks. When towing with the engine
switched off, there is no braking or
steering assistance.
Lifting
(2 wheels on the road only)
I t i s p r e f e r a b l e t o r a i s e t h e v e h i c l e
u s i n g p r o f e s s i o n a l l i f t i n g e q u i p m e n t .
T h e t o w i n g e y e i s s t o r e d i n t h e t o o l k i t ,
located under the right-hand seat.
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
b e i n t h e n e u t r a l p o s i t i o n , f a i l u r e t o
o b s e r v e t h i s s p e c i a l c o n d i t i o n m a y
result in damage to certain braking
c o m p o n e n t s a n d t h e a b s e n c e o f
braking assistance when the engine is
started again.
Page 119 of 177
122
Dimensions
Page 120 of 177
123

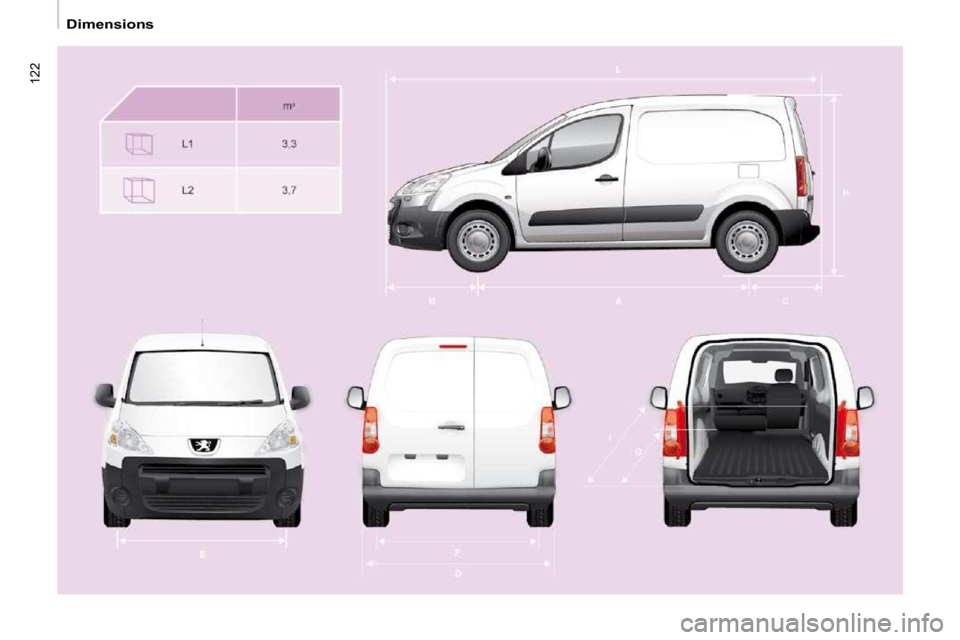

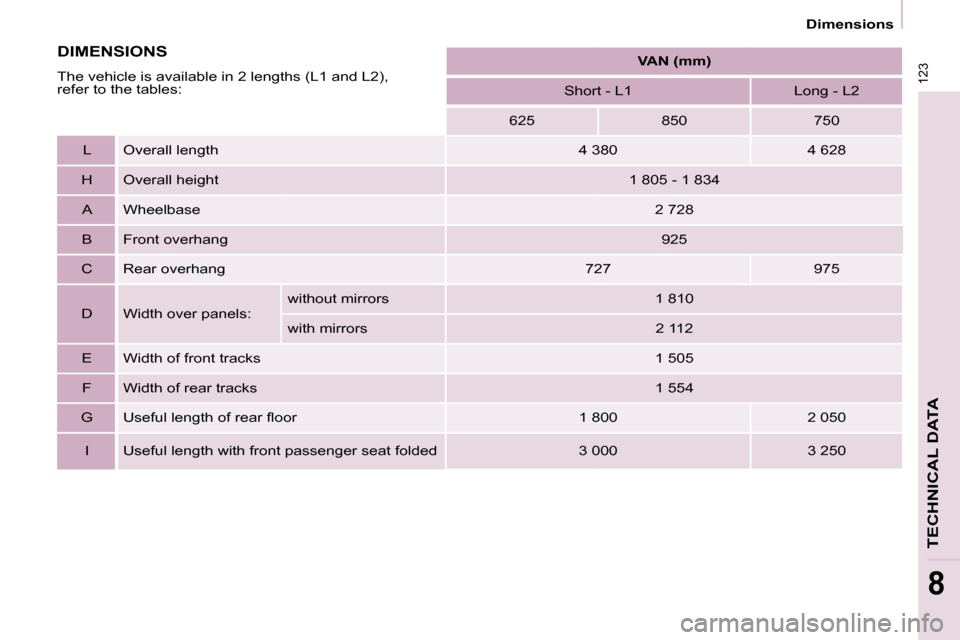

Dimensions
TECHNICAL DATA
8
VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 4 380 4 628
H Overall height 1 805 - 1 834
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727 975
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505
F Width of rear tracks 1 554
G U s e f u l l e n g t h o f r e a r fl o o r 1 800 2 050
I Useful length with front passenger seat folded 3 000 3 250 DIMENSIONS DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:
