80
Driving safety
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and
complement the ABS.
The ASR system is very useful for
maintaining optimum drive and
avoiding losses of control of the vehicle
on acceleration.
The system optimises drive to prevent
the wheels skidding, by acting on the
brakes of the drive wheels and on the
engine. It also allows the directional
stability of the vehicle to be improved
on acceleration.
Use the ESP to hold your course
without attempting to countersteer.
If there is a variation between the
trajectory followed by the vehicle and
that required by the driver, the ESP
system automatically acts on the
engine and the brake of one or more
wheels, in order to put the vehicle back
on course. Disarming the ASR/ESP
systems
In certain exceptional conditions
( s t a r t i n g t h e v e h i c l e w h e n s t u c k i n m u d
or snow, or on loose ground...), it could
prove useful to disarm the ASR and
ESP systems to make the wheels spin
and regain grip.
- Press the button, located on the
centre console.
- T h e i n d i c a t o r l i g h t c o m e s o n : t h e A S R and ESP systems no longer act. Operating check
Good practice
The ASR/ESP systems offer increased
safety during normal driving, but
should not incite the driver to take risks
or to drive at high speed.
The operation of these systems is
ensured if the recommendations
of the manufacturer regarding
t h e w h e e l s ( t y r e s a n d r i m s ) , t h e
braking components, the electronic
c o m p o n e n t s a n d t h e fi t t i n g a n d r e p a i r
procedures within the PEUGEOT
network are observed.
After an impact, have these systems
checked by a PEUGEOT dealer.
Operation of the ASR and ESP
systems
T h e l u m i n o u s d i o d e fl a s h e s
when the ASR or ESP is
triggered.
They engage again:
- automatically above 30 mph ( 5 0 k m / h ) ,
- manually by pressing the button again. When a malfunction of the
systems occurs, the indicator
light comes on, accompanied
by an audible signal and a
message on the display.
Contact a PEUGEOT dealer to have
the system checked.
The warning light may also come on if
t h e t y r e s a r e u n d e r - i n fl a t e d . C h e c k t h e
pressure of each tyre.
Page 72 of 177
Seat belts
81
SAFETY
4
SEAT BELTS
Height adjustment

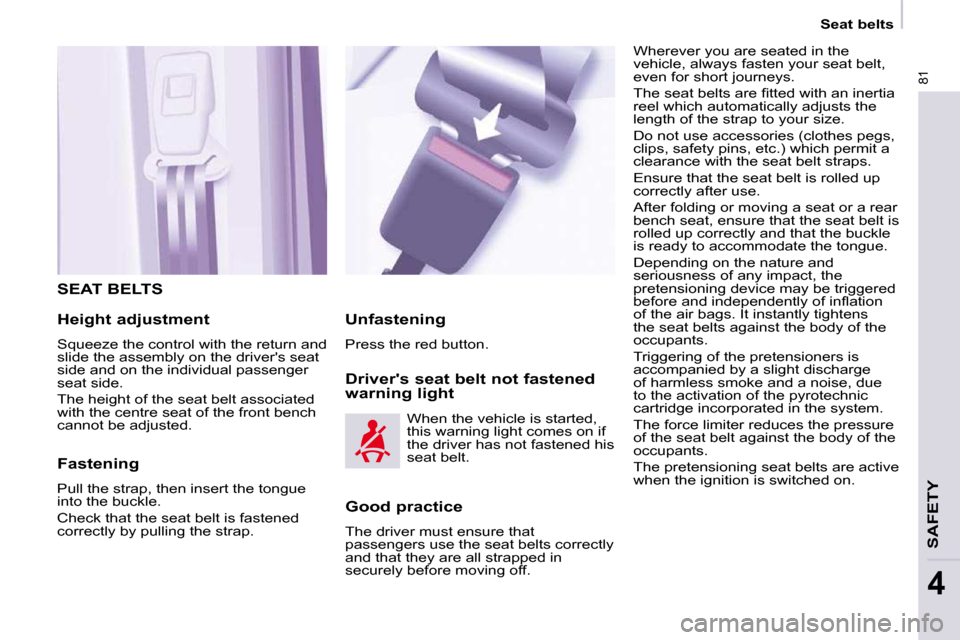

Squeeze the control with the return and
slide the assembly on the driver's seat
side and on the individual passenger
seat side.
The height of the seat belt associated
with the centre seat of the front bench
cannot be adjusted.
Fastening
Pull the strap, then insert the tongue
into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. Driver's seat belt not fastened
warning light Wherever you are seated in the
vehicle, always fasten your seat belt,
even for short journeys.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel which automatically adjusts the
length of the strap to your size.
D o n o t u s e a c c e s s o r i e s ( c l o t h e s p e g s ,
clips, safety pins, etc.) which permit a
clearance with the seat belt straps.
Ensure that the seat belt is rolled up
correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt is
rolled up correctly and that the buckle
is ready to accommodate the tongue.
Depending on the nature and
seriousness of any impact, the
pretensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f i n fl a t i o n
of the air bags. It instantly tightens
the seat belts against the body of the
occupants.
Triggering of the pretensioners is
accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
The force limiter reduces the pressure
of the seat belt against the body of the
occupants.
The pretensioning seat belts are active
when the ignition is switched on.
Unfastening
Press the red button.
When the vehicle is started,
this warning light comes on if
the driver has not fastened his
seat belt.
Good practice
The driver must ensure that
passengers use the seat belts correctly
and that they are all strapped in
securely before moving off.
Page 73 of 177
82
Seat belts
82 T h e i n e r t i a r e e l s a r e fi t t e d w i t h a d e v i c e
which automatically locks the strap in
the event of a collision or emergency
braking or if the vehicle rolls over.
You can unfasten the seat belt by
pressing the red button on the buckle.
Guide the seat belt after unfastening.
The air bag warning light comes on
if the pretensioners are triggered.
Consult a PEUGEOT dealer.
In order to be effective, a seat belt
m u s t :
- restrain one person only,
- must not be twisted, check by pulling in front of you with an even
movement,
- be tightened as close to the body as possible.
The upper part of the seat belt should
be positioned in the hollow of the
shoulder.
The lap part should be placed as low
as possible on the pelvis.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e c o m p l e t e l y .
I f t h e s e a t s a r e fi t t e d w i t h a r m r e s t s , t h e
lap part of the seat belt should always
pass under the armrest.
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p fi r m l y . Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years old
o r s h o r t e r t h a n o n e m e t r e fi f t y ,
- never allow a child to travel on your lap, even with the seat belt
fastened.
For further information regarding
child seats, refer to the "Children
on board" section of chapter 4.
Clean the seat belt straps with
soapy water or a textile cleaning
product, sold by PEUGEOT
dealers.
In accordance with current safety
regulations, your PEUGEOT dealer
guarantees all work or any checks,
from testing to maintenance, on your
seat belt equipment.
Have the seat belts checked regularly
( e v e n a f t e r a m i n o r i m p a c t ) b y a
P E U G E O T d e a l e r : t h e y m u s t n o t s h o w
any signs of wear, cutting or fraying
and they must not be transformed or
m o d i fi e d . Front seat belts
T h e f r o n t s e a t s a r e fi t t e d w i t h
pretensioners and force limiters.
The seat belt associated with the centre
seat of the front bench does not have a
pretensioner.
Page 74 of 177
Air bags
83
SAFETY
4
AIR BAGS

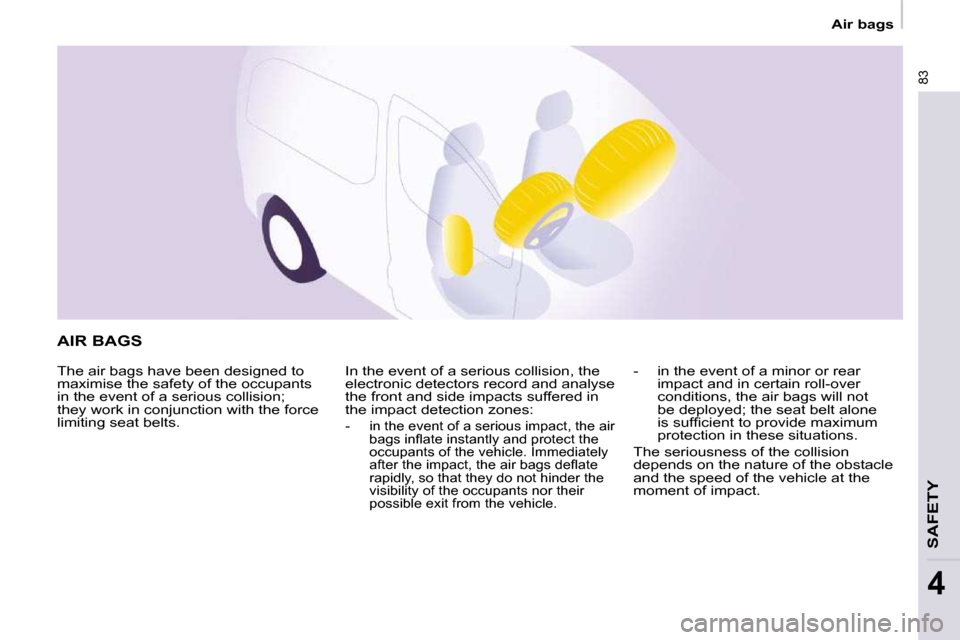

The air bags have been designed to
maximise the safety of the occupants
in the event of a serious collision;
they work in conjunction with the force
limiting seat belts. In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
t h e i m p a c t d e t e c t i o n z o n e s :
- in the event of a serious impact, the air
b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t t h e
occupants of the vehicle. Immediately
a f t e r t h e i m p a c t , t h e a i r b a g s d e fl a t e
rapidly, so that they do not hinder the
visibility of the occupants nor their
possible exit from the vehicle.
- in the event of a minor or rear impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
protection in these situations.
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
moment of impact.
Page 75 of 177
84
Air bags
84
Good practice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the air
bag systems checked.
All work on the air bag system is strictly
forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an air bag is
triggered cannot be ruled out. In fact,
t h e b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot gas
via openings provided for this purpose. Side air bags
Only put recommended covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side air bags. Consult a PEUGEOT
dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t
backs. This could cause injury to the
chest or arms when the side air bag
i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Do not allow passengers to place their
feet on the fascia, they risk serious
injury if the air bag is triggered.
Smoke as little as possible as
deployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Air bags only operate when the
ignition is switched on.
This equipment only operates once.
I f a s e c o n d i m p a c t o c c u r s ( d u r i n g t h e
same or a subsequent accident), the
air bag will not operate.
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but
sensitive individuals may experience
some irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
It is imperative that the passenger

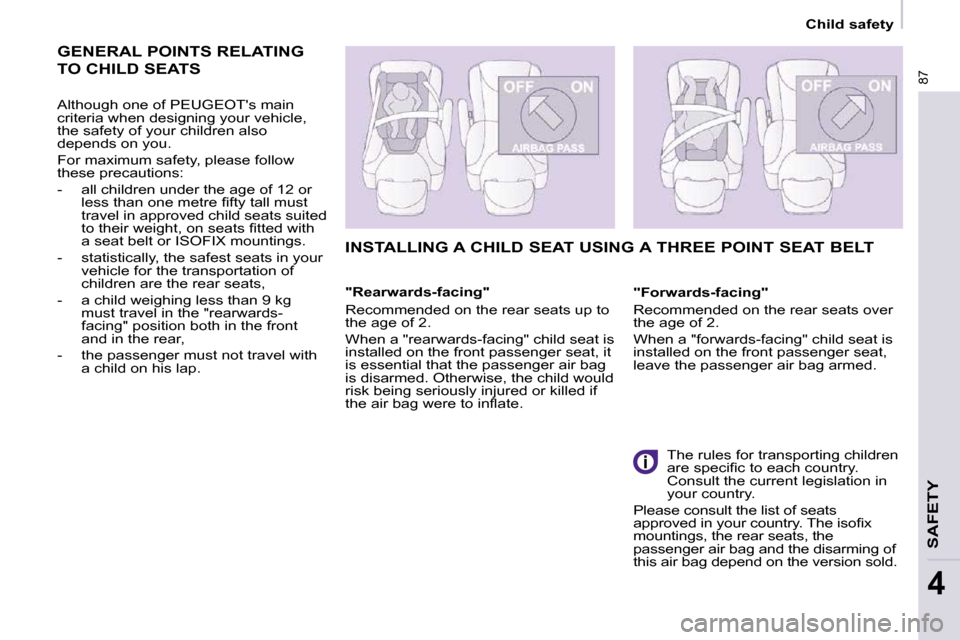

air bag is disarmed if a child seat
is installed facing rearwards. Refer
to the "Children on board" section of
chapter 4.
Page 76 of 177
86
Air bags
86
Front air bags
The front air bags are incorporated in
the centre of the steering wheel for the
driver and in the fascia for the front
p a s s e n g e r ( s ) .
Activation
They are deployed simultaneously,
unless the passenger's front air bag
has been disarmed, in the event of a
serious front impact applied to all or

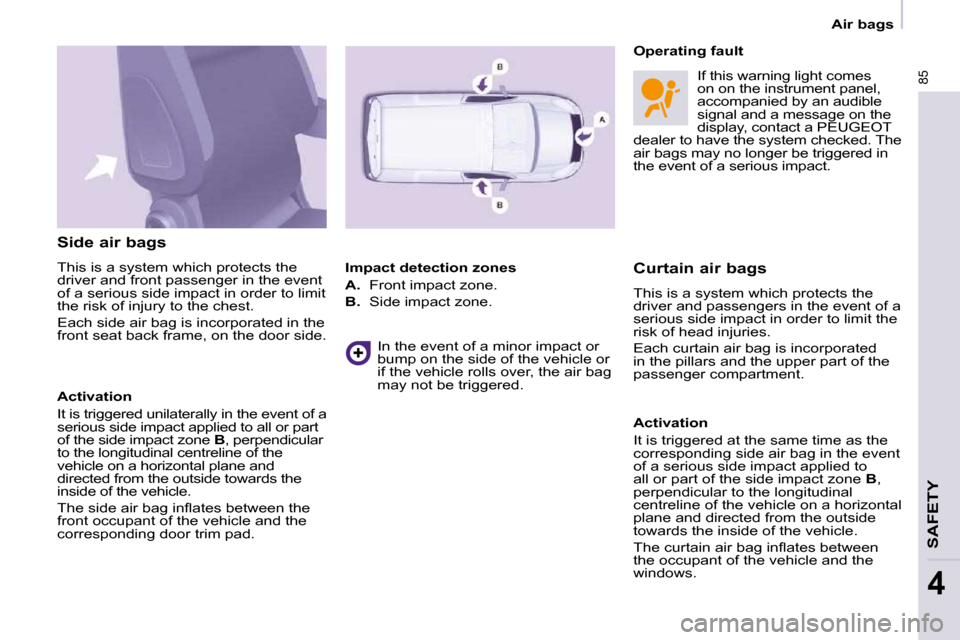

part of the front impact zone A in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
front towards the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion his forward
movement. Disarming
The passenger's front air bag alone
c a n b e d i s a r m e d :
-

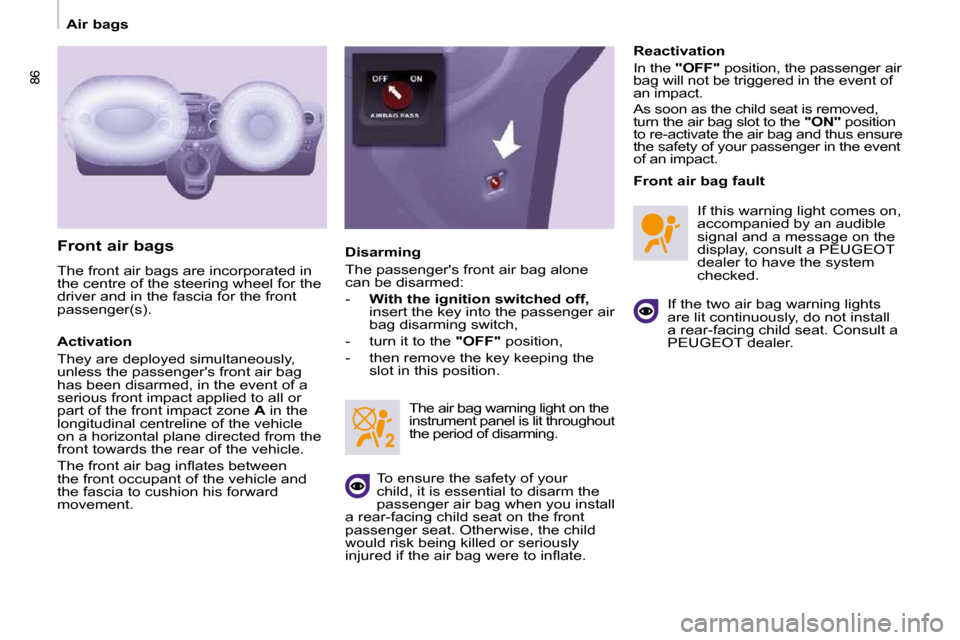

With the ignition switched off ,
insert the key into the passenger air
bag disarming switch,
- turn it to the "OFF" position,
- then remove the key keeping the slot in this position.
The air bag warning light on the
instrument panel is lit throughout
the period of disarming. If the two air bag warning lights
are lit continuously, do not install
a rear-facing child seat. Consult a
PEUGEOT dealer.
Front air bag fault
To ensure the safety of your
child, it is essential to disarm the
passenger air bag when you install
a rear-facing child seat on the front
passenger seat. Otherwise, the child
would risk being killed or seriously
i n j u r e d i f t h e a i r b a g w e r e t o i n fl a t e . Reactivation
In the
"OFF" position, the passenger air
bag will not be triggered in the event of
an impact.
As soon as the child seat is removed,
turn the air bag slot to the "ON" position
to re-activate the air bag and thus ensure
the safety of your passenger in the event
of an impact.
If this warning light comes on,
accompanied by an audible
signal and a message on the
display, consult a PEUGEOT
dealer to have the system
checked.
Page 77 of 177
Air bags
83
SAFETY
4
AIR BAGS
The air bags have been designed to
maximise the safety of the occupants
in the event of a serious collision;
they work in conjunction with the force
limiting seat belts. In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
t h e i m p a c t d e t e c t i o n z o n e s :
- in the event of a serious impact, the air
b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t t h e
occupants of the vehicle. Immediately
a f t e r t h e i m p a c t , t h e a i r b a g s d e fl a t e
rapidly, so that they do not hinder the
visibility of the occupants nor their
possible exit from the vehicle.
- in the event of a minor or rear impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
protection in these situations.
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
moment of impact.
Page 78 of 177
84
Air bags
84
Good practice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the air
bag systems checked.
All work on the air bag system is strictly
forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an air bag is
triggered cannot be ruled out. In fact,
t h e b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot gas
via openings provided for this purpose. Side air bags
Only put recommended covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side air bags. Consult a PEUGEOT
dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t
backs. This could cause injury to the
chest or arms when the side air bag
i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Do not allow passengers to place their
feet on the fascia, they risk serious
injury if the air bag is triggered.
Smoke as little as possible as
deployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Air bags only operate when the
ignition is switched on.
This equipment only operates once.
I f a s e c o n d i m p a c t o c c u r s ( d u r i n g t h e
same or a subsequent accident), the
air bag will not operate.
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but
sensitive individuals may experience
some irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
It is imperative that the passenger
air bag is disarmed if a child seat
is installed facing rearwards. Refer
to the "Children on board" section of
chapter 4.
Page 79 of 177
Air bags
8 5
SAFETY
4
Side air bags
This is a system which protects the
driver and front passenger in the event
of a serious side impact in order to limit
the risk of injury to the chest.
Each side air bag is incorporated in the
front seat back frame, on the door side.
Activation
It is triggered unilaterally in the event of a
serious side impact applied to all or part
of the side impact zone B , perpendicular
to the longitudinal centreline of the
vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered. Operating fault
If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
display, contact a PEUGEOT
dealer to have the system checked. The
air bags may no longer be triggered in
the event of a serious impact.
Curtain air bags
This is a system which protects the
driver and passengers in the event of a
serious side impact in order to limit the
risk of head injuries.
Each curtain air bag is incorporated
in the pillars and the upper part of the
passenger compartment.
Activation
It is triggered at the same time as the
corresponding side air bag in the event
of a serious side impact applied to
all or part of the side impact zone B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the occupant of the vehicle and the
windows.
Page 80 of 177
Child safety
87
SAFETY
4
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also
depends on you.
For maximum safety, please follow
t h e s e p r e c a u t i o n s :
- all children under the age of 12 or l e s s t h a n o n e m e t r e fi f t y t a l l m u s t
travel in approved child seats suited
t o t h e i r w e i g h t , o n s e a t s fi t t e d w i t h
a seat belt or ISOFIX mountings.
- statistically, the safest seats in your vehicle for the transportation of
children are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-
facing" position both in the front
and in the rear,
- the passenger must not travel with a child on his lap. INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
"Rearwards-facing"
Recommended on the rear seats up to
the age of 2.
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag
is disarmed. Otherwise, the child would
risk being seriously injured or killed if
t h e a i r b a g w e r e t o i n fl a t e .
"Forwards-facing"
Recommended on the rear seats over
the age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat,
leave the passenger air bag armed.
The rules for transporting children
a r e s p e c i fi c t o e a c h c o u n t r y .
Consult the current legislation in
your country.
Please consult the list of seats
a p p r o v e d i n y o u r c o u n t r y . T h e i s o fi x
mountings, the rear seats, the
passenger air bag and the disarming of
this air bag depend on the version sold.
