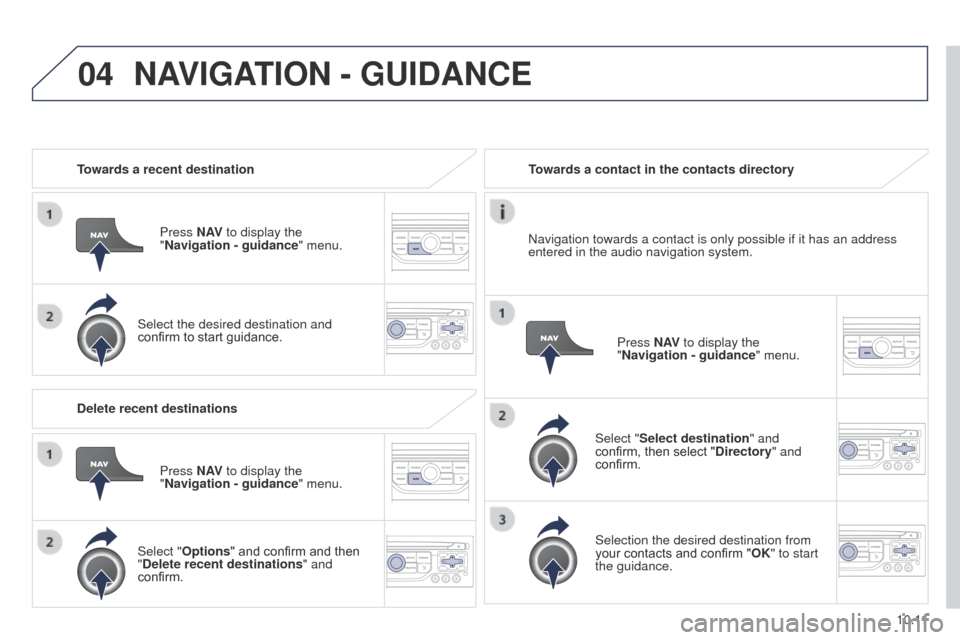

Towards a recent destinationPress N AV to display the
"Navigation - guidance " menu.
Select the desired destination and
confirm to start guidance. Towards a contact in the contacts directory
Select "Select destination" and
confirm, then select "Directory " and
confirm.
Selection the desired destination from
your contacts and confirm "OK" to start
the guidance. Press N AV
to display the
"Navigation - guidance " menu.
Navigation towards a contact is only possible if it has an address
entered in the audio navigation system.
Delete recent destinations Press N AV to display the
"Navigation - guidance " menu.
Select "Options " and confirm and then
"Delete recent destinations" and
confirm.
NAVIGATION - GUIDANCE

04
10.12
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014

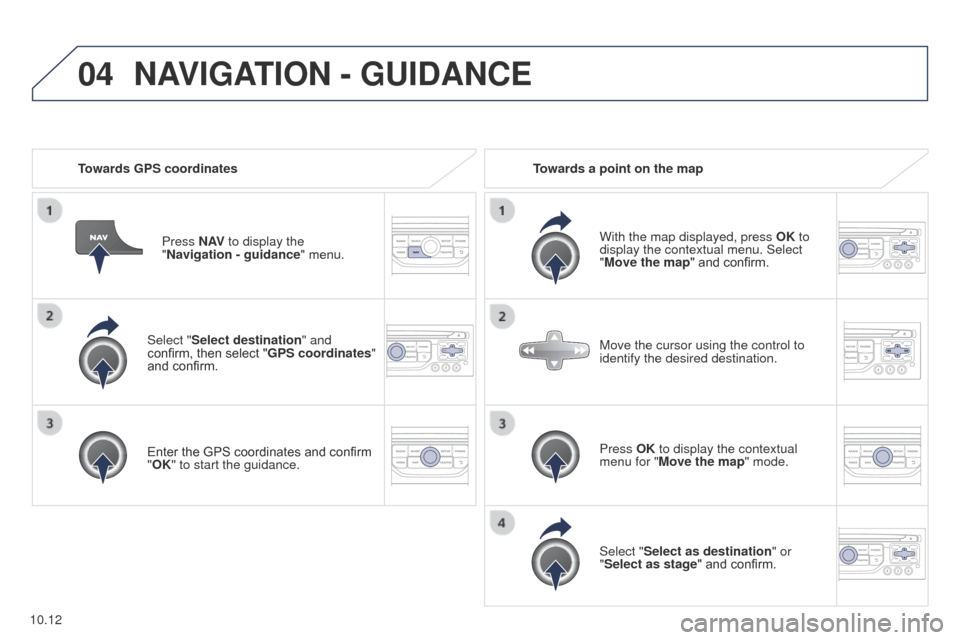

Select "Select destination" and
confirm, then select "GPS coordinates"
and confirm.
Enter the GPS coordinates and confirm
"OK" to start the guidance.Press N AV
to display the
"Navigation - guidance " menu.
Towards GPS coordinates
Towards a point on the map
With the map displayed, press OK to
display the contextual menu. Select
"Move the map" and confirm.
Press OK to display the contextual
menu for "Move the map" mode.
Select "Select as destination" or
"Select as stage" and confirm. Move the cursor using the control to
identify the desired destination.
NAVIGATION - GUIDANCE

04
10.13
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014

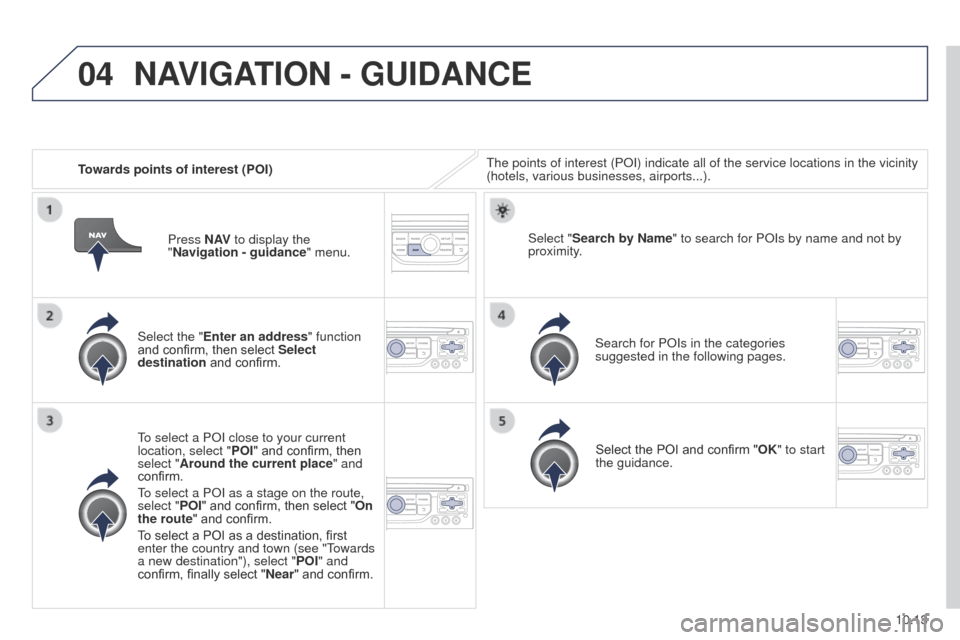

Towards points of interest (POI)the points of interest (POI) indicate all of the service locations in t\
he vicinity
(hotels, various businesses, airports...).
Select the "Enter an address" function
and confirm, then select Select
destination and confirm.
to select a POI close to your current
location, select " POI

" and confirm, then
select "Around the current place" and
confirm.
to select a POI as a stage on the route,
select "

POI" and confirm, then select "On
the route" and confirm.
To select a POI as a destination, first
enter the country and town (see "
t
owards
a new destination"), select " POI

" and
confirm, finally select " Near" and confirm. Search for POIs in the categories
suggested in the following pages.
Select "Search by Name
" to search for POIs by name and not by
proximity.
Select the POI and confirm "OK" to start
the guidance.
Press N AV
to display the
"Navigation - guidance " menu.
NAVIGATION - GUIDANCE

04
10.14
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014
NAVIGATION - GUIDANCE

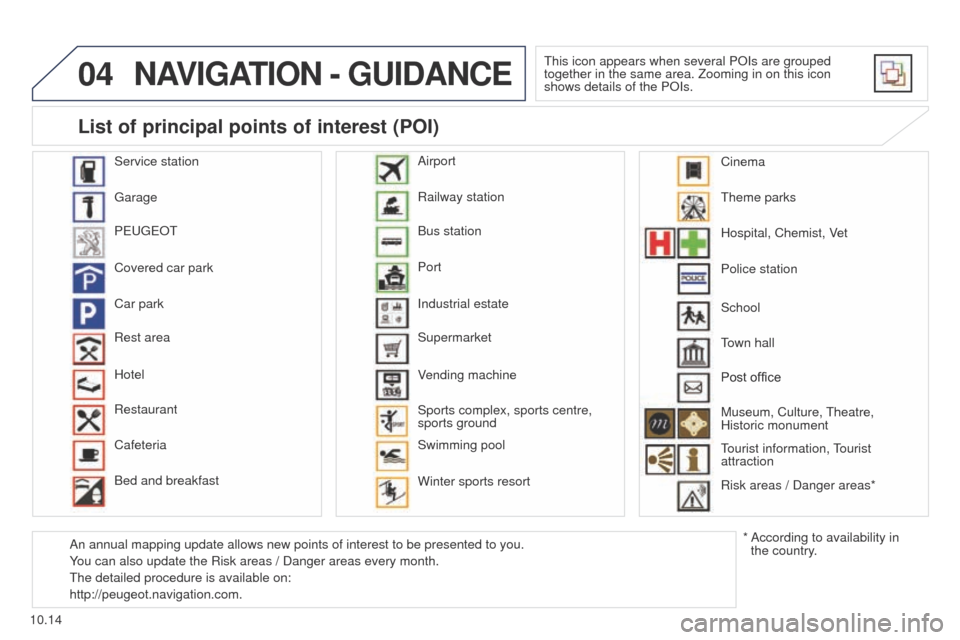

this icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.
Service station
g

arage
P
euge
O
t
Covered car park
Car park
Rest area
Hotel
Restaurant
Cafeteria
Bed and breakfast Railway station
Bus station
Port
Industrial estate
Supermarket
V

ending machine
Sports complex, sports centre,
sports ground
Swimming pool
Winter sports resort Airport
t

heme parks
Hospital, Chemist, Vet
Police station
town hall
Post office
Museum,

Culture, t heatre,
Historic monument
tourist

information, t
ourist
attraction
Risk areas / Danger areas*
List of principal points of interest (POI)
* According to availability in
the country.
School
An annual mapping update allows new points of interest to be presented t\
o you.
You can also update the Risk areas / Danger areas every month.
t

he detailed procedure is available on:
http://peugeot.navigation.com. Cinema

04
10.15
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014
NAVIGATION - GUIDANCE

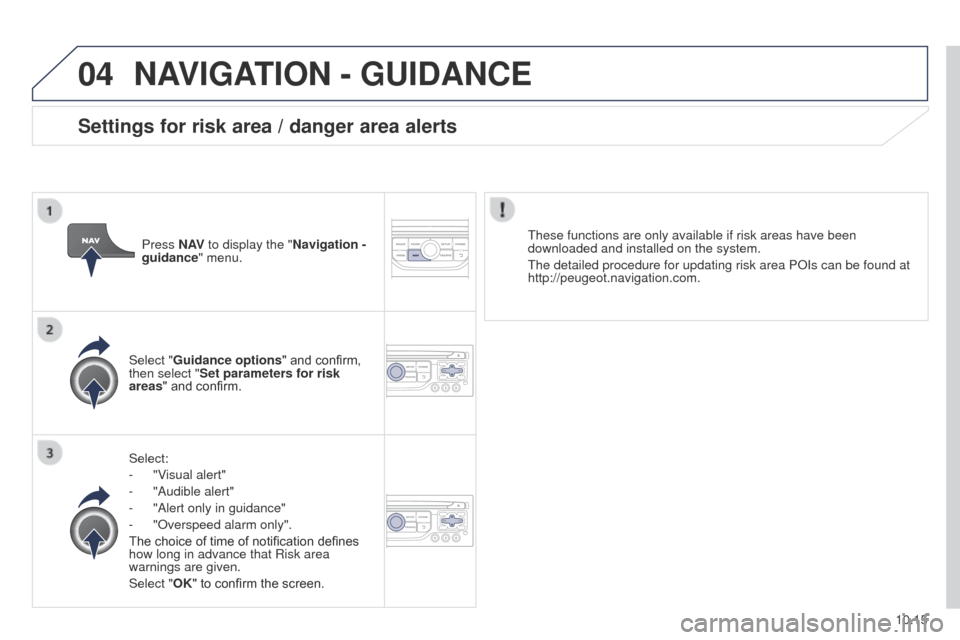

Select:
-
"V
isual alert"
-

"Audible alert"
-


"Alert only in guidance"
-


"Overspeed alarm only".
The choice of time of notification defines
how long in advance that Risk area
warnings are given.
Select "

OK" to confirm the screen.
Select "Guidance options
" and confirm,
then select "Set parameters for risk
areas " and confirm.
t
hese functions are only available if risk areas have been
downloaded and installed on the system.
t
he detailed procedure for updating risk area POIs can be found at
http://peugeot.navigation.com.
Press N AV
to display the "Navigation -
guidance" menu.
Settings for risk area / danger area alerts

04
10.16
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014

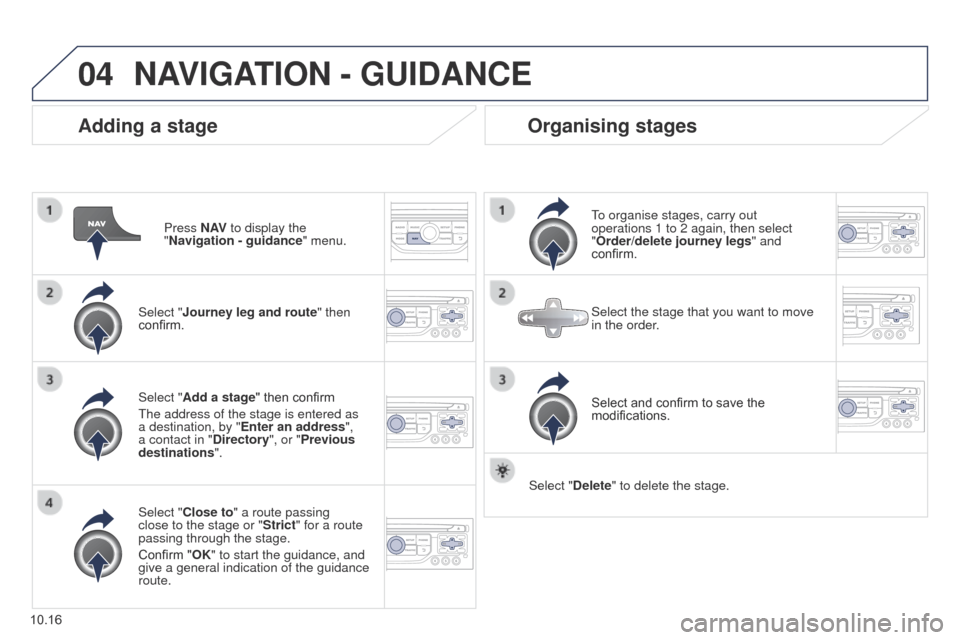

Adding a stage
Press N AV to display the
"Navigation - guidance " menu.
Select "Journey leg and route " then
confirm.
Select "Close to" a route passing
close to the stage or "Strict" for a route
passing through the stage.
Confirm "OK" to start the guidance, and
give a general indication of the guidance
route. Select "Add a stage" then confirm
t

he address of the stage is entered as
a destination, by "Enter an address",
a contact in "Directory ", or "Previous
destinations".
Organising stages
to organise stages, carry out
operations 1 to 2 again, then select
"Order/delete journey legs" and
confirm.
Select and confirm to save the
modifications. Select the stage that you want to move
in the order.
Select "Delete" to delete the stage.
NAVIGATION - GUIDANCE

04
10.17
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014

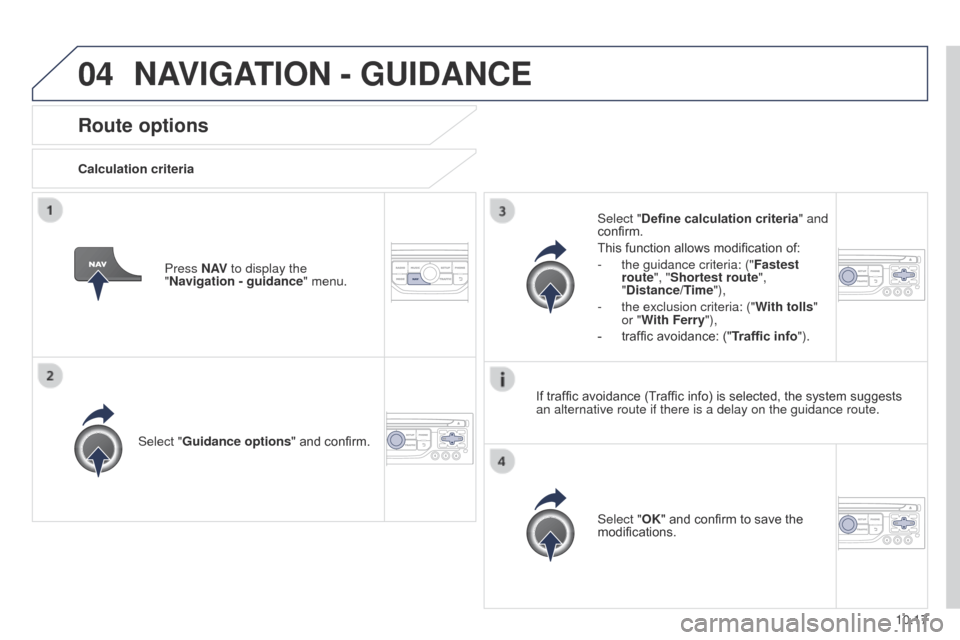

Route options
Calculation criteriaSelect "Guidance options " and confirm.
Select "OK" and confirm to save the
modifications.
Select "Define calculation criteria" and
confirm.
This function allows modification of:
-

the guidance criteria: ("Fastest
route

", "Shortest route",
"Distance/Time"),
-

the exclusion criteria: ("W

ith tolls"
or "With Ferry"),
-

traffic avoidance: ("
Traffic info").
Press N AV
to display the
"Navigation - guidance " menu.
If traffic avoidance (Traffic info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.
NAVIGATION - GUIDANCE

04
10.18
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014
Press N AV to display the
"Navigation - guidance " menu.

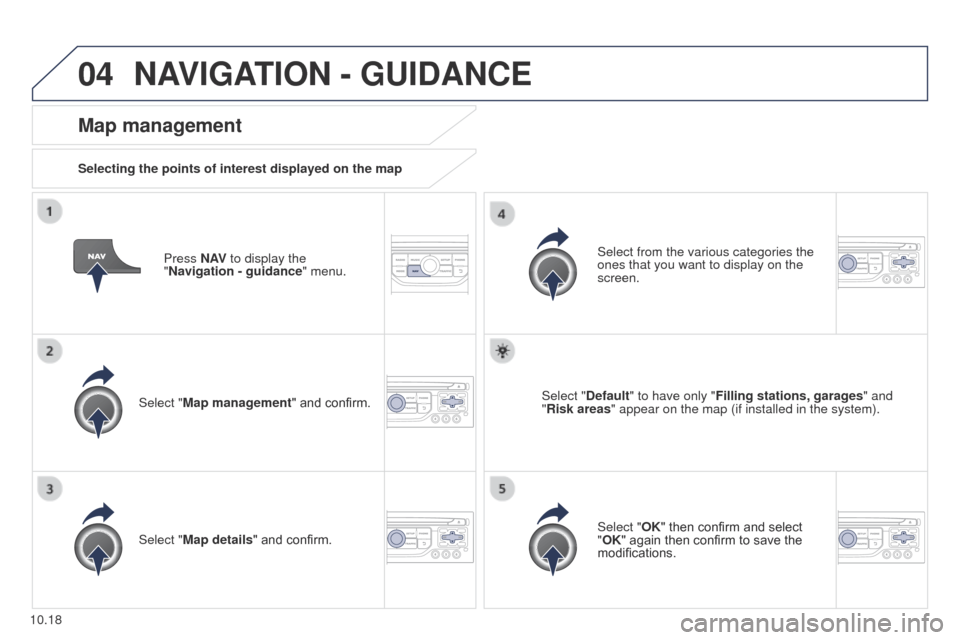

Map management
Selecting the points of interest displayed on the map
Select "Map management" and confirm. Select from the various categories the
ones that you want to display on the
screen.
Select "Map details" and confirm. Select "Default" to have only "Filling stations, garages
" and
"Risk areas " appear on the map (if installed in the system).
Select "OK" then confirm and select
"OK" again then confirm to save the
modifications.
NAVIGATION - GUIDANCE

04
10.19
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014

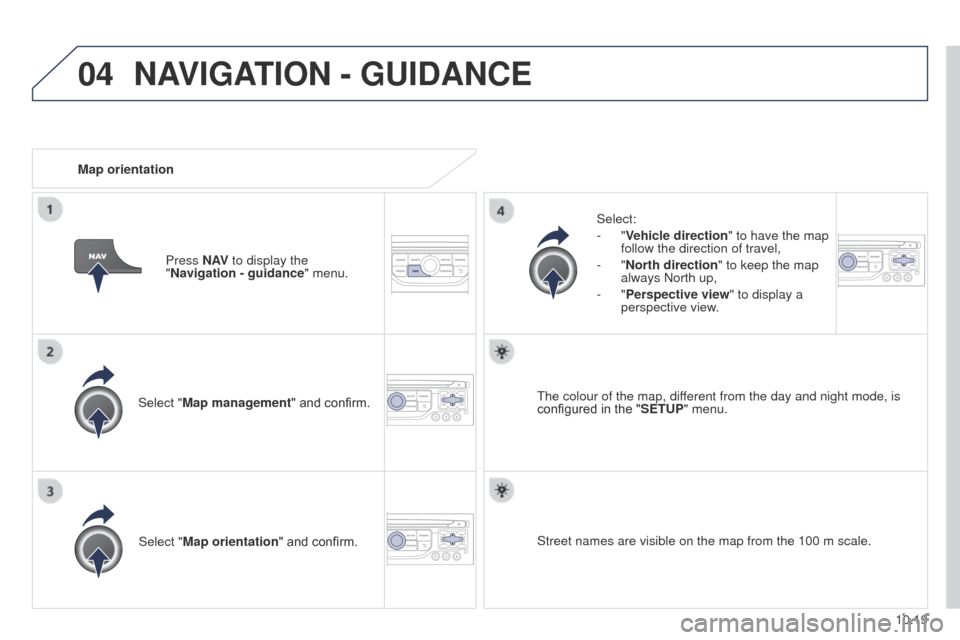

Select "Map management" and confirm.Select:
-
"Vehicle direction
" to have the map
follow the direction of travel,
- "North direction
" to keep the map
always North up,
- "Perspective view" to display a
perspective view.
Select "Map orientation " and confirm.t he colour of the map, different from the day and night mode, is
configured in the " SETUP" menu.
Map orientation
Press N AV to display the
"Navigation - guidance " menu.
Street names are visible on the map from the 100 m scale.
NAVIGATION - GUIDANCE

04
10.20
Partner_2_VP_en_Chap10b_RT6-2-8_ed02-2014
Press N AV to display the
"Navigation - guidance " menu.

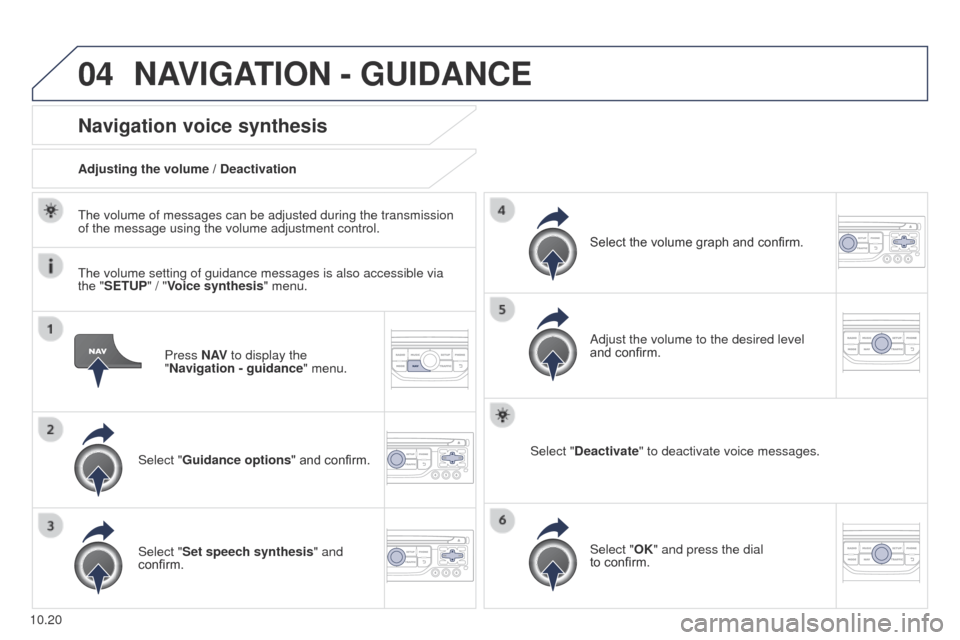

Navigation voice synthesis
Select "Guidance options " and confirm.
Adjusting the volume / Deactivation
Select "Set speech synthesis" and
confirm. Select the volume graph and confirm.
Select "Deactivate " to deactivate voice messages.
Select "OK" and press the dial
to
confirm.
Adjust the volume to the desired level
and confirm.
t

he volume of messages can be adjusted during the transmission
of the message using the volume adjustment control.
t

he volume setting of guidance messages is also accessible via
the "SETUP" / " Voice synthesis" menu.
NAVIGATION - GUIDANCE
