Peugeot Partner Tepee 2017 Owners Manual

89
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

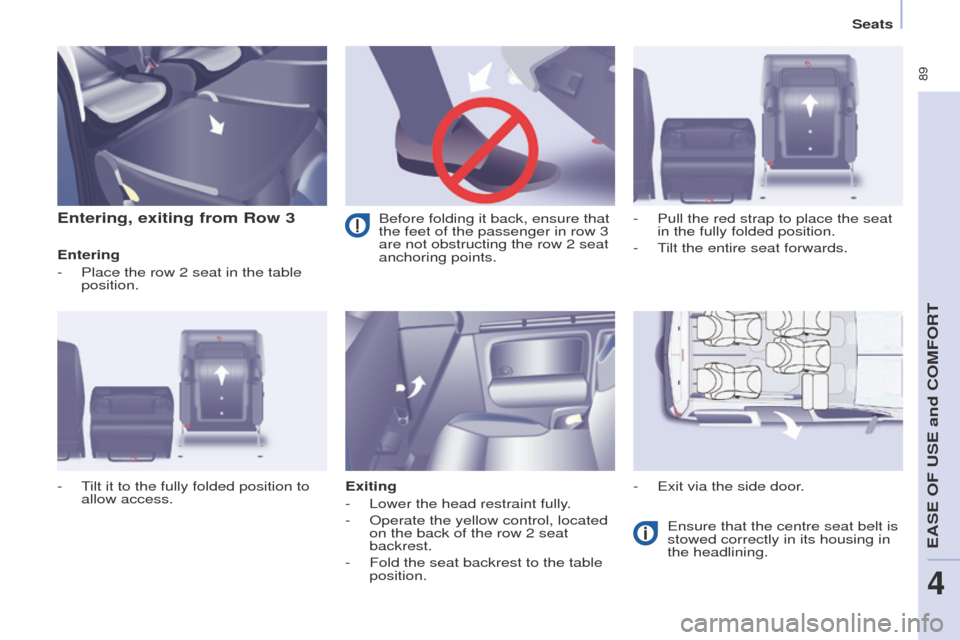

Entering, exiting from Row 3
Entering
-
Place the row 2 seat in the table
position.
Exiting
-


Lower the head restraint fully
.
-

Operate the yellow control, located
on the back of the row 2 seat
backrest.
-


Fold the seat backrest to the table
position. Ensure that the centre seat belt is
stowed correctly in its housing in
the headlining.
-


T
ilt it to the fully folded position to
allow access. -

Pull the red strap to place the seat
in the fully folded position.
-
T ilt the entire seat forwards.
-
Exit via the side door
.
Before folding it back, ensure that
the feet of the passenger in row 3
are not obstructing the row 2 seat
anchoring points.
EASE OF USE and COMFORT
4
Seats

90
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

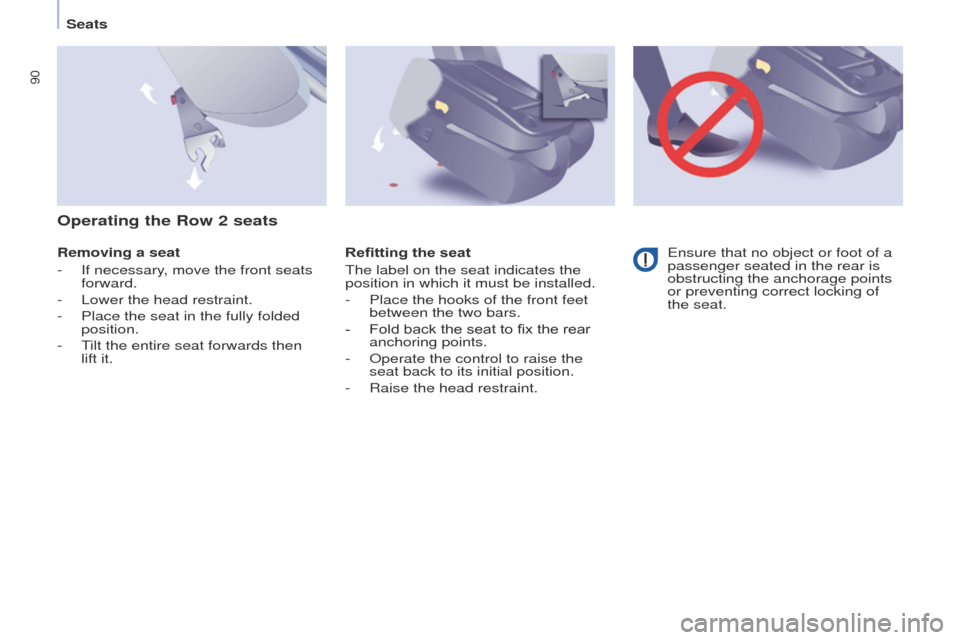

Removing a seat
-
If necessary
, move the front seats
forward.
-

Lower the head restraint.
-


Place the seat in the fully folded
position.
-


T
ilt the entire seat forwards then
lift it. Refitting the seat
The label on the seat indicates the
position in which it must be installed.
-

Place the hooks of the front feet
between the two bars.
-


Fold back the seat to fix the rear
anchoring points.
-


Operate the control to raise the
seat back to its initial position.
-


Raise the head restraint. Ensure that no object or foot of a
passenger seated in the rear is
obstructing the anchorage points
or preventing correct locking of
the seat.
Operating the Row 2 seats
Seats

91
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Operating the Row 3 seats
Removing the seat
-
Lower the head restraint.
-


Place the seat in the fully folded
position.
-


T
ilt the entire seat forwards.
-

On each side, take hold of the
uprights of the folded seat, tilting it
forward slightly

, and lift it. Refitting the seat
The label on the seat indicates the
position in which it must be installed.
-

Place the hooks of the front feet
between the two bars.
-


Ensure that no object or foot is
obstructing the rear anchorage
points and that the seat belt is
positioned correctly and available
for use.
-


Fold back the seat to fix its rear
anchoring feet.
-


Operate the control to raise the
seat back to its initial position.
-


Raise the head restraint.
Good practice
Following the various operations:
-
do not remove a head restraint
without stowing it; secure it inside
the vehicle,
-


ensure that the passengers can
always access the seat belts and
fasten them easily

,
-

passengers must never take
their seat without adjusting and
fastening their seat belt.
-


a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 seat anchorage points,
-


a passenger seated in row 3 must
not have the seat in front of them in
row 2 in the folded position; this is
in case the seat could tip towards
the passenger unexpectedly and
injure them.
Do not place hard or heavy objects on
the seat backs forming a table, they
could become dangerous projectiles in
the event or sharp braking or impact.
EASE OF USE and COMFORT
4
Seats

92
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

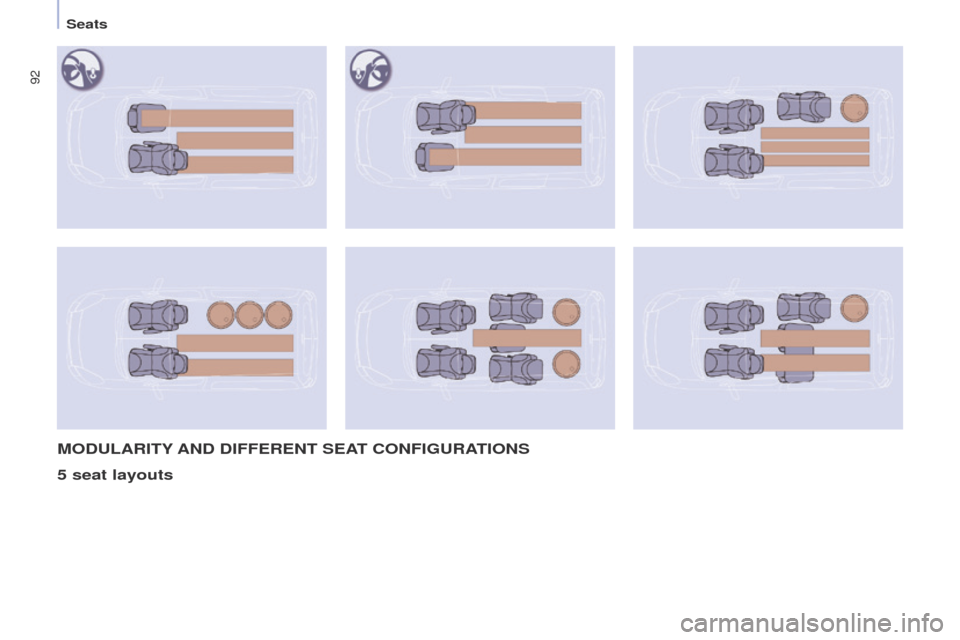

MODULARITY AND DIFFERENT SEAT CONFIGURATIONS
5 seat layouts
Seats

93
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
7 seat layouts
The various operations
must be carried out while
stationary.
EASE OF USE and COMFORT
4
Seats

94
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
FRONT FITTINGS
1. Lower glove box
This may or may not be fitted with a lid.
Upper storage compartment
This is located on the dashboard,
behind the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks
causing an electrical short circuit and
therefore a potential fire.
3. Side storage compartment
4. Bag hook
Only hang flexible bags which are not
too heavy on this hook.
2. Storage pocket and bottle
holder (1.5 L)
Practical information

95
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Overhead storage unit
This is located above the sun visors
and can accommodate various objects
(a jumper, file, gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
The maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.
Central storage console
This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.
Sun visor
To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun
visor for storing toll cards, tickets, ...
Storage compartment under
seats
Storage compartments are available,
with or without lid, in the floor under the
front seats.
To gain access to them, move the seat
forward. The lid must be lifted from the
rear of the seat.
EASE OF USE and COMFORT
4
Practical information

96
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

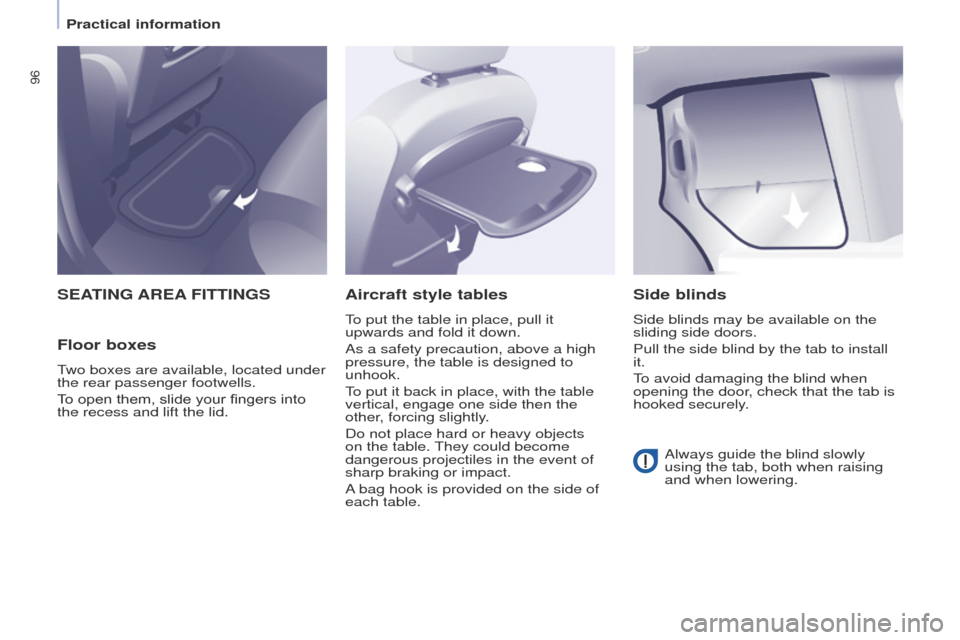

SEATING AREA FITTINGS
Floor boxes
Two boxes are available, located under
the rear passenger footwells.
To open them, slide your fingers into
the recess and lift the lid.
Aircraft style tables
To put the table in place, pull it
upwards and fold it down.
As a safety precaution, above a high
pressure, the table is designed to
unhook.
To put it back in place, with the table
vertical, engage one side then the
other, forcing slightly.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
sharp braking or impact.
A bag hook is provided on the side of
each table.
Side blinds
Side blinds may be available on the
sliding side doors.
Pull the side blind by the tab to install
it.
To avoid damaging the blind when
opening the door, check that the tab is
hooked securely.Always guide the blind slowly
using the tab, both when raising
and when lowering.
Practical information

97
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
ZENITH ROOF
The multifunction roof extends the
overhead storage unit. It consists of
the following components:
Storage compartments
Storage compartments are provided
on each side of the roof. The maximum
authorised load is 6 kg.
The translucent base assists with
finding objects stored inside.
Do not store objects which could
present a risk to the occupants.
Courtesy lamp
The operation of the courtesy lamp is
identical to that of the front courtesy lamp.
Refer to chapter 4 "Practical
information", "Courtesy lamps"
section.
EASE OF USE and COMFORT
4
Practical information

98
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
From insideFrom outside
Rear box
This roof box can be accessed from
the rear seats and the boot.
From the rear seats, slide the flaps
to
open.
Vents
A 3-position control allows you to
adjust the air flow through the vents.
The vents are also fitted with a scented
air freshener.From the boot, place your thumb on the
recess then pull the handle to open.
Open carefully to prevent objects
stored in this interior roof box from
falling out.
The maximum authorised load is 10 kg.
Practical information
