REAR BENCH SEAT
Each 1/3 - 2/3 section can be fully
folded, then removed individually.
Head restraint
The 1/3 - 2/3 split rear bench seat is fitted
with "comma" shape head restraints.
High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
EASE OF USE and COMFORT
4
Seats

80
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

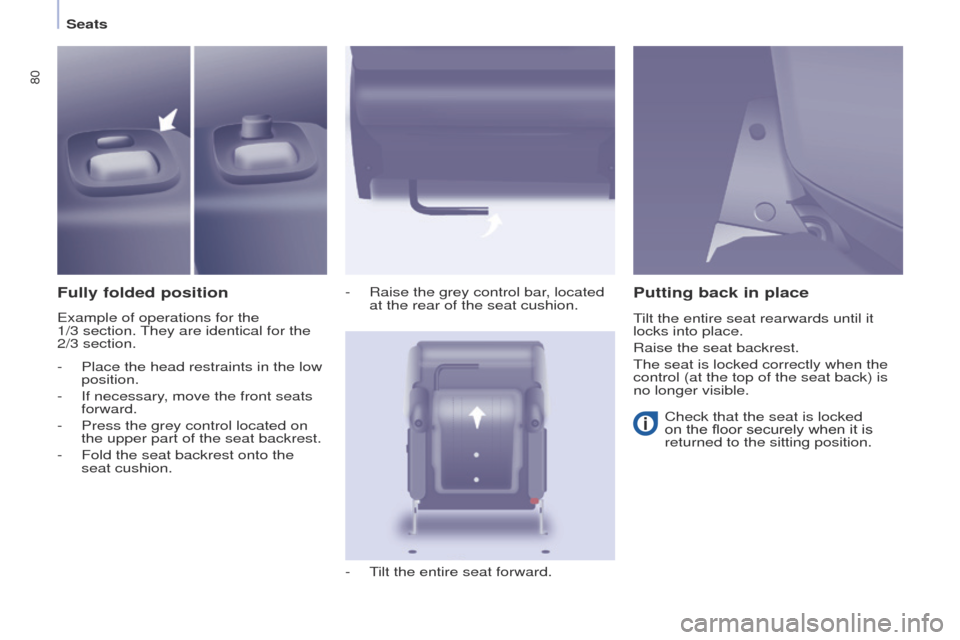

Fully folded position
Example of operations for the
1/3 section. They are identical for the
2/3
section. -

Raise the grey control bar
, located
at the rear of the seat cushion.
-
T
ilt the entire seat forward.
Putting back in place
Check that the seat is locked
on the floor securely when it is
returned to the sitting position.
-

Place the head restraints in the low
position.
-


If necessary

, move the front seats
forward.
-
Press the grey control located on
the upper part of the seat backrest.
-

Fold the seat backrest onto the
seat cushion. T

ilt the entire seat rearwards until it
locks into place.
Raise the seat backrest.
The seat is locked correctly when the
control (at the top of the seat back) is
no longer visible.
Seats

81
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

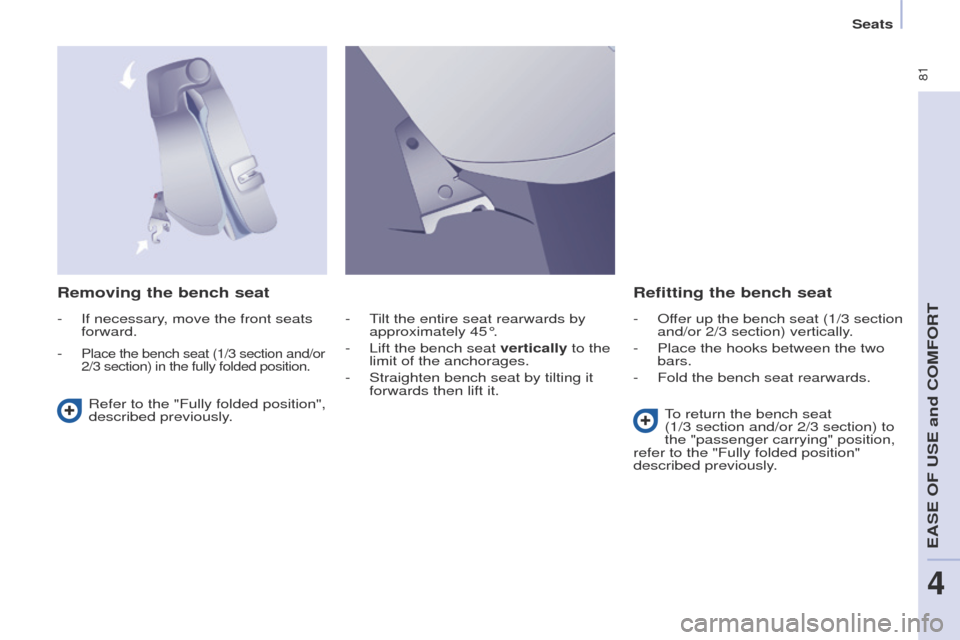

Removing the bench seatRefitting the bench seat
Refer to the "Fully folded position",
described previously. To return the bench seat
(1/3
section and/or 2/3 section) to
the "passenger carrying" position,
refer to the "Fully folded position"
described previously.
-

T
ilt the entire seat rearwards by
approximately 45°.
-
Lift the bench seat
vertically to the
limit of the anchorages.
-
Straighten bench seat by tilting it
forwards then lift it.
-


If necessary
, move the front seats
forward.
-

Place the bench seat (1/3 section and/or
2/3 section) in the fully folded position.
- Offer up the bench seat (1/3 section
and/or 2/3 section) vertically.
-

Place the hooks between the two
bars.
-


Fold the bench seat rearwards.
EASE OF USE and COMFORT
4
Seats

82
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
REAR SEATS (5 SEAT VERSION)Head restraint
Each seat can be removed individually.
Each time a seat is returned to the
sitting position or after removing then
refitting a seat, check that it is locked
on the floor securely.
The three independent rear seats
are fitted with "comma" shape head
restraints.
The back of the centre seat, folded
onto the seat cushion, has a shell
which serves as a table with cup
holder. High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Seats

83
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

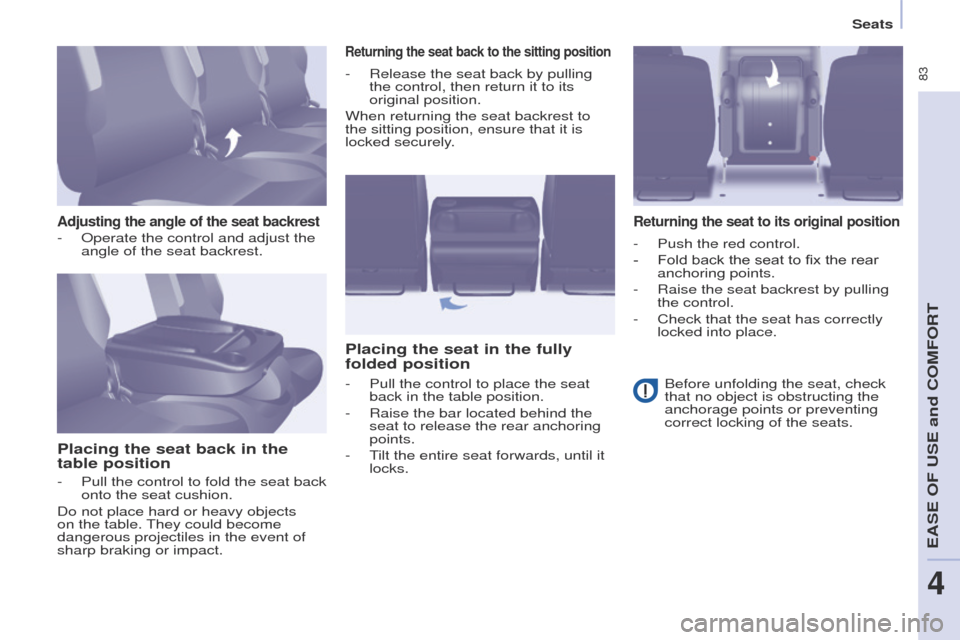

Adjusting the angle of the seat backrest
Placing the seat back in the
table position
Returning the seat back to the sitting position
Placing the seat in the fully
folded position
Returning the seat to its original position
- Operate the control and adjust the
angle of the seat backrest.
-

Pull the control to fold the seat back
onto the seat cushion.
Do not place hard or heavy objects
on the table.

They could become
dangerous projectiles in the event of
sharp braking or impact. -

Release the seat back by pullin
g
the control, then return it to its
original position.
When returning the seat backrest to
the sitting position, ensure that it is
locked securely.
-

Pull the control to place the seat
back in the table position.
-


Raise the bar located behind the
seat to release the rear anchoring
points.
-


T
ilt the entire seat forwards, until it
locks. -
Push the red control.
-

Fold back the seat to fix the rear
anchoring points.
-


Raise the seat backrest by pullin
g
the control.
-

Check that the seat has correctly
locked into place.Before unfolding the seat, check
that no object is obstructing the
anchorage points or preventing
correct locking of the seats.
EASE OF USE and COMFORT
4
Seats

84
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Removing the seat
- If necessary, move the front
seats forward and lower the head
restraint.
-

Place the seat in the fully folded
position.
Good practice
Following the various operations:
-
do not remove a head restraint
without storing it and fix it to a
support,
-


ensure that the passengers can
always access the seat belts and
fasten them easily

,
-

passengers must never take
their seat without adjusting and
fastening their seat belt.
Refer to the "Fully folded position"
described previously

.
-

Press the red lever to release the
front feet.
-


T

ilt the entire seat rearwards by
approximately 45° without releasing
the lever.
-

Release the lever

.
-

Lift the seat

vertically to the limit of
the anchorages.
-

Straighten the seat by tilting it
forwards then lift it.
Refitting the seat
- Tilt the seat forward by 45°.
-
Place the hooks between the
two

bars.
-

Fold back the seat to fix the rear
anchoring points.
-


Pull the control to return the seat
back to its initial position.
-


Raise the head restraint. Before unfolding the seat, check
that no object is obstructing the
anchorage points or preventing
correct locking of the seats.
Seats

85
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Head restraint
This is of the "comma" shape type.
High position: press the tab, lift and
raise the head restraint.
Low position: push the tab and press
the top of the head restraint to lower it.
To remove the head restraint: place it
in the high position, lift it, then remove
it.
Store it inside the vehicle, securing it
firmly.
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed and must
be replaced in the specified position,
indicated by a symbol on its label.
The seats of row 2 and row 3 are
independent and adjustable.
REAR SEATS (7 SEAT VERSION)
EASE OF USE and COMFORT
4
Seats

86
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Left-hand outer seat
Types of Row 2 seat
Types of Row 3 seat
Centre seatRight-hand outer seat
Right-hand outer seat
Left-hand outer seat
Seats

87
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

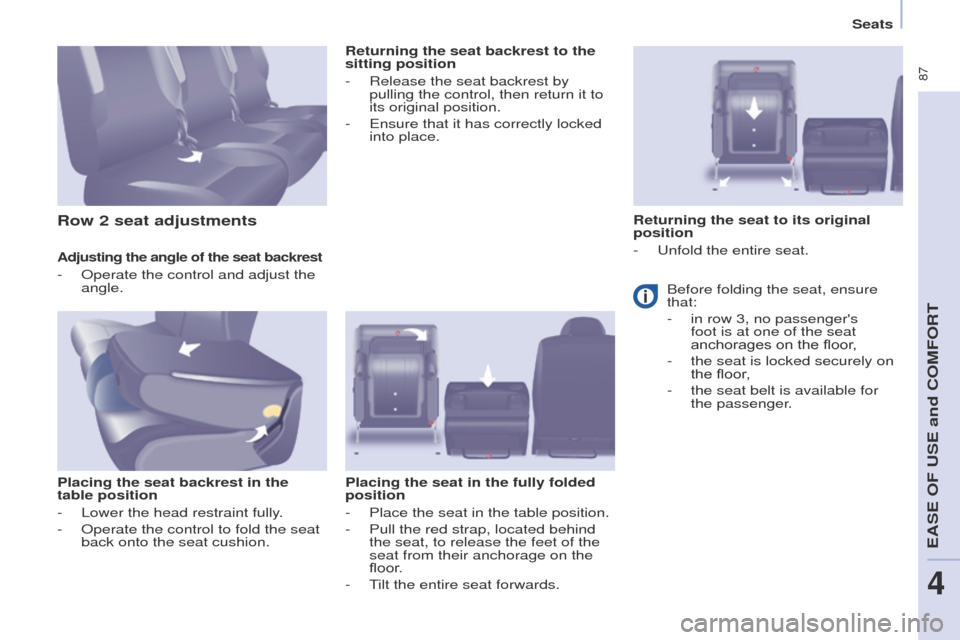

Adjusting the angle of the seat backrest
- Operate the control and adjust the
angle.
Placing the seat backrest in the
table position
-

Lower the head restraint fully
.
-

Operate the control to fold the seat
back onto the seat cushion. Returning the seat backrest to the
sitting position
-


Release the seat backrest by
pullin

g the control, then return it to
its original position.
-
Ensure that it has correctly locked
into place.
Placing the seat in the fully folded
position
-

Place the seat in the table position.
-


Pull the red strap, located behind
the seat, to release the feet of the
seat from their anchorage on the
floor

.
-

T
ilt the entire seat forwards.
Row 2 seat adjustmentsReturning the seat to its original
position
-
Unfold the entire seat.
Before folding the seat, ensure
that:
-


in row 3, no passenger's
foot is at one of the seat
anchorages on the floor

,
-

the seat is locked securely on
the floor

,
-

the seat belt is available for
the passenger

.
EASE OF USE and COMFORT
4
Seats

88
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

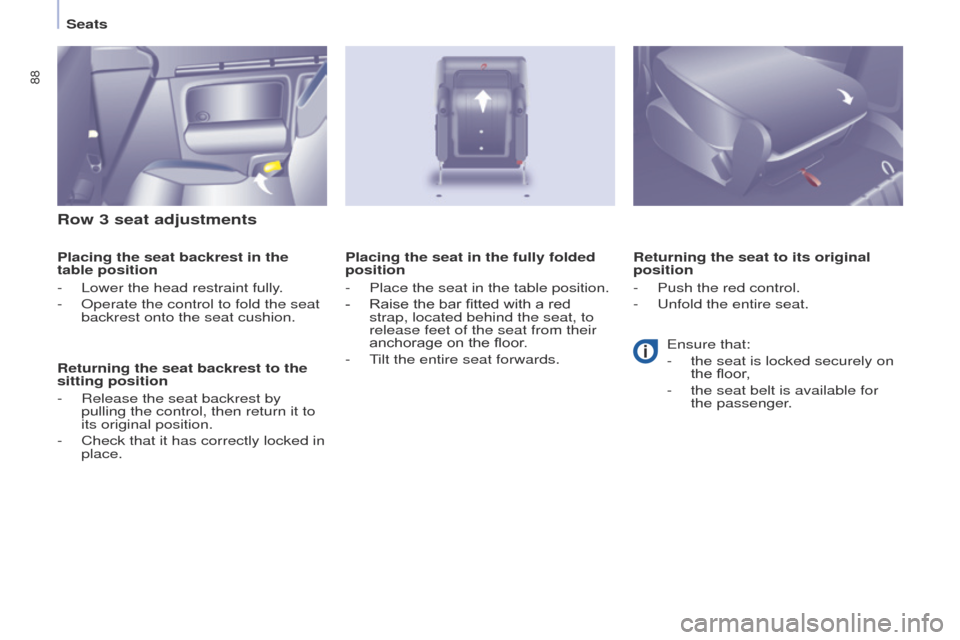

Row 3 seat adjustments
Placing the seat backrest in the
table position
-
Lower the head restraint fully
.
-

Operate the control to fold the seat
backrest onto the seat cushion.
Returning the seat backrest to the
sitting position
-


Release the seat backrest by
pullin

g the control, then return it to
its original position.
-

Check that it has correctly locked in
place. Returning the seat to its original
position
-


Push the red control.
-


Unfold the entire seat.
Placing the seat in the fully folded
position
-


Place the seat in the table position.
-


Raise the bar fitted with a red
strap, located behind the seat, to
release feet of the seat from their
anchorage on the floor

.
-

T
ilt the entire seat forwards.Ensure that:
-

the seat is locked securely on
the floor

,
-

the seat belt is available for
the passenger

.
Seats
