Peugeot Partner Tepee 2017 Owner's Manual

99
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

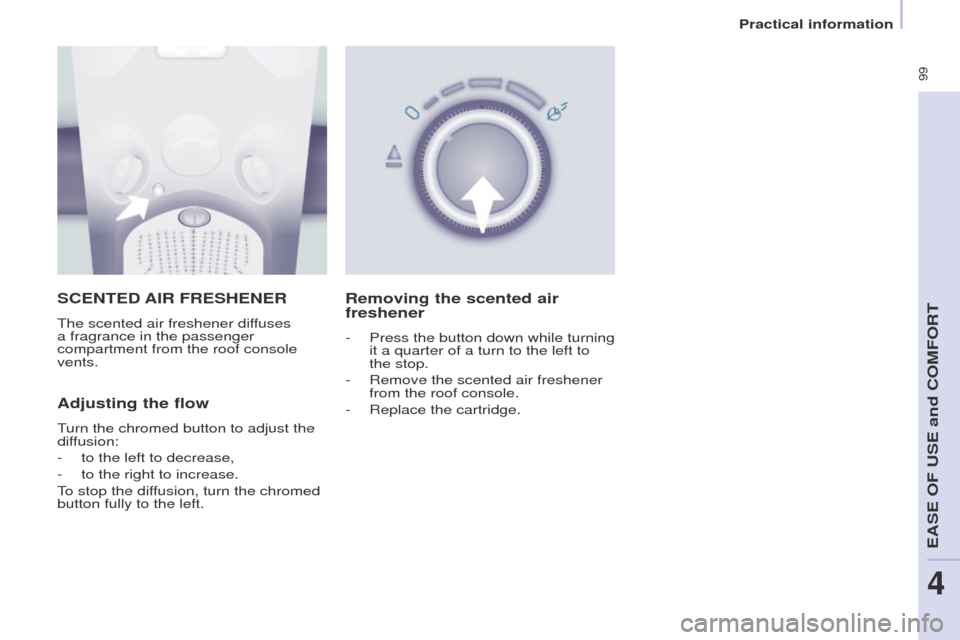

SCENTED AIR FRESHENER
The scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console
vents.
Adjusting the flow
Turn the chromed button to adjust the
diffusion:
-
to the left to decrease,
-


to the right to increase.
T

o stop the diffusion, turn the chromed
button fully to the left.
Removing the scented air
freshener
- Press the button down while turning
it a quarter of a turn to the left to
the stop.
-

Remove the scented air freshener
from the roof console.
-


Replace the cartridge.
EASE OF USE and COMFORT
4
Practical information

100
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

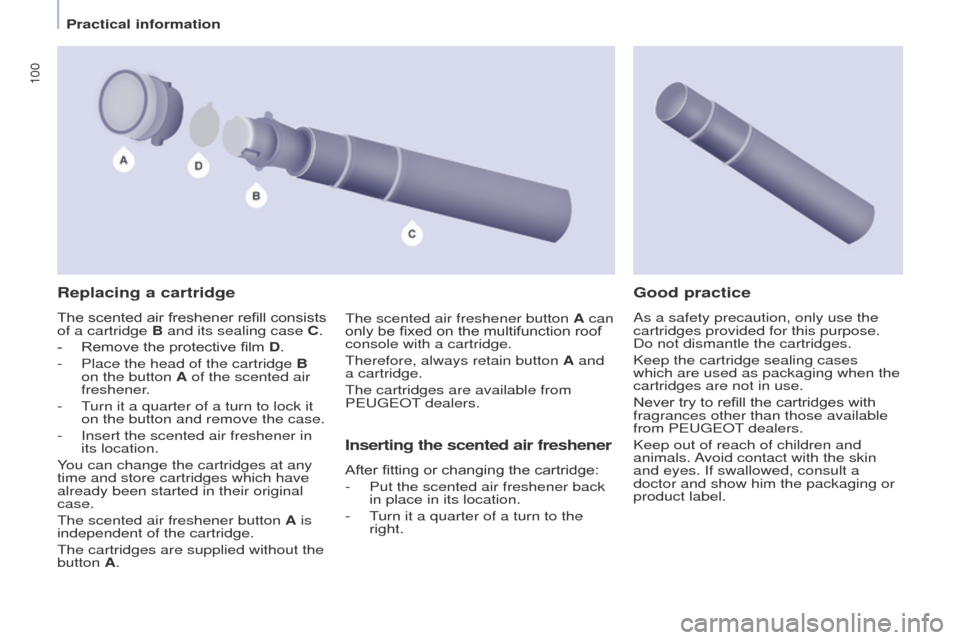

Replacing a cartridge
The scented air freshener refill consists
of a cartridge B and its sealing case C.
-
Remove the protective film
D.
-

Place the head of the cartridge
B
on the button A of the scented air
freshener.
-

T
urn it a quarter of a turn to lock it
on the button and remove the case.
-

Insert the scented air freshener in
its location.
Y

ou can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
The scented air freshener button A is
independent of the cartridge.
The cartridges are supplied without the
button A.
Inserting the scented air freshener
After fitting or changing the cartridge:
-

Put the scented air freshener back
in place in its location.
-


T
urn it a quarter of a turn to the
right.
Good practice
As a safety precaution, only use the
cartridges provided for this purpose.
Do not dismantle the cartridges.
Keep the cartridge sealing cases
which are used as packaging when the
cartridges are not in use.
Never try to refill the cartridges with
fragrances other than those available
from PEUGEOT dealers.
Keep out of reach of children and
animals. Avoid contact with the skin
and eyes. If swallowed, consult a
doctor and show him the packaging or
product label.
The scented air freshener button A can
only be fixed on the multifunction roof
console with a cartridge.
Therefore, always retain button A and
a cartridge.
The cartridges are available from
PEUGEOT dealers.
Practical information

101
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

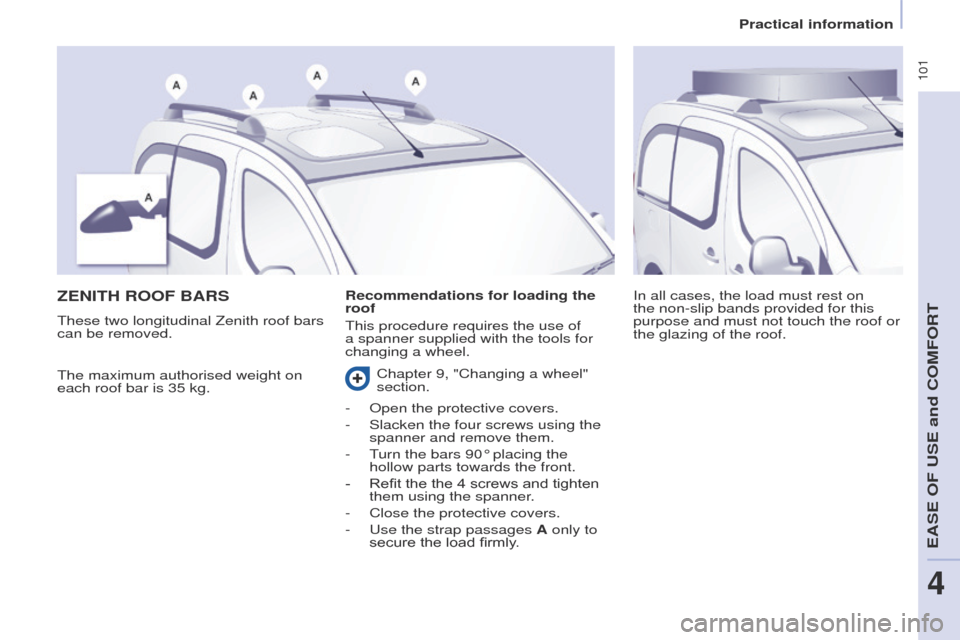

ZENITH ROOF BARS
The maximum authorised weight on
each roof bar is 35 kg.In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the glazing of the roof.
Recommendations for loading the
roof
This procedure requires the use of
a spanner supplied with the tools for
changing a wheel.
These two longitudinal Zenith roof bars
can be removed.
Chapter 9, "Changing a wheel"
section.
-

Open the protective covers.
-


Slacken the four screws using the
spanner and remove them.
-


T
urn the bars 90° placing the
hollow parts towards the front.
-

Refit the the 4 screws and tighten
them using the spanner

.
-

Close the protective covers.
-


Use the strap passages
A only to
secure the load firmly.
EASE OF USE and COMFORT
4
Practical information

102
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
ExTERIOR ROOF BARS
If you install transverse bars on these bars, refer to the weight values\
indicated
by the manufacturer but do not exceed: 75 kg.
Practical information

103
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
Automatic switching on/off
The front courtesy lamp comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked.Front seats: comes on when
one of the front doors is
opened.
These are switched on and off by
means of a manual switch, with
the ignition on.
Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps go off.
Permanently off.
Permanently on, ignition on.
Front courtesy lamp
COURTESY
LAMPS
Rear courtesy lamp Front individual reading lamps
EASE OF USE and COMFORT
4
Practical information

104
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
LOAD SPACE COVER (5 SEAT VERSION)
This rigid shelf conceals the objects
stored in the boot.Removing
Fold the load space cover.
Detach it from the notches A and B
pulling it towards you.
Raise it and remove the assembly.
Refitting
Place the load space cover in front
of
A and B.
Push it forwards to insert the lugs in
the notches.
Unfold and clip into the notches C.
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch C. Storing (according to version)
A location is provided in the back of the
rear seats to accommodate the load
space cover folded onto itself.
Slide it vertically between the side
guides located at mid seat back height.
Insert the hinge first, with the free flaps
turned upwards.
This rigid load space cover can
form a shelf. However, as a safety
measure, do not place objects
on it which could become dangerous
projectiles in the event of sharp braking
or rear impact.
Practical information

105
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016
12 volt socket (120 W max)
It is advisable to limit the use of this
socket to avoid discharging the battery.
Protective net
Open the cover located in the hook
support.
Fix the top of the net in the notches,
having first turned the bar 1/4 of a turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on the floor.
Tighten the net using the straps.
Stowing rings
Use these rings to secure loads on the
floor.
The connection of an electrical
device not approved by
PEUGEOT, such as a USB
charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.
EASE OF USE and COMFORT
4
Practical information

106
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

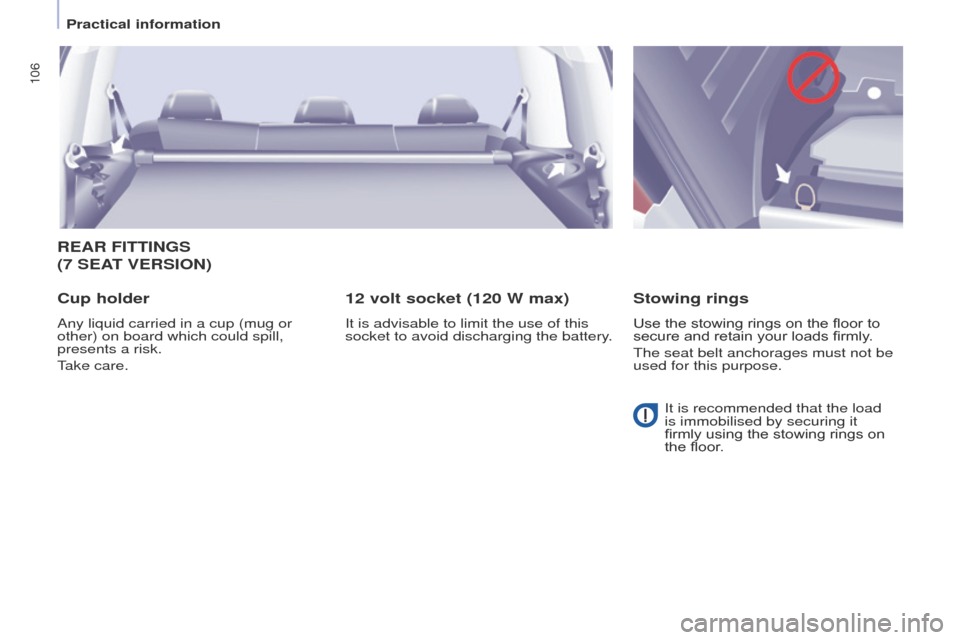

REAR FITTINGS
(7 SEAT VERSION )
Cup holder
Any liquid carried in a cup (mug or
other) on board which could spill,
presents a risk.
Take care.
12 volt socket (120 W max)
It is advisable to limit the use of this
socket to avoid discharging the battery.
Stowing rings
Use the stowing rings on the floor to
secure and retain your loads firmly.
The seat belt anchorages must not be
used for this purpose.
It is recommended that the load
is immobilised by securing it
firmly using the stowing rings on
the

floor.
Practical information

107
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

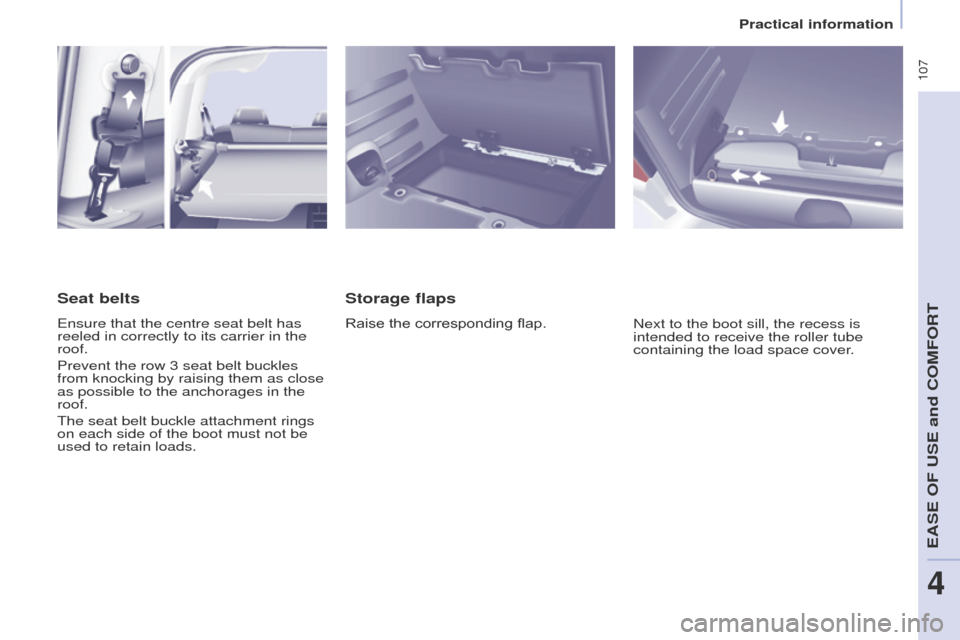

Storage flaps
Raise the corresponding flap.Next to the boot sill, the recess is
intended to receive the roller tube
containing the load space cover.
Seat belts
Ensure that the centre seat belt has
reeled in correctly to its carrier in the
roof.
Prevent the row 3 seat belt buckles
from knocking by raising them as close
as possible to the anchorages in the
roof.
The seat belt buckle attachment rings
on each side of the boot must not be
used to retain loads.
EASE OF USE and COMFORT
4
Practical information

108
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

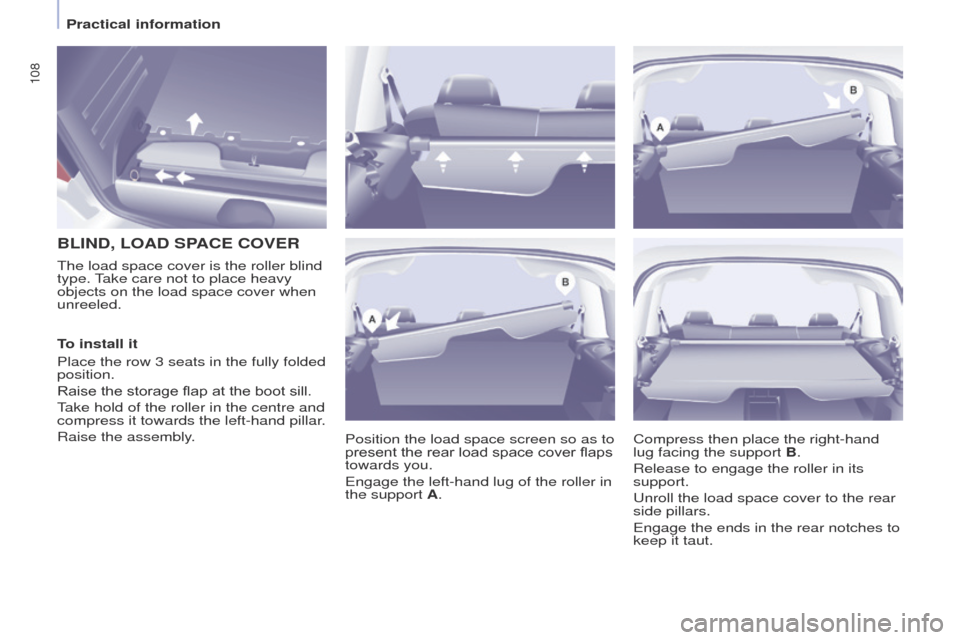

BLIND, LOAD SPACE COVER
Position the load space screen so as to
present the rear load space cover flaps
towards you.
Engage the left-hand lug of the roller in
the support A.
The load space cover is the roller blind
type. Take care not to place heavy
objects on the load space cover when
unreeled.
Compress then place the right-hand
lug facing the support B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side pillars.
Engage the ends in the rear notches to
keep it taut.
To install it
Place the row 3 seats in the fully folded
position.
Raise the storage flap at the boot sill.
Take hold of the roller in the centre and
compress it towards the left-hand pillar.
Raise the assembly.
Practical information
