PONTIAC FIREBIRD 1997 Owner's Manual

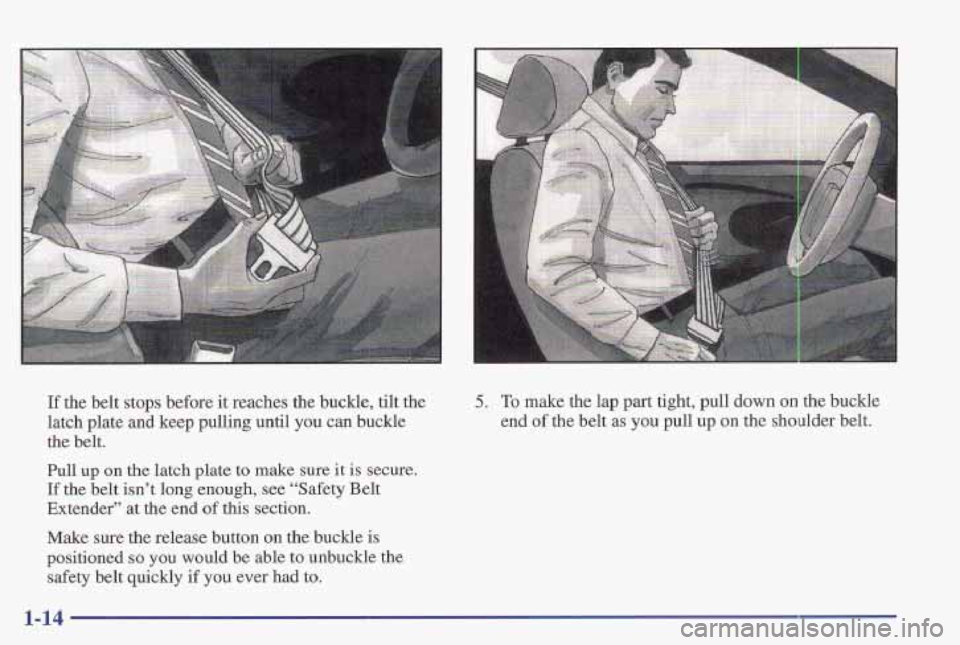

If the belt stops before it reaches the buckle, tilt the
latch plate and keep pulling until
you can buckle
the belt.
Pull up
on the latch plate to make sure it is secure.
If the belt isn’t long enough, see “Safety Belt
Extender” at the end
of this section.
Make sure the release button
on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. To make the lap part tight, pull down on the buckle
end
of the belt as you pull up on the shoulder belt.
1-14

The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force
to the strong pelvic bones. And you’d be less
likely
to slide under the lap belt. If you slid under it, the
belt would apply force at your abdomen. This could
cause serious or even fatal injuries. The shoulder
belt
should go over the shoulder and across the chest.
These parts of the body are best able to take belt
restraining forces.
The safety belt locks if there’s a
sudden stop or crash.
On convertible models, the safety belt also locks if you
pull the belt very quickly out
of the retractor.
1-15

@ What’s wrong with this?
A: The shoulder belt is too loose. It won’t give nearly
as much protection this way.
You can be seriously hurt if your shoulder belt is
too loose. In a crash,
you would move forward
too much, which could increase injury. The
shoulder belt should
fit against your body.
1-16

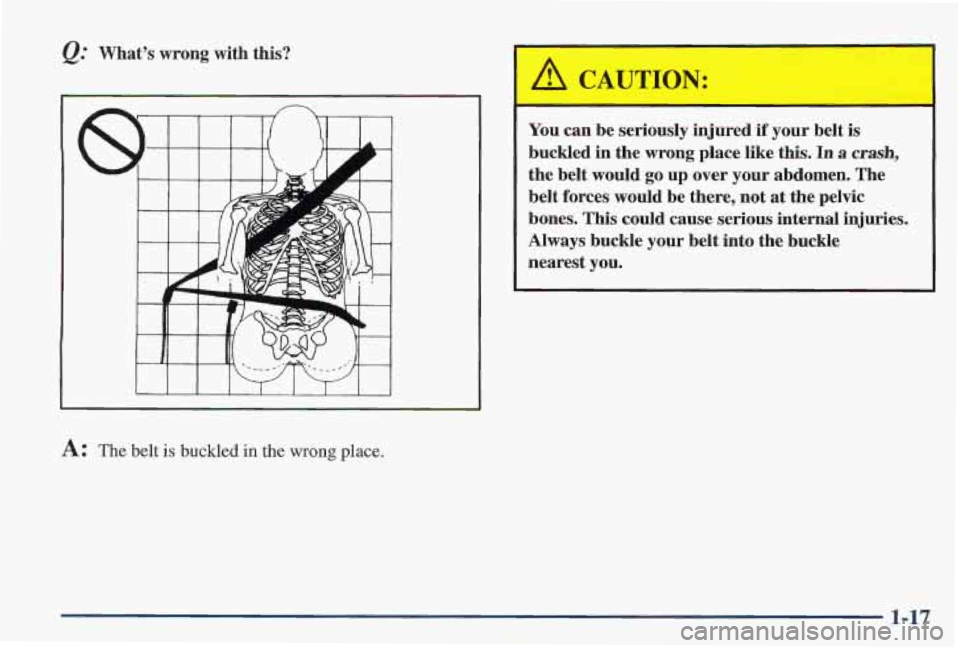

&.' What's wrong with this?
A: The belt is buckled in the wrong place.
You can be seriously injured if your belt is
buckled in the wrong place like this. In a crash,
the belt would go up over your abdomen. The
belt forces would be there, not at the pelvic
bones. This could cause serious internal injuries.
Always buckle your belt into the buckle
nearest you.
1-17

@ What’s wrong with this?
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times.
You can be seriously injured if you wear the
shoulder belt under your arm.
In a crash, your
body would move too
far forward, which would
increase the chance
of head and neck injury.
Also, the belt would apply too much force to the
ribs, which aren’t as strong as shoulder bones.
You could also severely injure internal organs
like your liver or spleen.
1-18

Q: What’s wrong with this?
You can be seriously injured by a twisted belt.
In
a crash, you wouldn’t have the full width of the
belt to spread impact forces. If a belt is twisted,
make it straight
so it can work properly, or ask
your dealer to
fix it.
A: The belt is twisted across the body.
1-19

I
To unlatch the belt, just push the button on the buckle.
The belt should
go back out of the way.
Before you close
the door, be sure the belt is out of the
way.
If you slam the door on it, you can damage both the
belt and your vehicle.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they don’t wear safety belts.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible, below
the rounding, throughout the pregnancy.
1-20

The best way to protect the fetus is to protect the
mother. When a safety belt
is worn properly, it’s more
likely that the fetus won’t be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt works the same
way as the driver’s safety belt. See “Driver Position,”
earlier
in this section.
Supplemental Restraint System (SRS)
This part explains the Supplemental Restraint System
(SRS) or air bag system.
Your Pontiac has two air bags
-- one air bag for the
driver and another air bag for the right front passenger.
Here are the most important things to know about the
air bag system:
7
You can be severely injured or killed in a crash if
you aren’t wearing your safety belt
-- even if you
have air bags. Wearing your safety belt during a
crash helps reduce your chance
of hitting things
inside the vehicle or being ejected from it.
Air
bags are “supplemental restraints” to the safety
belts. All air bags are designed to work with
safety belts, but don’t replace them. Air bags
are
designed to work only in moderate to severe
crashes where the front of your vehicle hits
something. They aren’t designed to inflate at
all in rollover, rear, side or low-speed frontal
crashes. Everyone in your vehicle should wear a
safety belt properly
-- whether or not there’s an
air bag for that person.
1-21

Air bags inflate with great force, faster than the
blink of an eye.
If you’re too close to an inflating
air bag, it could seriously injure you. Safety belts
help keep you in position before and during a
crash. Always wear your safety belt,
even with air
bags. The driver should
sit as far back as possible
while still maintaining control
of the vehicle.
An inflating air bag can seriously injure small
children. Always secure children properly in your
vehicle.
To read how, see the part of this manual
called “Children” and the caution label
on the
right front passenger’s safety belt.
L
AIR
BAG
J
There is an air bag readiness
light
on the instrument
panel, which shows
AIR BAG.
The system checks the air bag electrical system. for
malfunctions. The light tells you if there is an electrical
problem. See “Air
Bag Readiness Light” in the Index
for more information.
1-22

How the Air Bag System Works
Where are the air bags?
The driver's air bag is in the middle of the steering wheel.
I"
The right front passenger's air bag is in the instrument
panel on the passenger's
side.
1-23
