PONTIAC G6 2009 Owners Manual

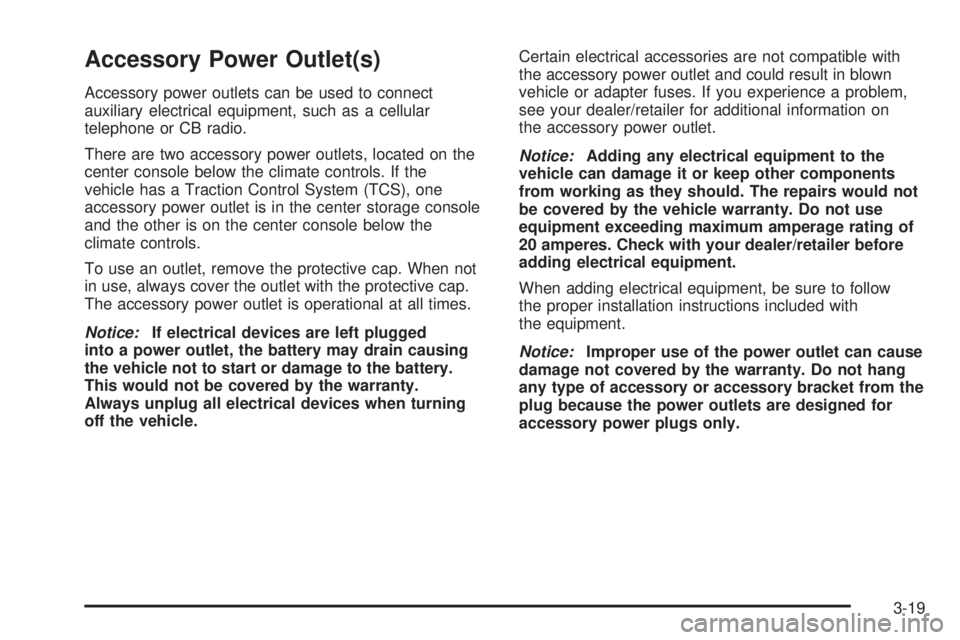

Accessory Power Outlet(s)
Accessory power outlets can be used to connect
auxiliary electrical equipment, such as a cellular
telephone or CB radio.
There are two accessory power outlets, located on the
center console below the climate controls. If the
vehicle has a Traction Control System (TCS), one
accessory power outlet is in the center storage console
and the other is on the center console below the
climate controls.
To use an outlet, remove the protective cap. When not
in use, always cover the outlet with the protective cap.
The accessory power outlet is operational at all times.
Notice:If electrical devices are left plugged
into a power outlet, the battery may drain causing
the vehicle not to start or damage to the battery.
This would not be covered by the warranty.
Always unplug all electrical devices when turning
off the vehicle.Certain electrical accessories are not compatible with
the accessory power outlet and could result in blown
vehicle or adapter fuses. If you experience a problem,
see your dealer/retailer for additional information on
the accessory power outlet.
Notice:Adding any electrical equipment to the
vehicle can damage it or keep other components
from working as they should. The repairs would not
be covered by the vehicle warranty. Do not use
equipment exceeding maximum amperage rating of
20 amperes. Check with your dealer/retailer before
adding electrical equipment.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the equipment.
Notice:Improper use of the power outlet can cause
damage not covered by the warranty. Do not hang
any type of accessory or accessory bracket from the
plug because the power outlets are designed for
accessory power plugs only.
3-19

Climate Controls
Climate Control System
The heating, cooling, and ventilation for the vehicle can
be controlled with this system. For vehicles with the
remote start feature, the climate control system functions
as part of the remote start feature. SeeRemote
Keyless Entry (RKE) System Operation on page 2-4.
A. Fan Control
B. Recirculation/
Outside Air
C. Air Delivery
Mode ControlD. Air Conditioning
E. Temperature
Control
F. Rear Window
Defogger
9(Fan Control):Turn the knob clockwise or
counterclockwise to increase or decrease the fan
speed. The fan must be on to run the air conditioning
compressor.
Temperature Control:Turn the knob clockwise or
counterclockwise to increase or decrease the
temperature inside the vehicle.
When it is cold outside 0°F (−18°C) or lower, use the
engine coolant heater, if the vehicle has one, to quickly
provide warmer air. An engine coolant heater warms
coolant that the engine uses to warm the inside of the
vehicle. For more information, seeEngine Coolant
Heater on page 2-25.
Air Delivery Mode Control:Turn the knob clockwise
or counterclockwise to change the air delivery settings.
Select from the following modes:
H(Vent):Air is directed to the instrument panel
outlets.
)(Bi-Level):Air is divided between the air to the
instrument panel and oor outlets. Some air may
be directed toward the side windows.
3-20

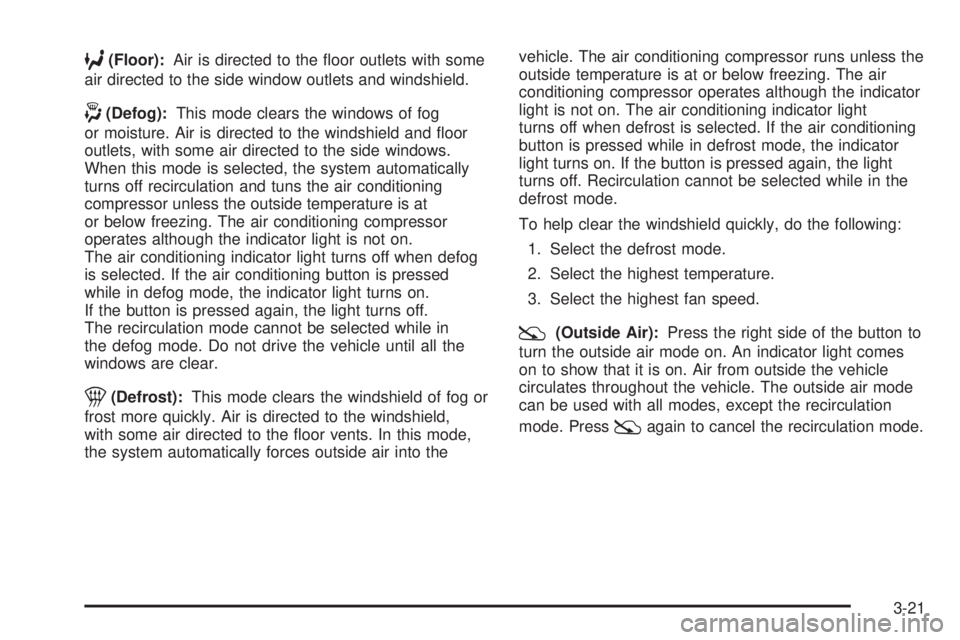

6(Floor):Air is directed to the oor outlets with some
air directed to the side window outlets and windshield.
-(Defog):This mode clears the windows of fog
or moisture. Air is directed to the windshield and oor
outlets, with some air directed to the side windows.
When this mode is selected, the system automatically
turns off recirculation and tuns the air conditioning
compressor unless the outside temperature is at
or below freezing. The air conditioning compressor
operates although the indicator light is not on.
The air conditioning indicator light turns off when defog
is selected. If the air conditioning button is pressed
while in defog mode, the indicator light turns on.
If the button is pressed again, the light turns off.
The recirculation mode cannot be selected while in
the defog mode. Do not drive the vehicle until all the
windows are clear.
1(Defrost):This mode clears the windshield of fog or
frost more quickly. Air is directed to the windshield,
with some air directed to the oor vents. In this mode,
the system automatically forces outside air into thevehicle. The air conditioning compressor runs unless the
outside temperature is at or below freezing. The air
conditioning compressor operates although the indicator
light is not on. The air conditioning indicator light
turns off when defrost is selected. If the air conditioning
button is pressed while in defrost mode, the indicator
light turns on. If the button is pressed again, the light
turns off. Recirculation cannot be selected while in the
defrost mode.
To help clear the windshield quickly, do the following:
1. Select the defrost mode.
2. Select the highest temperature.
3. Select the highest fan speed.
:(Outside Air):Press the right side of the button to
turn the outside air mode on. An indicator light comes
on to show that it is on. Air from outside the vehicle
circulates throughout the vehicle. The outside air mode
can be used with all modes, except the recirculation
mode. Press
:again to cancel the recirculation mode.
3-21

?(Recirculation):Press the left side of the button
to turn the recirculation mode on. An indicator light
comes on to show that it is on. The air inside the vehicle
is recirculated through the climate control system and
throughout the vehicle, not from outside. This helps
to limit the odors entering the vehicle and maximize air
conditioning performance. The indicator light ashes
three times if you try to use recirculation in a mode that
it can not be used in. Use this mode only when it is
needed for comfort, since window fogging occurs if the
air conditioning compressor is not engaged.
Press
?to cancel the outside air mode. When you
switch to the defog or defrost modes the system
automatically moves from recirculation to outside air.
When the vehicle or fan is turned off and back on,
the system automatically defaults to outside air.
#(Air Conditioning):Press to turn the air conditioning
system on or off. An indicator light comes on to
indicate that the air conditioning is on.
The air conditioning system removes moisture from the
air, so sometimes a small amount of water drips
under the vehicle while it is idling or after the engine is
turned off. This is normal.
Maximum Air Conditioning
On hot days, open the windows to let hot inside air
escape; then close them. This helps to reduce the time
it takes for the vehicle to cool down. It also helps the
system to operate more efficiently.
For quick cool down on hot days, do the following:
1. Select the
Cvent mode.
2. Select the highest fan speed.
3. Select
#air conditioning.
4. Select the
?recirculation mode.
5. Select the coolest temperature.
Using these settings together for long periods of time
can cause the air inside of the vehicle to become
too dry. To prevent this from happening, after the air in
the vehicle has cooled, turn the recirculation mode off.
3-22

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
or off. An indicator light comes on to indicate that
the rear window defogger is on. Be sure to clear as
much snow as possible from the rear window.
If driving below 50 mph (80 km/h), the rear window
defogger turns off about 15 minutes after the button is
pressed. If turned on again, the defogger only runs
for about seven and one-half minutes before turning off.
The defogger can also be turned off by turning off
the engine.
If the vehicle’s speed is maintained above 50 mph
(80 km/h), the rear window defogger remains on
once the button is pressed.
If the vehicle has the remote start feature, the rear
defogger automatically turns on if it is cold outside.
When the vehicle transitions out of the remote
start mode, the rear defogger turns off. SeeRemote
Keyless Entry (RKE) System Operation on page 2-4.Notice:Do not use anything sharp on the inside of
the rear window. If you do, you could cut or
damage the warming grid, and the repairs would not
be covered by the vehicle warranty. Do not attach
a temporary vehicle license, tape, a decal or
anything similar to the defogger grid.
Remote Vehicle Start
If the vehicle has the remote start feature, it will turn on
using the last settings selected on the climate control
before the vehicle was turned off.
The fan and air delivery knobs can be used during
remote start. The buttons will not work until the ignition
is turned on by the key.
The climate control system changes back to manual
operation when the vehicle key is turned to ON/RUN.
3-23

Automatic Climate Control System
If the vehicle has this system, the heating, cooling, and
ventilation can be automatically controlled in the vehicle.
A. Fan Control
B. Air Conditioning
C. Recirculation/
Outside Air
D. Rear Window
DefoggerE. Air Delivery
Mode Control
F. Display
G. Temperature
Control
Automatic Operation
AUTO (Automatic):Select AUTO on both the fan
speed control and the air delivery mode control knobs to
activate the automatic system. Automatic operation
controls the inside temperature and air delivery.
Use the steps below to place the climate control system
in automatic mode:
1. Turn the fan knob and the air delivery mode knob
to AUTO.
The display shows the current set temperature.
When auto is selected, the air conditioning operation
and air inlet is automatically controlled. The air
conditioning compressor runs when the outside
temperature is over about 40°F (4°C). The air inlet
is normally set to outside air. If it is hot outside,
the air inlet can automatically switch to recirculate
inside air to help quickly cool down the vehicle.
2. Set the temperature.
To nd your comfort setting, start with an initial
temperature setting and allow about 20 minutes for
the system to regulate. Press
wandxto adjust
the temperature setting as necessary. If the
temperature setting of 60°F (15°C) is chosen the
system remains at the maximum cooling setting.
3-24

If the temperature setting of 90°F (32°C) is chosen
the system remains at the maximum heat setting.
Choosing either maximum setting will not cause the
vehicle to heat or cool faster.
Be careful not to cover the sensor located on the
top of the instrument panel near the windshield.
This sensor regulates air temperature based on sun
load, and also turns on the headlamps.
Also be careful not to cover the sensor grille on the
lower right side of the climate control faceplate.
This senses the inside vehicle temperature needed
for proper regulation.
To avoid blowing cold air at start-up in cold weather,
the system delays turning on the fan until warm
air is available. The length of delay depends on the
engine coolant temperature. Turning the fan knob
overrides this delay and change the fan to a
selected speed.
If the vehicle has the remote start feature, the climate
control display initially shows “RS” in place of the
temperature to indicate the remote start has been
activated. The remote start system turns on using the
last temperature selected before the vehicle was
last turned off.For best performance, turn the fan and mode knobs to
the AUTO position. The fan speed and air delivery
modes will change to achieve the best comfort.
If the outside air temperature is below 45°F and the
air delivery mode knob is set to AUTO, the automatic
climate control system starts in the defrost mode to clear
the window.
The automatic climate control changes back to manual
operation by turning the vehicle on with the key.
Manual Operation
The air delivery mode or fan speed can be manually
adjusted.
9(Off):Turns off the entire climate control system.
Outside air still enters the vehicle, and is directed to the
oor. This direction can be changed by adjusting the
air delivery mode position.
9(Fan Control):Turn the knob clockwise or
counterclockwise to increase or decrease the fan speed.
xwTemperature Control:Press the up and down
arrows to increase or decrease the temperature
inside the vehicle.
Air Delivery Mode Control:Turn the knob clockwise
or counterclockwise to change the air delivery settings.
3-25

Select from the following modes:
H(Vent):Air is directed to the instrument panel
outlets.
)(Bi-Level):Air is divided between the instrument
panel and oor outlets.
6(Floor):Air is directed to the oor outlets with some
air directed to the side window outlets and windshield.
-(Defog):This mode clears the windows of fog
or moisture. Air directed to the oor and windshield
outlets.
0(Defrost):This modes clears the windshield of fog
or frost more quickly. The system automatically
controls the fan speed if AUTO mode is selected. If the
outside temperature is 40°F (4°C) or warmer, the air
conditioning compressor automatically runs to help
dehumidify the air and dry the windshield. The air
conditioning indicator light blinks three times if you try to
turn off the compressor while in this mode.
:(Outside Air):Press the right side of the button to
turn the outside air mode on. An indicator light comes
on to show that it is on. Air from outside the vehicle
circulates throughout the vehicle. The outside air mode
can be used with all modes, except the recirculation
mode. Press
:again to cancel the recirculation mode.
?(Recirculation):Press the left side of the button
to turn the recirculation mode on. An indicator light
above the button comes on to show that it is on.
The air inside the vehicle is recirculated through the
climate control system and throughout the vehicle, not
from outside. This helps to limit the odors entering
the vehicle and maximize air conditioning performance.
The recirculation mode cannot be used while in
defrost, defog, or oor mode. If recirculation is selected
while in these modes, the indicator light ashes three
times to let you know that it is not allowed. Use this
mode only when it is needed for comfort, since window
fogging occurs if the air conditioning compressor is
not engaged.
Press
?to cancel the auto recirculation feature.
Each time the vehicle is started, the system reverts to
the auto recirculation function.
When the weather is cool or damp, operating the
system in recirculation for extended periods of time can
cause fogging of the vehicle’s windows. To clear the
fog, select either defog or defrost. Make sure the
air conditioning is on.
#(Air Conditioning):Press to turn the air conditioning
on or off. A light above the button comes on while the
air conditioning is on.
3-26

When air conditioning is selected or in AUTO mode, the
system runs the air conditioning automatically to cool
and dehumidify the air entering the vehicle.
On hot days, open the windows long enough to let hot
inside air escape. This reduces the time it takes for
the vehicle to cool down. Then keep the windows closed
for the air conditioner to work its best.
On cool, but sunny days while using manual operation
of the automatic system, use bi-level to deliver warm
air to the oor and cooler air to the instrument
panel outlets. To warm or cool the air, press
xorwto
the desired temperature setting.
In AUTO mode the system cools and dehumidies the
air inside the vehicle. Also, the system maximizes
its performance by using recirculation as necessary.
Heating:On cold days when using manual operation of
the automatic system, choose oor mode to deliver
air to the oor outlets. To warm or cool the air delivered,
adjust the temperature to the desired setting.
To use the automatic mode, turn the knob to AUTO and
adjust the temperature by pressing
xorw.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear):Press to turn the rear window defogger on
or off. An indicator light above the button comes on
to indicate that the rear window defogger is on.
If driving below 50 mph (80 km/h), the rear window
defogger turns off about 15 minutes after the button is
pressed. If turned on again, the defogger only runs
for about seven and one-half minutes before turning off.
If the vehicle’s speed is maintained above 50 mph
(80 km/h), the rear window defogger remains on once
the button is pressed.
If the vehicle has the remote start feature, the rear
defogger automatically turns on if it is cold outside,
but the indicator light does not come on. When
the vehicle transitions out of remote start mode the rear
defogger turns off.
Notice:Do not use a razor blade or sharp object
to clear the inside rear window. Do not adhere
anything to the defogger grid lines in the rear glass.
These actions may damage the rear defogger.
Repairs would not be covered by your warranty.
3-27

Outlet Adjustment
Rotate the instrument panel outlets and move the
louvers on the outlets to change the direction and
amount of airow inside the vehicle.
Operation Tips
Clear away any ice, snow or leaves from the air
inlets at the base of the windshield that can
block the ow of air into the vehicle.
Use of non-GM approved hood deectors can
adversely affect the performance of the system.
Keep the path under the front seats clear of objects
to help circulate the air inside of the vehicle more
effectively.
When an objectionable odor outside the vehicle is
encountered, use the recirculation mode, with the
temperature knob at a comfortable setting to prevent
the odor from entering the vehicle through the
ventilation system. This can be helpful when
driving through a long tunnel with poor ventilation.
However, extended usage of this mode in cold
or cool weather can cause window fogging.
Warning Lights, Gages, and
Indicators
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention to
the warning lights and gages could prevent injury.
Warning lights come on when there may be or is a
problem with one of the vehicle’s functions. Some
warning lights come on briey when the engine is started
to indicate they are working.
Gages can indicate when there may be or is a problem
with one of the vehicle’s functions. Often gages and
warning lights work together to indicate a problem with
the vehicle.
When one of the warning lights comes on and stays on
while driving, or when one of the gages shows there
may be a problem, check the section that explains what
to do. Follow this manual’s advice. Waiting to do
repairs can be costly and even dangerous.
3-28
