PONTIAC GRAND-AM 1995 Owners Manual

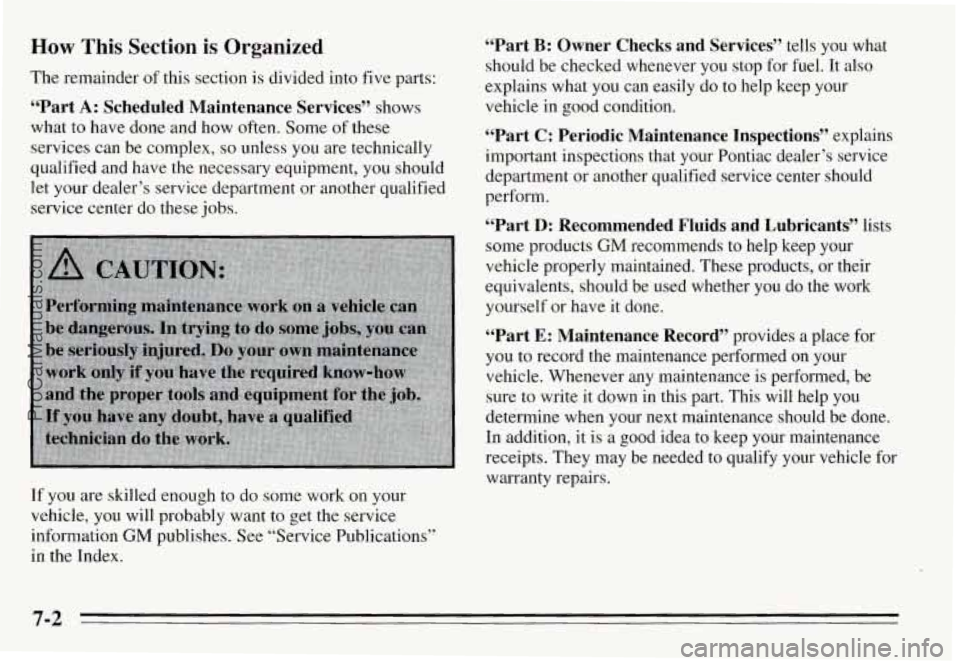

How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what
to have done and how often. Some of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment,
you should
let your dealer’s service department or another qualified
service center do these jobs.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service
information
GM publishes. See “Service Publications”
in the Index.
“Part B: Owner Checks and Services” tells you what
should be checked whenever you stop for fuel. It also
explains what you can easily do to help keep your
vehicle in good condition.
“Part C: Periodic Maintenance Inspections” explains
important inspections that your Pontiac dealer’s service
department or another qualified service center should
perform.
“Part D: Recommended Fluids and Lubricants” lists
some products
GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
“Part E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write it down in this part. This will help you
determine when your next maintenance should be done.
In addition, it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.
7-2
ProCarManuals.com

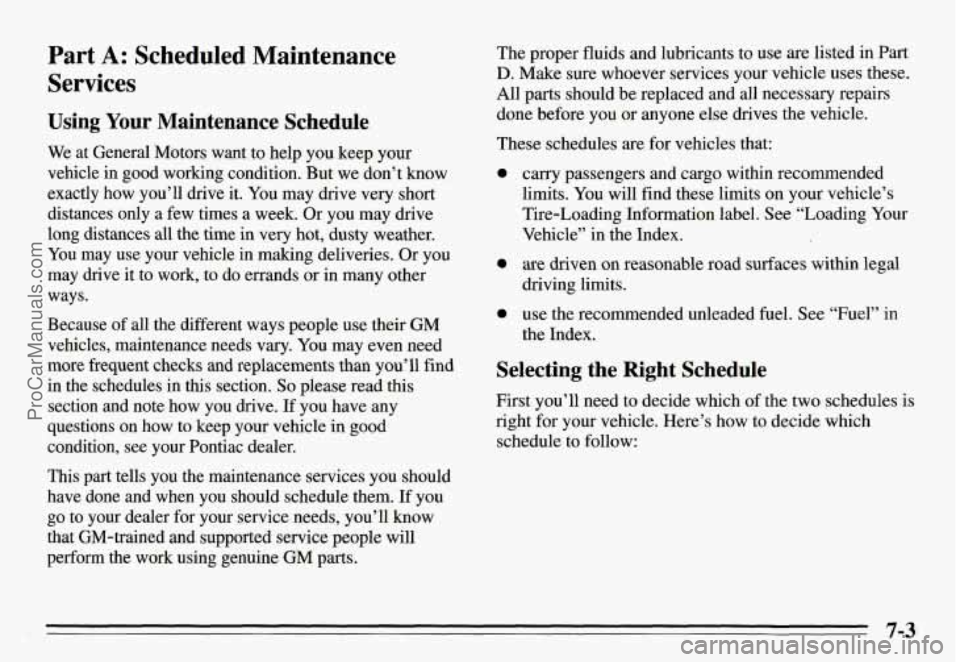

Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t
know
exactly how you’ll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or
in many other
ways.
Because of all the different ways people use their GM
vehicles, maintenance needs vary. You may even need
more frequent checks
and replacements than you’ll find
in the schedules in this section.
So please read this
section and note how you drive. If you have any
questions on how to keep your vehicle in good
condition, see your Pontiac dealer.
This part tells you the maintenance services you should
have done and when you should schedule them.
If you
go to your dealer for your service needs, you’ll know
that GM-trained and supported service people will
perform the work using genuine GM parts.
The proper fluids and lubricants to use are listed in Part
D. Make sure whoever services your vehicle uses these.
All parts should be replaced and all necessary repairs
done before you
or anyone else drives the vehicle.
These schedules are for vehicles that:
e
e
e
carry passengers and cargo within recommended
limits. You will find these limits on
your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle” in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the recommended unleaded fuel. See “Fuel” in
the Index.
Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how to decide which
schedule to follow:
7-3
ProCarManuals.com

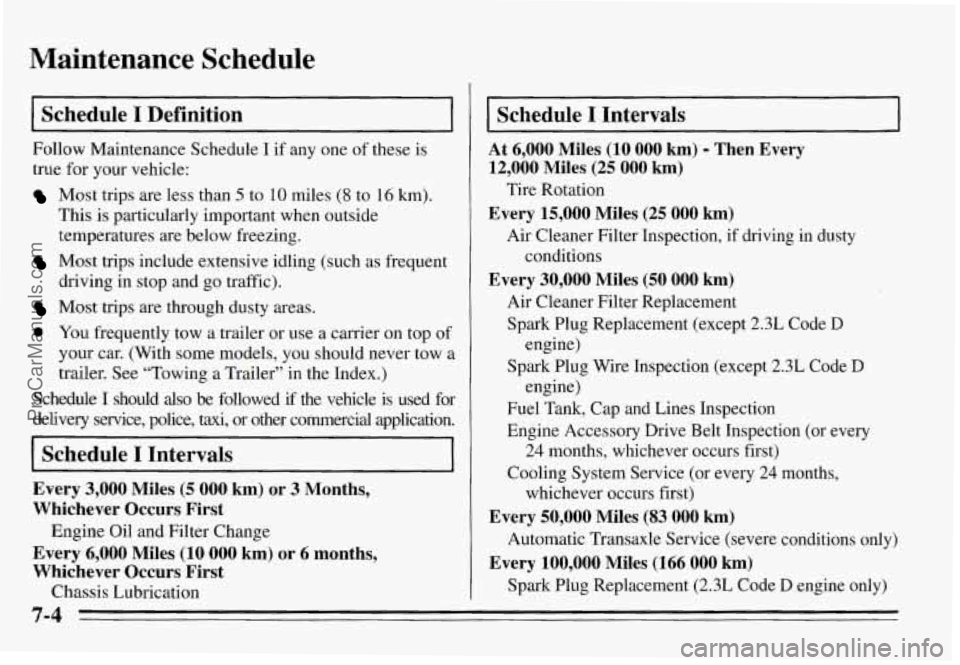

Maintenance Schedule
Schedule I Definition
Follow Maintenance Schedule I if any one of these is
true
for your vehicle:
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop and go traffic).
Most trips are through dusty areas.
0 You frequently tow a trailer or use a carrier on top of
your car. (With some models, you should never tow a
trailer. See “Towing a Trailer” in the Index.)
S’chedule
I should also be followed if the vehicle is used for
delivery service, police,
taxi, or other commercial application.
Schedule I Intervals
Every 3,000 Miles (5 000 km) or 3 Months,
Whichever Occurs First
Every
6,000 Miles (10 000 km) or 6 months,
Whichever Occurs First
Chassis Lubrication
Engine Oil and Filter Change
Schedule I Intervals
At 6,000 Miles (10 000 km) - Then Every
12,000 Miles
(25 000 km)
Every 15,000 Miles (25
000 km)
Tire Rotation
Air Cleaner Filter Inspection, if driving in dusty
conditions
Every 30,000 Miles (50 000 km)
Air Cleaner Filter Replacement Spark Plug Replacement (except 2.3L Code
D
Spark Plug Wire Inspection (except 2.3L Code D
Fuel Tank, Cap and Lines Inspection
Engine Accessory Drive Belt Inspection (or every 24 months, whichever occurs first)
Cooling System Service (or every 24 months, whichever occurs first)
Every 50,000 Miles (83 000 km)
Every
100,000 Miles (166 000 km)
engine) engine)
Automatic Transaxle Service (severe conditions only)
Spark Plug Replacement (2.3L Code
D engine only)
7-4
ProCarManuals.com

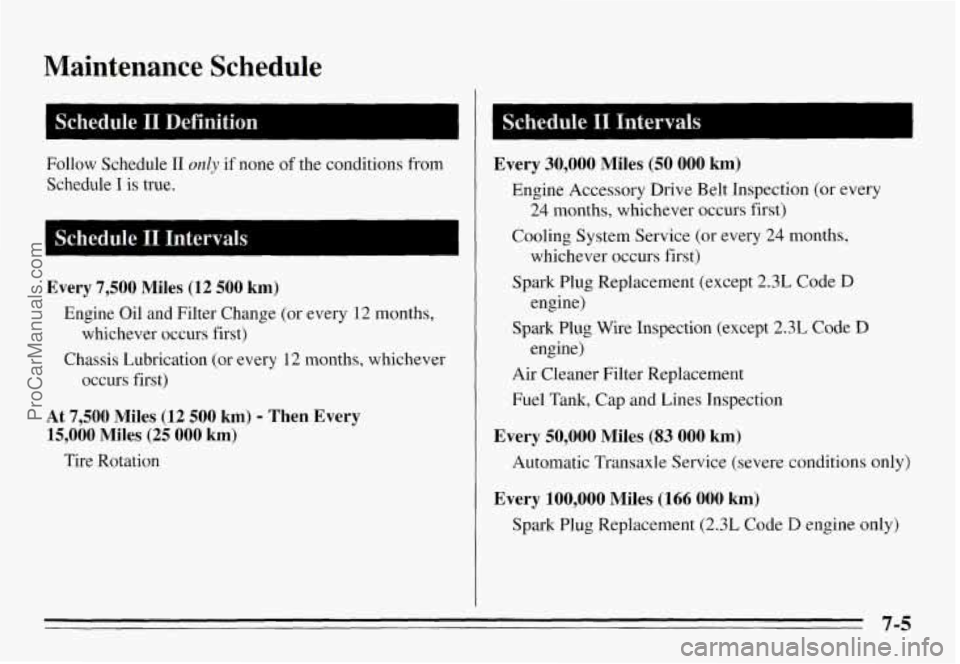

Maintenance Schedule
Schedule I1 Definition I
Follow Schedule I1 ordy if none of the conditions from
Schedule
T is true.
I Schedule I1 Intervals I
Every 7,500 Miles (12 500 km)
whichever occurs first)
occurs first)
Engine Oil and Filter Change (or every 12 months,
Chassis Lubrication (or every
12 months, whichever
At 7,500 Miles (12 500 km) - Then Every
15,000 Miles
(25 000 km)
Tire Rotation
Every 30,000 Miles (50 000 km)
Engine Accessory Drive Belt Inspection (or every
Cooling System Service (or every
24 months,
Spark Plug Replacement (except
2.3L Code D
Spark Plug Wire Inspection (except 2.3L Code D
Air Cleaner Filter Replacement
Fuel Tank, Cap and Lines Inspection
24 months, whichever occurs first)
whichever occurs first)
engine)
engine)
Every 50,000 Miles (83 000 km)
Automatic Transaxle Service (severe conditions only)
Every 100,000 Miles (166 000 km)
Spark Plug Replacement (2.3L Code D engine only)
7-5
ProCarManuals.com

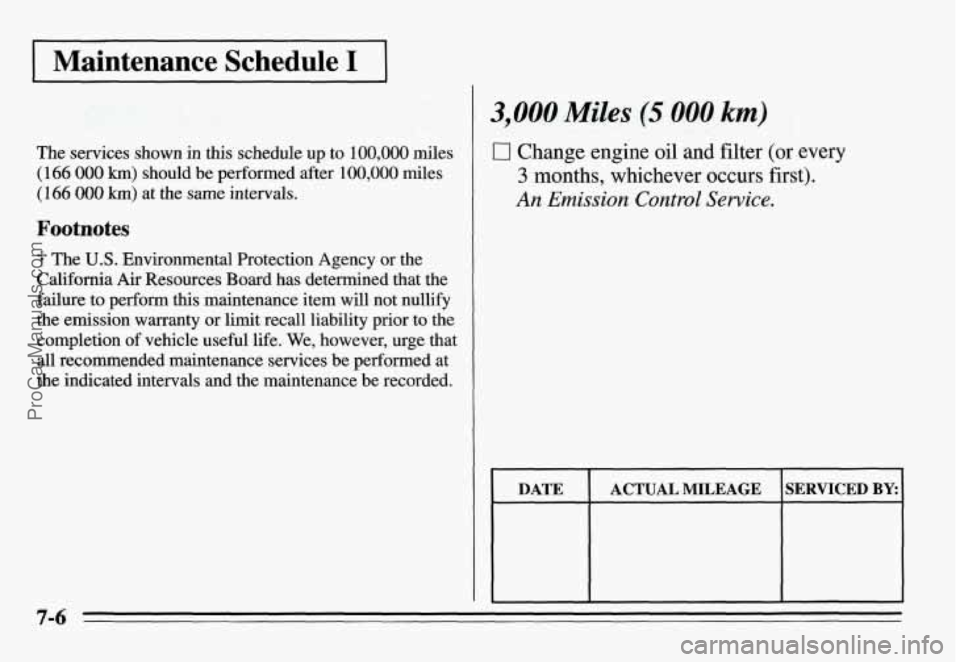

I Maintenance Schedule I 1
3,000 Miles (5 000 km)
The services shown in this schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
(166 OOO km) at the same intervals.
Footnotes
The U.S. Environmental Protection Agency or the
California
Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion of vehicle useful life.
We, however, urge that
all recommended maintenance services be performed at
the indicated intervals and the maintenance be recorded.
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Sewice. ~ ~ ~~ ~ ~~
DATE SERVICED BY: ACTUAL MILEAGE
7-6
ProCarManuals.com

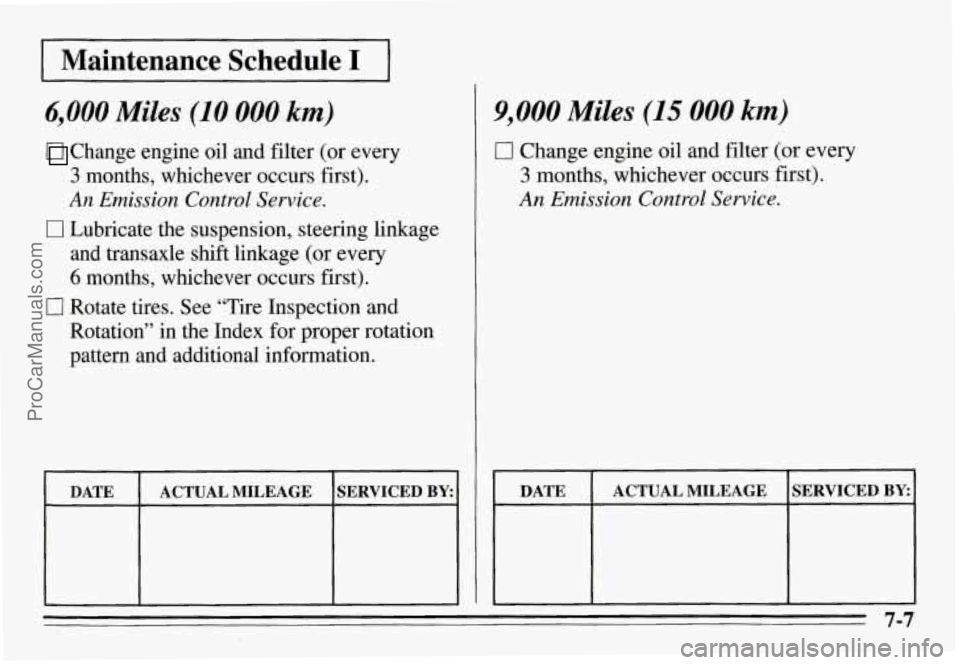

I Maintenance Schedule I I
6,000 Miles (10 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
17 Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
9,000 Miles (15 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
7-7
ProCarManuals.com

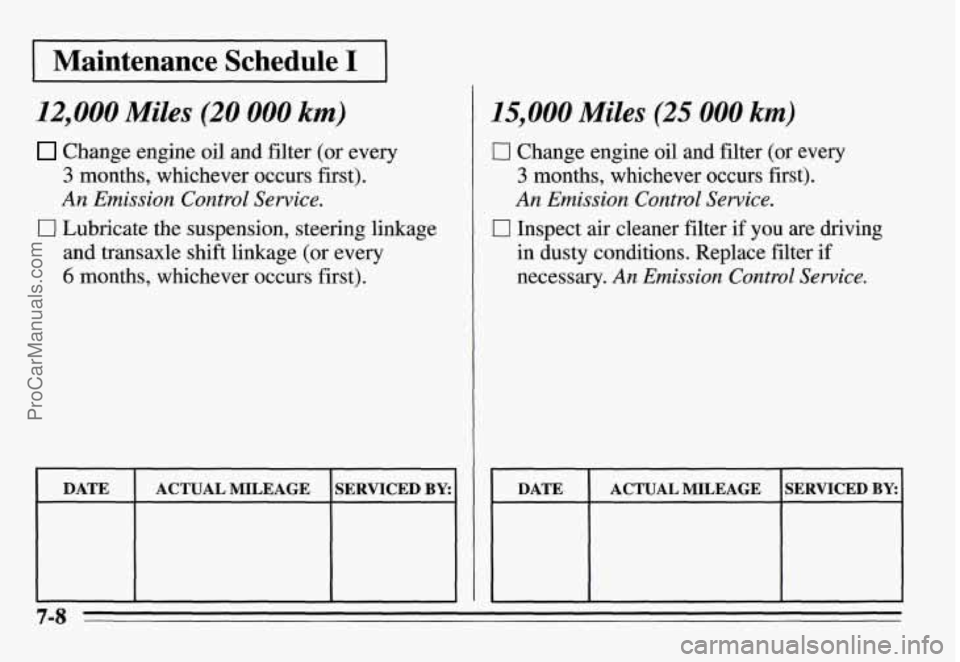

I Maintenance Schedule I I
12,000 Miles (20 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
6 months, whichever occurs first).
DATE
SERVICED BY: ACTUAL MILEAGE
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
17 Inspect air cleaner filter if you are driving
in dusty conditions. Replace filter
if
necessary. An Emission Control Service.
DATE SERVICED BY: ACTUAL MILEAGE
7-8
ProCarManuals.com

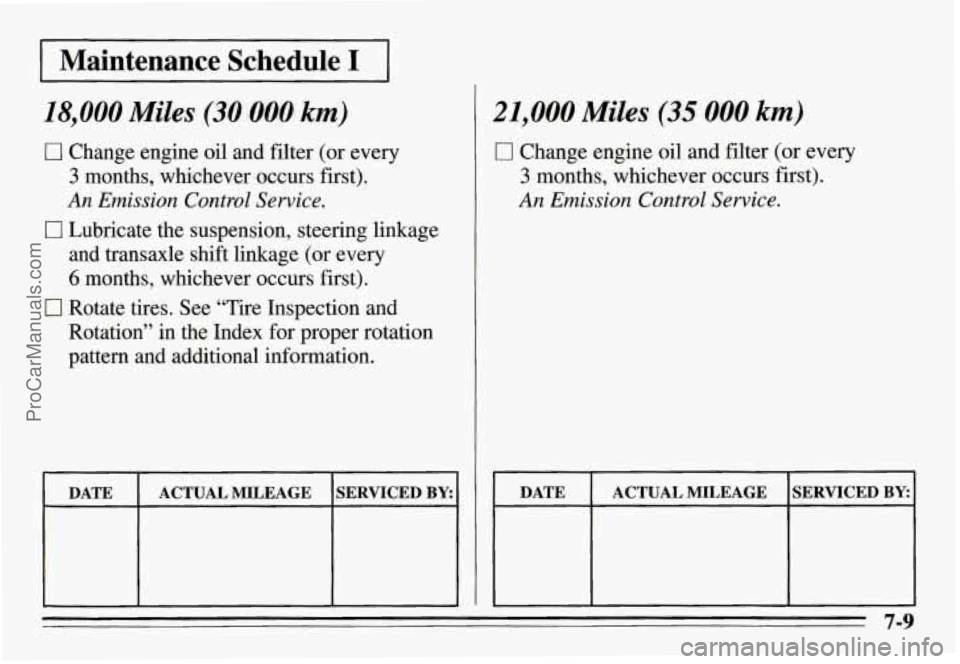

I Maintenance Schedule I I
18,000 Miles (30 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index
for proper rotation
pattern and additional information.
21,000 Miles (35 000 km)
[7 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
7-9
ProCarManuals.com

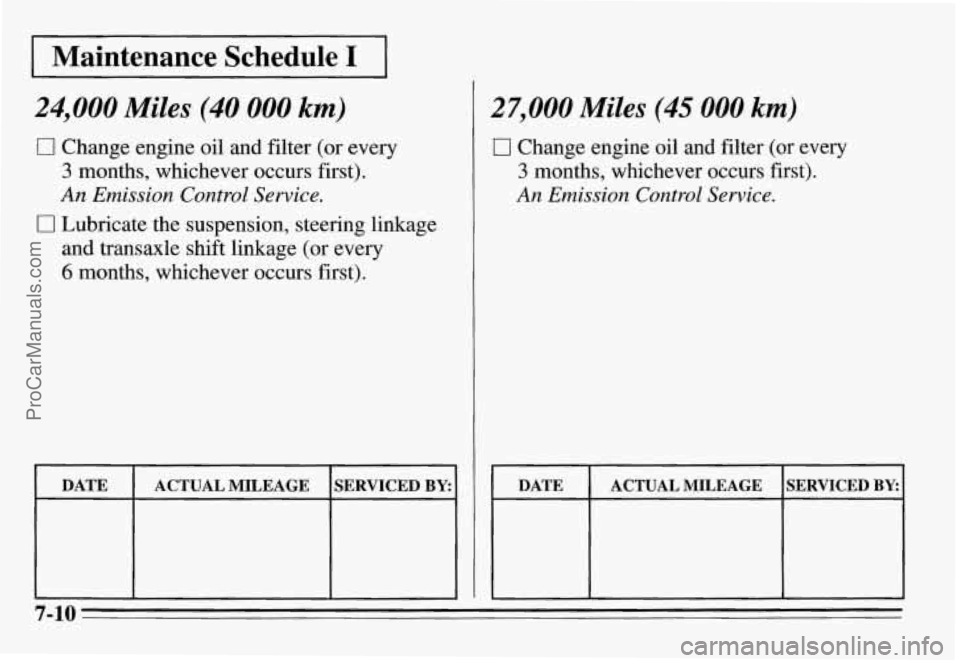

I Maintenance Schedule I I
24,000 Miles (40 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
and transaxle shift linkage (or every
6 months, whichever occurs first).
0 Lubricate the suspension, steering linkage
27,000 Miles (45 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Sewice.
7-10
ProCarManuals.com

I Maintenance Schedule I I
30,000 Miles (50 000 km)
Cl Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
and transaxle shift linkage (or every
6 months, whichever occurs first).
0 Inspect engine accessory drive belt (or
every 24 months, whichever occurs first).
An Emission Control Service
0 Drain, flush and refill cooling system (or
every 24 months, whichever occurs first).
See “Engine Coolant’’ in the Index for what
to use. Inspect hoses. Clean radiator, condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
0 Replace spark plugs (except 2.3L Code D
engine). An Emission Control Service.
I7 Lubricate the suspension, steering linkage
0 Inspect spark ph lg wir es (except 2.3L Code
D engine). An Emission Control Service. 7
more often under dusty conditions.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
0 Replace air cleaner filter. Replace filter
DATE SERVICED BY: ACTUAL MILEAGE
t
