PONTIAC GRAND-AM 1995 Owners Manual

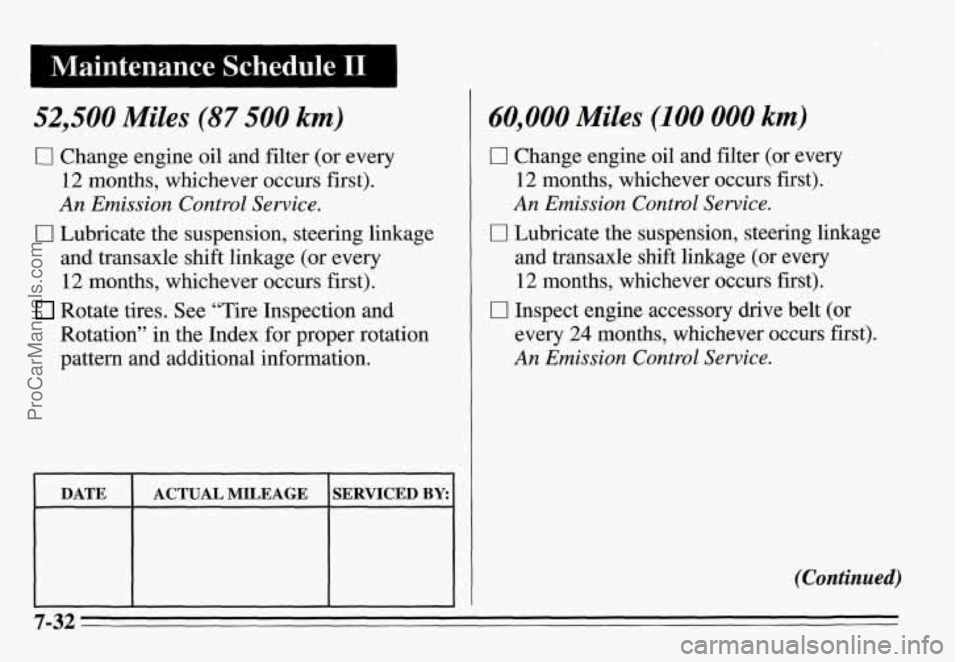

Maintenance Schedule I1 I
52,500 Miles (87 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
and transaxle shift linkage (or every
12 months, whichever occurs first).
Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information.
0 Lubricate the suspension, steering linkage
I DATE I ACTUAL MILEAGE I SERVICED BY: I
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
and transaxle shift linkage (or every
12 months, whichever occurs first).
0 Inspect engine accessory drive belt (or
every 24 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension, steering linkage
(Continued)
7-32
ProCarManuals.com

I
I Maintenance Schedule I1
60,000 Miles (100 000 km) (Continued)
0 Drain, flush and refill cooling system (or
every
24 months, whichever occurs first).
See “Engine Coolant’’ in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
0 Replace spark plugs (except 2.3L Code D
engine). An Emission Control Service.
0 Inspect spark plug wires (except 2.3L Code
D engine). An Emission Control Service.
0 Replace air cleaner filter. An Emission
Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service.
DATE SERVICED BY: ACTUAL MILEAGE
7-33
ProCarManuals.com

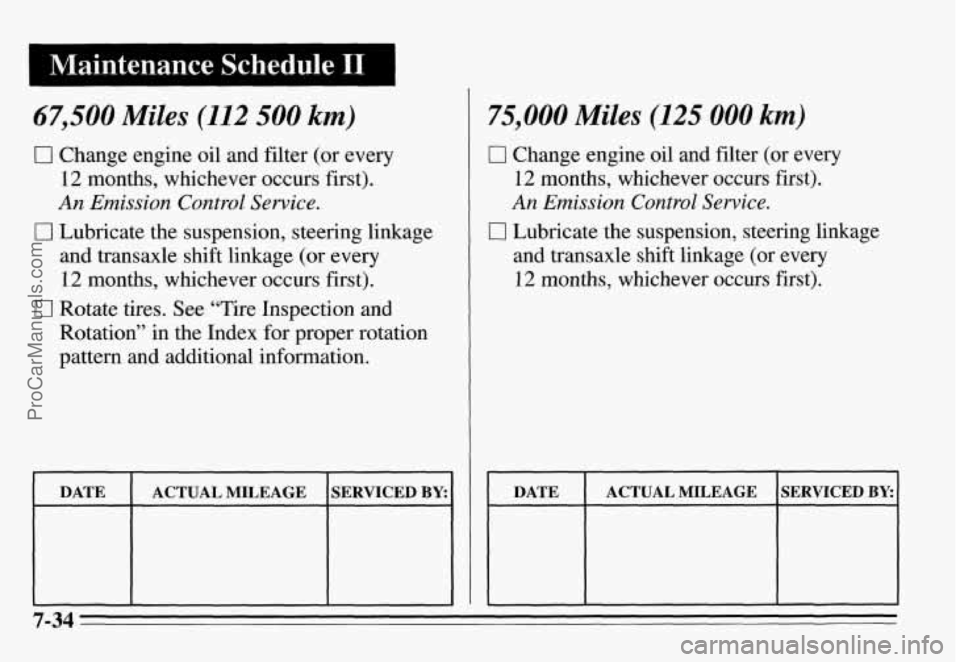

1 Maintenance Schedule I1 1 ~~
~~ ~~ ~
67,500 Miles (112 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
c
C
1 Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
12 months, whichever occurs first).
1 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
I DATE ACTUAL MILEAGE SERVICED BY:
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
12 months, whichever occurs
first).
I I I 1
DATE SERVICED BY: ACTUAL MILEAGE
7-34
ProCarManuals.com

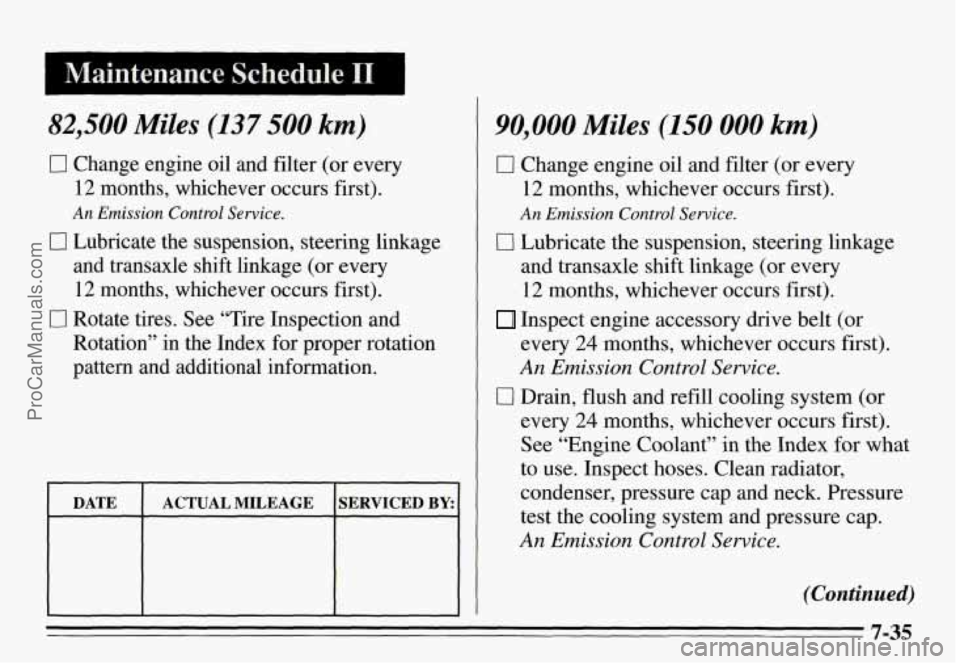

I Maintenance Schedule I1
82,500 Miles (137 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
CI Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
DATE ACTUAL MILEAGE SERVICED BY:
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
12 months, whichever occurs first).
Inspect engine accessory drive belt (or
every 24 months, whichever occurs first).
An Emission Control Service.
17 Drain, flush and refill cooling system (or
every 24 months, whichever occurs first).
See “Engine Coolant” in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
(Continued)
7-35
ProCarManuals.com

Maintenance Schedule I1 I
90,000 Miles (150 000 km) (Continued)
17 Replace spark plugs (except 2.3L Code D
engine). An Emission Control Service.
0 Inspect spark plug wires (except 2.3L Code
D engine). An Emission Control Service.
0 Replace air cleaner filter. An Emission
Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An
Emission Control Service.
DATE
SERVICED BY ACTUAL MILEAGE
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
r I I
DATE SERVICED BY ACTUAL MILEAGE
7-36
ProCarManuals.com

1 Maintenance Schedule I1
100,000 Miles (1 66 000 km)
0 Replace spark plugs (2.3L Code D engine
only).
An Emission. Control Service.
Change automatic transaxle fluid and filter
if the vehicle is mainly driven under one or
more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches 90 OF
(32 * C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
If you do not use your vehicle under any of
these conditions, the fluid and filter do not
require changing.
Manual transaxle fluid doesn’t require
change.
delivery service.
DATE SERVICED BY. ACTUAL MILEAGE
b
7-37
ProCarManuals.com

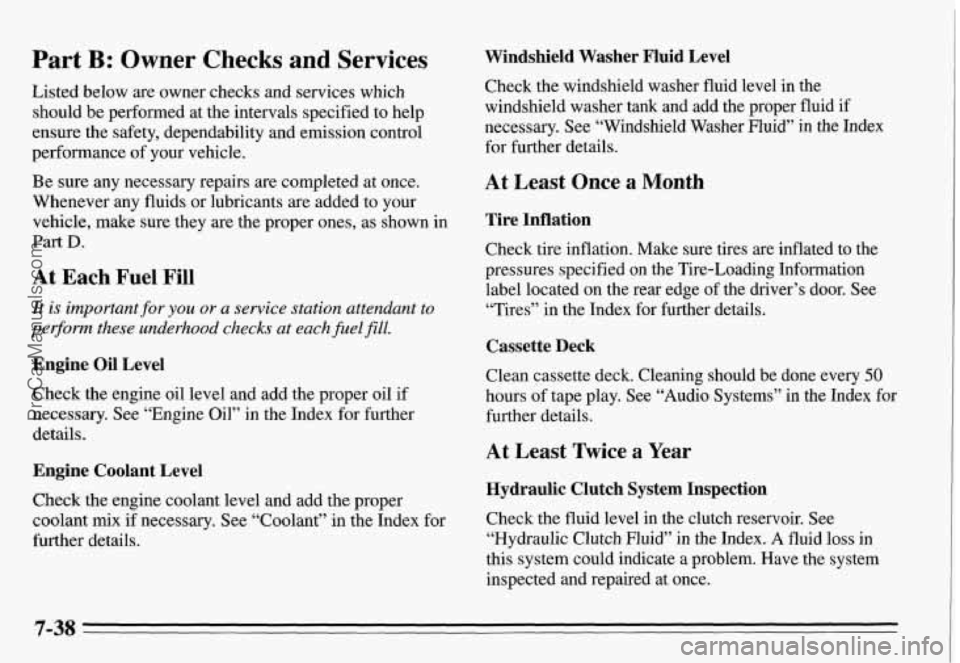

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perfom these underhood checks at eachfuelfill.
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for further
details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant mix
if necessary. See “Coolant” in the Index for
further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label located on the rear edge
of the driver’s door. See
“Tires” in the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every 50
hours of tape play. See “Audio Systems” in the Index for
further details.
At Least Twice a Year
Hydraulic Clutch System Inspection
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index. A fluid loss in
this system could indicate a problem. Have the system
inspected and repaired at once.
7-38
ProCarManuals.com

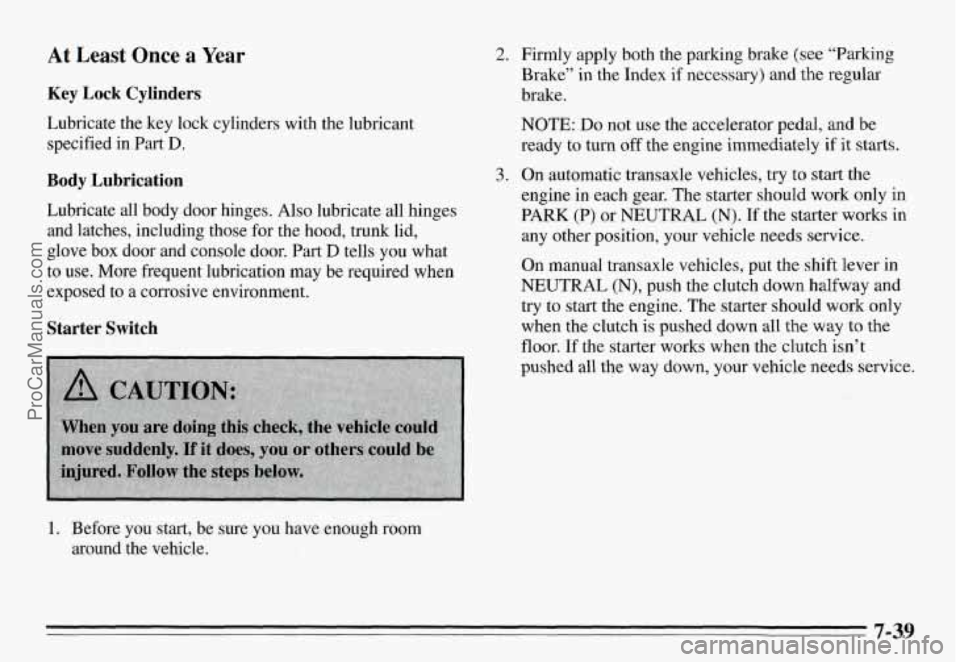

At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant specified in Part
D.
Body Lubrication
Lubricate all body door hinges. Also lubricate all hinges and latches, including those for the hood, trunk lid,
glove box door and console door. Part
D tells you what
to use. More frequent lubrication may be required when
exposed to a corrosive environment.
Starter Switch
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake” in the Index
if necessary) and the regular
brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately if it starts.
3. On automatic transaxle vehicles, try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL (N).
If the starter works in
any other position, your vehicle needs
service.
On manual transaxle vehicles, put the shift lever in
NEUTRAL (N), push the clutch down halfway and try to start the engine. The starter should work only
when the clutch
is pushed down all the way to the
floor. If the starter works when the clutch isn’t
pushed all the way down, your vehicle needs service.
7-39
ProCarManuals.com

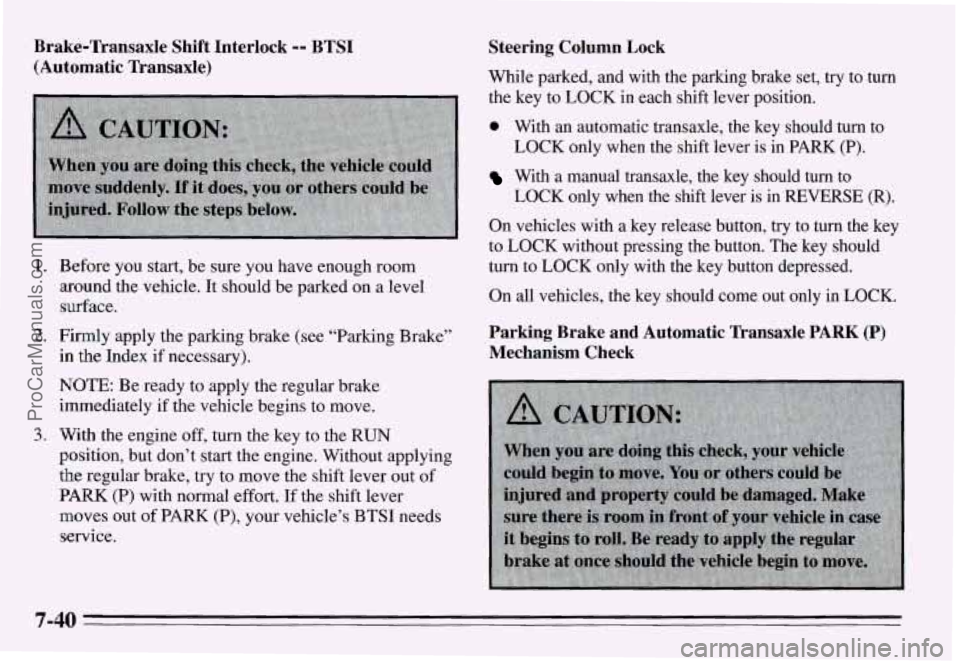

Brake-Transaxle Shift Interlock -- BTSI
(Automatic Transaxle)
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of
PARK (P), your vehicle’s BTSI needs
service.
Steering Column Lock
While parked, and with the parking brake set, try to turn
the key to LOCK
in each shift lever position.
0 With an automatic transaxle, the key should turn to
LOCK only when the shift lever is in PARK
(P).
With a manual transaxle, the key should turn to
LOCK only when the shift lever is in REVERSE (R).
On vehicles with a key release button, try to turn the key
to LOCK without pressing the button. The key should
turn to LOCK only with the key button depressed.
On all vehicles, the key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
Mechanism Check
ProCarManuals.com

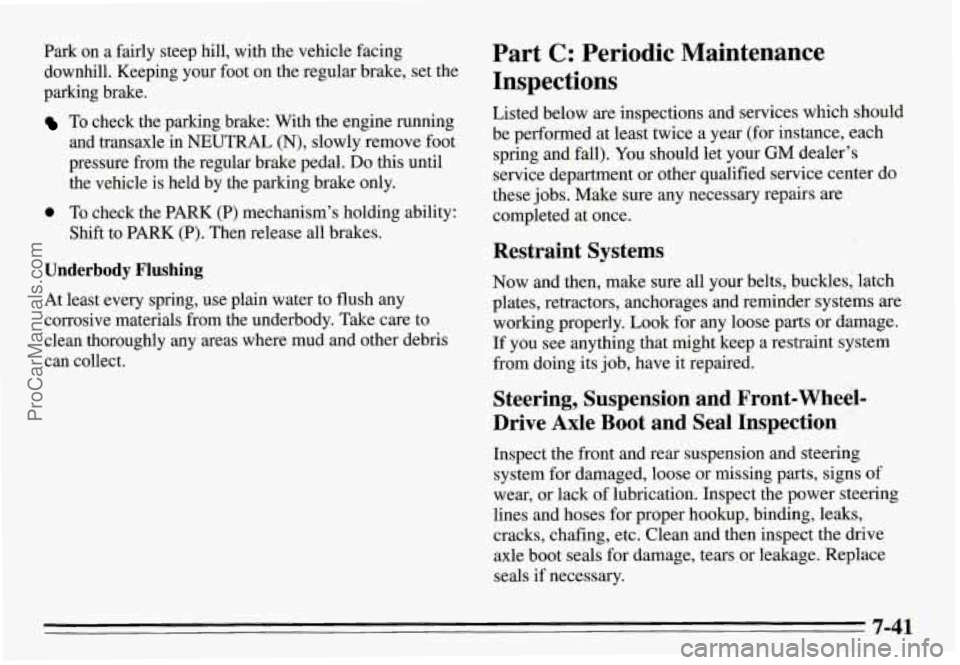

Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake: With the engine running
and transaxle in
NEUTRAL (N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle is held by the parking brake only.
0 To check the PARK (P) mechanism’s holding ability:
Shift to PARK (P). Then release all brakes.
Underbody Flushing
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your
GM dealer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly.
Look for any loose parts or damage.
If you see anything that might keep a restraint system
from doing its job, have it repaired.
Steering, Suspension and Front-Wheel-
Drive Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear, or lack of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
7-41
